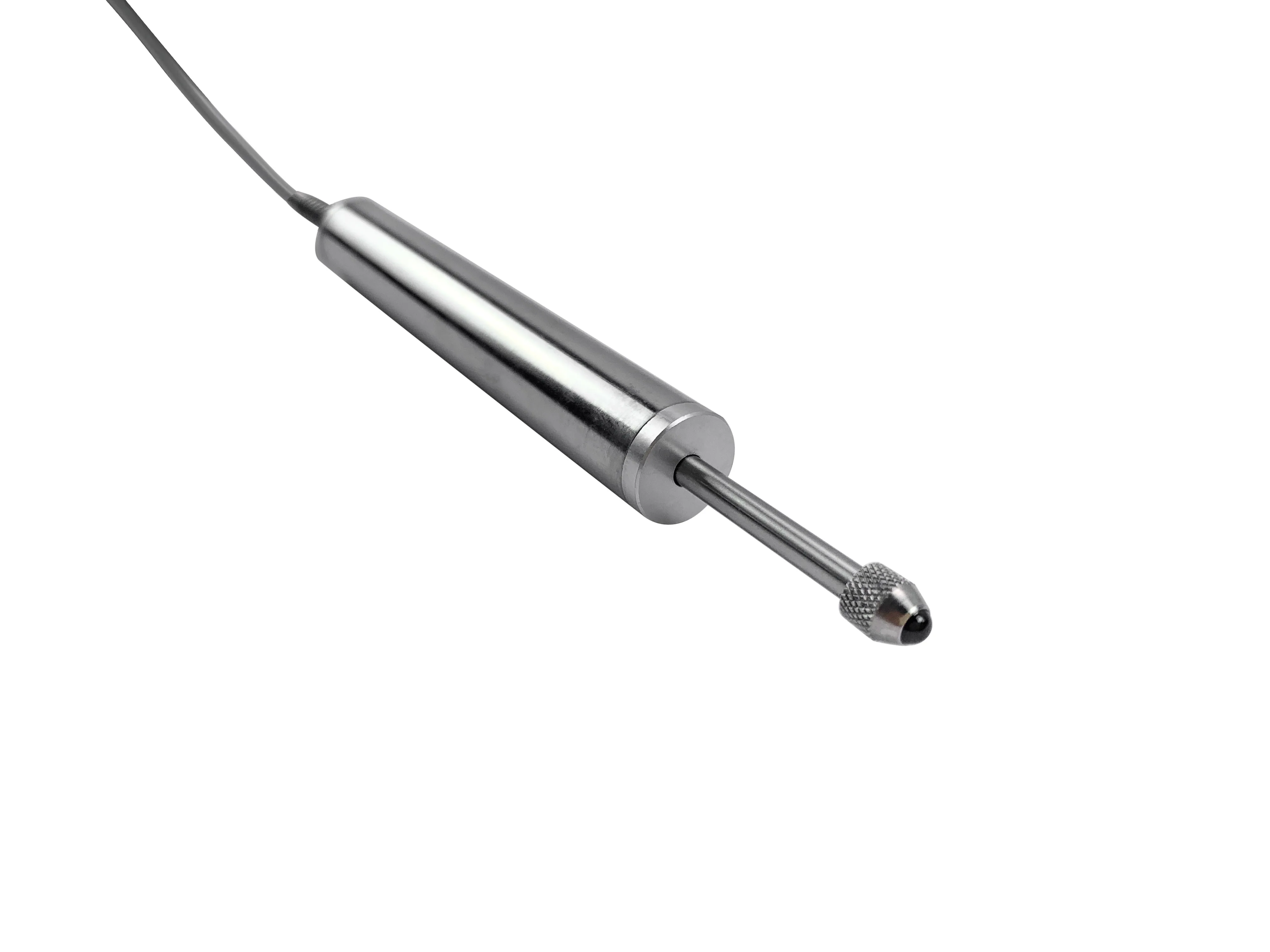

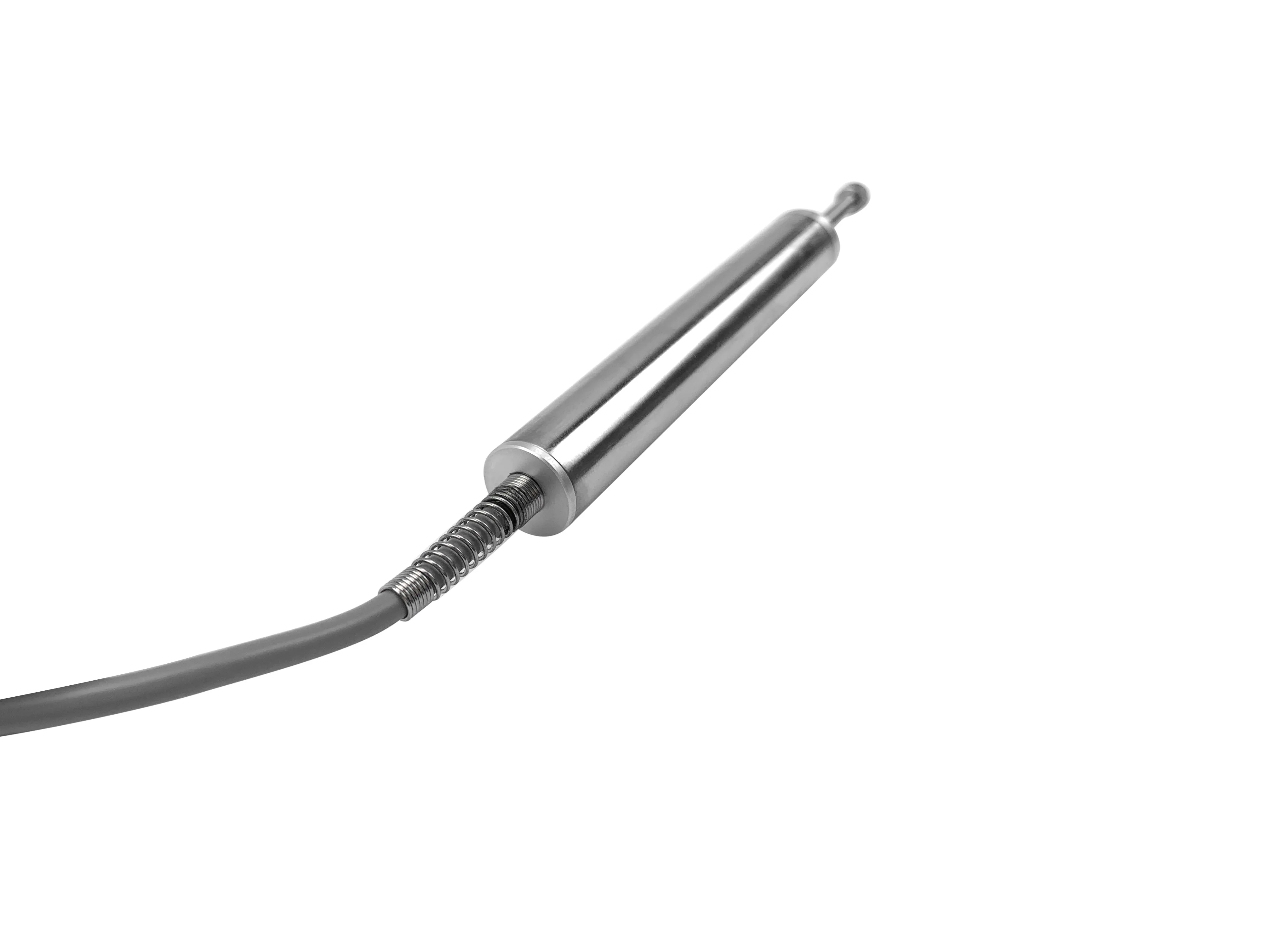

Spring Loaded LVDT20 Transducer Inductive Linear Position Displacement Sensor

Share on (1600548654842):


Price:

Quantity:


Product Overview

Description






Company Information


 .jpgcetificationcetification


MIRAN Technology Co.,Ltd Miran Technology Co., Ltd. is the largest Linear Position Sensor manufacturer in China.Since 2003 we have been developed and produced Linear Position Sensor(brand:MIRAN,LinecSKI,WANSUNG),Wire Rope Potentiometer,Magnetostrictive Liquid Level Sensor,Angle Sensor,Lubricating Pump(Oil/Grease/Butter),LVDT,Eddy Current Sensor, and many other motion control products to support many different industries.As a leading manufacturer in China,our factory is approved by ISO9001:2008, and all our products have CE, CCC,Rohs certificates.Our Principles: Quality First, Credit First, Customer First.Our Advantages 1. Strong capability in Research&Design.We spend million dollars every year for developing new tech and new products. 2. Promise high quality after strict tests. Every product will go through vibration test, low and high temperature test,electromagnetic interference regulatory test,endurance test, and explosion proof test. 3. Strong production capacity. We have factories both in Shenzhen and Hubei Province, and also a lot of in-stock products in warehouses. We can meet large demands from our customers, and deliver the orders on time. 4. Excellent sales & after-sales service. We are headquartered in Shenzhen, and have branches all over China. We guarantee life-long for all products.We can offer you the competitive perfect products.We also support to put your logo on the products if you need.Hope we can build up the long-term and harmonious business relationship!








Product Description

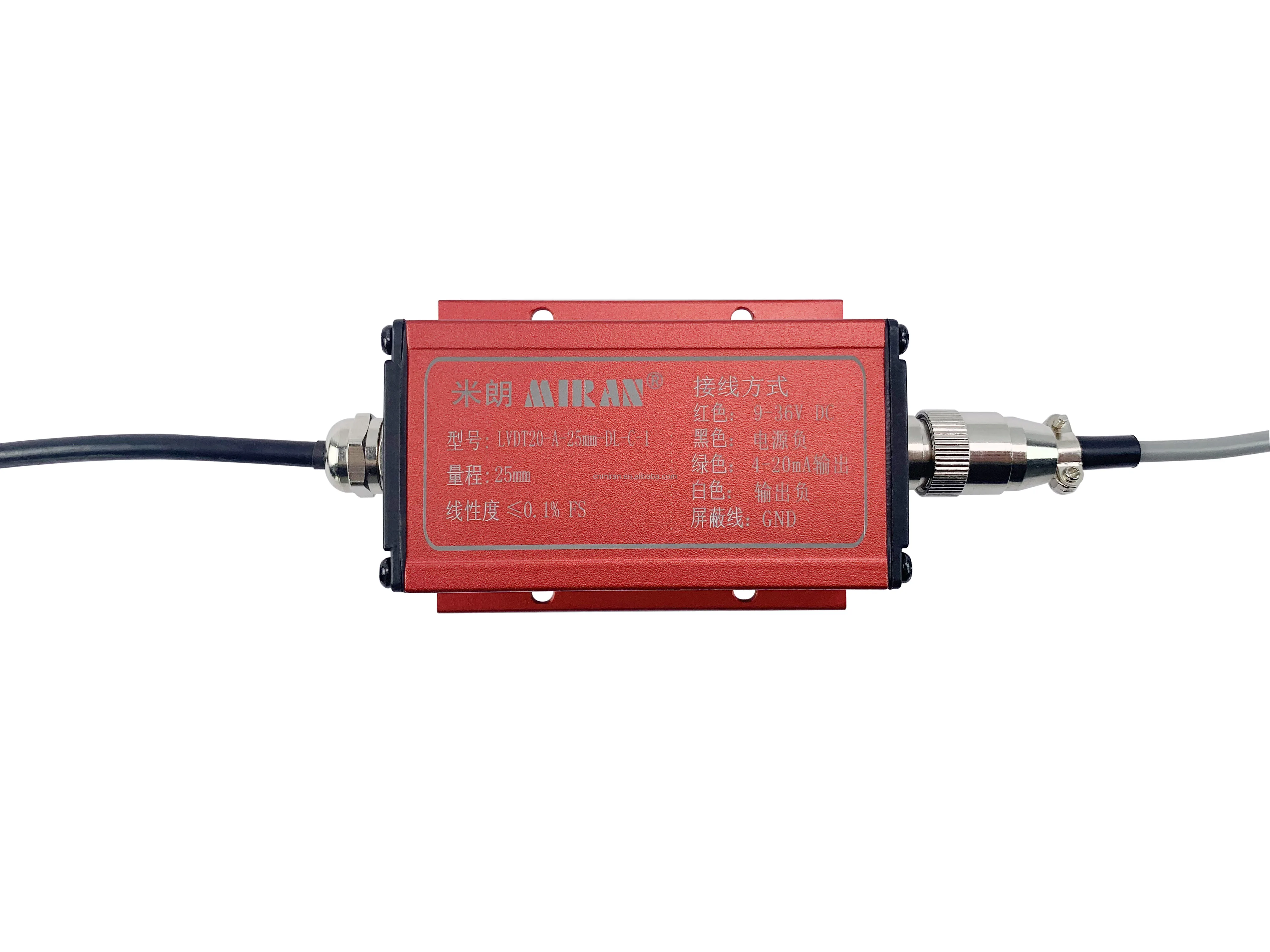

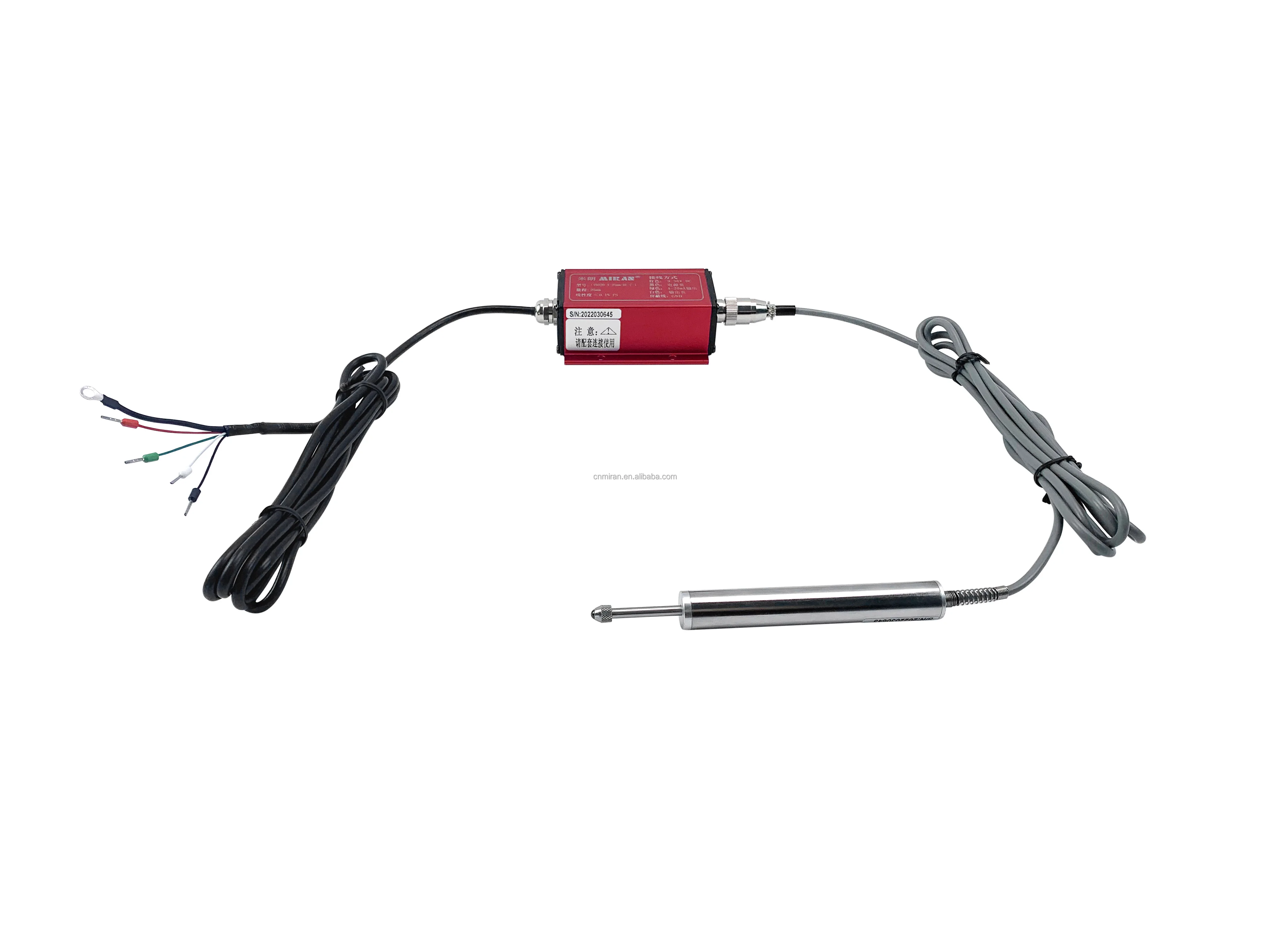

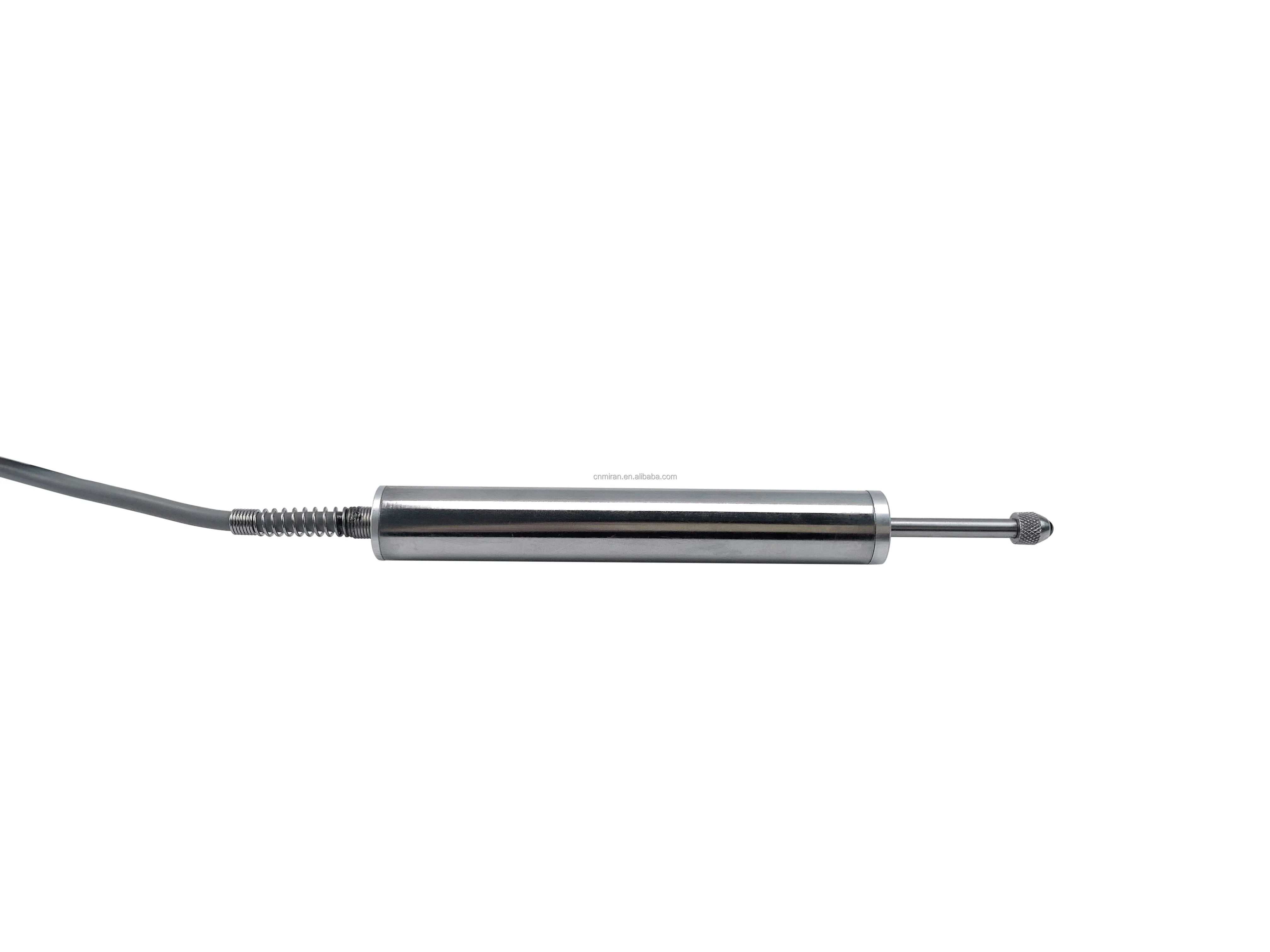

 LVDT20-A-25MM-DL-C-1 (1).jpgLVDT20-A-25MM-DL-C-1 (2).jpgLVDT20-A-25MM-DL-C-1 (3).jpgLVDT20-A-25MM-DL-C-1 (4).jpgLVDT20-A-25MM-DL-C-1 (5).jpglvdt20









Product details










































































Model Number


LVDT20-100 mm


Measurement stroke


0-100 mm


Brand


MIRAN


Linearity


0.25% FS


Place of Origin


China


Resistance


5K Ω


Certification


ISO


Input


3V~42V


HS code


8543709990


Output


0~5V DC, 0~10V DC,
4~20mA


Housing material


Aluminum case


Max Motion Speed


10 m/s


Theory


Resistance Sensor


Resolution


Infinite


IP rating


IP 67


Temperature


-60℃~+150℃


Transport Package


Packed in PVC tube with foam


Repeatability accuracy


± 0.01 mm


Very long life


>100*106 cycles, >25*106m







































































LVDT Technical parameter



Differential transformer displacement sensor(LVDT)


LVDT8


LVDT20



Output



0~5V (3 wires, 12~24V DC voltage)


2mm
5mm
10mm


5mm
10mm
20mm
25mm
40mm
50mm
100mm


0~10V(3 wires, 12~24V DC voltage)


4~20Ma(2 wires, 12~24V DC voltage)


Digital output(12~24V DC voltage)


Repeatability accuracy


<1 um


Definition


<0.2 um, 16bit for digital signal output


Working temperature


-25~85℃


Working current


<12mA for voltage output;
4~20mA for 2-wire current output


Shock absorb


250g/11ms


Vibration absorb


10g/2K Hz


Sensitivity


<0.025%/℃


Excitation voltage


3Vrms(1~3Vrms)


Excitation current


5KHz(1~10K Hz)
