Product Overview

Description

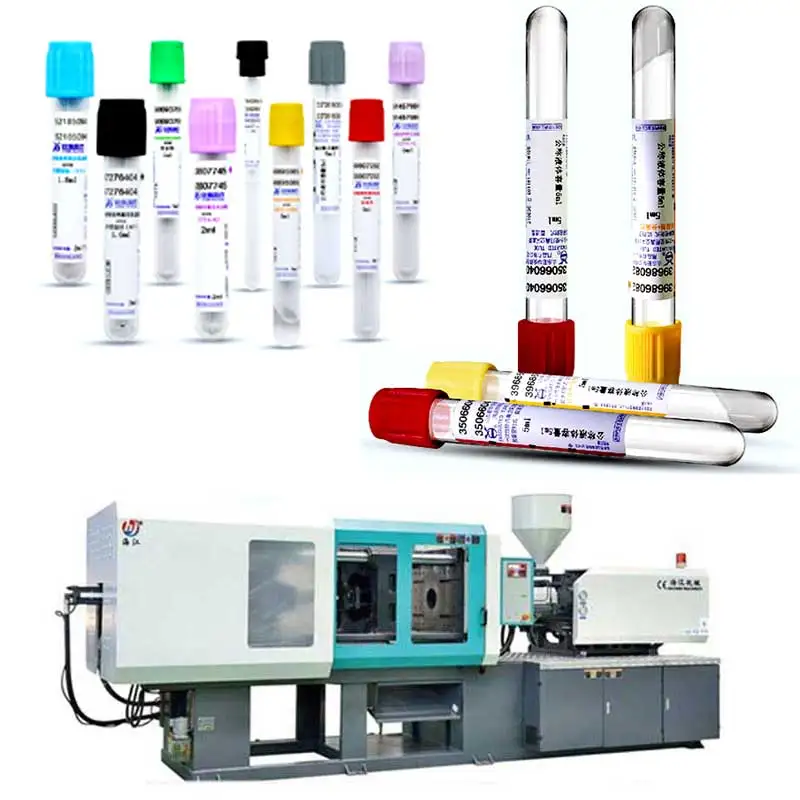

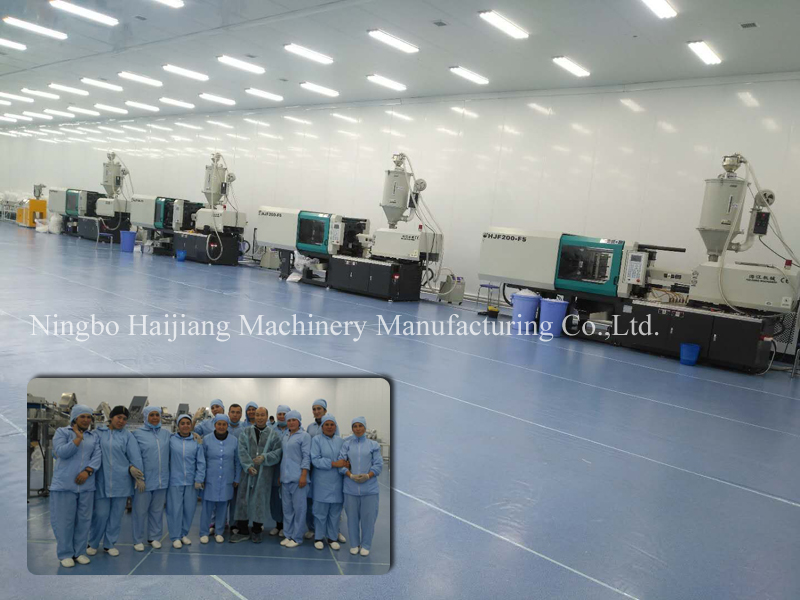

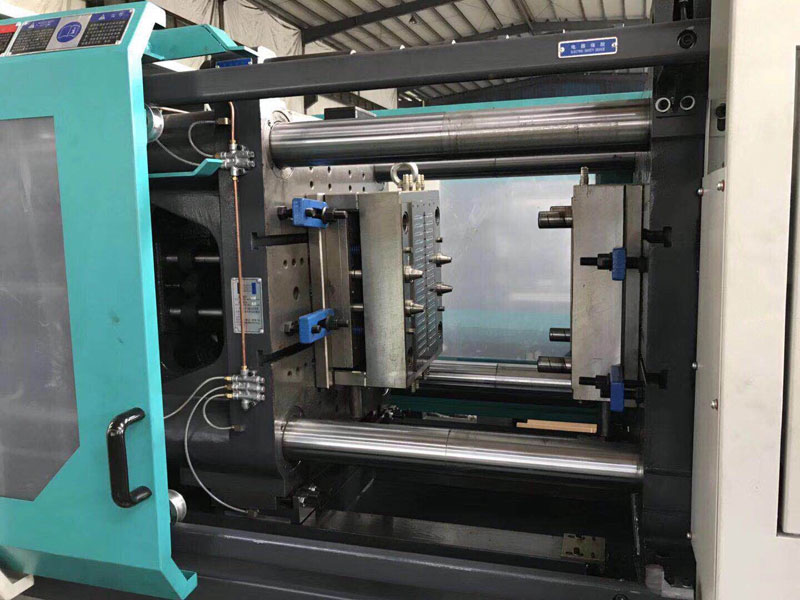

hospital needle disposable medical syringe making injection molding machine



We supply syringe making machine  from 25T to 3000T, including color chips making machines, energy saving injection molding machines, gears making machines, dual clear color injection molding machine bakelite injection molding machines, PET preform injection molding machines, Fixed pump and variable pump injection molding machines, PVC fitting injection molding machines and etc.

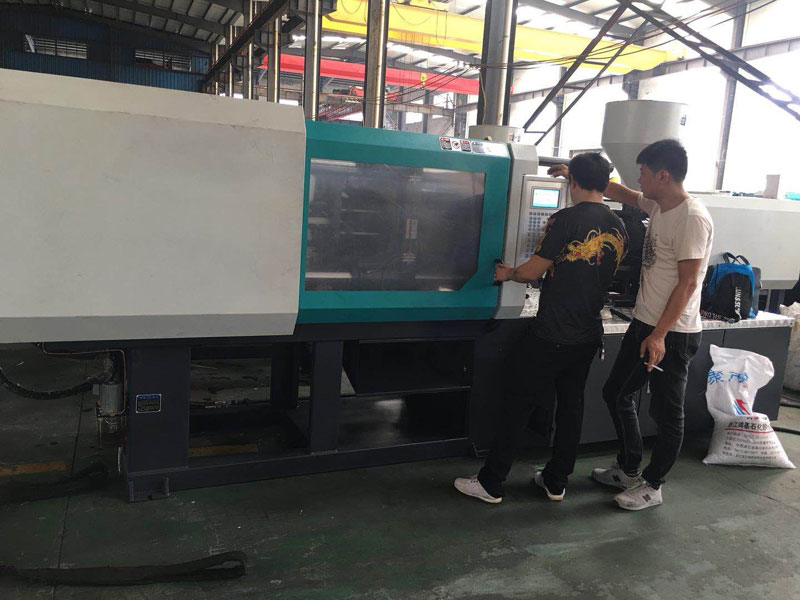

118T  Injection Molding Machine  main technical datas as below;



Parameter	Unit	HJF140-F5
Screw diameter	mm	A	B	C
		38	42	45
Screw I/D ratio	L/D	22.1	21.6	19.5
shot volumn (theoretical)	Cm3	215	263	302
injection weight(PS)	g	193	236	271
injection rate	g/s	94	105	135
injection pressure	Mpa	205	159	140
screw speed	r/min	0~220
clamp force	KN	1400
opening stroke	mm	380
space between tie bars (W*H)	mm	420*420
max mould height	mm	450
min mould height	mm	170
ejector stroke	mm	120
ejector force	KN	33
ejector number	PC	5
max pump pressure	Mpa	16
pump motor power	KW	11
heating power	KW	7.2
machine dimension	M	4.2*1.2*1.7
machine weight	T	4.2
oil tank capacity	L	230
