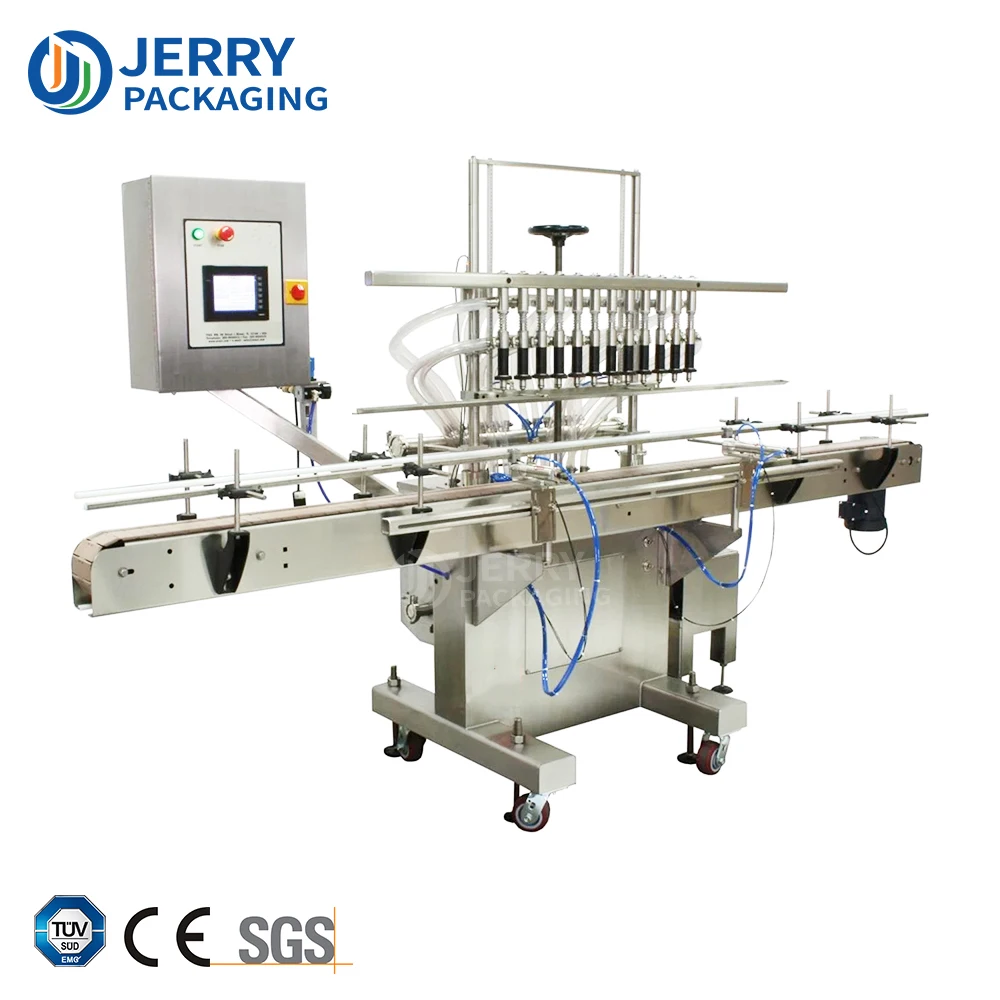

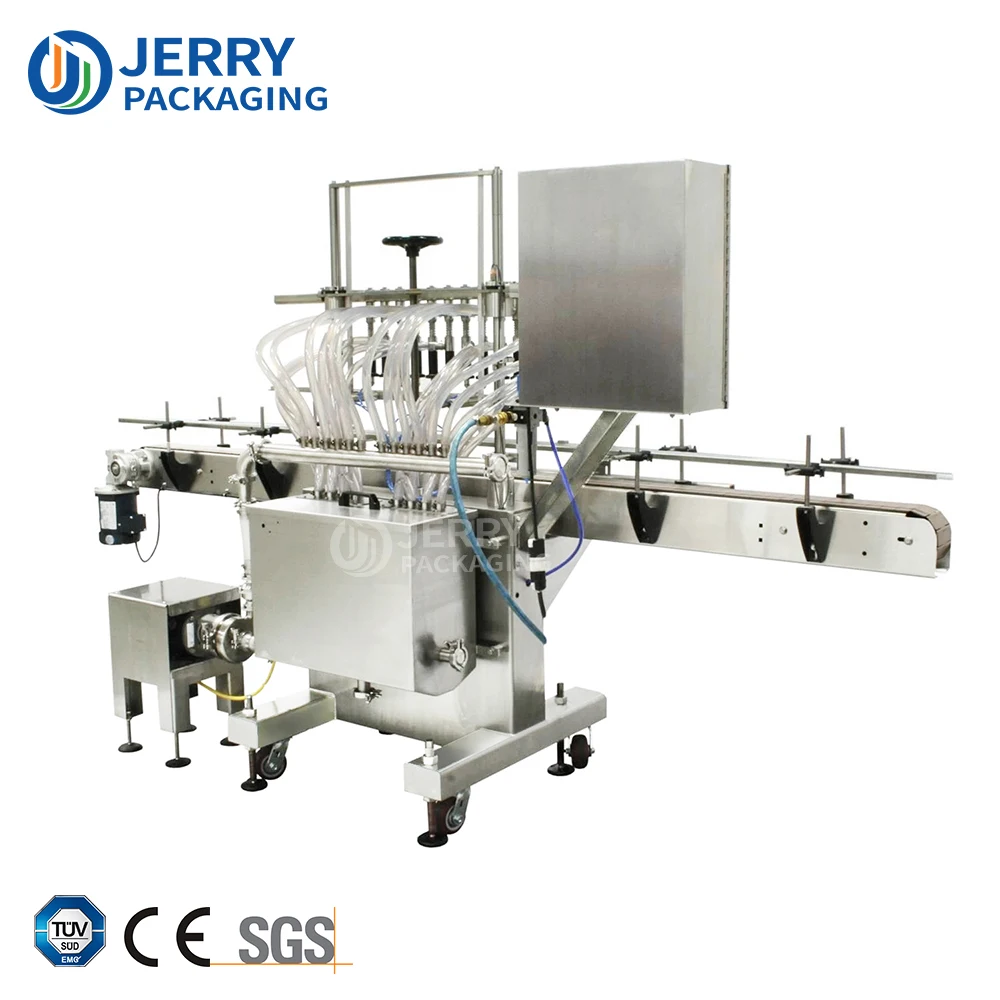

Automatic Linear Overflow Filler Red Spirits Wine whiskey Vodka Liquor Drinks Liquid Glass Bottle Filling Capping Line Machine
- Category: >>>
- Supplier: Changzhou Jerry Packaging Technology Co. Ltd.
Share on (1600548661490):
Product Overview
Description
Products Description
Equipment Description：
The automatic pressure overflow filling machine is suitable to fill all kinds water based liquid in food and drinking industry, like wine, milk, liquor, vinegar, juice, mineral water etc... keep in the consistent visual fill level.
Product Application
Product Features

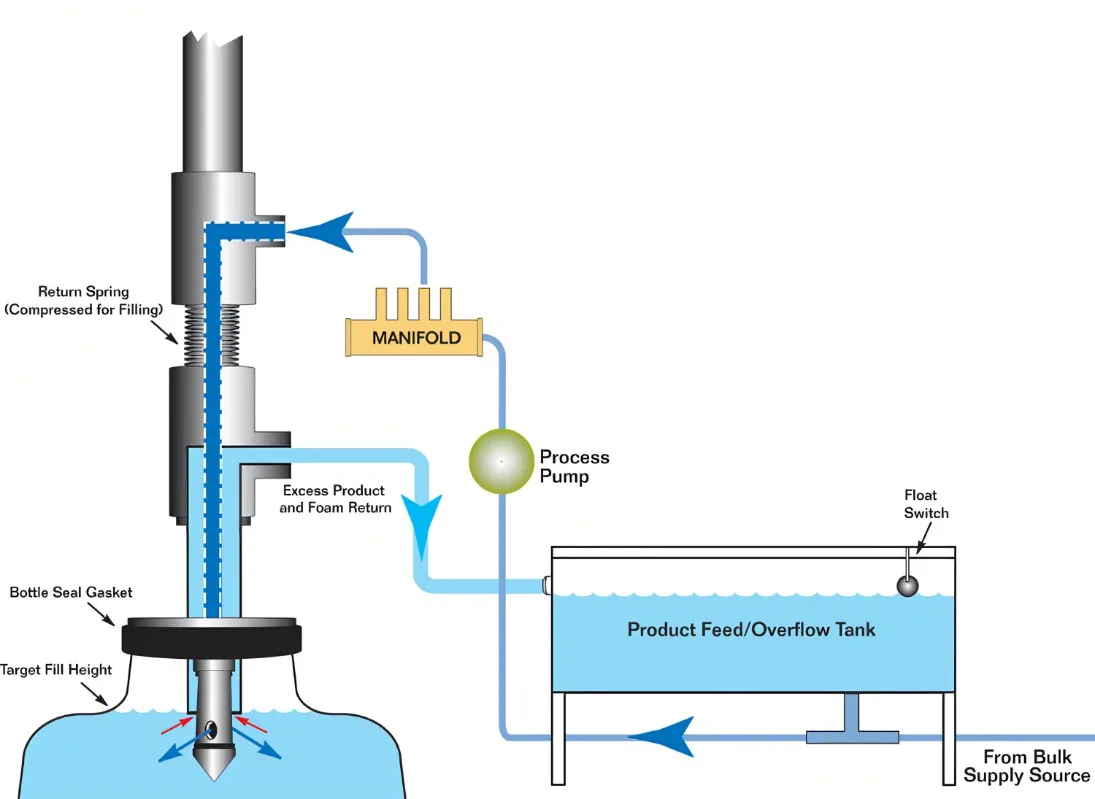

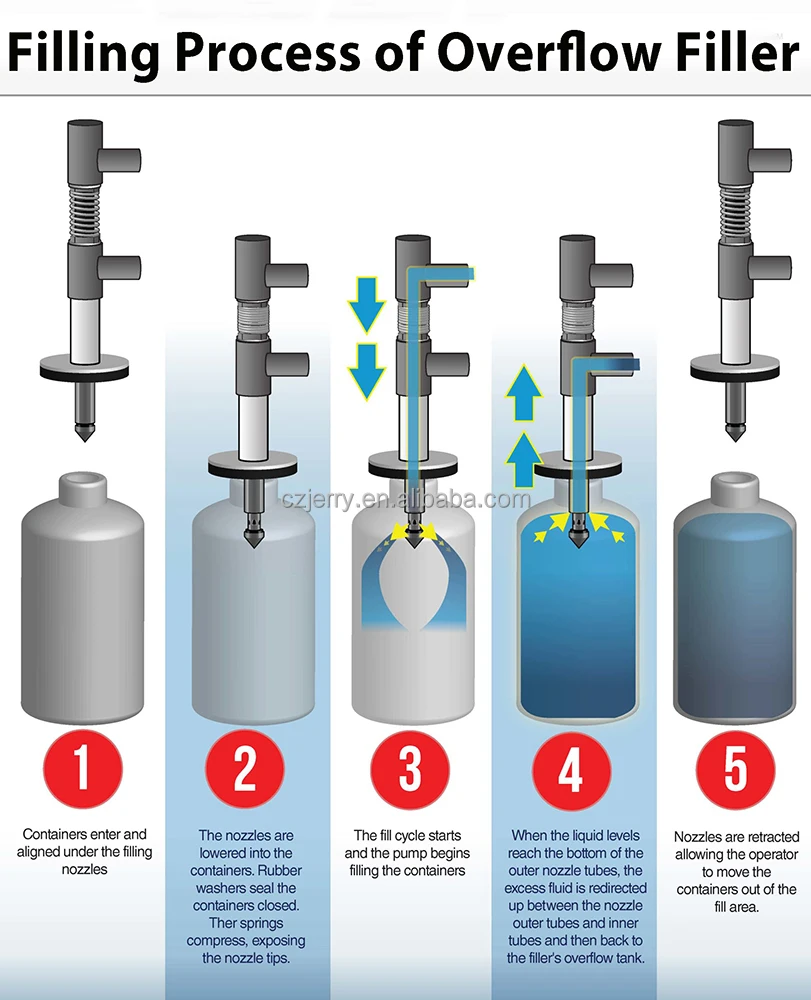

The desired product to be filled is held in a stainless steel reservoir, then pumped into a manifold to disperse product to each of your filling nozzles. Once the product reaches your desired cosmetic fill level in each bottle, excess product or foam overflows back to the reservoir. Advantages of the Overflow Filler include even fill levels,variable pressure pump speed control (to reduce foam), and ease of operation.
In the same filling level:
Automatic Pressure Overflow Filler is typically used in consumer packaging applications where a consistent visual (spirits,wine,or cosmetic) fill level is required.

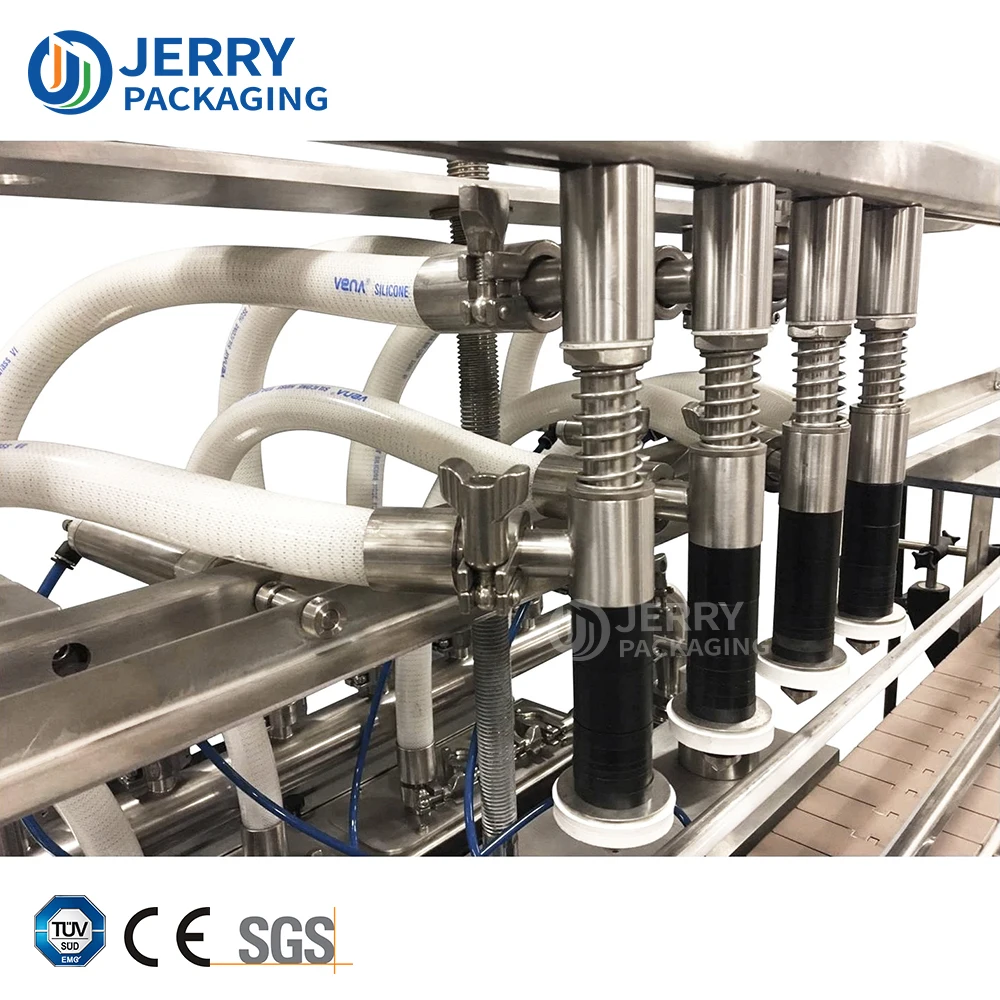

Filling system

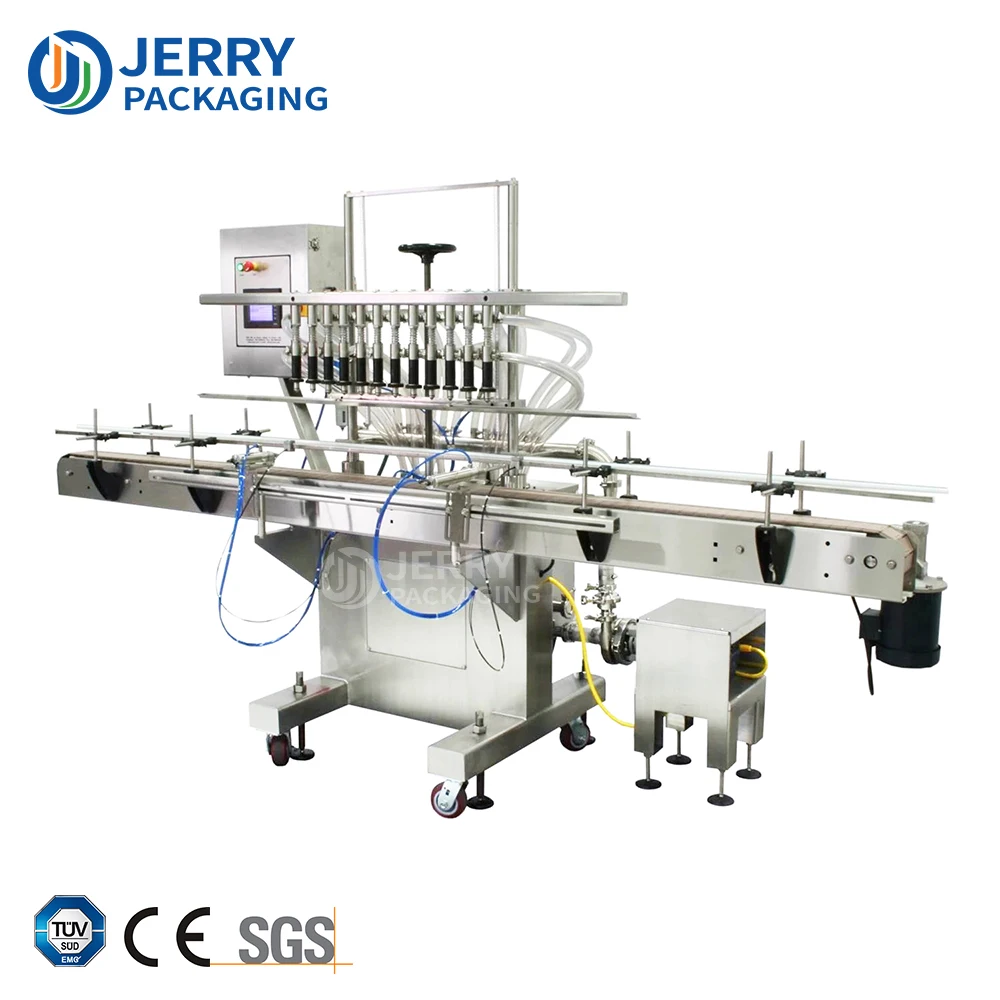

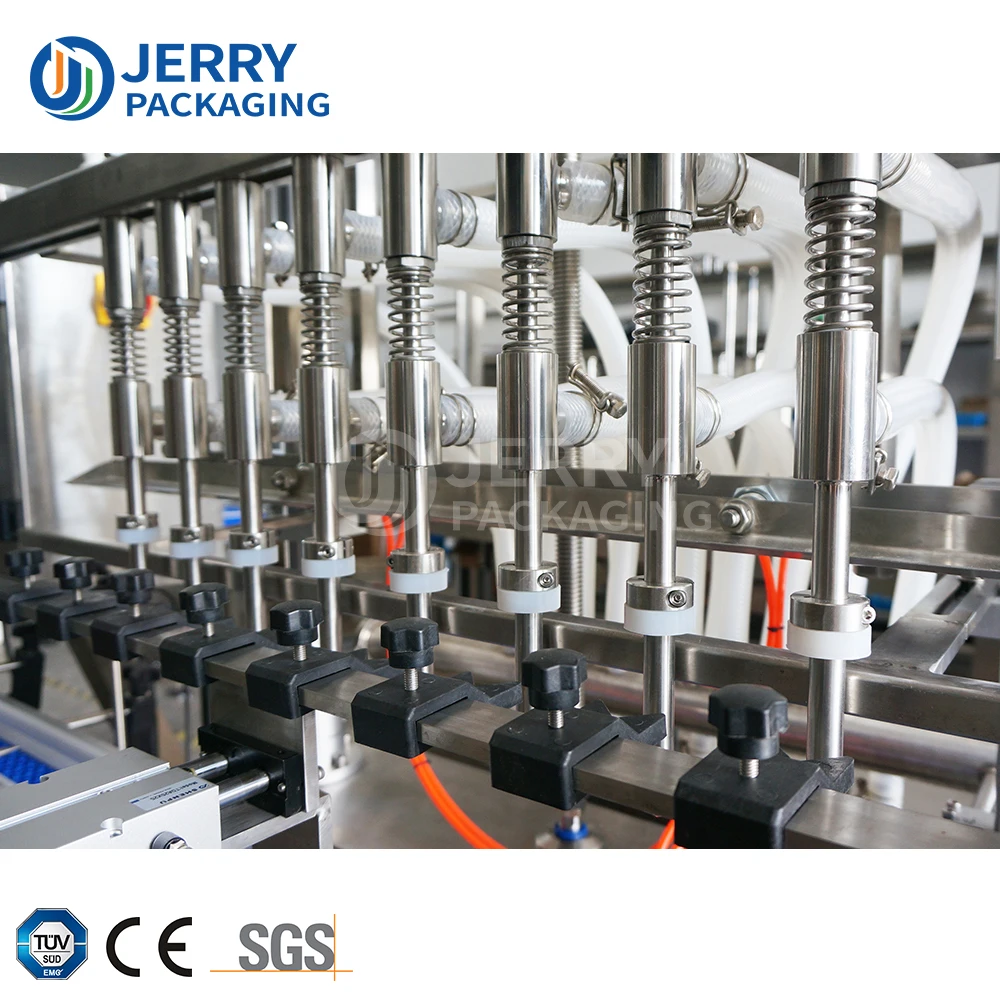

In the picture is the 8-heads filling machine.
The speed is about 2000 BPH based on 750 ml.
Can customize different (2/4/6/8/12/16) heads according to different requirements .
The speed is about 2000 BPH based on 750 ml.
Can customize different (2/4/6/8/12/16) heads according to different requirements .
Controlling system
The automatic pressure overflow filling machine adopts full-auto PLC + human-computer touch screen control system.
For different volume for example, 500ml, 1000ml, 2000ml, we set three procedures, mode 1, mode 2, model 3``` The PLC can save these parameters for later use.
Operators do not need too much complicated adjustments; the filling machine can switch between the three models easily.

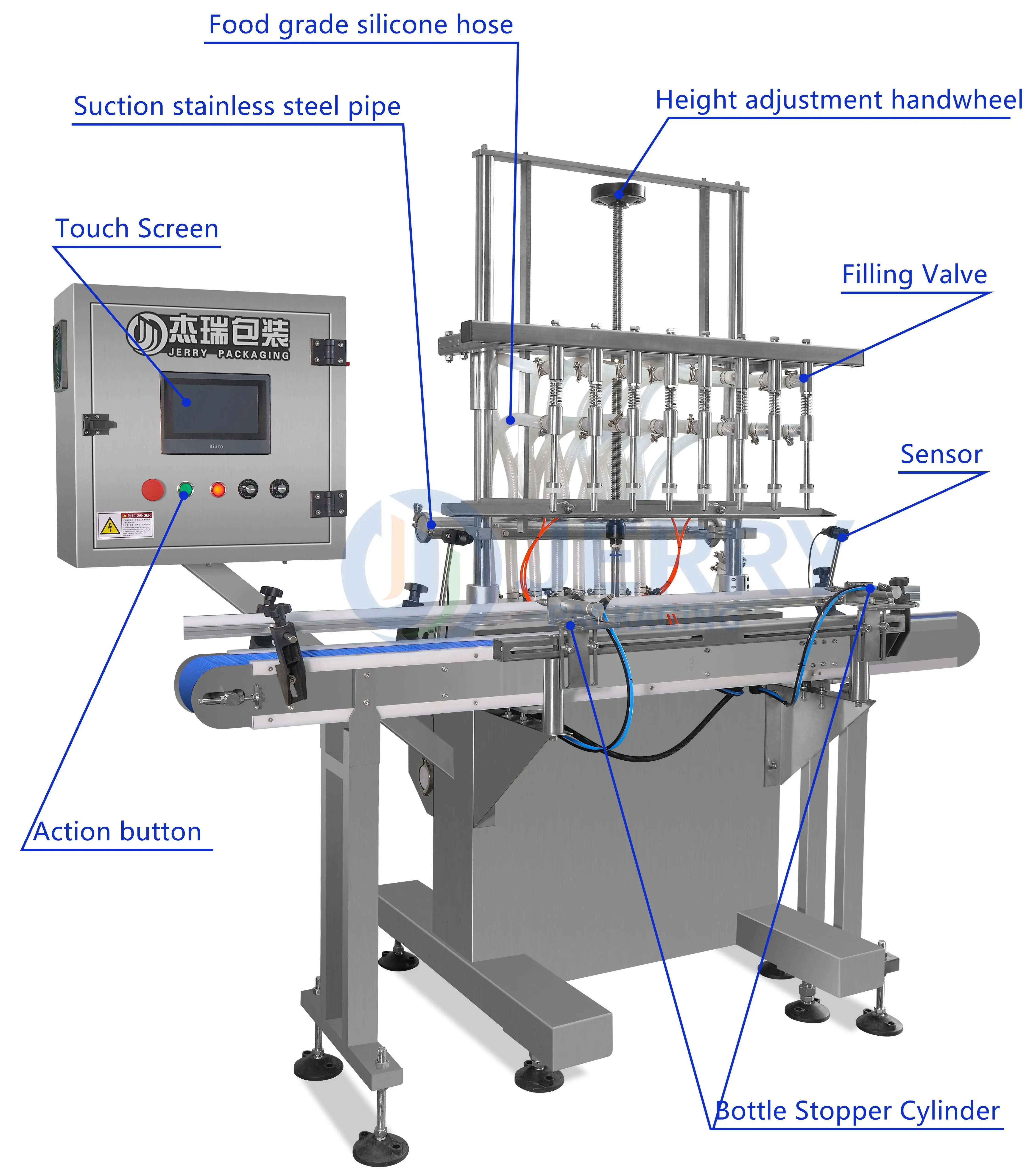

Machine component
All the contacted part with the liquid is made by Stainless steel 316L. Other parts are made by stainless steel 304.
Use world word-class brand components:
Photo sensor---Sick (Germany) ;
PLC---Mitsubishi (Japan);
Electrinic control part--- Mitsubishi (Japan);
Touch screen---Kinco (Shanghai) ;
Cylinder--AirTAC (Taiwan)
Technical parameters
Voltage | 220 volts,single phase, 60/50 Hz |
Filling range | 100ml-5000ml |
Filling accuracy | 0.5%-1% |
Air source pressure | 0.6-0.8 MPa |
Filling heads | 2/4/6/8/10/12/16 (can be customized) |
Filling speed | 2000 BPH ( based on 8 heads, 750 ml ) |
