standalone access controller IP65/IP68 waterproof keypad access control wireless outdoor access control card reader
- Category: >>>
- Supplier: Shenzhen Ximi Technology Limited
Share on (1600548668214):
Product Overview
Description
Product Description

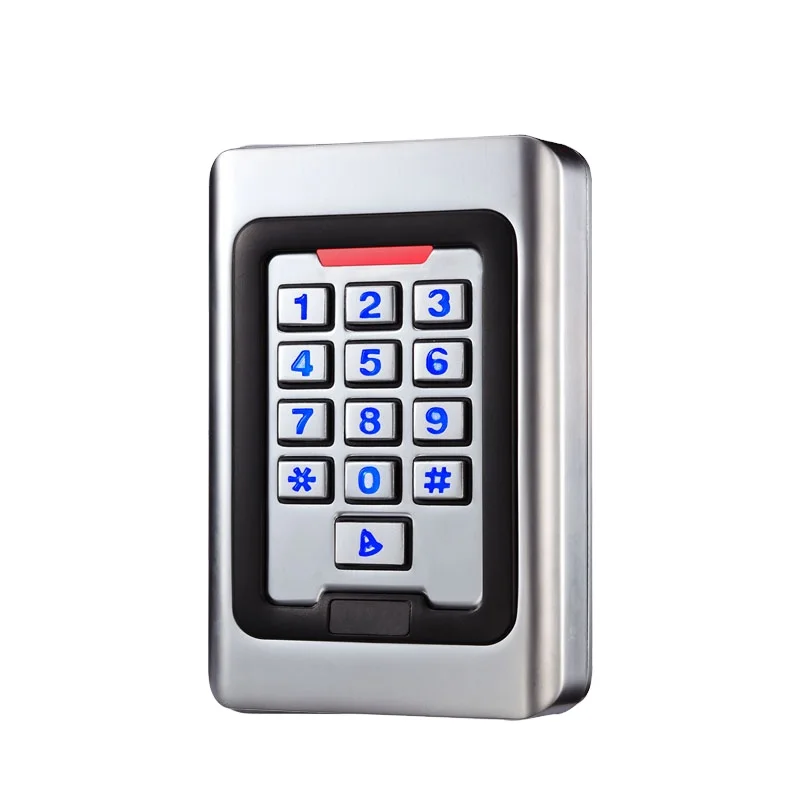

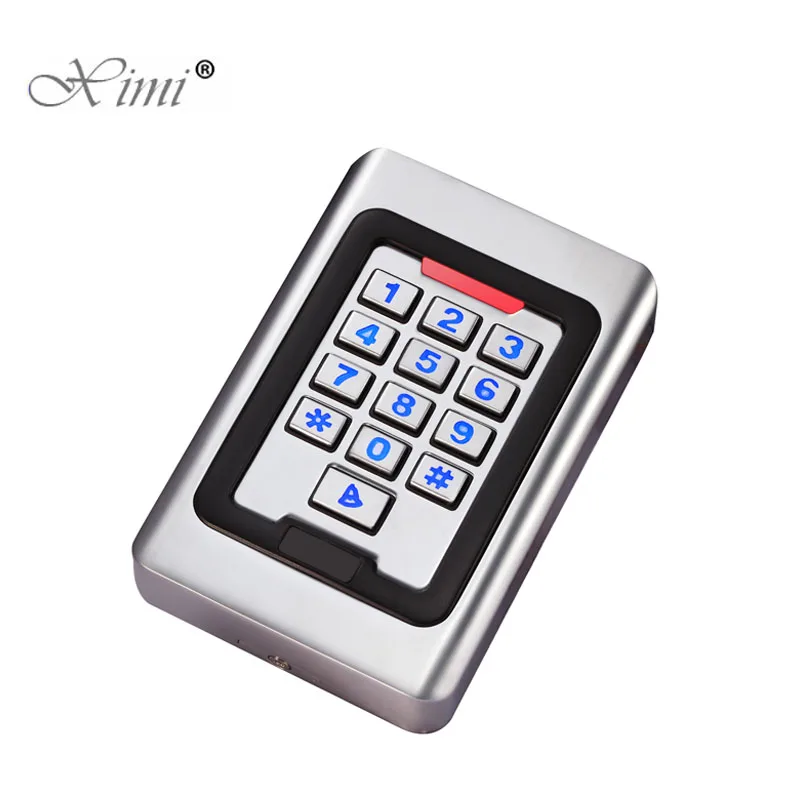

K9 is a standalone durable metal access control terminal with metallic case optional IP65 and IP68 waterproof rate, good quality and simple operating, widely use for government, hospital, apartment, office and so on.
Features
1. The excellent design, noctilucent keyboard , silver plating, fashion style.
2. The multi-function equipment, can use as WG26 card reader.
3. The high and low temperature environment to use..
4. The storage capacity of 2000 user card, 2000 user password.
5. Open three ways: card, password. Card and password.
6. Ultra-low power consumption: Standby current is less than 30 ma.
7. Noctilucent keyboard: Be able to operate the keyboard at night.
8. Large capacity of users: support 2000 users.
9. Independent password
10. Change password: The user can modify the code itself.
11. Identify speed: Swipe to open the door of time is less than 0.1 S.
12. Weigand output: with weigand output interface, can output Wg26 card number or Wg34 number keys.
13. Delete cards: When the card lost, It is available to use the keyboard to remove, and eliminate potential safety problems.
14 The output short circuit protection: Electric lock or alarm output short circuit within the 100 muS output will be automatically closed.
2. The multi-function equipment, can use as WG26 card reader.
3. The high and low temperature environment to use..
4. The storage capacity of 2000 user card, 2000 user password.
5. Open three ways: card, password. Card and password.
6. Ultra-low power consumption: Standby current is less than 30 ma.
7. Noctilucent keyboard: Be able to operate the keyboard at night.
8. Large capacity of users: support 2000 users.
9. Independent password
10. Change password: The user can modify the code itself.
11. Identify speed: Swipe to open the door of time is less than 0.1 S.
12. Weigand output: with weigand output interface, can output Wg26 card number or Wg34 number keys.
13. Delete cards: When the card lost, It is available to use the keyboard to remove, and eliminate potential safety problems.
14 The output short circuit protection: Electric lock or alarm output short circuit within the 100 muS output will be automatically closed.
Specification
Model | K9 |
User Capacity | 2,000 |
Working Voltage | DC +12V |
Lock output | 3A |
Static circuit | ≤30mA |
Output short circuit protection time | ≤100μS |
Card Type | EM 125KHZ/ MF 13.56MHZ |
Communication interface | Wiegand26/34; |
Waterproof Rate | IP65 |
Working Distance | 5-10cm |
Working Temperature | -45-60℃ |
Environment Humidity | 10%~90% |
Door Open Time | 0-99s (Adjustable) |

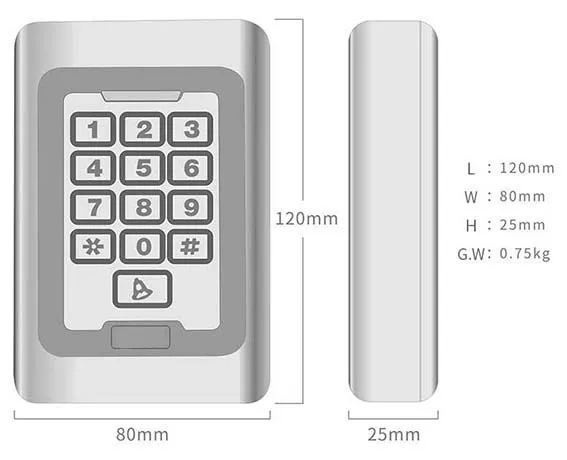

Dimension | 118x78x25(mm) |
Details Images

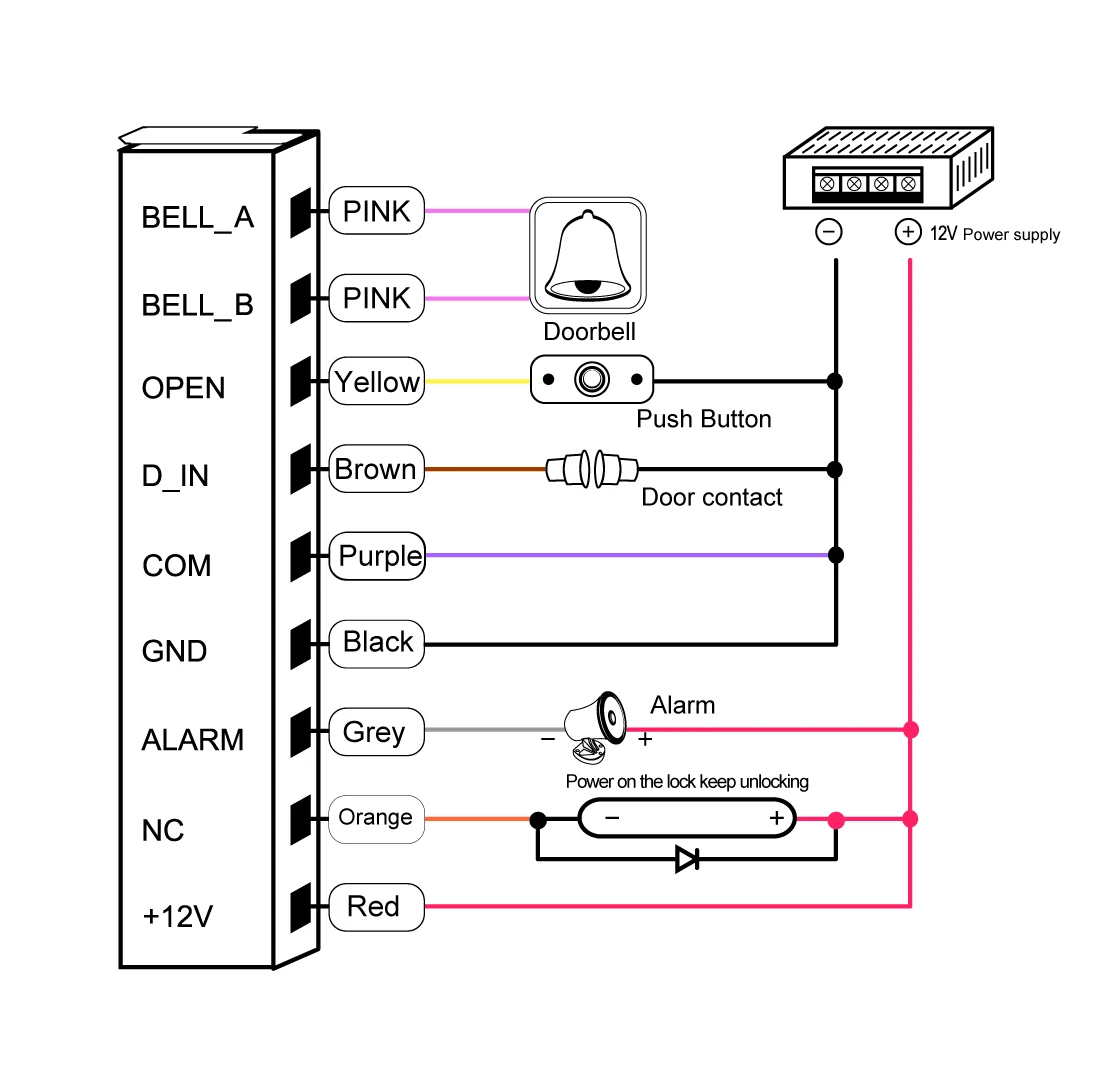

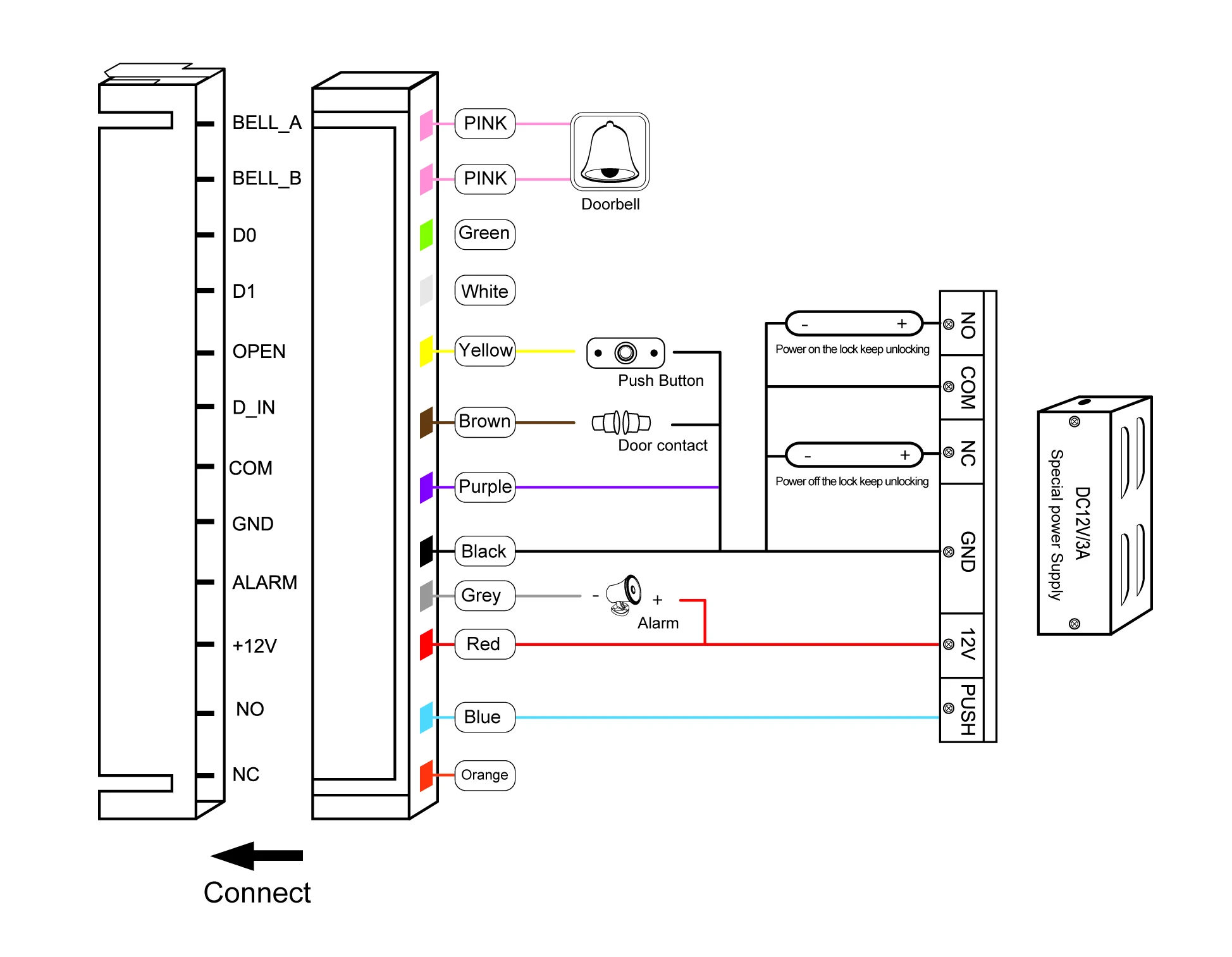

Diagram
