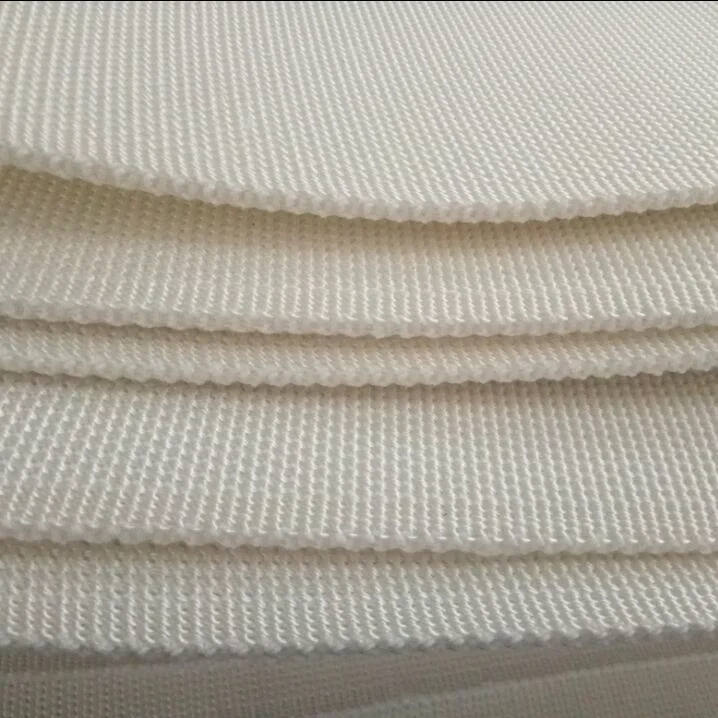

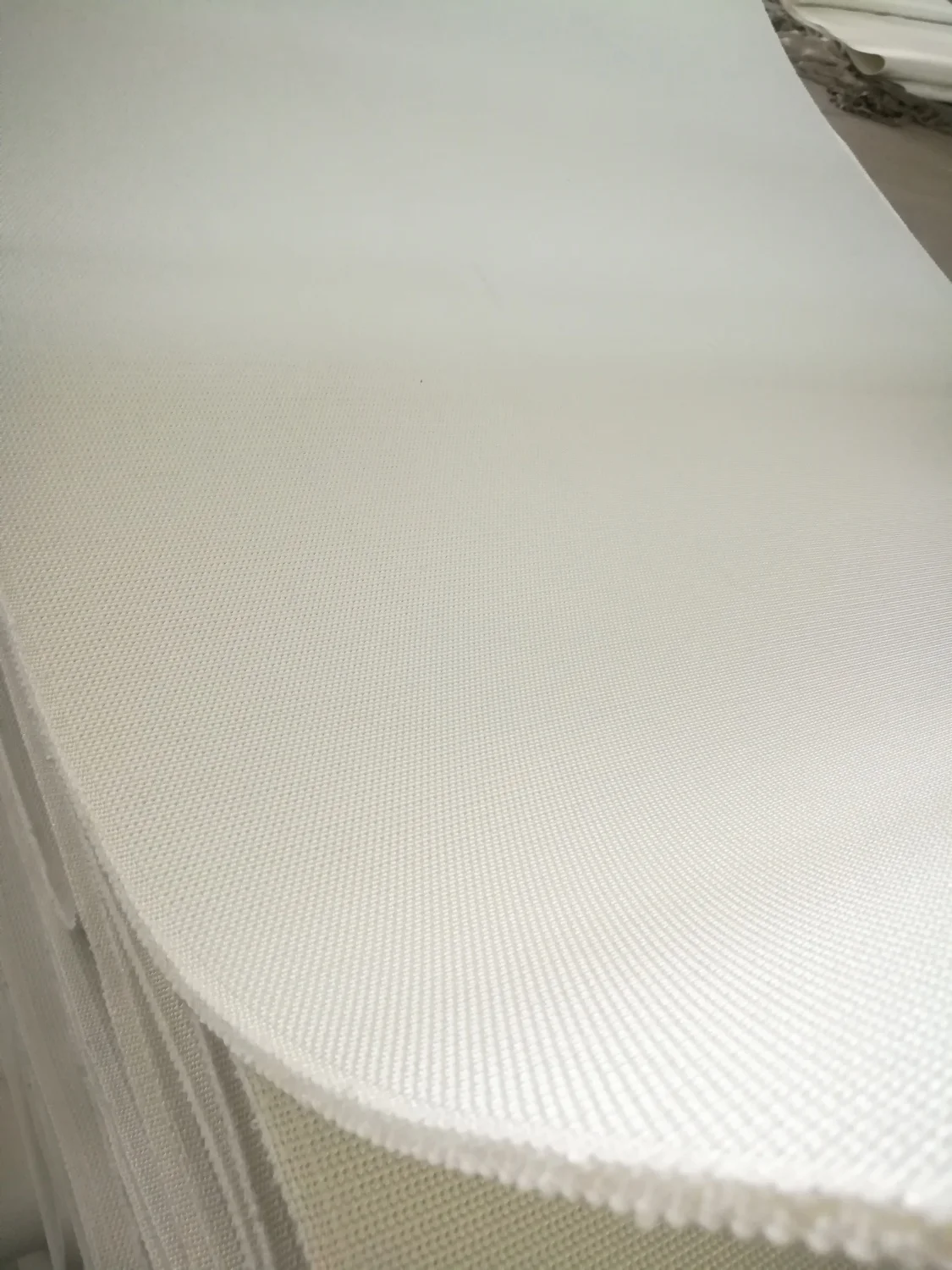

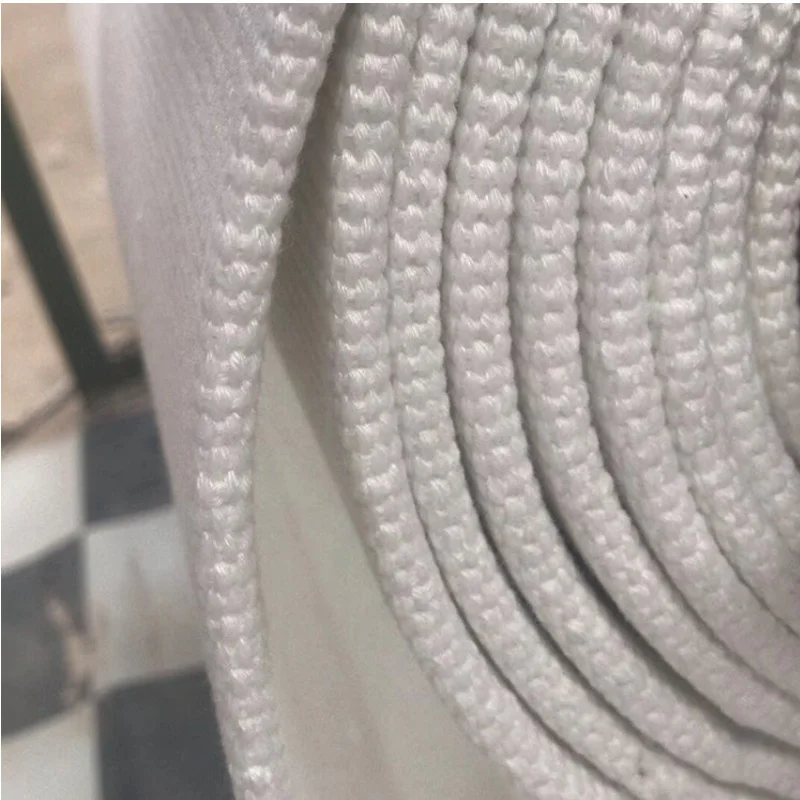

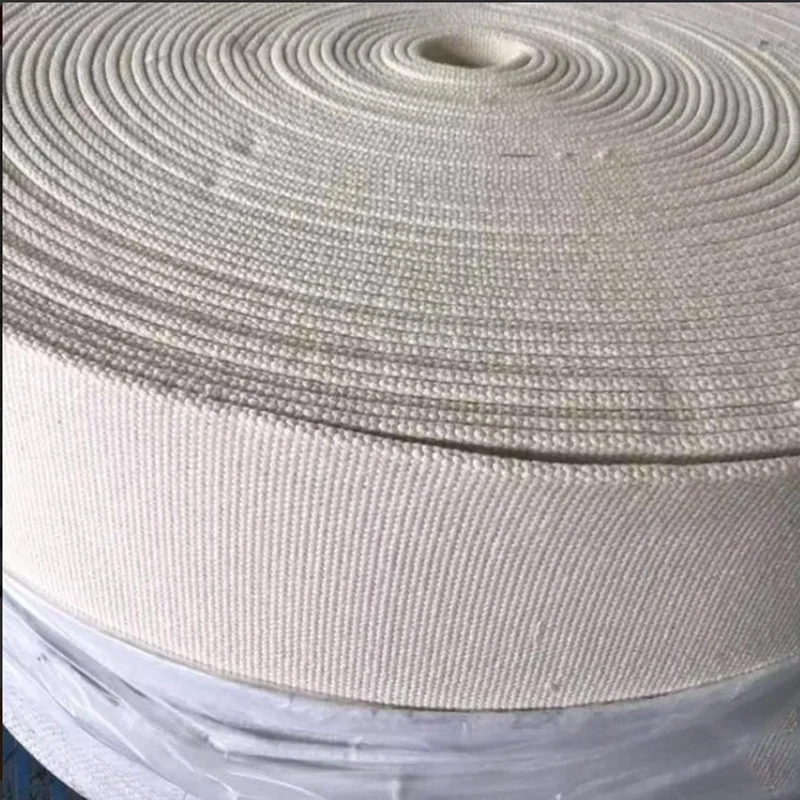

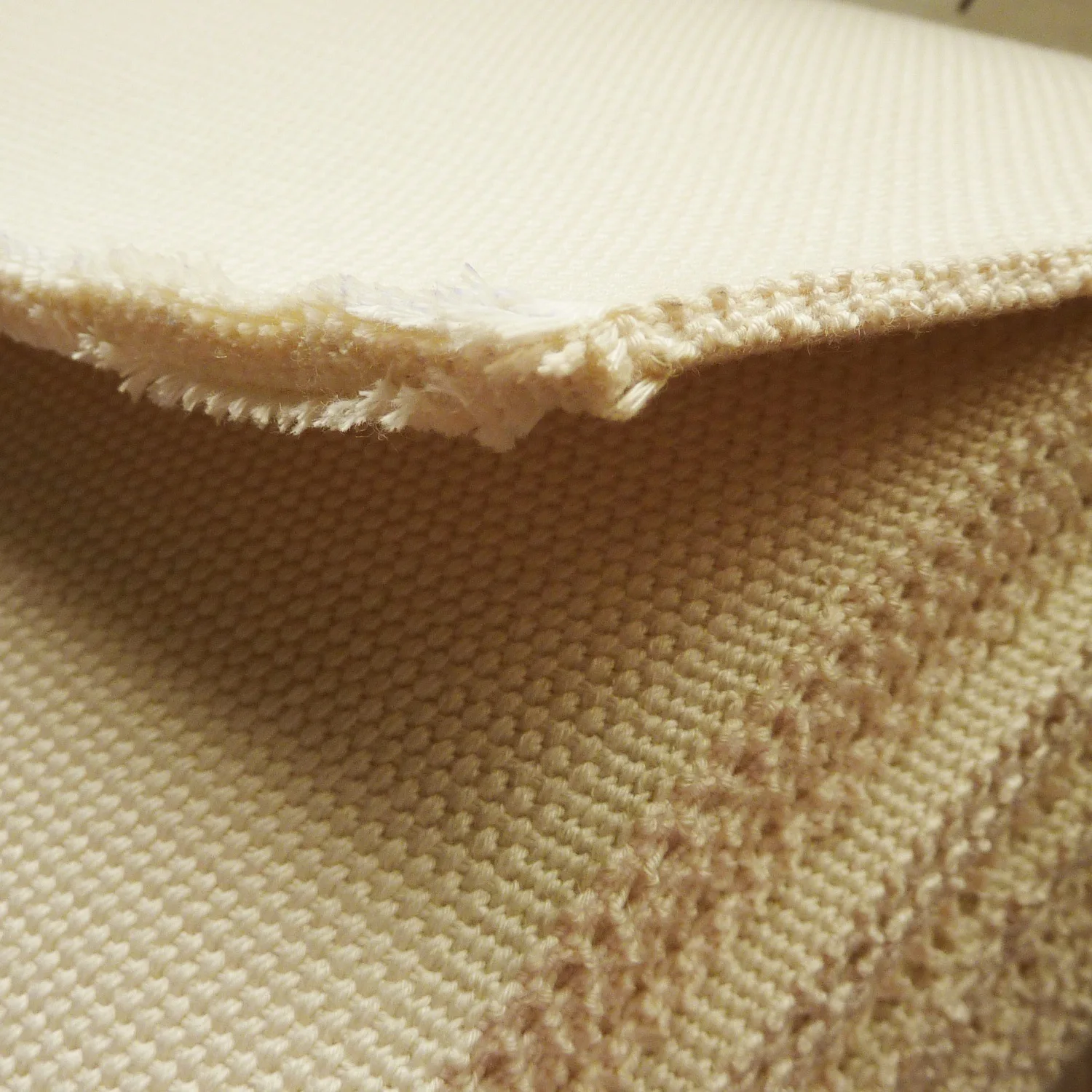

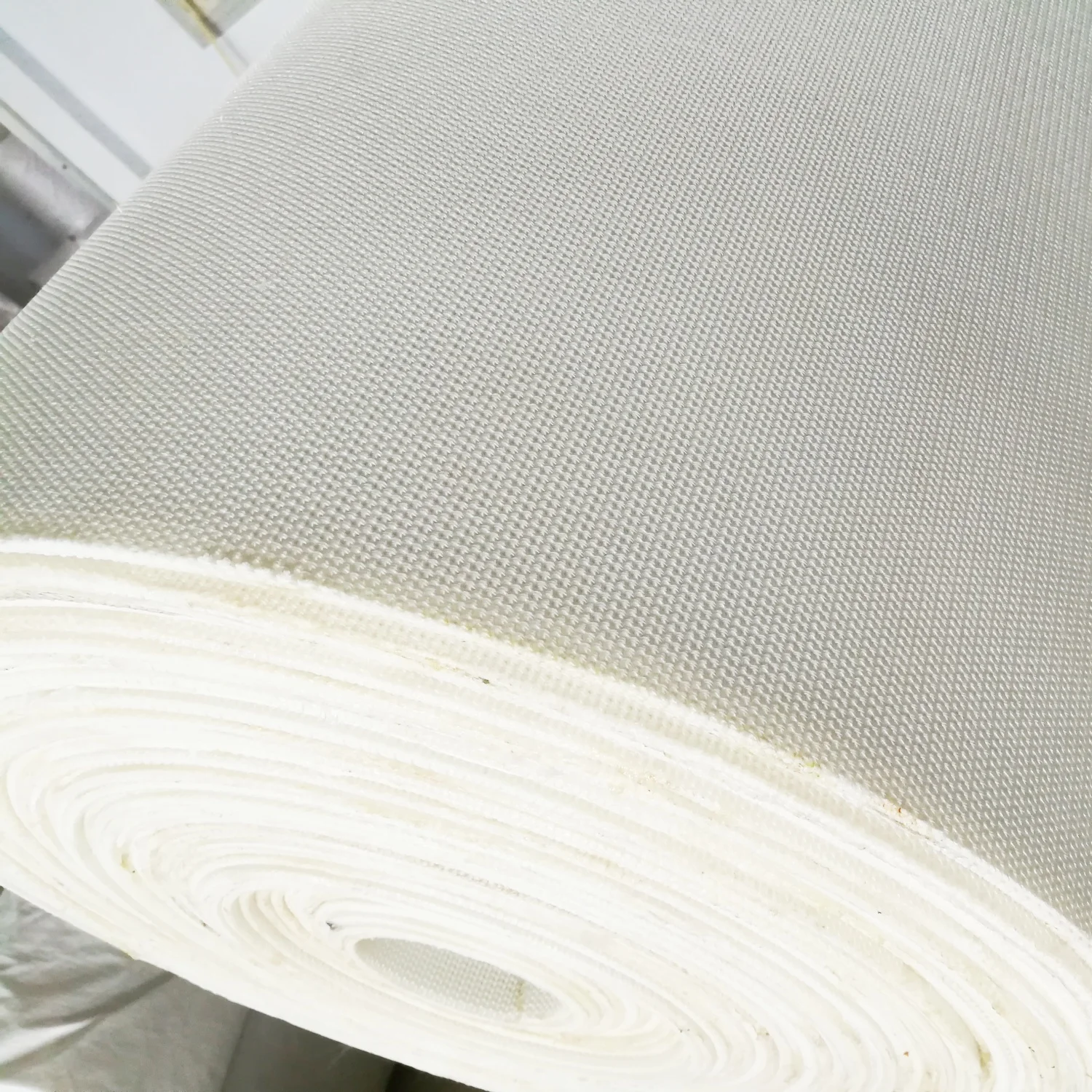

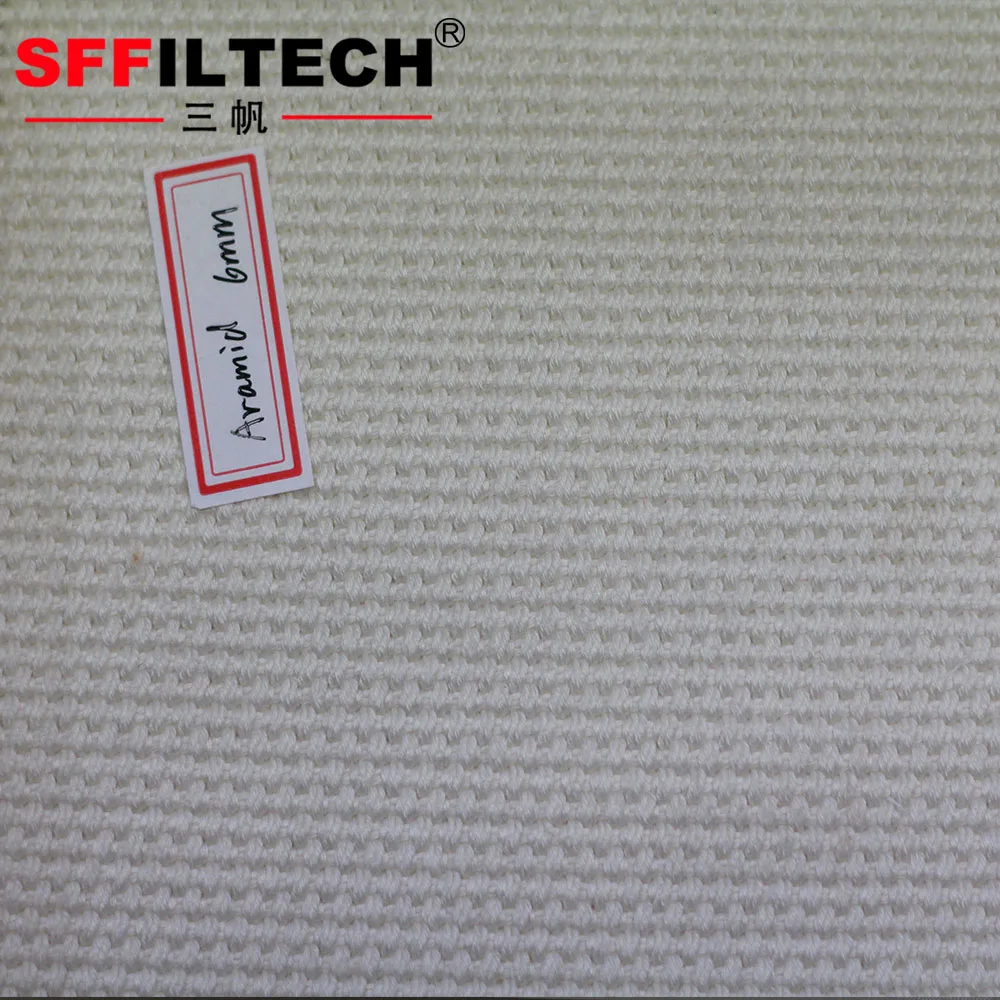

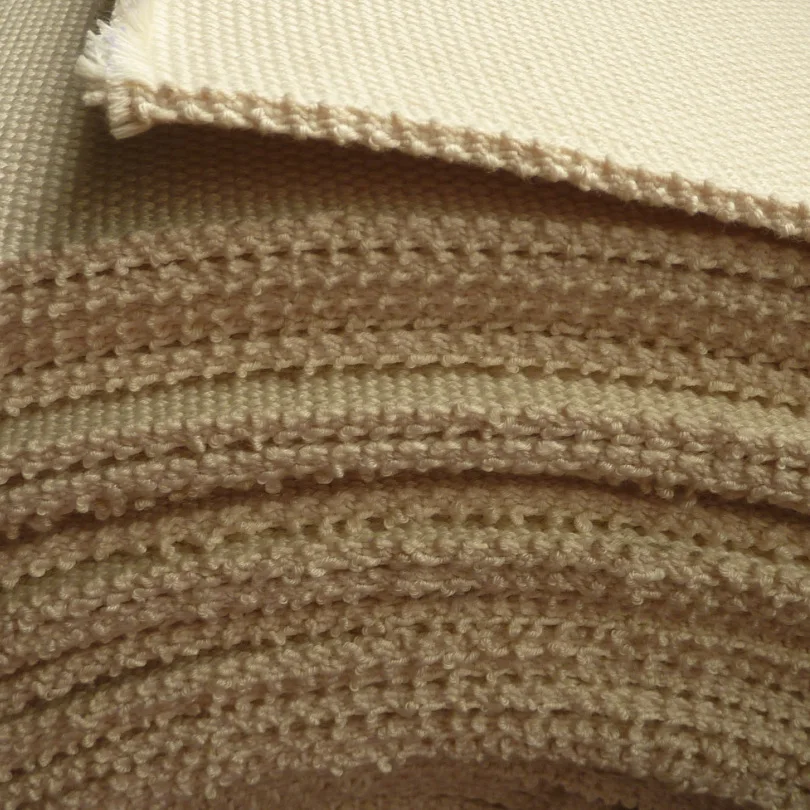

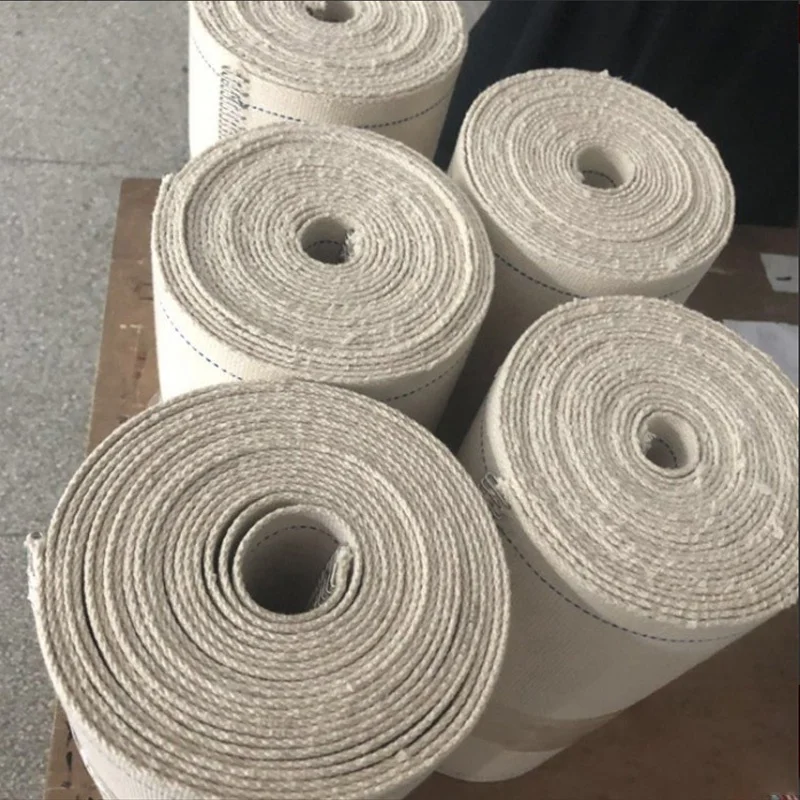

PE Nomex/Aramid Air Slide Fabric Conveyor
- Category: >>>
- Supplier: Shanghai Sffiltech Co. Ltd.
Share on (1600548668951):
Product Overview
Description
Product Description
The product is mainly used as a supporting product for air chute and silo funnel for conveying dry powdery materials. It is widely used in the horizontal transportation of cement, thermal power plants, alumina, bauxite, soda ash, gypsum, flour, etc. and for silo boiling.
Specification
POLYESTER AIR SLIDE
Material： | Polyester | ||||||
Working temperature: | <180degree | ||||||
Breaking Elongation： | 0.06 | ||||||
width： | <1400mm | ||||||
Model | weight： kg/m2 | thickness： (mm) | Air Permeability： （m3 /m2.min） | tensile strength： (kg/40mm) |
PET2-3.0 | 1.87 | 3 | 3.6 | >450 |
PET3-4.0 | 3 | 4 | 3.3 | >450 |
PET4-4.5 | 3.2 | 4.5 | 3 | ＞500 |
PET4-5.0 | 3.4 | 5 | 2.6 | ＞500 |
PET4-5.5 | 3.6 | 5.5 | 2.3 | ＞500 |
PET5-6.0 | 3.9 | 6 | 2.1 | ＞500 |
PET5-8.0 | 4.5 | 8 | 1.8 | ＞500 |
PET5-10.0 | 5.2 | 10 | 1.5 | ＞500 |
Material： | Polyester filament | ||||||||
Working temperature: | <180degree | ||||||||
Breaking Elongation： | <6% | ||||||||
width： | <1400mm | ||||||||
Model | Weight： kg/m2 | Layer | Thickness： (mm) | Air Permeability： （m3 /m2.min） | Tensile strength： (kg/40mm) |
SF-FT5-6.5 | 5.25 | 5 | 6.5 | 3.2 | ＞550 |
SF-FT5-6 | 4.65 | 5 | 6 | 3.5 | ＞500 |
SF-FT4-5.5 | 4.3 | 4 | 5.5 | 3.7 | ＞500 |
SF-FT4-5 | 4 | 4 | 5 | 4.3 | ＞450 |
SF-FT3-4 | 3.6 | 3 | 4 | 4.6 | ＞450 |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
