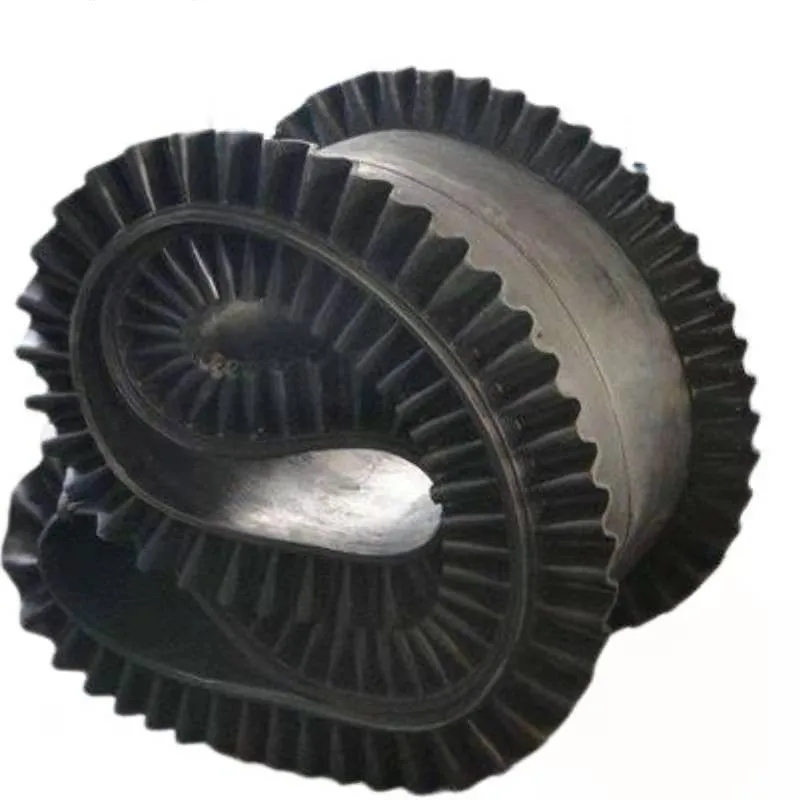

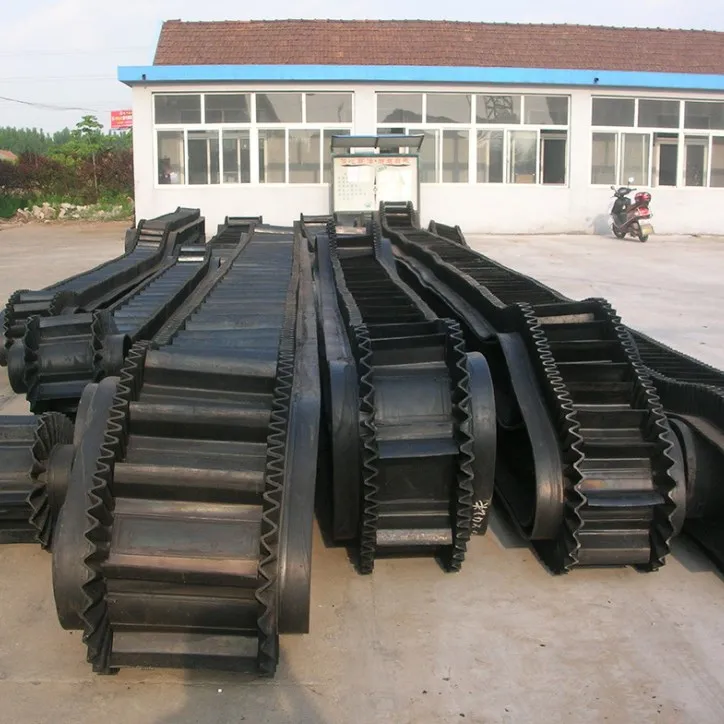

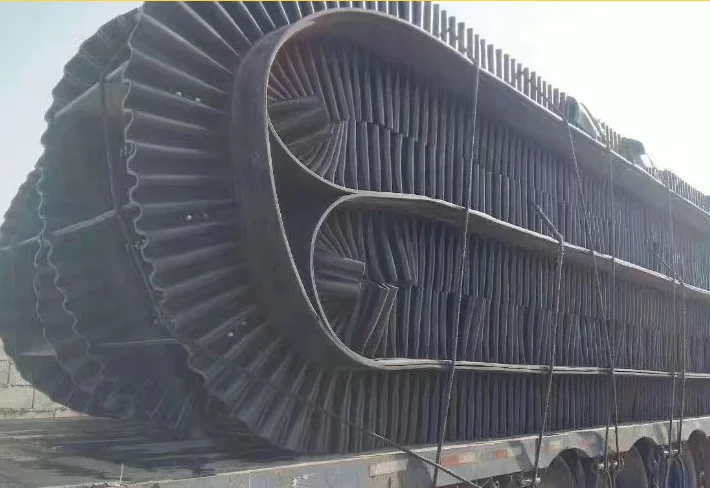

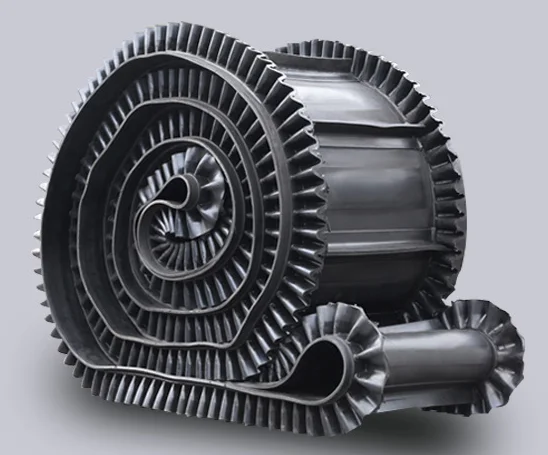

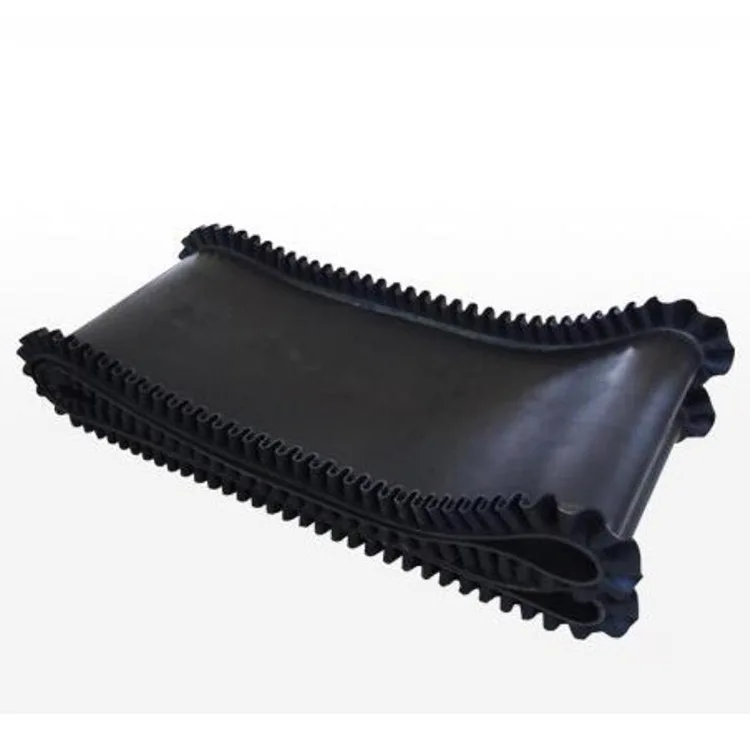

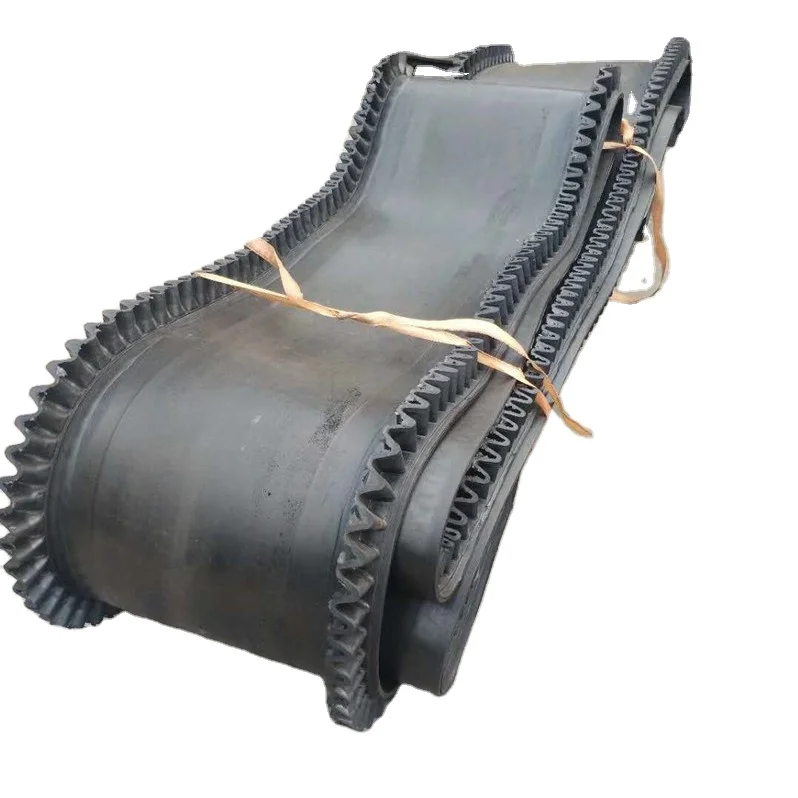

Factory Sell Corrugated Rubber Sidewall Conveyor Belt For Bluk Material

Product Overview

Description



carcass	fabric type	Strength per ply (N/mm)	Thickness per ply (mm)	Cover Thickness (mm)		No.of Ply	Belt Width (mm)	Length per Roll (m/Roll)
				Top Cover	Bottom Cover
NN	NN100	100	0.70	3 3 3.2     4 4.5 4.8     6 6 6.4     7.9 8 9.5	1.5 3 1.6     2 4.5 1.6     2 6 3.2     3.2 4 3.2	2-10	300-12000	20-100
	NN125	125	0.70
	NN150	150	0.75
	NN200	200	0.90
	NN250	250	1.15
	NN300	300	1.25
	NN400	400	1.50
EP	EP100	100	0.75			2-8
	EP125	125	0.75
	EP150	150	0.85
	EP175	175	0.85
	EP200	200	1.00
	EP250	250	1.20
	EP300	300	1.35
	EP350	350	1.50
	EP400	400	1.65
	EP500	500	2.00
CC	CC56	56	1.10			3-12







AS1332-2000
Grade	TensileStrength(MPA)	Elongation at Breaking	Abrasion (≤mm3)	Adhesive srength betweePlies(N/mm)	Adhesive srength betweeAdhesive srength betwee
					Bottom Cover (0.8-1.9mm)	Top Cover (≥1.9mm)
A	17	400	70	≥6	≥4	≥ 4.8
E	14	300	/
F	14	300	/
M	24	450	125
N	17	400	200
S	14	300	250
S*	12	300	250







BS-490
Grade	TensileStrength(MPA)	Elongation at Breaking	Abrasion (≤mm3)	Adhesive srength betweePlies(N/mm)	Adhesive srength betwee Adhesive srength betwee
					Bottom Cover (0.8-1.9mm)	Top Cover (≥1.9mm)
M	24	450	/	≥5.25	≥3.5	≥ 4.5
N	17	400	/









DIN-22102
Grade	TensileStrength(MPA)	Elongation at Breaking	Abrasion (≤mm3)	Adhesive srength betweePlies(N/mm)	Adhesive srength betwee Adhesive srength betwee
					Bottom Cover (0.8-1.9mm)	Top Cover (≥1.9mm)
W	18	400	90	≥5	≥3.5	≥ 4.5
X	25	450	120
Y	20	400	150
Z	15	350	250









DIN-22102
Grade	TensileStrength(MPA)	Elongation at Breaking	Abrasion (≤mm3)	Adhesive srength betweePlies(N/mm)	Adhesive srength betwee Adhesive srength betwee
					Bottom Cover (0.8-1.9mm)	Top Cover (≥1.9mm)
A	18	400	90	≥7	≥5
X	25	450	120
M	24	450	150
N	20	400	250

FAQ

Q1. Are you a manufacturer?
A. Yes, we have been producing and selling conveyor belts for 20 years.
Q2. Can you produce belts with my own brand?
A. Yes, we can.
Q3. What about the lead time?
A. 1) 5~7 days for sample (free sample)
    2) 15~30 days according to order quantity
Q4. How about payment terms?
A. 1) We prefer T/T, 30% advance paid upon order, rest upon b/l copy, or
    2) Sight or deferred L/C, or
   3) Other payment terms approved.
Q5. How do you ensure product quality?
A. 1) We have a R&D center of an independent design and developing capacity
    2) We an independent testing laboratory with full-property testing capacity of conveyor belt.

       We can test various materials, rubber, fabric, semi-finished product and finished product.
