Product Overview
Description
Naturally Laundry Sheet Washing Paper Soap Dryer Roller with Steam Generator Making Equipment Detergent Sheets Machine
Product Description:

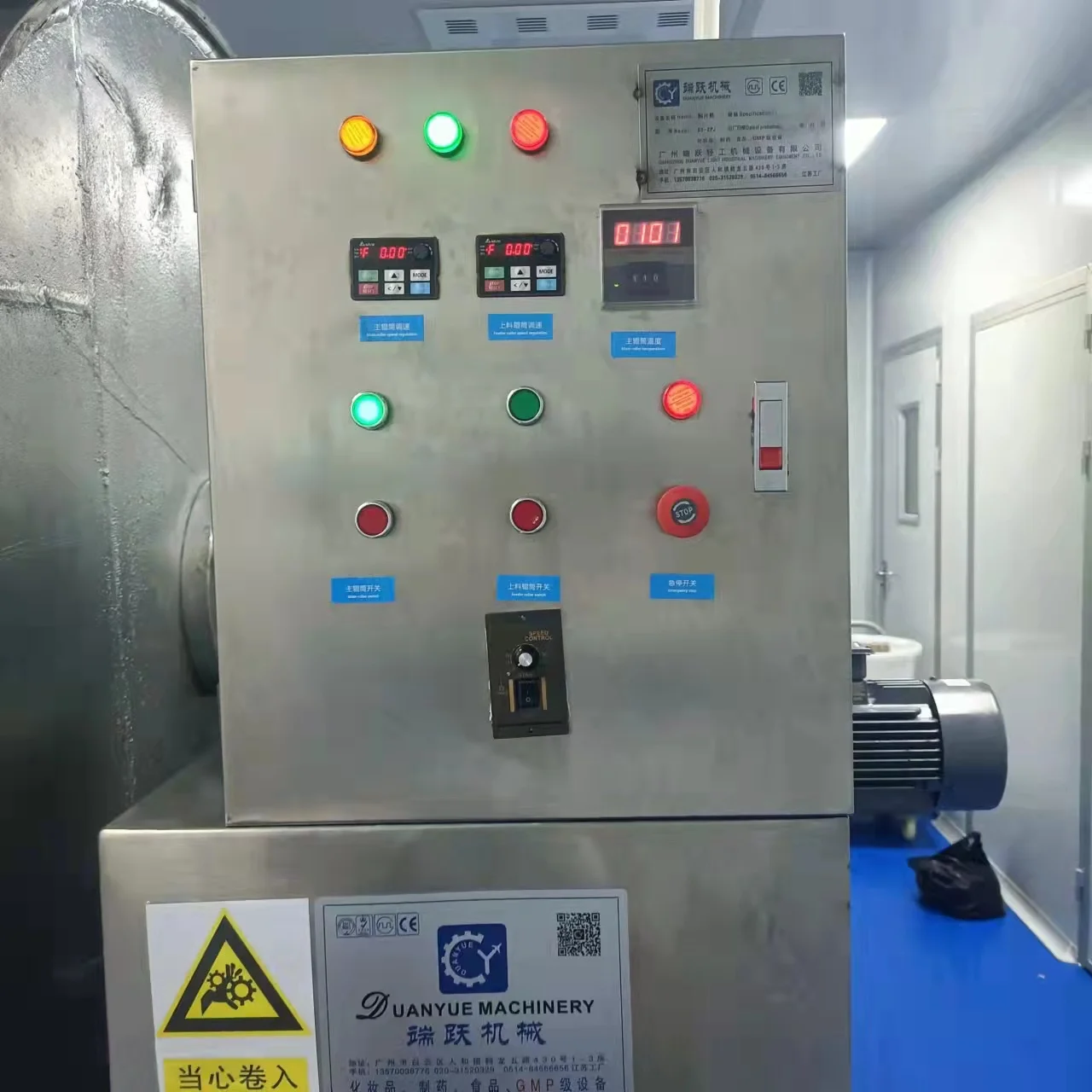

This machine adopts frequency conversion speed regulation, with stable speed and automatic temperature control. Automatic feeding, automatic tension, easy to operate. Using steam heating, the heating speed is fast, and the energy loss is saved. It is an ideal device for drying laundry tablets.
This machine adopts frequency conversion speed regulation, with stable speed and automatic temperature control. Automatic feeding, automatic tension, easy to operate. Using steam heating, the heating speed is fast, and the energy loss is saved. It is an ideal device for drying laundry tablets.

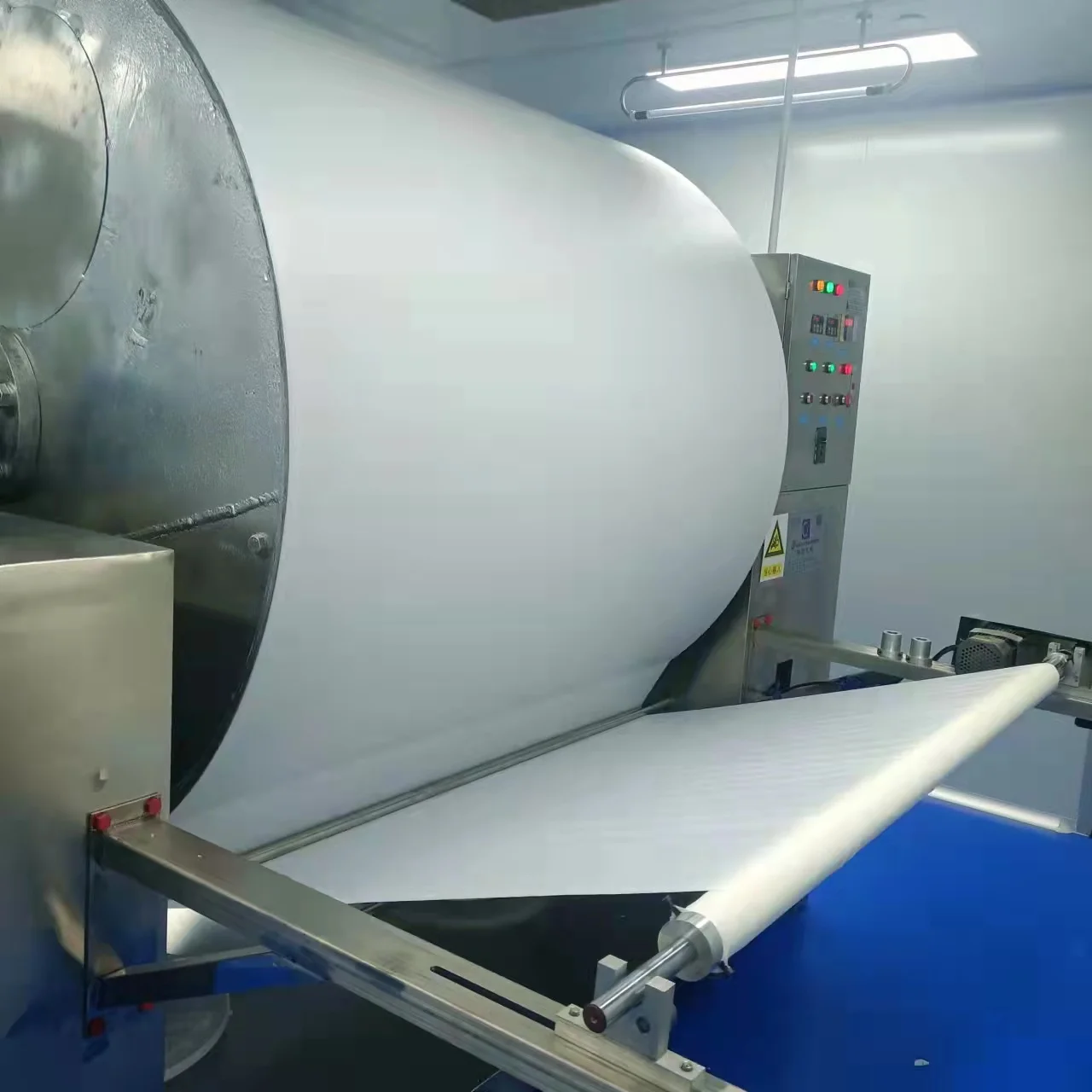

Working Principle
Duan Yue drum dryer working principle is to make liquids or muddy object item in steam or other hot heating surface to form films. drum turn around was in the process of drying is completed. use spatula scrape.revealing the surface again with the raw material contact drying form a thin film.
Structure introduction
Duan Yue dryer drum composed by a rollers, racks, the charging device (top feeding or bottom prepregs), drive, Hopper, charge transfer device and so on.

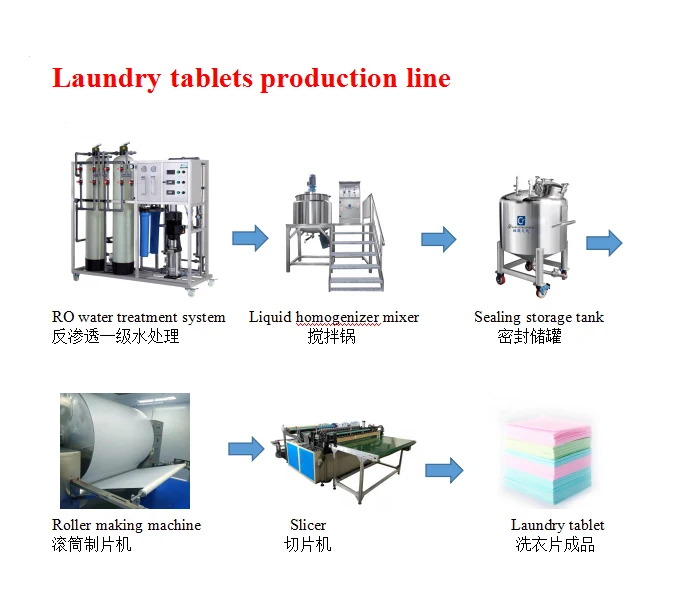

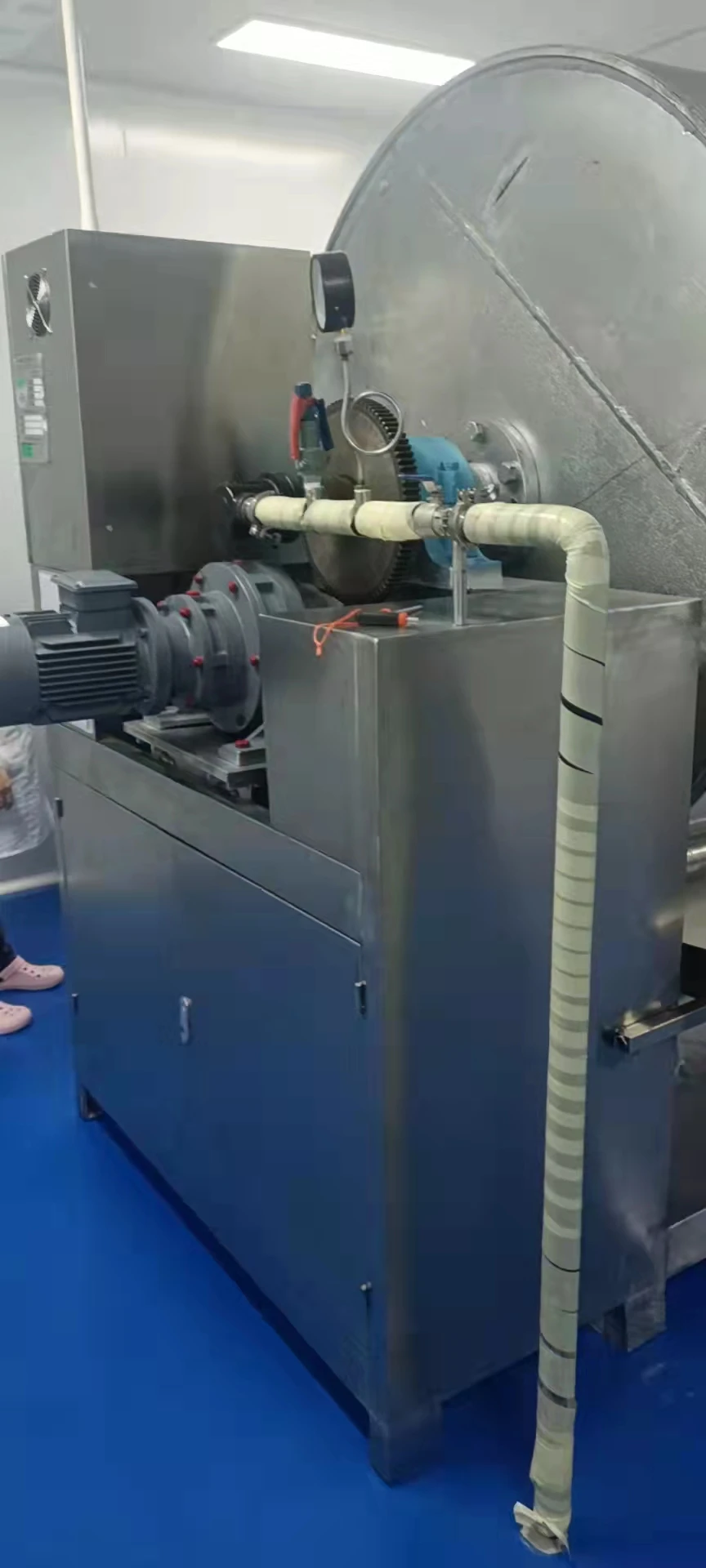

Production Line
Product Feature
①With steam or thermal oil as the heat source. larger heating area. efficiency. uniform heating
②Drying rate fast. wall of wet material membrane on heat and mass transfer process from the inside outward in the same direction.
temperature gradient greater. keeps the material membrane surface high evaporation intensity
③The drying time is short. about 7~30s. suitable for heat-sensitive materials
④Operation is simple. easy maintenance
②Drying rate fast. wall of wet material membrane on heat and mass transfer process from the inside outward in the same direction.
temperature gradient greater. keeps the material membrane surface high evaporation intensity
③The drying time is short. about 7~30s. suitable for heat-sensitive materials
④Operation is simple. easy maintenance

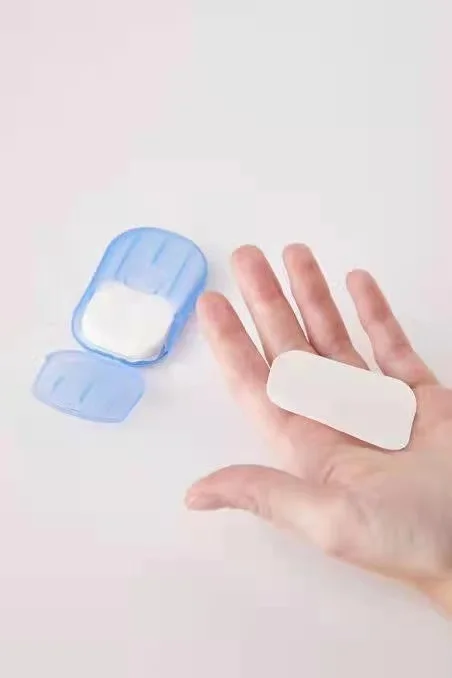

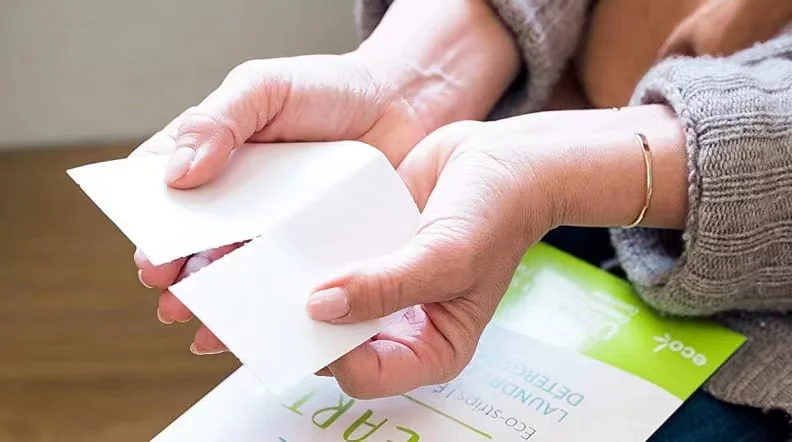

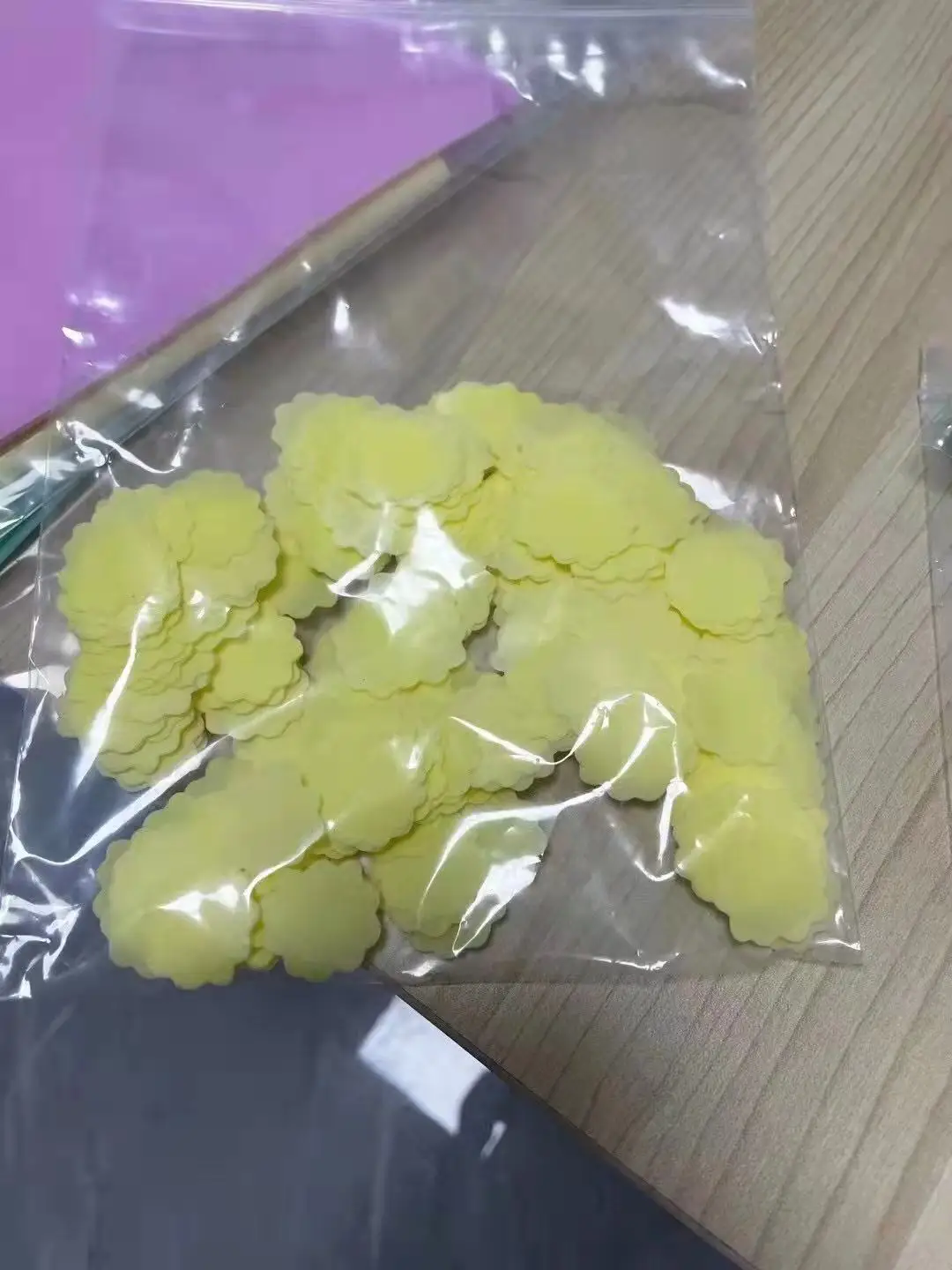

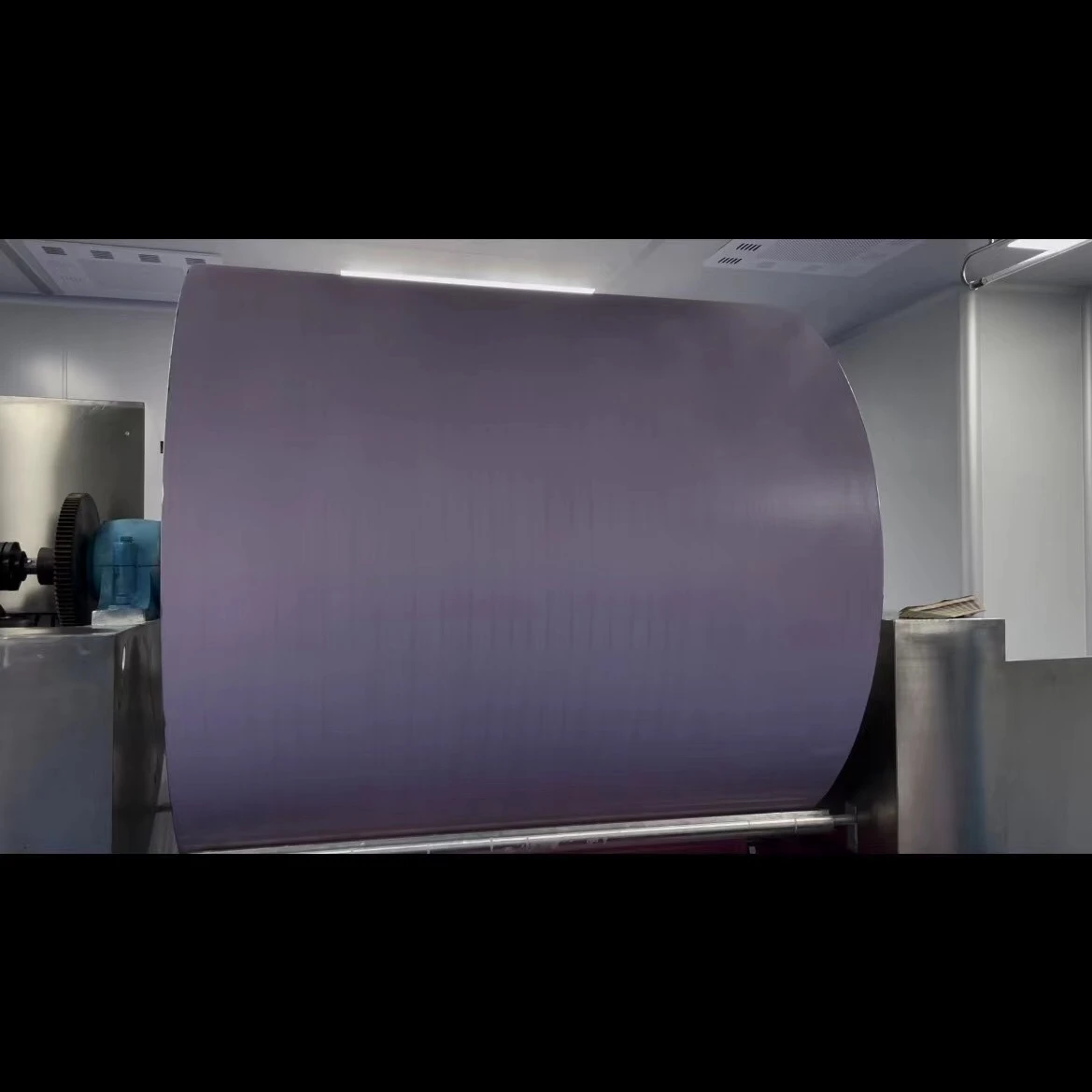

Sample display
Technology Parameter
No | Name | Specification | Quantity | |||
1 | Drying cylinder | Φ1500* 1500 mm; Φ1950*1500 mm | ||||
2 | Pressing roller | Φ100*1450 mm | 1pcs | |||
3 | Steam rotary valve | Φ32 | 2pcs | |||
4 | Steam valve | Φ32 | 1pcs | |||
5 | Pressure gauge | Conventional 1pcs | 1pcs | |||
6 | Motor with reducer | 2.2KW | 1pcs | |||
7 | Film winder | Φ40*1450 mm | 1pcs | |||
8 | Roller | Φ100*2000 mm | 3pcs | |||
9 | Tablet roller | Φ100*1450 mm | 1pcs | |||
10 | Motor with reducer | 1.5 KW | 1pcs | |||
11 | Overall size | W 2300mm*L 2600 mm | ||||
Note: this form of technical parameters for steam heating. The data in the table above due to technical improvements, customization and discrepancies, please prevail in kind. | ||||||

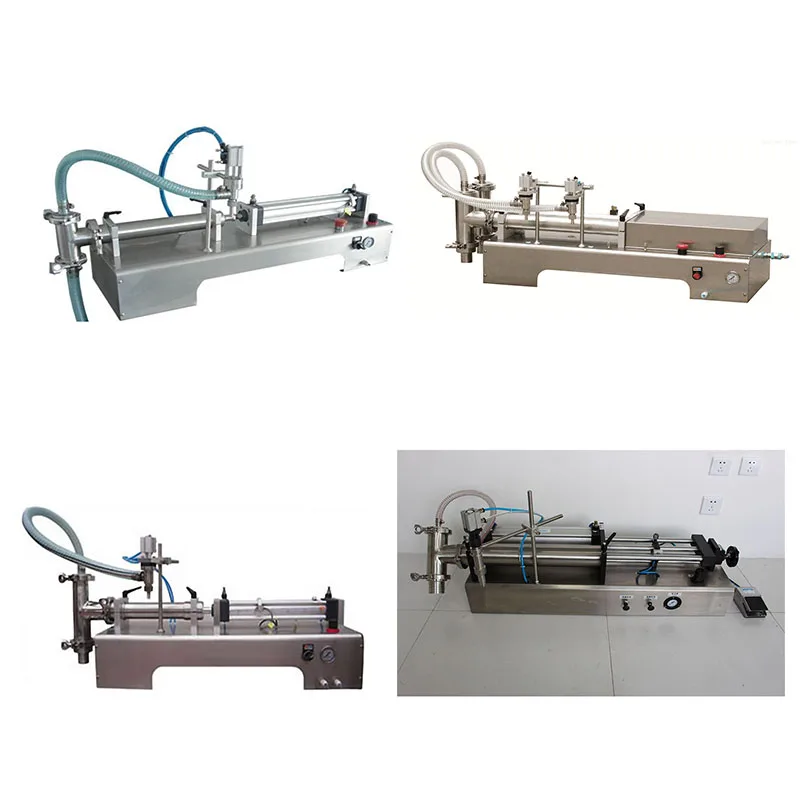

Hot Selling Product
Company profile

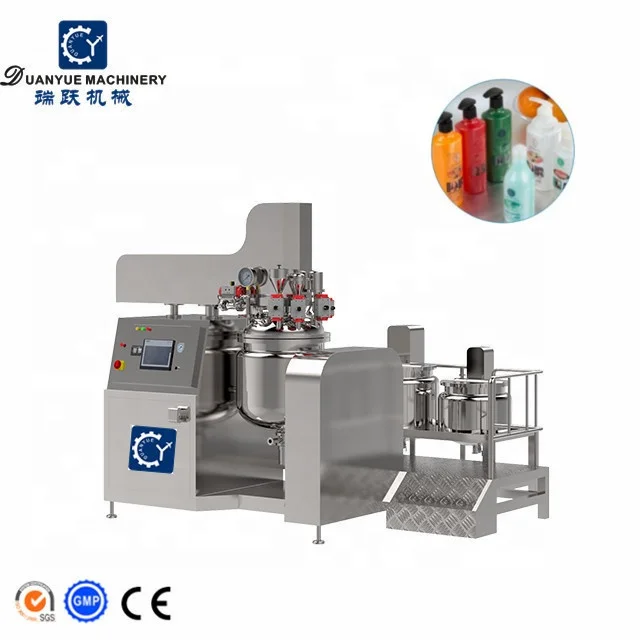

Duan Yue is a manufacturer who is specialized in designing and producing equipment of cosmetic, pharmaceutical, chemical. We mainly produce vacuum homogenizer, liquid washing agitator, reverse osmosis water treatment machine, automatic and semi-automatic filling machine, stainless steel storage tanks and other equipments. We have rich experience in equipment manufacturing and engineering construction.

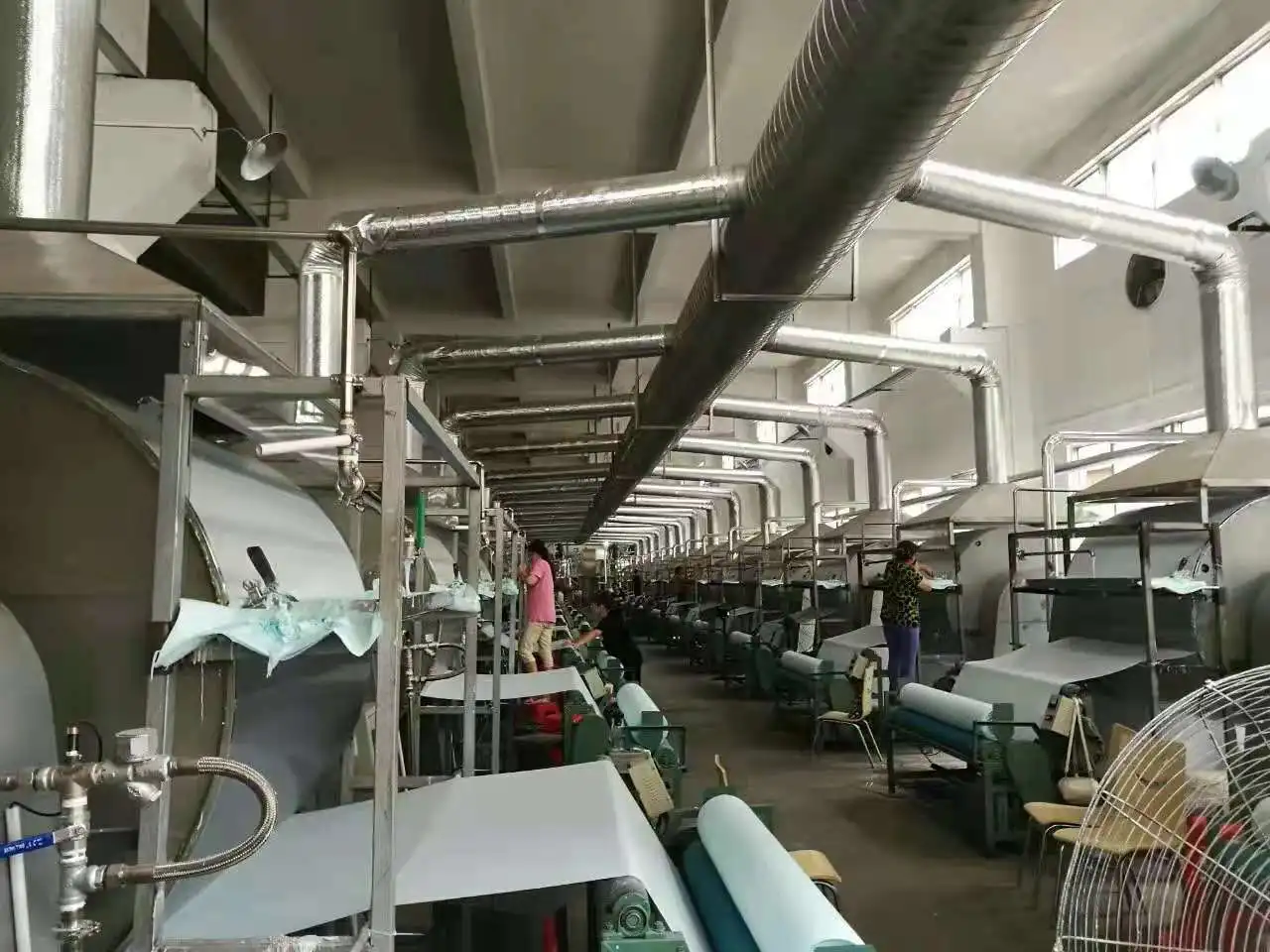

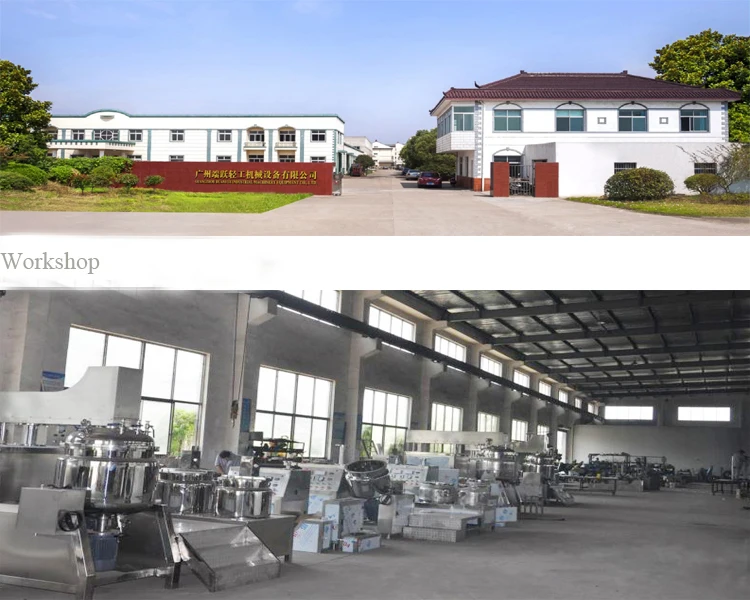

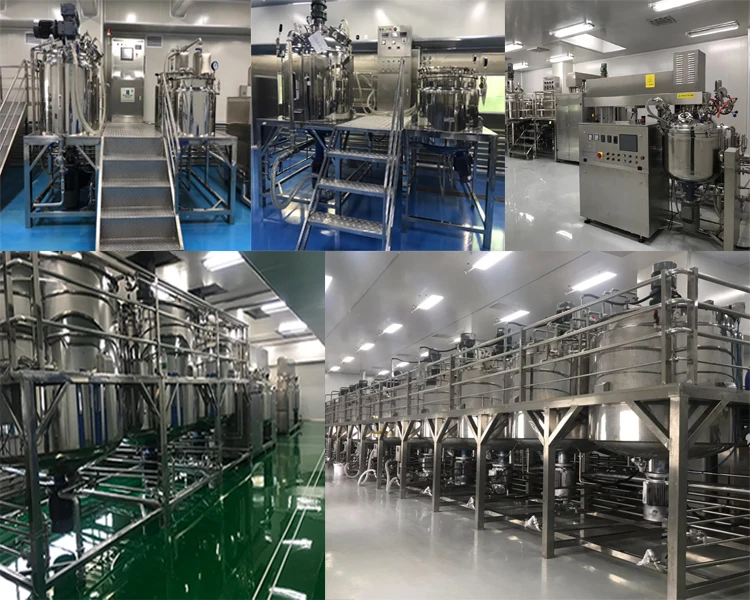

GMP Factory Show

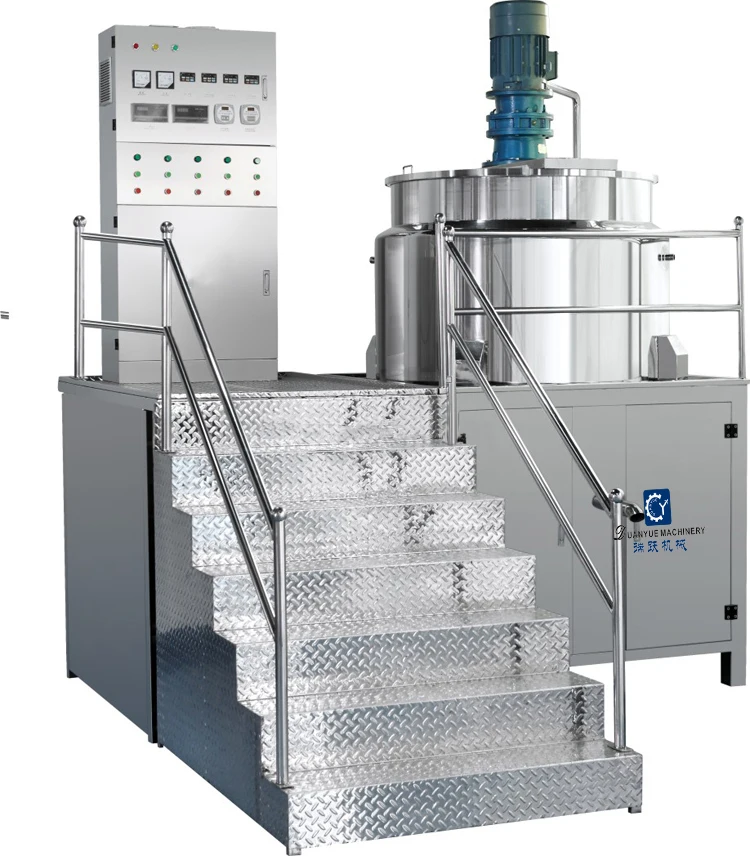

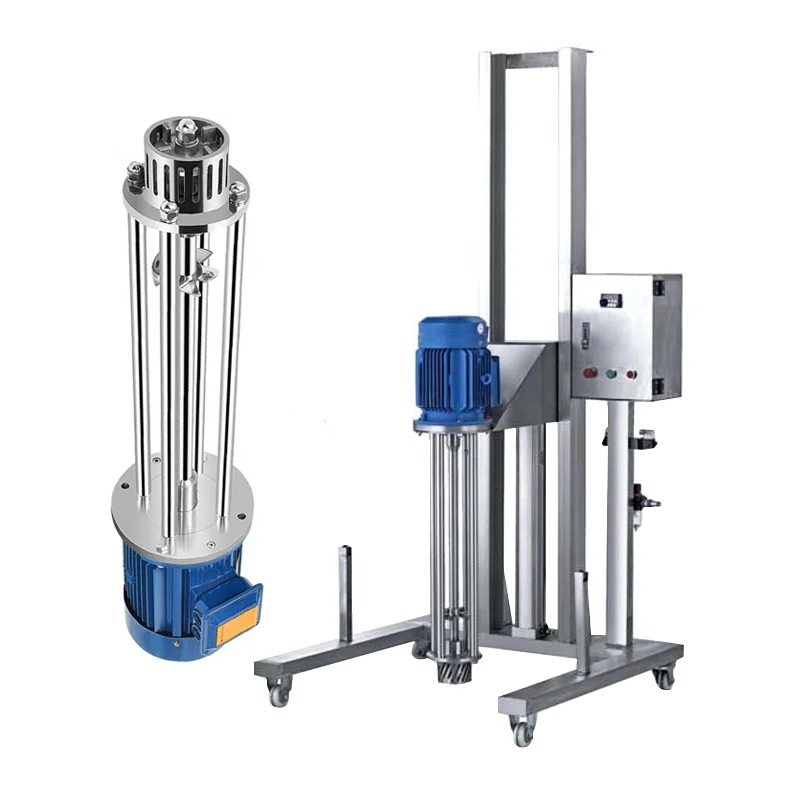

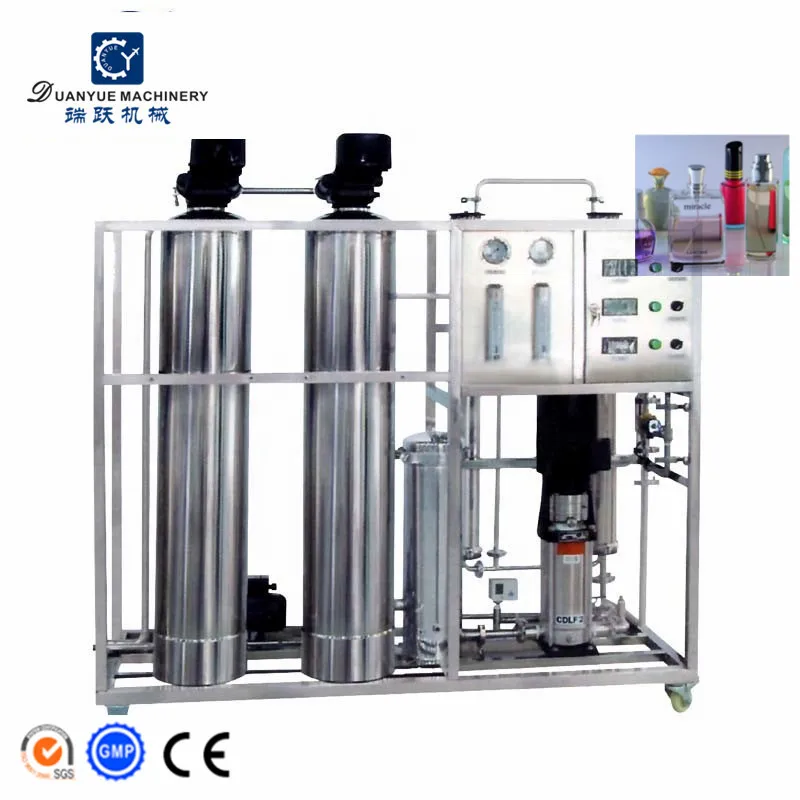

Recommend Products
Certification

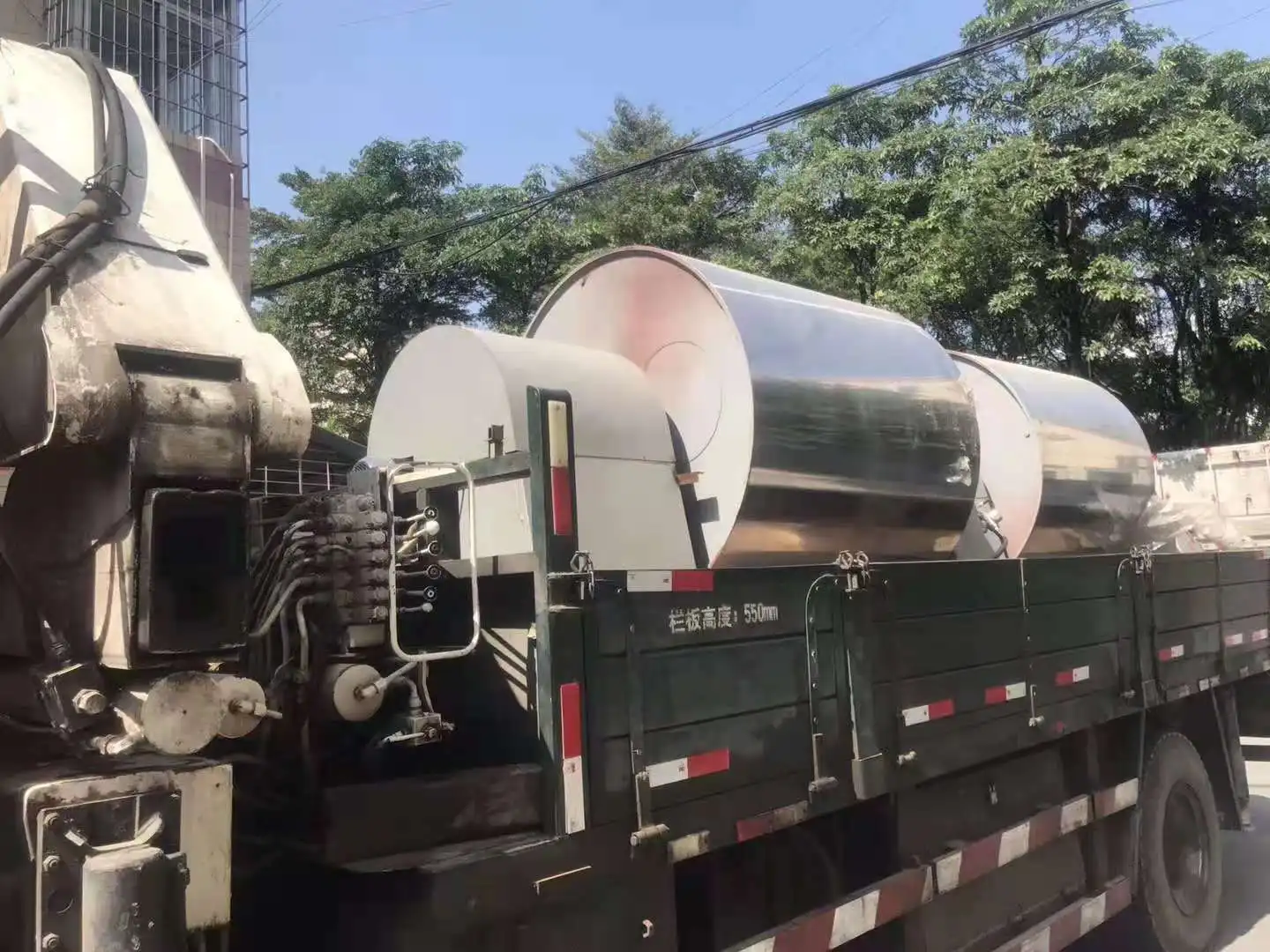

Product Packaing
