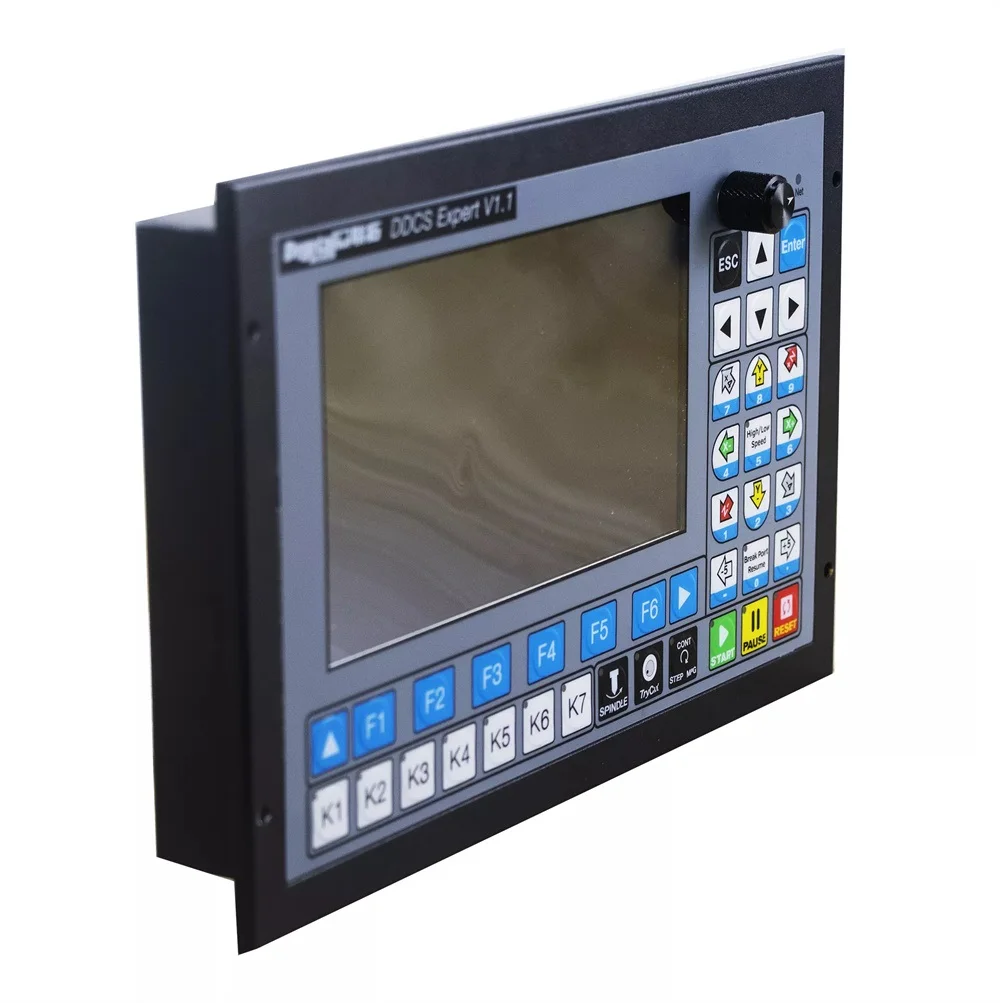

DDCS Expert CNC Controller 3~5 Axes CNC Motion Control System Kit With ATC Function Switching Power Supply for Milling Machine
- Category: >>>
- Supplier: Shenzhen Digital Dream Numerical Technology Co. Ltd.
Share on (1600548695830):
Product Overview
Description
Best Selling
Products Description
DDCSE + Power Units 2pcs Kit:
The DDCS Expert is a standalone/Offline controller, compatible with standard G-codes, the G-code design supports various software of CAD/CAM, such as ArtCam, MasterCam, ProE, JDSoft SurfMill, Aspire, Fusion 360 and so on.
The DDCS Expert CNC control system adopts the ARM+FPGA design framework: ARM controls the human-computer interface and code analysis; FPGA provides the underlying algorithms and creates the control pulse; And the internal operating system is Linux based, uses advanced adaptive speed forward control algorithm. This guarantees reliable control, easy operation, high processing efficiency, meet the needs of various CNC machines: Engraving machines, Milling machines, Routers, Cutting...etc.
DDCS-Expert Brief technical feature:
1): Max. 5 Axis, 2-4 Axis linear interpolation, any 2 axis circular interpolation;
2): Language: Chinese, English and Russian;
3: Network: Support unlimited size file for machining, users can interact with external files through U disk for offline working, support file share and online machining the remote files by Ethernet;
4): With AUTO tool change(ATC) function, slave function, G-Code Editing function, Teaching Function, Universal Input function, General Output function, Back to original point function...etc
5): 24 photoelectric isolated digital inputs, 21 photoelectric isolated digital outputs. Differential output for Pulse and Direction signal;
6): Analog spindle control 0-10V spindle control, support PWM Output
7): Supports multiple spindle mode: straight Tool Magazine, gantry type Magazine, disk type magazine;
8):Spindle control mode: Support Multi-speed (3 lines 8 kinds speed), 0-10V Analog output, servo spindle;
9): Probe Mode: Support auto-probe and manual probe; Support Floating Probe mode and Fixed Probe mode;
10): Tool magazine type: multi-process, straight row, disc;
11): Tool setting mode: supports automatic and manual tool setting; fixed tool setting, floating tool setting, first tool setting / second tool setting;
12): Support “Try cutting” (hand-wheel guiding) and “Single-stage processing mode” and so on;
13): Backlash compensation methods: direction gap compensation, radius gap compensation, length compensation;
14): Interpolation Algorithm: S type, circular hard algorithm, circular soft algorithm;
15): Support: pause Breakpoint resume (breakpoint memory), power cut recovery (power-off automatic protection), start from the specific line, near-point processing...etc;
16): CNC Software Alarms: Program Error, operation Error, overtravel Error, Driver Error and so on;
16): Support high-speed machining in continuous Polyline segment, the system can choose a most efficient algorithm automatically from different kinds Polyline segment algorithm;
17): The control system can preview the processing path before machining, so makes the system more steady, working smoothly and precise;
18): The Power Supply for the controller is 24VDC, minimum Current is 0.5A;
19): The Power Supply for IO Port is 24VDC, minimum current is 0.5A, can directly drive the relay;
1): Max. 5 Axis, 2-4 Axis linear interpolation, any 2 axis circular interpolation;
2): Language: Chinese, English and Russian;
3: Network: Support unlimited size file for machining, users can interact with external files through U disk for offline working, support file share and online machining the remote files by Ethernet;
4): With AUTO tool change(ATC) function, slave function, G-Code Editing function, Teaching Function, Universal Input function, General Output function, Back to original point function...etc
5): 24 photoelectric isolated digital inputs, 21 photoelectric isolated digital outputs. Differential output for Pulse and Direction signal;
6): Analog spindle control 0-10V spindle control, support PWM Output
7): Supports multiple spindle mode: straight Tool Magazine, gantry type Magazine, disk type magazine;
8):Spindle control mode: Support Multi-speed (3 lines 8 kinds speed), 0-10V Analog output, servo spindle;
9): Probe Mode: Support auto-probe and manual probe; Support Floating Probe mode and Fixed Probe mode;
10): Tool magazine type: multi-process, straight row, disc;
11): Tool setting mode: supports automatic and manual tool setting; fixed tool setting, floating tool setting, first tool setting / second tool setting;
12): Support “Try cutting” (hand-wheel guiding) and “Single-stage processing mode” and so on;
13): Backlash compensation methods: direction gap compensation, radius gap compensation, length compensation;
14): Interpolation Algorithm: S type, circular hard algorithm, circular soft algorithm;
15): Support: pause Breakpoint resume (breakpoint memory), power cut recovery (power-off automatic protection), start from the specific line, near-point processing...etc;
16): CNC Software Alarms: Program Error, operation Error, overtravel Error, Driver Error and so on;
16): Support high-speed machining in continuous Polyline segment, the system can choose a most efficient algorithm automatically from different kinds Polyline segment algorithm;
17): The control system can preview the processing path before machining, so makes the system more steady, working smoothly and precise;
18): The Power Supply for the controller is 24VDC, minimum Current is 0.5A;
19): The Power Supply for IO Port is 24VDC, minimum current is 0.5A, can directly drive the relay;
Brand: | Digital Dream | Warranty: | 1Year | ||
Model: | DDCS-Expert + Power units | Axis Optional: | 3Axis / 4Axis / 5Axis | ||
MOQ: | 1pc | Stock: | Rich | ||

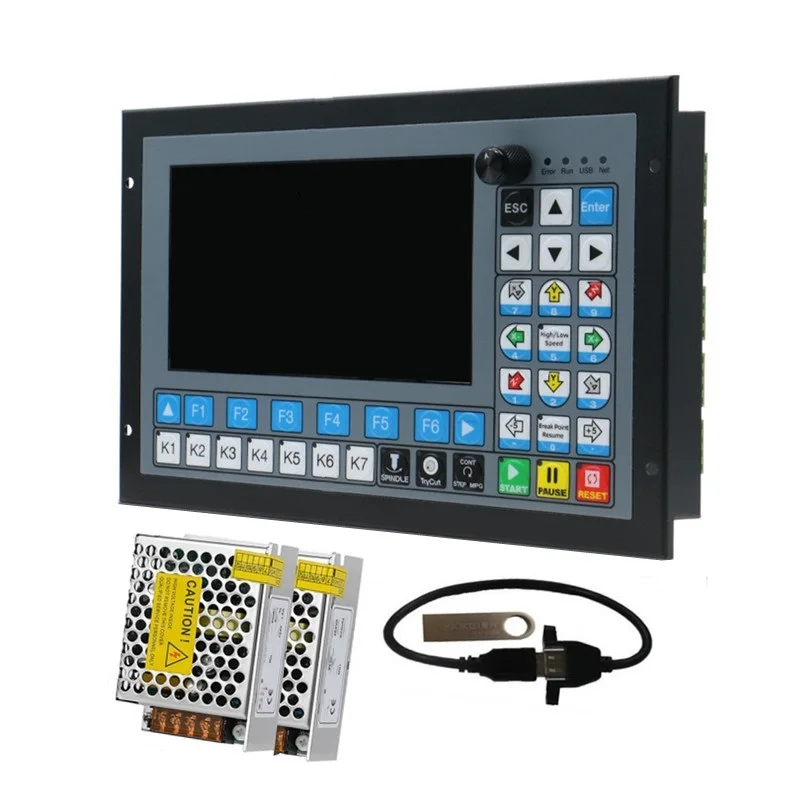

Package Includes: | 1 x DDCS-Expert Standalone CNC Controller (3/4/5 axis optionals) 2 x Power units (S-100W24V) 1 × 4GB USB flash drive 1 x USB Extension Cable (The User manual and Install software will be provided, or also can download from our official website: www.ddcnc.com ) | ||||

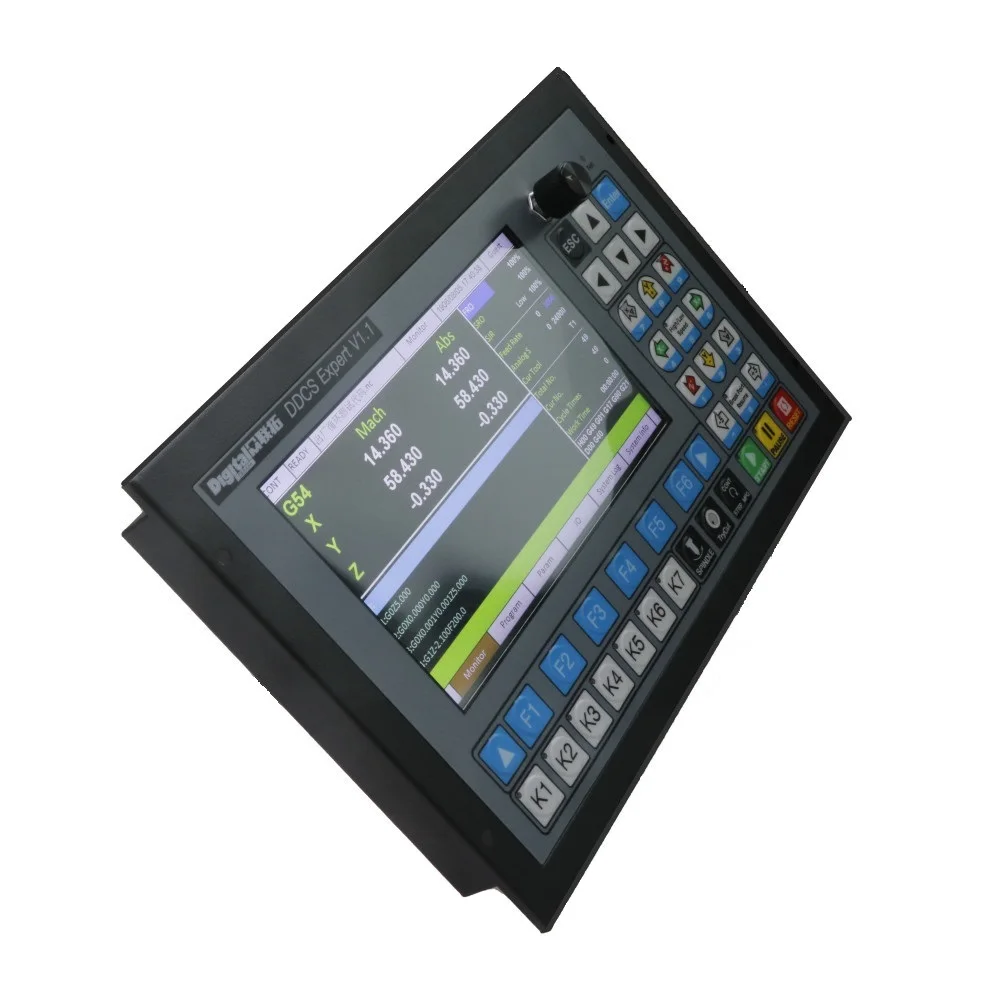

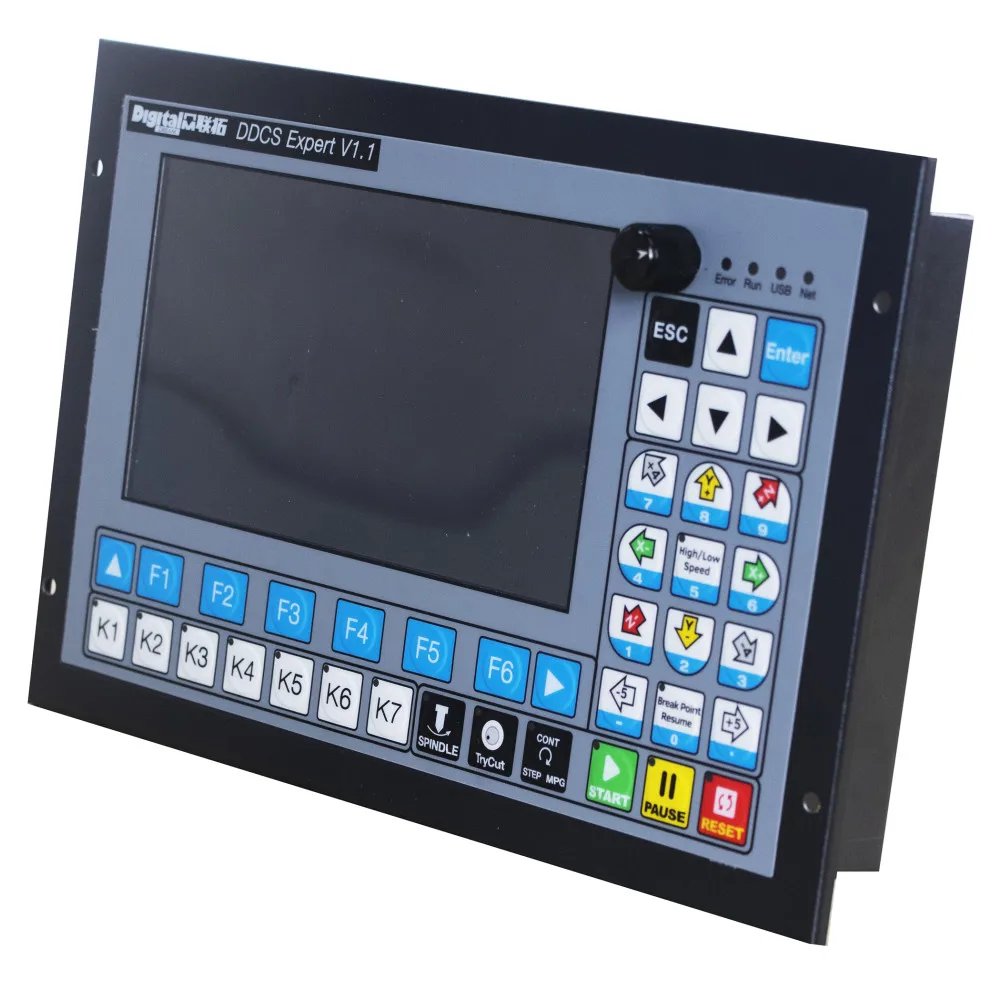

DDCSE Details images

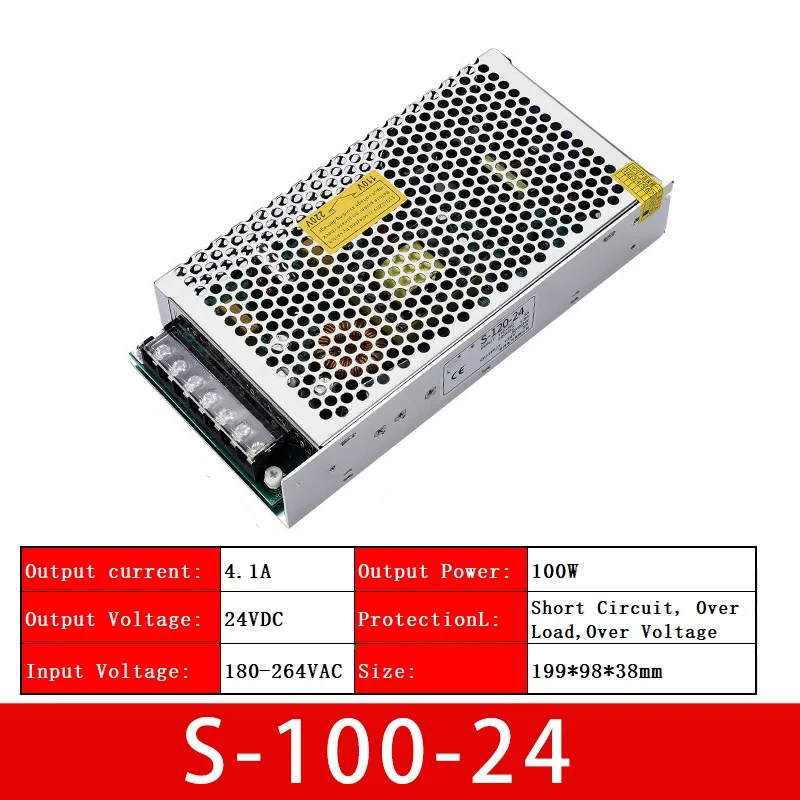

Power Units

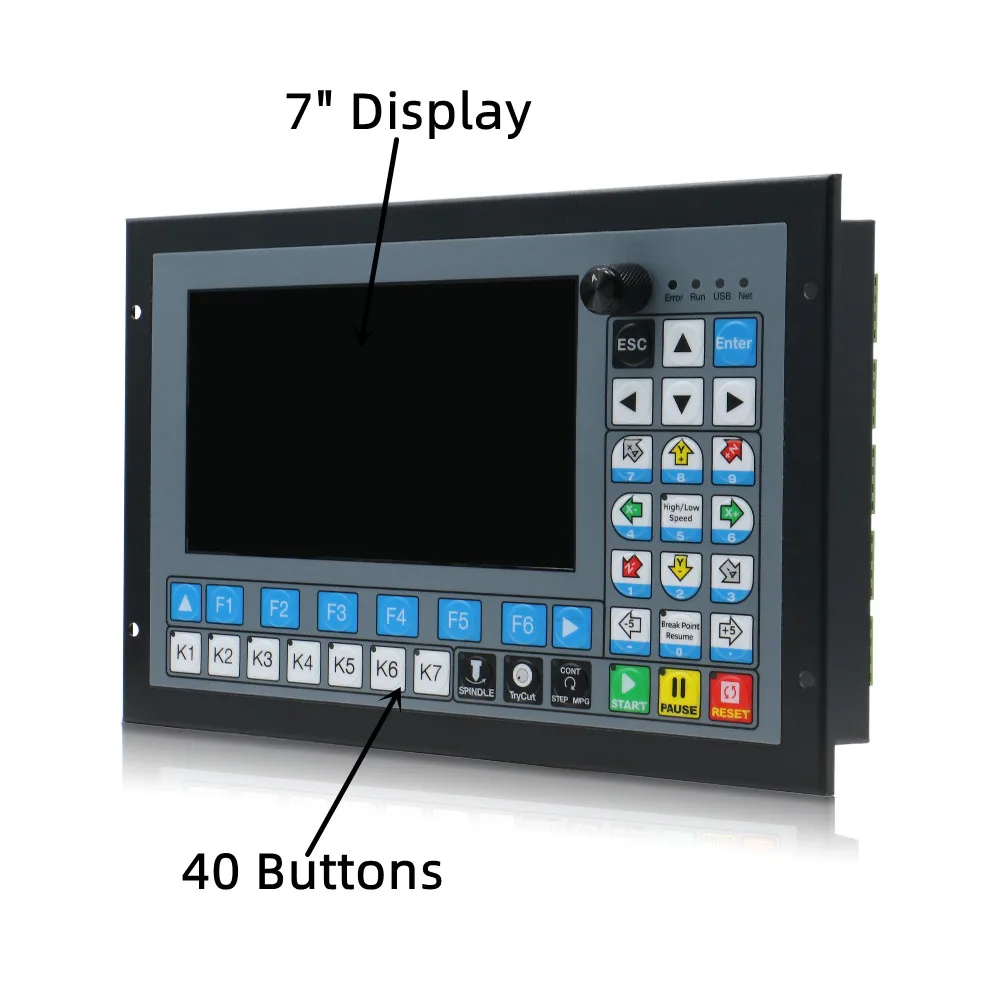

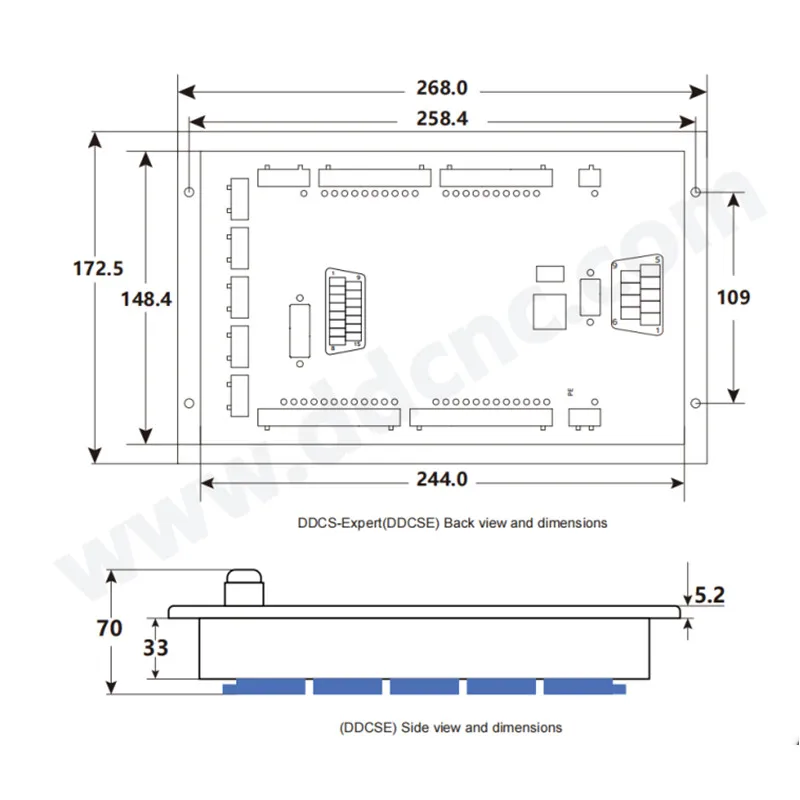

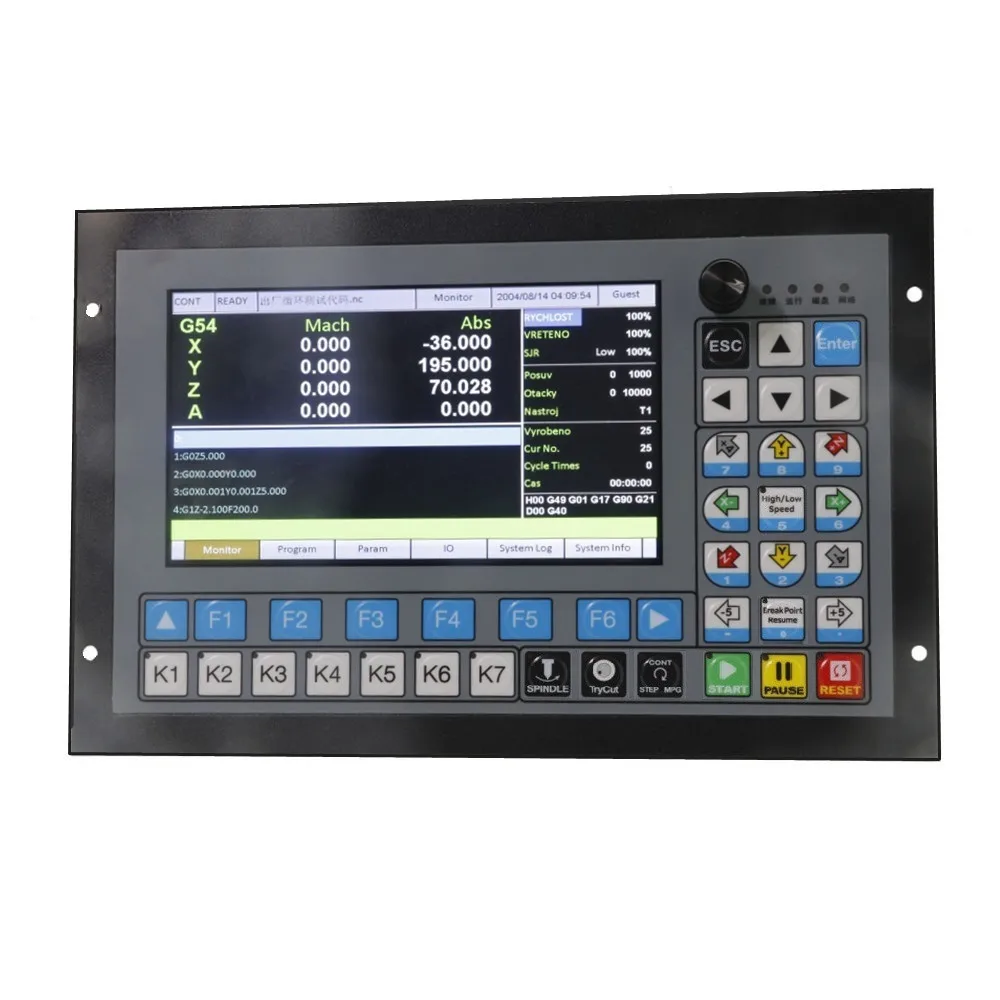

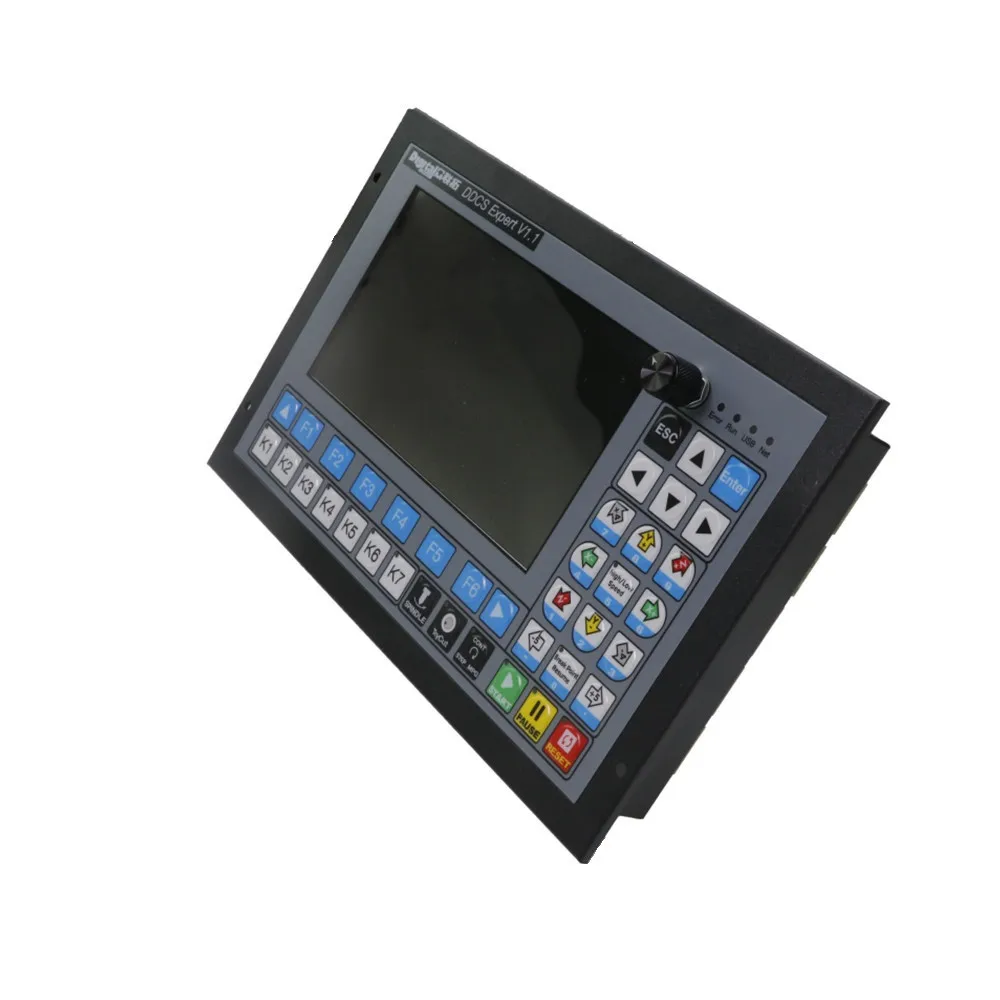

The DDCS-Expert is a small box that can fit in a window of a small control box or control cabinet. Four locking hooks fix this controller from the frame. 40Button Keys, The users can self-define the functional keys. DDCSE dimensions:

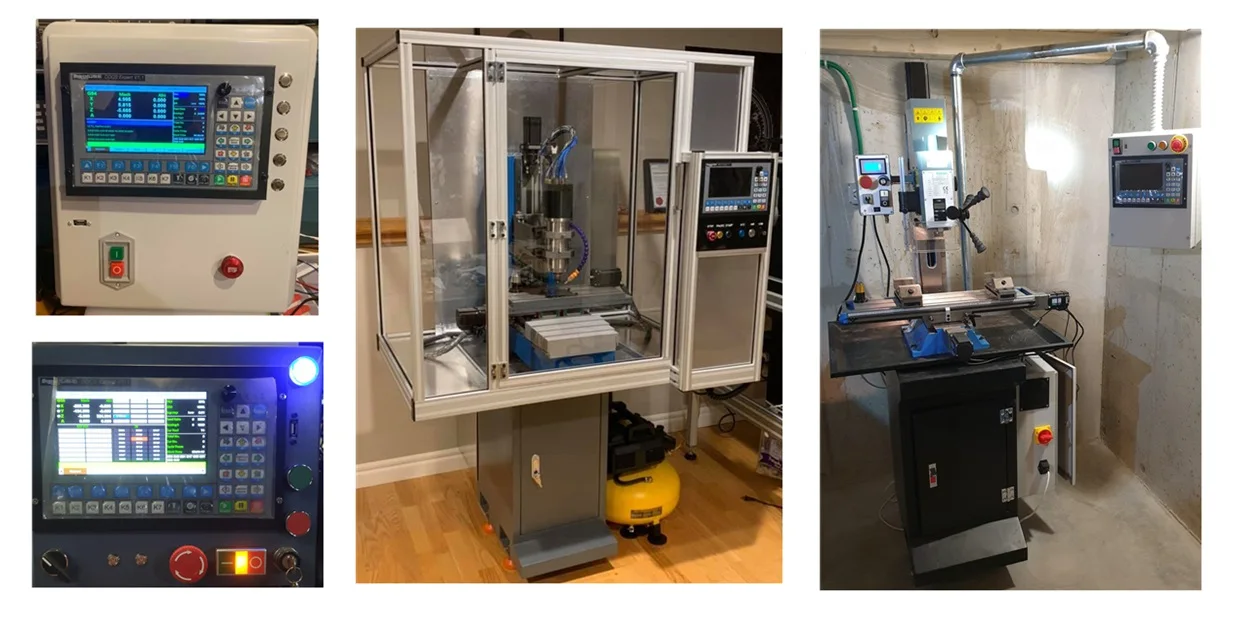

Pictures of the Panel box and machines shared by our customers
Input and Out Ports

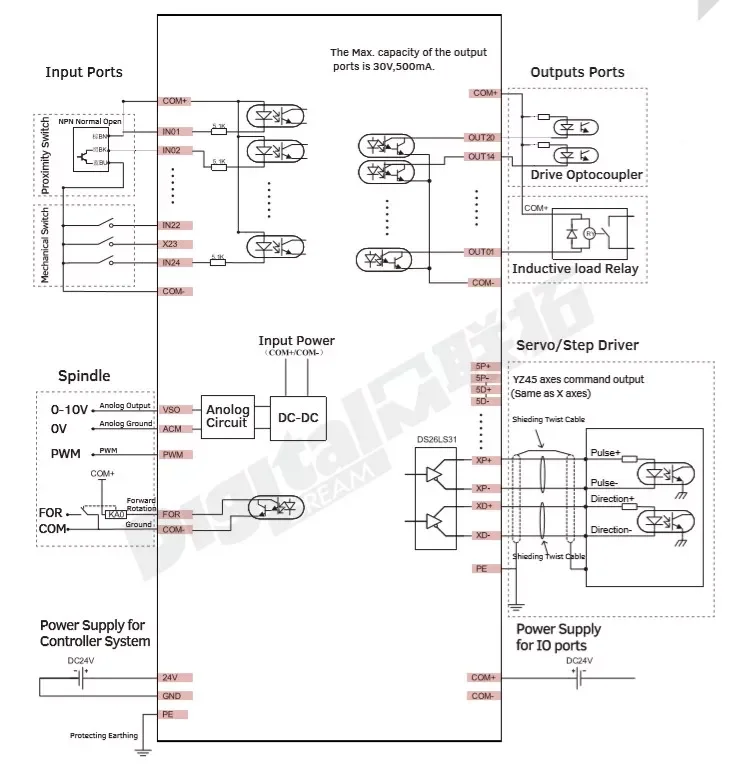

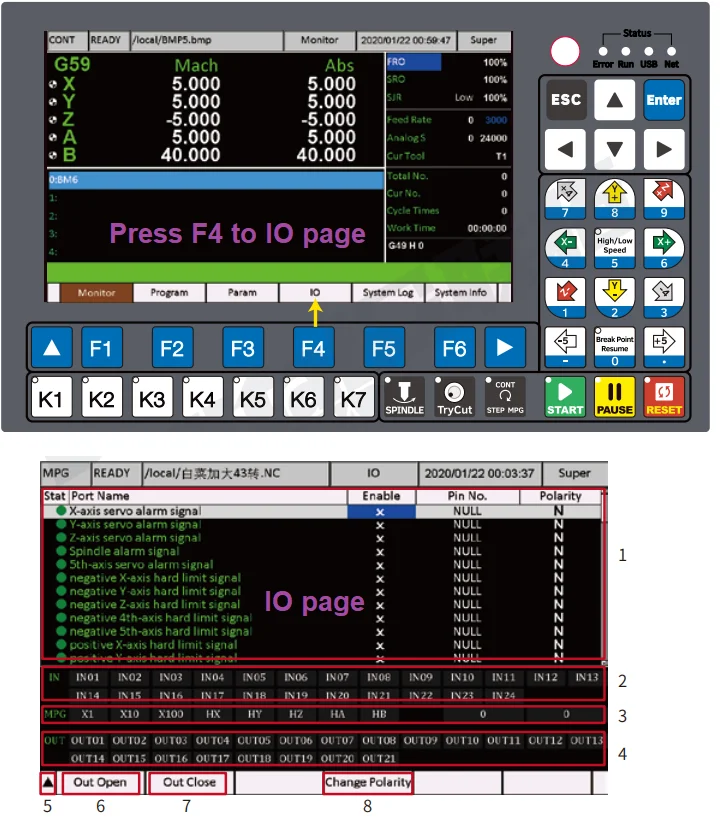

DDCS-Expert controller creates a self-defined IO ports method. According to the user’s favorite, the users can define the input and output ports as which they want. In the IO page,the users can define the input port and output port, and also can inpect the input/output port and MPG status.
More details please check our manual!
More details please check our manual!
DDCSE Wiring board define, the connection method Please check on the manual.

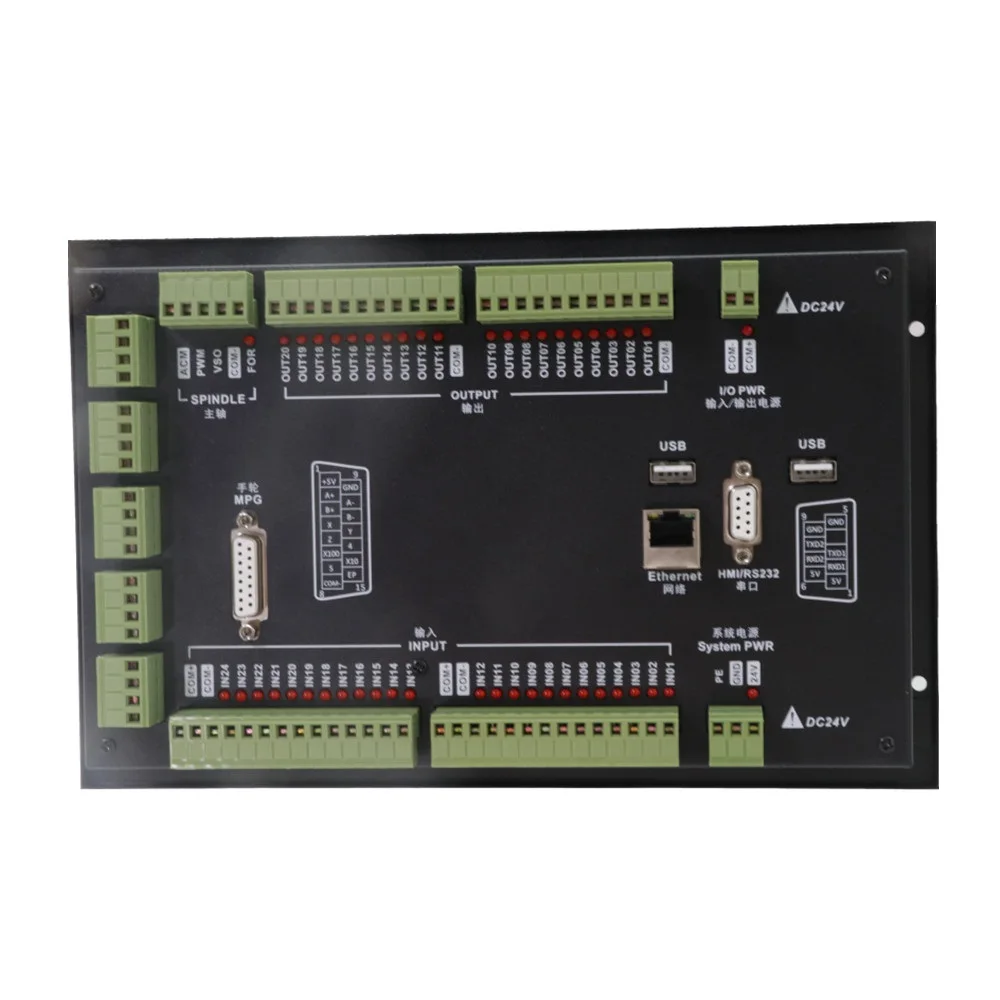

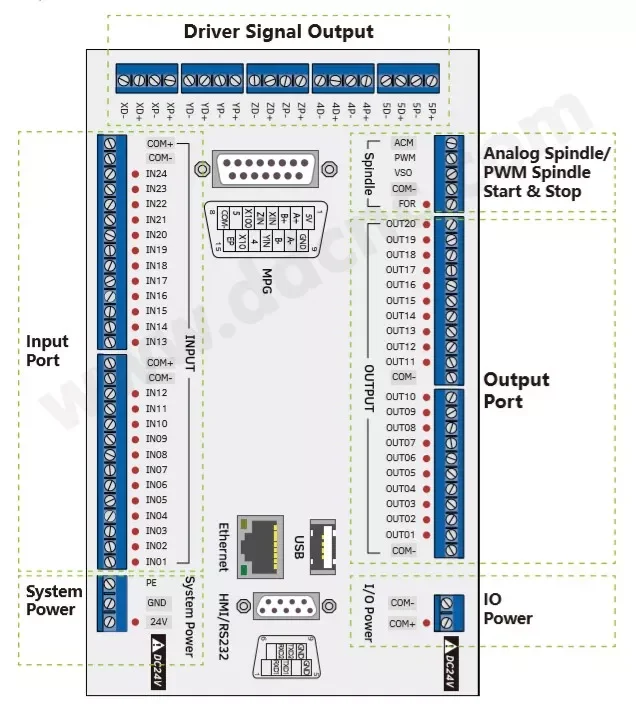

There are altogether 7 parts on DDCS-Expert wiring board as following picture, more details please check on the manual.

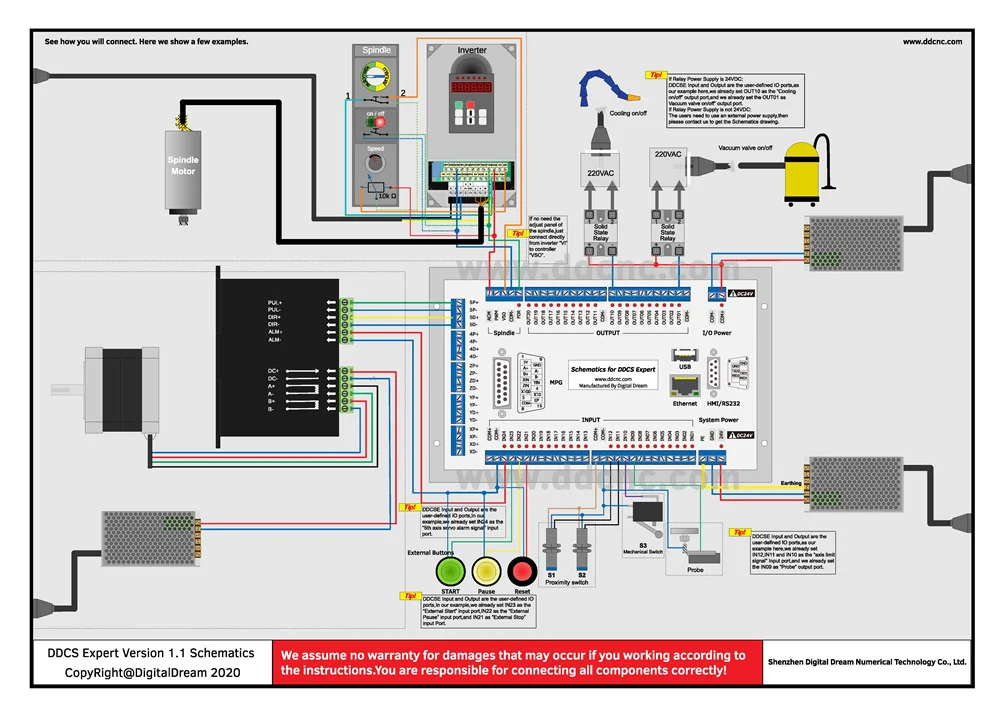

DDCSE Wiring instructions
