Price:$10.00 - $30.00

Quantity:


Product Overview

Description



Products Description

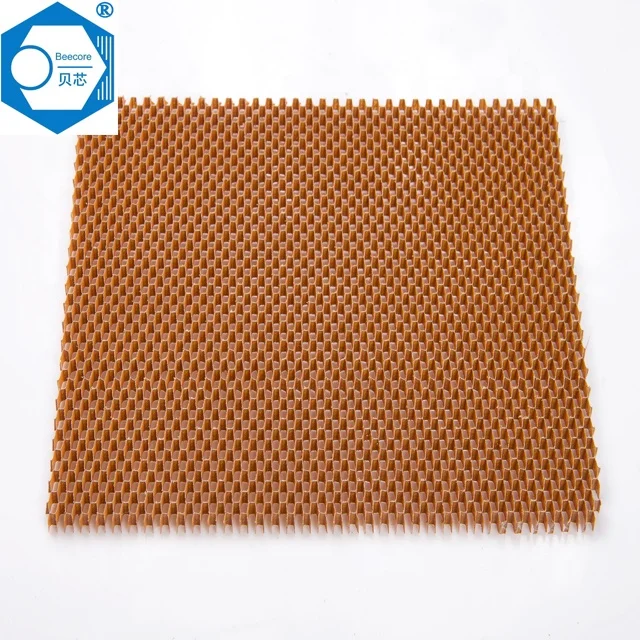

Nomex Honeycomb Core
The nomex honeycomb core is made of nomex paper which owns excellent physical, flame retardant phenolic resin, It has high fatigue resistance and anti chemical corrosion ability ,the excellent dielectric and rader conductive property as well. Nomex honeycomb laminated structure is broadly applied to aircraft , high vessel and train, radar etc.




Advantages


· High strength to weight ratio
· Corrosion resistant
· Excellent dielectric properties
· Thermally insulating
· High toughness
· Excellent creep and fatigue performance
· Good thermal stability
· Over collapsed cell configuration suitable for forming simple curves
· Compatible with most adhesives used in sandwich composites


Specification


Cell size
（mm）
Density
(kg/ m3)
Compression strength
(Mpa)
L-Shear
(N/mm2)
W-Shear
(N/mm2)

3.2




1/8 inch
48
1.9
1.16
0.62
3.2
64
3.1
1.48
0.82
3.2
80
4.7
1.95
1.05
3.2
96
6.6
2.45
1.42
3.2
128
11.3
2.95
1.78
3.2
144
13.2
3.05
1.9
4
5/23 inch
29
0.6
0.45
0.26
4
80
5.1
1.9
0.98
4
144
13
3.6
2
4.8




3/16 inch
32
0.9
0.58
0.36
4.8
48
2.6
0.98
0.56
4.8
64
3.4
1.7
0.92
4.8
80
6
1.95
1.1
4.8
96
7.3
2.26
1.32
4.8
123
9.3
3.4
1.86
6.4


1/4 inch
24
0.54
0.34
0.18
6.4
32
0.8
0.54
0.3
6.4
48
2.05
1
0.56
6.4
64
3.4
1.54
0.79


Application




Company Profile




Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc. , We always stick to the roots of continuous technological innovation, and constantly upgrade and expand the application of the honeycomb materials, becoming the first choice company for solutions of honeycomb materials.
At present, we hold more than 60% market share in the Yangtze River Delta of China. The overseas market covers Europe, America, Middle East, Southeast Asia and other countries, praised by domestic and foreign customers.


Factory

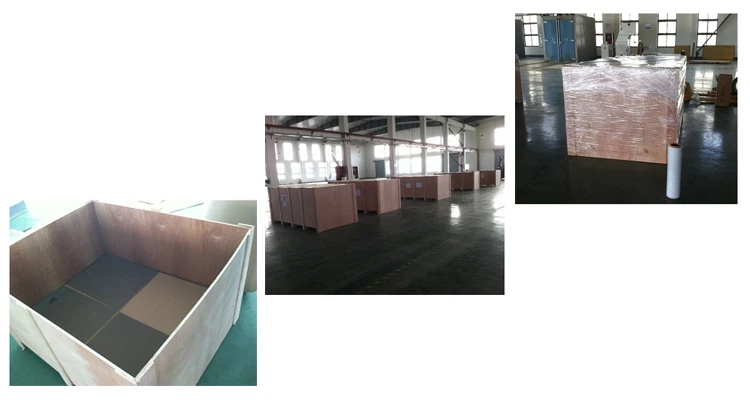

Packing




Certifications




Exhibition




FAQ


1.Q:Could you Custom-tailor?
  A:We can manufacture products according to customer’s request ---- for the specified size and density. And we are also willing to research and develop together with potential clients new honeycomb products of the different materials and different workmanships.
2.Q:How does your company control the quality of your products?
  A:We strictly inspect all production processes. Operations are strictly guarded before entering the next procedure. Prior to packing, our professional quality inspector checks every piece of the product. The QC supervisors inspect the work regularly. Our entire quality inspection staff takes specific training courses. We control the quality of our products is done according to the standards of the QA/QC Introduction (ISO9001:2000).
3.Q:Which payment term do you accept?
A:We accept T/T in advance, normally our payment term is 30% deposit T/T in advance, the balance 70% in T/T before delivery.
