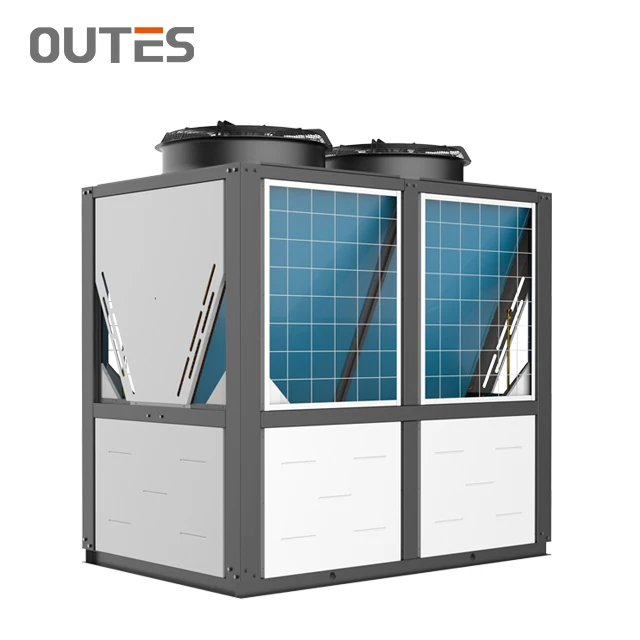

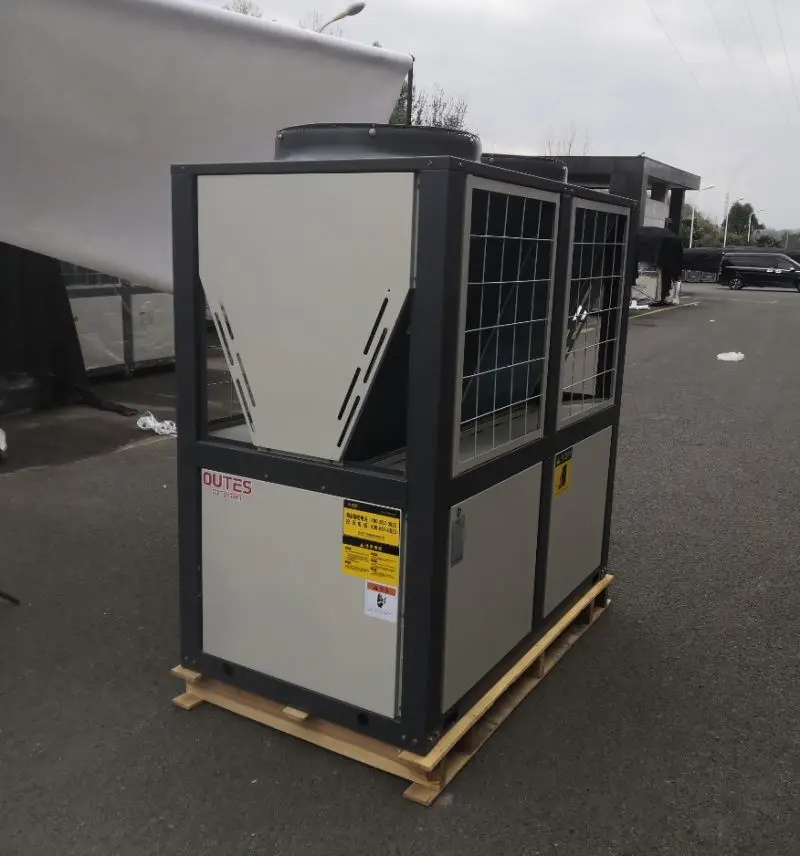

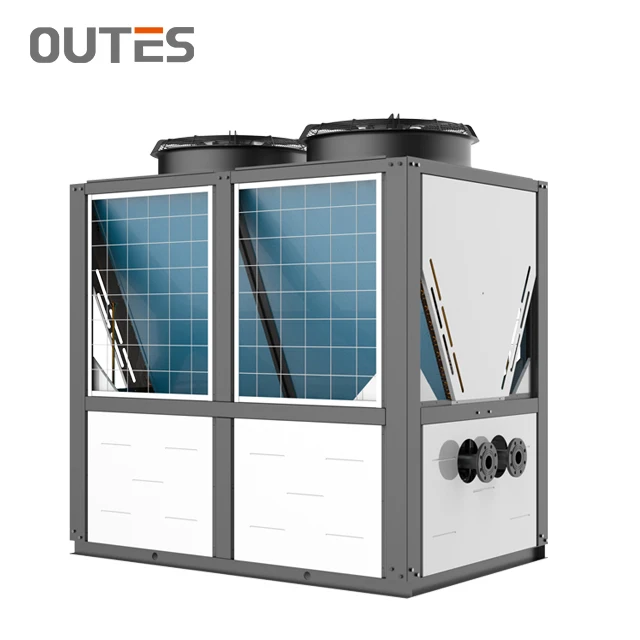

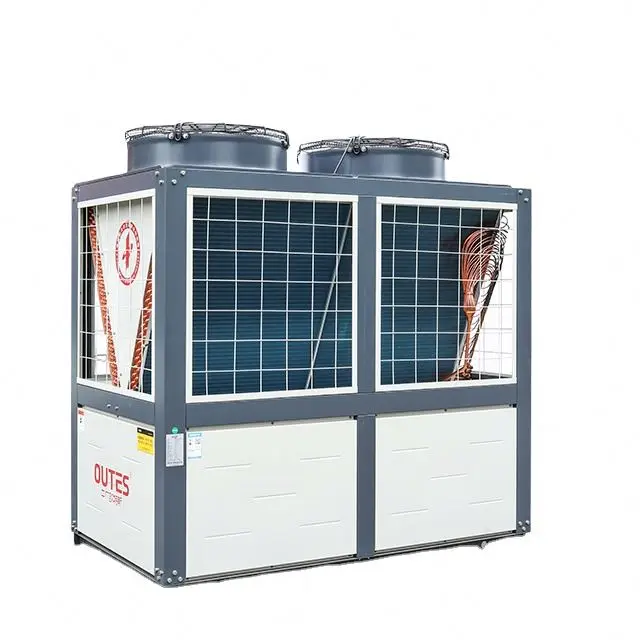

OUTES energy saving heat pump water cooler air water heat pump inverter heat pump 40kw
- Category: >>>
- Supplier: Zhejiang Zhongguang Electrical Co. Ltd.
Share on (1600548755986):
Product Overview
Description
PRODUCT FAMILY
PRODUCT OVERVIEW
PRODUCT FEATURE
Multi Function
Modular Control
Easy Disassembly and Easy InstallatonStart by Stage
Modular Connection
Modular Backup Running
Modular Rotation Running
Intelligent Control System
Long Distance Monitoring System
Modular Connection
Modular Backup Running
Modular Rotation Running
Intelligent Control System
Long Distance Monitoring System

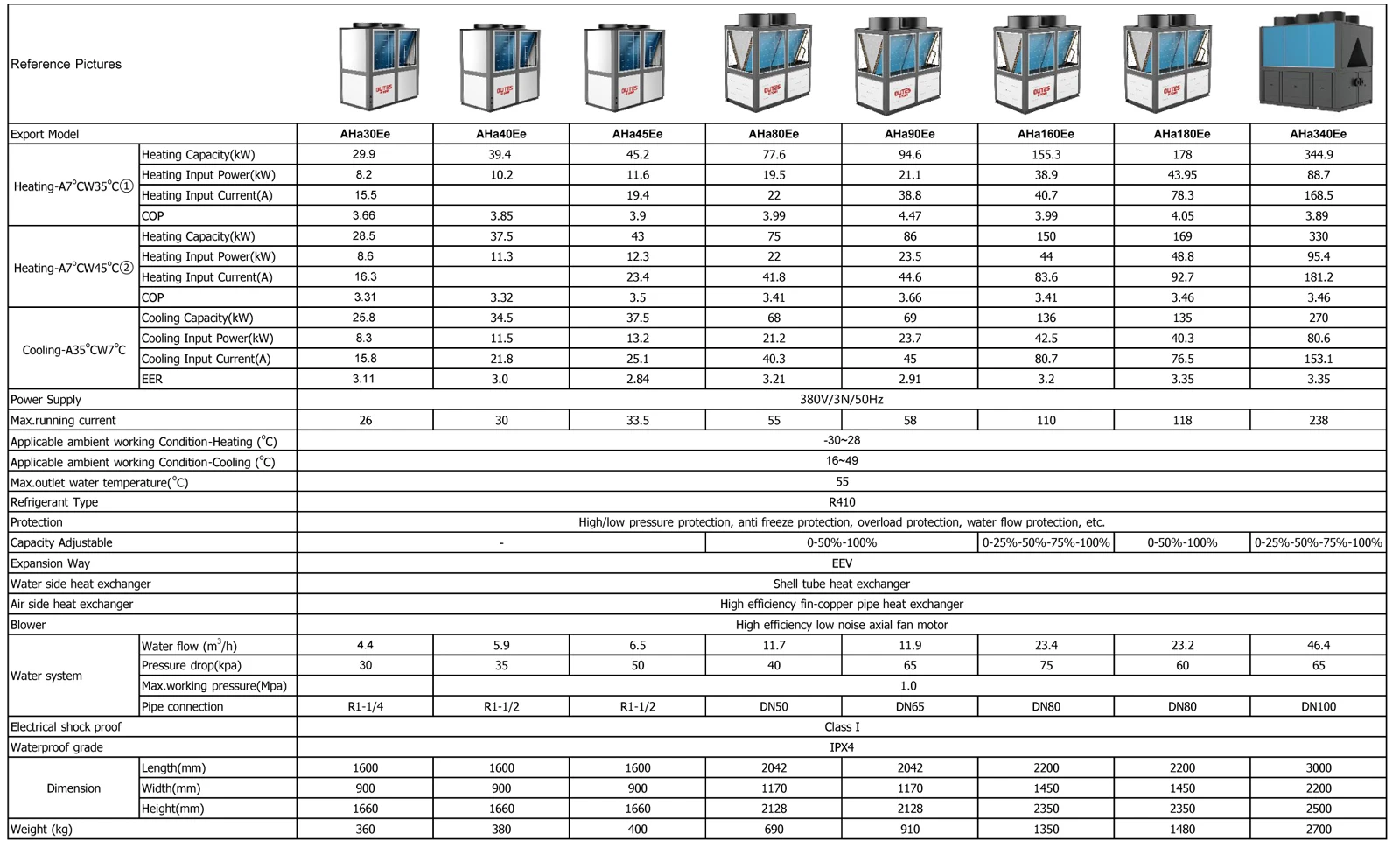

PRODUCT SPEC.
Model | AHa40Ee | AHa45Ee | AHa80Ee | AHa90Ee | AHa160Ee | AHa180Ee | |||
Power Supply | / | 380V/3N/50Hz | 380V/3N/50Hz | 380V/3N/50Hz | 380V/3N/50Hz | 380V/3N/50Hz | 380V/3N/50Hz | ||
Heating-A7W35 | Heating Capacity | kW | 39.4 | 45.2 | 78.8 | 90.4 | 157.6 | 176.4 | |
Heating Input Power | kW | 10.2 | 11.6 | 20.5 | 21.5 | 41.3 | 51.2 | ||
Heating Running Current | A | 19.4 | 22.0 | 38.8 | 40.7 | 76.0 | 97.32 | ||
COP | W/W | 3.85 | 3.90 | 3.85 | 4.21 | 3.82 | 3.45 | ||
Cooling A35W7 | Rating Cooling Capacity | kW | 34.5 | 37.5 | 68.0 | 69.0 | 130.0 | 135.0 | |
Cooling Input Power | kW | 11.5 | 13.2 | 21.2 | 24.2 | 48.1 | 40.3 | ||
Cooling Running Current | A | 21.8 | 25.1 | 40.3 | 45.1 | 76.0 | 76.5 | ||
EER | W/W | 3.00 | 2.84 | 3.21 | 2.85 | 2.70 | 3.35 | ||
Outdoor Unit | Rated Input Power | kW | 19.7 | 22.0 | 36.2 | 33.0 | 53.8 | 73.7 | |
Rated Input Current | A | 30.0 | 33.5 | 55.0 | 58.0 | 86.0 | 118.0 | ||
Min. Working Temperature ( Heating) | ℃ | -25 | -25 | -25 | -25 | -25 | -25 | ||
Refrigerant Type | / | R410A | R410A | R410A | R410A | R410A | R410A | ||
Capacity Adjustable | / | ON/OFF | ON/OFF | ON/OFF | ON/OFF | ON/OFF | ON/OFF | ||
Water side Heat Exchange | / | Shell&Tube | Shell&Tube | Shell&Tube | Shell&Tube | Shell&Tube | Shell&Tube | ||
Rated Water Flow | m3/h | 5.9 | 6.5 | 11.7 | 15.5 | 27.1 | 30.3 | ||
Water Pressure Drop | kpa | 35 | 50 | 40 | 65 | 75 | 60 | ||
Max.Water Pressure | MPa | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | ||
Noise | dB(A) | ≤65 | ≤65 | ≤68 | ≤68 | ≤70 | ≤70 | ||
Running Weight | / | 380 | 400 | 690 | 910 | 1350 | 1480 | ||
Net Dimension ( L*W*H) | mm | 1600*900*1660 | 1600*900*1660 | 2042*1170*2128 | 2042*1170*2128 | 2200*1450*2350 | 2200*1450*2350 | ||
Packing Dimension ( L*W*H) | mm | 1650*1010*1760 | 1650*1010*1760 | 2220*1286*2340 | 2220*1286*2340 | 2270*1500*2450 | 2270*1500*2450 | ||
Container Loading20'/40'/40'HC | Pcs | 12/24/24 | 12/24/24 | 5/9/9 | 5/9/9 | 4/8/8 | 4/8/8 | ||
PRODUCT DIAGRAM
Primary Circulation System
Secondary Circulation System

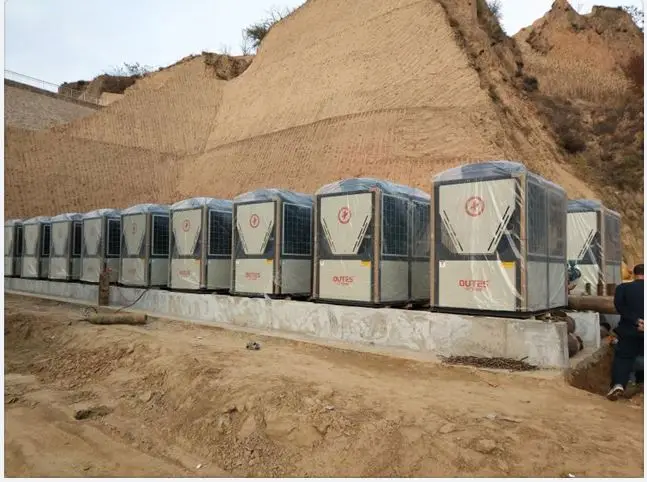

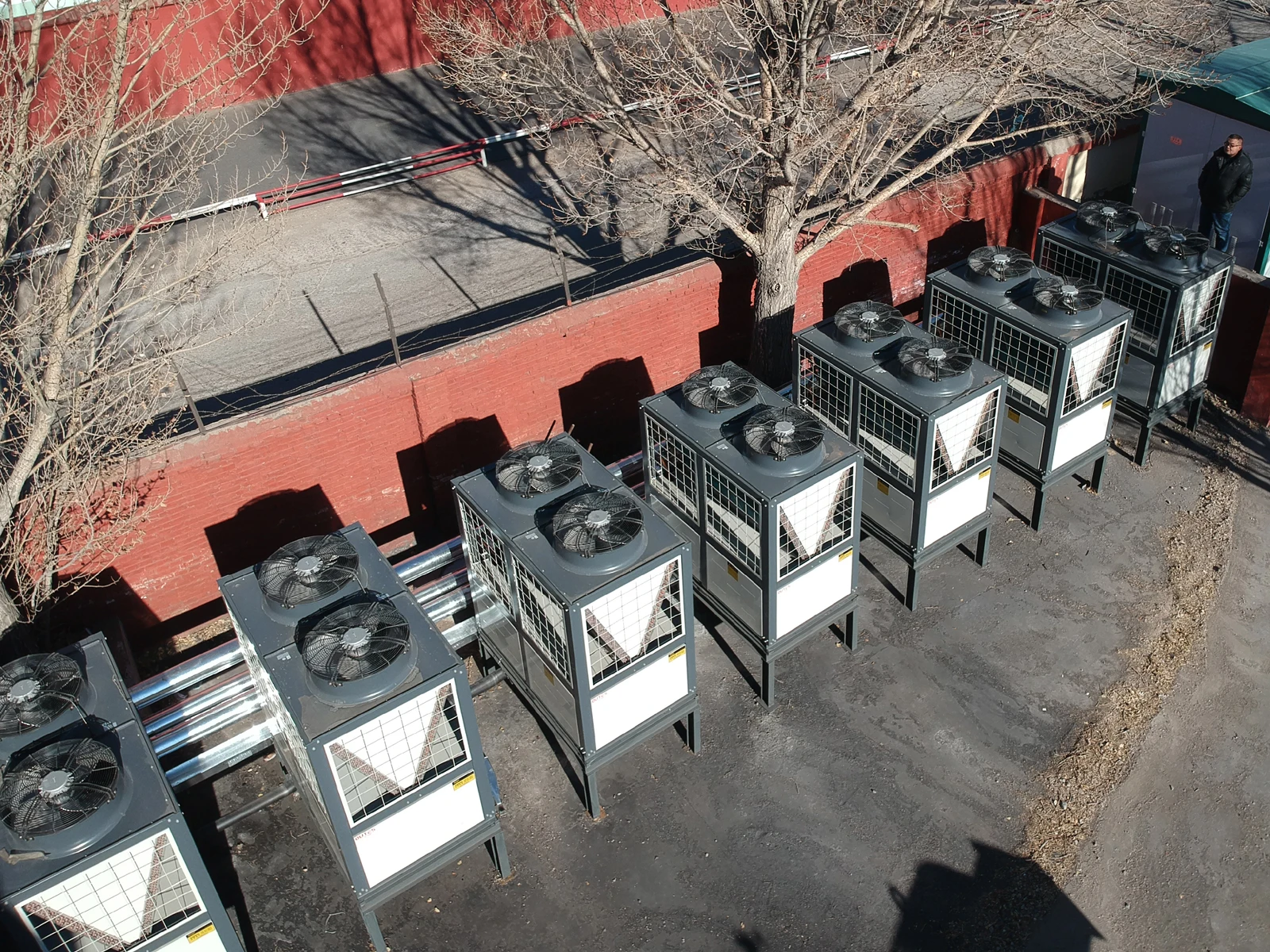

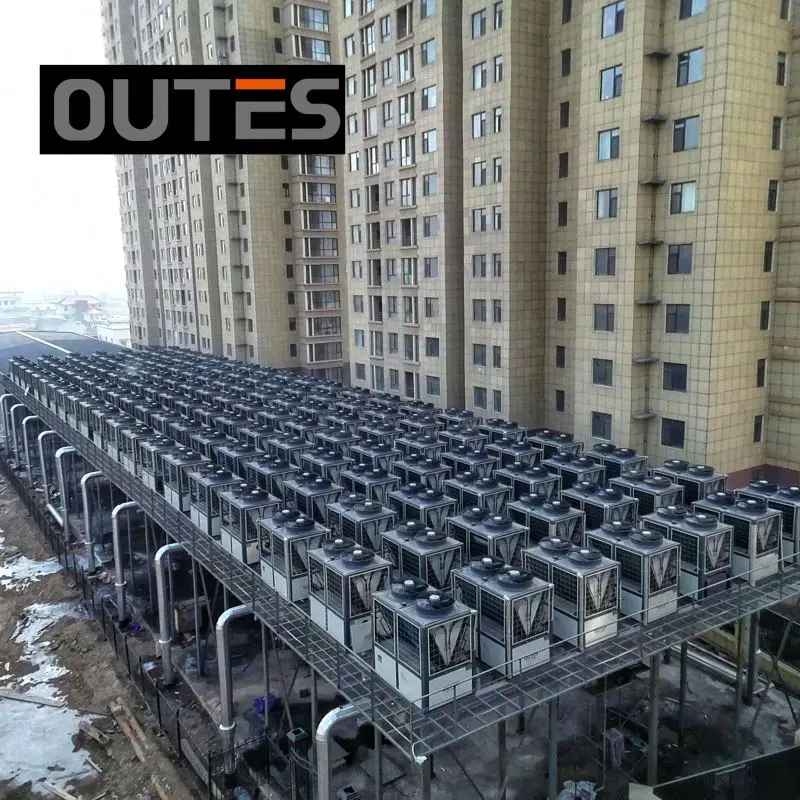

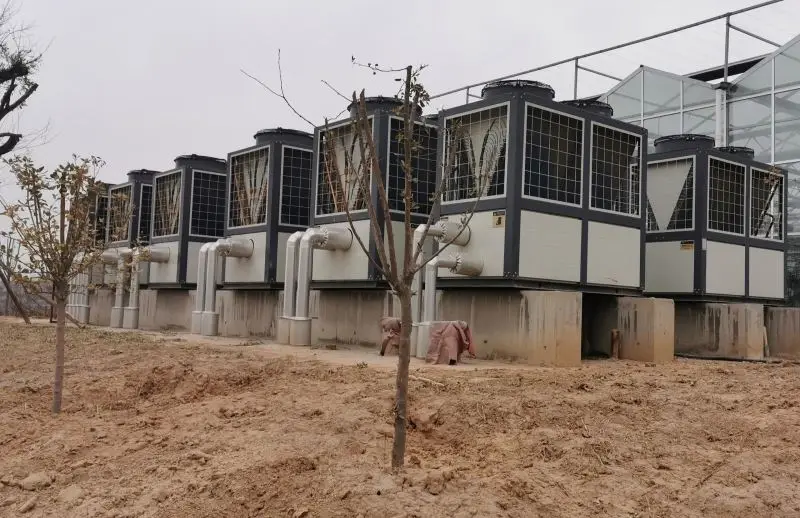

REFERENCE PROJECT
ABOUT OUTES
Zhejiang Zhongguang Electrical Co., Ltd. (OUTES) is a national high-tech factory manufacturing/Researching & Developing/Sales&Service 5C Comfort Home products including Central floor heating Heat Pump, Central Air Conditioning, Central Hot Water Heat Pump,Central Water Purification, Central Air Ventilation Units.
OUTES provides safe, healthy, comfortable and intelligent products for global users with high quality and considerate service!
