OUTES china air source heat pump top part compact heat pump water heater
- Category: >>>
- Supplier: Zhejiang Zhongguang Electrical Co. Ltd.
Share on (1600548761972):
Product Overview
Description
Video Description
Product Family
Product Overview

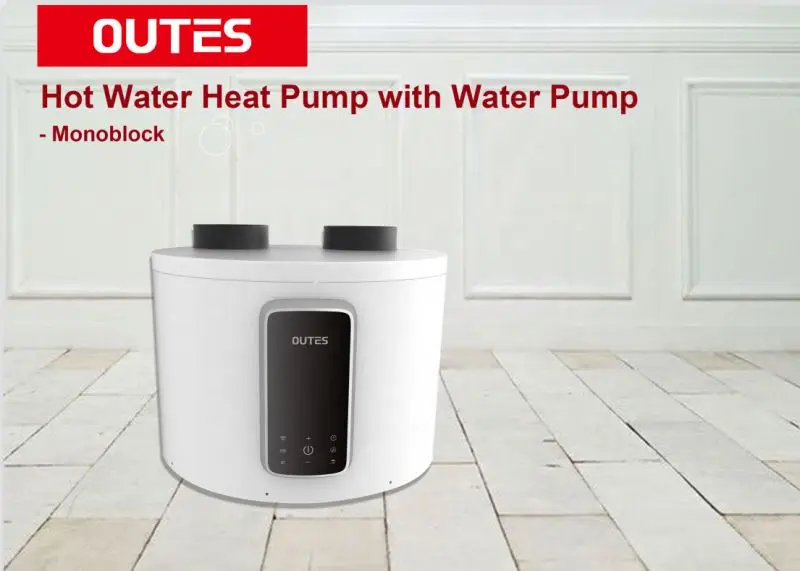

Hot Water Heat Pump with Water Pump-Monobloc

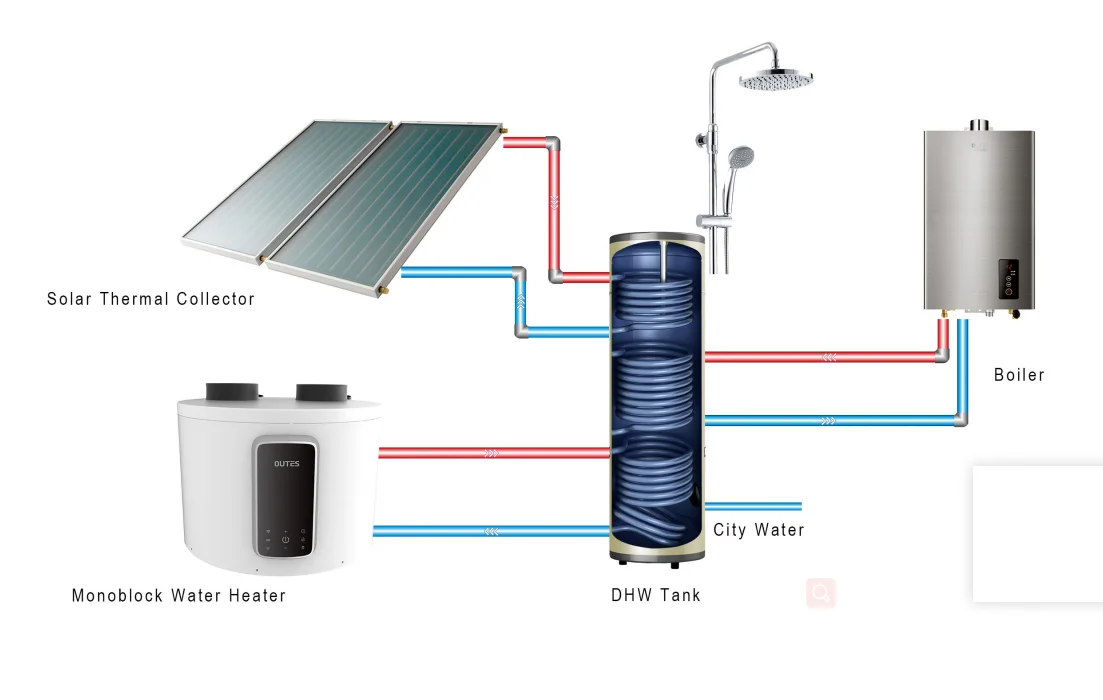

Supplying Domestic Sanitary Hot Water for bath, shower, washing hand, House Cleaning, Spa, Kitchen.
Modes: AUTO/ECO/FAST/MULT
Intelligent Fault Testing
Intelligent Defrosting
Auto Weekly Disinfection
Weekly Timer
Vacation Function
Auto-Restart
Child Lock
High/Low Pressure Protection
Cool Air Function
WIFI
Built-in Grundfos water pump (optional)
Intelligent Fault Testing
Intelligent Defrosting
Auto Weekly Disinfection
Weekly Timer
Vacation Function
Auto-Restart
Child Lock
High/Low Pressure Protection
Cool Air Function
WIFI
Built-in Grundfos water pump (optional)
Product Specification
Model | / | ATb21R1P | ATb34R1P | |
Power Supply | / | 220-240V/50Hz | 220-240V/50Hz | |
Heating Capacity | W | 2100 | 3400 | |
Rated Input Power | W | 524 | 866 | |
COP | W/W | 4 | 4 | |
Rated Water Output | L/h | 45 | 64 | |
Max Temp | ℃ | 70 | 70 | |
Noise | dB(A) | ≤54 | ≤57 | |
Refrigerant | / | R134A | R134A | |
Compressor | / | GMCC/Panasonic | GMCC/Panasonic | |
Max.Air Exhaust/Absorb Working Pressure | MPa/MPa | 2.6/1.3 | 2.6/1.3 | |
Working Condition | ℃ | -25℃～46℃(Heat Pump+Electric Heater),-7℃～46℃(Heat Pump) | ||
Electric Shock Proof Grade | / | Class Ⅰ | Class Ⅰ | |
Protection Grade | / | IPX4 | IPX4 | |
Net Weight | kg | 44.00 | 45.00 | |
Gross Weight | kg | 49.00 | 50.00 | |
Net Dimension | mm | Φ600x523 | Φ660x523 | |
Packing Dimension | mm | 720x720x621 | 750x720x621 | |
Container Loaidng 20'/40 | Unit | 72/144 | 72/144 |
Details Images
Front Elevation
Right Elevation

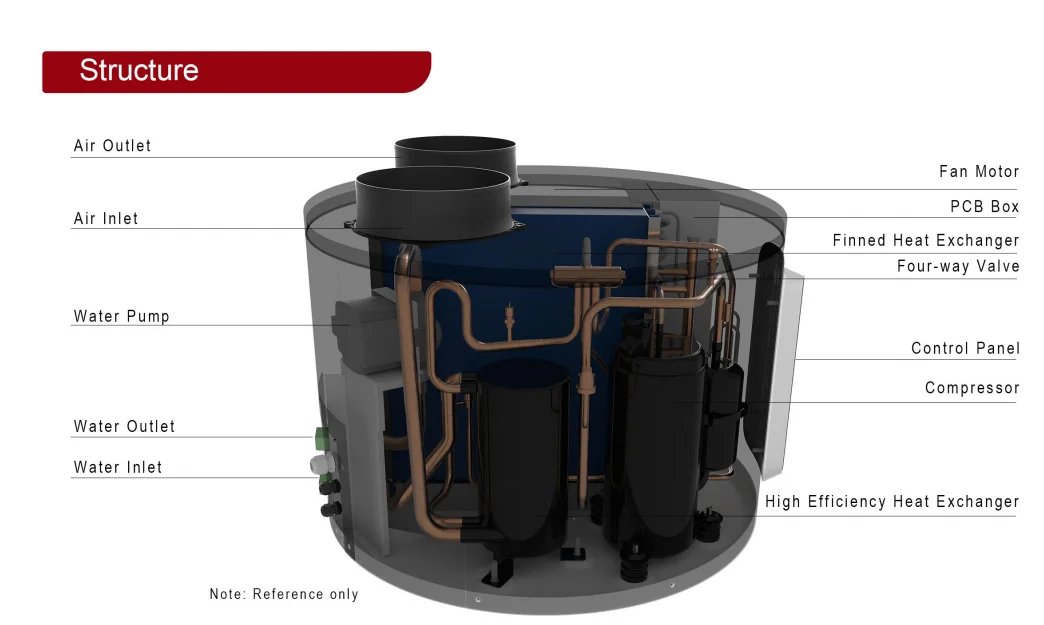

Inside Structure
Recommend Products
About OUTES
OUTES was established in 2 0 0 6 with an industry park of 500,000m2, specializing in sales, R&D and manufacturing air conditioner, Cooling & Heating heat pump, Hot Water heat pump, Swimming Pool heat pump, Commercial heat pump, Fan Coils, Air Ventilation Unit, Water Purification Equipment and Pressure Water Tank.
OUTES has reputation in domestic market. With 2000 distributors, 1000 After-sales Service Center and 10 local warehouse.
FAQ
Q1: How about your delivery time ?
A1: Generally, it will take 35 to 40 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q2: How about your delivery time ?
A2: EXW, FOB,...etc.
Q3: How about your delivery time ?
A3: Generally, we pack the heat pump in brown cartons or plywood. If you have legally registered patent, we can pack the heat pump in your branded boxes after getting your authorization letters.
Q4: What is your sample policy?
A4: We accept the sample order, but the customers have to pay the sample cost and the courier cost.
Q5: Do you test all your goods before delivery?
A5: Yes, we have 100% test before we pack the goods for delivery.
Q6: How about your delivery time ?
A6: 2 years warranty on the whole unit. The spare parts must be non-humanly damaged, usually we give to customer 1% spare parts free of charge for maintenance according to order cost during the warranty period.
A1: Generally, it will take 35 to 40 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q2: How about your delivery time ?
A2: EXW, FOB,...etc.
Q3: How about your delivery time ?
A3: Generally, we pack the heat pump in brown cartons or plywood. If you have legally registered patent, we can pack the heat pump in your branded boxes after getting your authorization letters.
Q4: What is your sample policy?
A4: We accept the sample order, but the customers have to pay the sample cost and the courier cost.
Q5: Do you test all your goods before delivery?
A5: Yes, we have 100% test before we pack the goods for delivery.
Q6: How about your delivery time ?
A6: 2 years warranty on the whole unit. The spare parts must be non-humanly damaged, usually we give to customer 1% spare parts free of charge for maintenance according to order cost during the warranty period.
