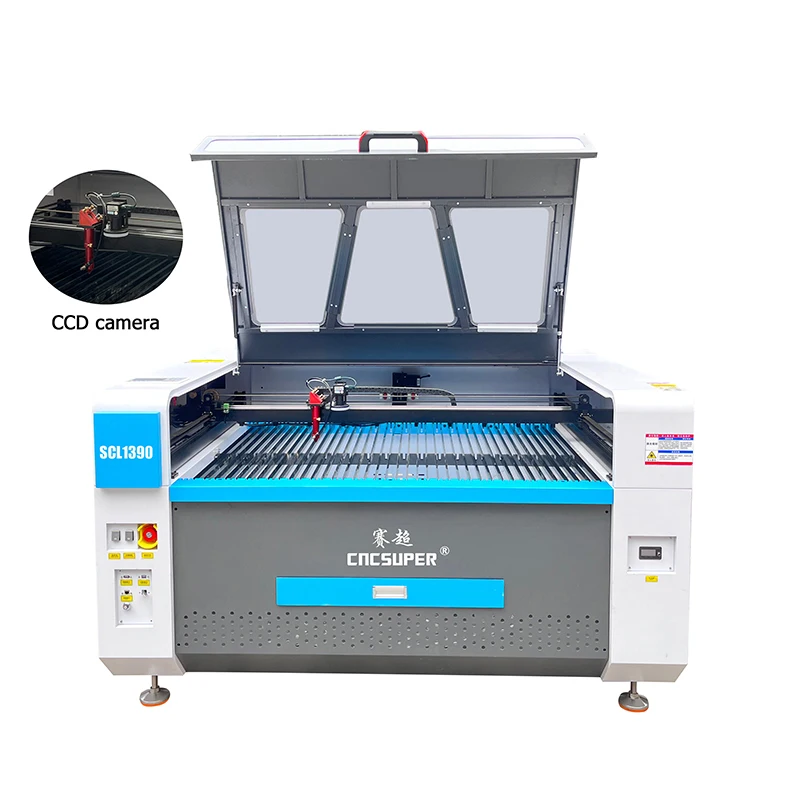

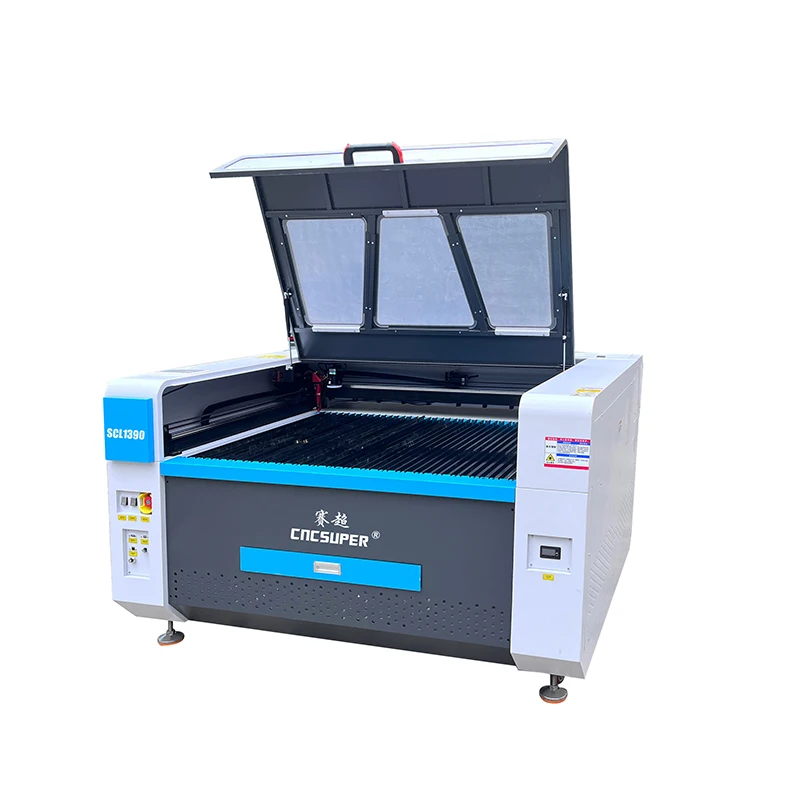

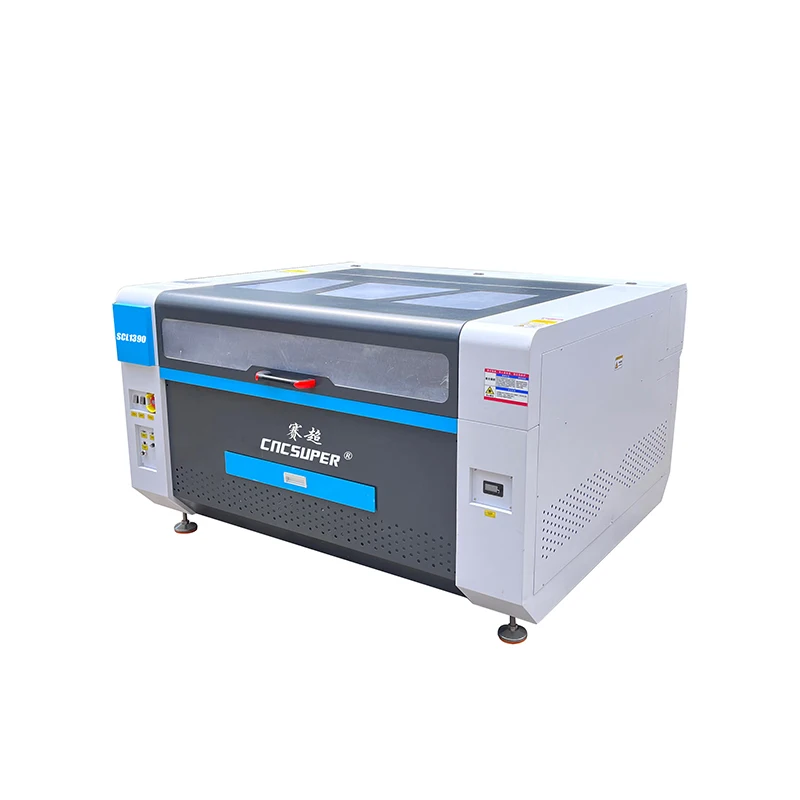

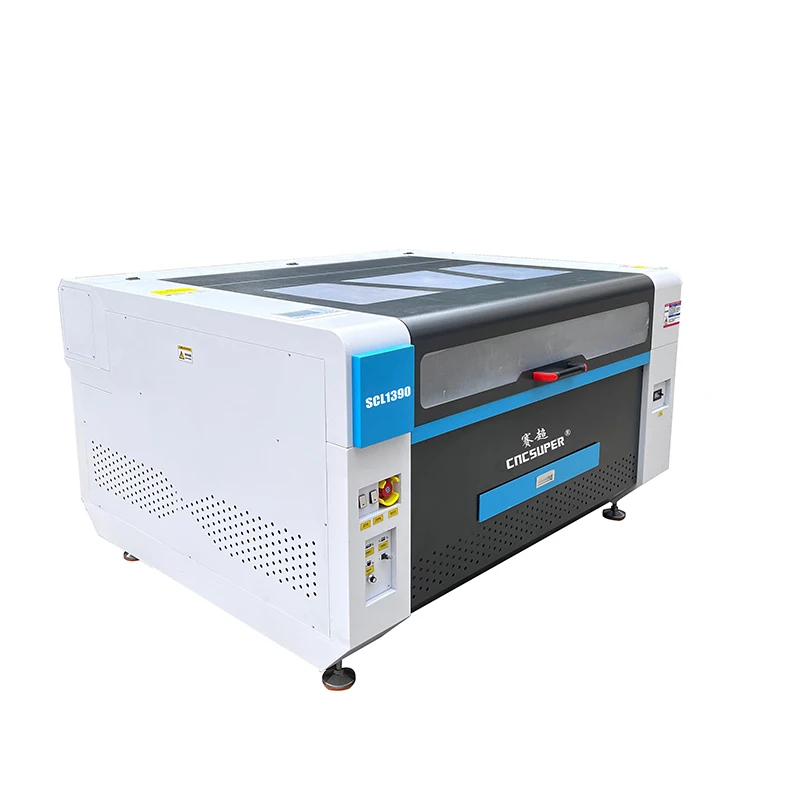

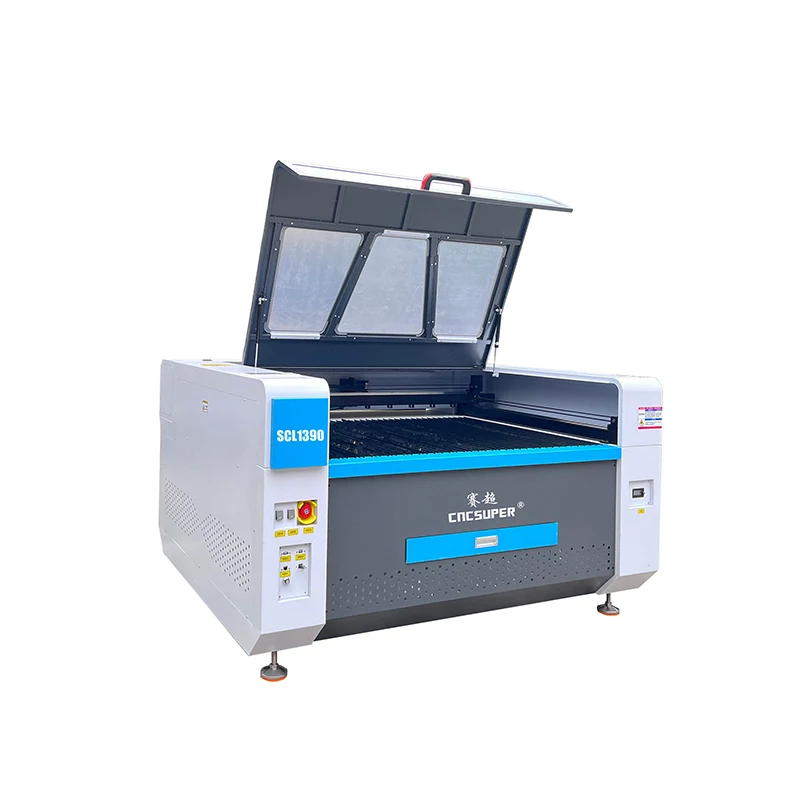

1390 Small Format High Quality CNC Co2 Laser Cutting Machine With Camera CCD
- Category: >>>
- Supplier: Guangdong Super Intelligent Equipment Co. Ltd.
Share on (1600548776088):
Product Overview
Description
Product Overview
High Quality 1390 Wood cnc c02 Laser Cutting Desktop Laser Engraving Machine
left side
right side

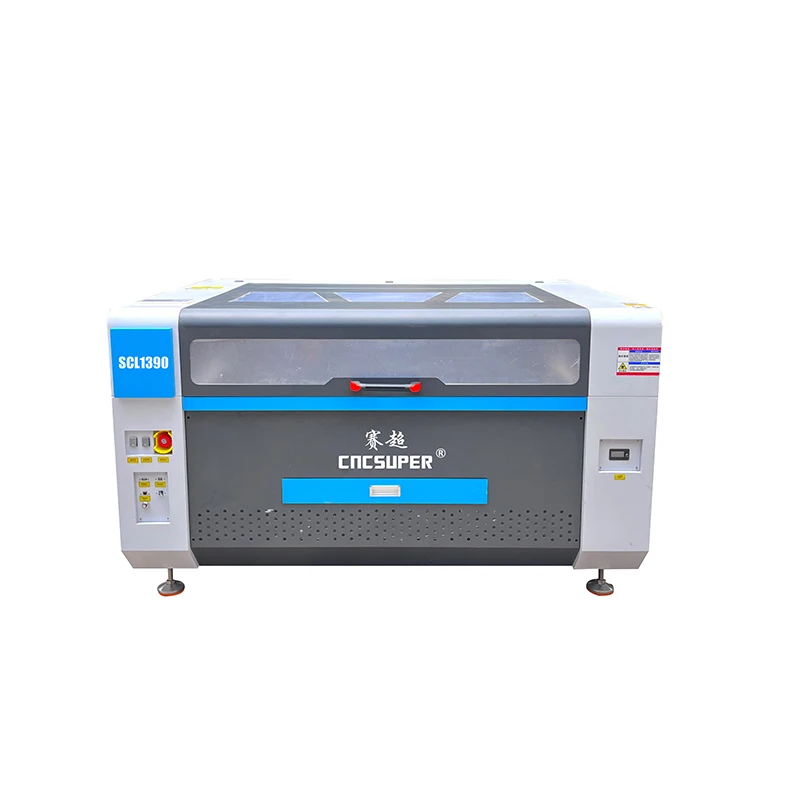

front side
Advantages of Co2 laser engraving machine:
1.Adopt the off-line motion control system which need not be connected to PC operation. Use USB data import, can reserve many processing documents.
2. Co2 Laser Engraving Machine strong and stable mechanical structure and digital control.
3. Imported the American focusing mirror and silicon bottom gilded mirror with thin light spot and cutting force.
4.Equipped with professional industrial cooling water system, so the continuous work performance is very stable .
5. Support AI, BMP, PLT, DXF, DST (tajima embroidery software) image data format import.
6.Support TAJIMA embroidery software (TAJIMA), CORELDRAW, PHOTOSHOP, AUTOCAD, all kinds of clothing CAD software.
7.Choose servo drive and imported linear guide, enhance stability, improve accuracy, increase the work efficiency.
8.Double-head laser cutting optional, with big processing dimension and high processing efficiency.
2. Co2 Laser Engraving Machine strong and stable mechanical structure and digital control.
3. Imported the American focusing mirror and silicon bottom gilded mirror with thin light spot and cutting force.
4.Equipped with professional industrial cooling water system, so the continuous work performance is very stable .
5. Support AI, BMP, PLT, DXF, DST (tajima embroidery software) image data format import.
6.Support TAJIMA embroidery software (TAJIMA), CORELDRAW, PHOTOSHOP, AUTOCAD, all kinds of clothing CAD software.
7.Choose servo drive and imported linear guide, enhance stability, improve accuracy, increase the work efficiency.
8.Double-head laser cutting optional, with big processing dimension and high processing efficiency.
Product Parameters
CO2 laser cutting machine SCL1390 | ||||||
Engraving Area: | 1300×900mm | |||||
Engraving Speed: | 0-64000mm/min | |||||
Laser Type | Sealed-off Glass CO2 Laser Wavelength: 10.6um | |||||
Laser power: | 80W/100W/120W/150W | |||||
Natural life of laser: | 3000-9000hours | |||||
Minimum shaping character: | Chinese character 2mm/ English letter 1mm | |||||
Resetting positioning accuracy: | ±0.01mm | |||||
Power Supply: | Ac220v±10%,50HZ, 60HZ | |||||
Gross Power: | <1250W | |||||
Operating Temperature: | 0-45 degree | |||||
Operating humidity: | 5%-95%( free of condensed water) | |||||
Graphic Format Supported: | BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DWG,DXF | |||||
Software | AutoCAD, CorelDraw output directly | |||||
Warranty | 12 Months (6 months for laser tube) | |||||
Net Weight: | 450KG | |||||
Dimension: | 1900*1530*1100 | |||||

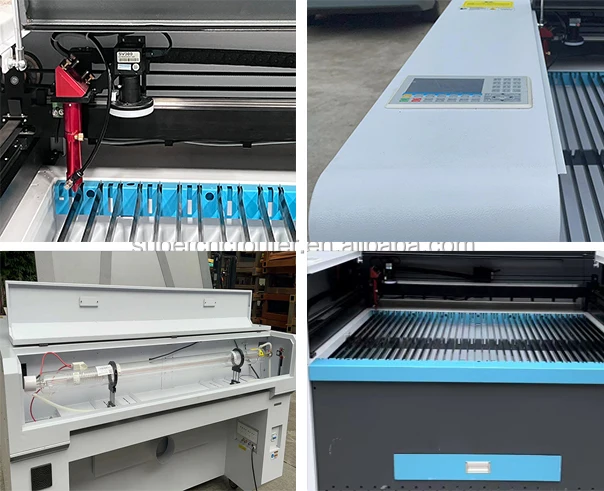

Main components
RECI laser tube
Laser cutting head
CW3000 water chiller
Control panel
Main board
Power supply
Lens
Air pump
Air blower
Product Details
Application
Application Materials
CO2 Laser Engraving Machine is apply to cloth, tile, cardboard, paper, leather, PU leather, trademark embroider, plastic, rubber,wood products, wood, organic glass, acrylic, jade, leather, shell, horn, animal sebum, double color boards, bamboo and wood products, ABS board, PVC board, fiber and composite materials etc. Nonmetal materials.
Application Industries
1.Advertising industry: Acrylic plate, color board and other advertising material's engraving and cutting.
2.Leather garment processing industry: Leather, fabric carving or hollow out patterns.
3.Arts and crafts industry: Paper cutting, wood, bamboo, leather, shell, ivory and other material's engraving and cutting.
4.Model industry: Building models, aviation and maritime models, wooden toys engraving and cutting etc.
5.Packing industry: Rubber printing plate, bilayer plate, knife model, and cutter board etc.
6.Decoration industries: Electrical and electronic industry materials' engraving and cutting.
2.Leather garment processing industry: Leather, fabric carving or hollow out patterns.
3.Arts and crafts industry: Paper cutting, wood, bamboo, leather, shell, ivory and other material's engraving and cutting.
4.Model industry: Building models, aviation and maritime models, wooden toys engraving and cutting etc.
5.Packing industry: Rubber printing plate, bilayer plate, knife model, and cutter board etc.
6.Decoration industries: Electrical and electronic industry materials' engraving and cutting.
