Junai Blanket Price Fire Resistant Ceramic Fiber New Thermal Insulation Ceramic Fiber Wool Blanket
- Category: >>>
- Supplier: Shaanxi Junai Energy Saving Technology Co. Ltd.
Share on (1600548787098):
Product Overview
Description
Products Description

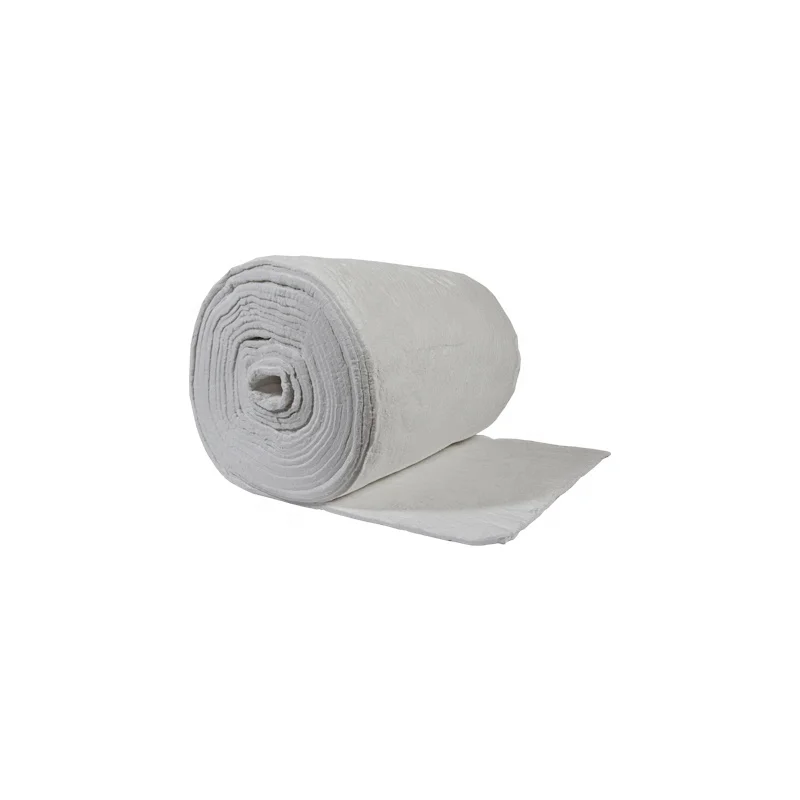

Junai ceramic fiber blankets
Junai ceramic fiber blankets use high-strength ceramic fibers and advanced double-sided needle punching technology to produce flexible fiber blankets of various specifications that are tough, soft, and elastic. The working temperature is 800-1600℃. Excellent dimensional stability and thermal shock resistance at high temperatures. Different temperature grades, densities, sizes, and thicknesses of ceramic fiber blankets can be selected according to different usage scenarios.

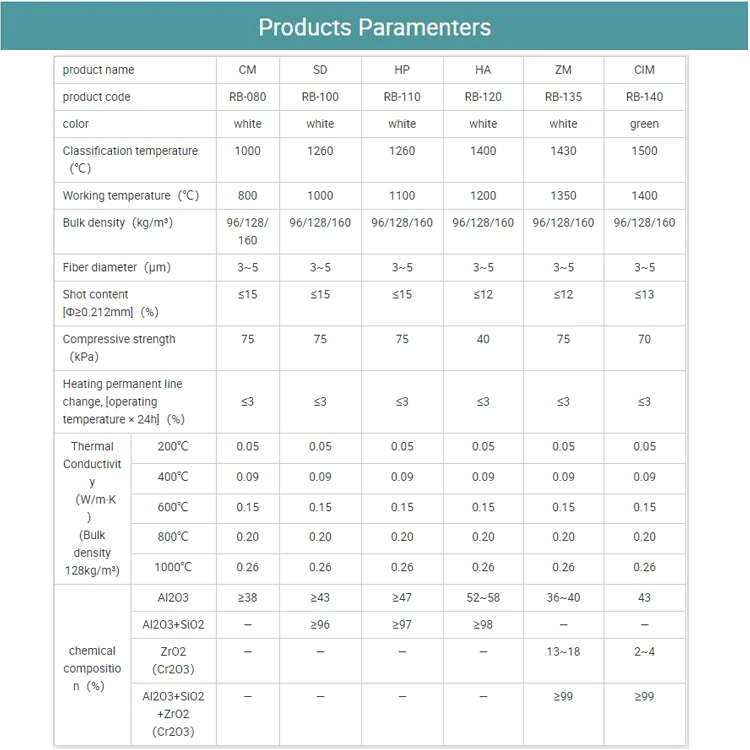

Products Paramenters
product name | CM | SD | HP | HA | ZM | CIM | ||
product code | RB-080 | RB-100 | RB-110 | RB-120 | RB-135 | RB-140 | ||
color | white | white | white | white | white | green | ||
Classification temperature（℃） | 1000 | 1260 | 1260 | 1400 | 1430 | 1500 | ||
Working temperature（℃） | 800 | 1000 | 1100 | 1200 | 1350 | 1400 | ||
Bulk density（kg/m³） | 96/128/160 | 96/128/160 | 96/128/160 | 96/128/160 | 96/128/160 | 96/128/160 | ||
Fiber diameter（μm） | 3~5 | 3~5 | 3~5 | 3~5 | 3~5 | 3~5 | ||
Shot content [Ф≥0.212mm]（%） | ≤15 | ≤15 | ≤15 | ≤12 | ≤12 | ≤13 | ||
Compressive strength（kPa） | 75 | 75 | 75 | 40 | 75 | 70 | ||
Heating permanent line change, [operating temperature × 24h]（%） | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ||
Thermal Conductivity （W/m·K） (Bulk density 128kg/m³) | 200℃ | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | |
400℃ | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | ||
600℃ | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | ||
800℃ | 0.20 | 0.20 | 0.20 | 0.20 | 0.20 | 0.20 | ||
1000℃ | 0.26 | 0.26 | 0.26 | 0.26 | 0.26 | 0.26 | ||
chemical composition（%） | Al2O3 | ≥38 | ≥43 | ≥47 | 52~58 | 36~40 | 43 | |
Al2O3+SiO2 | — | ≥96 | ≥97 | ≥98 | — | — | ||
ZrO2（Cr2O3） | — | — | — | — | 13~18 | 2~4 | ||
Al2O3+SiO2+ZrO2（Cr2O3） | — | — | — | — | ≥99 | ≥99 | ||

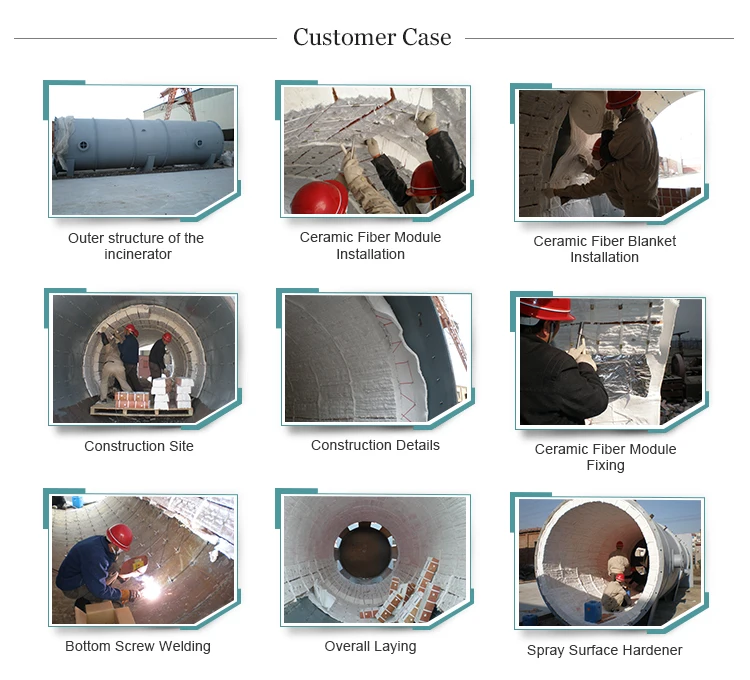

Product Application
Our products are widely used and experienced in these industries.
We can provide the system solutions in the field of high and low-temperature industry energy-saving including project design, product supply, site instruction, and technical support.4e979d
Production line
Company Profile
Shaanxi Junai Energy-saving Technology Co., Ltd
We are the overseas business division of Luoyang Naiyan Ceramic Fiber Co, Ltd, a subsidiary of Sinosteel Cooperation Luoyang Refractory Research Institute Co., Ltd. We are founded in 1963, and are recognized as the pioneer and forerunner in the field of refractory fiber and nano microporous
thermal insulation material in China.
thermal insulation material in China.
Professional Team
At present, we have 39 R & D personnel, including 17 scientific researchers with the title of the engineer or above. Over several decades focus on refractory, cold chain, energy saving, thermal insulation materials, and equipment R&D and manufacturing.
Certificate and Honor
Junai has the most authoritative certificate and honor system.
Packaging and Delivery
Payment and delivery
Payment can be done by T/T, Credit Card, Western Union, PayPal and more.
delivery：By sea/by air/by train/DHL/Fedex/ups/EMS/TNT etc.
FAQ
1.Are you a factory ？
We are a manufacturer founded in 1963, located in Henan China.
We also can offer system solutions including project design, site instruction, and technical support.
2.What is your main product?
Such as ceramic fiber products, microporous thermal insulation panels, vacuum insulation panels and other thermal insulation products.
Such as ceramic fiber products, microporous thermal insulation panels, vacuum insulation panels and other thermal insulation products.
3. Can I get free sample?
Yes, you only need to pay the fright and this fee will return to your formal order.
4. What is your MOQ?
No specific moq, but good price for large quantity.
5. Is there any discount?
5. Is there any discount?
Yes, it depends on the quantity.
6.Can we have a visit to your factory ?
Yes! Of course,welcome to visit our factory at anytime !
