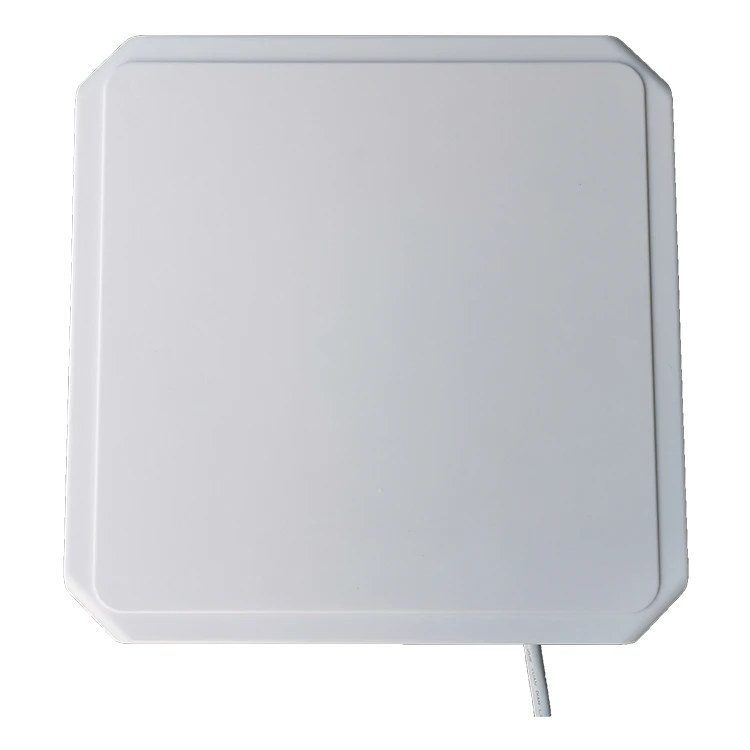

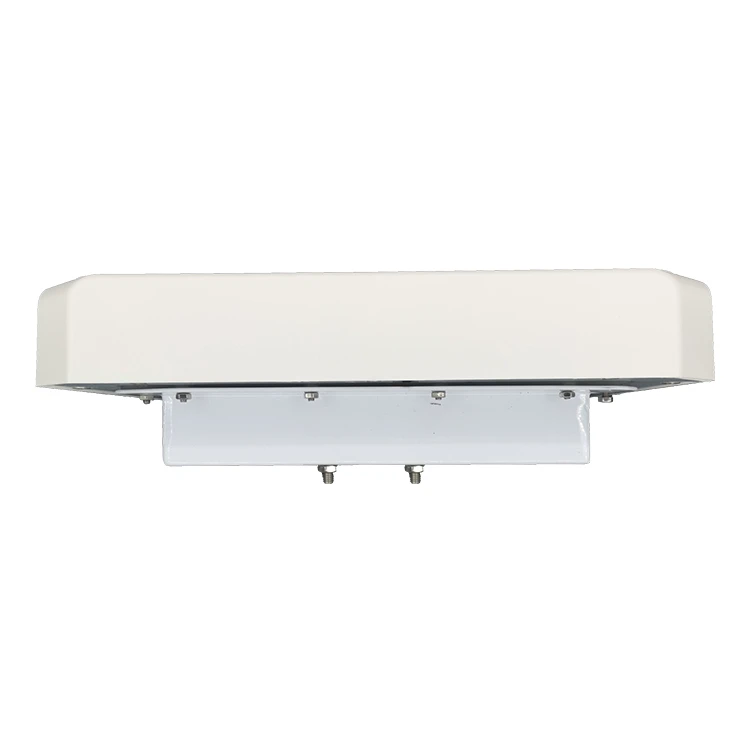

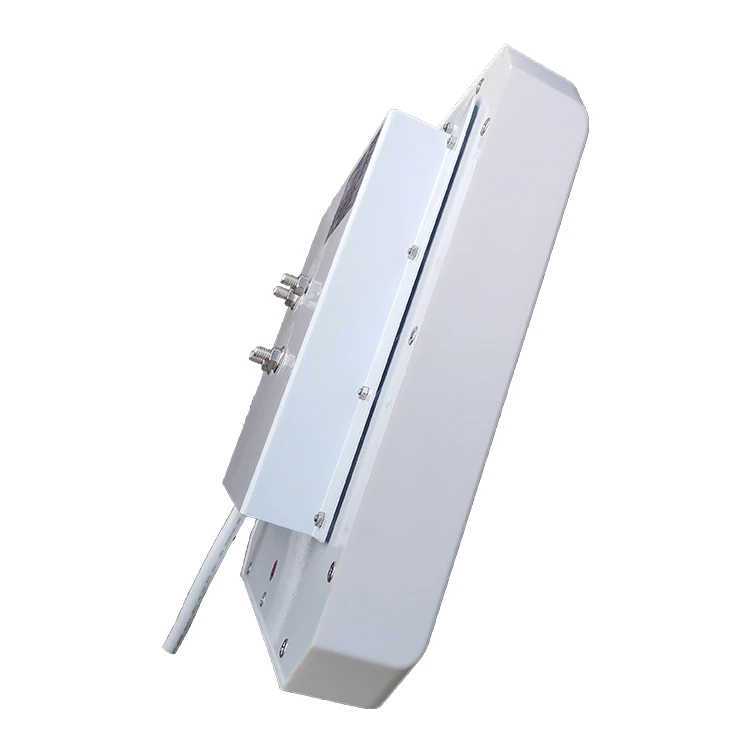

Enruipu R915N03S Hot Sale EPC Gen2 Middle Range 12m TCP/IP UHF RFID Reader For Vehicle Access Control
- Category: >>>
- Supplier: Shenzhen Enruipu Technology Co. Ltd.
Share on (1600548789040):
Product Overview
Description
Products Description
Product Features
R915N01 adopts a dedicated chip design and is a standardized and modular product. The output power can reach 30dBm, and the performance is stable and reliable. Equipped with 8dBi radio frequency antenna, the card reading distance is 8~12 meters. Used in intelligent transportation, intelligent access control and other fields.Support RS232 or RS485, support WiFi. The uhf rfid wireless reader is widely used in vehicle management, personnel attendance and other projects.
Technical parameter
Support standard: EPCglobal UHF Class 1Gen 2/ISO 18000-6C
Frequency range: 840Mhz-960Mhz Work area: U.S. FCC Europes Mainland China Japan Korea Malaysia Taiwan

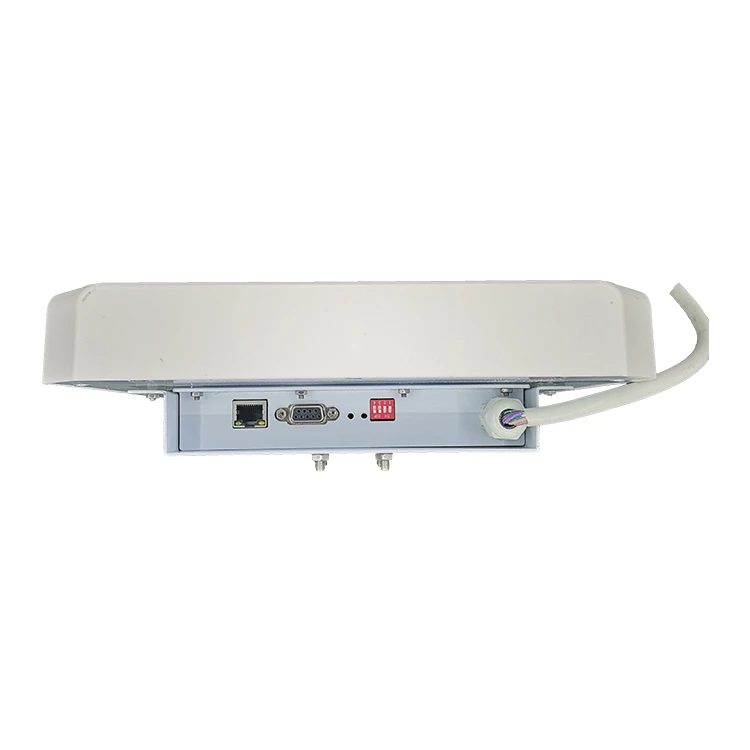

Output interface: RS232 or RS485, Wiegand26 or Wiegand34, relay optional
Maximum output power: 30dBm (software adjustable)
Output power accuracy: ±1dB
Receiving sensitivity: <-75dBm
Anti-collision ability: 50 sheets
Average speed of inventory label: >=50 sheets/s
Reading distance: 12m stable in free space (8db antenna), the reading distance is related to power, card and environment
Trigger input: support
Working temperature: -20℃~80℃
Appearance size: 258x258x40mm
Support standard: EPCglobal UHF Class 1Gen 2/ISO 18000-6C
Frequency range: 840Mhz-960Mhz Work area: U.S. FCC Europes Mainland China Japan Korea Malaysia Taiwan
Output interface: RS232 or RS485, Wiegand26 or Wiegand34, relay optional
Maximum output power: 30dBm (software adjustable)
Output power accuracy: ±1dB
Receiving sensitivity: <-75dBm
Anti-collision ability: 50 sheets
Average speed of inventory label: >=50 sheets/s
Reading distance: 12m stable in free space (8db antenna), the reading distance is related to power, card and environment
Trigger input: support
Working temperature: -20℃~80℃
Appearance size: 258x258x40mm

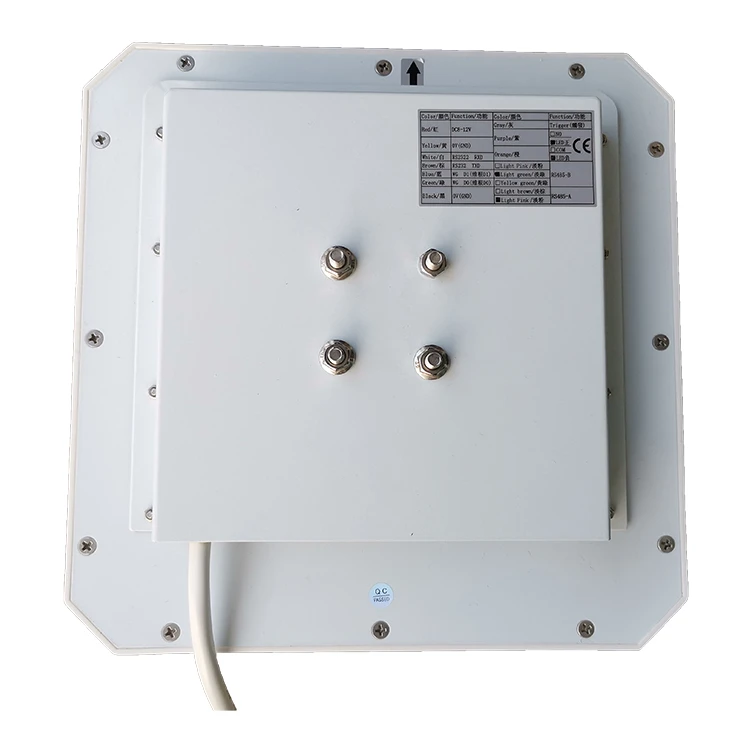

Colo | Function |
Red | DC9-12V + |
Yellow | 0V —— |
Gray | Enable |
Blue | WG D1 |
Green | WG D0 |
Black | 0V Ground |
Brown | RS232 TXD |
White | RS232 RXD |
Purple | Normally open relay 1 |
Orange | Common relay 1 |
Light blue | Normally open relay 2 |
Cyan | Common relay 2 |
Light green | RS485-B |
Light brown | RS485-A |

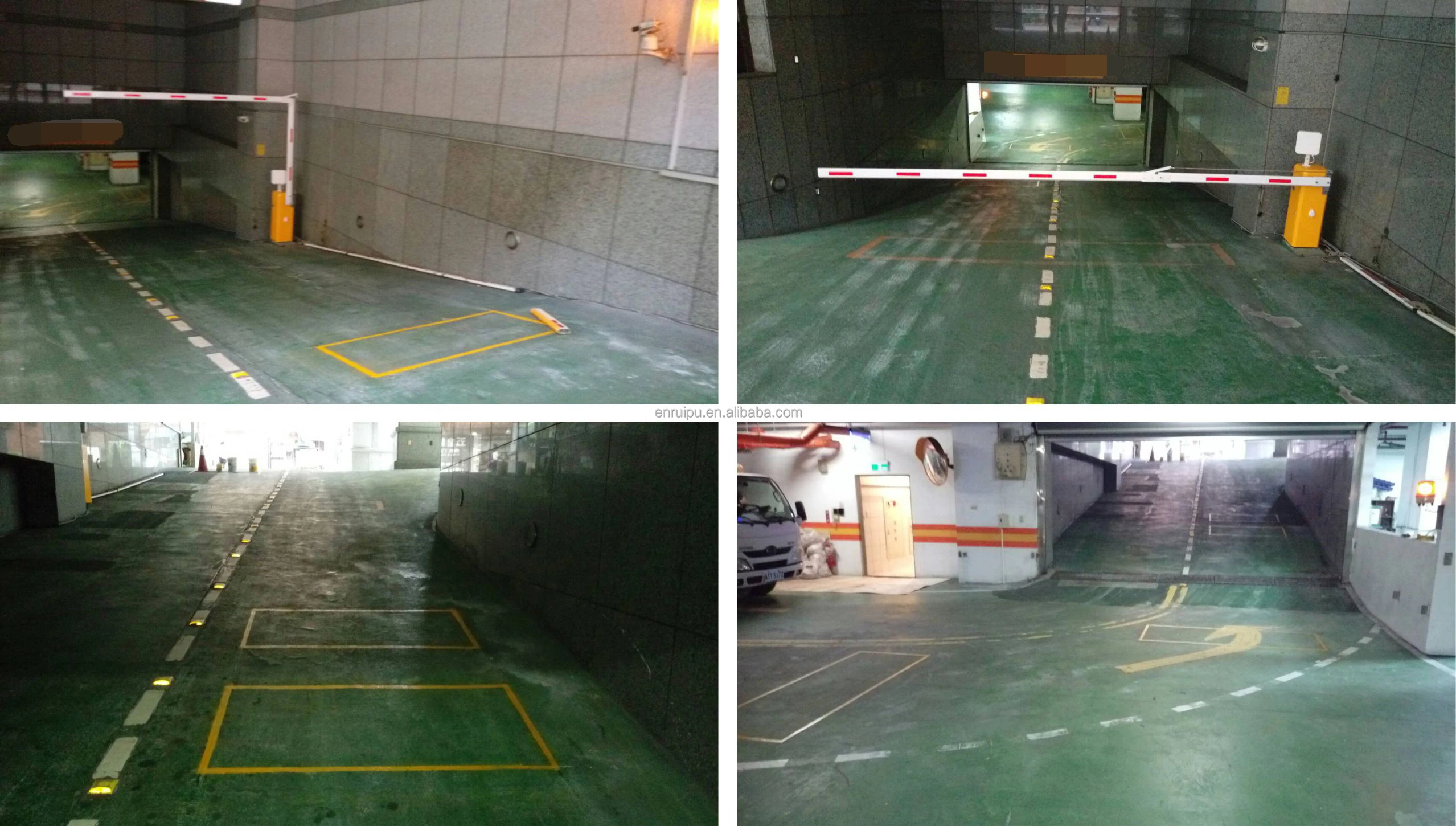

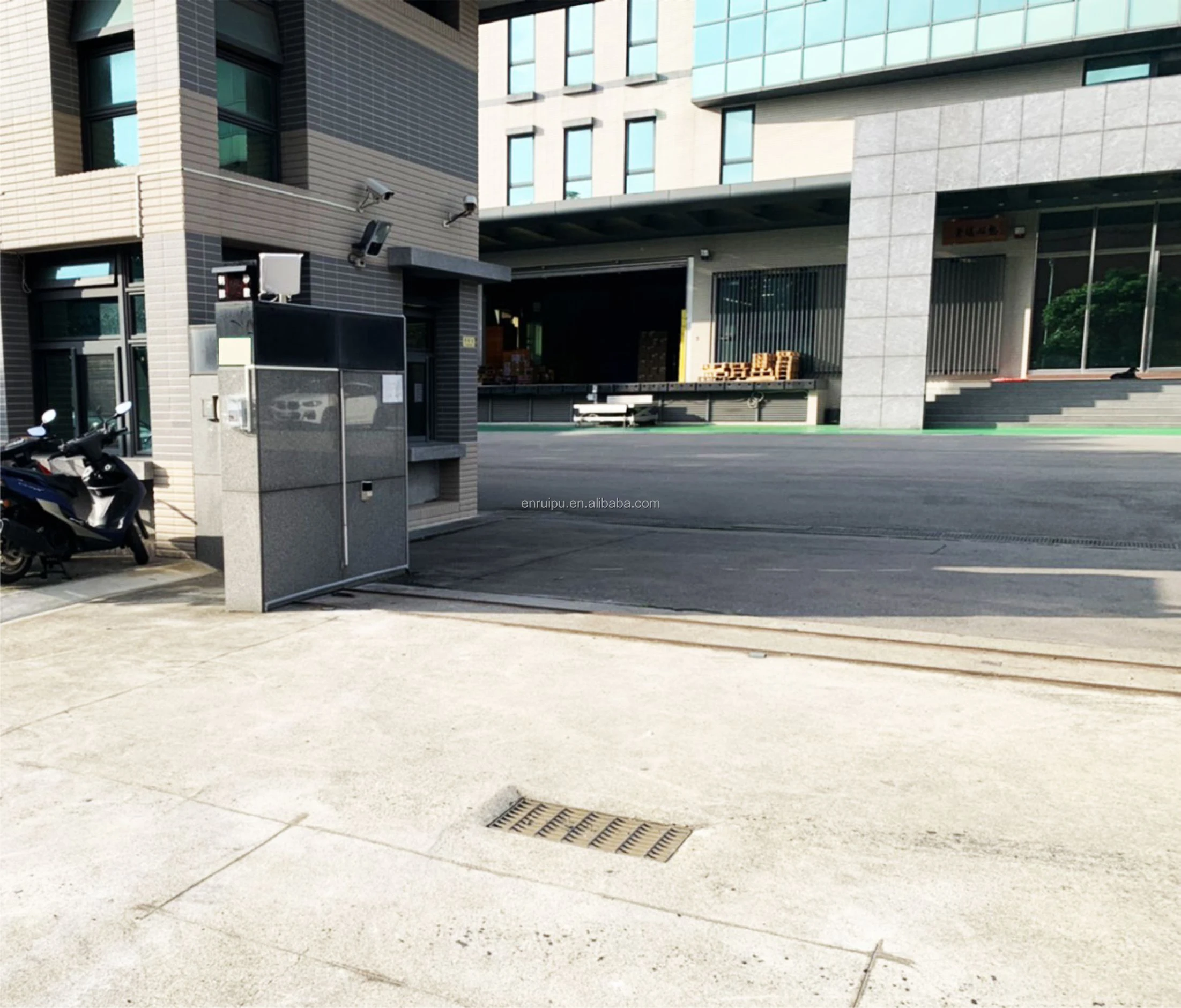

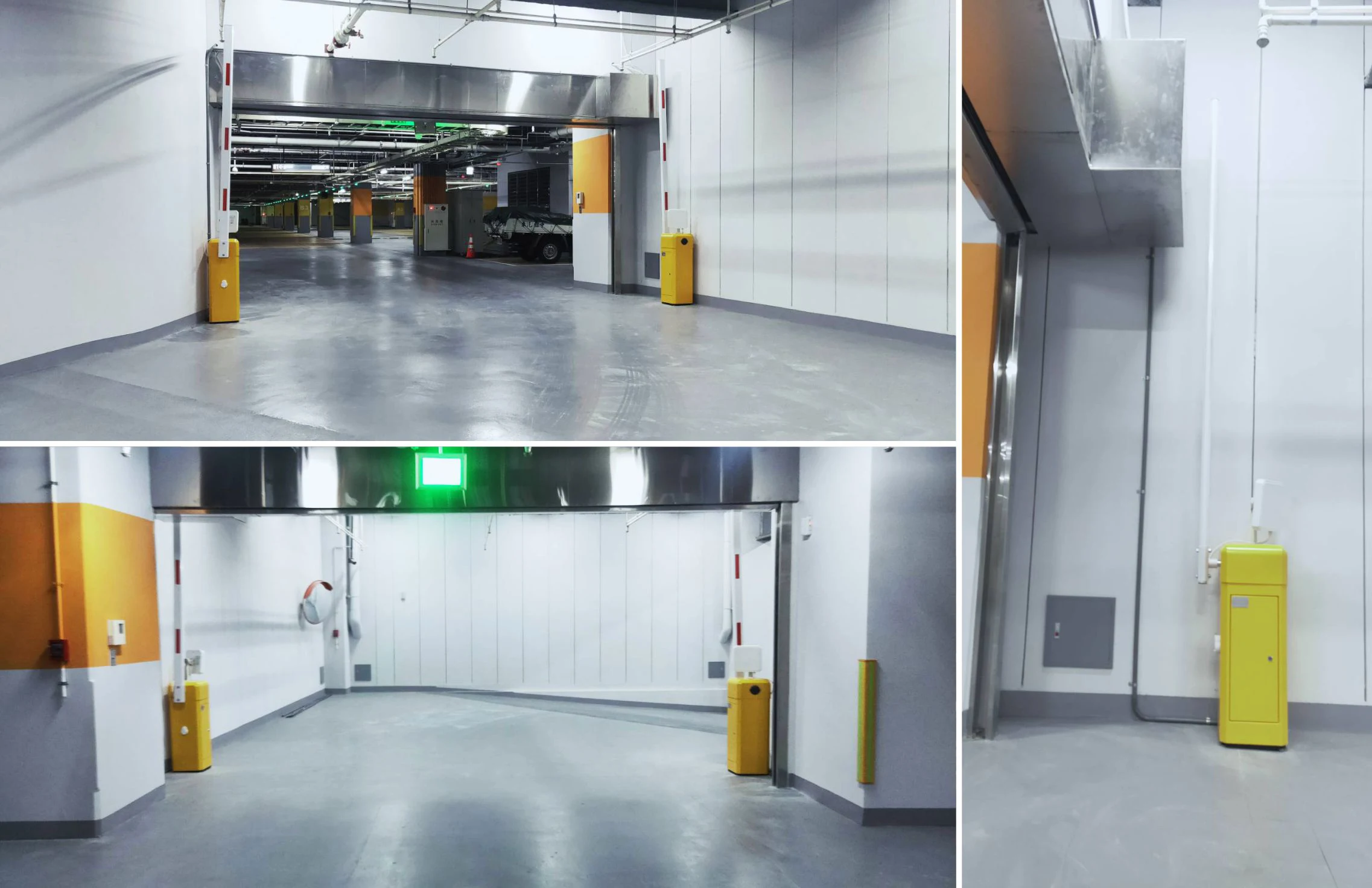

Application Fields
