WSPV 32/2P 20a 250V 1000V dc cut out fuse holder blade fuse holder anl fuse 50a with holder
WSPV-32/2P 20a 250V 1000V dc cut out fuse holder blade fuse holder anl fuse 50a with holder
WSPV-32/2P 20a 250V 1000V dc cut out fuse holder blade fuse holder anl fuse 50a with holder
WSPV-32/2P 20a 250V 1000V dc cut out fuse holder blade fuse holder anl fuse 50a with holder
WSPV-32/2P 20a 250V 1000V dc cut out fuse holder blade fuse holder anl fuse 50a with holder
WSPV-32/2P 20a 250V 1000V dc cut out fuse holder blade fuse holder anl fuse 50a with holder
WSPV-32/2P 20a 250V 1000V dc cut out fuse holder blade fuse holder anl fuse 50a with holder

WSPV 32/2P 20a 250V 1000V dc cut out fuse holder blade fuse holder anl fuse 50a with holder

Share on (1600548799231):


Price:

Quantity:


Product Overview

Description

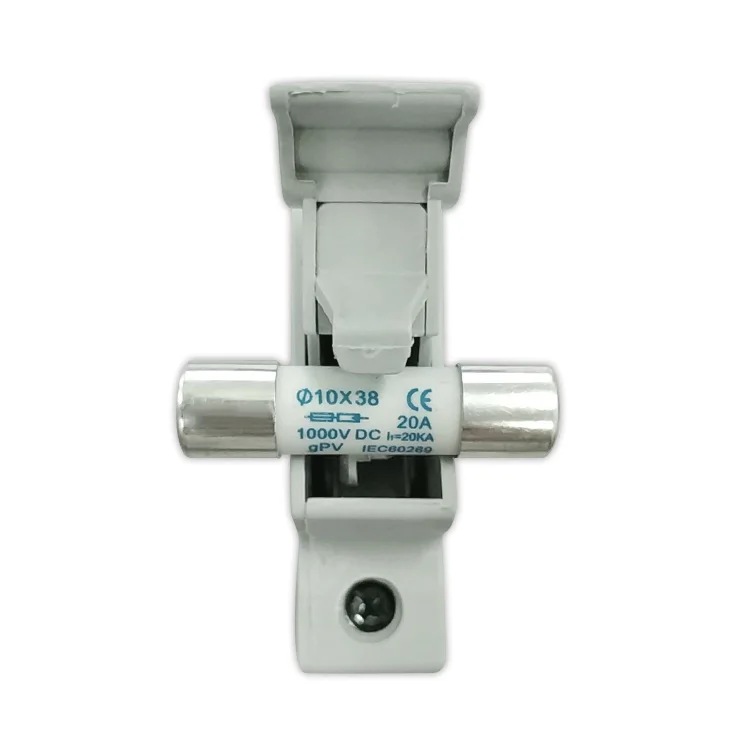

WSPV-32/2P 20a 250V 1000V dc cut out fuse holder  blade fuse holder anl fuse 50a with holder





















Size10.3*38mm
Voltage1000V-1500V
ColorWhite
UsageLOW VOLTAGE

Product Description






























Photovoltaic Fuse Holder


Pole No:


1P,2P,3P,4P


Rated Voltage:


DC 1000V


Rated Current:


1A,2A,3A,4A,5A,6A,8A,10A,12A,15A,16A,20A,25A,30A,32A


Standard Complying:


GB13539.6 ,IEC60269-6


Suitable for:


 10.3 x38 fuse link












Normal Service Conditions




Ambient Temperature: -40°C~+ 90°C
Equipment installation height: less than 2000m (If exceeding this value, please specify the requirements, and company will design
according to the requirements) Relative air humidity: less than 90%

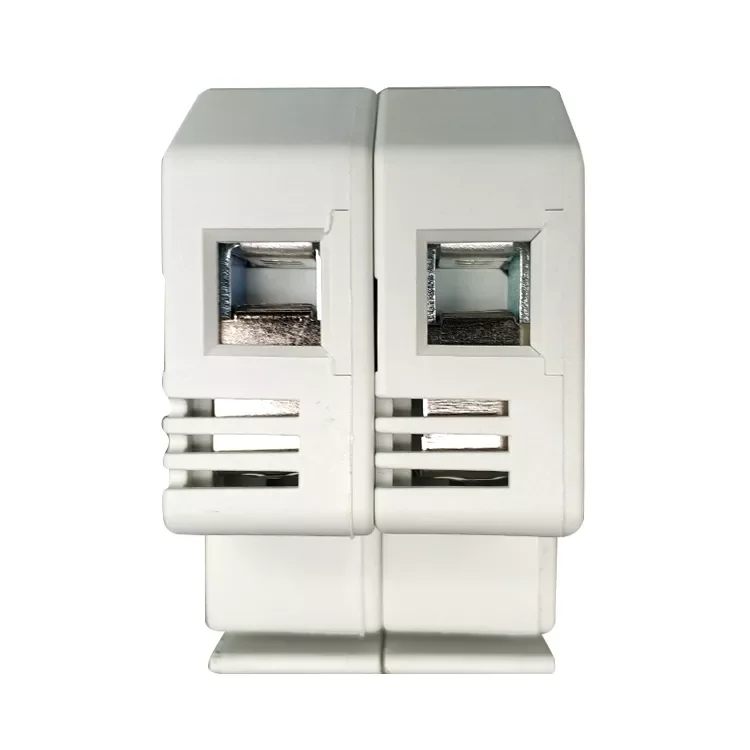

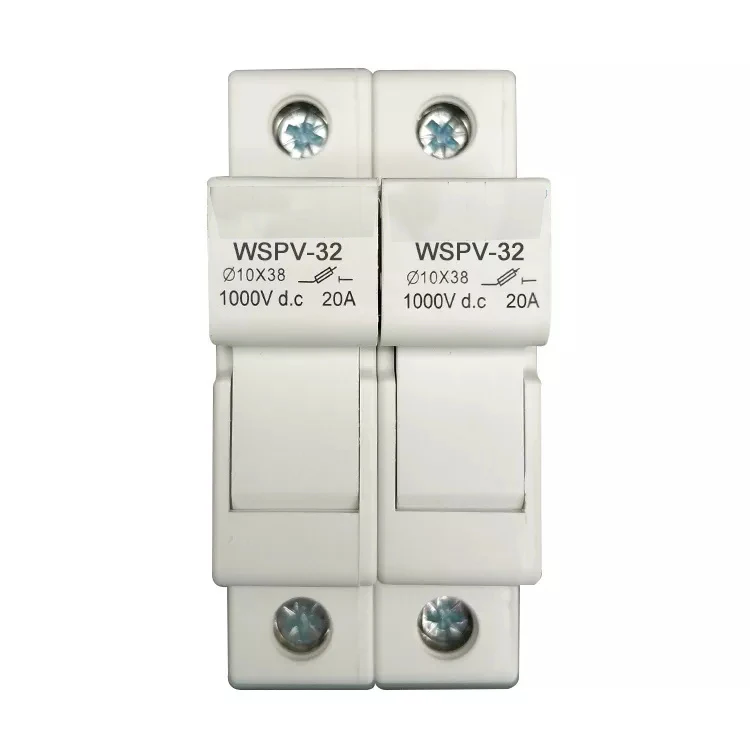

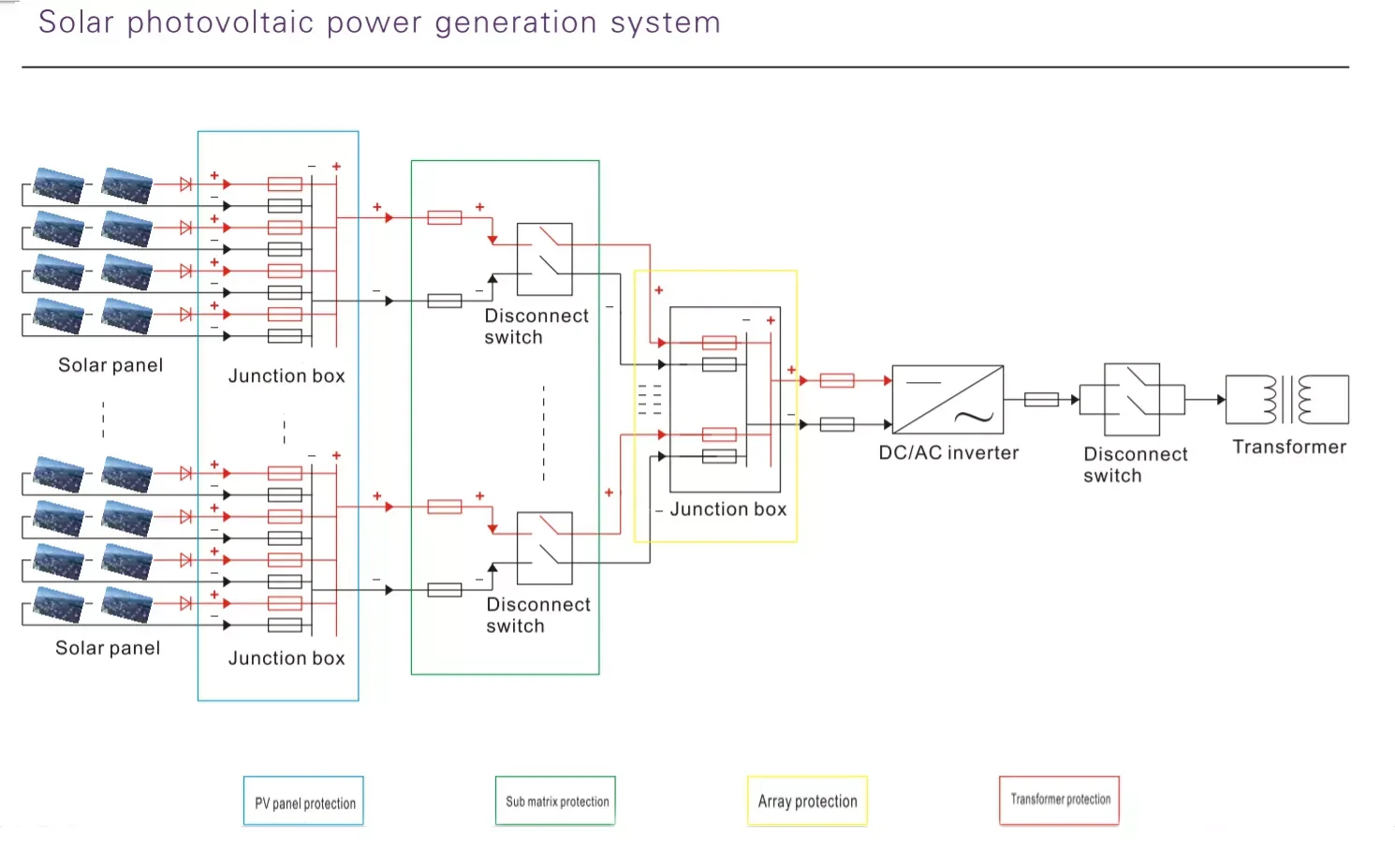

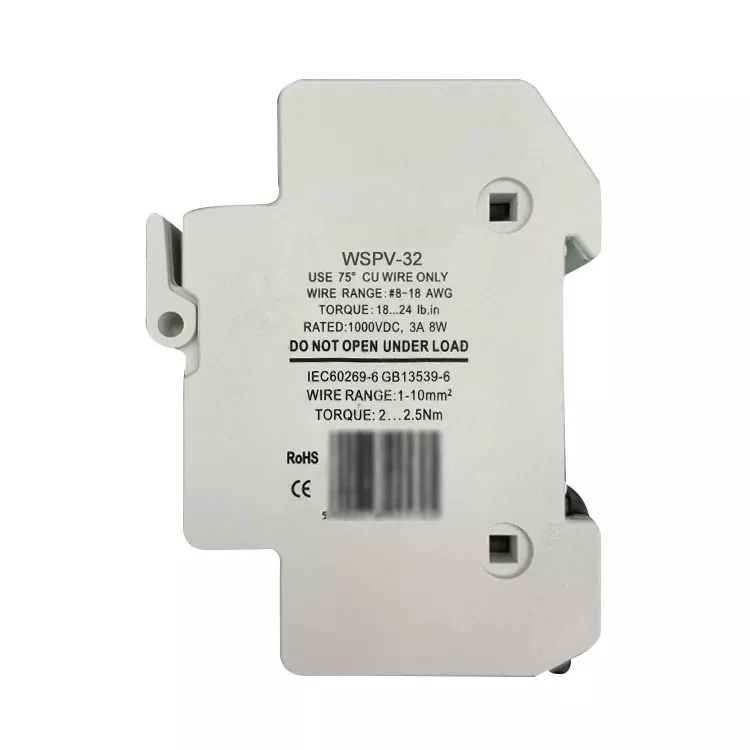

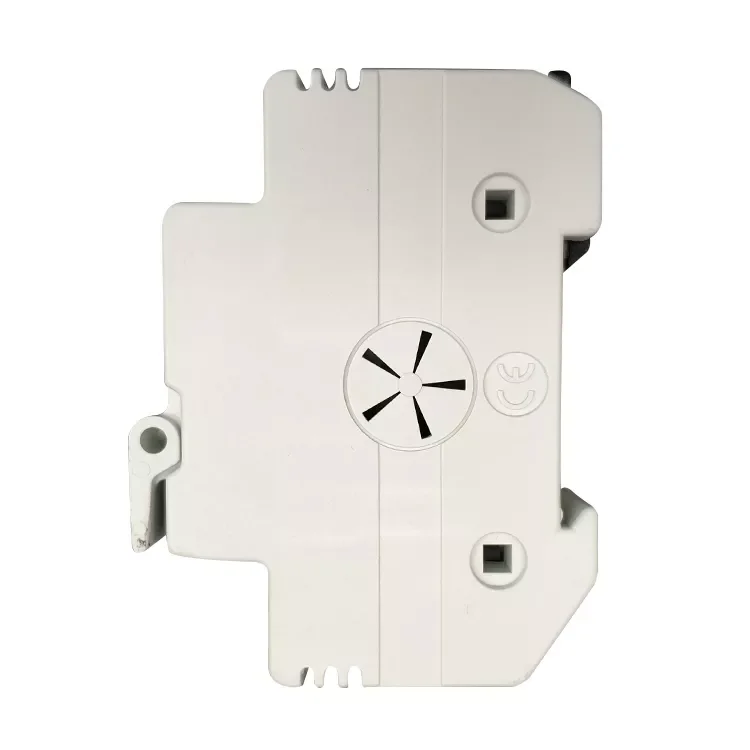

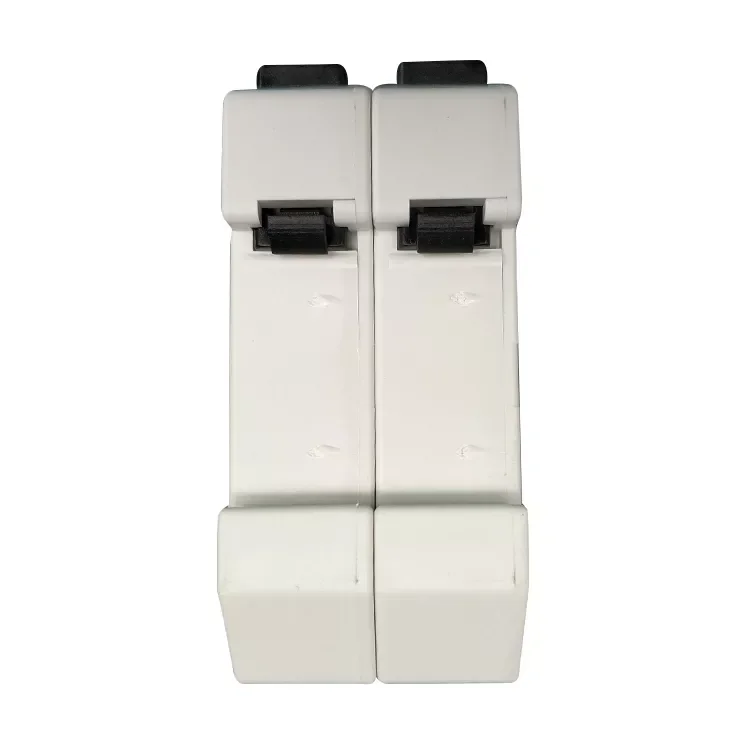

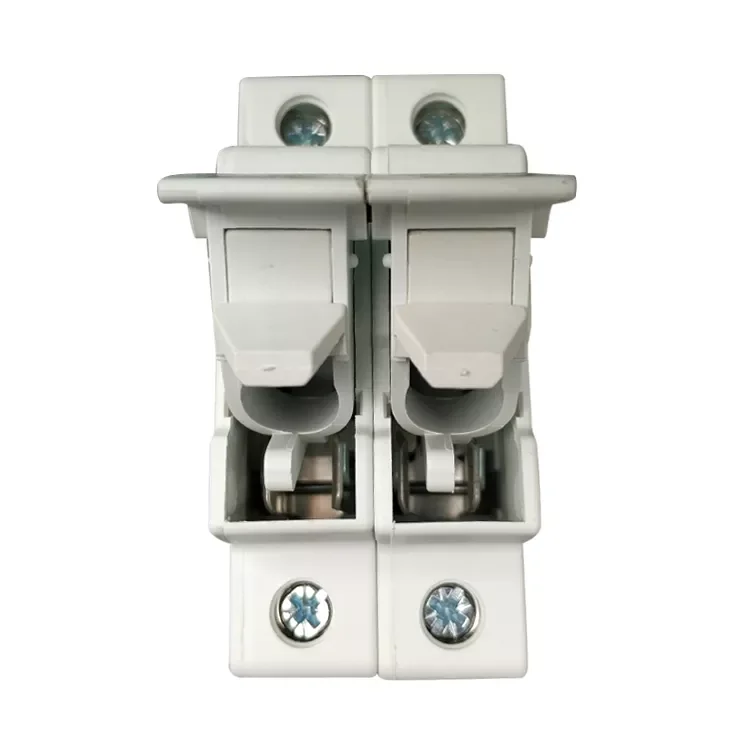

1655963233446.jpg1655963249557.jpg1655963262278.jpg1655963270573.jpg1655963297109.jpg1655963306425.jpg1655963324774.jpg







Structure

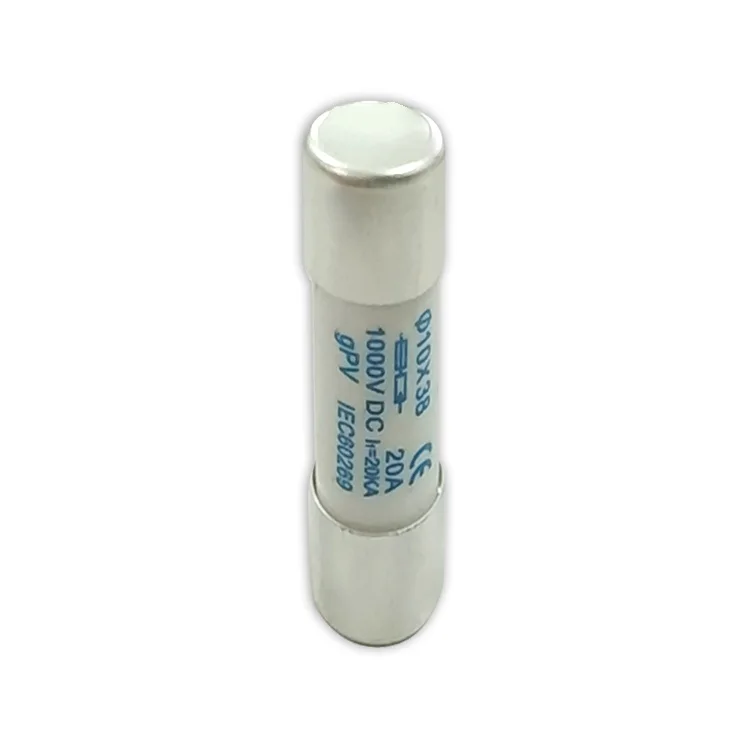

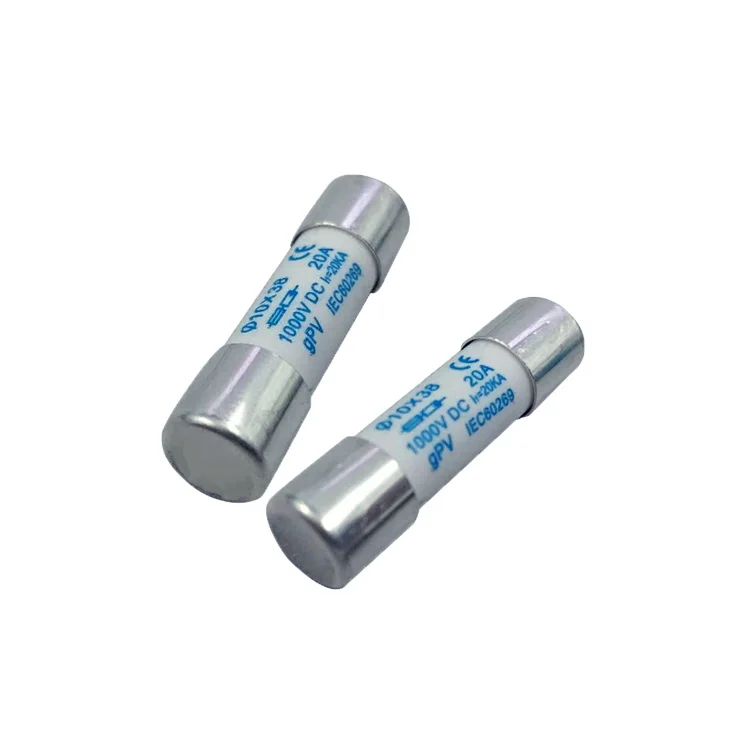

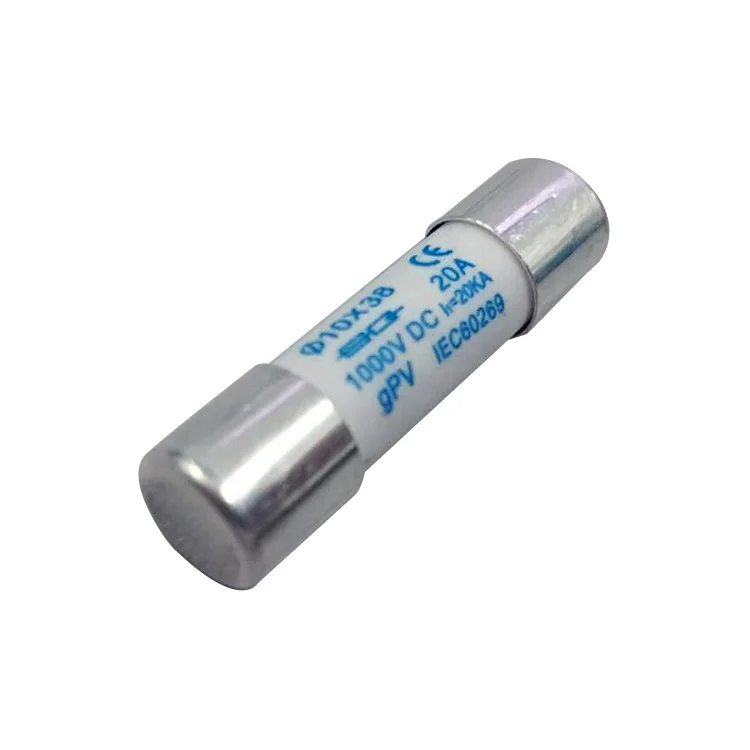

Fuse link is made of pure silver (or made of silver strings), welding low tin and encapsulated in the melt tube made of high-
strength porcelain, the fuse tube filled with high pure quartz sand chemically processed as the arc medium, fuse body is connected
with contacting terminals by spot welding Fuse base suppressed by the plastic casing fitted with contacts and contains the fusion
pieces, the connection made by riveting as the support of the appropriate size fuse body parts. This series fuse has a compact and
convenient device, use security, beautiful appearance, etc.












FAQ

FAQ






Q: Are you a manufacture factory?A:Yes, we are professional in manufacturing low voltage electric products for more than 10 yearspecial owned high quality control team to ensure every detal Q: Can I get a sample before the order because I really dont know how is your qualityA:Of course We also agree that sample order is the best way to build the trust for ourcooperation Q: Does your products can print a logo?A:Sure, customers logo can be made by laser, engraved, embossed, transfer printing etc Q: What's the delivery time?A:It usually takes 3-25days after we confirm the payment, but specific time should be based on theorder quantity Q:How to order our product ? A:1).Please tell us the model and quantity and other request you need. 2).We make the PI for you. 3).After you confirm the PI, we arrange the order for you after receiving your payment. 4).After the goods finished, we send the goods out to you and tell you the tracking number. 5).We will track your goods until you receive the goods.
