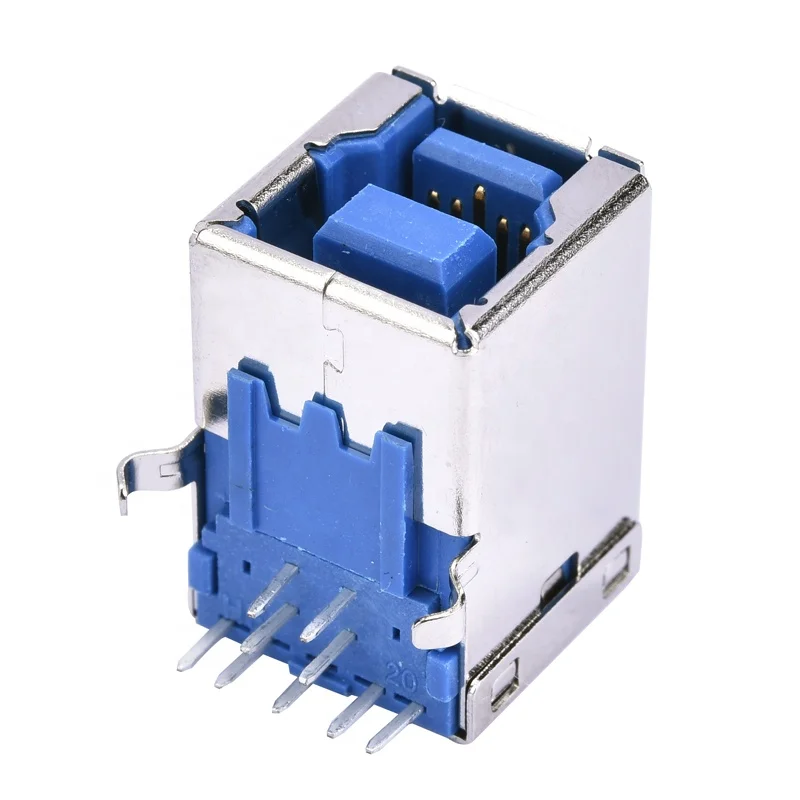

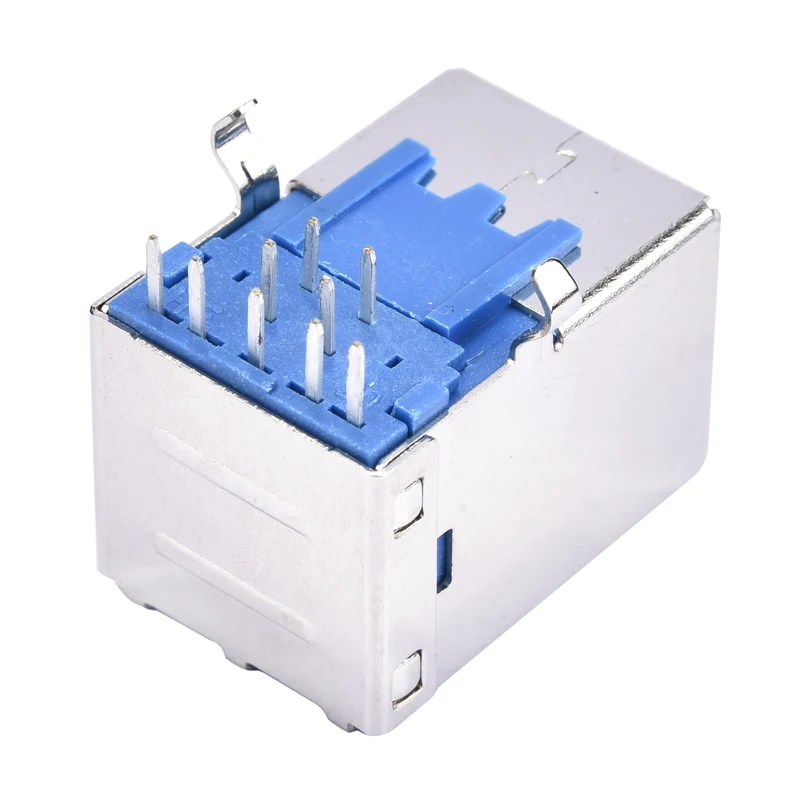

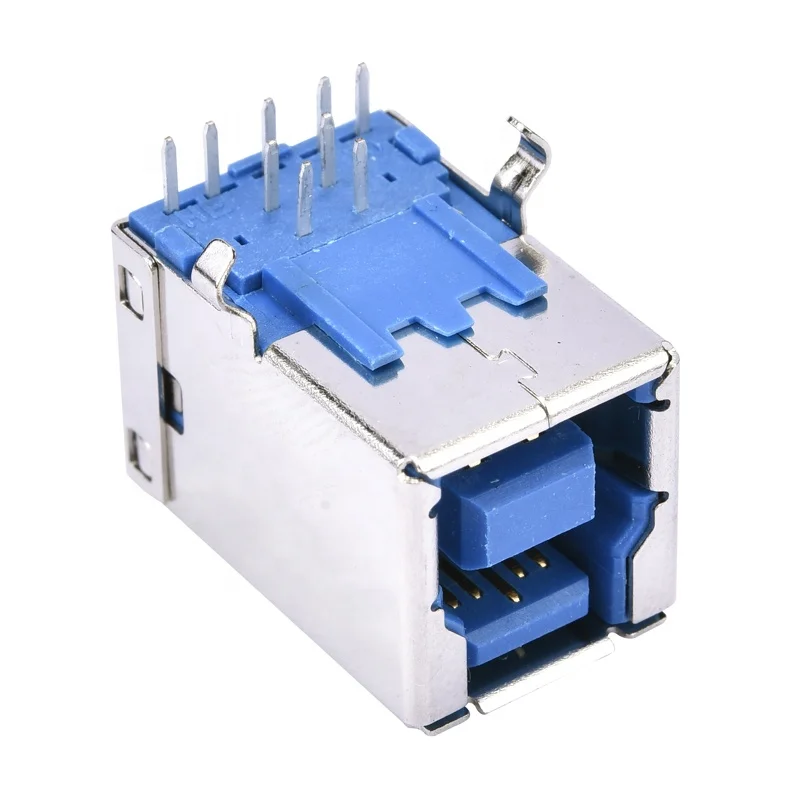

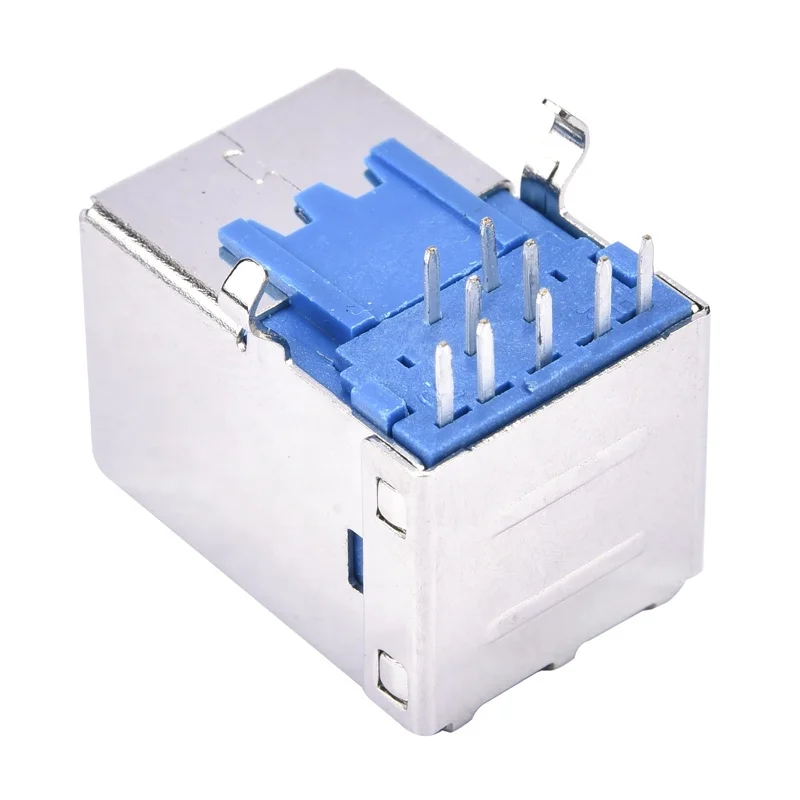

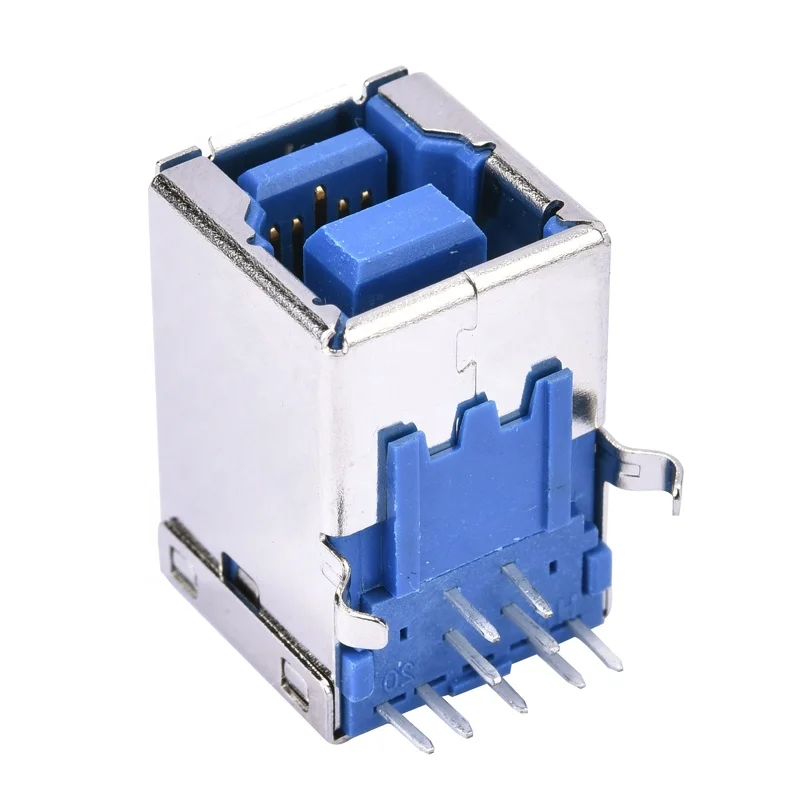

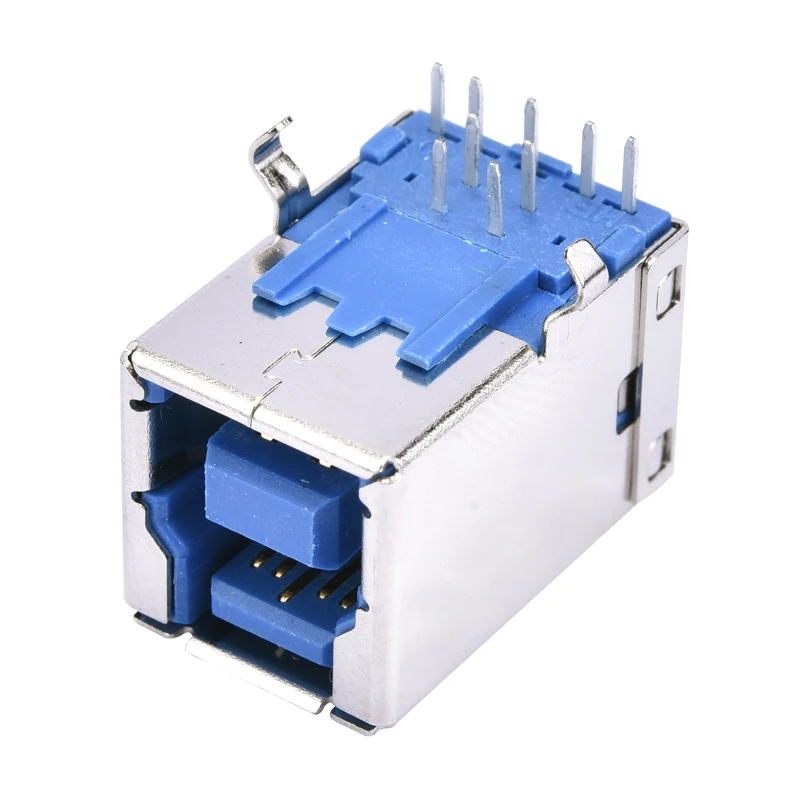

USB 3.0 Female B Type Connector USB Printer Jack
- Category: >>>
- Supplier: Shenzhen Chuangqin Technology Co. Ltd.
Share on (1600548801094):
Product Overview
Description
USB 3.0 Female B Type Connector USB Printer Jack
Contact current rating | 1.8 Amperes for pin1&pin4. 0.25 Amperes other contacts |
Dielectric withstanding voltage | AC 100V(RMS) |
Insulation resistance | 100 Megohms minimum |
Contact resistance | 30mΩ max for pin 1 & pin 4. 50mΩ max for other contacts |
Mating force | 35 Newtoms maximum |
Unmating force | 10 Newtoms maximum. 8N min after durability |
Housing | PBT+30%GF 94V-0. color: Blue |
Contact | Copper alloy ( T=0.25mm) |
Shell | Brass |
Operating temperature | -55℃ to +85℃ |
