Chocolate Cooling Tunnel Quick Freezing Tunnel for Fruits
- Category: >>>
- Supplier: AMC System Technology (Suzhou) Co. Ltd.
Share on (1600548808702):
Product Overview
Description

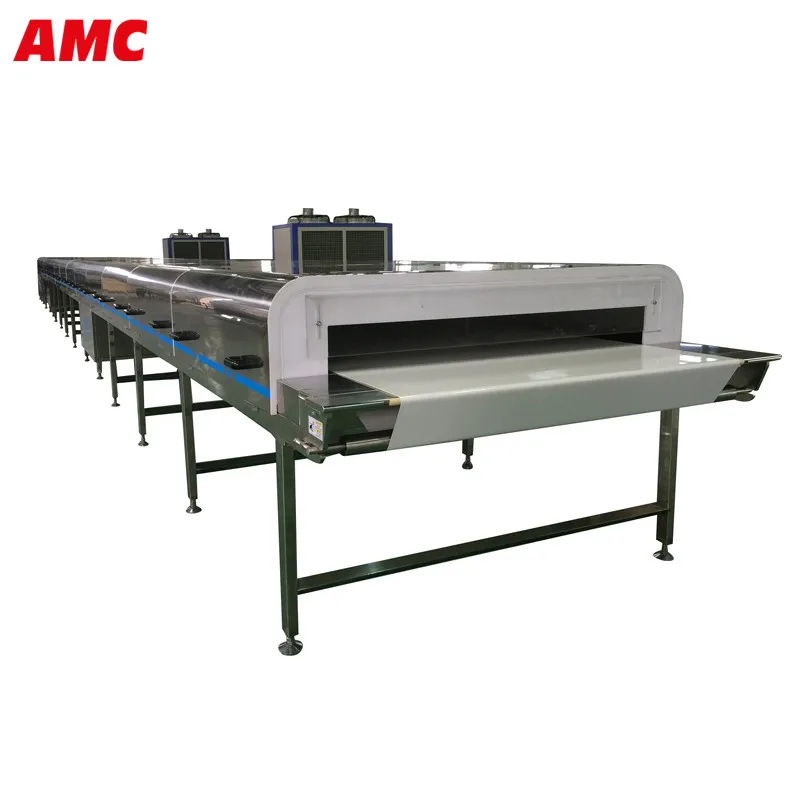

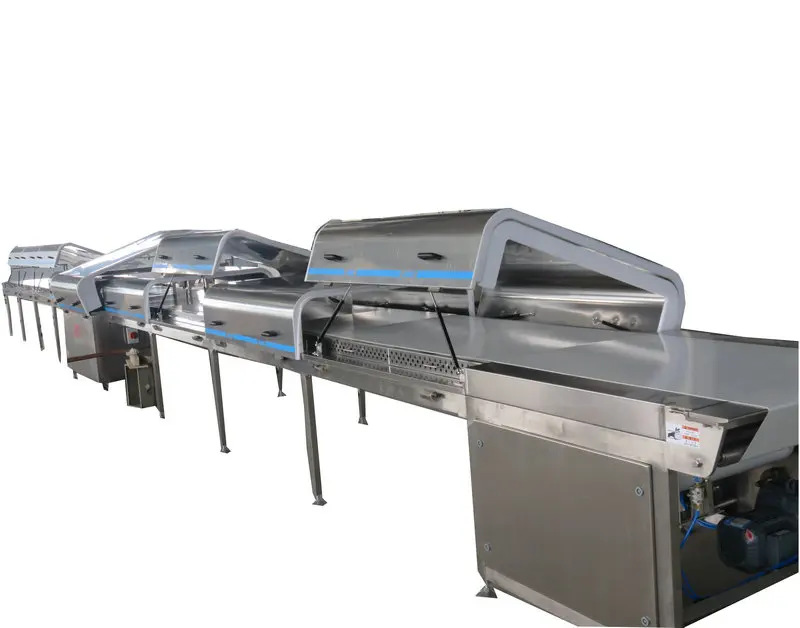

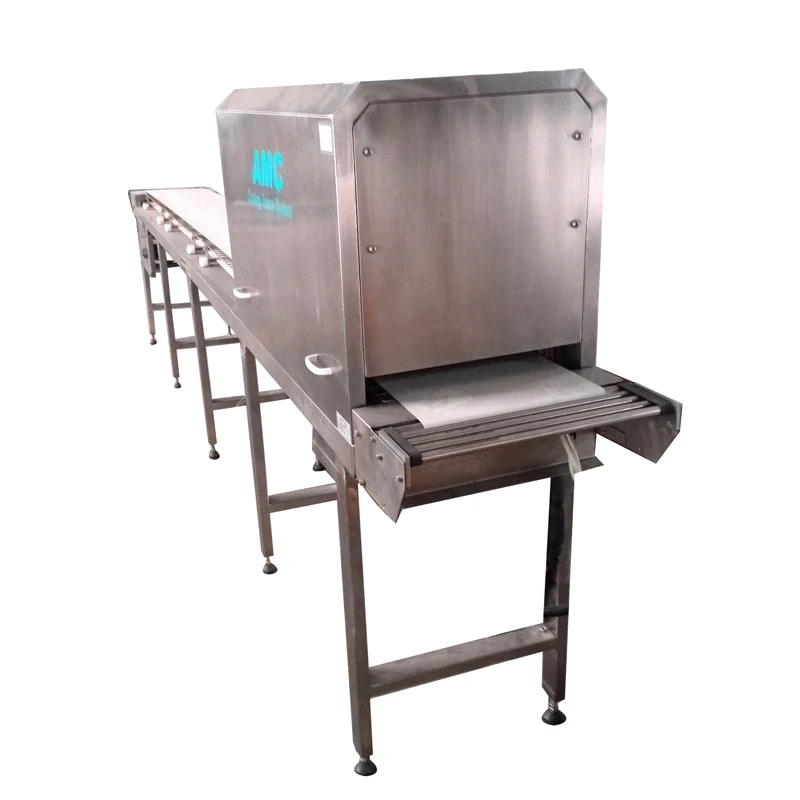

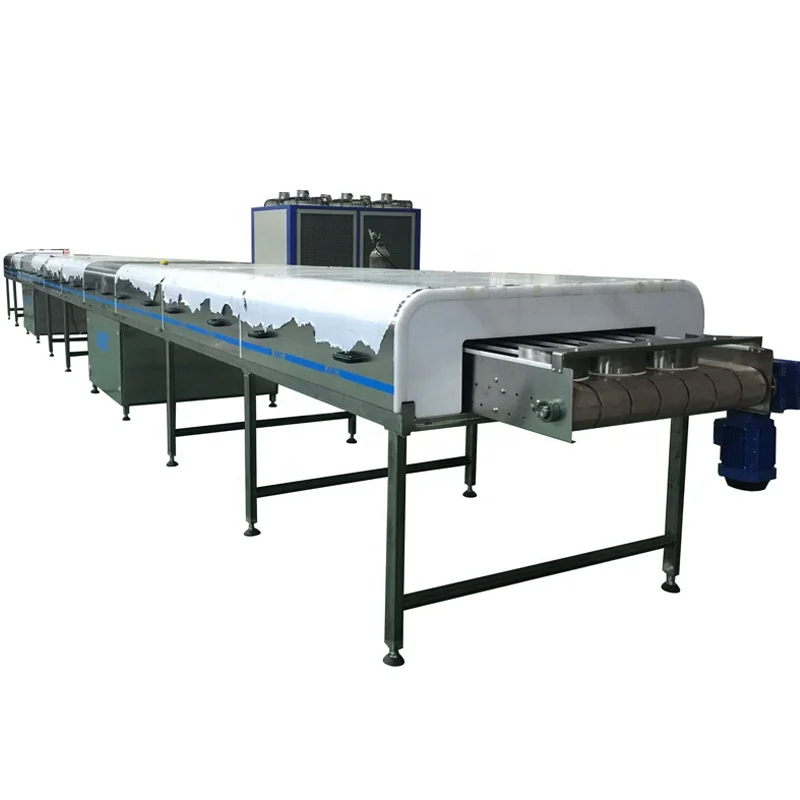

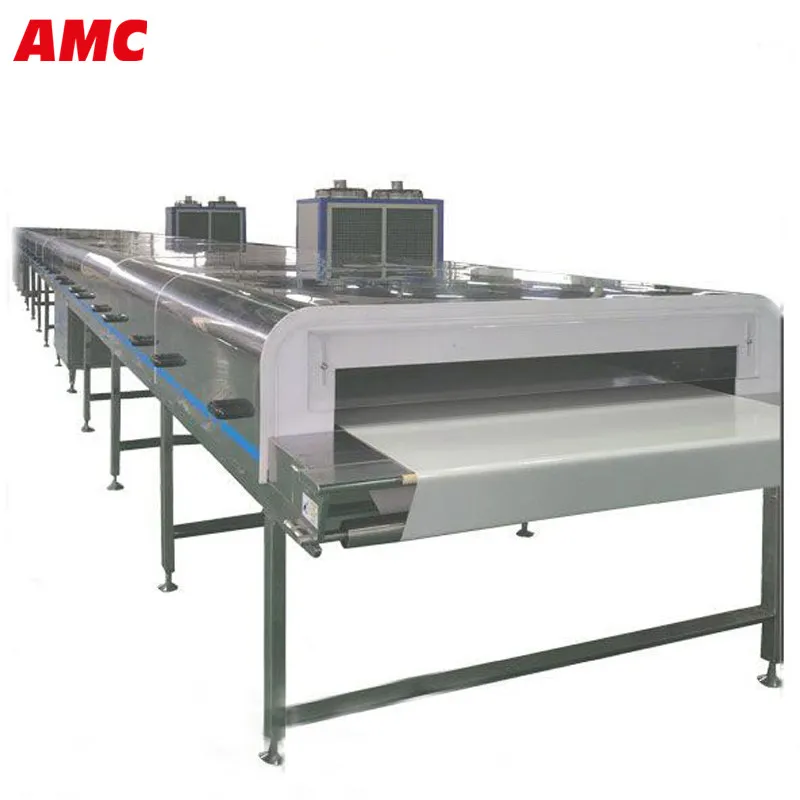

Chocolate Cooling Tunnel/Quick Freezing Tunnel for Fruits
Product Description
Type | Air-cooled / Water-cooled |
Weight | 150Kg/Hr |
Capacity | 100-1500Kg/Hr |
Speed | Adjustable 1~15 M/min |
Voltage | 220V/380V |
Power | 10-45KW |
Tunnel Temp | >3℃ |
Material of Frame | Stainless Steel for spagetti pasta |
Material of Belt | PU Belt ,and snack conveyor (Food industry and chemical ) |
Application | Food/chemical Industrial Cooling |
Drive Motor | SEW / CPG 1.1~5.5KW |
Compressor | BITZER / SHUANGLING 5~25 Hp |
Condenser | BITZER / SHUANGLING |
Warranty | 1 Year for spagetti pasta
|
Package | Wooden Case for spagetti pasta |
Holding Time | 1~60 min for spagetti pasta |
Control Models | PLC & Touch Pannel |
Working Temp | -10~10 ℃ |
Common Size | 1150/1450/1750mm |
a. Production capacity: 100~10000kg/h
b. Cooling temp.: -10~10 degree
c. Hilding time: 1~60 min
d. Control models: PLC & Touch pannel
a. Modular solutions combining a range of size, features and cooling elements to suit any application from fragile filled chocolates and cream goods to bars and coated biscuit
b. Radiation, conduction, and conduction cooling
c. Precision temperature contrl
d. Energy efficiency and environmental safety
e. Attractive design with easy cleaning and maintenance
f. Airflow, insulation and hood design for temperature consistency across the entire band width
a. Adjustable infeed tanle
b. FDA-approved band
c. Automatic centering
d. Cooling section
e. Cooling unit
f. Cover
g. Drive unit
h. Base
1. Moulds cycle moving in the cubical space, auto in & out, no joint chains, so its very easy to change the products.
2. Small area covered, which saves the factory space.
3. Good cooling performance, small space of moulds moving, high cooling efficiency to the products.
4Intellectual controlling, which can match the depositor and control the temperature automatically.
Packaging & Shipping
Packaging:
Wooden Case, Carton Case & Pallet for choice.
Shipping:
By Sea.
Our customers
Certifications
Company Information
AMC, established in 2002, with its head office located in the Suzhou National New District, and two plants
in Suzhou and Nantong. The main products include:cooling tunnel system, chocolate machine, food conveyor system, enrober , chiller. Widely used in: Food, Pharmaceutical, Household Chemicals, etc.
AMC has own R&D Center, Manufacture and International Sales Team, who have professional knowledge and rich experience. We provide customers with comprehensive solutions for factory automation. AMC believe in innovation,and have been rewarded as a “National High-Tech Enterprise”,with a number of independent intellectual property rights patents and inventins...
About us
AMC company is specialized in the manufacturing of chocolate enrober and tunnel since 2002 .
We are famous industrial automation equipment in China , Besides , we cooperated with KRAFT ,SIEMENS,BOSCH and so on .
Our Services
1.provide you OEM/ OEM service,and technology supporting
2.after sales service
3.any feedback received will reply you in 24hrs.
FAQ
Remark:
1. Delivery Time:
Within 60 Days upon the receipt of the deposit.
2.Terms of payment:
50% T/T in advance, the balance shall be paid before the shipment. The above price is based
on current exchange rate, if the exchange rate changed 2%, we cannot keep the price.
3. Testing & Training (If you need):
The plant layout design, assembling, installation and debugging, startup and local team training
will be Free at no cost. But the buyer should be responsible for the round trip air tickets, local t
ransportation, board & lodging, and USD $ 45/day/person for the pocket money to our technicians.
