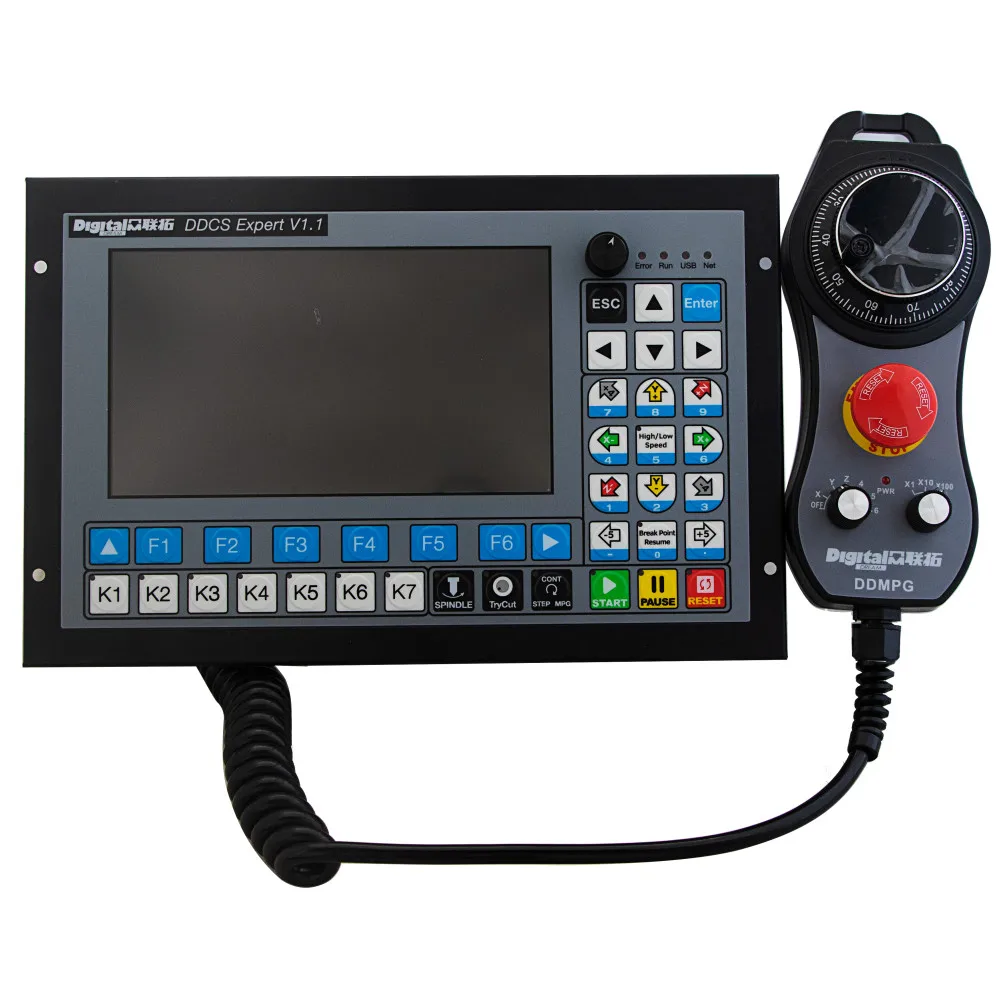

3/4/5 Axis CNC Milling Controller DDCSexpert ACT Function Motion Controller Kit With Flywheel MPG & Power supply 100W 24V 4.1A
- Category: >>>
- Supplier: Shenzhen Digital Dream Numerical Technology Co. Ltd.
Share on (1600548841474):
Product Overview
Description
Professional original CNC controller manufacturer and has a warehouse in the USA
Products Description
The DDCS-Expert is a standalone CNC motion controller without the need of a computer, for open or close stepper and servo motors. DDCS-Expert Brief technical features as following:
1) Max. 5 Axis; 1M Hz output frequency for each axis; 2-4 Axis linear interpolation, any 2 axis circular interpolation;
2) 7 inch full color display screen; resolution ratio: 1024*600, 40 operation keys;
3) 24 photoelectric isolated digital inputs, 21 photoelectric isolated digital outputs;
4) Analog spindle control 0-10V spindle control, also support PWM Output;
5) Magazine type: Supports multiple spindle mode, support straight Tool Magazine, gantry type Magazine, disk type magazine;
6) Probe Mode: Support Floating Probe and Fixed Probe;
7) Backlash compensation methods: direction gap compensation, radius gap compensation, length compensation;
8) Interpolation Algorithm: S type, circular hard algorithem, circular soft algorithm;
9) Language: Chinese, English; on;
10) Software Alarms: Program Error, operation Error, overtravel Error, Driver Error and so on;
11) Network: Support file share and online machining the remote files by Ethernet;
12) Spindle control mode support Multi-speed (3 lines 8 kinds speed), 0-10V Analog output, and servo spindle output;
13) Compatible with standard G-code, support popular CAD/CAM software, such as ArtCam, MasterCam, ProE, JDSoft SurfMill, Aspire, Fusion 360 and so on;
14) The control system can preview the processing path before machining, and it makes the system more steady, working smoothy and precise;
15) Support high speed machining in continuous Polyline segment, system can choose a most efficient algorithm automatically from different kinds Polyline segment algorithm;
16) Support un-limited size file for machining;
17) Support Pause Break-point resume, “Power Cut” recovery, Start from the specific line;
18) Support time-lock function;
19) Support 4 kinds operation rights: visitor, operator, admin, super admin; mode” and so on;
20) Support function of “Try cutting” (handwheel guiding) and “Single-stage processing mode" and so on;
21) Support the fuction of Back to orignal point;
21) The Power Supply for the controller is 24VDC, minimum Current is 0.5A;
22) The Power Supply for IO Port is 24VDC, minimum current is 0.5A; By the IO power supply,system already supply the power to IO ports.So no need the external power supply.
2) 7 inch full color display screen; resolution ratio: 1024*600, 40 operation keys;
3) 24 photoelectric isolated digital inputs, 21 photoelectric isolated digital outputs;
4) Analog spindle control 0-10V spindle control, also support PWM Output;
5) Magazine type: Supports multiple spindle mode, support straight Tool Magazine, gantry type Magazine, disk type magazine;
6) Probe Mode: Support Floating Probe and Fixed Probe;
7) Backlash compensation methods: direction gap compensation, radius gap compensation, length compensation;
8) Interpolation Algorithm: S type, circular hard algorithem, circular soft algorithm;
9) Language: Chinese, English; on;
10) Software Alarms: Program Error, operation Error, overtravel Error, Driver Error and so on;
11) Network: Support file share and online machining the remote files by Ethernet;
12) Spindle control mode support Multi-speed (3 lines 8 kinds speed), 0-10V Analog output, and servo spindle output;
13) Compatible with standard G-code, support popular CAD/CAM software, such as ArtCam, MasterCam, ProE, JDSoft SurfMill, Aspire, Fusion 360 and so on;
14) The control system can preview the processing path before machining, and it makes the system more steady, working smoothy and precise;
15) Support high speed machining in continuous Polyline segment, system can choose a most efficient algorithm automatically from different kinds Polyline segment algorithm;
16) Support un-limited size file for machining;
17) Support Pause Break-point resume, “Power Cut” recovery, Start from the specific line;
18) Support time-lock function;
19) Support 4 kinds operation rights: visitor, operator, admin, super admin; mode” and so on;
20) Support function of “Try cutting” (handwheel guiding) and “Single-stage processing mode" and so on;
21) Support the fuction of Back to orignal point;
21) The Power Supply for the controller is 24VDC, minimum Current is 0.5A;
22) The Power Supply for IO Port is 24VDC, minimum current is 0.5A; By the IO power supply,system already supply the power to IO ports.So no need the external power supply.
Brand: | Digital Dream | Warranty: | 1Year | ||
Model: | DDCS-Expert + DDMPG + 2Power supply | Axis Optional: | 3Axis / 4Axis / 5Axis | ||
MOQ: | 1pc | Stock: | Rich | ||

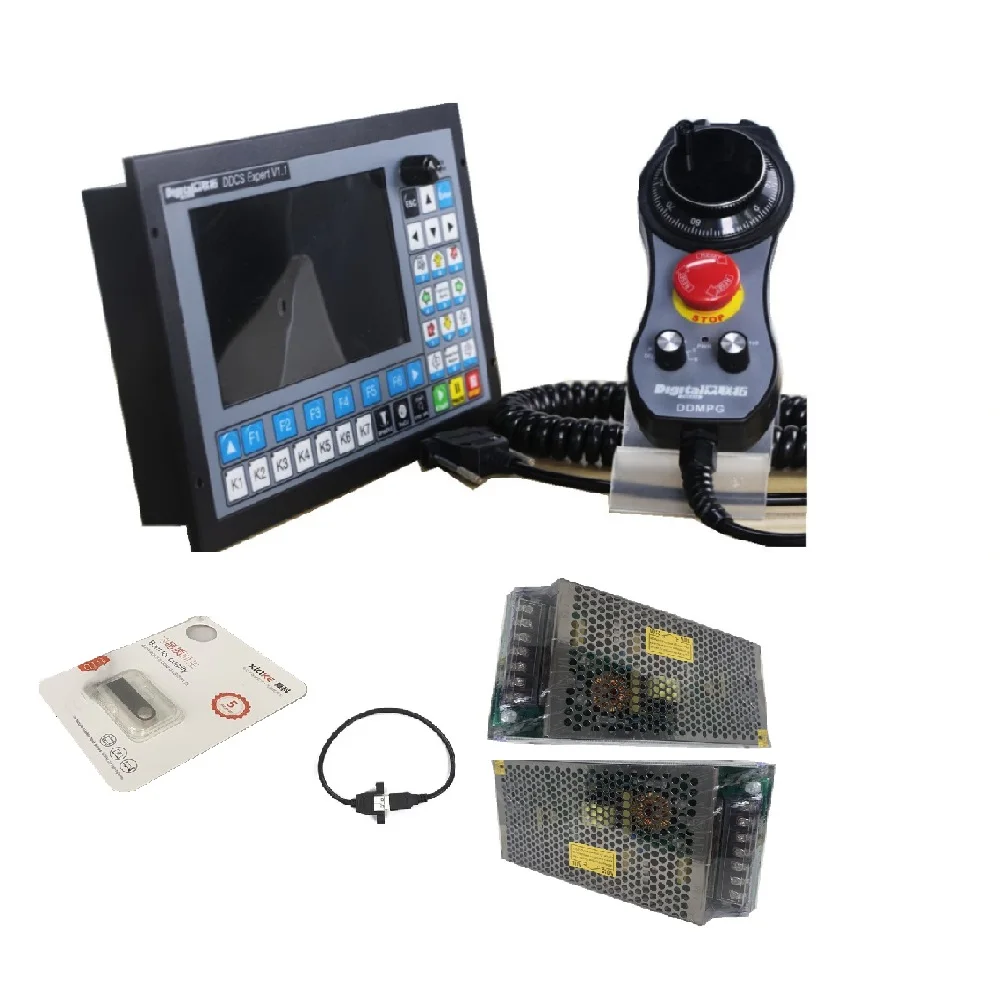

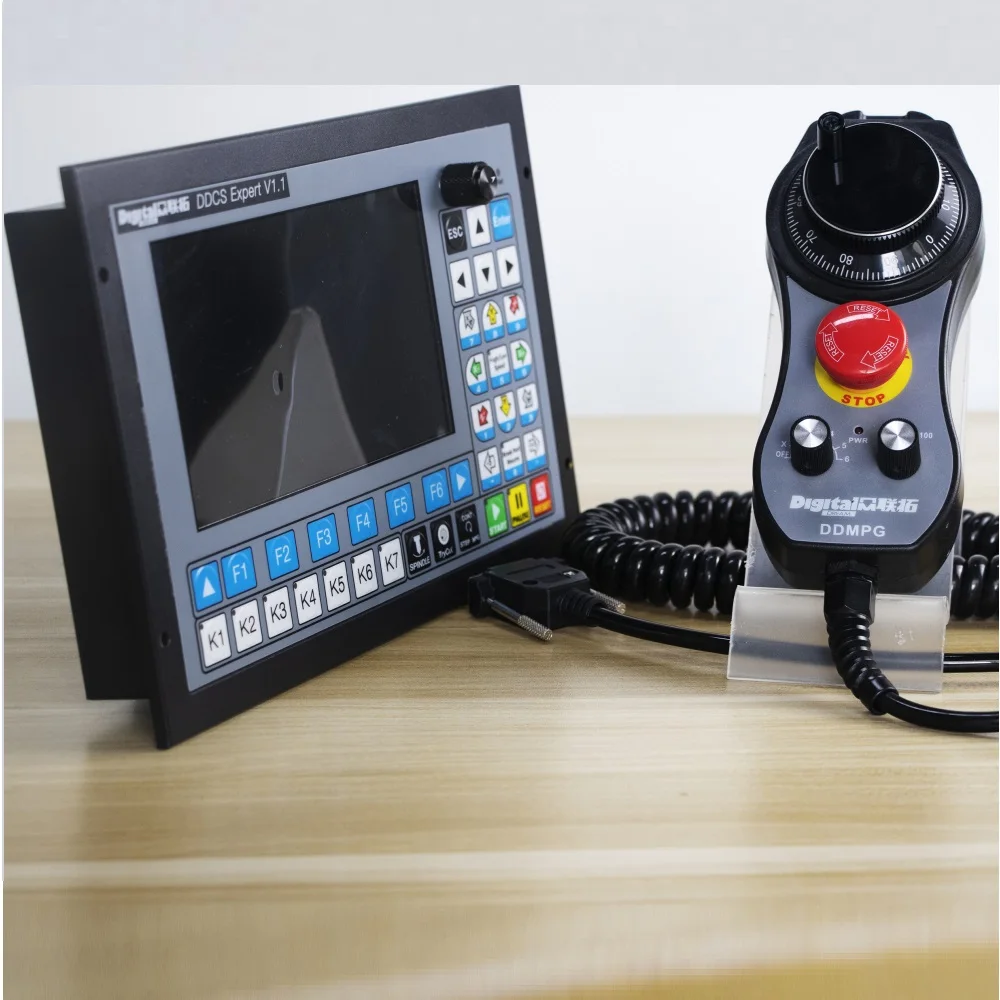

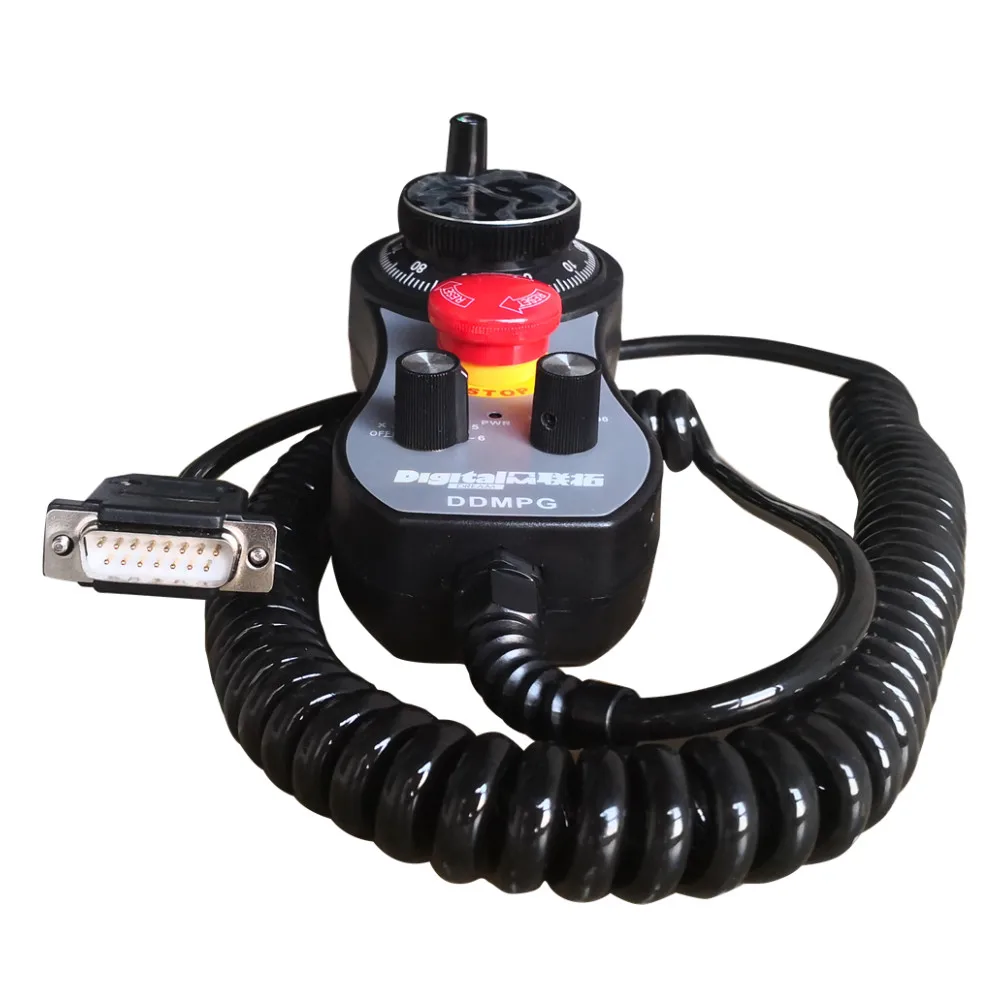

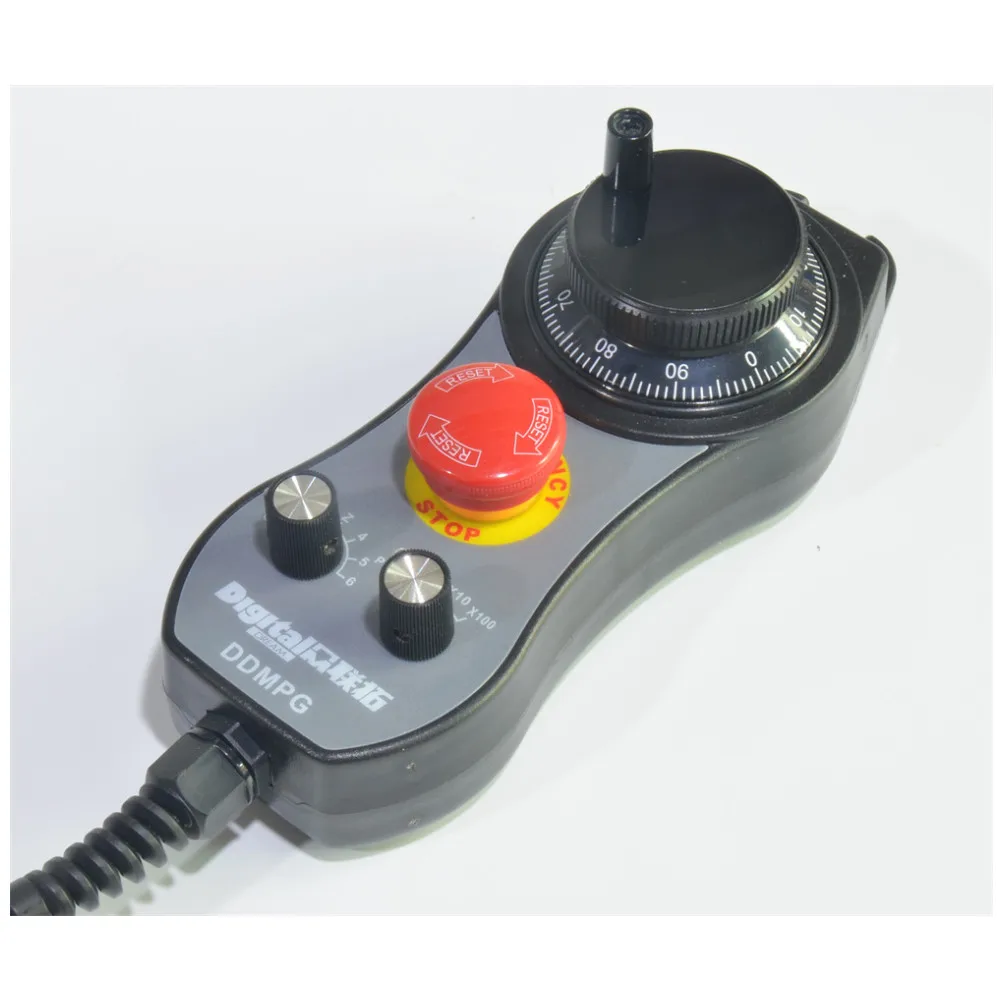

Package Includes: | 1 x DDCS-Expert Standalone Motion Controller (3/4/5 axis optional) 1 x DDMPG handwheel 2 x Power supply (100W 24VDC) 1 × 4GB USB flash drive 1 x USB Extension Cable | ||||

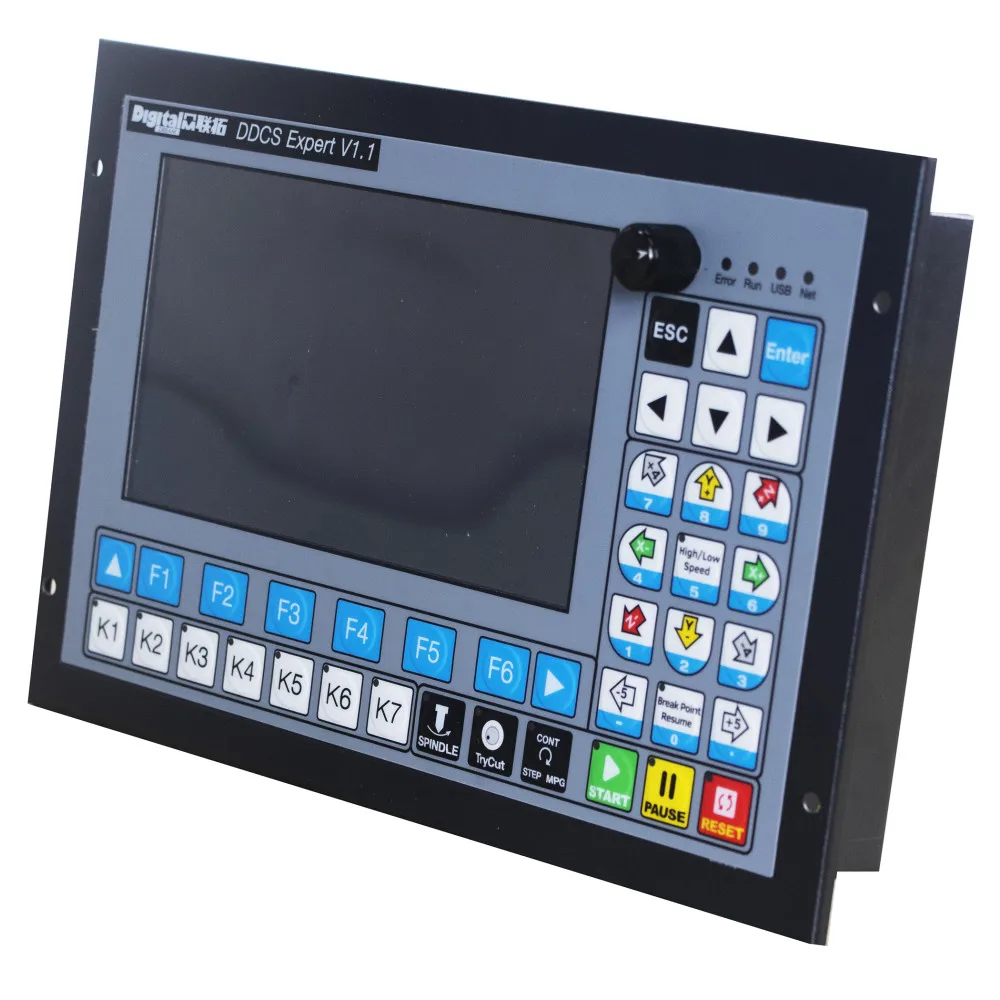

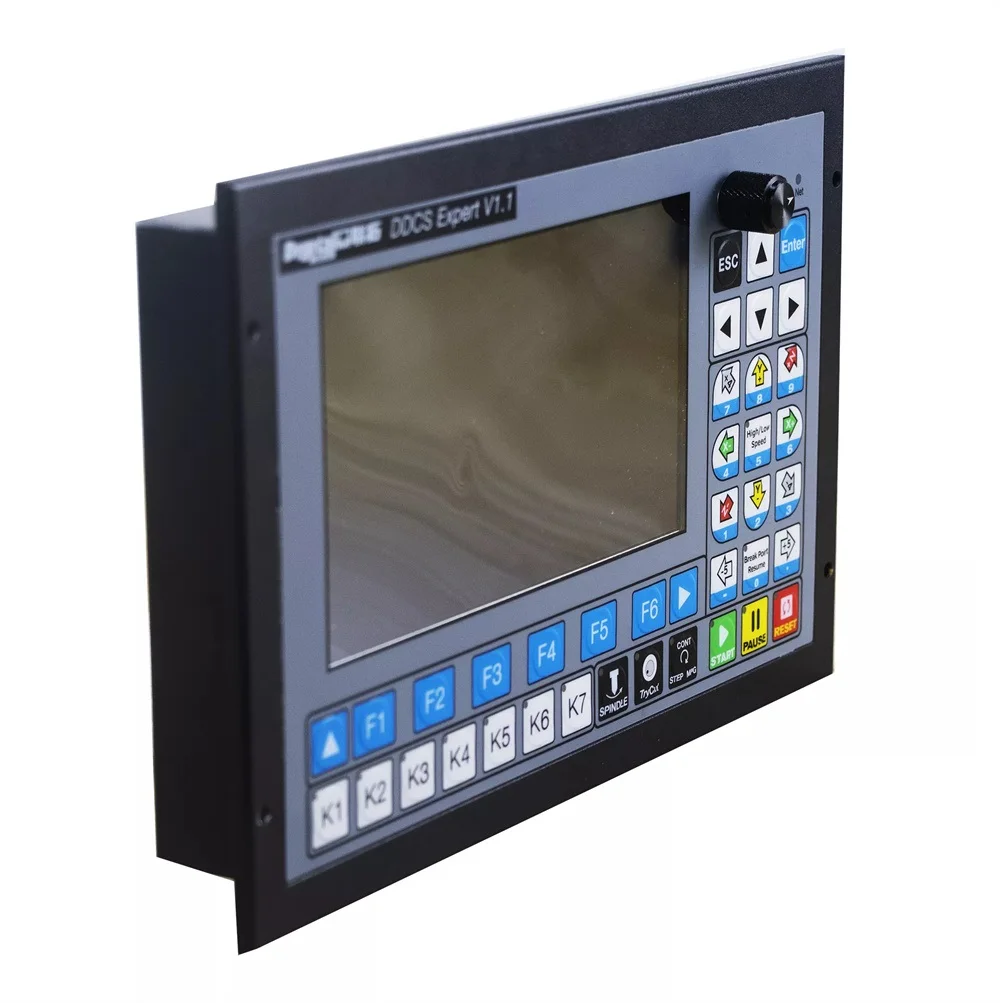

The DDCS-Expert is a small box that can fit in a window of a small control box or control cabinet. Four locking hooks fix this controller from the frame. 40Button Keys, The users can self-define the functional keys. DDCSE dimensions:
Input and Out Ports
DDCS-Expert controller creates a self-defined IO ports method. According to the user’s favorite, the users can define the input and output ports as which they want. In the IO page,the users can define the input port and output port, and also can inpect the input/output port and MPG status.
Power on the DDCS-Expert controller, system popup the main page, and press F4 Key to go to the IO Port Page, In the Io port page, you can use the Up/Down arrow, Right/Left arrive and Knob to select and change the settings.
Power on the DDCS-Expert controller, system popup the main page, and press F4 Key to go to the IO Port Page, In the Io port page, you can use the Up/Down arrow, Right/Left arrive and Knob to select and change the settings.
Wiring Board Overview

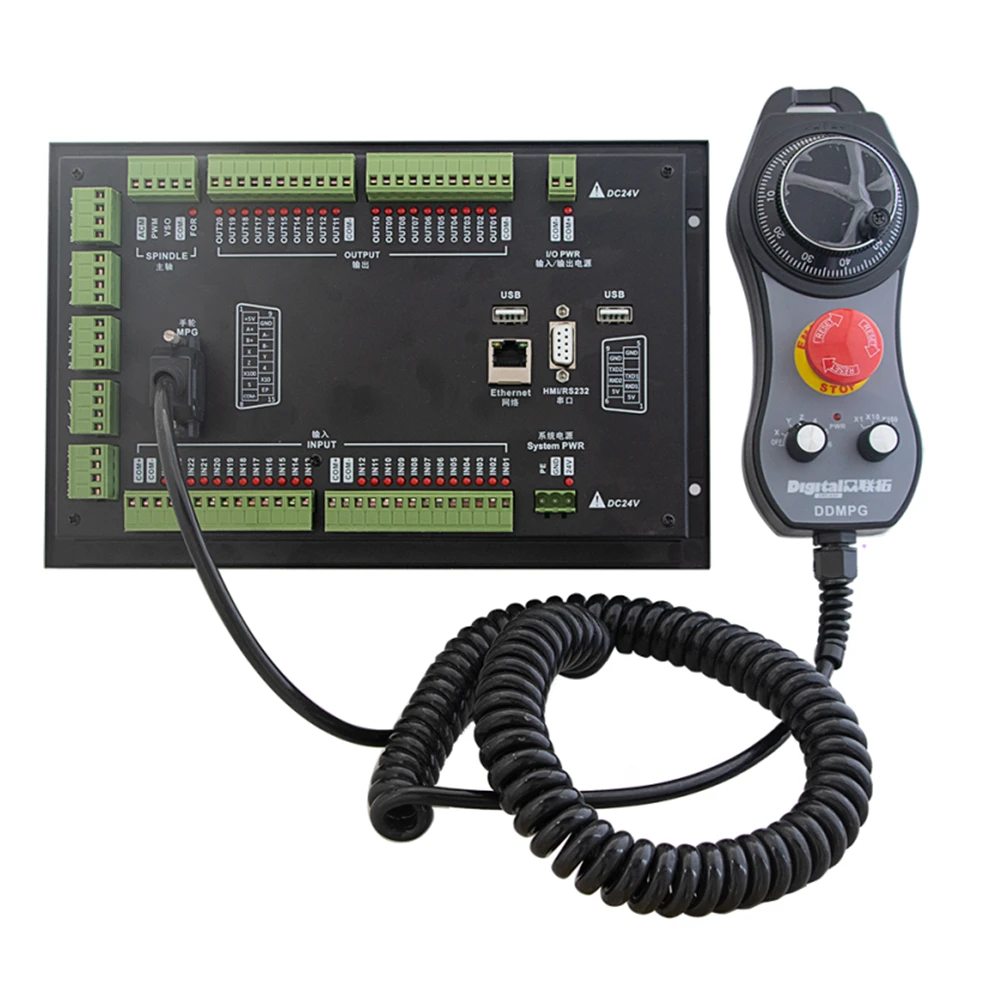

There are altogether 7 parts on DDCS-Expert wiring board as follows: 1) System Power and IO Power supply input Ports; 2) Driver Signal output Ports; 3) Input and Output Ports; 4) Spindle Output Ports; 5) MPG Port; 6) Ethernet and USB interface; 7) HMI/RS232 interface.
Wiring instructions
More details please check from our Manual, please contact us for getting manual after placed the order.
