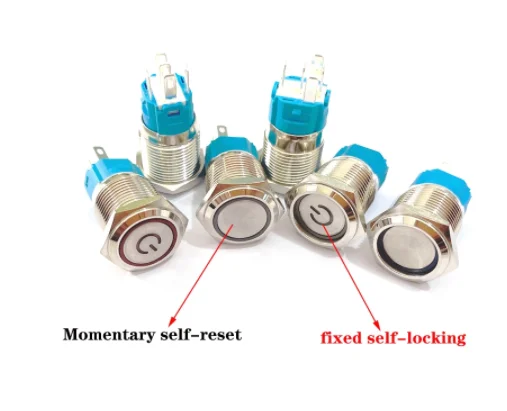

12/16/19/22mm Metal Push Button Switch Momentary Latching Fixed Electric On Off Power Start Stop LED Light 5V 12V 24V 220V Car
- Category: >>>
- Supplier: Shenzhen rongxingtong Electronics Co. Ltd
Share on (1600548851975):
Product Overview
Description
Product Description
item | value |
Certification | CE |
Place of Origin | China |
Brand Name | RXT |

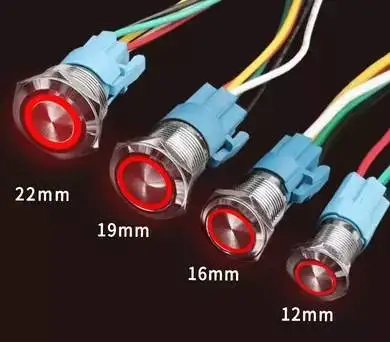

Model Number | 12/16/19/22mm |
LED | Yes |
Features | 16mm with connector |
Material | Brass nickel plated or brass chromium |
Customizable LED Colors | Red, green, white, yellow ,blue |
LED Voltage: | Please select the correct voltage in t |
Switch Type | Push Button Switch |
Very important: Connectors are purchased separately
1.What does the signal "NC" and "NO" means?
"A" "+": positive pole of the led
"LED" " - ": negative pole of the led
" NC ": Normal Close
" NO ": Normal Open
" C " : Common

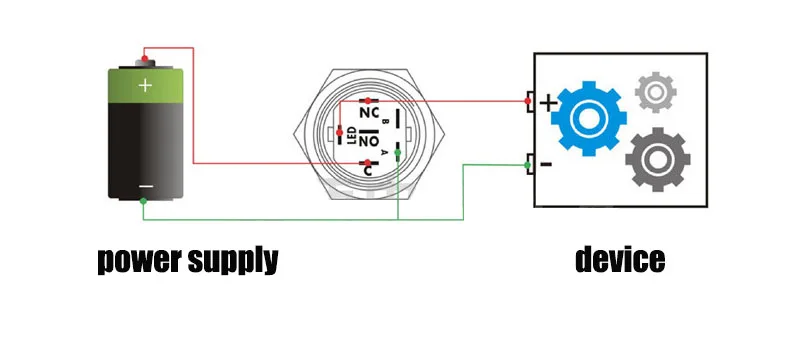

2.How to connect?
1.Connect " NO " and " C " : The circuit is alway open unless press the button.
2.Connect " NC " and " C " : The circuit is alway close unless press the button.
3.Will I get a seal ring for each button?
Yes,each button will have a free seal ring
1.What does the signal "NC" and "NO" means?
"A" "+": positive pole of the led
"LED" " - ": negative pole of the led
" NC ": Normal Close
" NO ": Normal Open
" C " : Common
2.How to connect?
1.Connect " NO " and " C " : The circuit is alway open unless press the button.
2.Connect " NC " and " C " : The circuit is alway close unless press the button.
3.Will I get a seal ring for each button?
Yes,each button will have a free seal ring

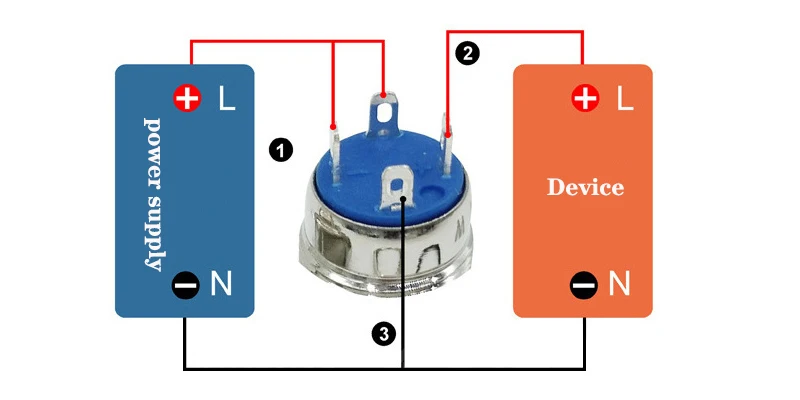

The Button is Preddsd and the LED lighte up :

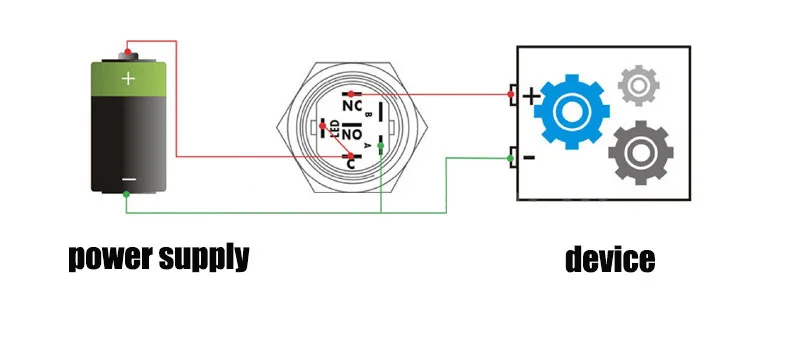

LED lights always on ：
Press the switch, the load is energized, and the LED lights at the same time.
Press the switch again, the button is reset, the load is powered off, and the LED goes out ：
Press the switch again, the button is reset, the load is powered off, and the LED goes out ：

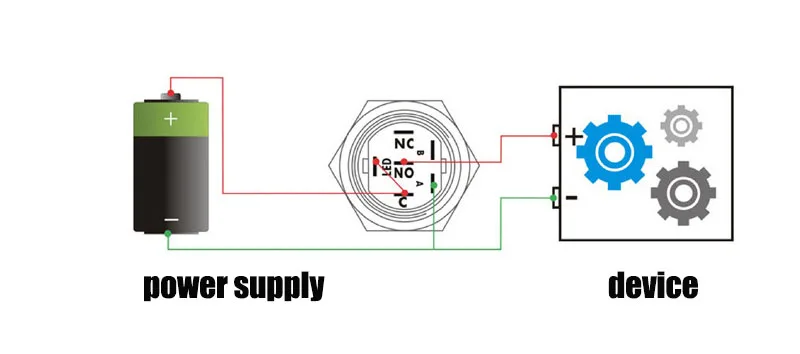

Turn on the power, the LED lights, press the switch, and the load is energized.
Press the switch again, the button is reset, and the load is powered off.
Turn off the power and the LED goes out ：
Press the switch again, the button is reset, and the load is powered off.
Turn off the power and the LED goes out ：

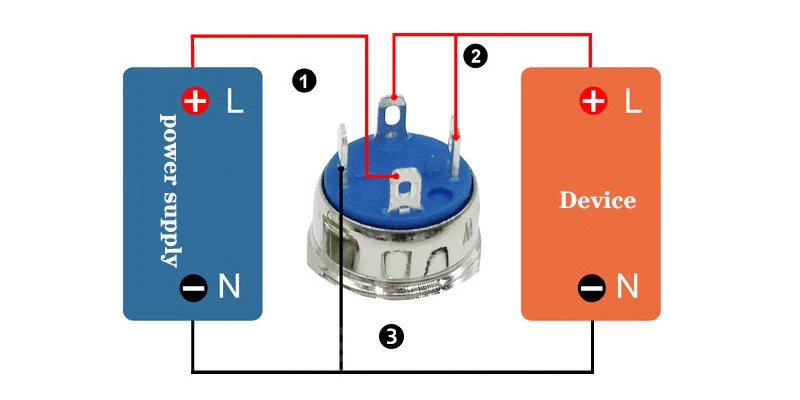

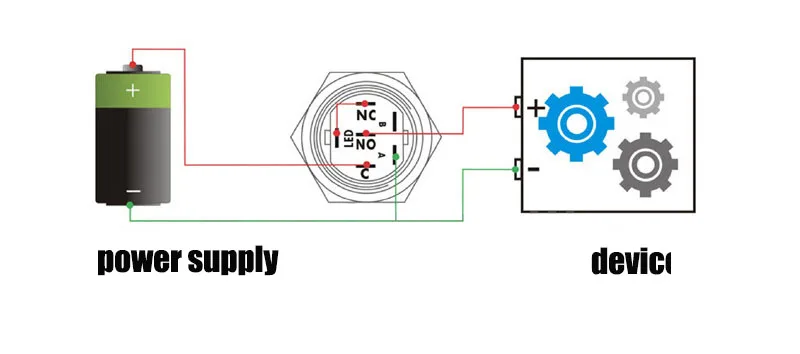

Press the switch, the load is energized, and the LED turns off
Press the switch again, the button is reset, the load is powered off, and the LED lights at the same time
Press the switch again, the button is reset, the load is powered off, and the LED lights at the same time

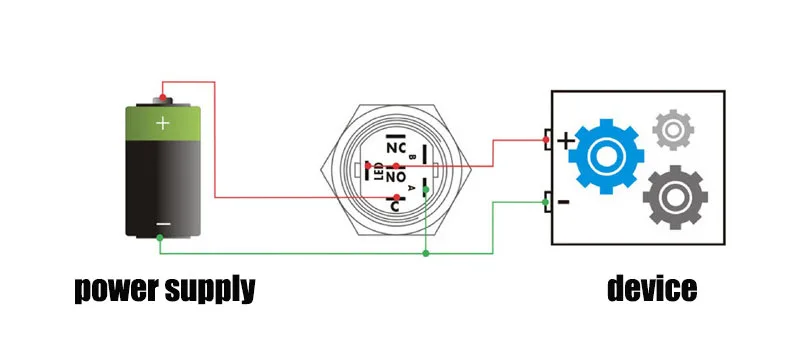

Press the switch, the load is powered off, and the LED turns off at the same time.
Press the switch again, the button is reset, the load is energized, and the LED lights at the same time ：
Press the switch again, the button is reset, the load is energized, and the LED lights at the same time ：
Turn on the power and the LED lights up. Press the switch, the load is powered off.
Press the switch again, the button is reset, and the load is energized. Turn off the power and the LED goes out ：
Press the switch again, the button is reset, and the load is energized. Turn off the power and the LED goes out ：
