China Supplier 1.0 MPa Cast iron Electronic Actuated Motorised Butterfly Valve
- Category: >>>
- Supplier: Zhejiang Hengsen Industrial Group. Ltd.
Share on (1600548854861):
Product Overview
Description
Product display

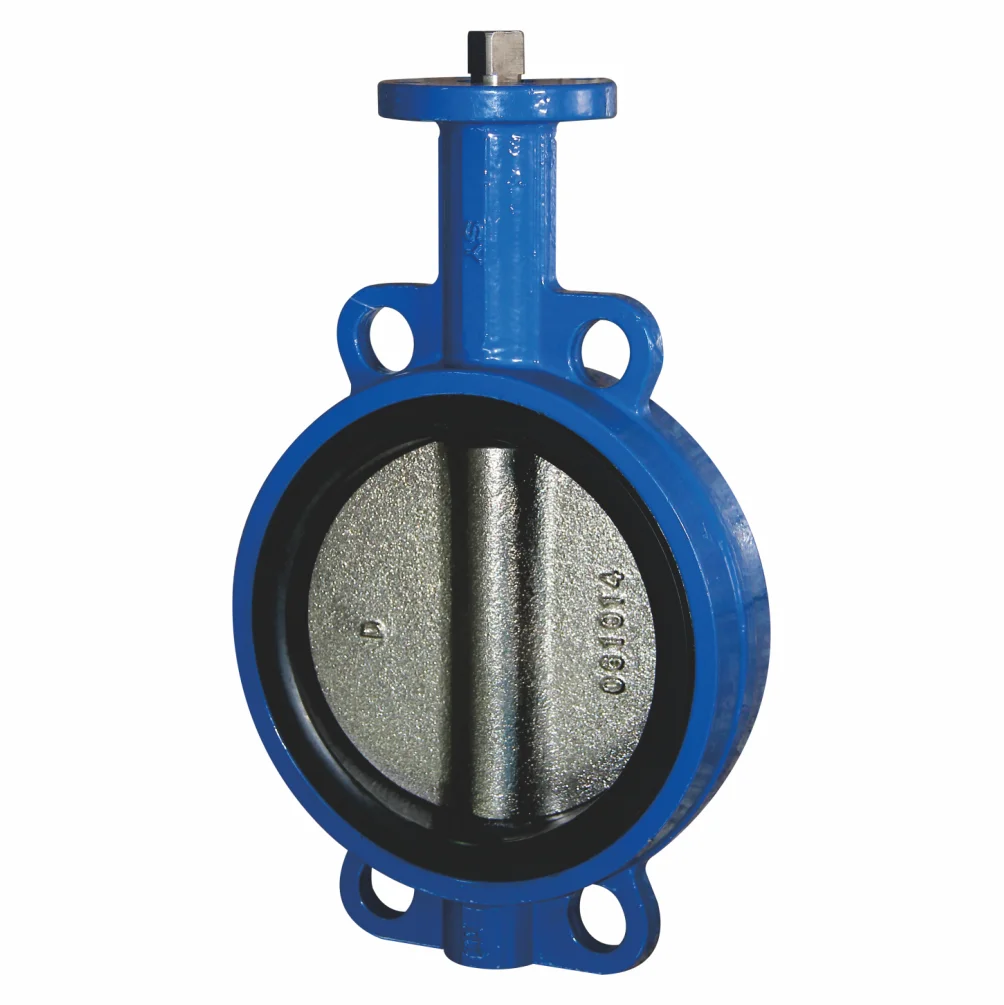

Butterfly valve
Order NO | Model NO | Actuator Adapter | Spec.DN | Cvs For Valve Opening Angle | Technical Data | ||
90° | 70° | ||||||
18223 | DFR-01-50 | DFQ-JM-05 | 50 | 135 | 90 | Nominal pressure:1.0MPa Suitable temperature:-15℃-130℃ Suitable medium:water,acid,alkali,salt,gas,steam and so on. When the valve is controlled by switching quantity,Cv is selected at 90°.When the valve is controlled by analog quantity,Cv is selected at 70°.the control angle is recommended at 25°-70°，and the optimum control angle is 60° -65°. | |
18224 | DFR-01-65 | DFQ-JM-05 | 65 | 220 | 144 | ||
18225 | DFR-01-80 | DFQ-JM-05 | 80 | 302 | 183 | ||
18226 | DFR-01-100 | DFQ-JM-05 | 100 | 600 | 364 | ||
18227 | DFR-01-125 | DFQ-JM-10 | 125 | 1022 | 620 | ||
18228 | DFR-01-150 | DFQ-JM-10 | 150 | 1579 | 958 | ||
18229 | DFR-01-200 | DFQ-JM-20 | 200 | 3136 | 1903 | ||
18230 | DFR-01-250 | DFQ-JM-40 | 250 | 5340 | 3240 | ||
18231 | DFR-01-300 | DFQ-JM-60 | 300 | 8250 | 5005 | ||
18232 | DFR-01-350 | DFQ-JM-60 | 350 | 11917 | 7230 | ||
18233 | DFR-01-400 | DFQ-JM-100 | 400 | 16388 | 9942 | ||
18234 | DFR-01-450 | DFQ-JM-160 | 450 | 21705 | 13168 | ||
18235 | DFR-01-500 | DFQ-JM-160 | 500 | 27908 | 16931 | ||
18236 | DFR-01-550 | DFQ-JM-250 | 550 | 35170 | 21336 | ||
18237 | DFR-01-600 | DFQ-JM-250 | 600 | 43116 | 26157 | ||
18238 | DFR-01-650 | —— | 650 | 45620 | 27823 | ||
18239 | DFR-01-700 | —— | 700 | 49500 | 22769 | ||
18240 | DFR-01-800 | —— | 800 | 68250 | 31395 | ||
18241 | DFR-01-900 | —— | 900 | 86375 | 39731 | ||
18242 | DFR-01-1000 | —— | 1000 | 119750 | 55084 | ||
18243 | DFR-01-1050 | —— | 1050 | 117500 | 70500 | ||
18244 | DFR-01-1200 | —— | 1200 | 154000 | 92300 | ||

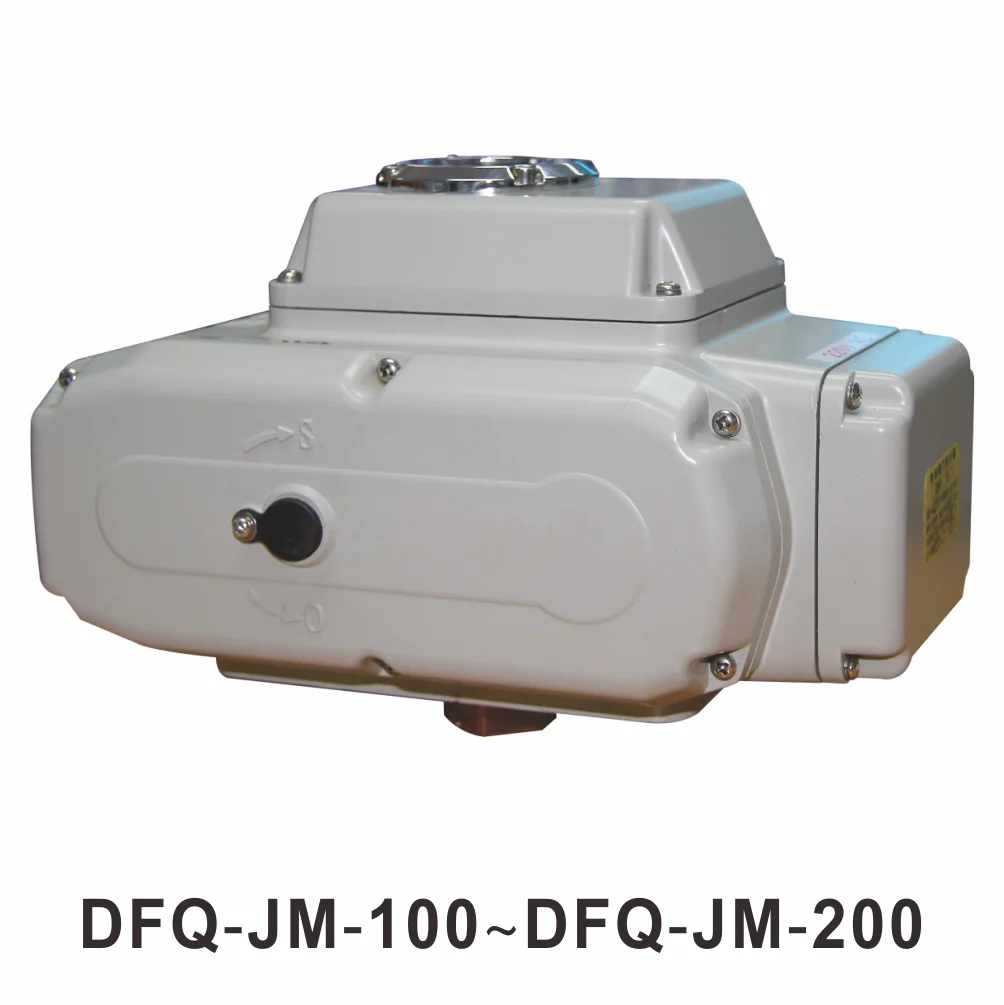

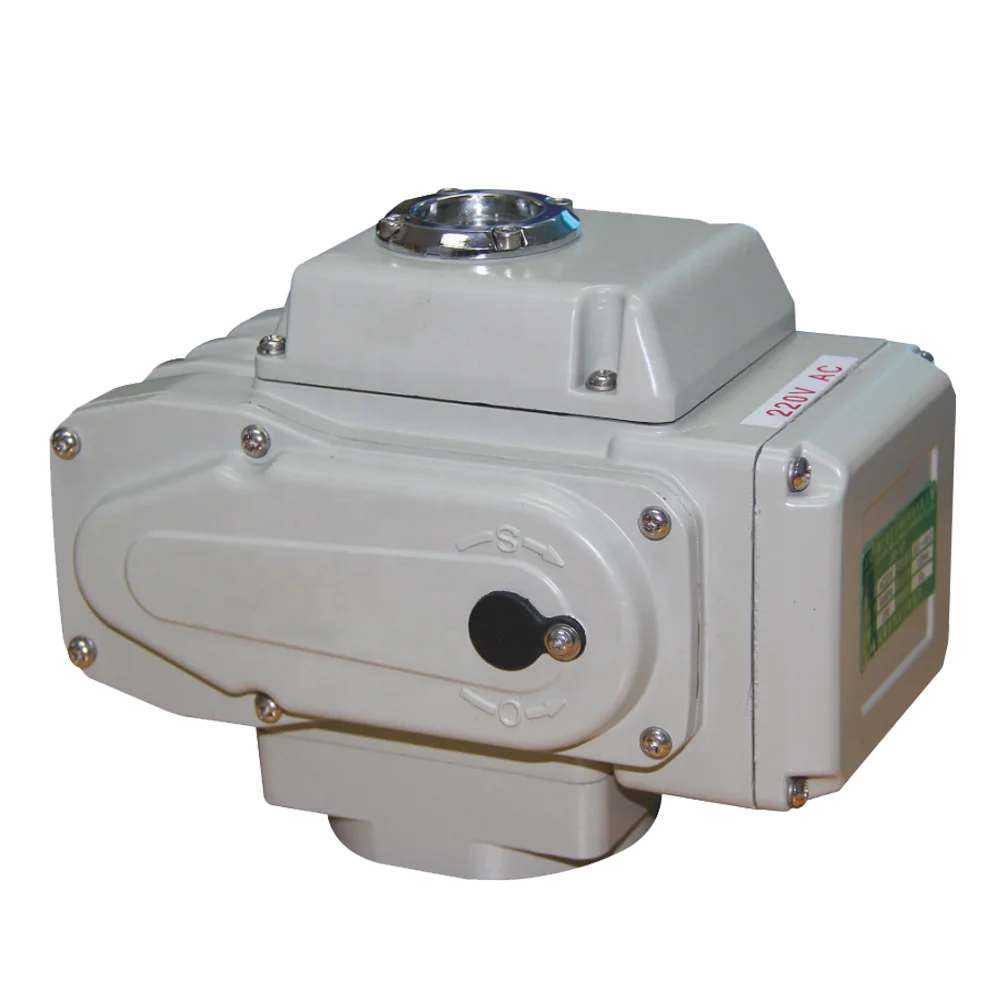

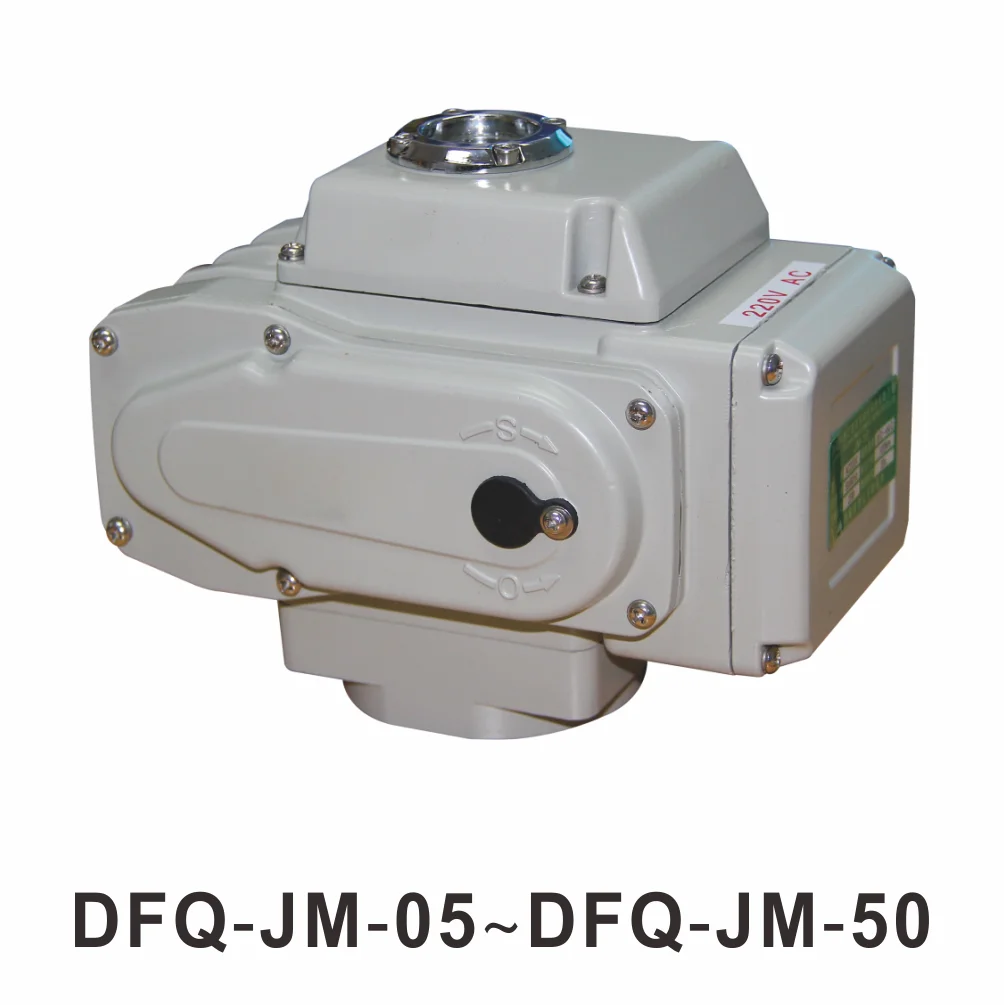

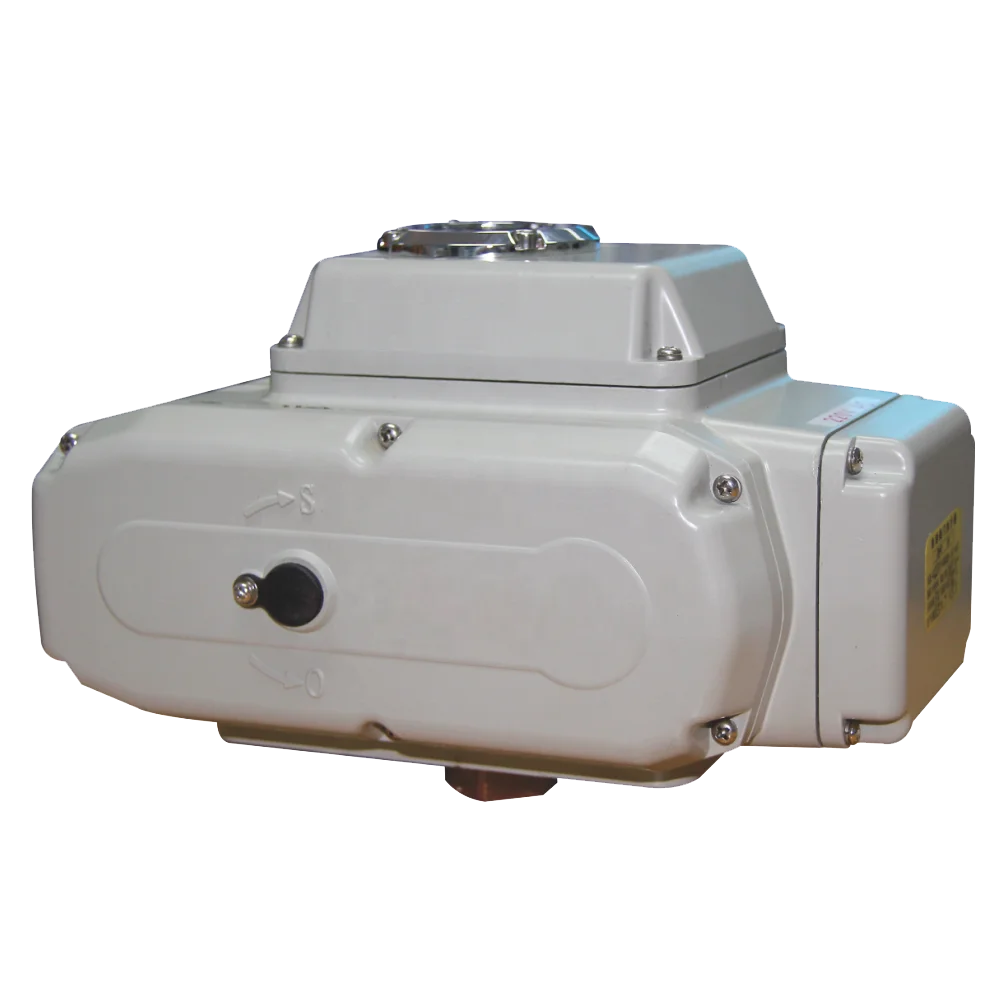

Model NO | Power(W) | Torsion | ON/OFF Time(s) | Weight | Technical Data | ||||
AC110V AC220V | AC380V | AC/DC 24V | |||||||
DFQ-JM-05 | 6 | 50N.m | 19 | —— | 15 | 2 | Power Supply:24VAC 50/60HZ,220VAC 50/60HZ,24VDC. Angle of rotation:0°-90°。 Ambient Temperature:-10℃-60℃. Protection Class:IP67. Motor insulation class:F Travel time:15S,30S,60S optional. Modulation input signal:4-20mA 0-10V,1-5V;output signal:4-20mA 0-10V,1-5V. Limit:electric,fully open fully closed limit switch;manual,mechanical block. | ||
DFQ-JM-10 | 25 | 100N.m | 30 | 23 | 4.5 | ||||
DFQ-JM-20 | 40 | 200N.m | 30 | 23 | 10 | ||||
DFQ-JM-40 | 60 | 400N.m | 30 | 23 | 10 | ||||
DFQ-JM-60 | 90 | 600N.m | 30 | 23 | 10 | ||||
DFQ-JM-100 | 120 | 1000N.m | 30 | 23 | 26 | ||||
DFQ-JM-160 | 150 | 1600N.m | 42 | 32 | 26 | ||||
DFQ-JM-250 | 200 | 2500N.m | 70 | 53 | 28 | ||||
