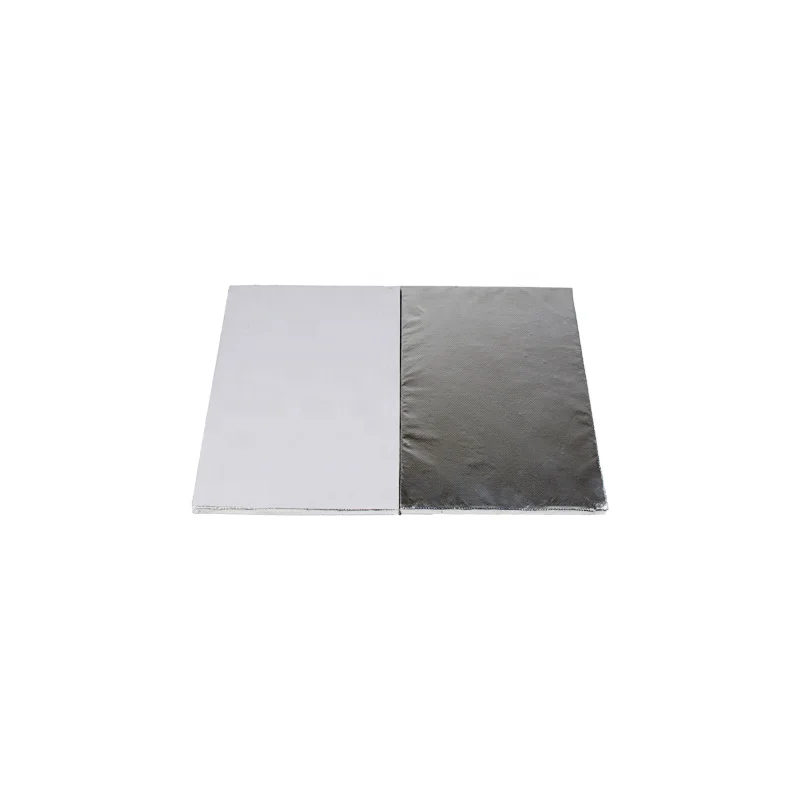

Junai Low Thermal Conductivity Aluminum Foil / Pe Foil / Glass Fiber Cloth Coated Thermal Insulation Industrial Nano Board
- Category: >>>
- Supplier: Shaanxi Junai Energy Saving Technology Co. Ltd.
Share on (1600548877721):
Product Overview
Description
Products Description

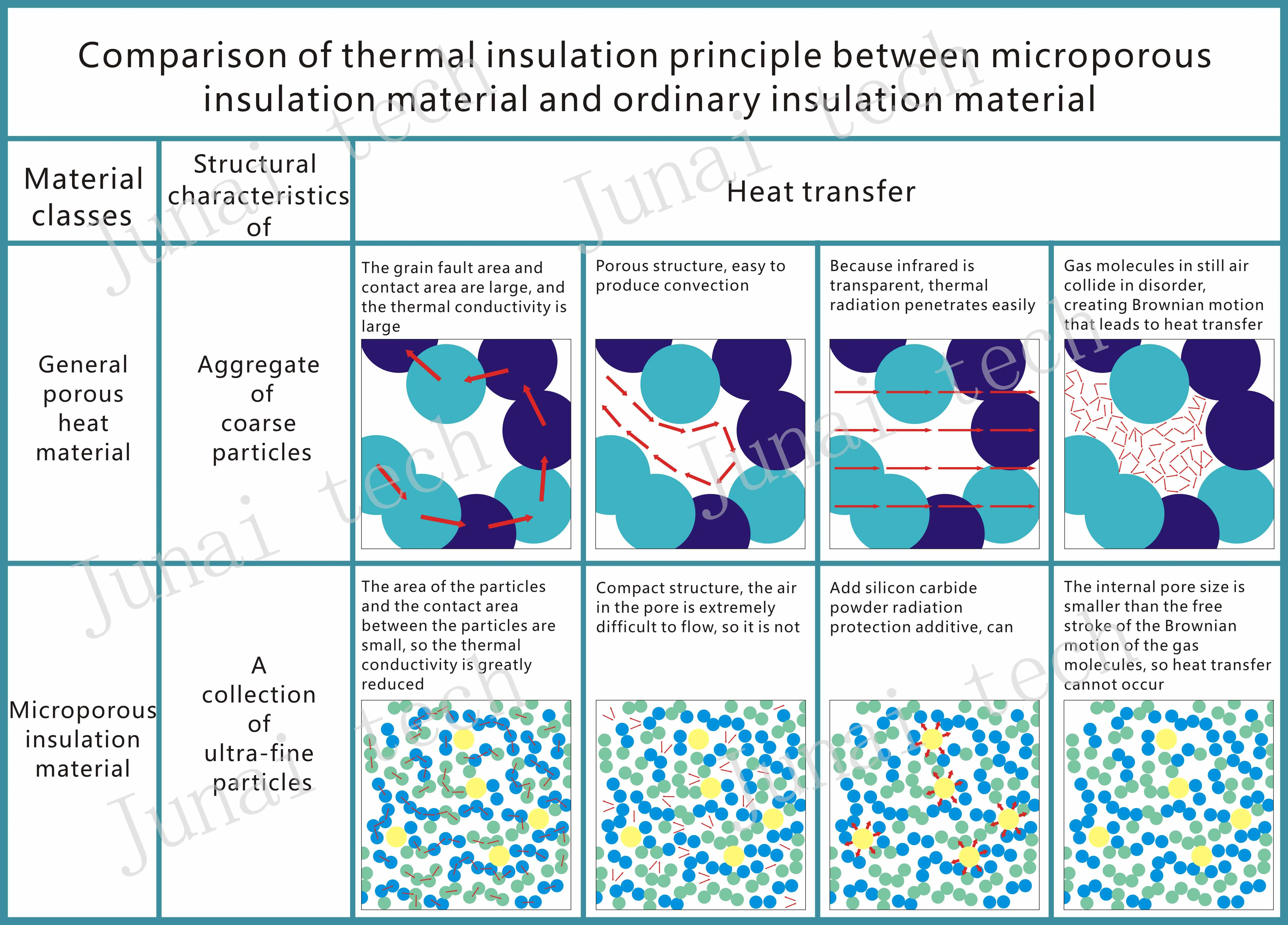

What is Nano-microporous insulation material?
How do you produce nano-microporous materials?
The main component of poly-resistant nano-microporous insulation material is nano-scale fumed silica.
Through high-tech methods, tiny nano-scale pores are formed in the material.
1) The internal voids should be below 100nm;
2) The internal pores size below 50 nm;
3) The bulk density of the material should be low;
2) The internal pores size below 50 nm;
3) The bulk density of the material should be low;
4) The thermal conductivity is lower than that of "no convection air" .
How do you produce nano-microporous materials?
The main component of poly-resistant nano-microporous insulation material is nano-scale fumed silica.
Through high-tech methods, tiny nano-scale pores are formed in the material.
Junai products microscopic presentation of the excellent properties
1. The particle diameter is less than 100 nanometers;
2. The particle distribution is uniform;
3. Reasonable distribution of porosity and pore size;
4. The quantity distribution of sunscreens is reasonable.

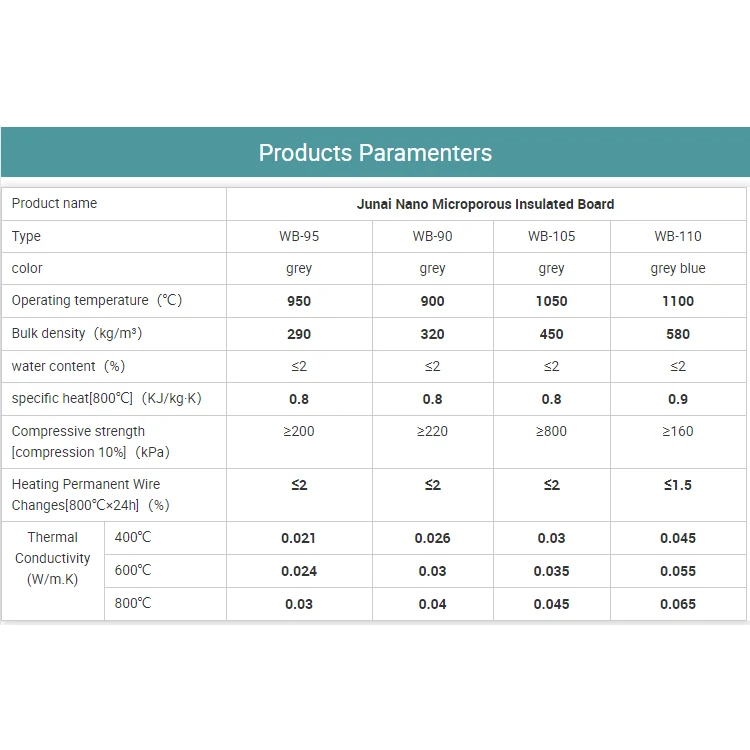

Products Paramenters
Product name | Junai Nano Microporous Insulated Board | 加强 | 标准 | 普通 | |||||
Type | WB-95 | WB-90 | WB-105 | WB-110 | |||||
color | grey | grey | grey | grey blue | |||||
Operating temperature（℃） | 950 | 900 | 1050 | 1100 | |||||
Bulk density（kg/m³） | 290 | 320 | 450 | 580 | |||||
water content（%） | ≤2 | ≤2 | ≤2 | ≤2 | |||||
specific heat[800℃]（KJ/kg·K） | 0.8 | 0.8 | 0.8 | 0.9 | |||||
Compressive strength [compression 10%]（kPa） | ≥200 | ≥220 | ≥800 | ≥160 | |||||
Heating Permanent Wire Changes[800℃×24h]（%） | ≤2 | ≤2 | ≤2 | ≤1.5 | |||||
Thermal Conductivity (W/m.K) | 400℃ | 0.021 | 0.026 | 0.03 | 0.045 | ||||
600℃ | 0.024 | 0.03 | 0.035 | 0.055 | |||||
800℃ | 0.03 | 0.04 | 0.045 | 0.065 | |||||

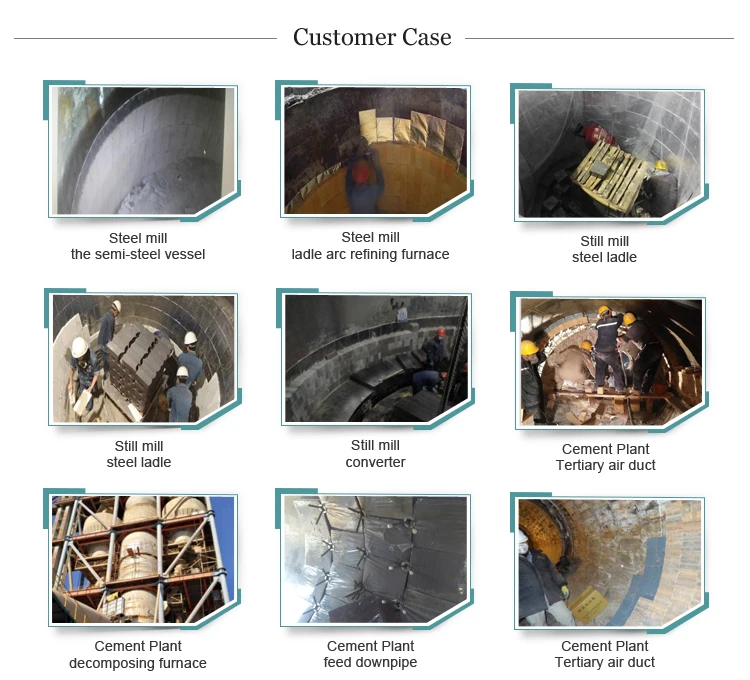

Product Application
Our products are widely used and experienced in these industries.
We can provide the system solutions in the field of high and low-temperature industry energy-saving including project design, product supply, site instruction, and technical support.4e979d

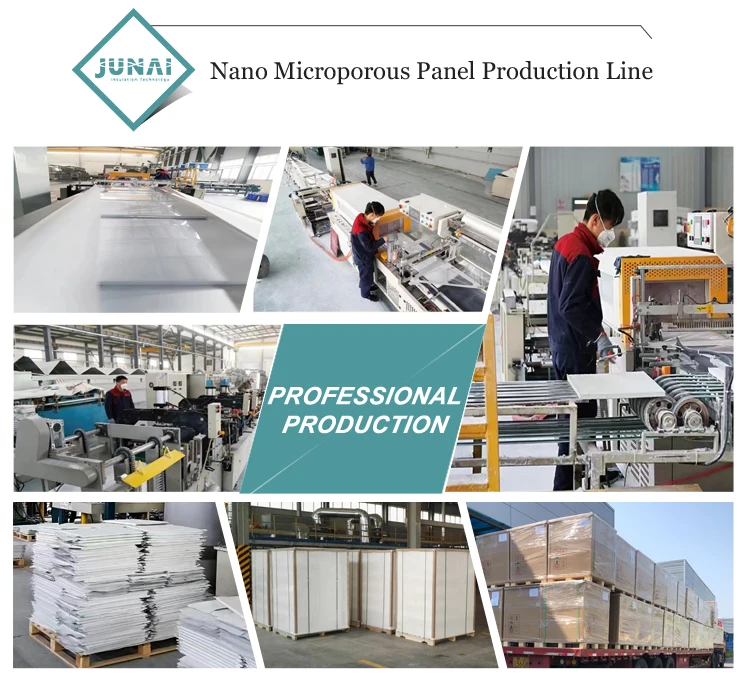

Production line
Company Profile
Shaanxi Junai Energy-saving Technology Co., Ltd
We are the overseas business division of Luoyang Naiyan Ceramic Fiber Co, Ltd, a subsidiary of Sinosteel Cooperation Luoyang Refractory Research Institute Co., Ltd. We are founded in 1963, and are recognized as the pioneer and forerunner in the field of refractory fiber and nano microporous thermal insulation material in China.
Professional Team
At present, we have 39 R & D personnel, including 17 scientific researchers with the title of the engineer or above. Over several decades focus on refractory, cold chain, energy saving, thermal insulation materials, and equipment R&D and manufacturing.
Certificate and Honor
Junai has the most authoritative certificate and honor system.
Packaging and Delivery
Payment and delivery
Payment can be done by T/T, Credit Card, Western Union, PayPal and more.
delivery：By sea/by air/by train/DHL/Fedex/ups/EMS/TNT etc.
FAQ
1.Are you a factory ？
We are a manufacturer founded in 1963, located in Henan China.
We also can offer system solutions including project design, site instruction, and technical support.
2.What is your main product?
Such as ceramic fiber products, microporous thermal insulation panels, vacuum insulation panels and other thermal insulation products.
Such as ceramic fiber products, microporous thermal insulation panels, vacuum insulation panels and other thermal insulation products.
3. Can I get free sample?
Yes, you only need to pay the fright and this fee will return to your formal order.
4. What is your MOQ?
No specific moq, but good price for large quantity.
5. Is there any discount?
5. Is there any discount?
Yes, it depends on the quantity.
6.Can we have a visit to your factory ?
Yes! Of course,welcome to visit our factory at anytime !
