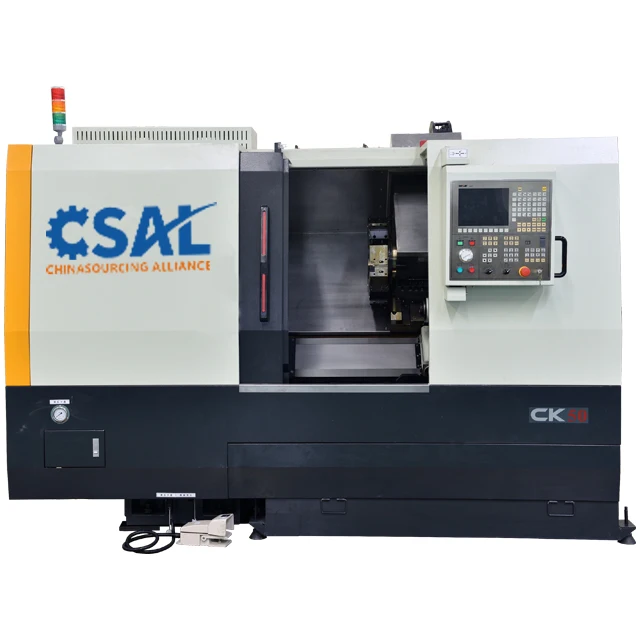

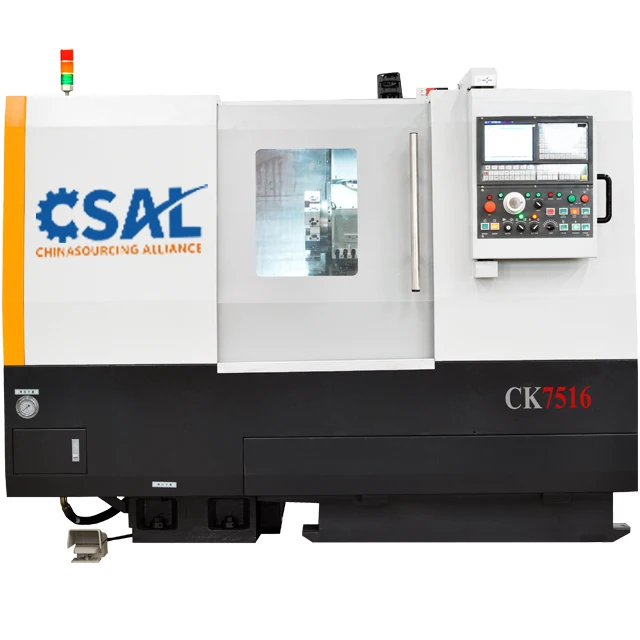

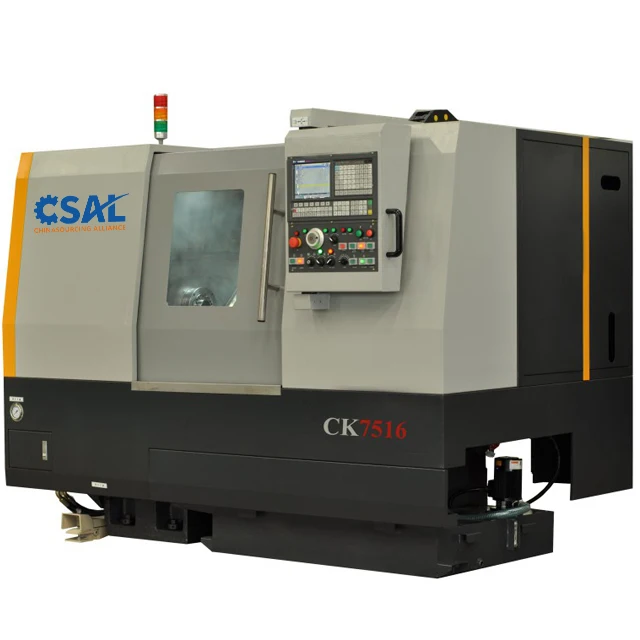

CNC Lathe Machine CK7525 Slant Bed Turning Machine
- Category: >>>
- Supplier: ChinaSourcing E&T Co. Ltd.
Share on (1600548924946):
Product Overview
Description
Product Description
Features and Advantages
1. High rigidity, high precision and durability.
2. High productivity and easy to operate.
3. Full-enclosed guard, preventing the leakage of water, power and oil effectively.
4. The multistation turret indexes fast and continuously with a high repeatability, changing tool proximately.
Specification
CK7525 | CK7525A | CK7525C | ||||||
CAPACITY | ||||||||
Max. swing over bed/slide | mm | 550/370 | 550/370 | 550/280 | ||||
Max. turning length | mm | 500/1000/1500 | 500/1000/1500 | 500/1000 | ||||
Max. turning dia. | mm | 450 | 450 | 450 | ||||
Max. bar dia. | mm | 73 | 73 | 73 | ||||
SPINDLE | ||||||||
Hydraulic chuck dia. | mm | 254 | 254 | 254 | ||||
Spindle nose | A2-8 | A2-8 | A2-8 | |||||
Spindle thru-hole | mm | 87 | 87 | 87 | ||||
Spindle speed | r/min | 30-3000 | 75-1500 | 30-3000 | ||||
Power of main motor (cont./30min) | kW | 15/18.5 | 15/18.5 | 15/18.5 | ||||
TAILSTOCK | ||||||||
Dia./ Travel of tailstock quill | mm | 100/100 | 100/100 | 100/100 | ||||
Taper of center of standard/Live spindle structure | MT No. | 5/4 | 5/4 | 5/4 | ||||
FEEDS | ||||||||
Slant angle | DEG | 45 | 45 | 45 | ||||
mm | 250/525 250/1010 250/1550 | 250/525 250/1010 250/1550 | 250/550 250/1010 | |||||
X/Z rapid traverse rate | m/min | 12/16 | 12/16 | 24/24 | ||||
TURRET | ||||||||
Number of stations | 12/8 | 12/8 | 12/8 | |||||
Tool size | mm | 25*25/40 | 25*25/40 | 25*25/40 | ||||
OTHERS | ||||||||
Power supply | kVA | 50 | 50 | 50 | ||||
mm | 2940*1850*1850 3785*1850*1930 4540*1850*1940 | 2940*1850*1850 3785*1850*1930 4540*1850*1940 | 2940*1850*1850 3785*1850*1930 | |||||
kg | 4800 5000 6700 | 4800 5000 6700 | 4800 5000 | |||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company & Brand
Established in 2003, ChinaSourcing E&T Co.,Ltd. has always been devoting to global sourcing of mechanical products. Our mission is to provide professional one-stop sourcing service and create added value for customers, and to build a strategic platform between the foreign customers and Chinese suppliers.
We have supplied more than 100 customers with hundreds of thousands of kinds of products, including components, assemblies, full machines, machine tools, automation products and etc.
Nowadays our business also involves in industrial investment and import & agency sales of agricultural machinery.
In 2005, we organized ChinaSourcing Alliance, which gathers more than 50 manufacturers involved in a wide range of industries. Connecting all the members as one, we provide Overall Solution for our customers. In 2021, the annual output of ChinaSourcing Alliance reached up to 30 billion RMB.
Every member of ChinaSourcing Alliance was selected after strict screening and represents the highest level of Chinese machinery manufacturing. And all the members have obtained CE certification.
In ChinaSourcing Alliance, there are more than 10 professional machine tool manufacturers, of which we decided to integrate the product lines and the production capacity to provide the customers with the most reliable products and the most varied choice, and this is how our self-owned machine tool brand CSAL came out.
