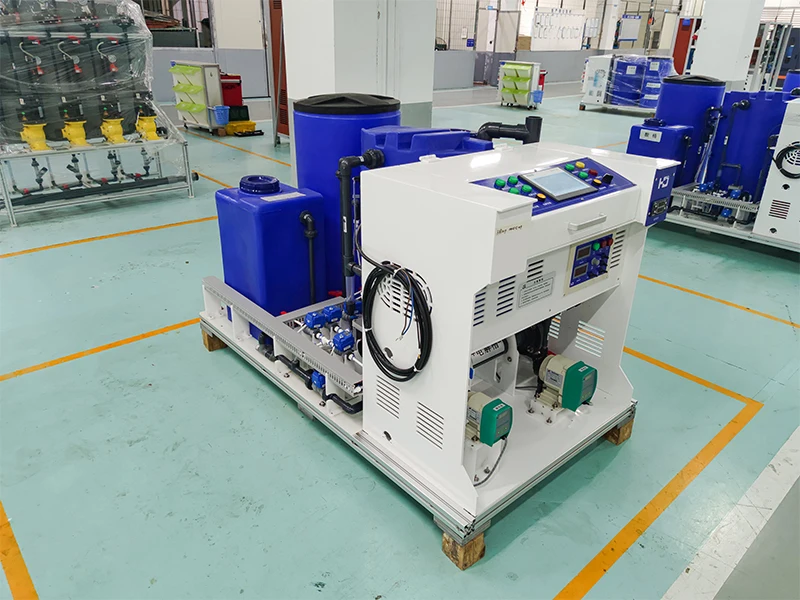

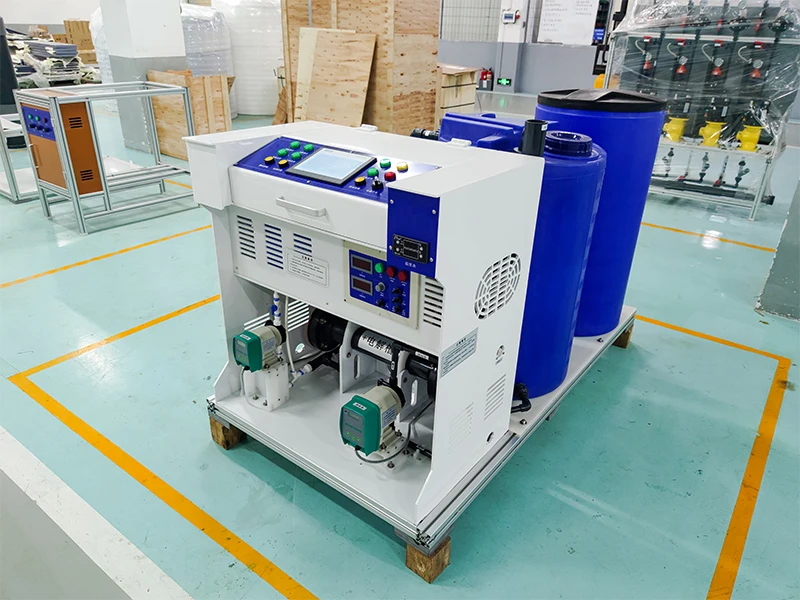

Available Chlorine Capacity 50g/hr Electrolysis Salt Water Chlorinator Sodium Hypochlorite Generator for Water Treatment
- Category: >>>
- Supplier: Hephis Intelligence Technology(Fujian) Co. Ltd.
Share on (1600548959976):
Product Overview
Description
Product Description
HEPHIS Integrated sodium hypochlorite generator
1、 Sodium hypochlorite generator
Sodium hypochlorite generator is a device to generate sodium hypochlorite solution by electrolysis
of brine, is composed of salt dissolving device, filtering device, salinedilution device, electrolytic electrode
assembly, rectifying power supply, automaticcontrol system, storage and adding components, made of
pure sodium hypochloritesolution is a strong oxidizing agent, has a strong bactericidal and bleaching ability,
is the most widely used disinfectant, mainly used in the disinfection of drinking water disinfection, food
processing, industrial or power system circulating waterdisinfection, hospital or sewage treatment and
disinfection.
2、The principle of sodium hypochlorite disinfection
Sodium hypochlorite is hydrolyzed to hypochlorous acid, sodium hypochlorite and further decompose
to a new ecological oxygen [O], new ecological oxygenstrong oxidizing property.The cell and virus protein
substances such asdegeneration, leading to death of pathogenic microorganisms.
Hypochlorous acid can act on the cell wall, the virus shell, but also because the molecules of hypoch-
Lorous acid is very small, without charge, can penetrate into thebacteria (virus), and bacteria (virus) body
protein,nucleic acid and enzyme and other organic polymer oxidation reaction occurs, then kill the
pathogenic microorganisms.
Chloride ion permeability also produce hypochlorous acid significantly alteredbacteria and virus body is
pressed, the cell loss of activity and death.
Sodium hypochlorite generator is a device to generate sodium hypochlorite solution by electrolysis
of brine, is composed of salt dissolving device, filtering device, salinedilution device, electrolytic electrode
assembly, rectifying power supply, automaticcontrol system, storage and adding components, made of
pure sodium hypochloritesolution is a strong oxidizing agent, has a strong bactericidal and bleaching ability,
is the most widely used disinfectant, mainly used in the disinfection of drinking water disinfection, food
processing, industrial or power system circulating waterdisinfection, hospital or sewage treatment and
disinfection.
2、The principle of sodium hypochlorite disinfection
Sodium hypochlorite is hydrolyzed to hypochlorous acid, sodium hypochlorite and further decompose
to a new ecological oxygen [O], new ecological oxygenstrong oxidizing property.The cell and virus protein
substances such asdegeneration, leading to death of pathogenic microorganisms.
Hypochlorous acid can act on the cell wall, the virus shell, but also because the molecules of hypoch-
Lorous acid is very small, without charge, can penetrate into thebacteria (virus), and bacteria (virus) body
protein,nucleic acid and enzyme and other organic polymer oxidation reaction occurs, then kill the
pathogenic microorganisms.
Chloride ion permeability also produce hypochlorous acid significantly alteredbacteria and virus body is
pressed, the cell loss of activity and death.

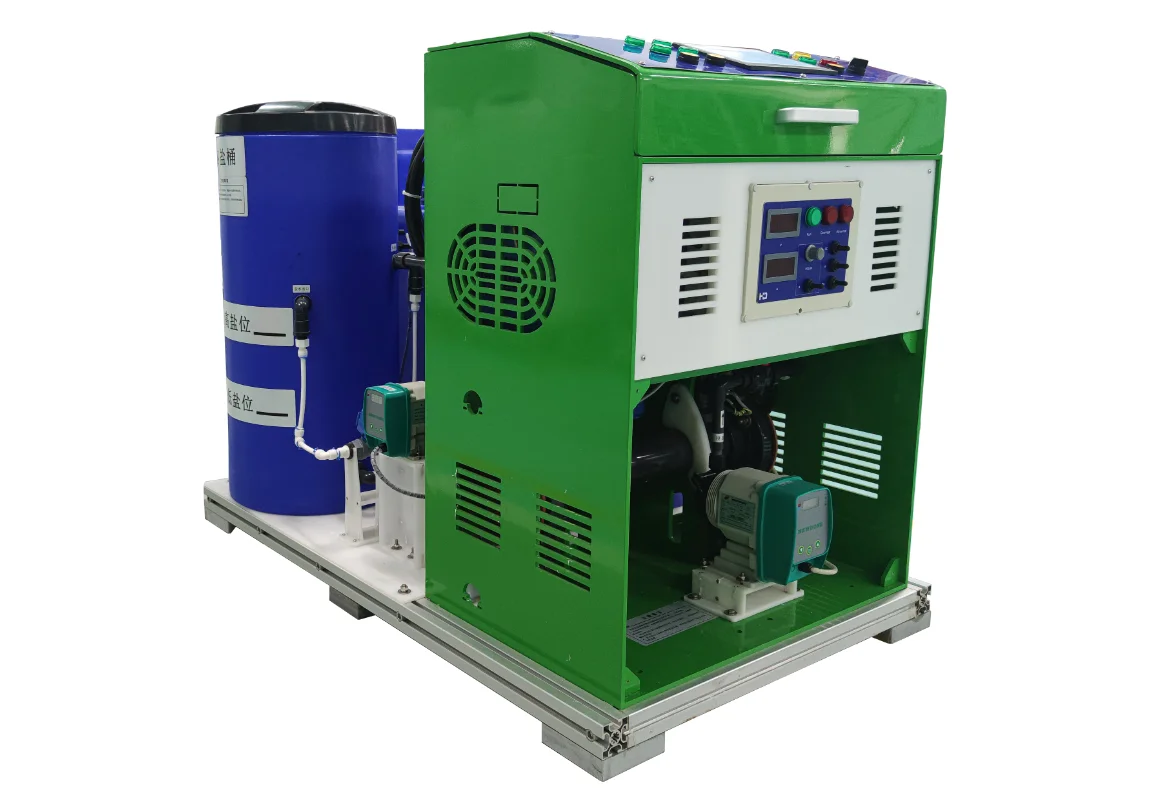

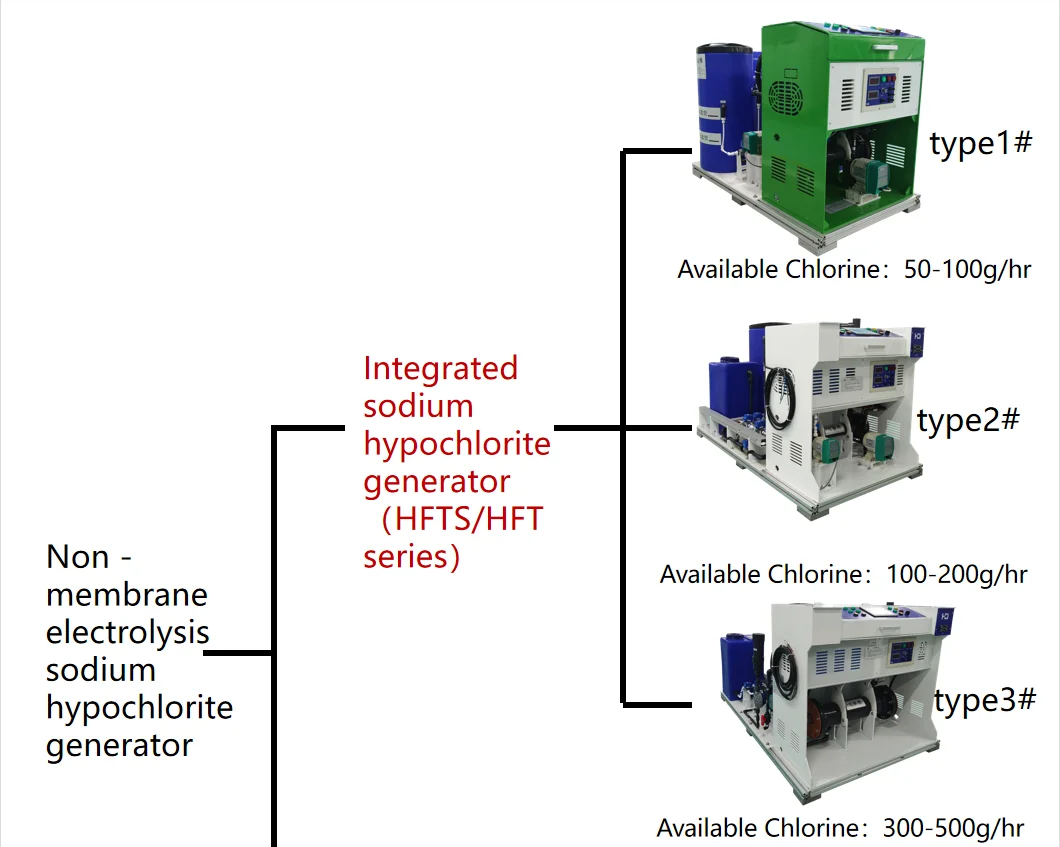

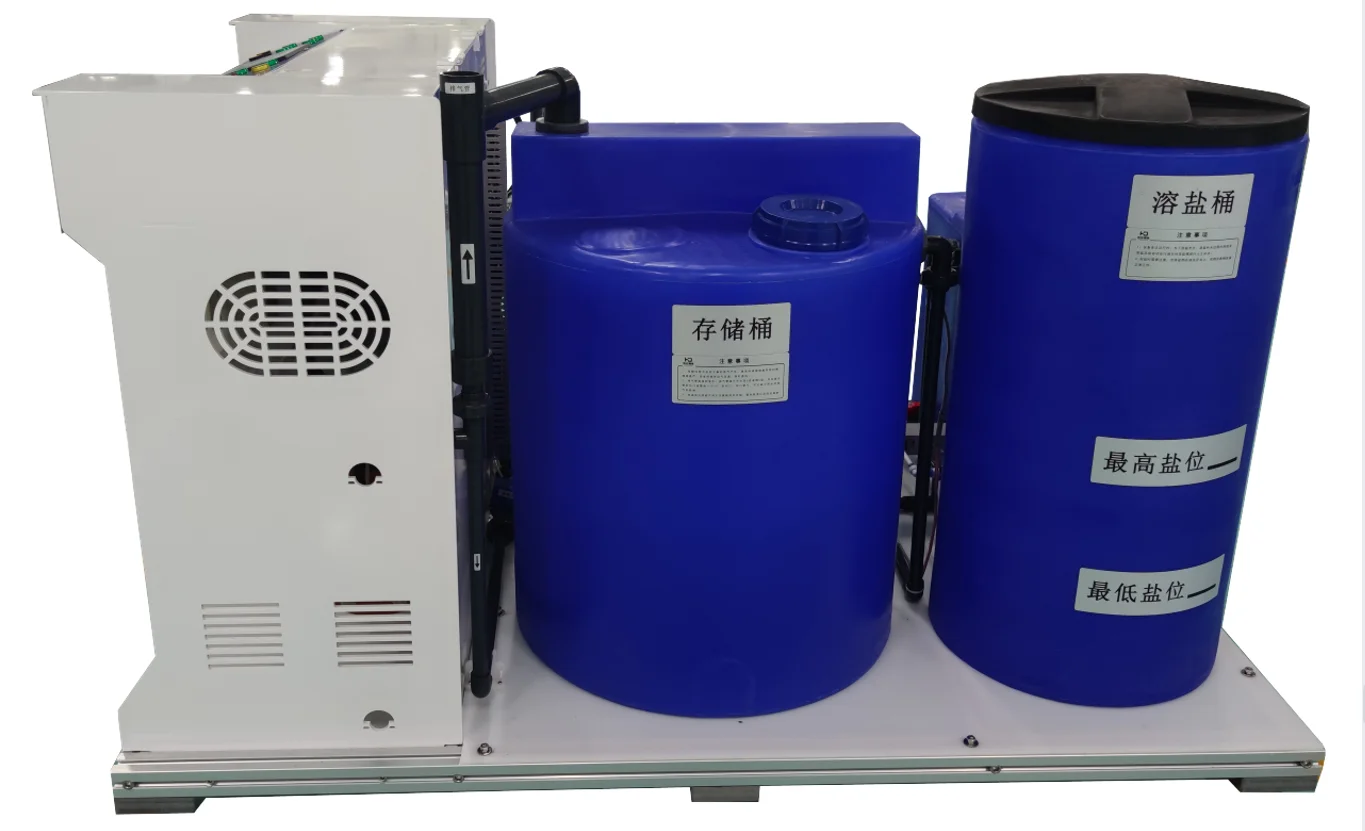

Integrated Type1
Available Chlorine：50-100g/hr
Model：HFTS-50-NaOCl
HFTS-100-NaOCl
Size：138×82×120cm
HFTS-100-NaOCl
Size：138×82×120cm

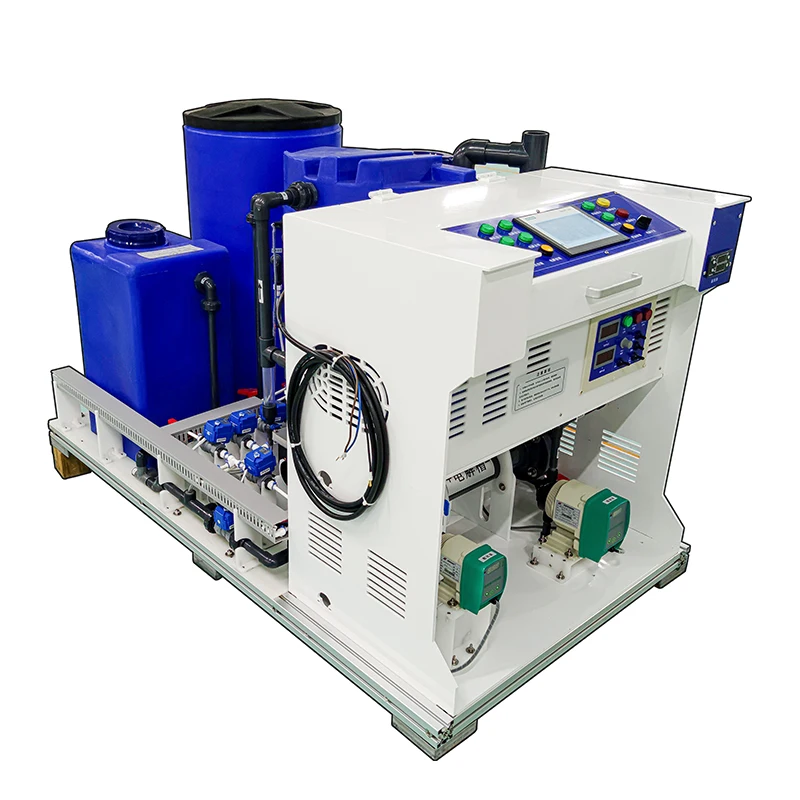

Available Chlorine：100-200g/hr
Model：HFT-100-NaOClHFT-200-NaOCl
Size：150×100×120cm

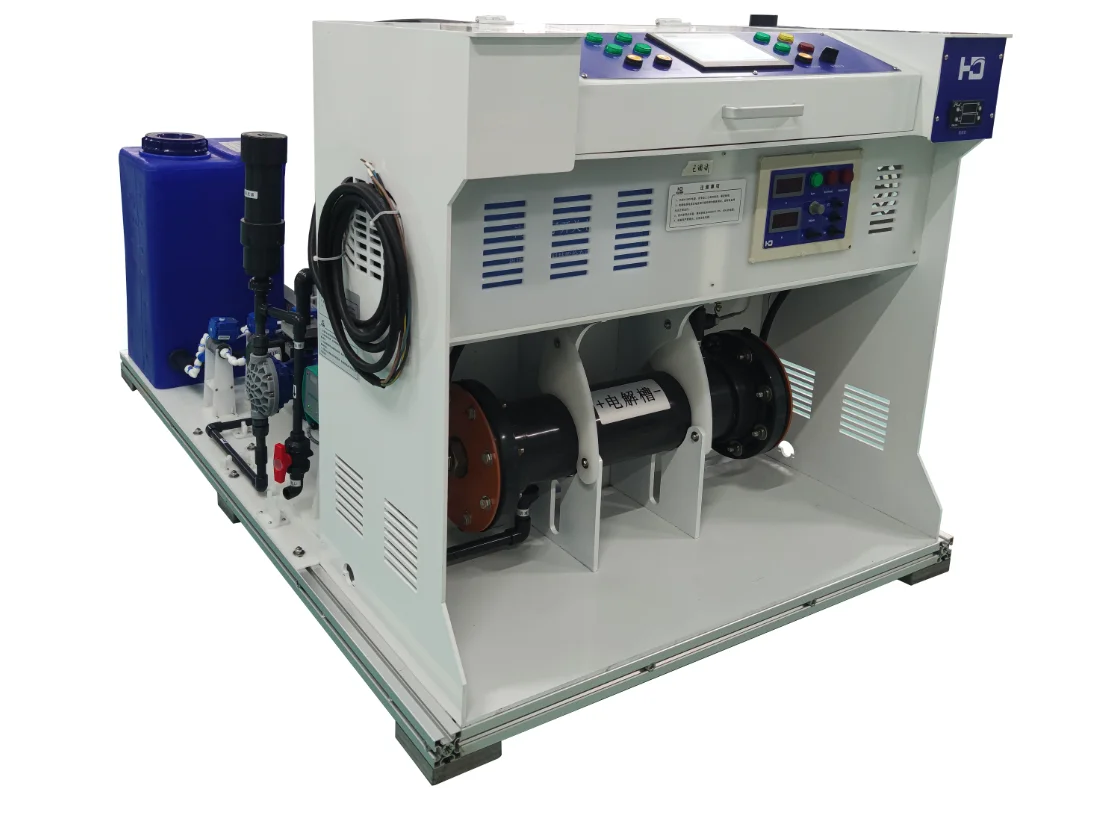

Model：HFT-300-NaOCl
HFT-500-NaOCl
Size：180×110×120cm

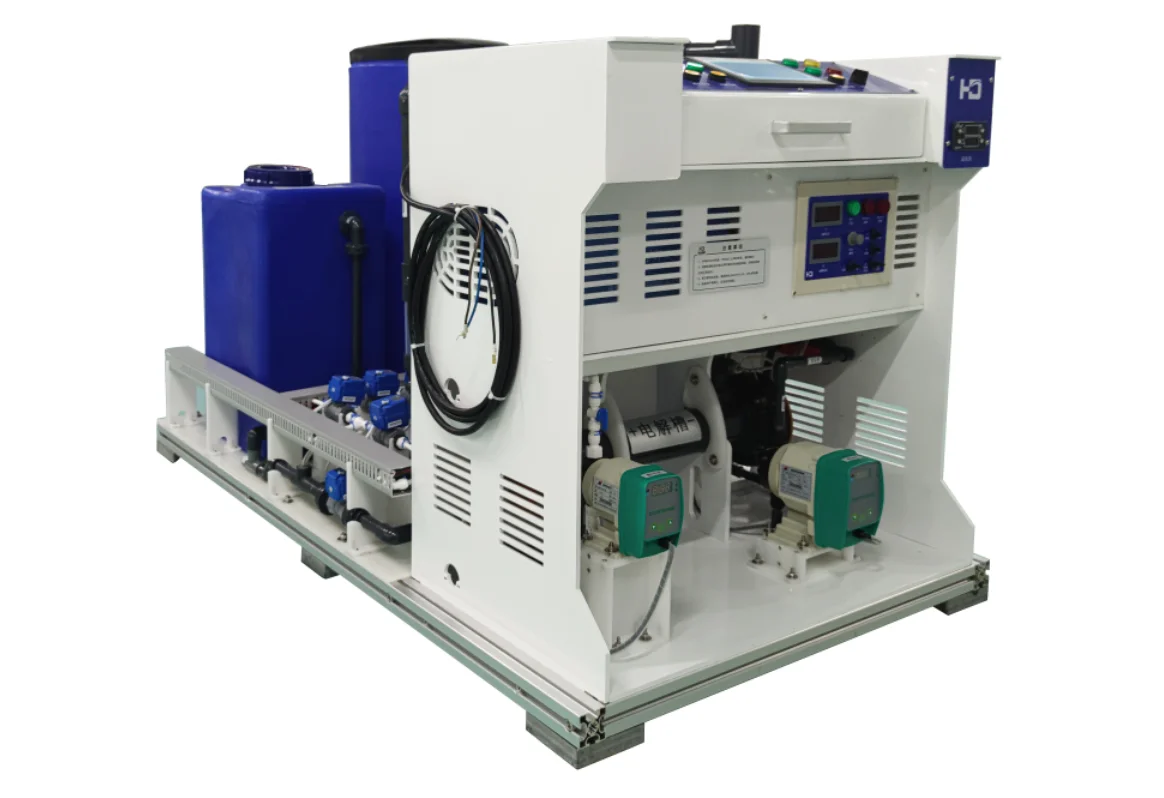

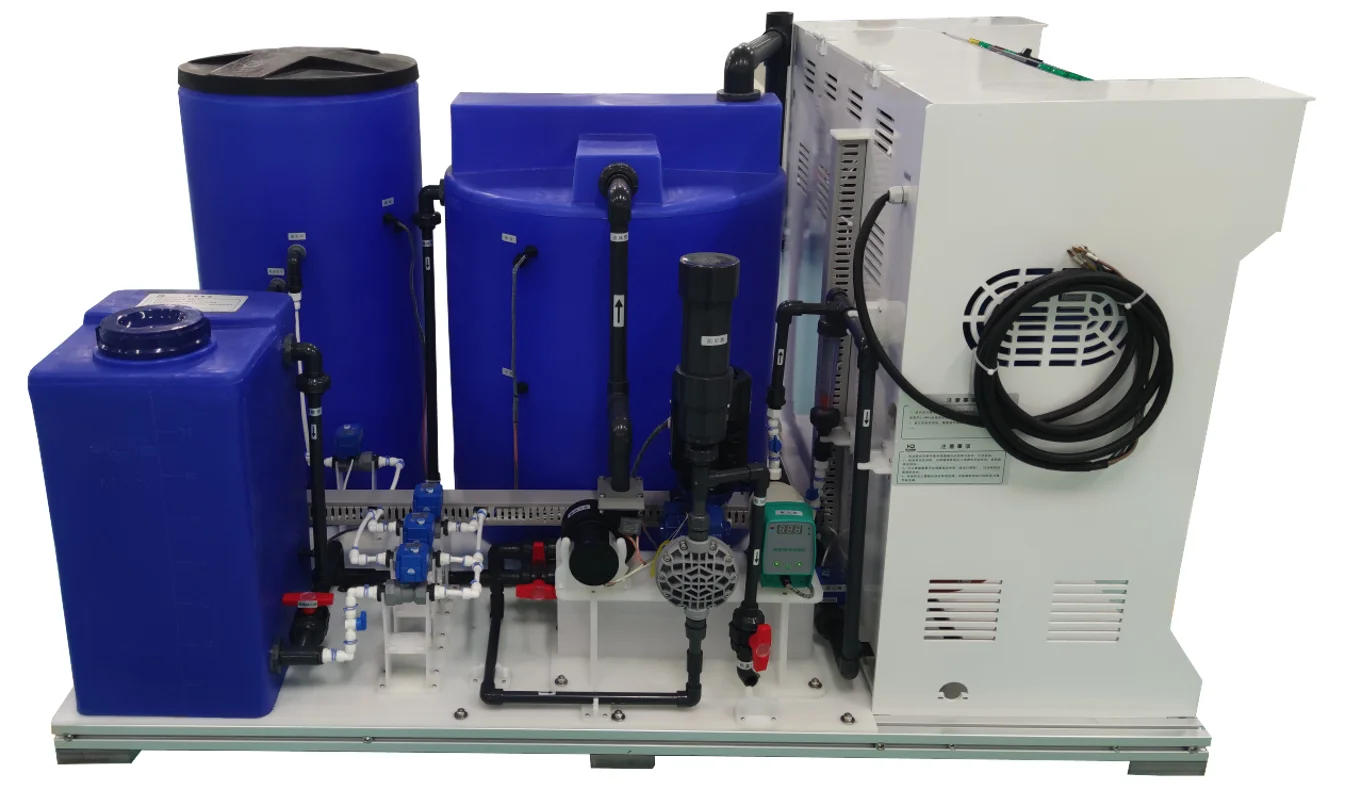

HFTS and HFT series of integrated sodium hypochlorite generators adopt single electrolytic cell.
All the equipment parts of the system are integrated on the same base to make a skid mounted structure, which occupies a small area and is easy to maintain.
Chemical equation
NaCL+H2O=NaCLO+H2↑
（Sodium hypochlorite）
NaCLO + H2O ＝ HCLO + NaOH
（Decomposition into hypochlorous acid ）
（The new ecological oxygen precipitation ）
HCLO → HCL + [O]

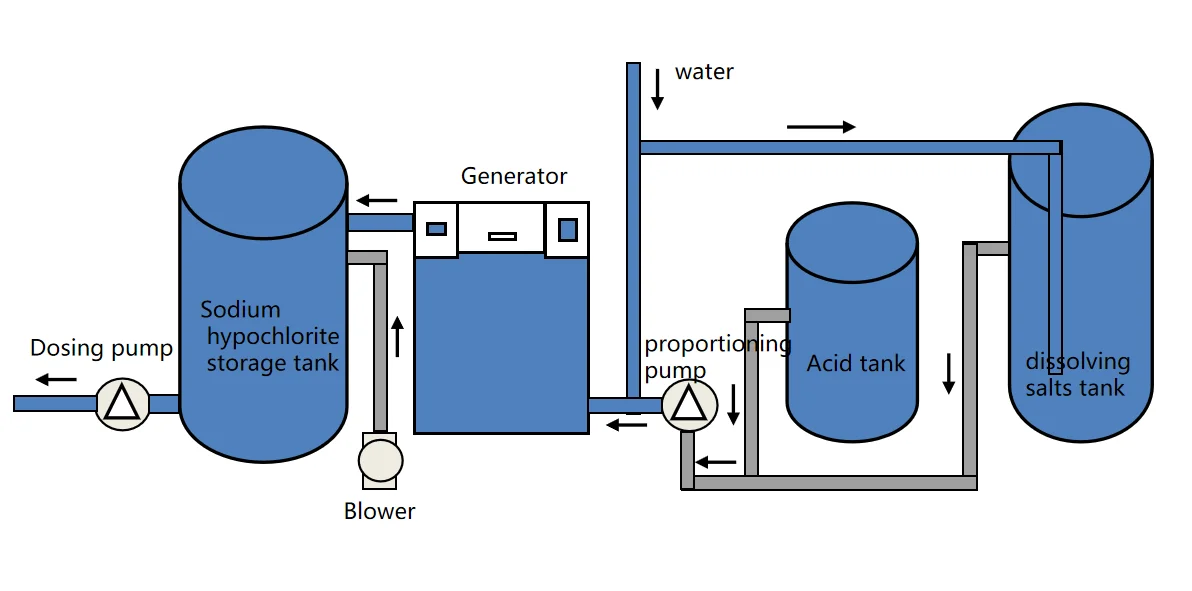

Composed of automatic sodium hypochlorite generator system
A. After a large amount of salt is put into the salt-dissolving tank, tap water enters the salt-dissolving tank to dissolve the salt to form saturated brine (concentration 25%~30%).
B. The saturated brine is pumped out by the proportioning pump, and after online proportioning with the tap water, dilute brine (2.5%~3%) is formed and enters the electrolyzer.
C. After the dilute brine is electrolyzed, sodium hypochlorite solution (concentration about 0.5%) and trace hydrogen are formed.
D. The sodium hypochlorite solution is stored in the storage tank, and the hydrogen exhaust fan pushes the air into the storage tank, and the hydrogen is diluted by the air and discharged to the outside through the pipeline.
E. The dosing pump pumps the sodium hypochlorite solution to the dosing point.
F. After the acid liquid in the acid tank is pumped out by the proportioning pump, the electrolytic cell is regularly pickled to ensure the service life of the electrolytic cell.
B. The saturated brine is pumped out by the proportioning pump, and after online proportioning with the tap water, dilute brine (2.5%~3%) is formed and enters the electrolyzer.
C. After the dilute brine is electrolyzed, sodium hypochlorite solution (concentration about 0.5%) and trace hydrogen are formed.
D. The sodium hypochlorite solution is stored in the storage tank, and the hydrogen exhaust fan pushes the air into the storage tank, and the hydrogen is diluted by the air and discharged to the outside through the pipeline.
E. The dosing pump pumps the sodium hypochlorite solution to the dosing point.
F. After the acid liquid in the acid tank is pumped out by the proportioning pump, the electrolytic cell is regularly pickled to ensure the service life of the electrolytic cell.

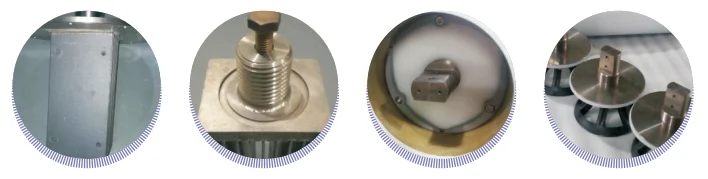

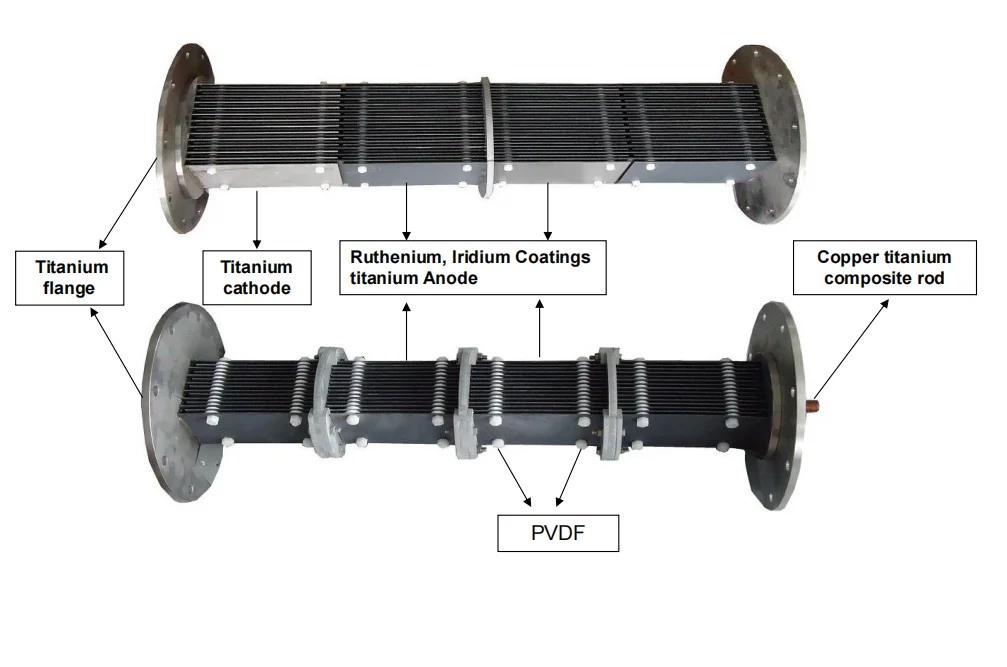

Core technology - Nanocrystalline titanium anodic coating
composite electrolytic electrode
Nano-scale coating technology has huge advantages in terms of electrode life, salt consumption, and power consumption, ensuring long-life use and low energy consumption of the non-membrane electrolytic sodium hypochlorite generator.
New Product

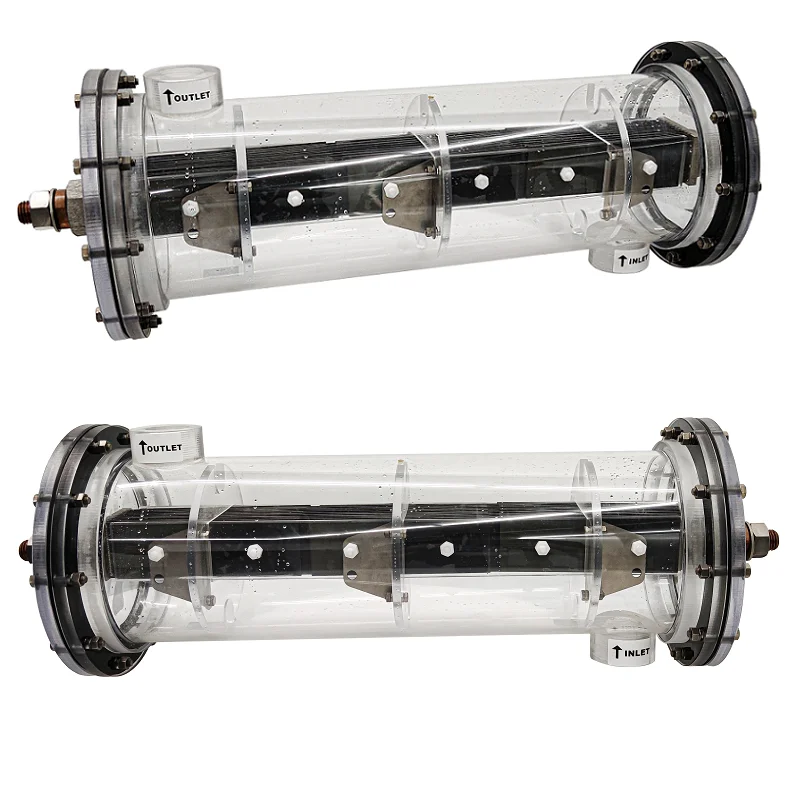

PMMA transparent electrolytic cell (the cell is made of acrylic material)
Clike the picture to get more information !!!
Product Details
Product Paramenters
Specification | ||||||||
Model | Available Chlorine | Available Chlorine Concentrationy | Rated Power | Liquid Capacity | ||||
HFTS-50-NaOCl | 50g/hr | 7000±10%mg/L | 1KW | 7L/hr | ||||
HFTS-100-NaOCl | 100g/hr | 7000±10%mg/L | 1.5KW | 15L/hr | ||||
HFT-100-NaOCl | 100g/hr | 7000±10%mg/L | 1.5KW | 15L/hr | ||||
HFT-200-NaOCl | 200g/hr | 7000±10%mg/L | 2KW | 30L/hr | ||||
HFT-300-NaOCl | 300g/hr | 7000±10%mg/L | 3KW | 44L/hr | ||||
HFT-500-NaOCl | 500g/hr | 7000±10%mg/L | 4KW | 72L/hr | ||||
Our Advantages
Advantages of integrated sodium hypochlorite generator：
★ Integrated sodium hypochlorite generator with high integration, forming a skid-mounted structure, small footprint, convenient for later maintenance.
Company Information
The Ordering Process
1. Please inform the Capacity/Size/Installation requirements of the electrolytic cell you want, and we will design the drawing for you.
2. Quotation.
3. Your company confirm our quotation reasonable.
4. Negotiation details.
5. Orders and pay.
6. Drawing the picture and production.
6. Drawing the picture and production.
HEPHIS INTELLIGENCE TECHNOLOGY(Fujian) Co.,Ltd.
HEPHIS is Specialized Electrochemical and Fluid Equipment Manufacturer in China.
We Produce the Must Advanced Technology Products With Stable Quality.
We Always Snly 5% of Profit ,So the Price of Our Products Are More Cost-effective.
We have passed ISO9001-2015,ISO14001-2004,OHSAS18001-2011,CE,RoHs certifications to ensure the quality of products.
We Produce the Must Advanced Technology Products With Stable Quality.
We Always Snly 5% of Profit ,So the Price of Our Products Are More Cost-effective.
We have passed ISO9001-2015,ISO14001-2004,OHSAS18001-2011,CE,RoHs certifications to ensure the quality of products.
Shipping & Payment
FAQ

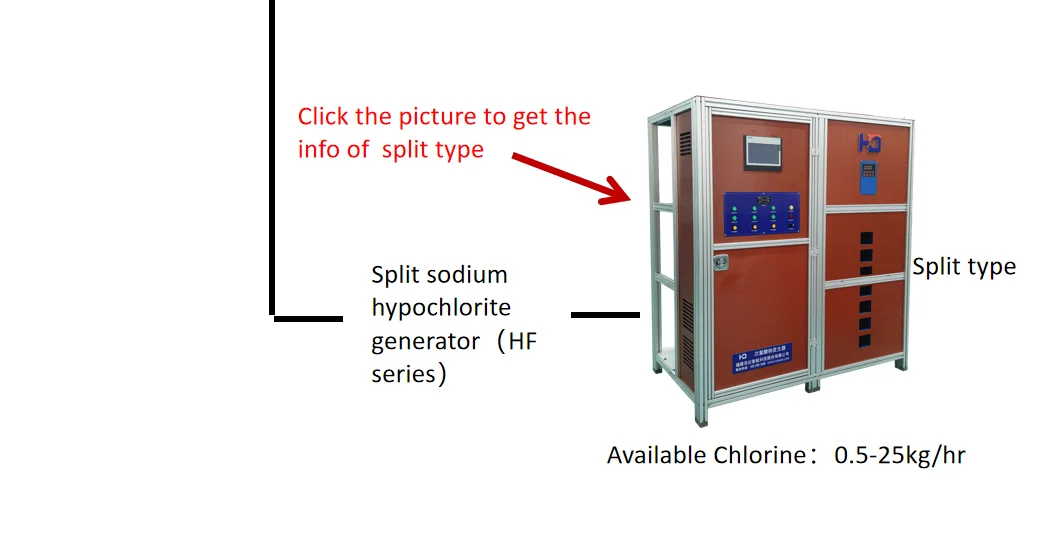

1. What Available Chlorine of HEPHIS Split type sodium hypochlorite generator?
1.500-60000g/hr .
2.What is the quality of HEPHIS electrolyzers?
Tube type electrolytic cell, use UPVC resistance corrosion pipe, internal electrode plate, between anode and cathode using PVDF material to isolation, has resistant to corrosion, high stability, long life characteristics;
3.Can I customize electrolyzers with special sizes?
Yes, we can design drawings according to your requirements and produce them after confirmation.
4.Can I customize electrodes with longer life?
Yes, we can get a longer service life by increasing the number of ruthenium-iridium coatings and optimizing the formula.
5.Can you provide me with the matching DC electrolytic power?
Yes, we have all models of high-quality electrolysis power supplies for the electrolysis cells.
6. Is my money safe to pay with the Trade Assurance order?
Yes Sure, the Money is guaranteed by Alibaba, Like Amazon/eBay.
7. How long is the lead time?
Within 30 days.
8. Are you a manufacturer or trading company?
HEPHIS has 40+ years of fluid experience, we have perfect automatic factory and R&D teams.
9. Do HEPHIS provide detailed design drawings??
HEPHIS will provide the detailed design drawings for customer, customers only need to install according to our drawings when they receive the product.
2.What is the quality of HEPHIS electrolyzers?
Tube type electrolytic cell, use UPVC resistance corrosion pipe, internal electrode plate, between anode and cathode using PVDF material to isolation, has resistant to corrosion, high stability, long life characteristics;
3.Can I customize electrolyzers with special sizes?
Yes, we can design drawings according to your requirements and produce them after confirmation.
4.Can I customize electrodes with longer life?
Yes, we can get a longer service life by increasing the number of ruthenium-iridium coatings and optimizing the formula.
5.Can you provide me with the matching DC electrolytic power?
Yes, we have all models of high-quality electrolysis power supplies for the electrolysis cells.
6. Is my money safe to pay with the Trade Assurance order?
Yes Sure, the Money is guaranteed by Alibaba, Like Amazon/eBay.
7. How long is the lead time?
Within 30 days.
8. Are you a manufacturer or trading company?
HEPHIS has 40+ years of fluid experience, we have perfect automatic factory and R&D teams.
9. Do HEPHIS provide detailed design drawings??
HEPHIS will provide the detailed design drawings for customer, customers only need to install according to our drawings when they receive the product.
