Product Overview
Description

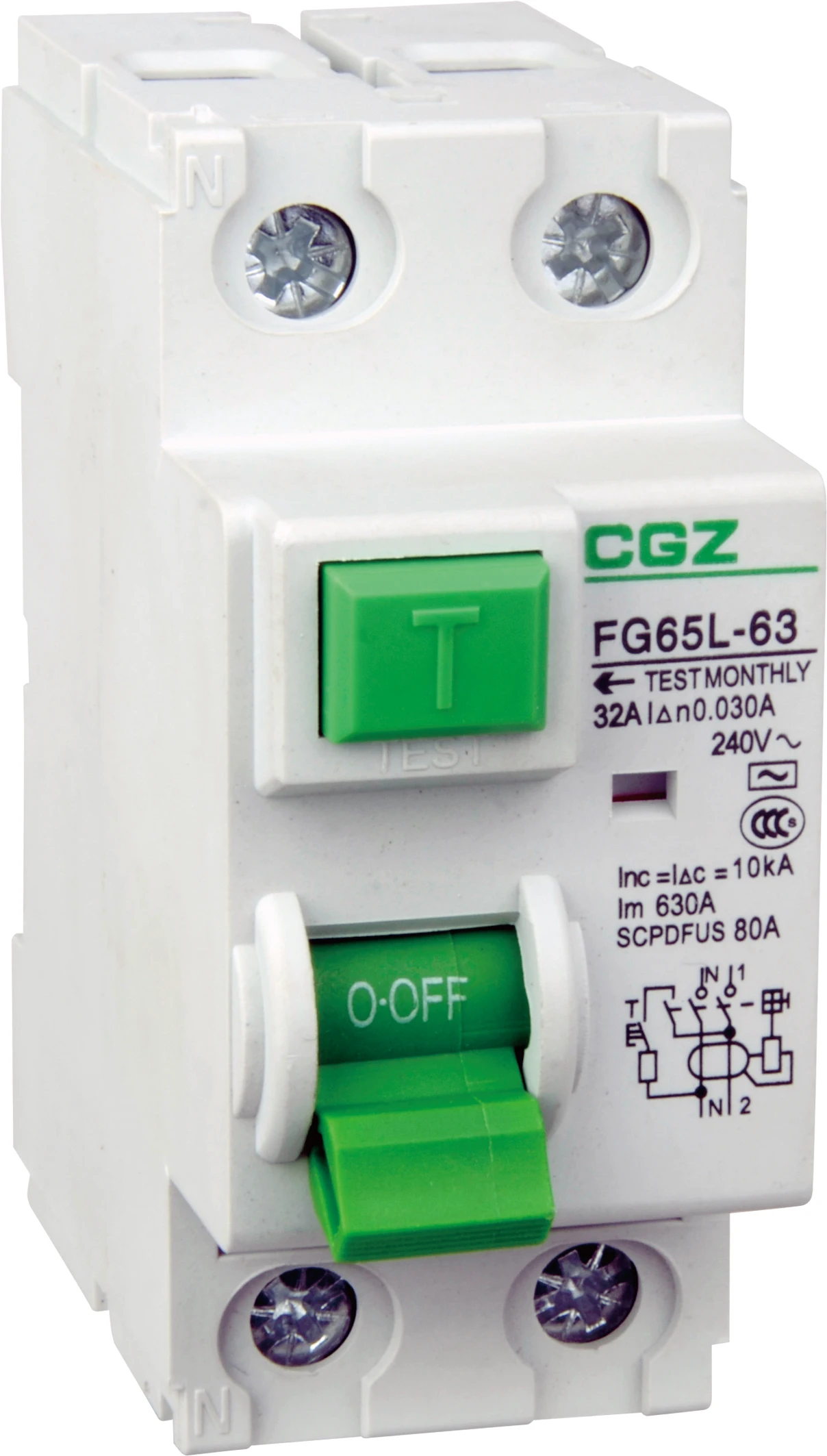

RCD ELCB 2 pole 4 pole earth leakage circuit breaker RCCB
Product Description
Application
1) FG65L-63 series Residual Current Operating Breakers is suitable for distribution systems of N line direct grounding AC 50Hz/60Hz, rated voltage 230V/400V, rated current 63A. And can be used for residual current protection.
2)The breaker could quickly switch off electrical power when people get an electric shock or leakage current exceeds stipulated value, protecting personal and electrical equipment safety.
3)It can protect circuit from overload and short circuit. And also can be used in circuit for unfrequently switching.
4) standard :CE CB ISO9001 IEC61009 GB16917.1
Technical Parameter
| Mode | Electro-magnetic type,electronic type |
| Type(wave form of the earth leakage sensed) | AC,A |
| Connection terminal | Screw terminal |
| Poles | 2,4P |
| Rated voltage Ue | AC240/415 |
| lnsulation voltage Ui | 500V |
| Rated frequency | 50/60Hz |
| Electrical life | 6000t |
| Mechanical life | 20000t |
| Fault current inditor | Yes |
| Protection degree | lP20 |
| Ambient temperature(with daily average≤35°c) | -25~+40°c |
| Storage temperature | -25~+70°c |
| Terminal connection type | Cable/U-type busbar/Pin-type busbar |
| Terminal size top/bottom for cable | 25 mm² 18-3 AWG |
| Terminal size top/bottom for busbor | 25 mm² 18-3 AWG |
| Tightening torque | 2.5 N*m 22 l n-lbs. |
| Mounting | On DIN rail EN60715(35mm)by means of fast clip device |
| |
Special Tips
1)It is maily used for preventing electric fire and personal casual accident caused by personal electric shock or leakage of electrified wire net, this is a current operated,fast leakage protector of pure electromagnetic type,which can break off fault circuit rapidly in order to avoid occurrence of accident.
2) The item is applying to the circuit of AC 50/60 Hz,230V single phase,400V three phases or below it for industrial and mining enterprise , trade building ,commerce and family.

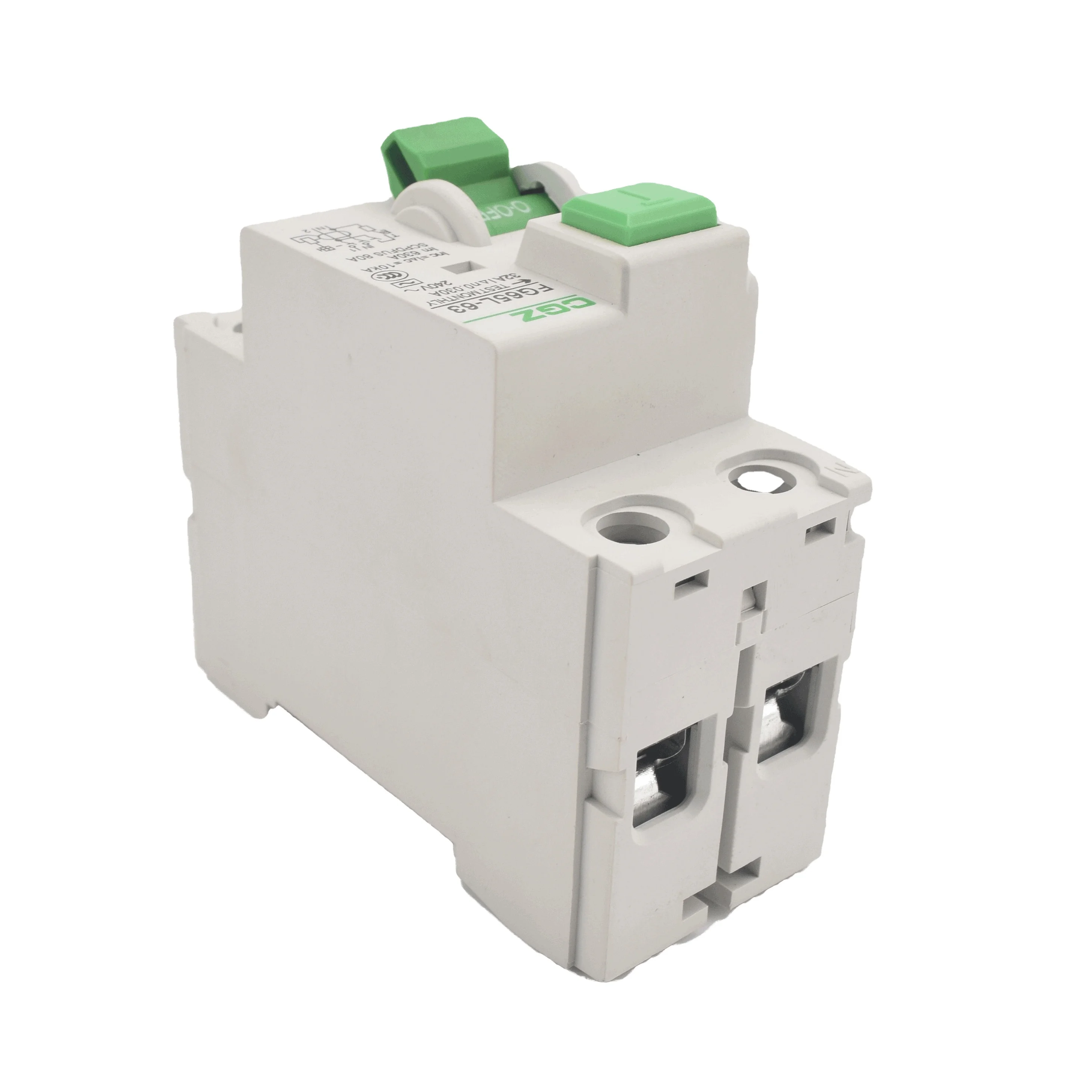

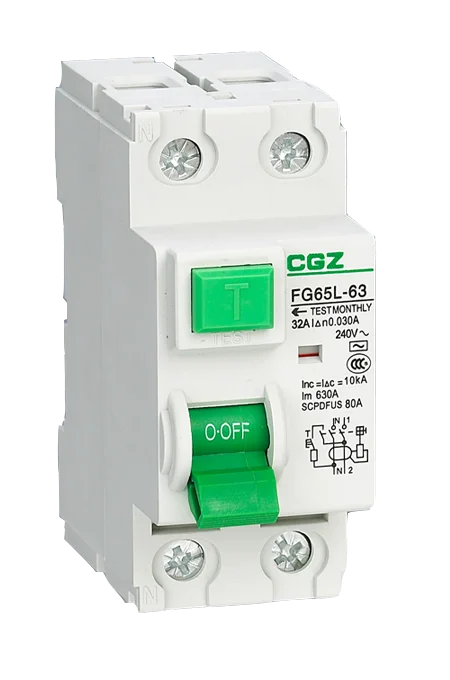

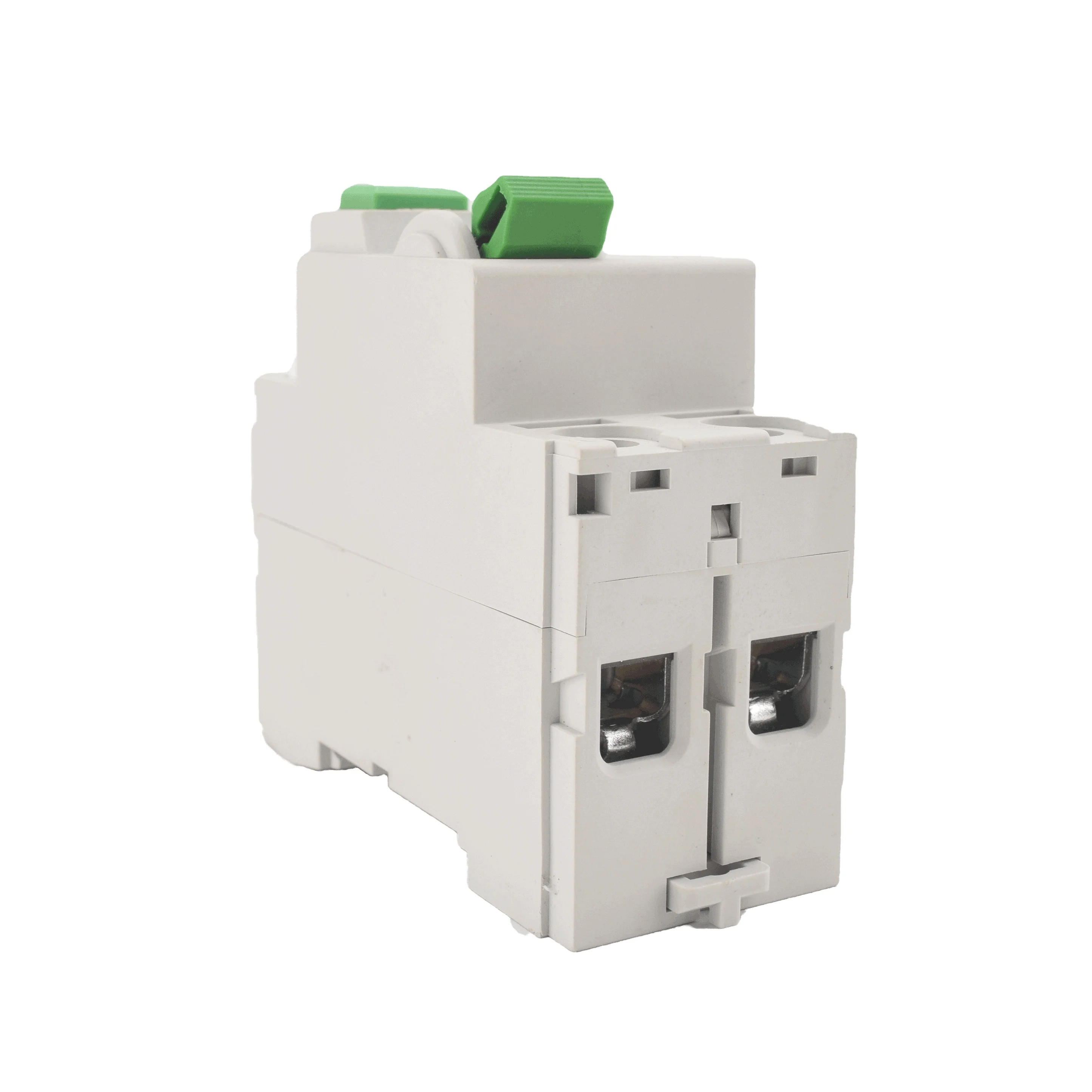

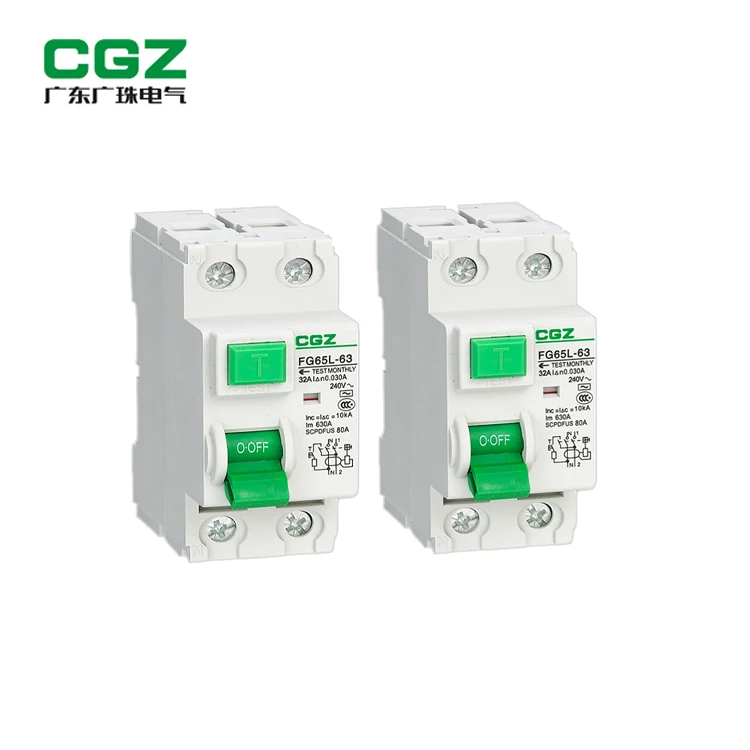

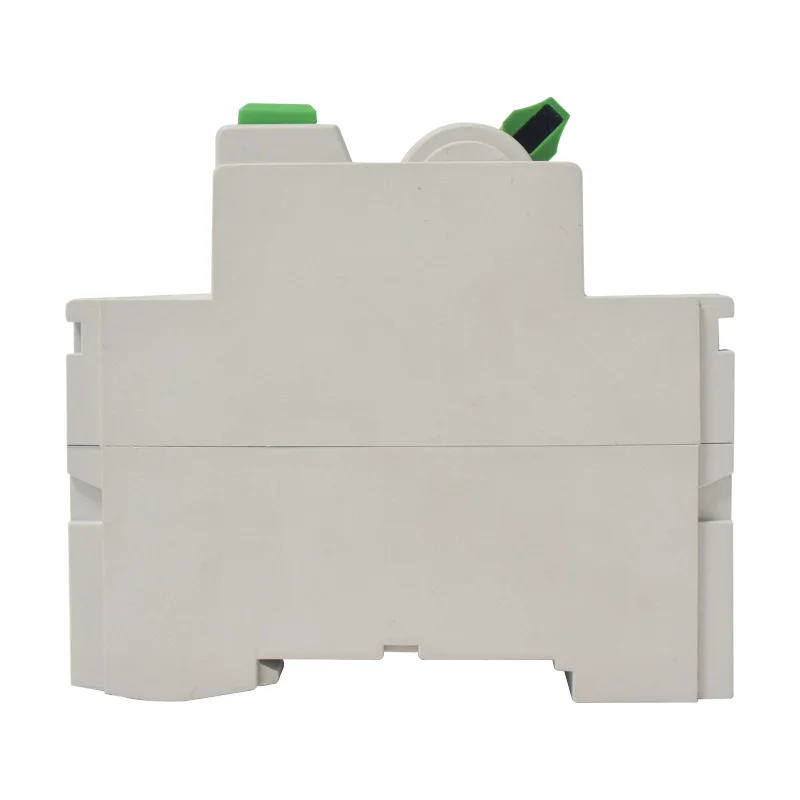

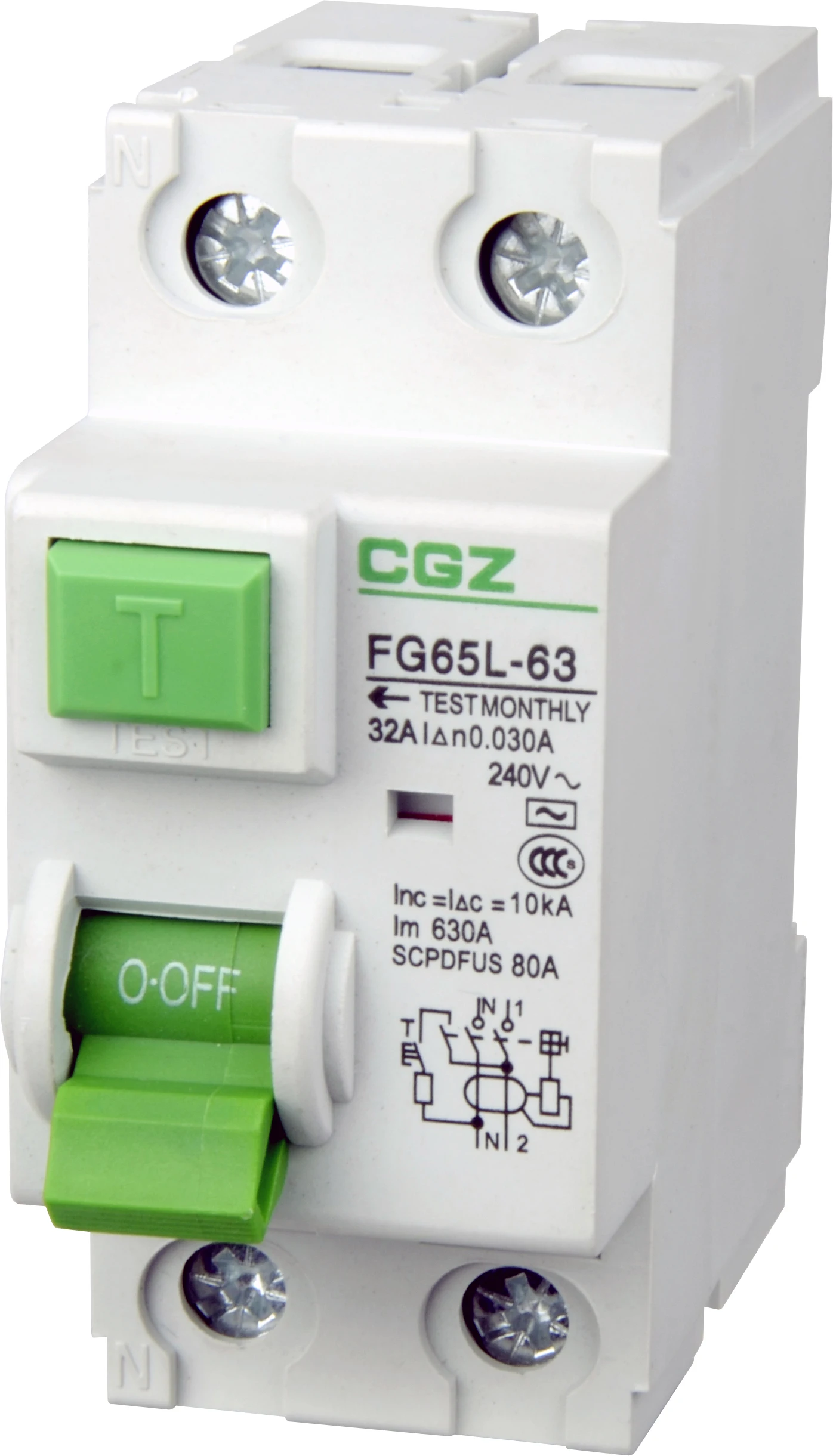

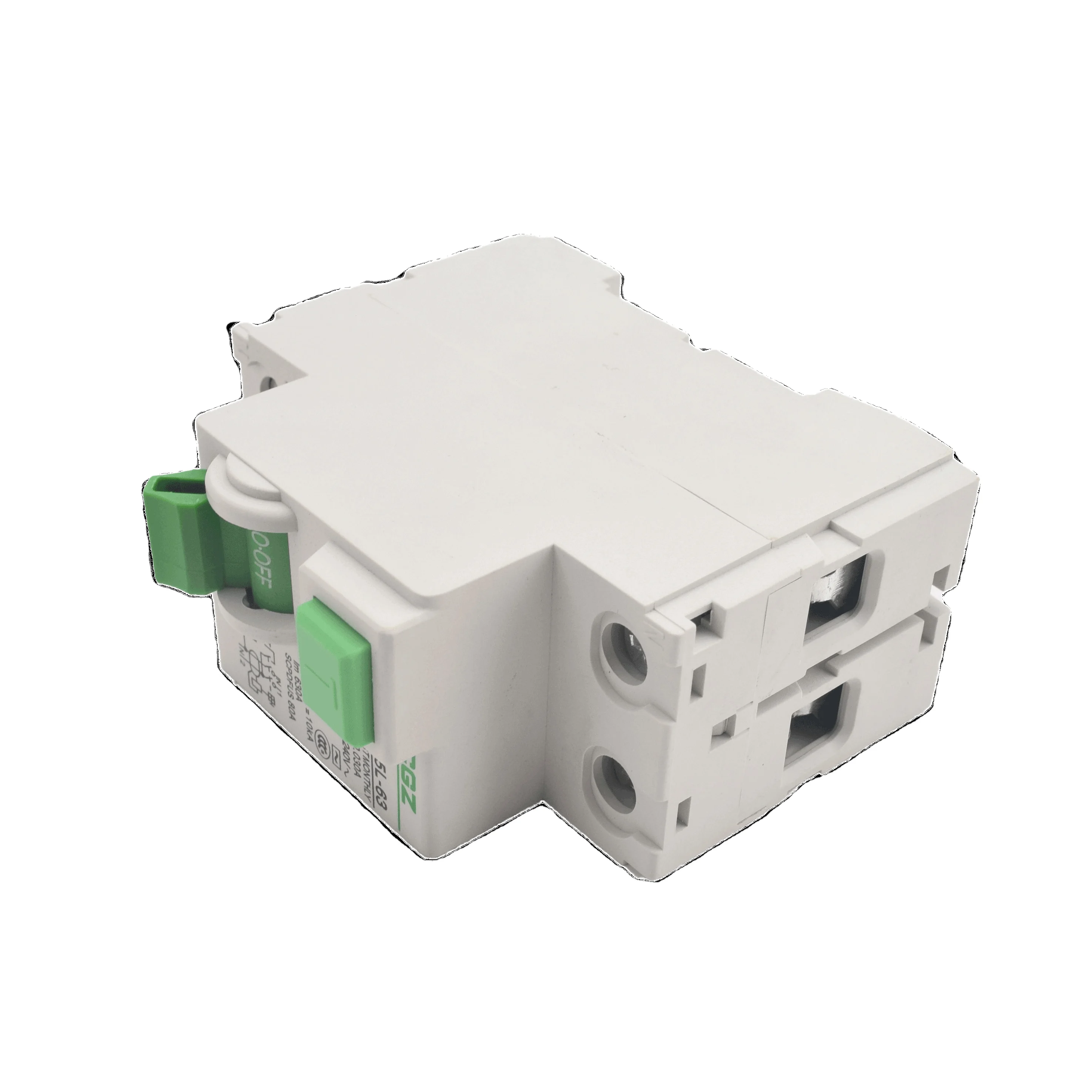

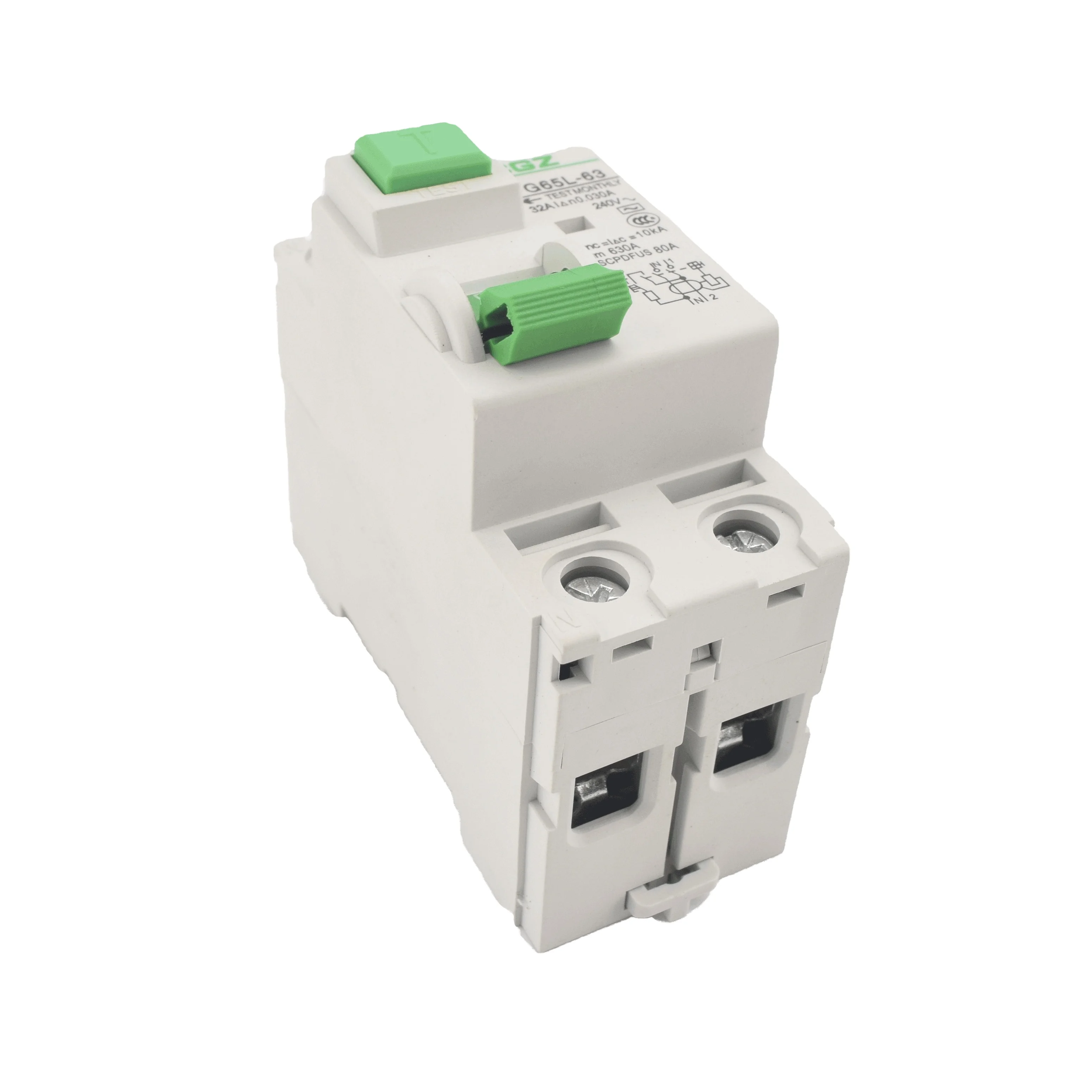

Product Photos
