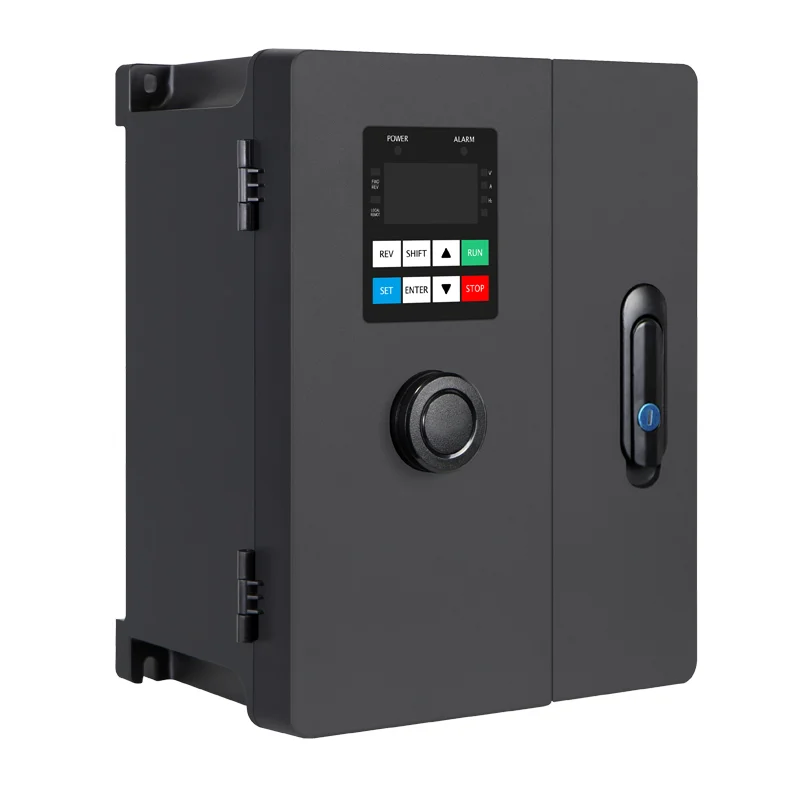

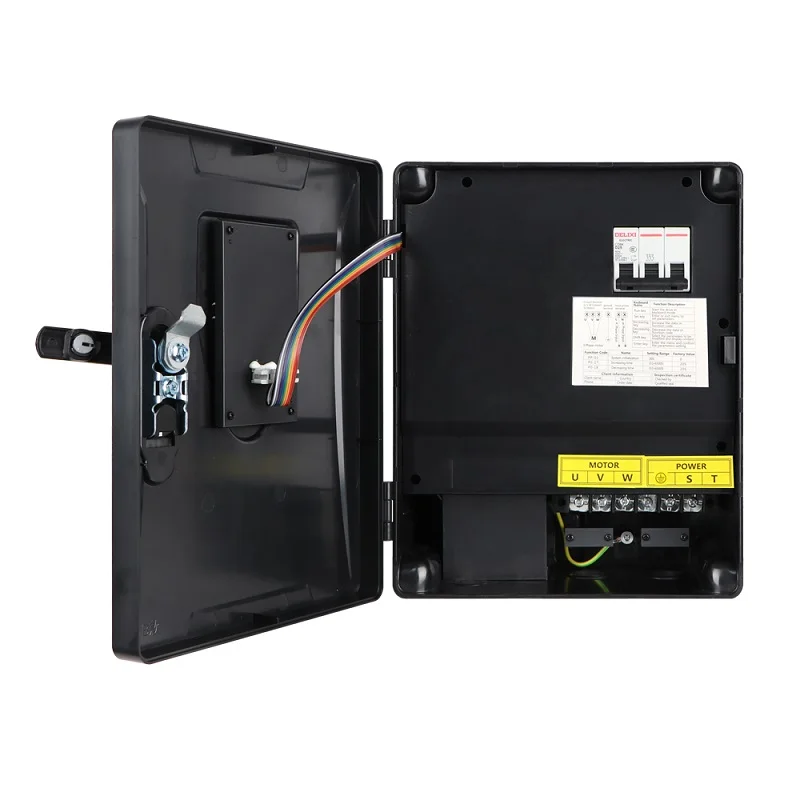

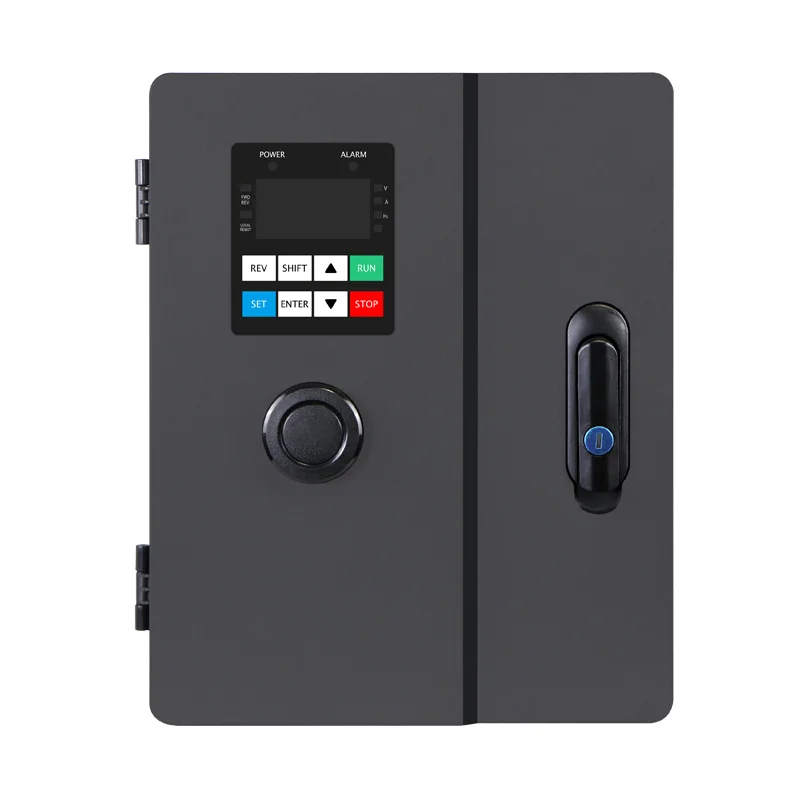

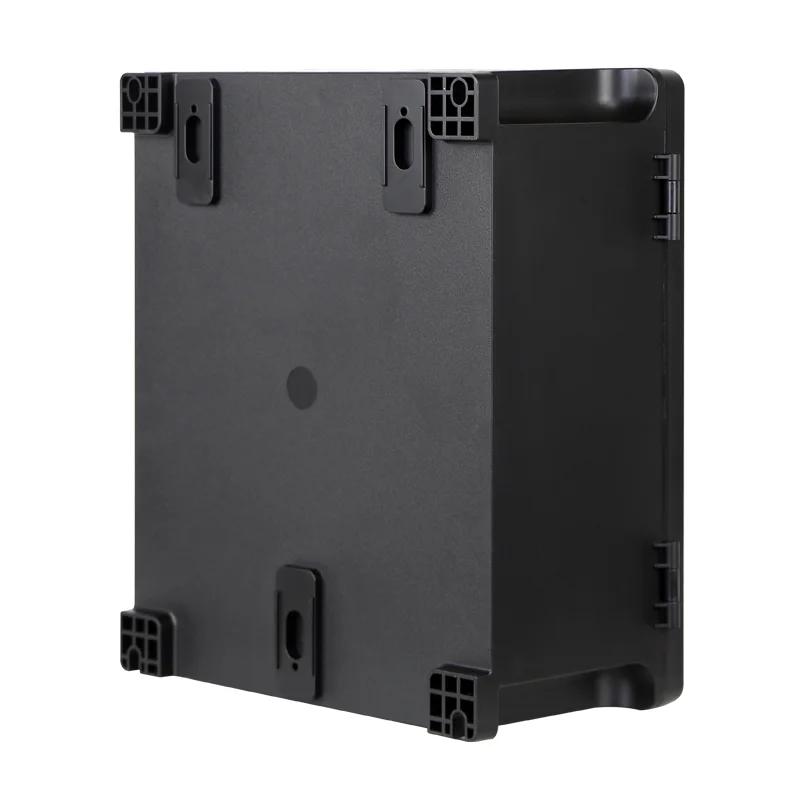

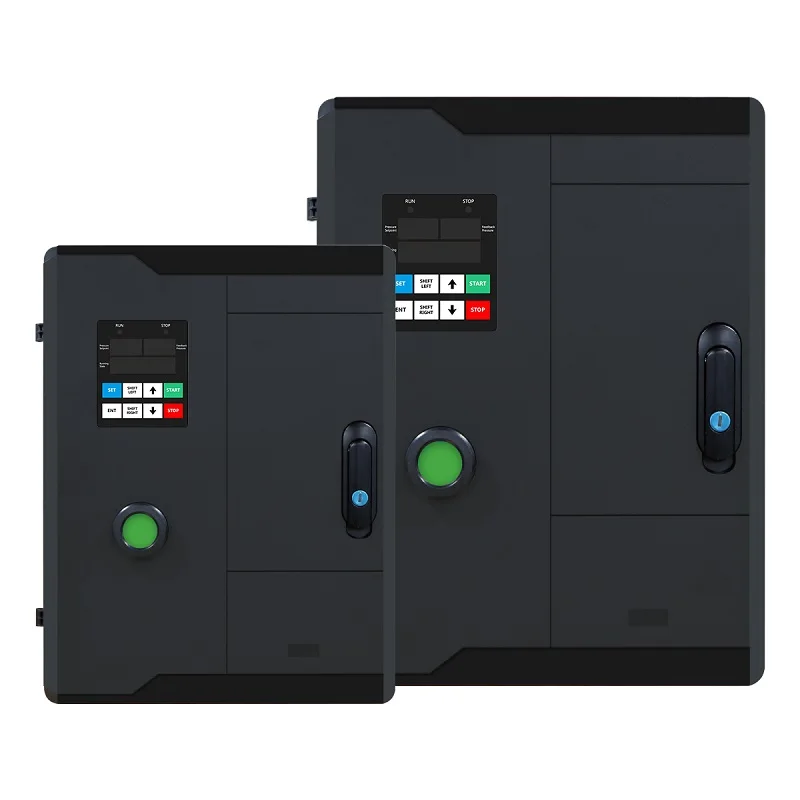

Easy operation 5.5KW 380V VFD triple phase AC output 0~600hz industry automaction motor controller panel
- Category: >>>
- Supplier: CLV Drives Co. Ltd.
Share on (1600549008133):
Product Overview
Description
Products Description
Technical Specifications
Control System | High performance of current vector control technology to realize 3 phase asynchronous motor control |
Maximum Frequency | Vector Control: 0~500Hz V/F Control: 0~500Hz |
Control Mode | Open Loop Vector Control(SVC) V/F Control |
Startup Torque | G Type: 0.5Hz/150%(SVC); 0Hz/180%(SVC); P Type: 0.5Hz/100% |
Speed Tracking | Prevent overload, overcurrent, and overvoltage caused by motor stall |
Overload Capability | G Type:150% rated current 60 seconds; 180% rated current 3 seconds; P Type:120% rated current 60 seconds; 150% rated current 3 seconds |
DC Brake | DC Brake Frequency: 0.00Hz to maximum frequency Brake time: 0.0s to 36.0s Brake current value: 0.0% to 100.0% |
Jog Control | Jog Frequency Range: 0.00Hz~50.00Hz Jog Acceleration/deceleration Time 0.0s~6500.0s |
Quick Current Limit | Minimize the over-current fault, protect normal operation of the Inverter. |
Mains loss Ride Through | When instantaneous power off, voltage reduction is compensated through load feedback energy, which could make Inverter keep running in a short period of time. |
Command Source | Operation panel reference, control terminal reference, and serial COM port reference. It can be switched in various ways. |
Input Terminal | Standard: 5 Digital input terminals 2 Analog input terminals 1 Support 0-10V voltage input or 0~20mA current input. |
Output Terminal | Standard: 2 Digital output terminals 1 Relay output terminal, which can be expanded into 2 channels 1 Analog output terminals, support 0~10V output voltage. |
Protection Function | It can implement power-on motor short-circuit detection, output phase loss protection, over current protection, over voltage protection, under voltage protection, overheating protection and overload protection. |
Simple PLC and Multi-speed Running | Maximum of 16 segments speed running |
Communication Protocol | Modbus |
Ambient Temperature | -20 ℃ to +50 ℃ (Derating use when under ambient temperature of 40 ℃ to 50 ℃) |
Humidity | Less than 95%RH, without condensing |
Vibration | Less than 5.9m/s (0.6g) |
Products Series
Single-phase power supply: 220V, 50/60Hz | ||||||||
Product ID | Adaptation motor | Rated Power | Rated Output Current(A) | Product Dimensions L*W*H(mm) | ||||
800H-V0007G1 | 0.75 KW 1HP | 0.75KW 220V | 4 | 300*240*159 | ||||
800H-V0015G1 | 1.5KW 2HP | 1.5KW 220V | 7 | 300*240*159 | ||||
800H-V0022G1 | 2.2KW 3HP | 2.2KW 220V | 10 | 300*240*159 | ||||
Three-phase power supply: 380V, 50/60Hz | ||||||||
Product ID | Adaptation Motor | Rated Power | Rated Output Current(A） | Product Dimensions L*W*H(mm) | ||||
800H-V0007G3 | 0.75 KW 1HP | 0.75KW 380V | 2.5 | 300*240*159 | ||||
800H-V0015G3 | 1.5KW 2HP | 1.5KW 380V | 3.7 | 300*240*159 | ||||
800H-V0022G3 | 2.2KW 3HP | 2.2KW 380V | 5.1 | 300*240*159 | ||||
800H-V0040G3 | 4KW 5HP | 4KW 380V | 8.5 | 300*240*159 | ||||
800H-V0055G3 | 5.5KW 7.5HP | 5.5KW 380V | 13 | 380*296*171 | ||||
800H-V0075G3 | 7.5KW 10HP | 7.5KW 380V | 16 | 380*296*171 | ||||

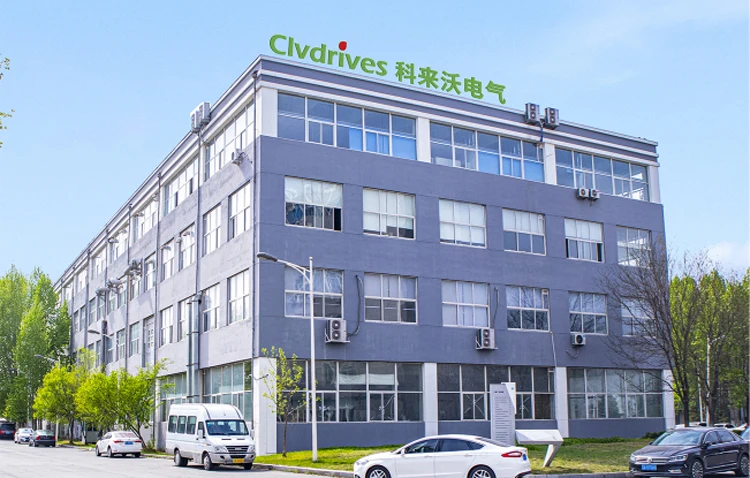

Company Profile
CLV Drives Co., Ltd. is a high-tech enterprise which is dedicated in the R&D, manufacturing and sales of electrical drive and Inverter products. Based on the variable frequency control technology with independent intellectual property rights, CLV is positioned to serve the middle and high-end equipment manufacturers, to rapidly provide users with customized solutions so as to achieve the common growth of enterprise value and customer value.
At present, the company has mastered motor drive, vector control and permanent magnet synchronous motor control technology and other core platform technologies. CLV Drives has been a leader in variable frequency drive(VFD) and industrial automation control technology, and is committing to promote industrial civilization with leading technology, as well as providing users with more intelligent and more reliable Inverter products and energy saving applications.
The main products are: V1000 general purpose inverter, PV500 solar pump inverter, 800 series inverter cabinet and so on, which are with leading edge design and technology, incredible performance, global network of specialist sales and service partners, global engineered support, world class manufacturing, low cost of installation.

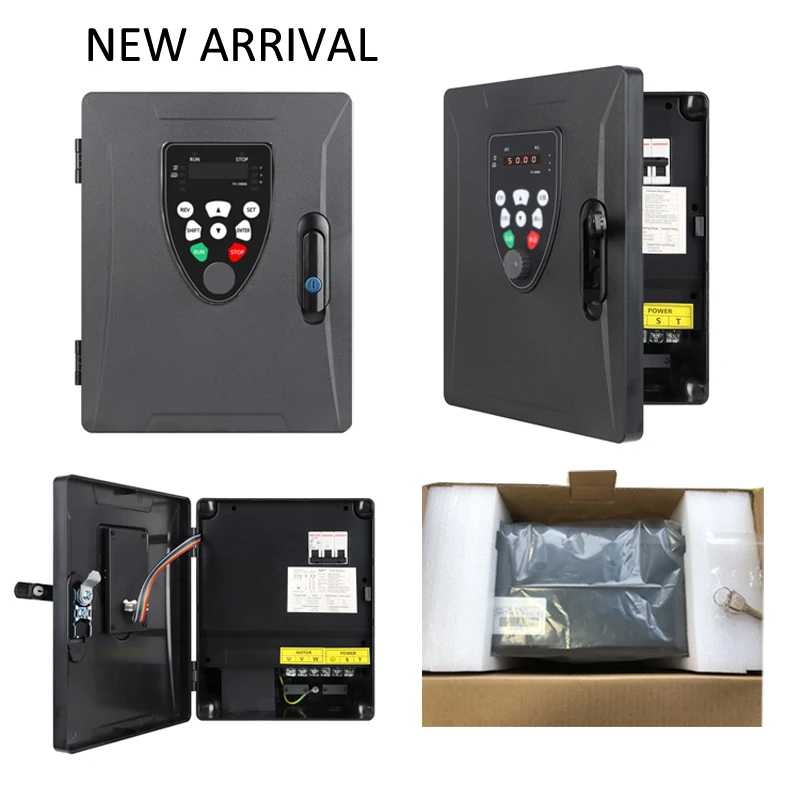

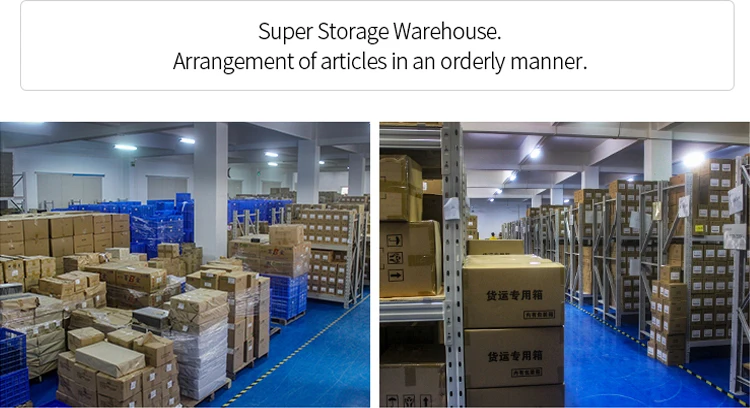

Packaging and Warehouse
We have cartons and wooden boxes, which are packed in cartons below 75KW and wooden boxes above 93KW. Thickened shockproof foam is filled inside to prevent damage to equipment in transit.
Why Choose Us
FAQ
Q1. Are you trading company or manufacturer ?
A: We are factory.
Q2. How long is your lead time?
A: Generally it is 3-7 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.
Q3. Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample,but we will charge the sample fee and the cost of freight.
Q4. What is your terms of payment ?
A: We accept T/T, L/C, Western Union, Money Gram.
Q5. What is the standard of package?
A: Export standard package or special package according to customer requirement.
Q6. Is there any discount ?
A: The discount will depend on the quantity you purchase.
Q7. What is your supply capacity?
A: The week output of the factory exceeds 500 PCS.
Q8. Do you provide warranty for the goods?
A: Yes, we provide 18 months of warranty for all the goods from us.
A: We are factory.
Q2. How long is your lead time?
A: Generally it is 3-7 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.
Q3. Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample,but we will charge the sample fee and the cost of freight.
Q4. What is your terms of payment ?
A: We accept T/T, L/C, Western Union, Money Gram.
Q5. What is the standard of package?
A: Export standard package or special package according to customer requirement.
Q6. Is there any discount ?
A: The discount will depend on the quantity you purchase.
Q7. What is your supply capacity?
A: The week output of the factory exceeds 500 PCS.
Q8. Do you provide warranty for the goods?
A: Yes, we provide 18 months of warranty for all the goods from us.
Q9. Could CLV Drives provide technical support?
A: We' have more than 12 years experience in this field. If there's any problem, please feel free to contact us, we'll provide suggestion from our engineer to help you solve the problem.
A: We' have more than 12 years experience in this field. If there's any problem, please feel free to contact us, we'll provide suggestion from our engineer to help you solve the problem.
