Automatic fruit powder filling machine mixed powder filling machine
- Category: >>>
- Supplier: Shanghai Dahe Packaging Machinery Co. Ltd.
Share on (1600549012136):
Product Overview
Description
Products Description
Introductions:

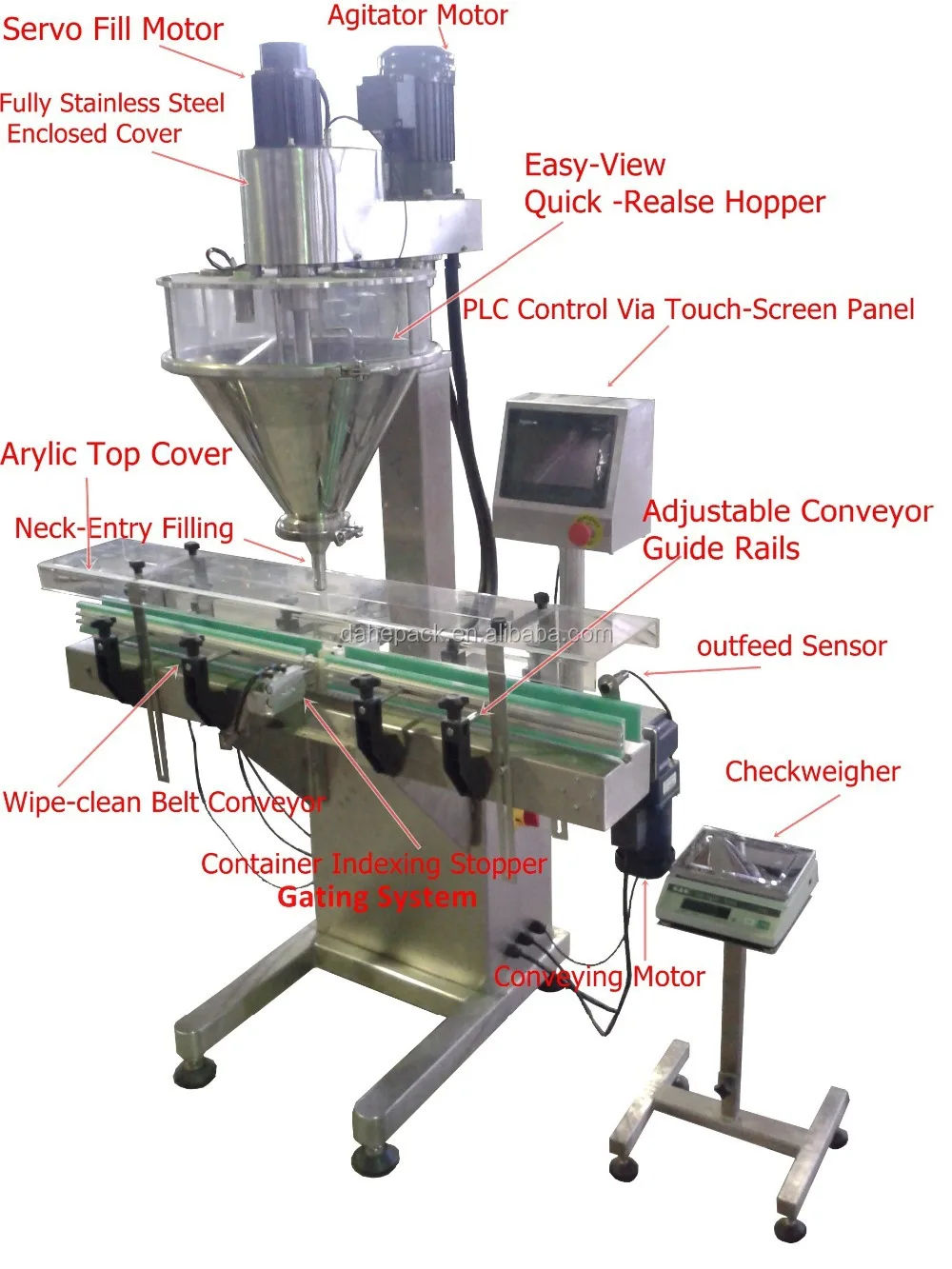

1. This is a automatic auger type can/bottles metering filling machine ,designed for metering and filliing various dry powder into different rigid containers: Can/Bottle/Jar etc.
2. The Machine provides powder metering and filling functions.

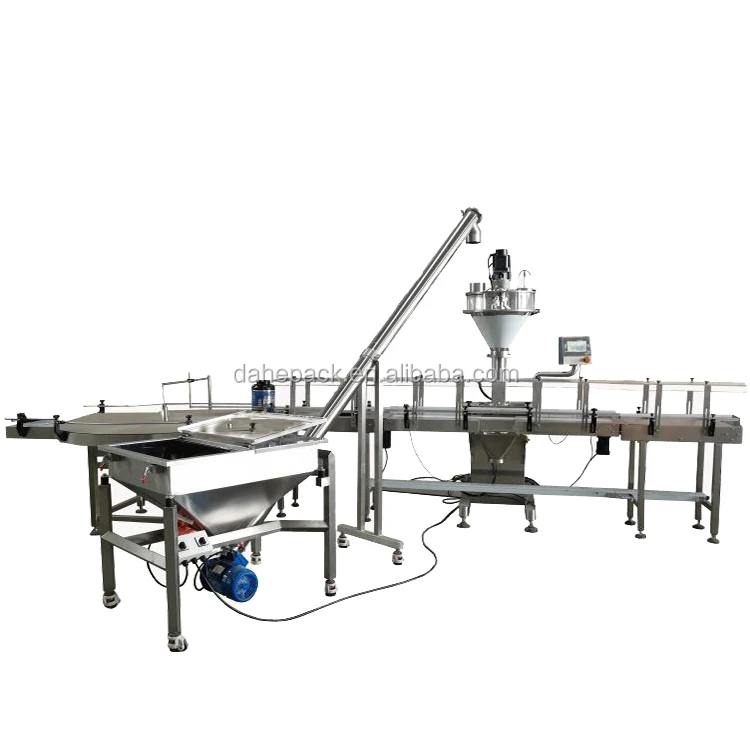

3. Bottles and cans are introduced by conveyor belt combined with gating system.
4. There is a photo eye sensor for bottles detection so as to achieve bottle-fill ,no-bottle no-fill.
5. Automatic bottle postioning-filling-releasing,optional vibration and elevation.
6. Featured with compact design,stable performance,easy to operate and good cost performance!
2. The Machine provides powder metering and filling functions.
3. Bottles and cans are introduced by conveyor belt combined with gating system.
4. There is a photo eye sensor for bottles detection so as to achieve bottle-fill ,no-bottle no-fill.
5. Automatic bottle postioning-filling-releasing,optional vibration and elevation.
6. Featured with compact design,stable performance,easy to operate and good cost performance!
Product Parameters
Model | DH-Q1-D100 | DH-Q1-D160 |
Container Size | Directly dosing by auger | Directly dosing by auger |
Filling Speed | 15-40 bottles per min | 15-40 bottles per min |
Filling Acuuracy | ≤ 100g, ≤ ±2%; 100-500g, ≤ ±1% | ≤ 500g, ≤ ±1%;>500g, ≤ ±0.5% |
Filling Weight | 1-500g | 10-5000g |
Total Power | 1.2KW | 1.6KW |
Overall Dimensions | 1500*760*1850mm | 2000*970*2030mm |
Power Supply | 3P AC208-415V 50/60Hz | 3P AC208-415V 50/60Hz |
Total Weight | 160kg | 300kg |
Hopper Volume | 25L(Enlarged size 35L) | 50L(Enlarged size 35L) |
Optional Function | 1.Container lifting and vibrating function 2.Container lifting and dosing by weighing function | 1.Container lifting and vibrating function 2.Container lifting and dosing by weighing function |
