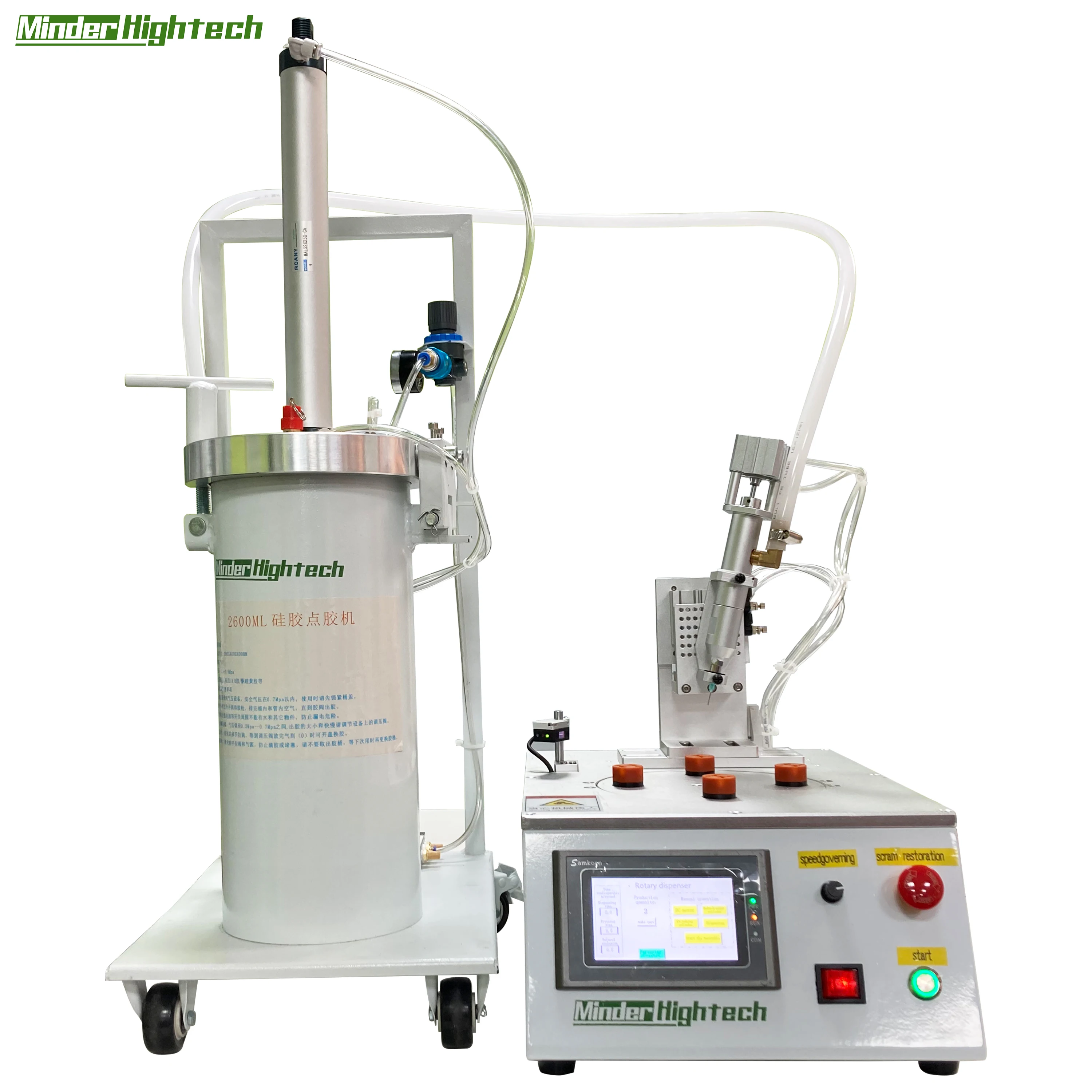

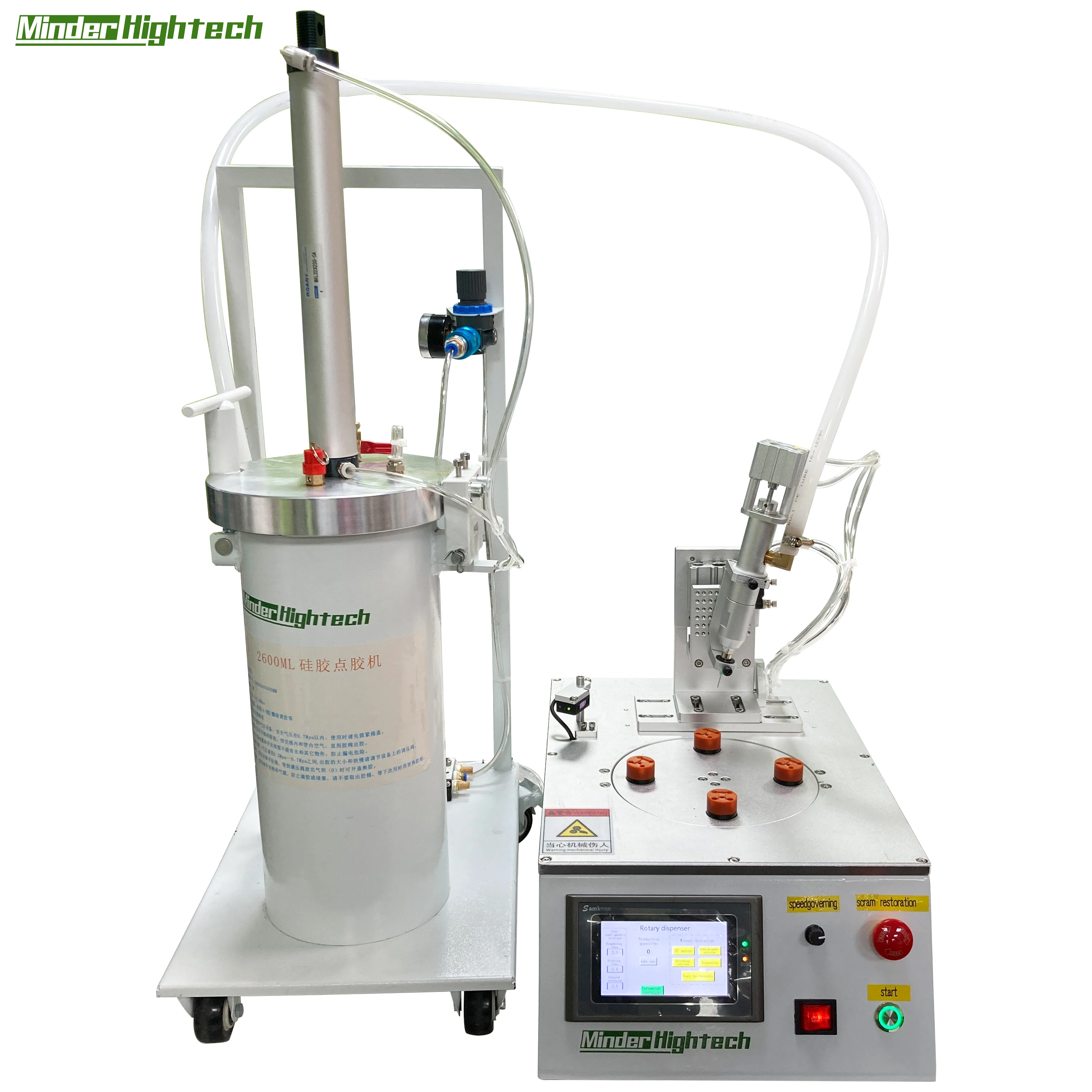

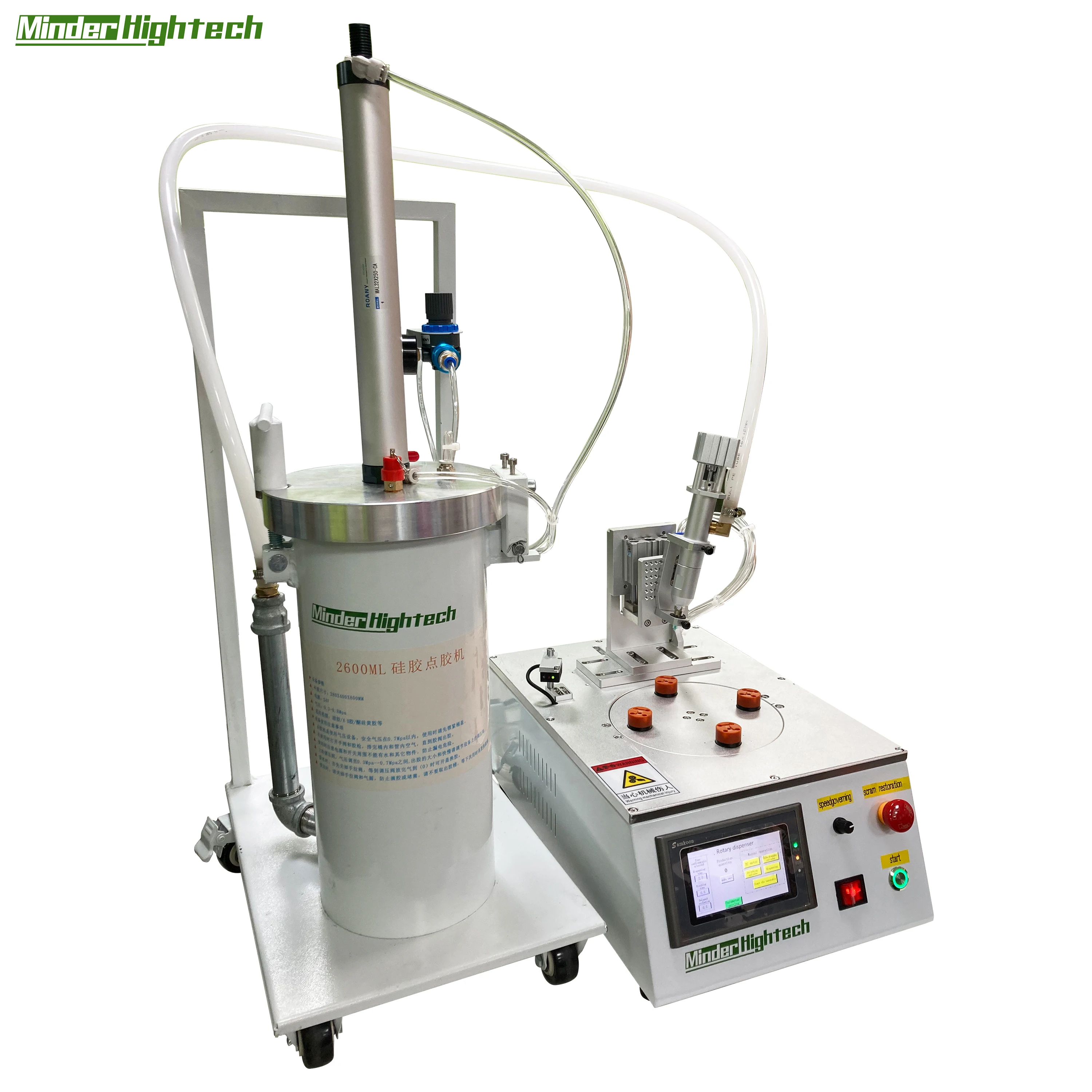

Desktop Auto Robot Robotic Semi automatic Glue Dispensing Machine Robot
- Category: >>>
- Supplier: Guangzhou Minder-Hightech Co. Ltd.
Share on (1600549015408):
Product Overview
Description
Products Description
Automatic: automatic operation, air operation, single step operation.
Manual: Positive and negative motor, back to the program zero, back to mechanical zero, output control.
Manual: Positive and negative motor, back to the program zero, back to mechanical zero, output control.
For colloids:
red plastic, yellow plastic, silver paste, UV curable plastic, lubricants, epoxy resin, fast curing plastic, silicone resin and other materials
Product use:
speakers, sound film, buzzer, bearings, micro-motors, watches, voice coil, bald, such as circular glue operation.
Specification
Model NO | 1-Station | 2-Station | 4-Station | 8-Station | |||
Max Dispensing Diameter | 400mm | 200mm | 100mm | 50mm | |||
Suitable Material | 300ml-330ml/2600ml package single-component silicone, thermal-conductive silicone grease, UV glue, AB glue etc. | ||||||
MCU | Industrial PLC | ||||||
Motor Speed | 0 ~ 300 turns/min | ||||||
Positioning Accuracy | ±0.1mm | ||||||
Driven Type | Electric+Air compressor | ||||||
Input Air Pressure | 0.4--0.8 M Pa Working Air Pressure: 0.4--0.6 M Pa | ||||||
I/O Signal | 4 inputs/ 4 outputs Control interface: RS232 | ||||||
Work temperature | 0℃—40℃ Working humidity: 20%—90% | ||||||
Max Load | Z-axis: 2KG | ||||||
Moving speed | At regular time and fixed speed | ||||||
Repeat accuracy | +/- 0.05mm | ||||||
Motor Speed | 0 ~ 300 turns/min | ||||||
Display Mode | LCD, Display language is in Chinese or in English. | ||||||
Program Memory | 100 programs | ||||||
Drive Motor | Precise Stepping Motor | ||||||
Product capture | Sensor auto capture | ||||||
Operating Mode | Circle | ||||||
Power supply | AC100V-110V, 60Hz AC220V-240V, 50Hz, 50W | ||||||
Dimensions | Machine:54*39*46cm tank:49*36*87cm | ||||||
Weight: | Machine:14.2kg tank:25.5kg | ||||||
Sample
Function and Features Description
1. Four work stations in cycle, the designed capacity is 1000~1500pcs/h.

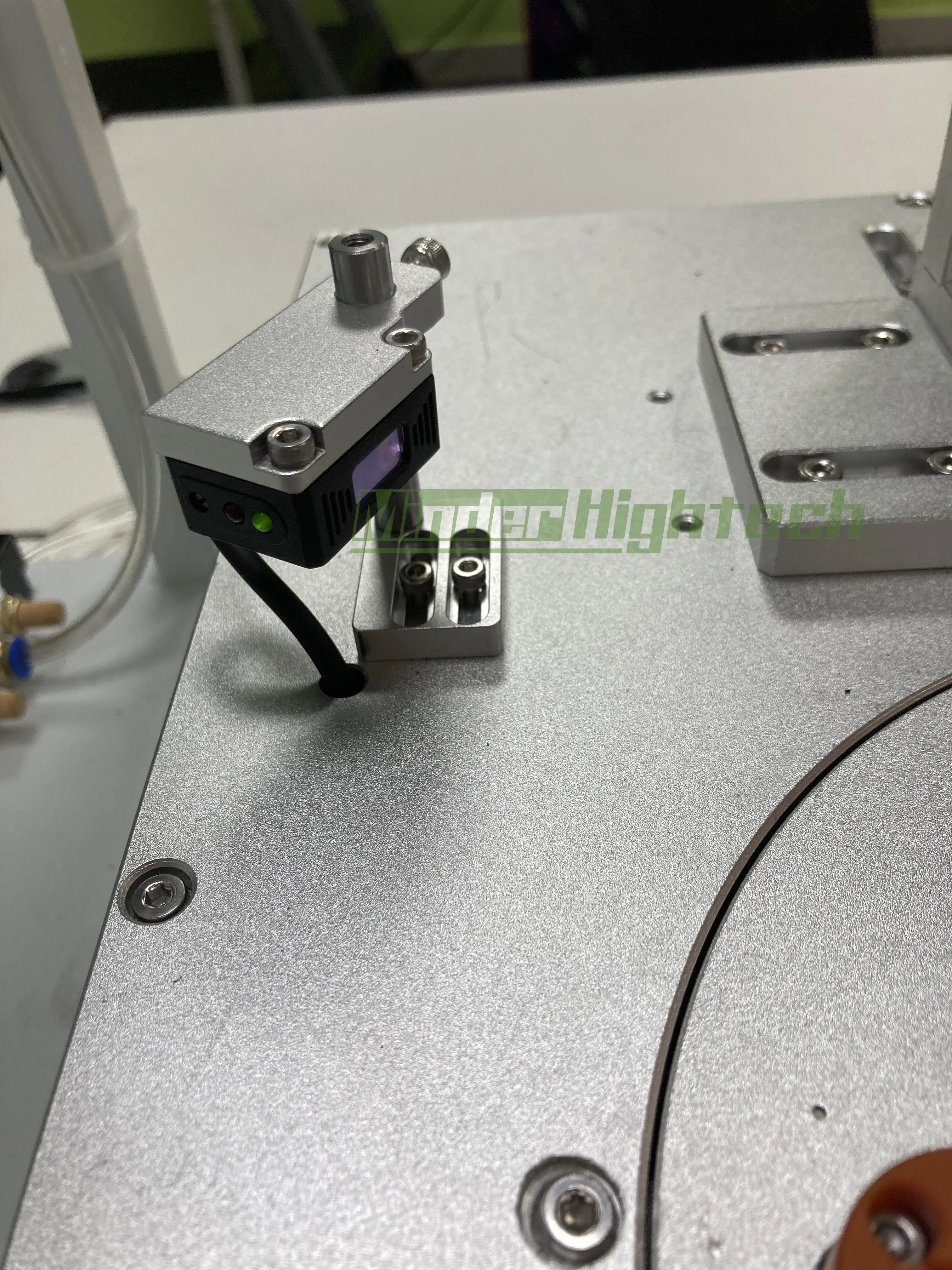

2. Equipped work piece detector to decide gluing or skip.
3. Gluing track can be set as full circle, single point or segmented arc etc.
4. Working mode can be eight-station,four-station or one-station.

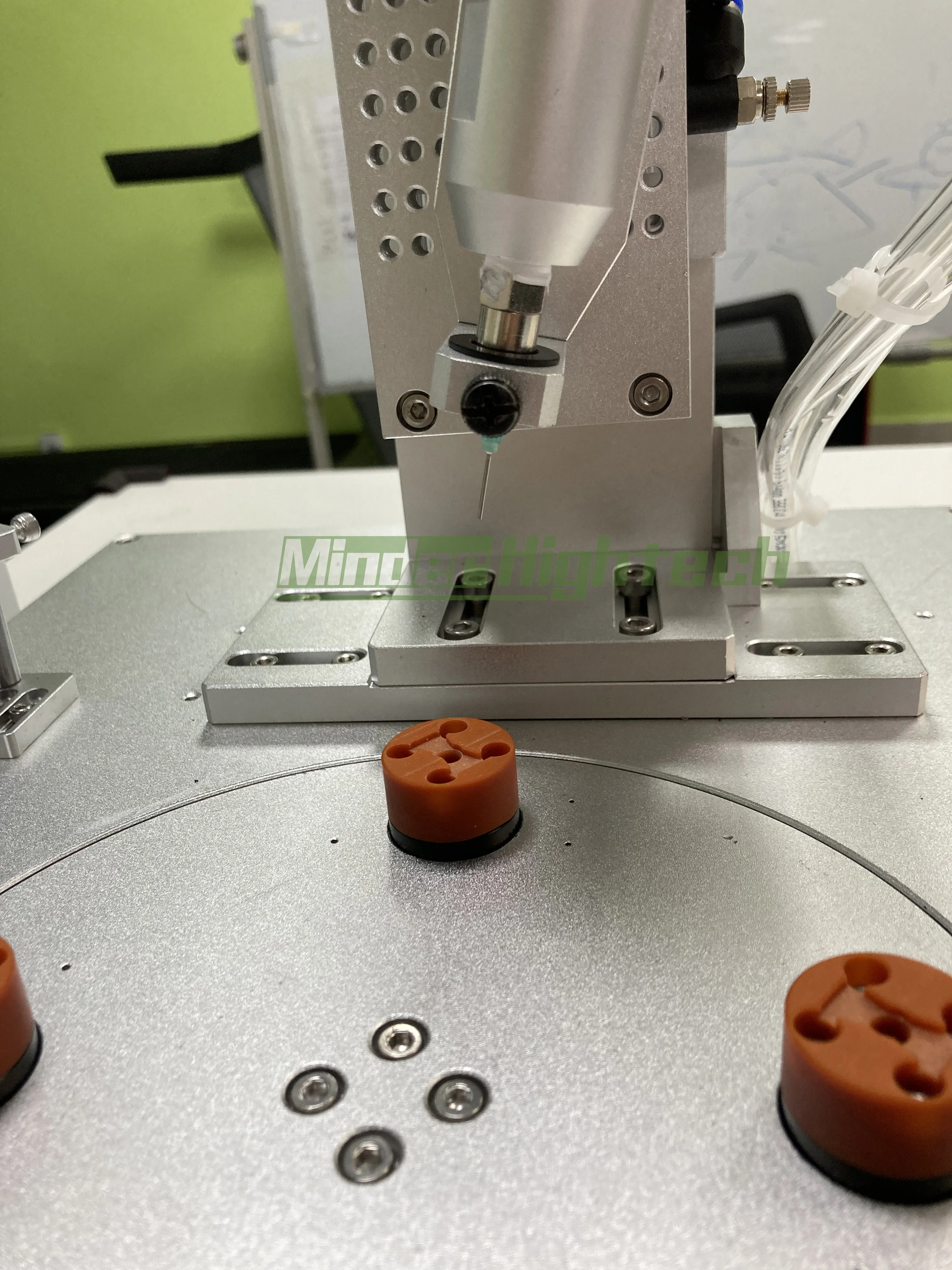

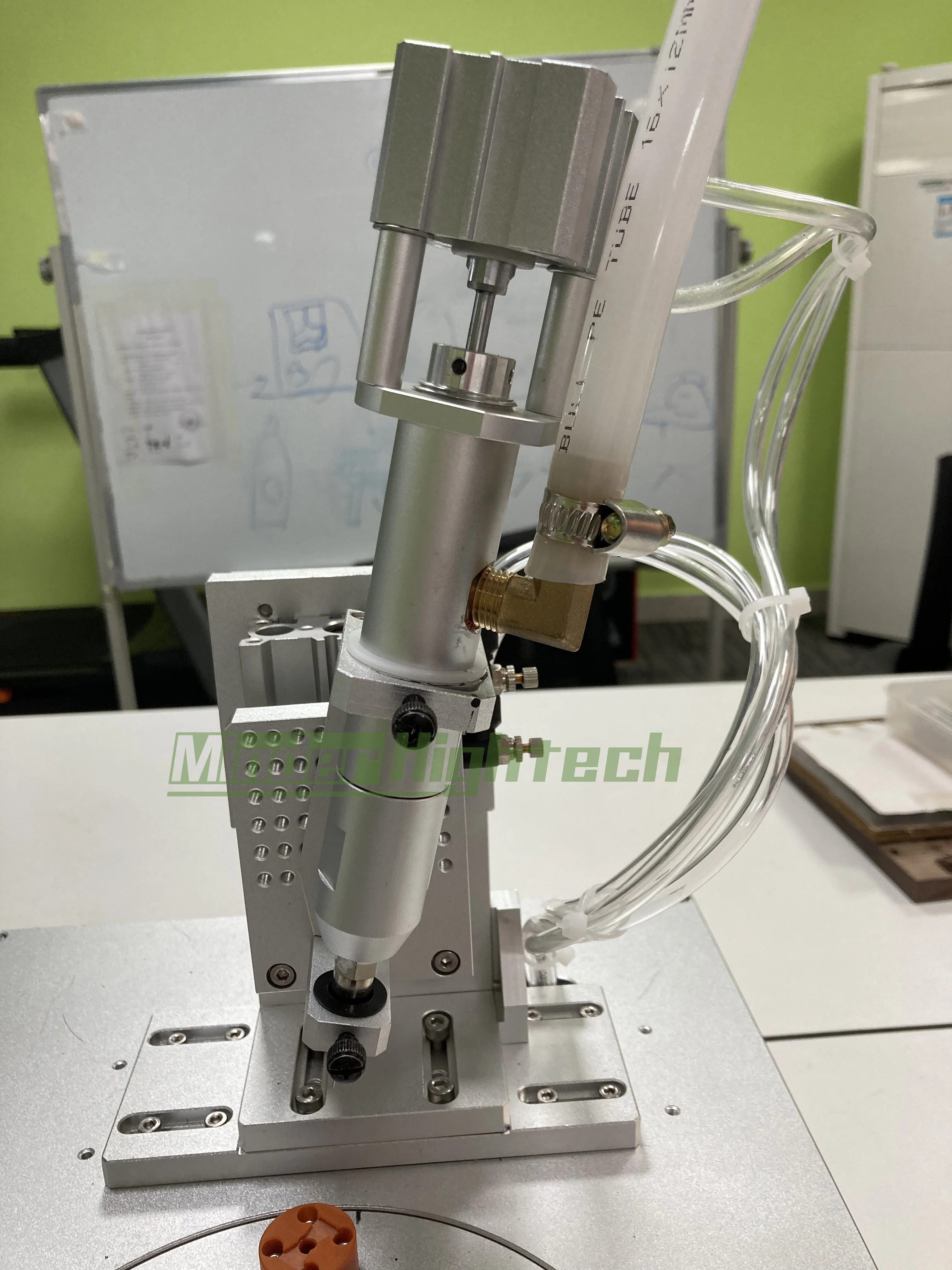

5. Operating mode:Four rotating stations are separated evenly by 90 degree on the orbit round disc. Orbit motor rotate 90 degree each time to bring the product to the gluing nozzle one by one and the self-rotating motor drives the product rotate in average speed via wheel gear occlusion to realize even gluing coating.

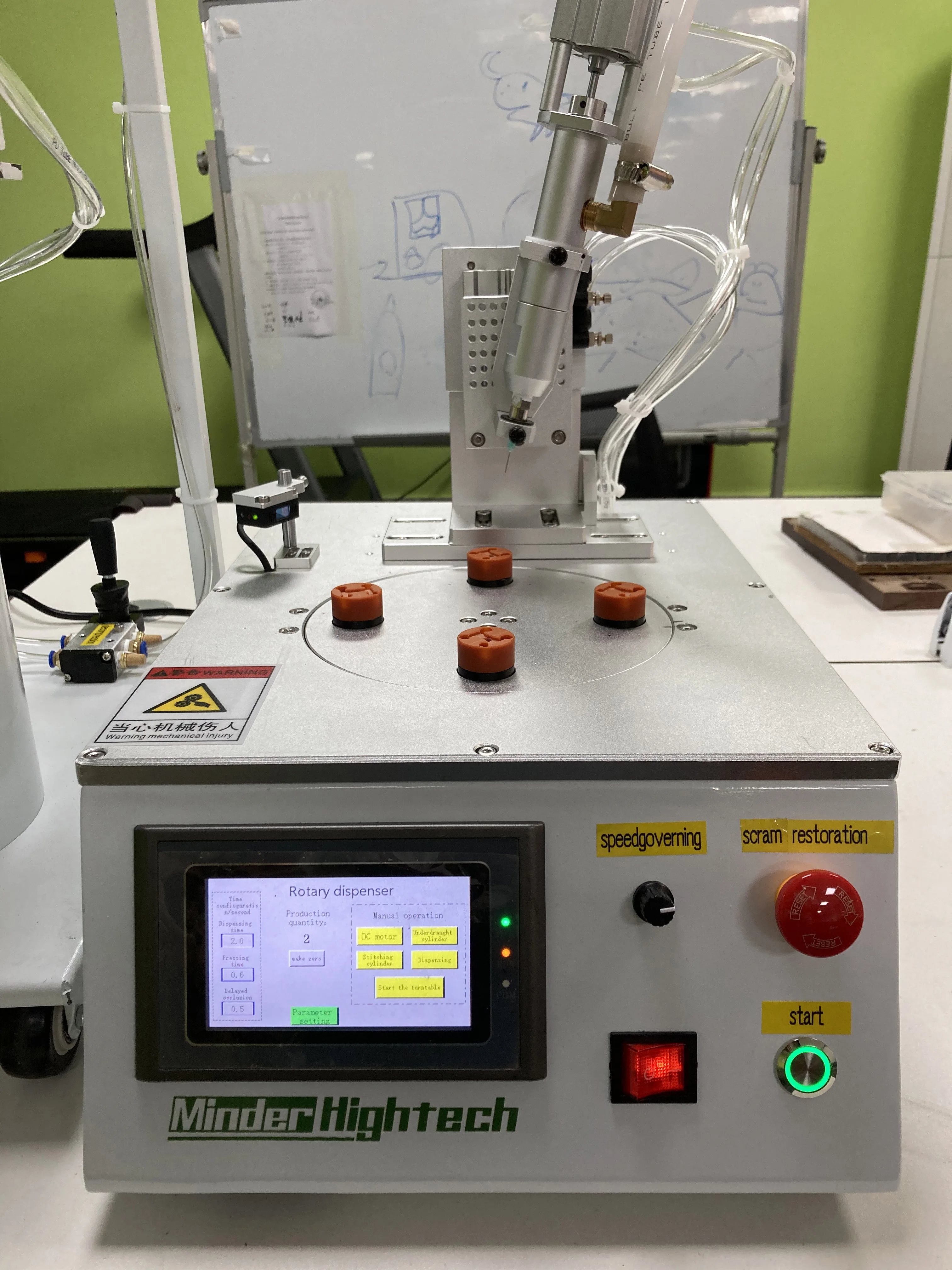

6. It is easy to learn and operate with touch screen and buttons, for different glue with different settings ensure the best performance.
7. The machine is made of Metal+al Alloy,high quality motor.The overallnice,anti-corrosion,easy clearing,durable and long life.
2. Equipped work piece detector to decide gluing or skip.
3. Gluing track can be set as full circle, single point or segmented arc etc.
4. Working mode can be eight-station,four-station or one-station.
5. Operating mode:Four rotating stations are separated evenly by 90 degree on the orbit round disc. Orbit motor rotate 90 degree each time to bring the product to the gluing nozzle one by one and the self-rotating motor drives the product rotate in average speed via wheel gear occlusion to realize even gluing coating.
6. It is easy to learn and operate with touch screen and buttons, for different glue with different settings ensure the best performance.
7. The machine is made of Metal+al Alloy,high quality motor.The overallnice,anti-corrosion,easy clearing,durable and long life.
sample
