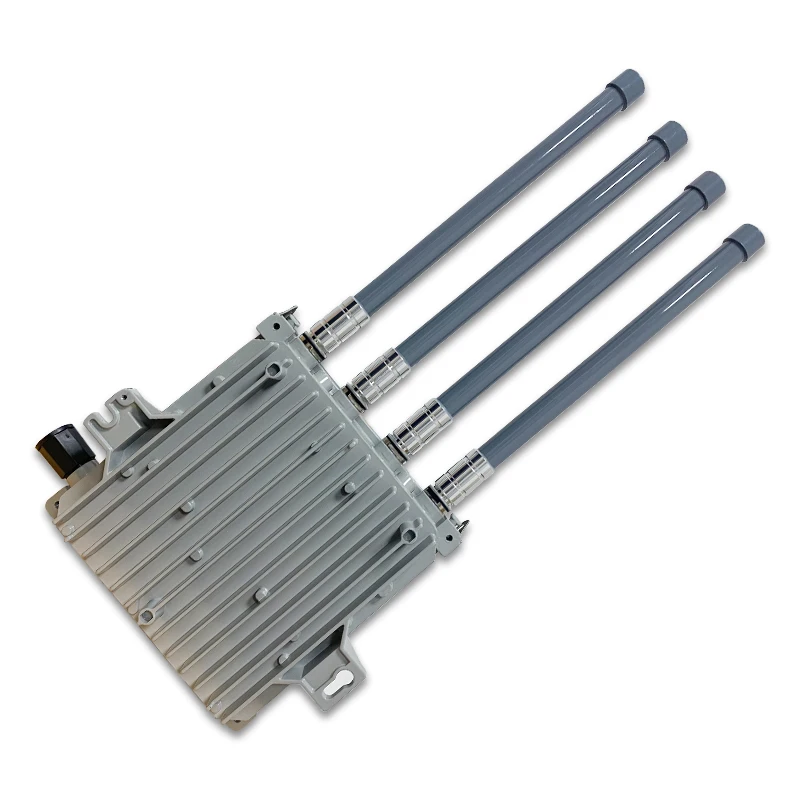

High Power Outdoor Cpe Lte Cpe Router WiFi 4G 5G Modem LTE Wireless Outdoor CPE
- Category: >>>
- Supplier: Shenzhen Zhibotong Electronics Co. Ltd.
Share on (1600549034553):
Product Overview
Description
High Power Outdoor Cpe Lte Cpe Router WiFi 4G 5G Modem LTE Wireless Outdoor CPE
Specification
Please note:
The above price is not including any 4G or 5G module.
That means that if you want to use SIM card to dial out Internet, you need to order 3G or 4G module.
Please ask me if you have any question before order here! Thanks!
That means that if you want to use SIM card to dial out Internet, you need to order 3G or 4G module.
Please ask me if you have any question before order here! Thanks!
4G CPE Features:
1.Adopt IPQ6000 scheme, with Quad-Core ARM Cortex A53s CPU,main frequency up to 1.2 GHz
2.Independent WiFi chip is adopted, with QCN5022 for 2.4Ghz and QCN5052 for 5.8Ghz
3.2.4Ghz rate up to 573.5mbps, 5.8Ghz rate up to 1201mbps, collectively referred to as 1800 Mbps
4.Support MU-MIMO, and WiFi modulation mode supports 1024-QAM and OFDMA
5.Each WiFi channel is independently equipped with high-power FEM, which is combined with high gain antenna to achieve super WiFi coverage
1.Adopt IPQ6000 scheme, with Quad-Core ARM Cortex A53s CPU,main frequency up to 1.2 GHz
2.Independent WiFi chip is adopted, with QCN5022 for 2.4Ghz and QCN5052 for 5.8Ghz
3.2.4Ghz rate up to 573.5mbps, 5.8Ghz rate up to 1201mbps, collectively referred to as 1800 Mbps
4.Support MU-MIMO, and WiFi modulation mode supports 1024-QAM and OFDMA
5.Each WiFi channel is independently equipped with high-power FEM, which is combined with high gain antenna to achieve super WiFi coverage
6.High speed 256MB DDR3 with 128MB NAND flash storage
7.One gigabit external self-adaption LAN port ,support automatic flip (auto MDI / MDIX)

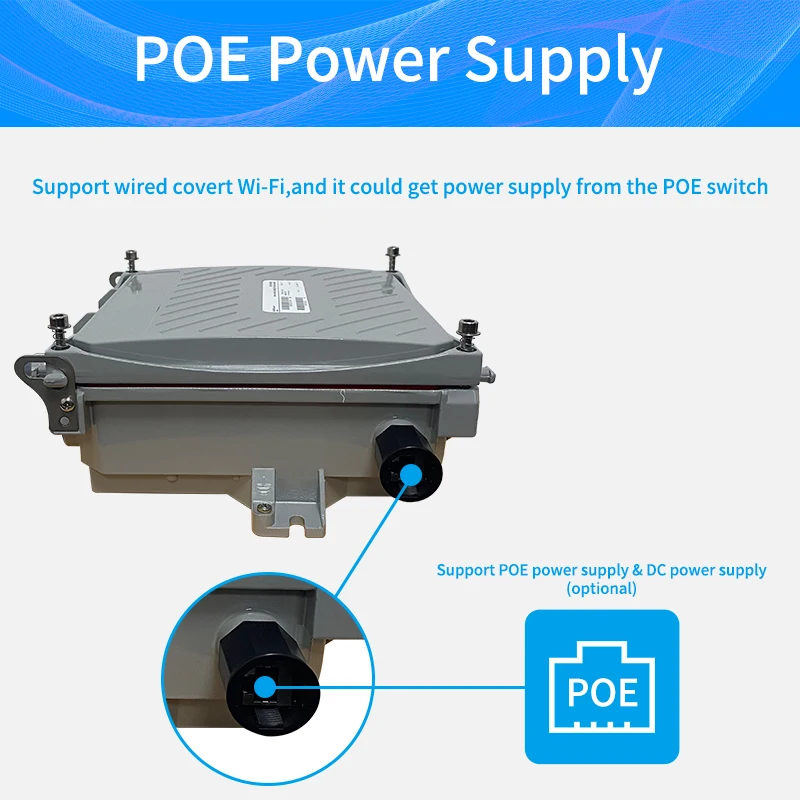

8.External LAN port support standard POE-PD function,comply with IEEE802.3af/at standard
9.One built-in M.2 interface for connect 5G communication module, and the module power supply is independently controlled through GPIO
10.Internal standard SIM card interface, supporting SIM / USIM card
11.IPQ6000 has its own watchdog function, which automatically restarts in case of crash
12.When multiple products are used at the same time, MESH automatic networking is supported
13.With fully sealed metal shell to achieve heat dissipation and waterproof functions, meeting IP67 standards
8.External LAN port support standard POE-PD function,comply with IEEE802.3af/at standard
9.One built-in M.2 interface for connect 5G communication module, and the module power supply is independently controlled through GPIO
10.Internal standard SIM card interface, supporting SIM / USIM card
11.IPQ6000 has its own watchdog function, which automatically restarts in case of crash
12.When multiple products are used at the same time, MESH automatic networking is supported
13.With fully sealed metal shell to achieve heat dissipation and waterproof functions, meeting IP67 standards
High Power Outdoor Cpe Lte Cpe Router WiFi 4G 5G Modem LTE Wireless Outdoor CPE | ||
Chipset | IPQ6000+QCN5022+QCN5052 | |
Flash/RAM | 128MB NAND FLASH/256MB DDR3 | |
WiFi frequency Wireless rate | 2.4GHz and 5.8GHz, 1800Mbps | |

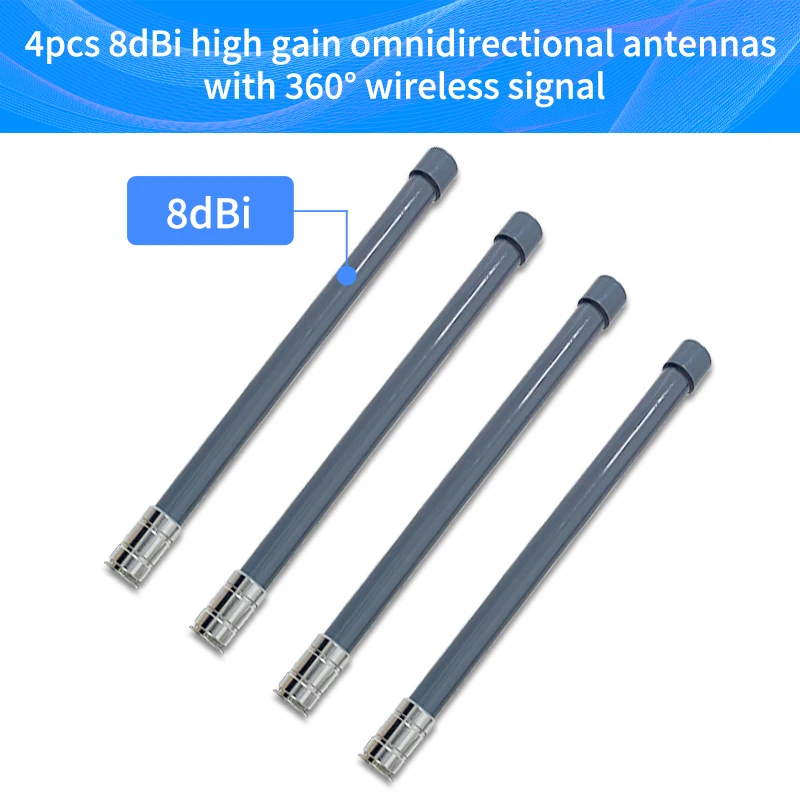

Antenna | 2*8dBi undetachable 2.4GHz+5G antennas 2*8dBi undetachable 5.8GHz+5G antennas | |
Interface | 1*PCIE/M.2 slot 1*SIM card slot 1*Reset button 1*MESH button 1*10/100/1000M LAN port(Support standard POE) | |
Accessories | 1*User Manual 1*Network cable | |
Software | Openwrt/OS | |

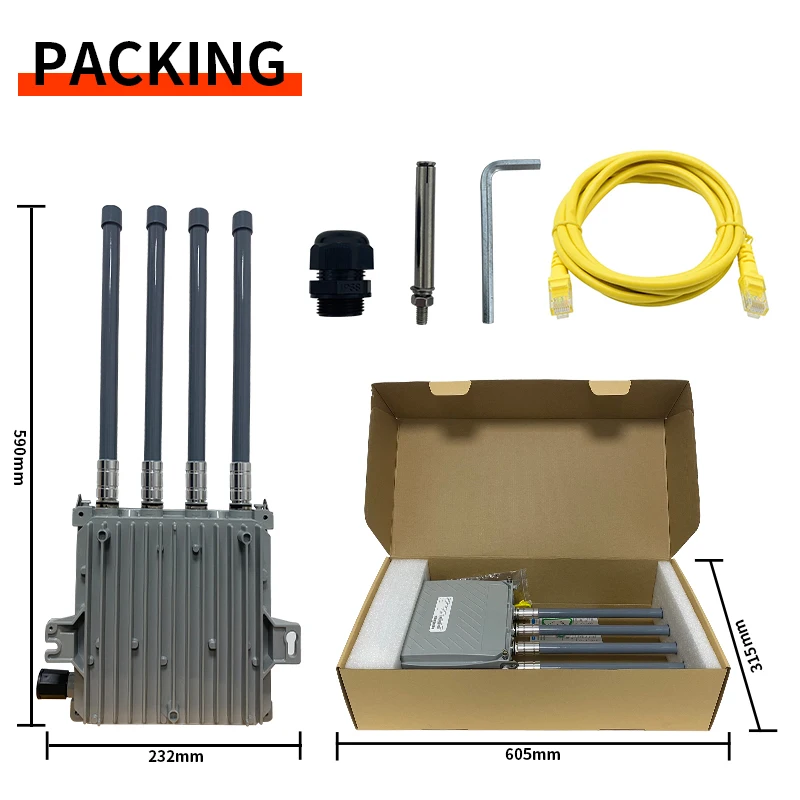

Product size | 232MM*255MM*110MM | |
Packing box size | 605*305*315MM | |
Qty/Carton | 2pcs/carton | |
