Product Description












































































PCB PRODUCTION CAPACITY


One Stop OEM PCBA Manufacturer Print Circuit Boards 94v0 Rf4 HASL PCB Board Control Board Motherboard PCBA for Air Conditioner


Finish type


Gold-plated, Immersion gold-plated, HALS finish, Flux., Carbon-bridge, Entek, Nickel plating


Base material


FR4, CEM-1, CEM-3, FR1, FR2, Aluminum metal substrate and Rogers


Base material thickness


0.4-2.4mm.


Copper foil thickness


18um(H/HOZ), 35um(1/1OZ), 70um(2/2OZ), 5OZ


Maximum-product board


500*700mm. For AL PCB: 500*1400mm


Minimum drilled hole size


0.075mm


Minimum track width/spacing


3mil


Average hole wall copper


Thickness for HAL board: ≥25um.Gold-finger plating: ≥0.1um


Solder mask ink


Photo cure ink, heat cure ink. UV ink


Outline tolerance


±0.1mm


Hole diameter tolerance/ Hole location tolerance


±0.076mm/±0.076mm


V-CUT tolerance


±0.1mm.


Wrap


According to the IPC-600F standard


Lead time


Single-sided: 2-3 working days; Double-sided: 3-4 working days; Multi-layer: 8-10 working days






































































PCBA MANUFACTURING CAPABILITY


One Stop OEM PCBA Manufacturer Print Circuit Boards 94v0 Rf4 HASL PCB Board Control Board Motherboard PCBA for Air Conditioner


PCB Layers


1 to 36 layers (standard)


PCB material/type


FR4, Aluminum, CEM1, Supper-thin PCB, FPC/Gold finger


Assembly service type


DIP/SMT or Mixed SMT & DIP


Copper thickness


0.5um-4um


Assembly surface finish


HASL,ENIG,OSP


PCB Dimension


600x1200mm


IC Pitch(min)


0.2mm


Chip Size(min)


0201


Leg distance(min)


0.3mm


BGA Size


8x6mm~55x55mm


SMT Efficiency


SOP/CSP/SSOP/PLCC/QFP/QFN/BGA/FBGA/u-BGA


u-BGA ball dia.


0.2mm


Required Docs for PCBA


Gerber file with BOM list & Pick-N-Place File(XYRS)


SMT speed


CHIP components SMT speed 0.3S/pcs, max speed 0.16S/pcs





Company Profile











HENGKAITUO have been providing a high quality & cost effective PCB assembly one stop solution to customer since 2004. We have 14 years PCB&PCBA OEM/ODM experience.Our full turnkey service includes Printed Circuit Board Design & Layout, PCB production, Components sourcing, PCB assembly, Conformal Coating,Software Development, Enclosure Design & Development, Functional Testing and Mechanical Assembly/ Box Build.










Whether you require electronic assembly, hardware or embedded software design, PCB supply, PCB layout, pre-compliance EMC testing or any combination of the above, we have the capability to turn your ideas into reality based on ISO9001-certified and IPC-A-600 & IPC-A-610 compliant production facilities.



















Our Services












1. Extensive Contract manufacturing services:

We do much more than PCB's-You can reduce your logistical and administrative overheads by employing DAYEE as the single source for all the manufacturing services detailed below. Take a look through our services detailed below for more information.

1. SMT Assembly:
Leading edge surface mount population technologies.
2. PTH Assembly:
RoHS compliant wave soldering & hand soldering capabilities.
3. PCB design:
Can provide circuit design & PCB layout support.
4. PCB Fabrication:
Provide us with your design files/Gerber files and we will produce your PCBs on-site here in our China manufacturing facility.
5. Component procurement:
Take advantage of DAYEE's purchasing & material control expertise.
6. Cable Assembly:
While we make your PCBs we can also be making your cables.
7. Product Assembly:
DAYEE offer total turnkey solutions including full product build.
8. Function Test & Inspection:

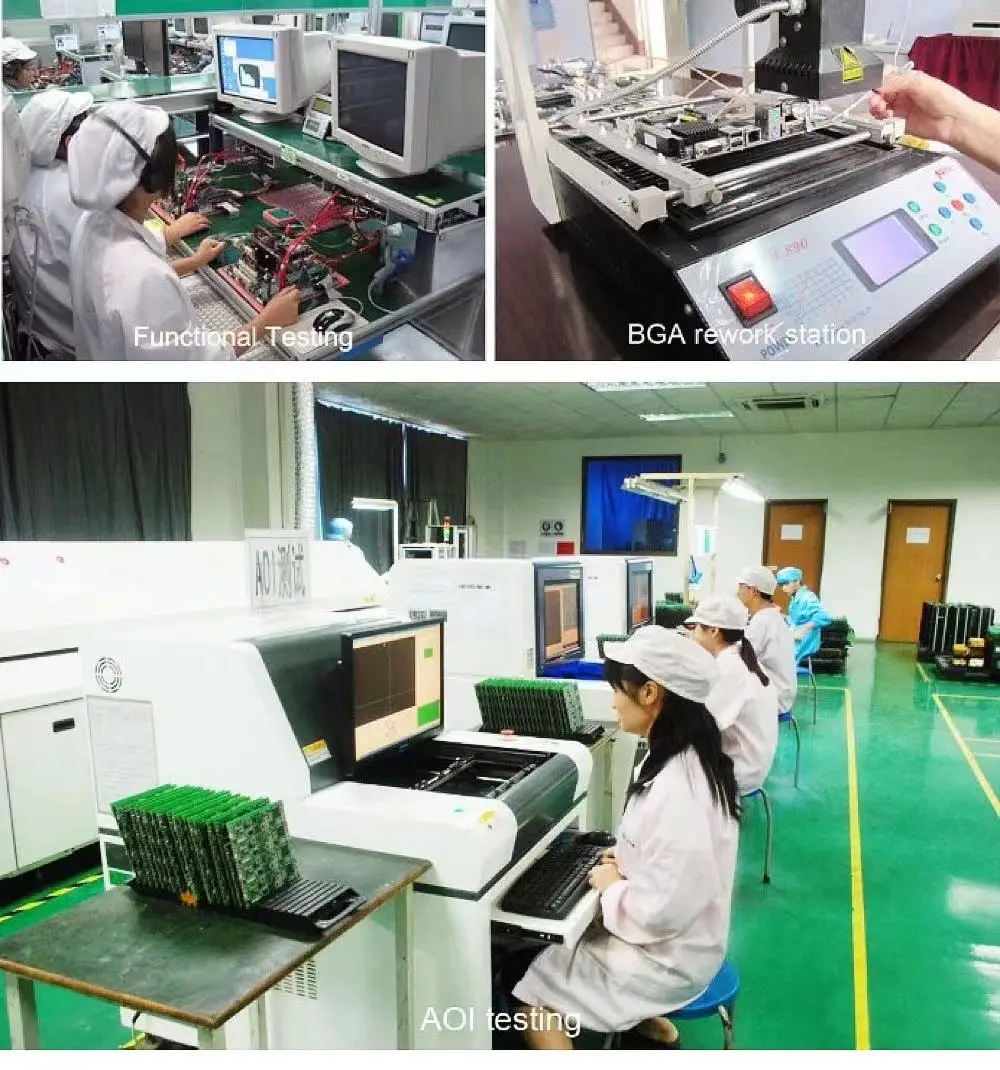

DAYEE offer test & inspection services on PCBs & assemblies ((X-ray, 3D Paste Thickness, ICT, AOI and Functional tests)




2. Our Advantages

















Our Workshop&Machine

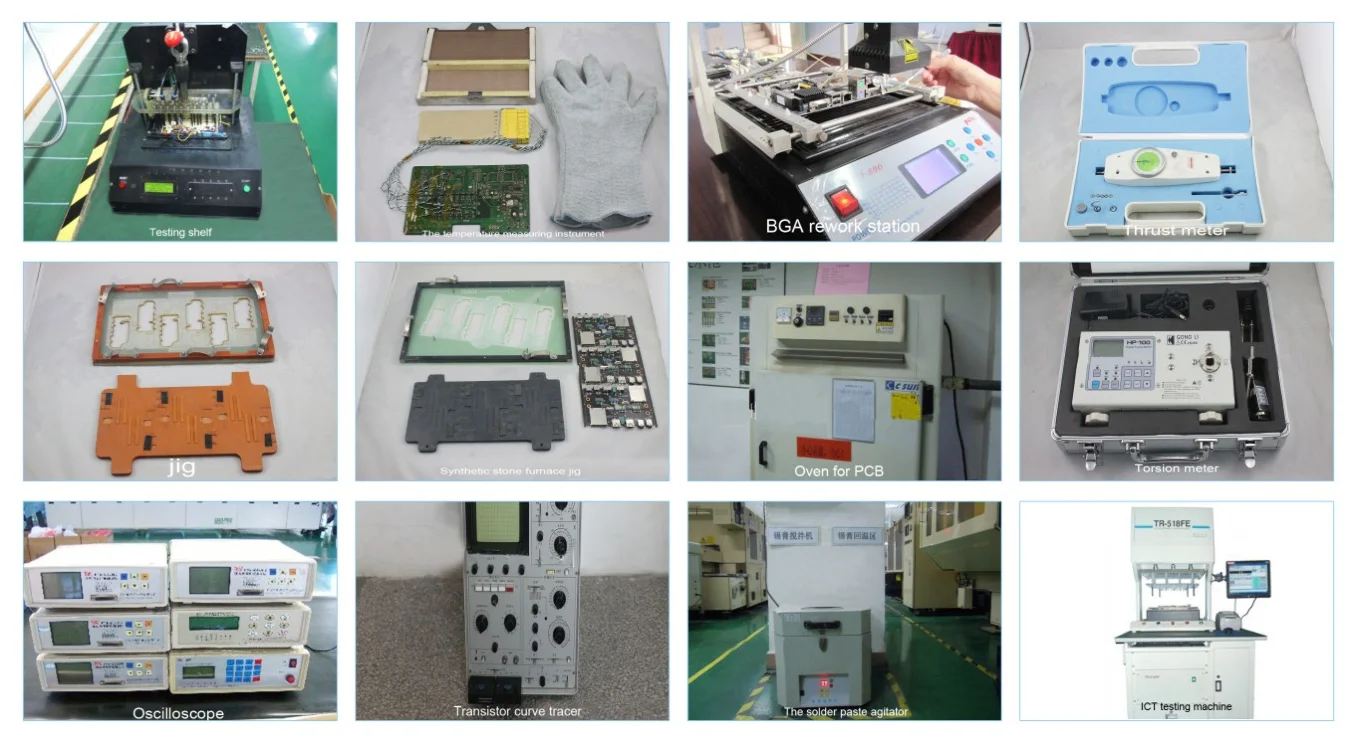

OUR EQUIPMENT



No


Equipment name/details


Brand


1


Semi-automatic solder paste printerGCW-3040A


Gongchuangwei


2


Semi-automatic solder paste printerJT-1068LF


Jitian automation


3


1.5Msemi-automatic printing machine


Qiqi automation


4


Automatic Paste Printing Machine CP-400


Huancheng automation


5


Fully automatic printing machine CP-400


Huancheng automation


6


Pick and place machine KE-2060M


JUKI


7


Pick and place machine KE-2050L


JUKI


8


Pick and place machine KE-2030L


JUKI


9


Pick and place machine HF


SIEMENS


10


Pick and place machine HS60


SIEMENS


11


Pick and place machine HF/3


SIEMENS


12


Pick and place machine HS60


SIEMENS


13


Pick and place machine HS60


SIEMENS


14


Pick and place machine F5


SIEMENS


15


Lead-free reflow JTE-800D


JINGTUO


16


Double rail reflow H8-π


Helixin


17


AOI Optical Inspection Machine OTEK M-780


Fuxin


18


AOI Optical Inspection Machine ST-516


Yaan


19


Paste mixer


Taiyangtong


20


Boarding machine W320


Taiyangtong


21


Double track closing machine standard


Qiqi automation


22


6.8M transfer machine


Qiqi automation


23


6M dual rail transfer machine


Taiyangtong
















Quality Control







Our company executes the ROHS requirements, all the products we provide to our customers will be strictly accordance with ROHS standard. Our quality control system includes following process.
1. Carrying out ISO9001:2015 exactly in all process.























2. ERP quality system:
Making all departments, like production, supply, sales, inventory, human resources, finance, logistics, decision-making
departments can share resources, information together in enterprise. So that enterprise could analysis, forecast, making decision for all related enterprise management activity. Under this management system, whole enterprise business process will be controlled and improved under healthy situation.
3. Electrostatic protection method
* Inhibiting static charge accumulation and static charge generation.
* Eliminating existent static charge in quick and safe way.
* The implementing electrostatic protection area(EPA) and good grounding system.


















Certifications














FAQ







Q1.Can we inspect quality during production?
Yes, we are open and transparent on each production process with nothing to hide. We welcome customer inspect our production process and check in house.

Q2. What file formats do you accept for production?
Gerber file: CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel (PDF,word,txt)

Q3. Does HENGKAITUO accept small order for PCB assembly?
Yes, we consider all orders as a blessing, and we appreciate all buyers as valued dealers, will pay high attention to a small
order as a bulk order

Q4. Is Hengkaituo a trading company or factory?
HENGKAITUO is PCBA Manufacturer with strong engineering team who can help customers to do ODM & OEM PCBA one stop service since 2004.

Q5. Do I need to pay deposit for an order?
For sampling or small pcb assembly order, HENGKAITUO usually requires 100% full payment before shipping. For bulk order, 50% deposit with order, the balance was paid before delivery

Q6. Are my files safe?
Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole process. All documents from customers are never shared with any third parties.


FOR MORE INFORMATION, PLEASE FEEL FREE TO CONTACT US ANYTIME!
