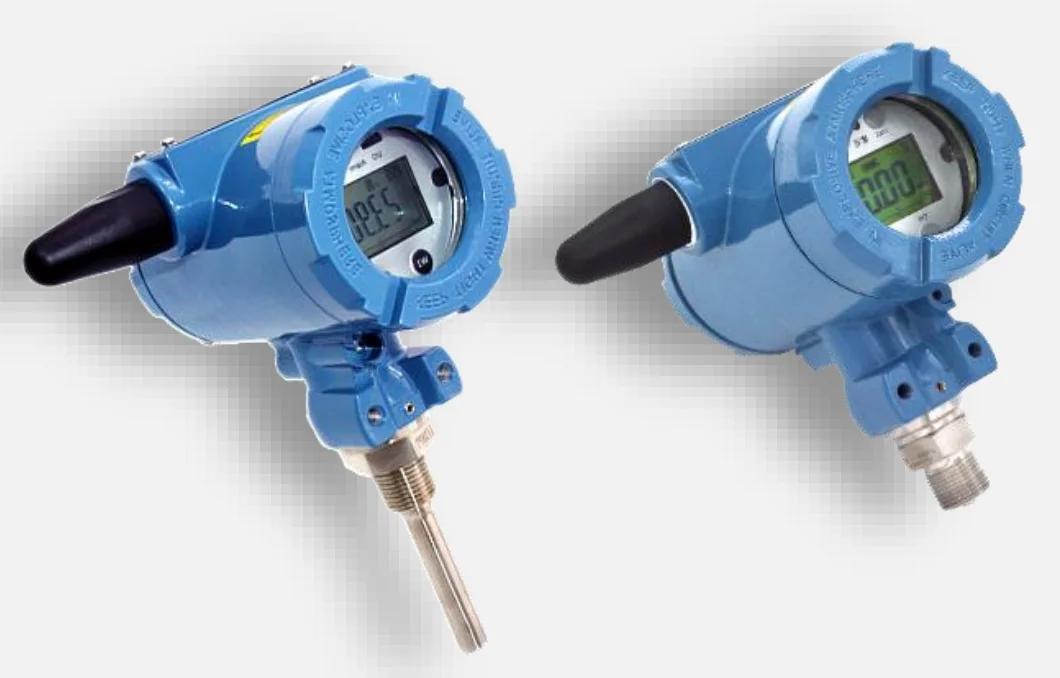

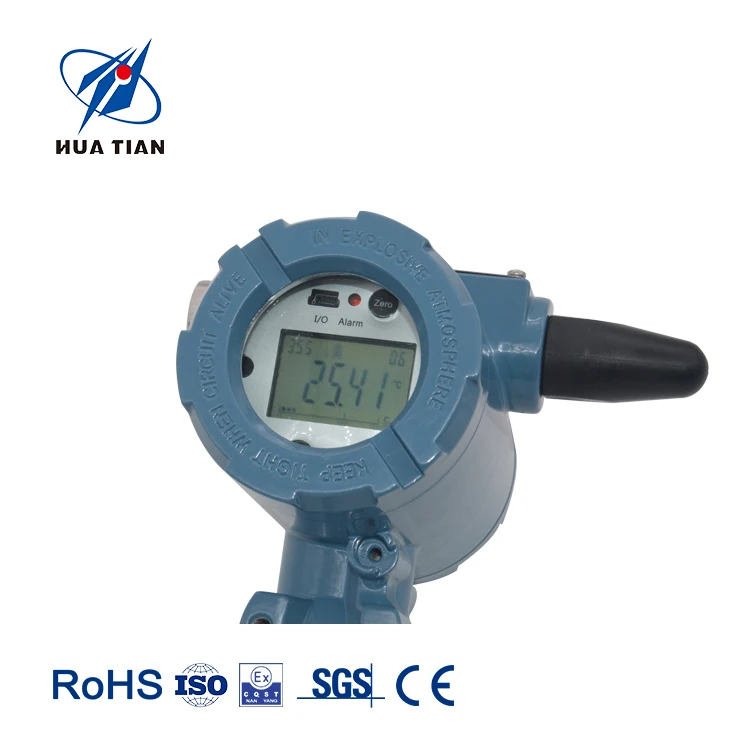

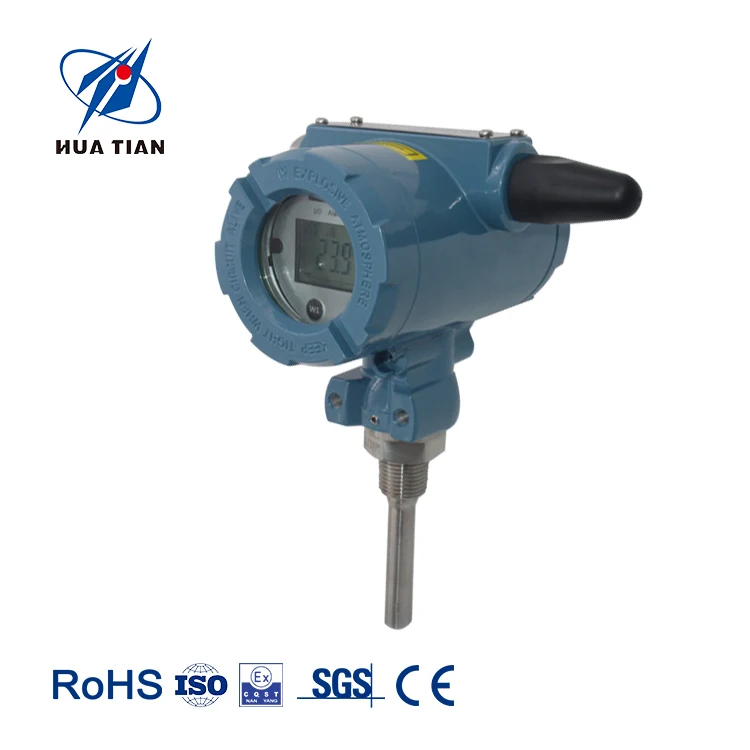

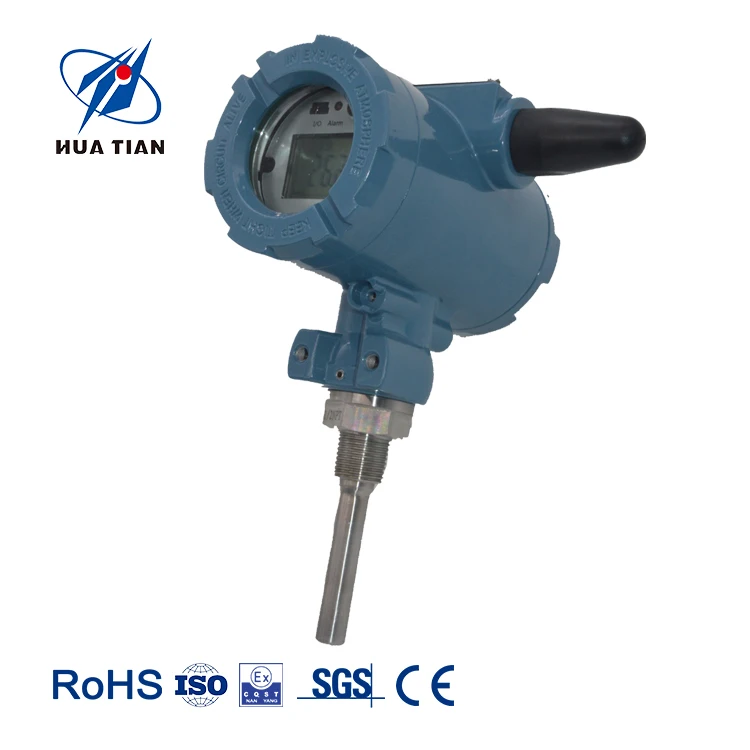

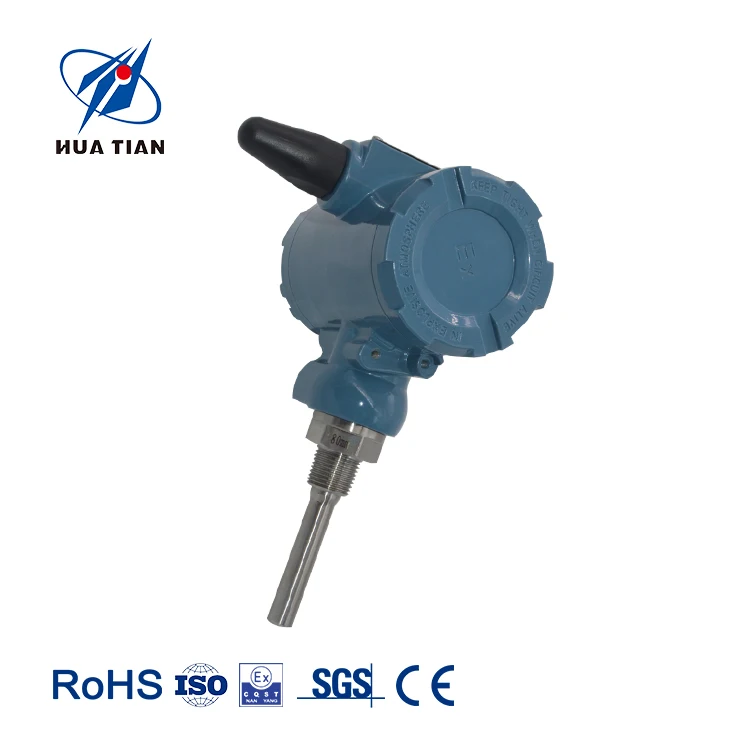

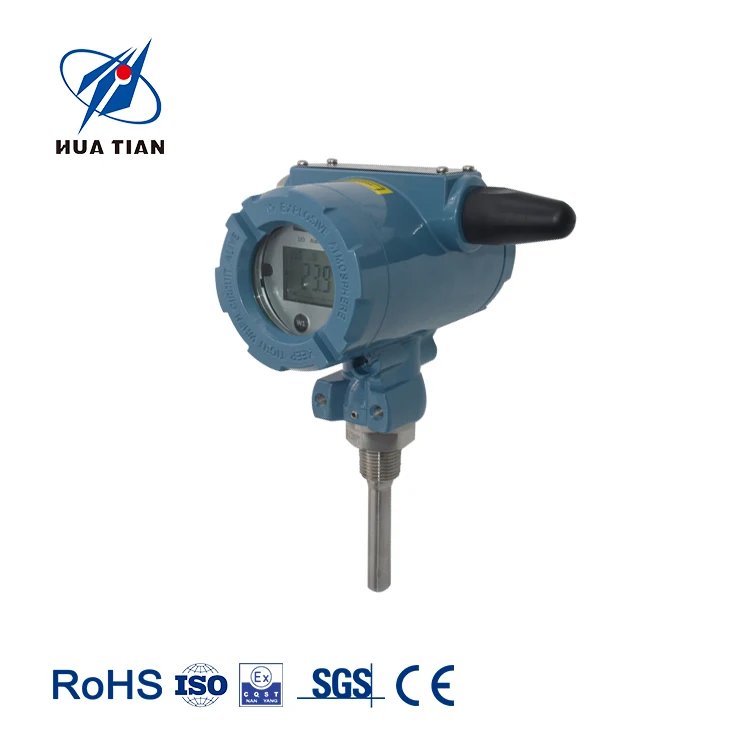

Huatian CWB510224 LoRa output wireless digital display temperature transmitter range 50 to 200 degree
- Category: >>>
- Supplier: Tianshui Huatian Sensor Co. Ltd.
Share on (1600549041766):
Product Overview
Description
Huatian CWB510224 LoRa output wireless digital display temperature transmitter range -50 to 200 degree

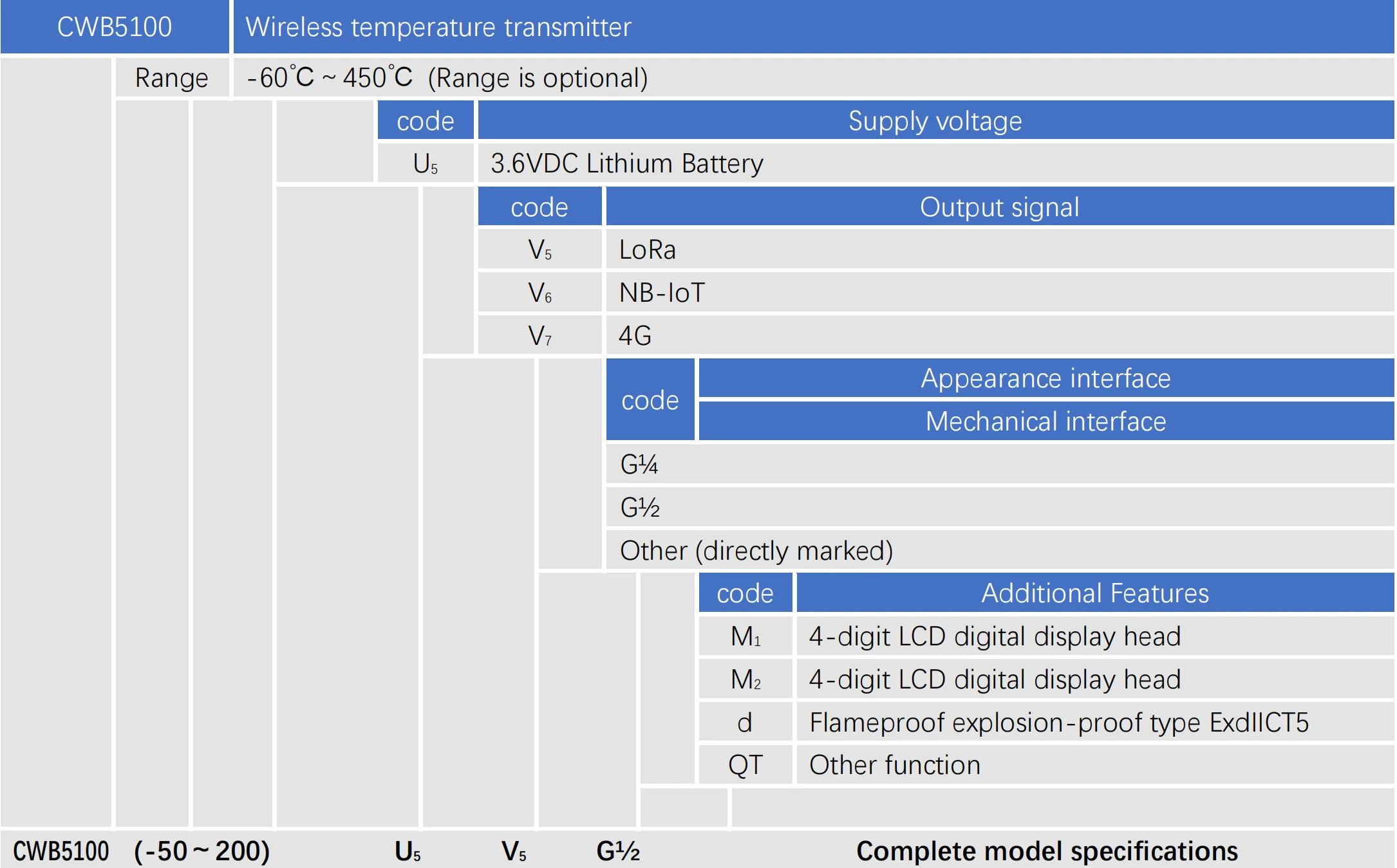

Product Parameters
Range（℃） | -60～450（ optional range ） | ||||
Accuracy （℃） | 0.25 (customized) | 0.5 | 1.0 | ||
Long-term stability (%FS/year) | ≤0.25 | ≤0.5 | ≤1.0 | ||
Operating voltage （VDC） | +15～+30（ calibration value is +24） | ||||
Output signal | (4mA～20mA）、0～10V、RS485、I2C | ||||
Working environment temperature （ with header ）（℃） | -30～+60 | ||||
Load resistance （Ω） (4mA～20mA） | R=(U-15)/0.02-RD among them: U is the power supply voltage RD is the internal resistance of the cable | ||||
Response time （10%～90%）s | 20（ typical value ） | ||||
Measuring medium | fluid compatible with 304 and 316L | ||||
Shell material | 304、316L | ||||
Interface | 304, 316L optional | ||||
Protection level | IP65 | ||||
Products Description

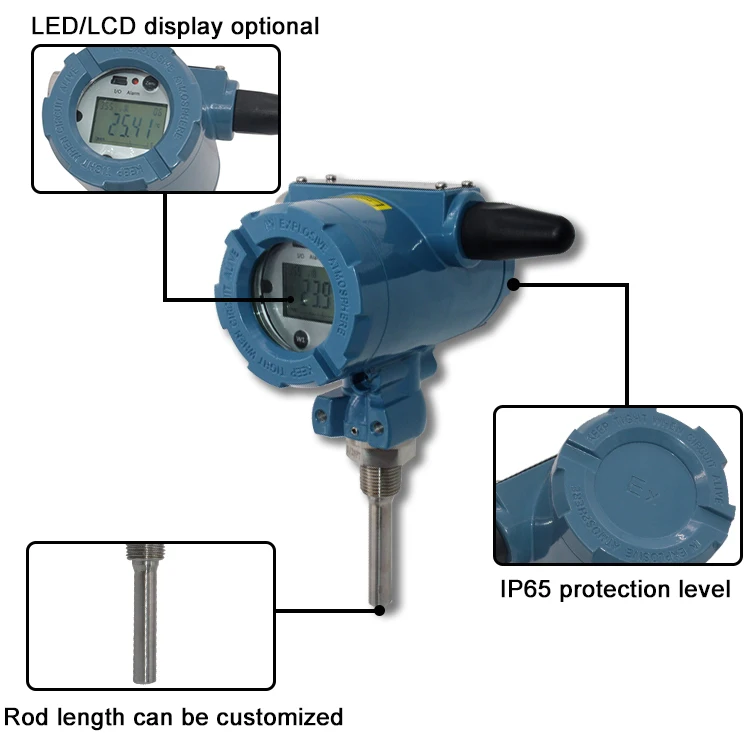

Features:
1、Zigbee/Lora wireless communication protocol；
2、LED, LCD display optional；
3、Networking for users
Application
⚫ Coal Mining
⚫ Oil field
⚫ Chemical
⚫ Civil Explosion
⚫ Water Affairs
⚫ Shipping
⚫ Medicine
⚫ Environmental Protection
