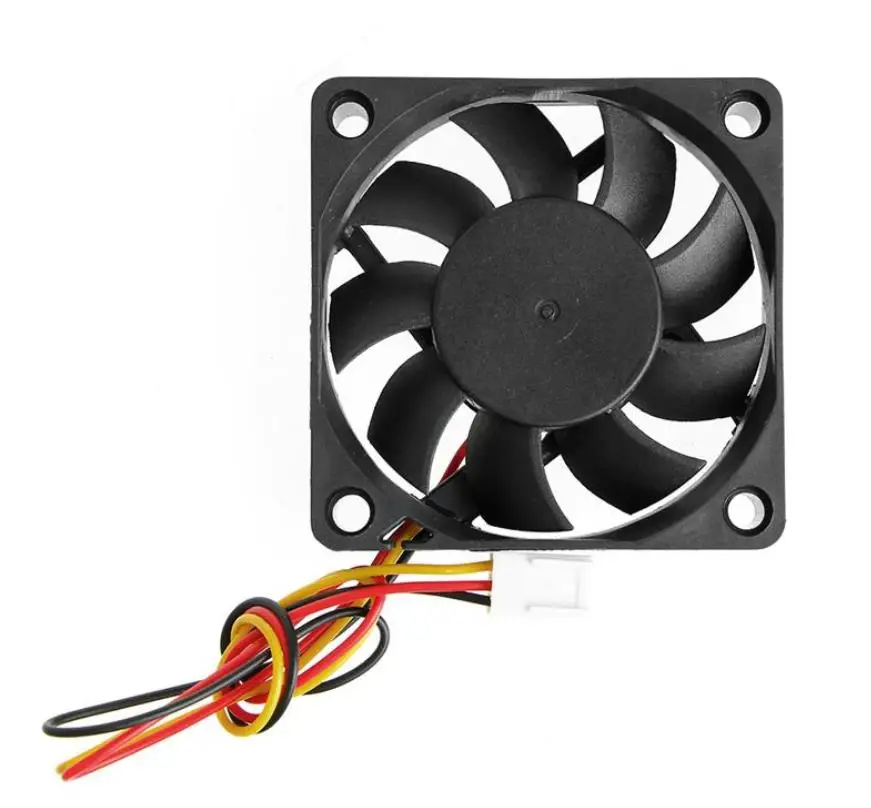

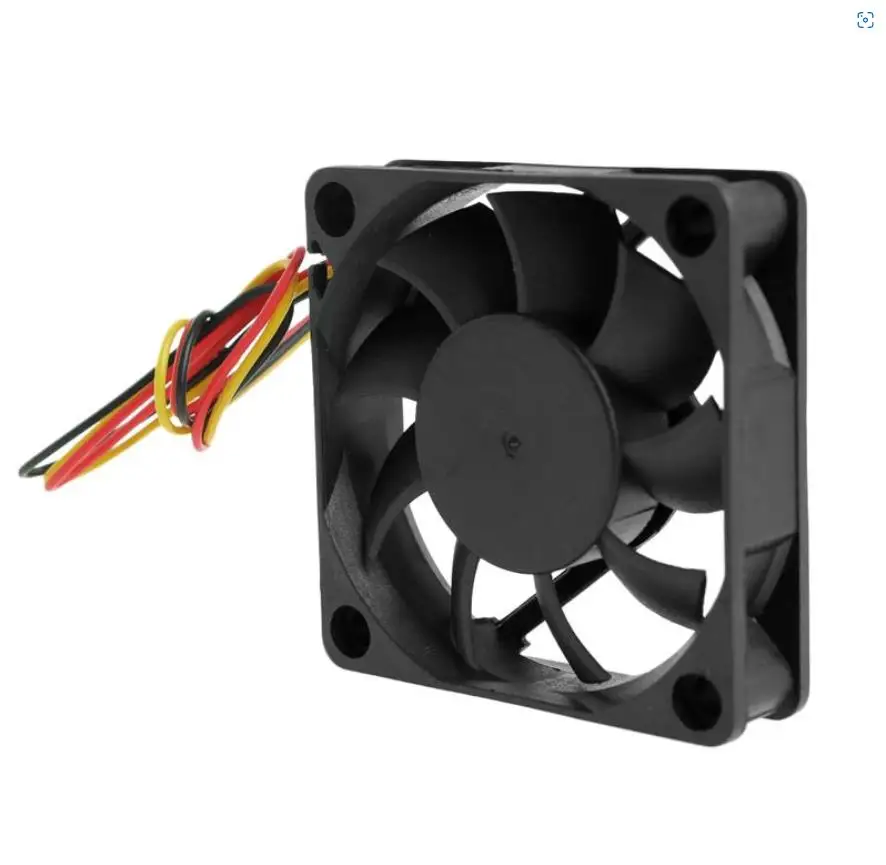

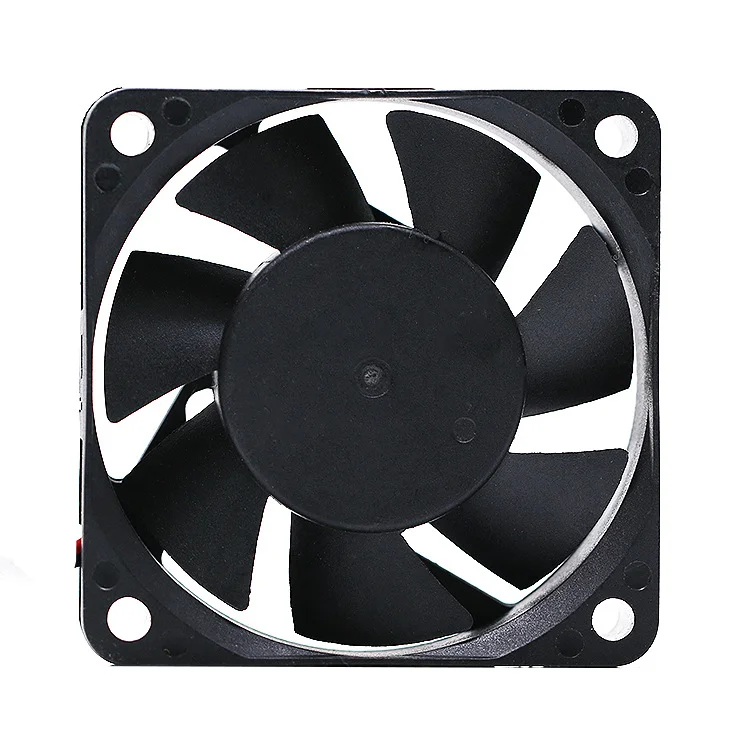

60mm waterproof Industrial Ventilation Fans kp6015 High airflow graphics card fan 60x60x15mm 5v/12v/24v dc inverter cooling fan
- Category: >>>
- Supplier: Shenzhen Kunpeng Electromechanical Industry Co. Ltd.
Share on (1600549042239):
Product Overview
Description
Product Description
DC Cooling Fans 60x60x15mm Features:

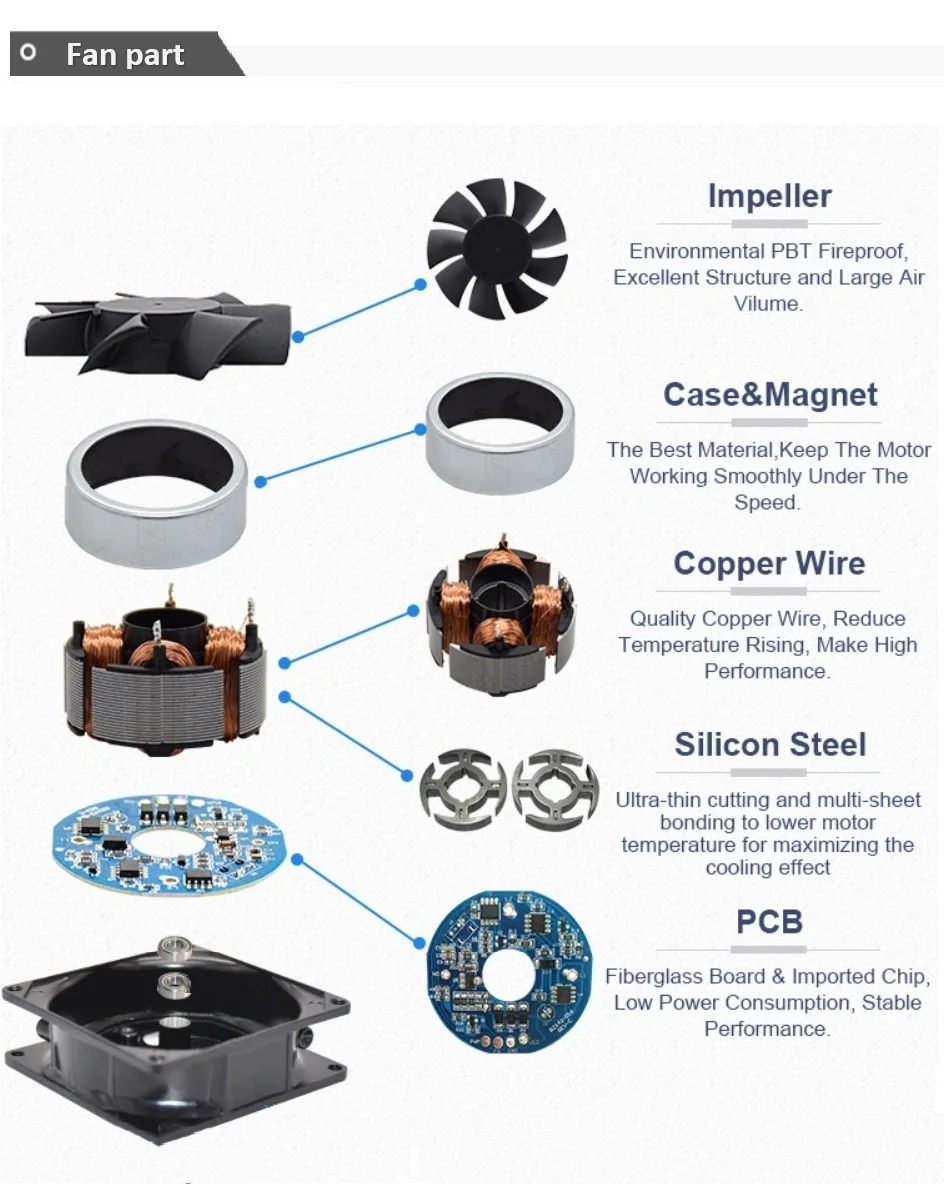

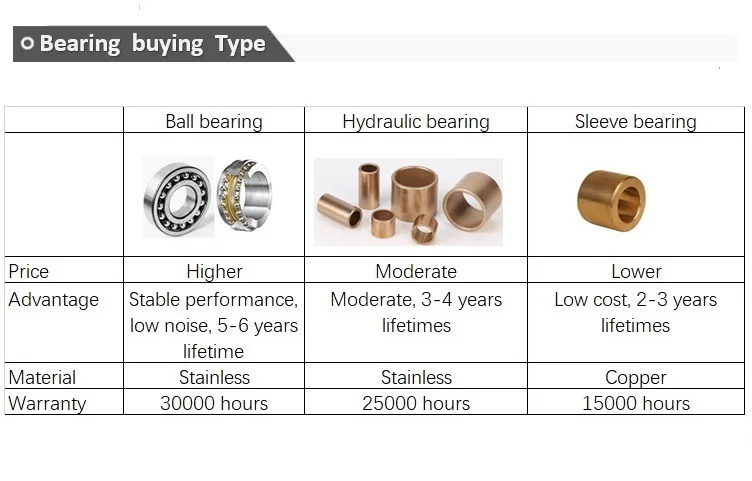

1. Bearing System: Ball Bearing & Sleeve Bearing
2. Impeller: PBT With Fiber Class Filed Ul-94V0
3. Motor Type: High Performance DC Brushless

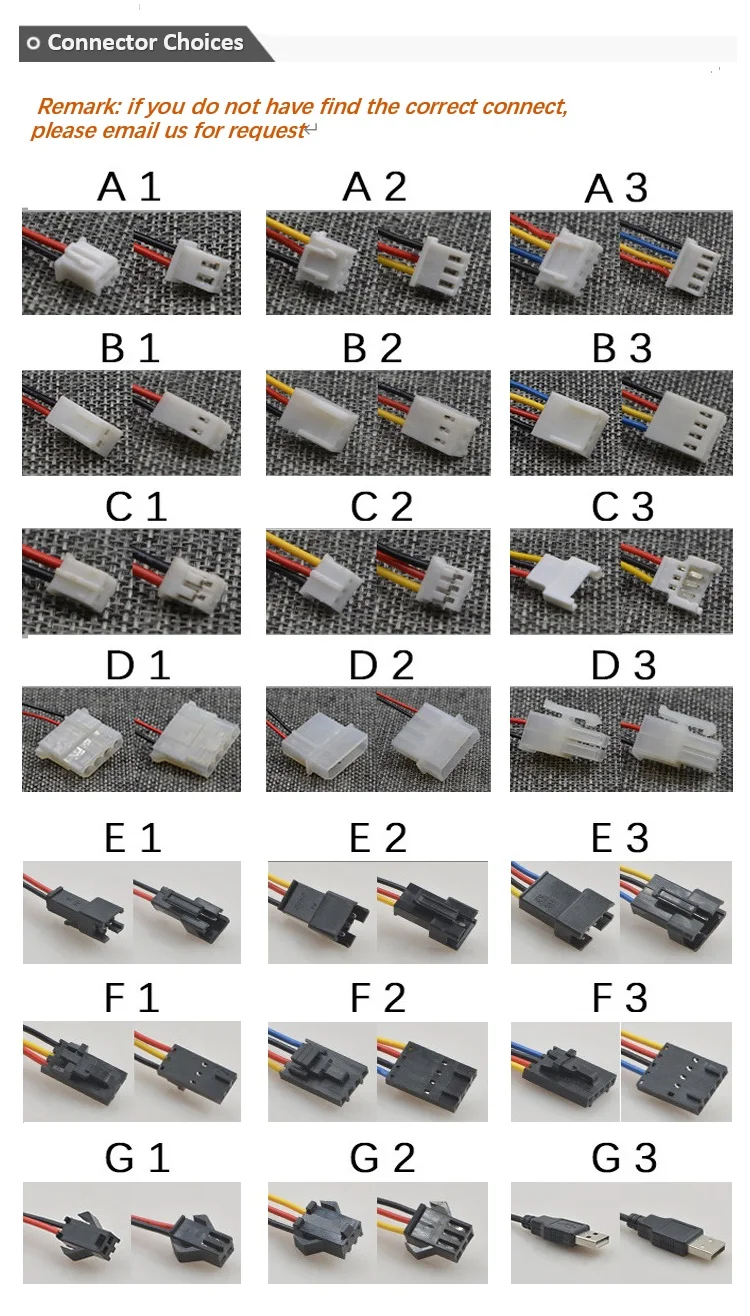

4. Connection: Wire & Terminal
Red (+) / Black(-) / Blue (PWM)
5. Out Put Signal: FG—Yellow RD—White
6. Insulation Class: B
7. Compressive Strength: 500v
8. Storage Temperature: -20°--- 70°
9. Working Temperature: -10°--- 60°

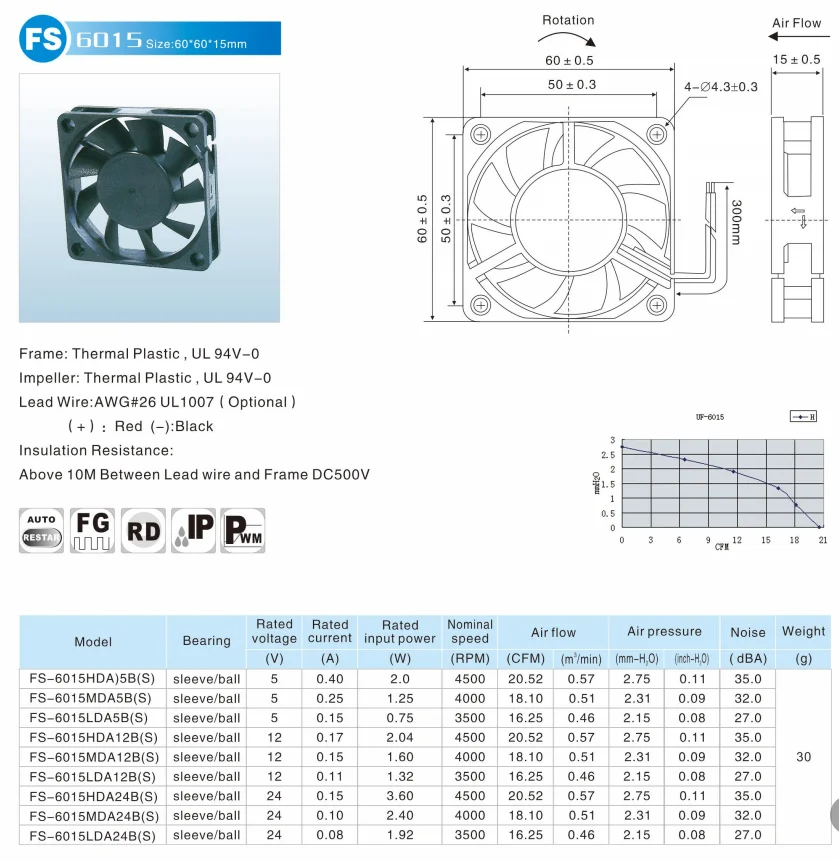

60*60*15mm dc fans with different specifications for your choice
| Model | Bearing | Rated Voltage | Rated current | Rated input power | Nominal speed | Air flow | Air pressure | Noise | Weight | ||
| (CFM) | (m³ /min) | (mm-H2O) | (Inch-H2O) | ||||||||
| FS-6015HDA5B(S) | SLEEVE/BALL | 5 | 0.40 | 2.0 | 4500 | 20.52 | 0.57 | 2.75 | 0.11 | 35.0 | 30 |
| FS-6015MDA5B(S) | SLEEVE/BALL | 5 | 0.25 | 1.25 | 4000 | 18.10 | 0.51 | 2.31 | 0.09 | 32.0 | |
| FS-6015LDA5B(S) | SLEEVE/BALL | 5 | 0.15 | 0.75 | 3500 | 16.25 | 0.46 | 2.15 | 0.08 | 27.0 | |
| FS-6015HDA12B(S) | SLEEVE/BALL | 12 | 0.17 | 2.04 | 4500 | 20.52 | 0.57 | 2.75 | 0.11 | 35.0 | |
| FS-6015MDA12B(S) | SLEEVE/BALL | 12 | 0.15 | 1.60 | 4000 | 18.10 | 0.51 | 2.31 | 0.09 | 32.0 | |
| FS-6015LDA12B(S) | SLEEVE/BALL | 12 | 0.11 | 1.32 | 3500 | 16.25 | 0.46 | 2.15 | 0.08 | 27.0 | |
| FS-6015HDA24B(S) | SLEEVE/BALL | 24 | 0.15 | 3.60 | 4500 | 20.52 | 0.57 | 2.75 | 0.11 | 35.0 | |
| FS-6015MDA24B(S) | SLEEVE/BALL | 24 | 0.10 | 2.40 | 4000 | 18.10 | 0.51 | 2.31 | 0.09 | 32.0 | |
| FS-6015LDA24B(S) | SLEEVE/BALL | 24 | 0.08 | 1.92 | 3500 | 16.25 | 0.46 | 2.15 | 0.08 | 27.0 | |
Packaging & Shipping

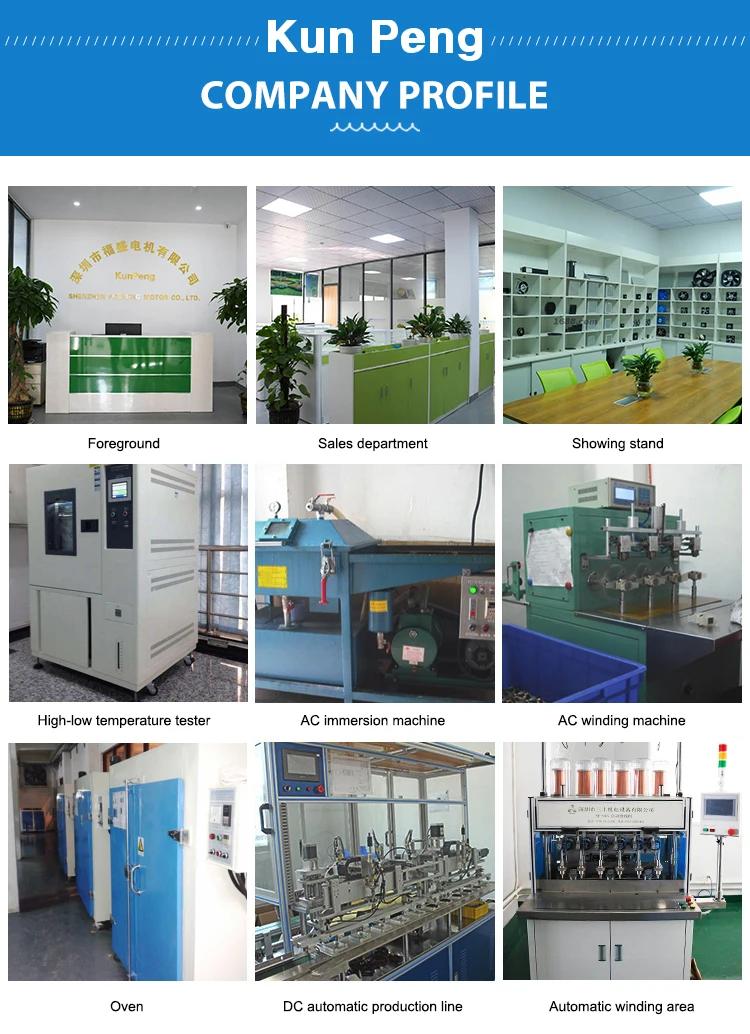

Company Information
