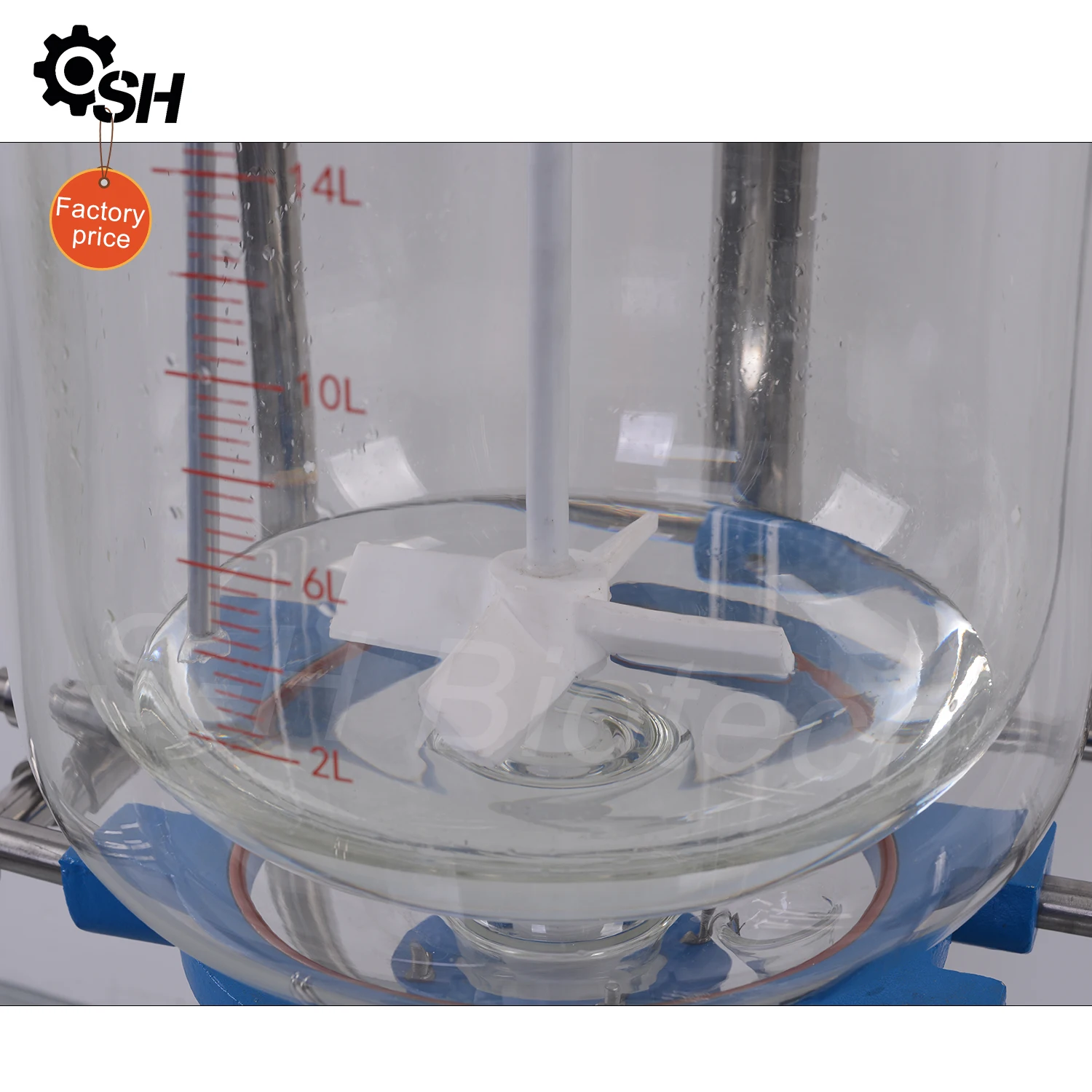

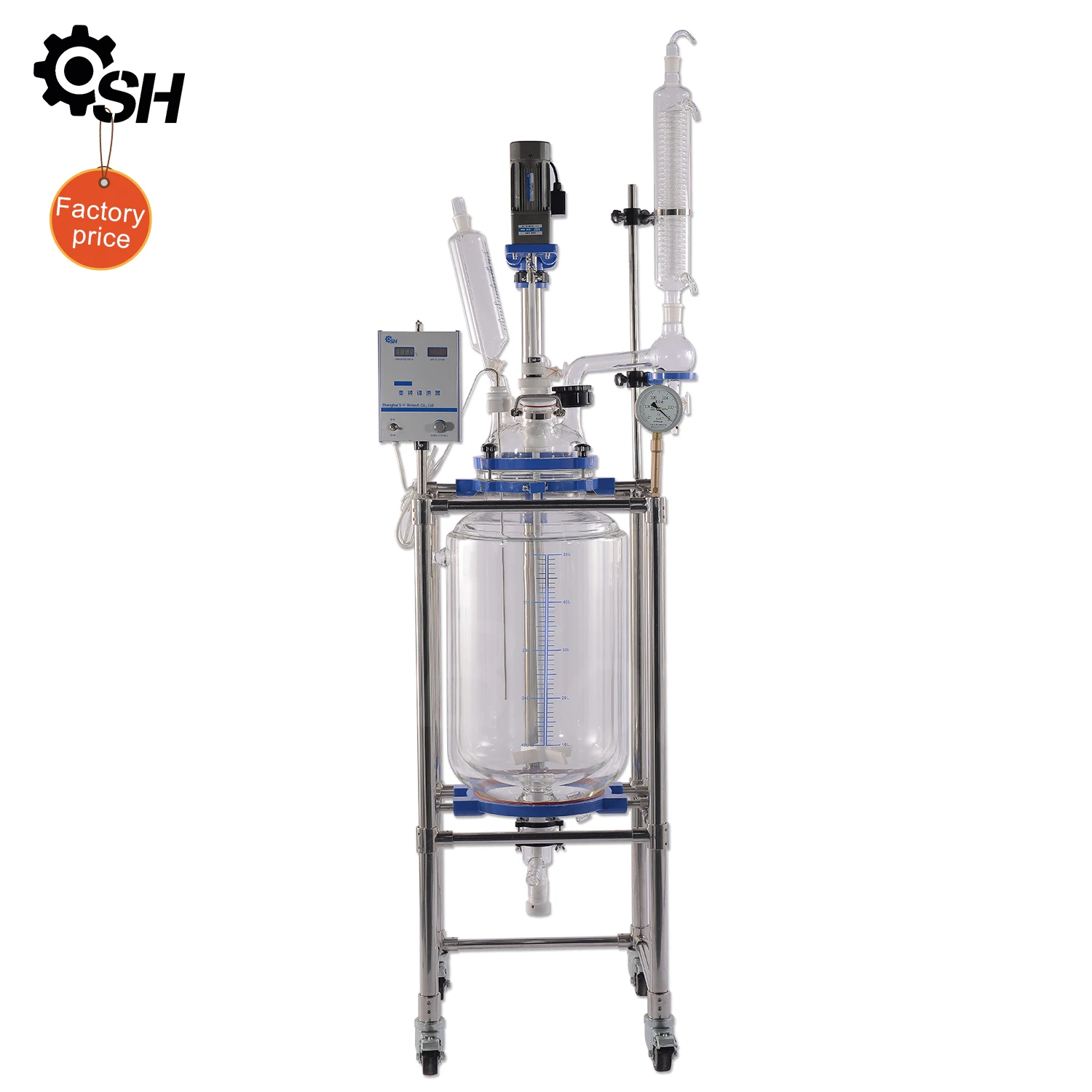

Hot Sale Anti Corrosion Industrial Chemical 50L Jacketed Glass Reactor
- Category: >>>
- Supplier: Shanghai Shenheng Biological Technology Co. Ltd.
Share on (1600549073927):
Product Overview
Description
| Model | S212-50L | |
| Reaction capacity | 5L~50L | |
| Jacketed volume | 16L | |
| *Voltage | 220V/50Hz[110V/60Hz optional] | |
| *Motor power | 120W (1:3) | |
| Rotating speed | 0-600rpm | |
| Controller | Temperature, speed LCD digital display, speed knob adjustment, with PT100 probe | |
| Control precision | ±1℃ | |
| Temperature range | -120℃~300℃ | |
| Working pressure | -0.1Mpa~0.1Mpa | |

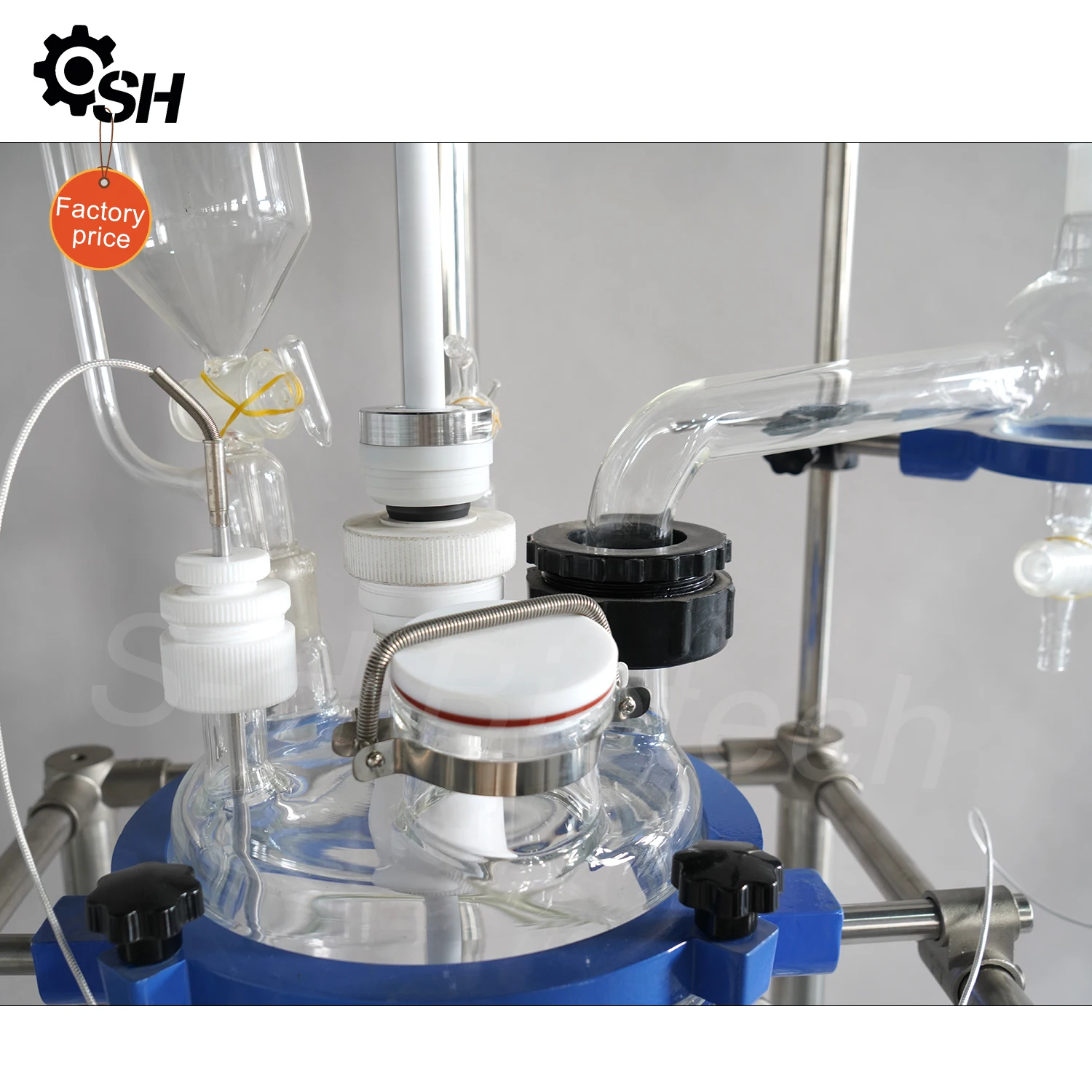

Kettle lid With *Six port | Material | Glass |
| Stirring | 50 Flange | |
| Reflux/Condenser | 50# ball-mill joint / 40# standard ground joint | |
| Drop funnel | 40# standard ground joint | |
| Liquid adding valve | 34# standard ground joint | |
| Thermometer tube | DN25 Flange | |
| Soild adding port | 80 Flange | |
| PTFE mixing seal | PTFE+Oil Seal+O-Ring+Bearing | |
| Condenser | Spherical condenser, 0.65 | |
| Reflux Head | 500ml | |
| Constant pressure drop funnel | 2L | |
| Multi-function manual valve | Used for adding liquid, venting air or filling nitrogen | |
| Thermometer tube | Stainless steel wrapped PTFE | |
| *Frame | SS304 | |

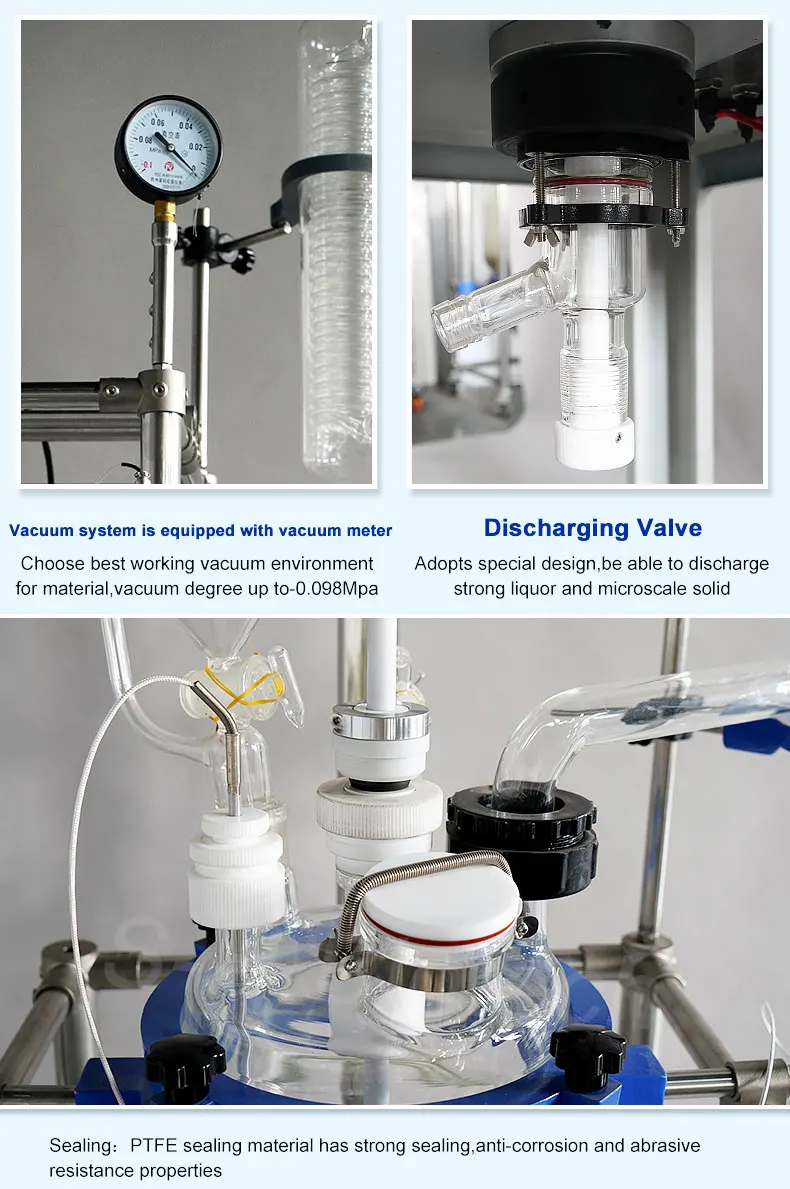

| *Discharge valve | PTFE; No blind Angle; ID23mm, OD32mm | |

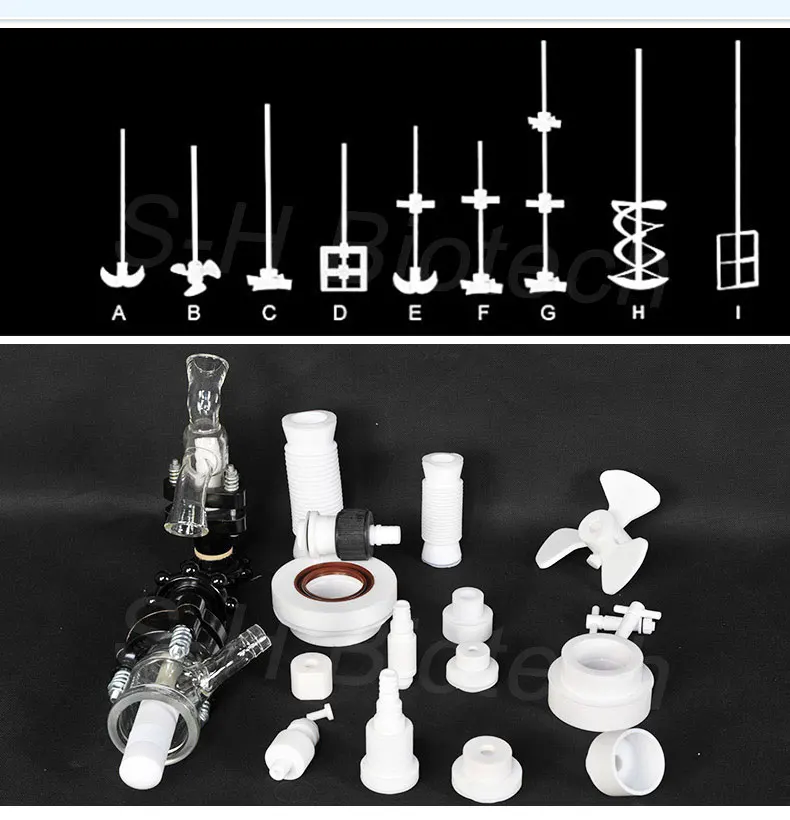

| *Stirrer blade type | PTFE, Four-blade, Double Layer | |
| Inlet/outlet oil port | DN25 Ball-mill Joint with 6‘ adapter | |
| Hexagon wrench | Some | |
| Machine size | 750L*700W*2450Hmm | |
| Remark: The parameters with"*"have more selectivity; Other parameters support customization | ||
