Intelligent Laundry Chemical Dispenser Peristaltic Pump
Intelligent Laundry Chemical Dispenser Peristaltic Pump
Intelligent Laundry Chemical Dispenser Peristaltic Pump
Intelligent Laundry Chemical Dispenser Peristaltic Pump
Intelligent Laundry Chemical Dispenser Peristaltic Pump
Intelligent Laundry Chemical Dispenser Peristaltic Pump
Intelligent Laundry Chemical Dispenser Peristaltic Pump

Intelligent Laundry Chemical Dispenser Peristaltic Pump

Share on (1600549079064):


Price:

Quantity:


Product Overview

Description

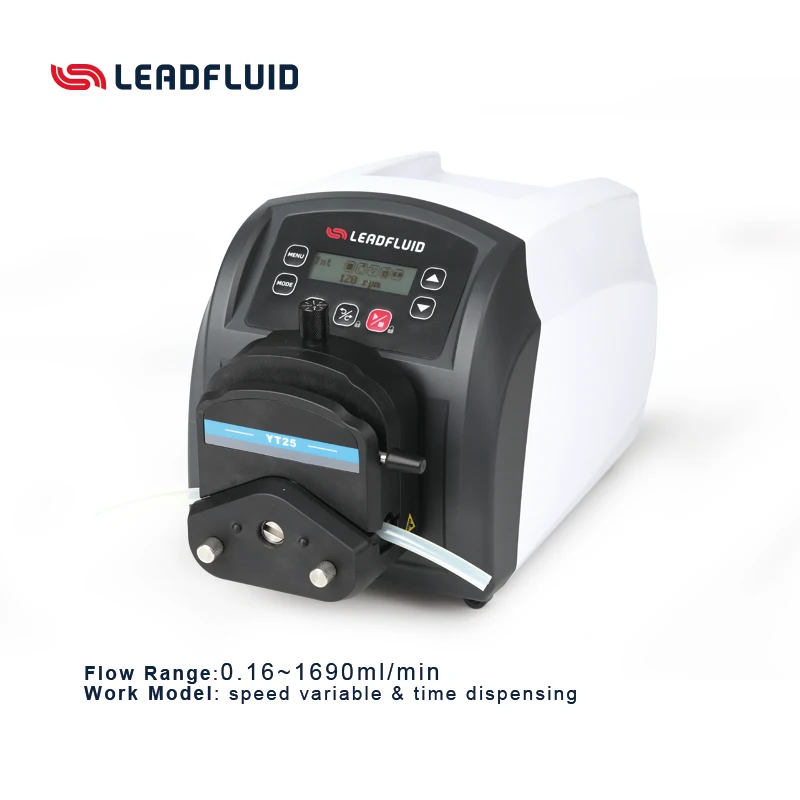

Lead Fluid BT301S-YT25 Speed Variable  Peristaltic Pump




Product Description


Flow Range
0.16～1690ml/min
Speed Range
0.1~350rpm
Application
Mainly applicable to liquid transmission requiring accurate speed control

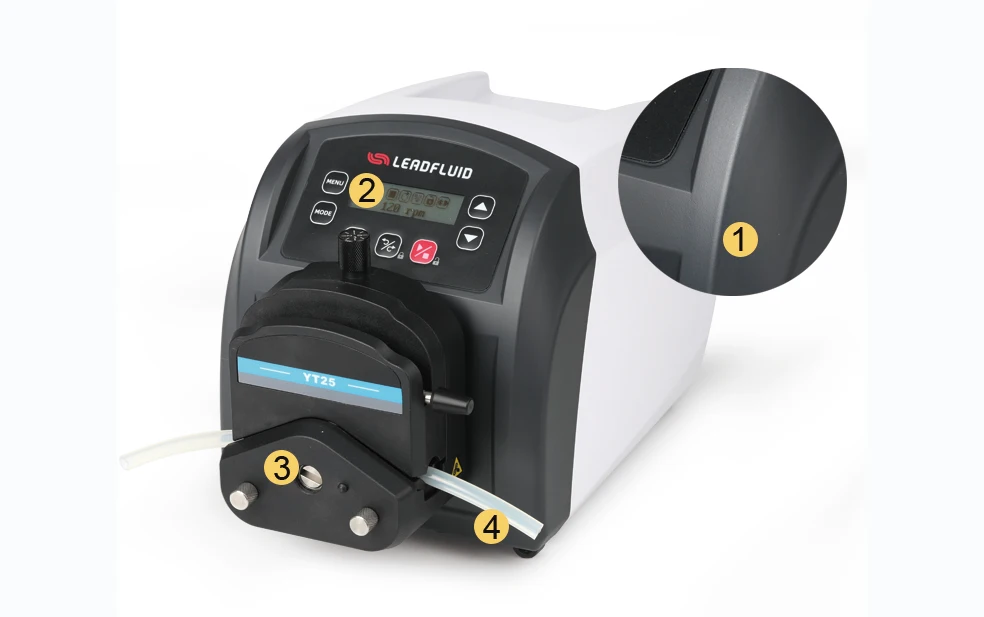

①Pump shell:ABS plastic shell, creative streamlined appearance, beautiful and simple.
②Color LCD display:easy to read and operate touch screen,even wearing gloves
③YT25 mode pump head: With self-adapting clamping device, it is easy to clamp tubes of different thicknesses without manual adjustment.
④Pump tube:the tube can be replaced with different materials according to the transmitted liquid, such as silicone tubes, chemical tubes etc.




①RS232 connector ② DB15 external control interface ③Power switch ④Power line connector ⑤Cooling fan


Functions and Features


The operator can input the speed directly, simple operation, the operating interface is intuitive.
Time dispensing function, it realizes the repeat timing quantitative dispensing without the time controller.


●Display and control flow rate, accumulate dispensing volume automatically.
●Automatically store five groups of working parameters.
●Calibration function, easy to operate.


Quite peristaltic pump
Drip proof
Wifi function


High precision motor
Super anti-interference
Widely used


Application Show






Specification


Brand Name
Lead Fluid
Model Number
BT301S-YT25
Channel
One
Voltage
AC100-240V,50Hz/60Hz
Power
40W
Flow
0.16～1690ml/min
Rotation Speed
0.1-350rpm
Display
LED +key pad
Speed accuracy
＜±0.5%
Tubing
15#24#35#36#
External control
external input level5V,12V(standard),25V(optional)External control analog 0-5V(Standard),
0-10V,4-20mA（Optional）
Communication interface
RS485 communication interface, MODBUS protocol is available
Working environment
Temperature 0 ～ 40℃, relative humidity＜80%
IP grade
IP31
Dimension
257(L)*180(W)*197(H)mm
Weight
4.7KG


Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.




Related Products

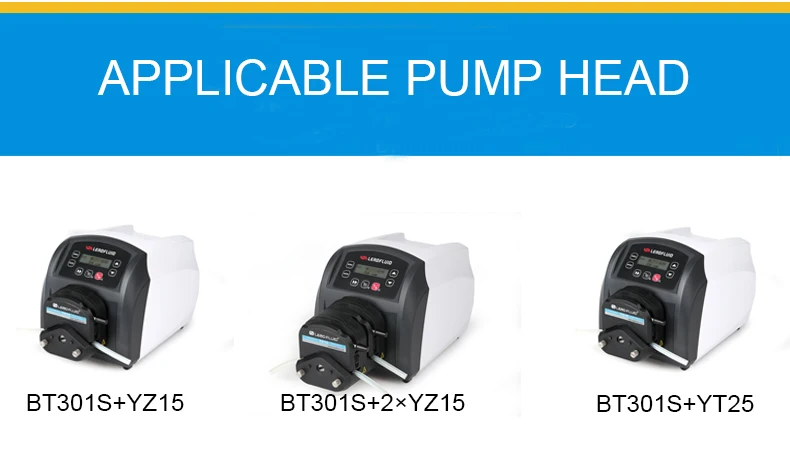

BT301S Pump Drive With Different Pump Head


Drive type
Pump Head
Channel
Tube（mm）
Flow Rate Per Channel （mL/Min）


BT301S
YZ15
1
13#14#19#16#25#17#18#
0.006～1300

2×YZ15
2
13#14#19#16#25#17#
0.006～900

YT25
1
15#24#35#36#
0.16～1690






Company Profile




Baoding Lead Fluid Technology Co., Ltd. was founded in October 1999. It mainly engaged in R&D, production and the sale of peristaltic pumps, laboratory syringe pumps, micro syringe pumps, precision gear pumps and related accessories, and is committed to continuously providing users with competitive micro Fluid transmission solutions and services.


How About The Advantage About Lead Fluid Company?


● 23 years experience for peristaltic pump, syringe pump ,gear pump ,ODM pump production.
● 20000㎡ factory with 175 workers.
● 1000 ㎡ testing lab and perfect testing system ensure reliable design and stable batch production.
● 40 R & D workers ensure continuous technological innovation and provide you with perfect fluid solutions
● Strong anti-interference design, working in complex industrial environment, more reliable quality.
● Strict ISO9000 quality management system + 6S management.
● Automatic testing equipment to ensure product consistency.
● Important accessories are purchased directly by large international manufacturers to ensure quality.
● The whole product process can be traced, including raw materials, assembly, inspection and logistics.
● Lead Fluid pumps has passed the CE certification of RoHS, reach, EMC, LVD and other directives, and the hose meets the GMP standard.










FAQ


Q:What is the minimum order?
A: The MOQ as 1 piece.

Q:What payment methods your company accept?
A:We accept most often payment methods,but mainly accept T/T,L/C,Western Union.

Q:How long is the warranty time for your products?
A:Our official warranty time is one year for quality problems.And if you have any questions,our after-sales department will offer the best service for you in time.

Q:Do you offer any discount?
A:We will try our best to help you get the best price and good service at the same time,welcome to contact us.

Q:Do you offer custom service?
A:yes, we have R & D department,they will offer suitable liquid transfer solution for you, welcome to send us your details requires.
