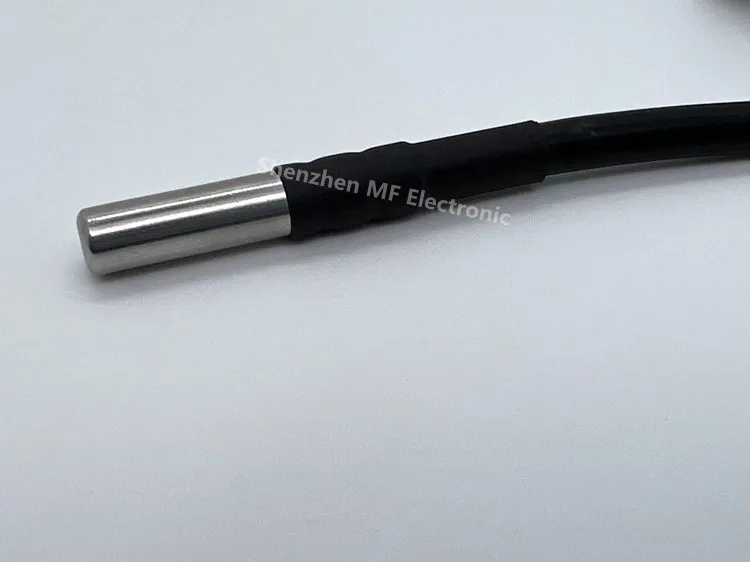

High Quality Smart Digital Waterproof Moisture proof IoT DS18B20 Temperature Sensor For Cold Storage Temperature Monitoring

Product Overview

Description

High Quality Industrial Smart IoT DS18B20 Temperature Sensor (Support Customized)

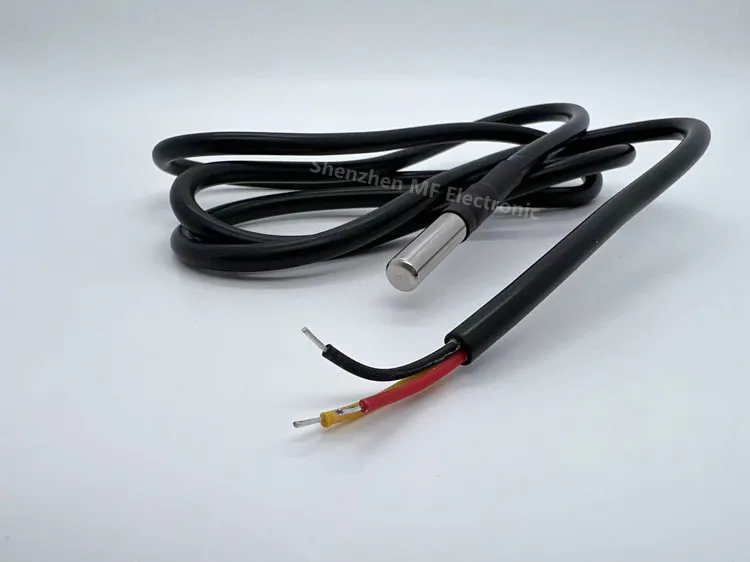

The sensor DS18B20 is potted with a high thermal conductivity sealant, which ensures the high sensitivity of the temperature sensor and minimal temperature delay. Each pin of the chip is separated by a heat shrink tube to prevent short circuits, and the internal sealant is waterproof and moisture-proof! Optional shielded wire is used to enhance anti-interference, the measurement temperature range is -55°C to +125°C, and the accuracy is ±0.5°C within the range of -10 to +85°C. The field temperature is directly transmitted in the digital mode of "one-line bus", which greatly improves the anti-interference of the system. Field temperature measurement suitable for harsh environments. DS18B20 digital temperature sensors all have unique numbers, and the temperature acquisition device identifies the corresponding temperature sensor through the number. The lead length of the sensor can be customized according to user needs.







Application range:

1. Cold storage temperature monitoring

2. Pharmaceutical factory GMP monitoring system

3. Telecom room monitoring

4. Beer production

5. Building automation

6. Warehouse temperature monitoring

7. Environmental monitoring

8. Process temperature monitoring

9. Air conditioning monitoring

10. Incubation temperature control

11 , Breeding industry temperature measurement

12. Greenhouse temperature monitoring

13. Household refrigerator

14. Heat sink temperature monitoring



Features:

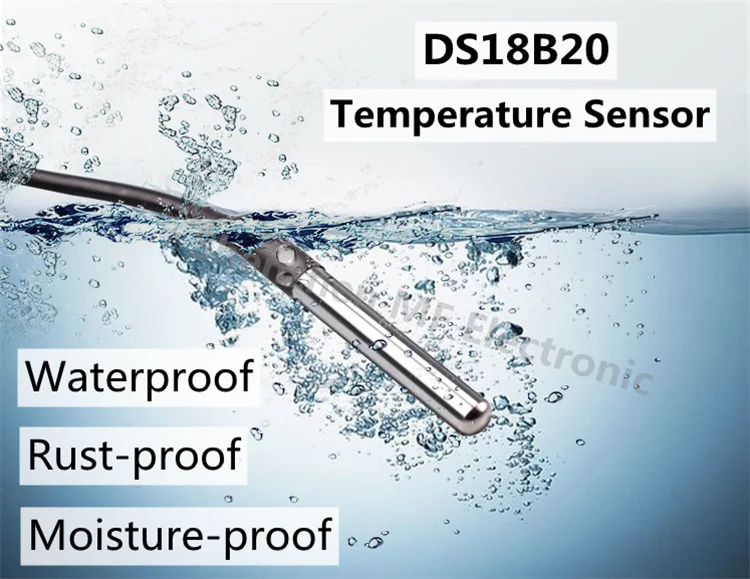

* 304 stainless steel casing, waterproof, moisture-proof and rust-proof

* Each probe is rigorously tested before leaving the factory

* 3.0V~5.5V power supply

* 9~12 bits adjustable resolution

* Wide temperature range -55℃~+125℃

* No external components required, unique single bus interface

* Withstand voltage performance: 1800V AC, 5s, 0.5mA without breakdown







Model Number	DS18B20 temperature sensor
Stainless steel case	6*50mm

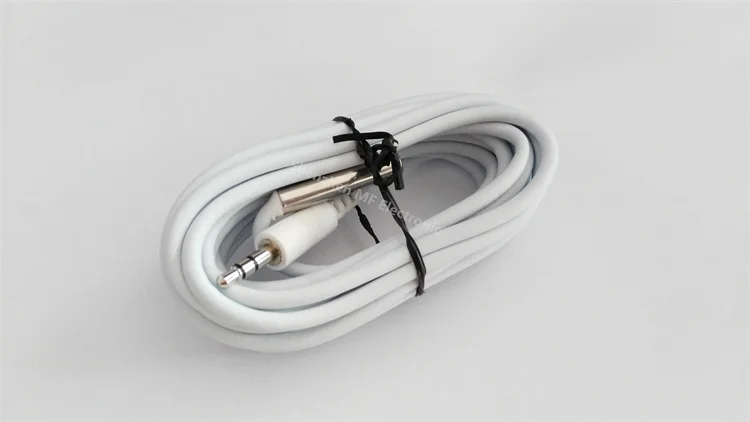

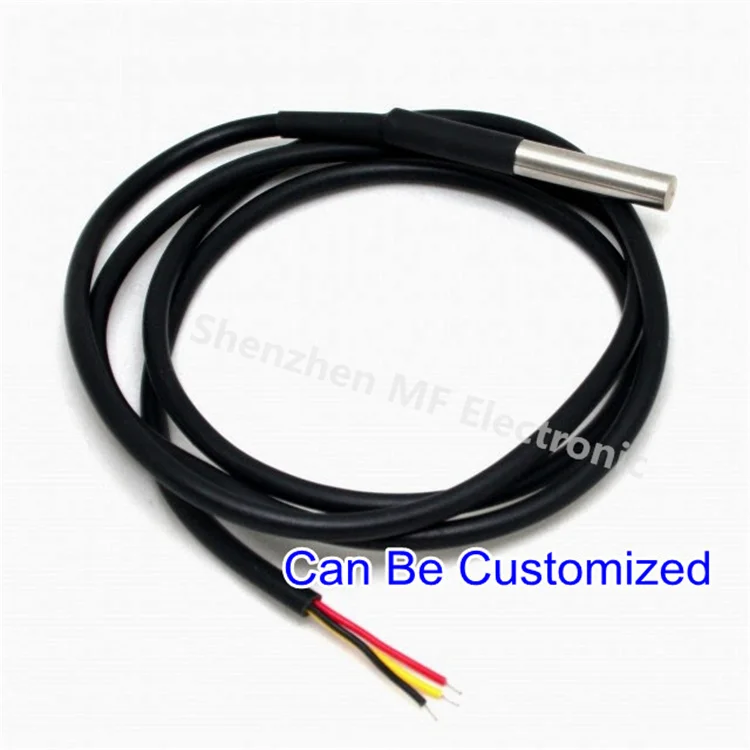

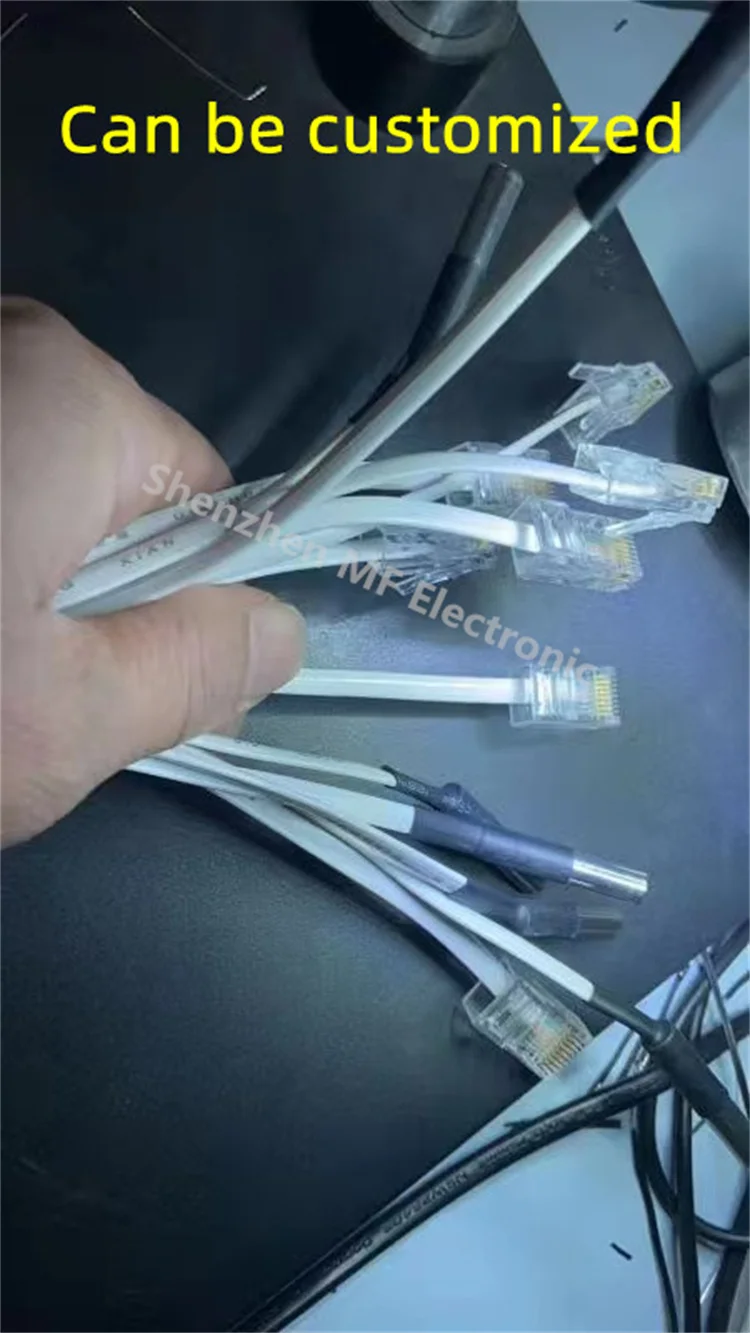

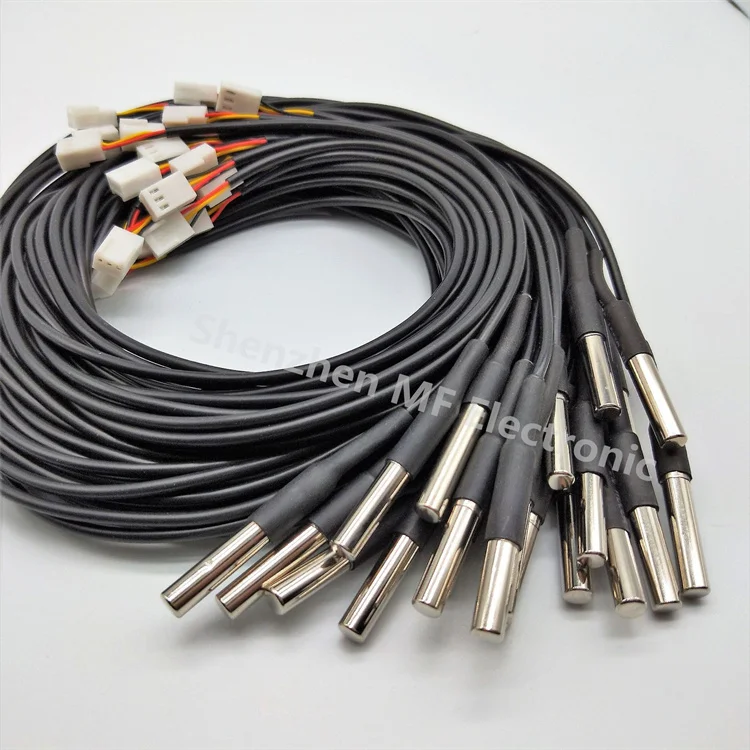

Wire Length	1m or 2m (or customized)
Power Supply	3.0~5.5V
Adjustable Resolution	9-12 bits
Operating temperature	(-55°C to +125°C ) (-67°F to +257°F)
