PY CH modern medical blood donor beds, electronic nursing bed for sale

Product Overview

Description

l  Main Structure

Electric dialysis bed PY-CH integrates many functions, such as sitting, lying, tilting and reclining. Various positions can be easily realized by adjusting the buttons to meet users' different requirements.





l Main Product Features

Ø Multi-position adjustment. Adjusting backrest,legrest by Danmark Linak medical motors. Also, back-knee position and trendelenburg position are available.

Ø Humanized design: thoughtful design, fresh color, effectively reduce the tension of patients.

Ø The buttons of hand control is simple, intuitive and easy to operate.

Ø International brand silent 24V dc push rod motor, work stably, safe and reliable.

Ø Long - term continuous working system.

Ø 10 years of life design, reduce the cost of maintenance and replacement.

Ø Ultra-low energy consumption, using less than 0.12 degrees per day.

Ø The chair cushion is made of high density sponge, the elasticity is moderate, sitting and lying for a long time will not cause postural strain; PVC leather is durable, luxurious and comfortable.

Ø Equipped with Germany brand of caster device, universal and brake multi-speed adjustable, one person can easily operate



l Specification

Model	PY-CH
Total Length	2000 mm±20mm
Total Width including armrests	770 mm±20mm
Seat Width	680 mm±20mm
Backrest lenght	740 mm±20mm
Seat and Legrest lenght	1060mm±20mm
Seat height	Seat to the ground: 530mm±20mm
Guardrail lenght	1075mm±20mm
Height of Guardrail and seat	235mm±20mm
HPL board Width	740mm±20mm
Height between HPL board and cushion	300mm±20mm
Castor	4xφ100mm castor with separate brake
Pillow	400 mm×230 mm×80 mm±20mm
Safe Maximun Load	240 KGS
Weight	84 KGS±3KGS
Food table maximum load	10 KGS
Backrest Adjustment	(-12° ~ 75°)±3°
Legrest Adjustment	(-35° ~ 12°)±3°
Leather	PVC leather
Cushion	Sponge
Frame	Q235 steel
Power Supply	AC100V-240V  50/60Hz
Input Power	140~180W
Motor	3
Storage environment	Temperature: -20℃~60℃,relative humidity: 10%~85%
Operation environment	Temperature: 0℃~35℃,relative humidity: 10%~85%

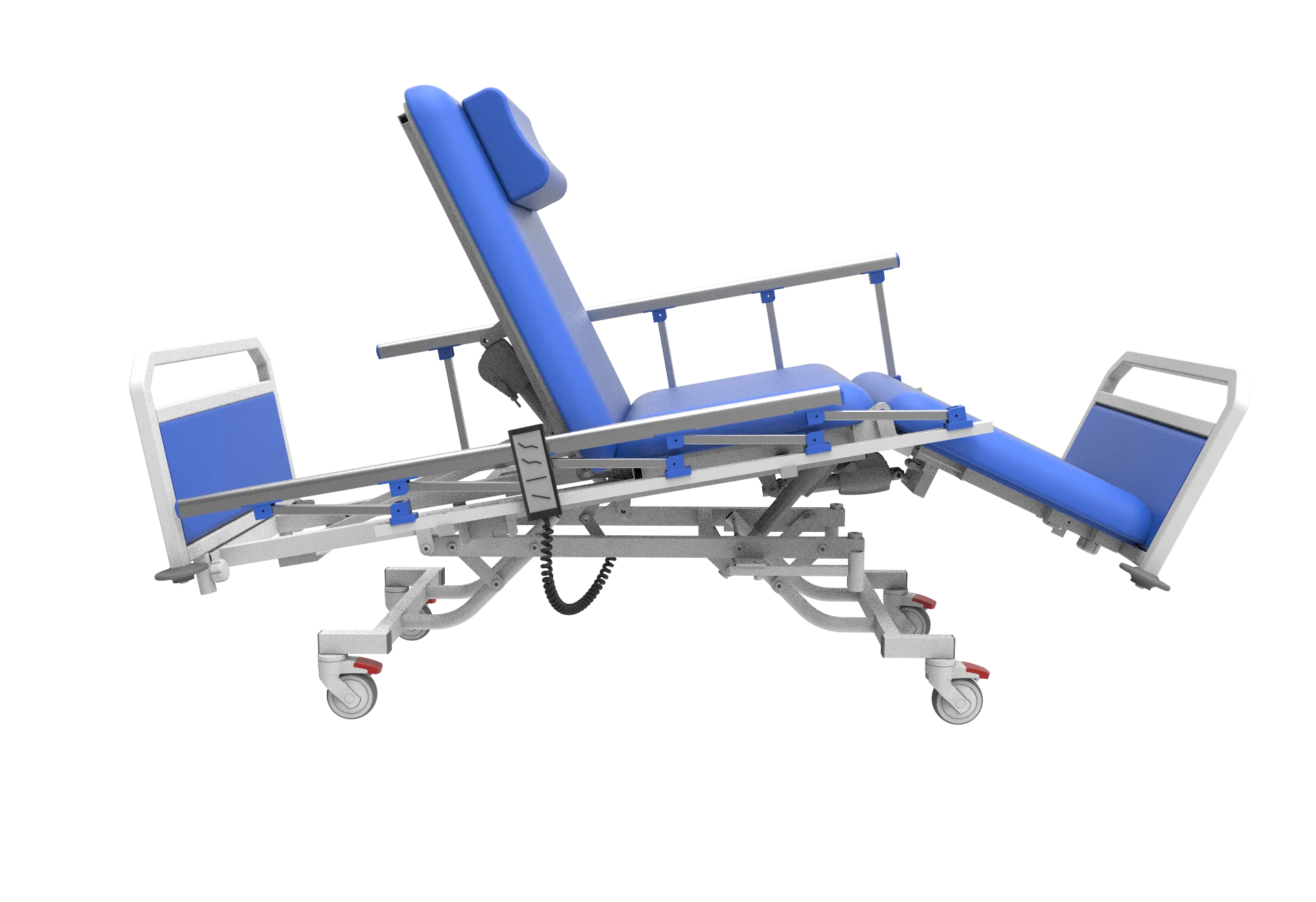

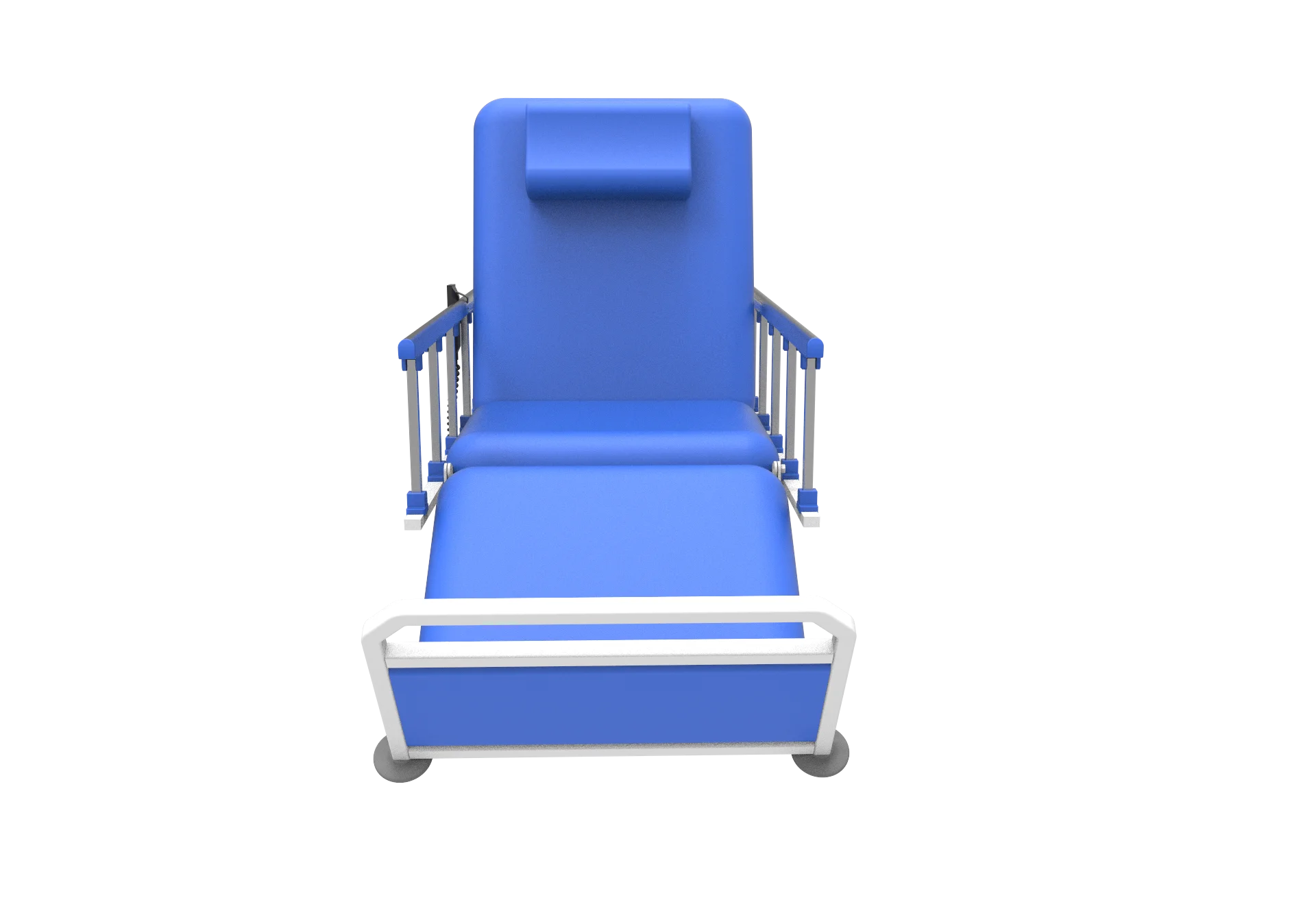

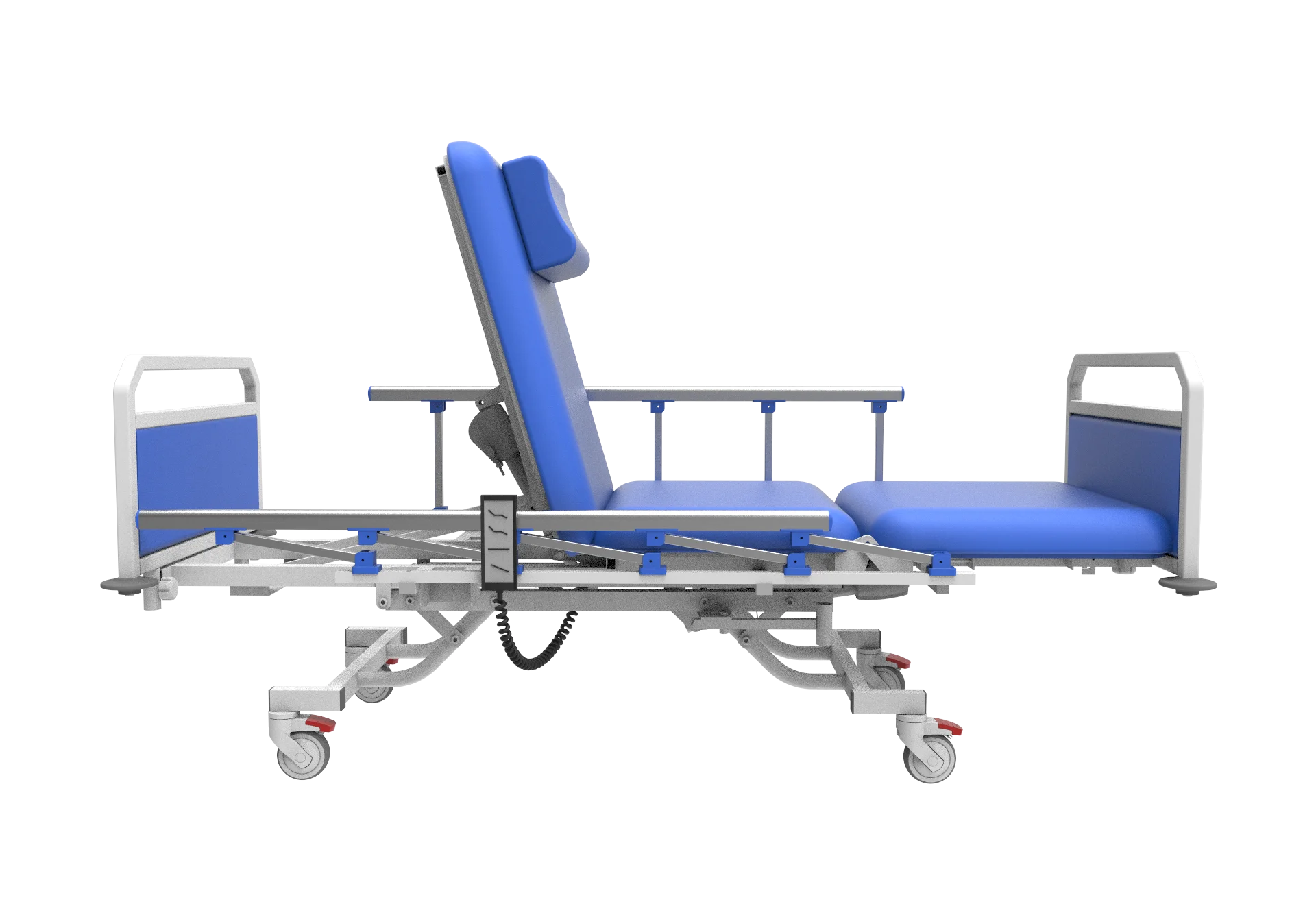

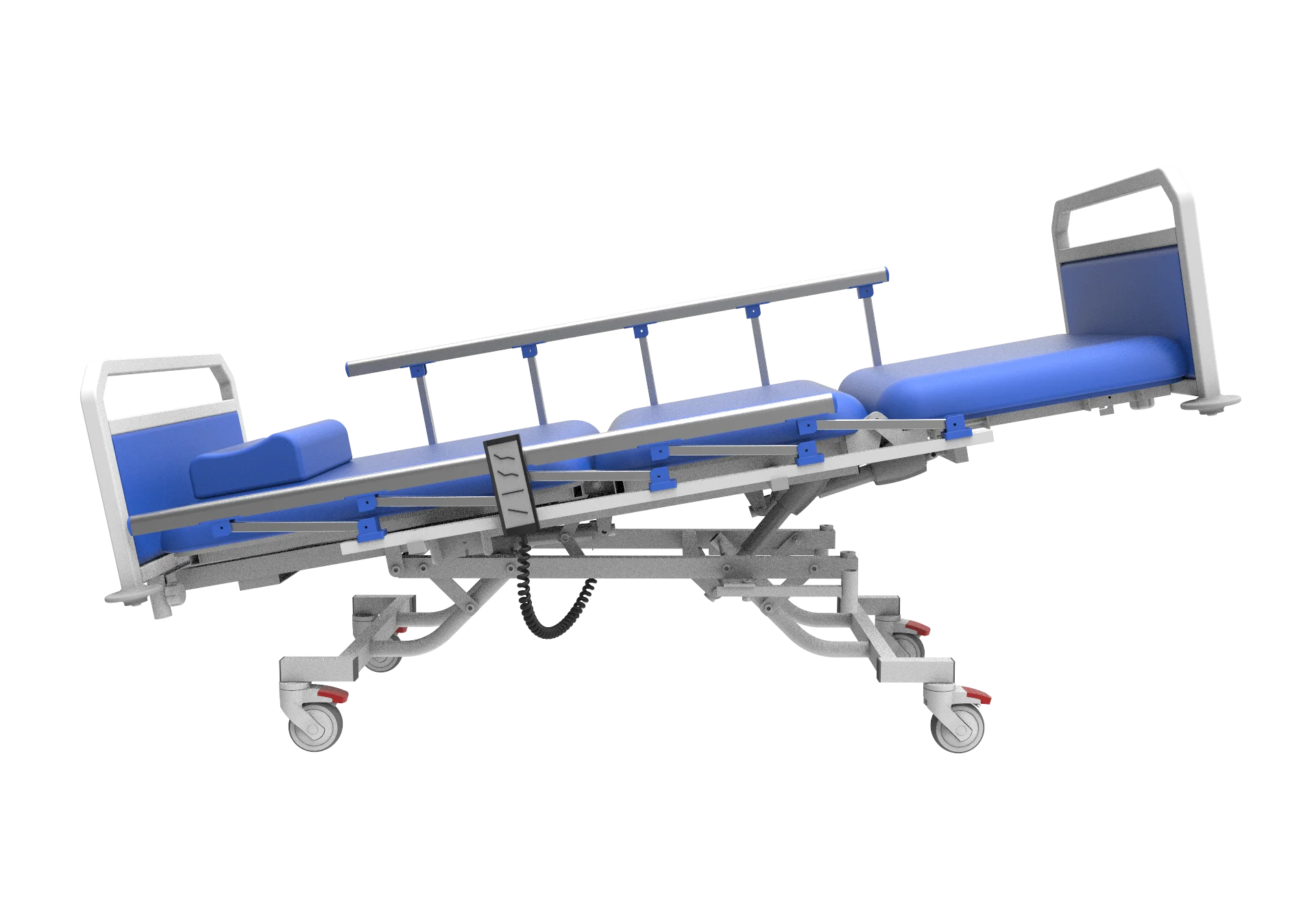

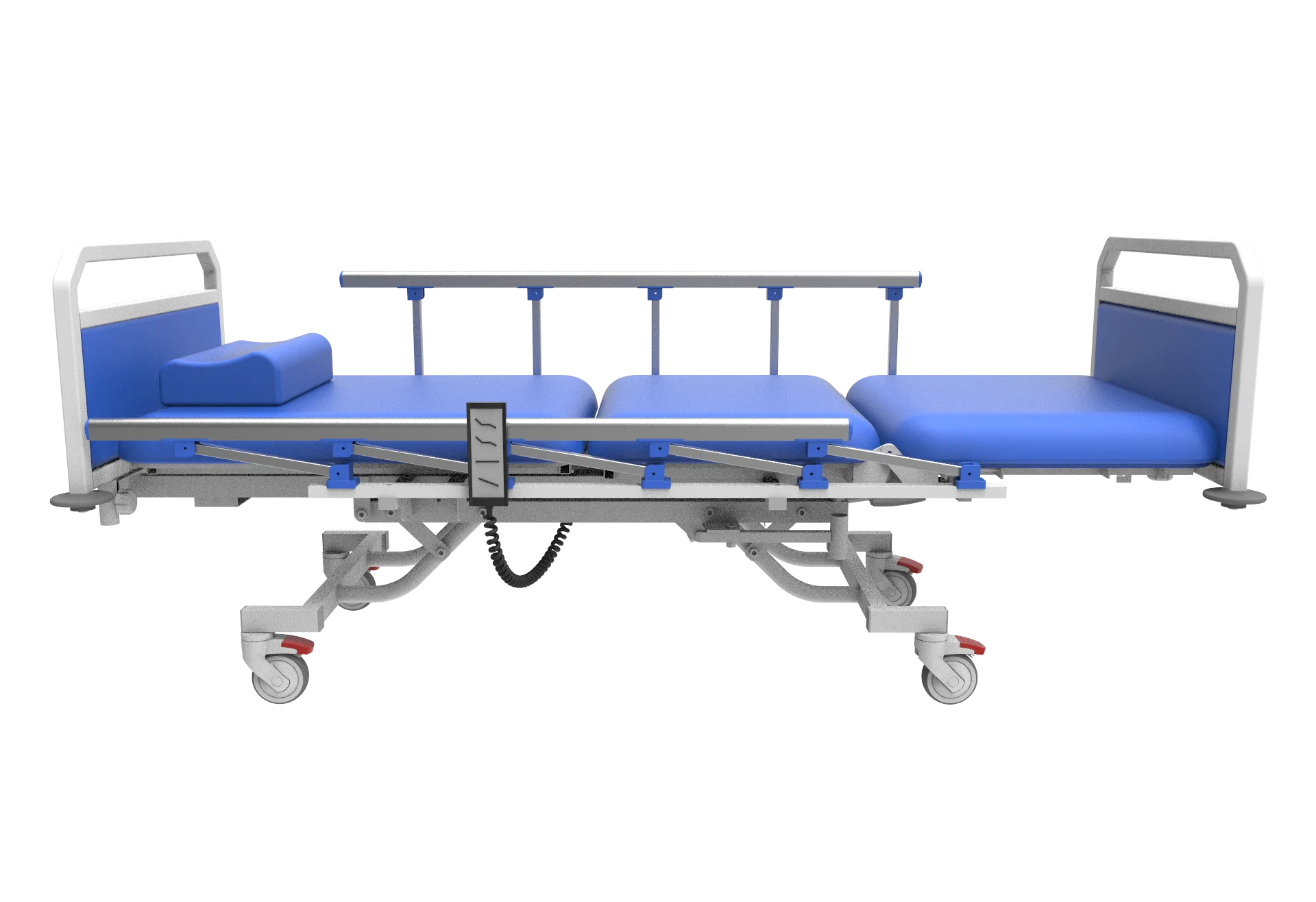

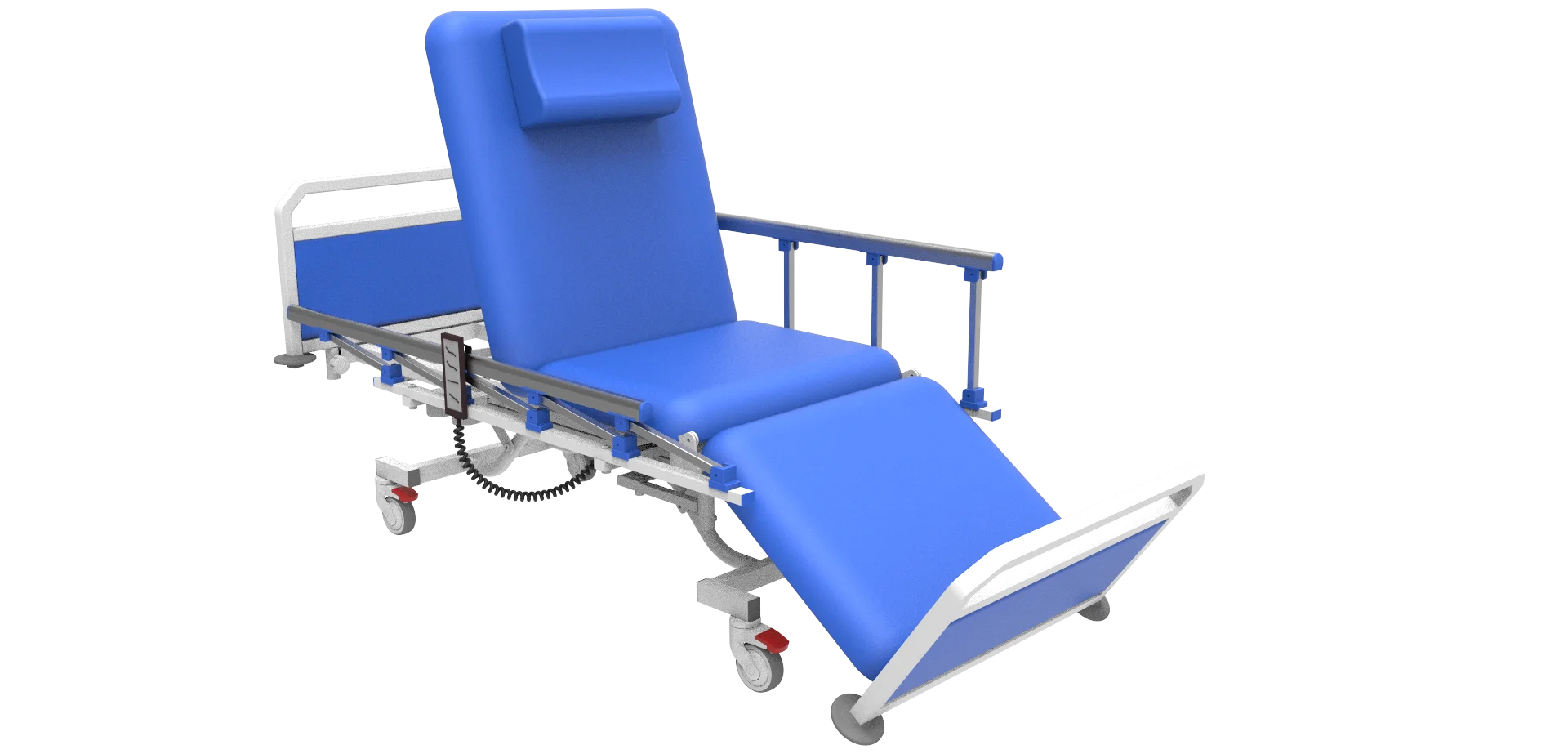

Product pictures
