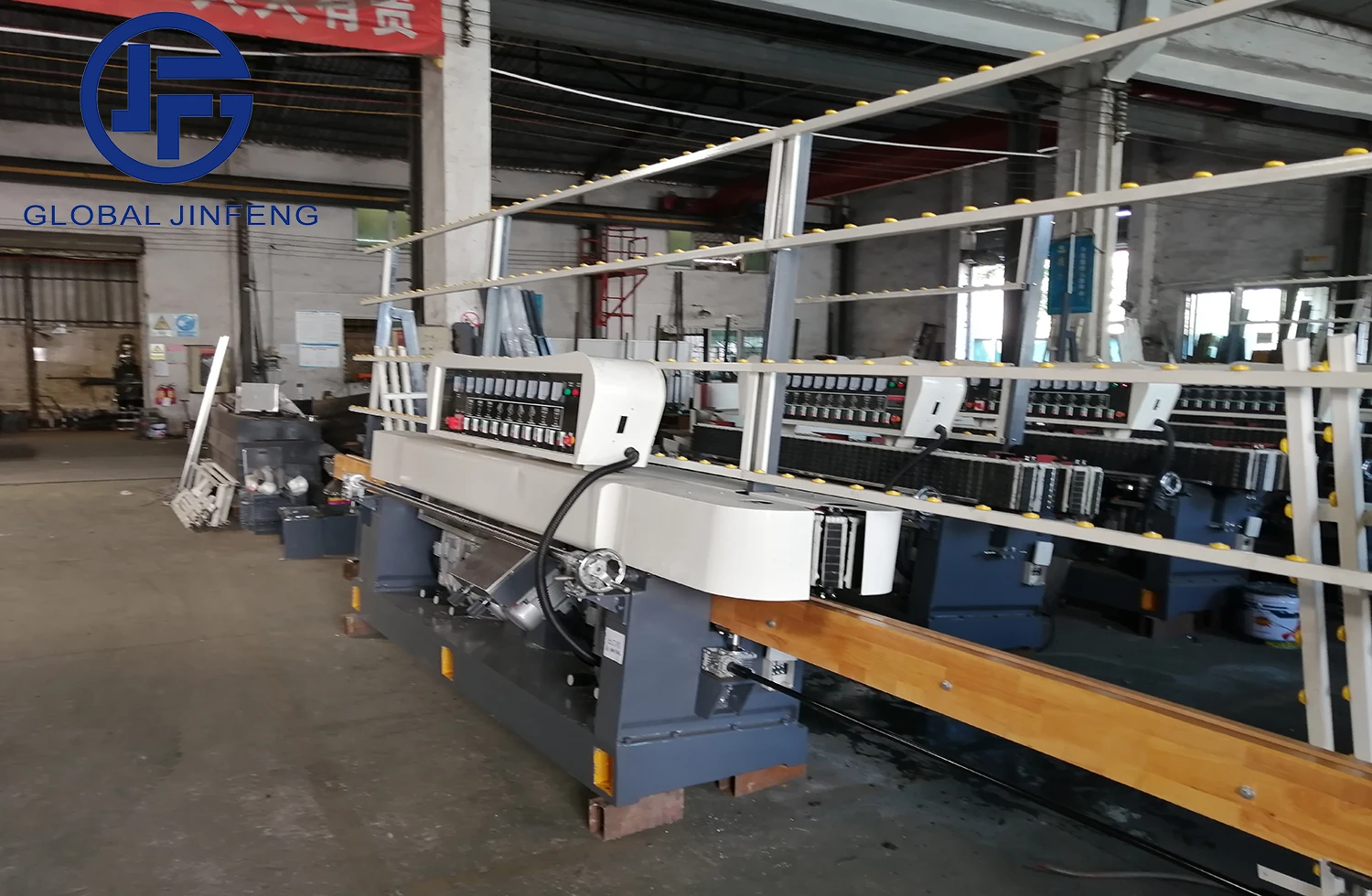

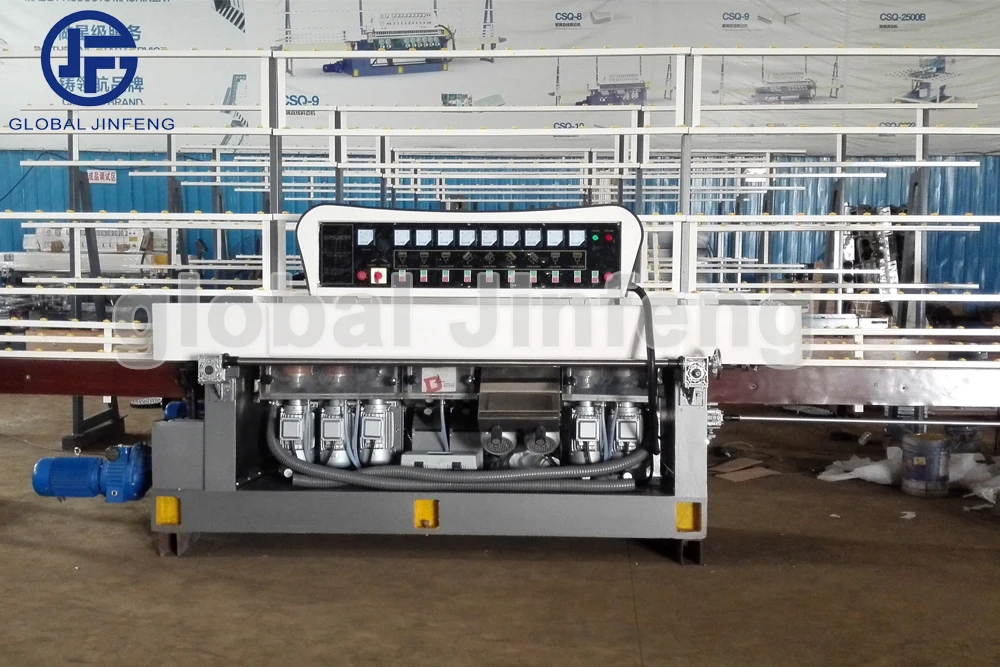

JFE 9243 9 motor Glass polishing machine digital vertical glass straight line edging machine
JFE-9243 9 motor Glass polishing machine digital vertical glass straight line edging machine
JFE-9243 9 motor Glass polishing machine digital vertical glass straight line edging machine
JFE-9243 9 motor Glass polishing machine digital vertical glass straight line edging machine
JFE-9243 9 motor Glass polishing machine digital vertical glass straight line edging machine
JFE-9243 9 motor Glass polishing machine digital vertical glass straight line edging machine
JFE-9243 9 motor Glass polishing machine digital vertical glass straight line edging machine

JFE 9243 9 motor Glass polishing machine digital vertical glass straight line edging machine

Share on (1600549115673):


Price:$8,800.00 - $9,200.00

Quantity:


Product Overview

Description



Product details



            Glass straight line edge machine is suitable for grinding the straight edges and chamfer angle of flat glass of different sizes and thicknesses. Rough grinding, fine grinding and polishing can be finished in one time. It adopts mechanical stepless speed regulation with large adjustable range and stable shifting speed, which can change the feeding speed during the grinding process.


Max. Glass size
1500x2000mm
Min. Glass size
100x100mm
Glass thickness
3mm-25mm
Transmission speed
0.5-6m/min
Power
7.7Kw
Weight
800kg
Land occupation
3000x1000x1700mm

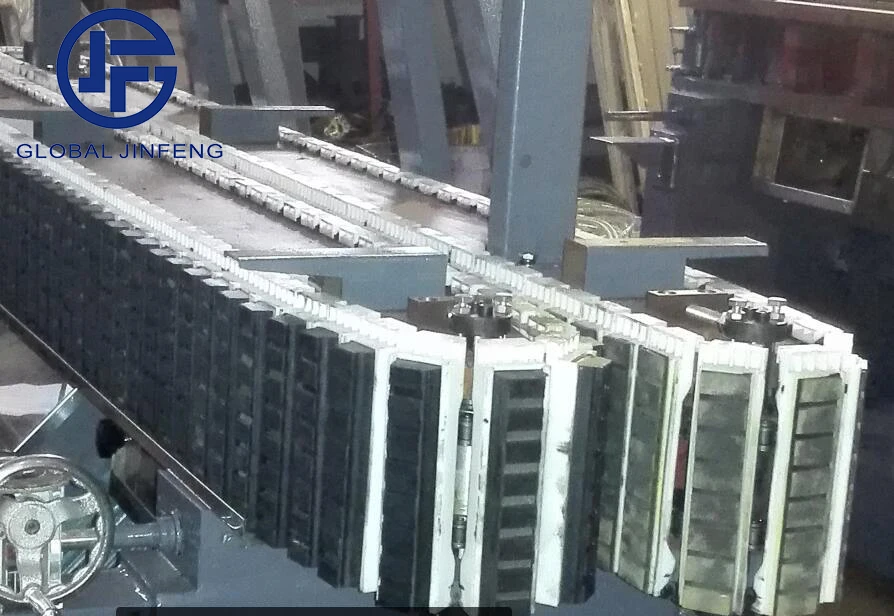

         Three stages of rotation: the independent conveyor chian at the input end and the output end, and a front and rear pad in the middle. The front pad is thicker, there are 100pcs; The rear pad is thin, with 102pcs; Plastic material is used for conventional machines.The pads are linked into chains, there are 4 in total, 2 on the front and the back

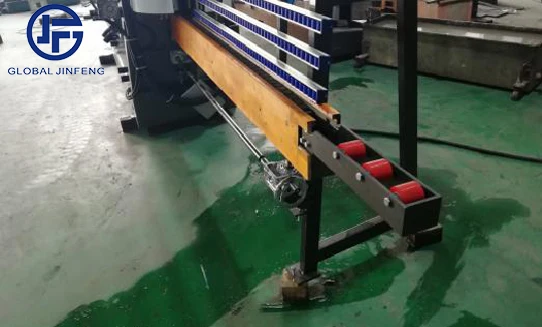

The input can adjust the overall lifting height by adding and manually adjusting the screw.When the input belt is adjusted downward, the amount of grinding will increase. Using this method to adjust the amount of grinding will be more convenient than adjusting the height of the wheels.



Synchronous belt drive: relatively expensive, if the synchronous belt is damaged, it needs to be replaced as a whole.



Specification


item
value
Applicable Industries
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction works
Showroom Location
Philippines, Mexico
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
Ordinary Product
Warranty of core components
1 Year
Core Components
Motor, Gear
Condition
New
Production Capacity
0.5-5m/min
Place of Origin
Guangdong，China
Brand Name
GLOBAL JINFENG
Voltage
380V/220/415/480V
Power
20KW
Dimension(L*W*H)
6500x1500x2200mm
Weight
2700kg
Warranty
1 Year
Key Selling Points
Easy to Operate
Model
JFE-9243 glass straight line edging machine
Motor quantity
9 pcs
Max glass width
2000mm
Min glass size
100x100mm
Weight
2700KG
Glass thickness
3-25mm
Working speed
0.5-5m/min
Package
Wrap film or plywood box
Voltage
380V/220/415/480V
Certification
CE and so on

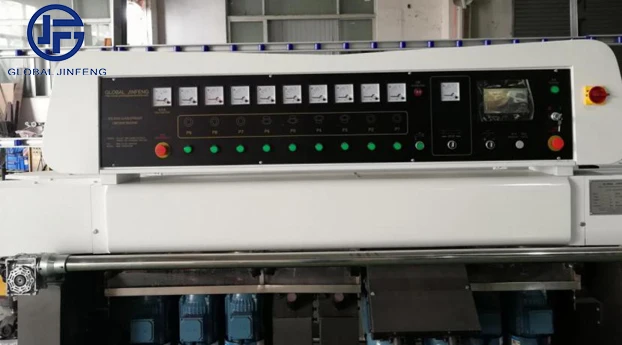

Classification by control panel


Common Control Panel
PLC Control Panel

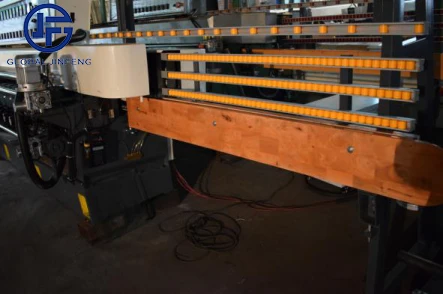

Wheel track is suitable for larger size glass, and its price is relatively favorable.

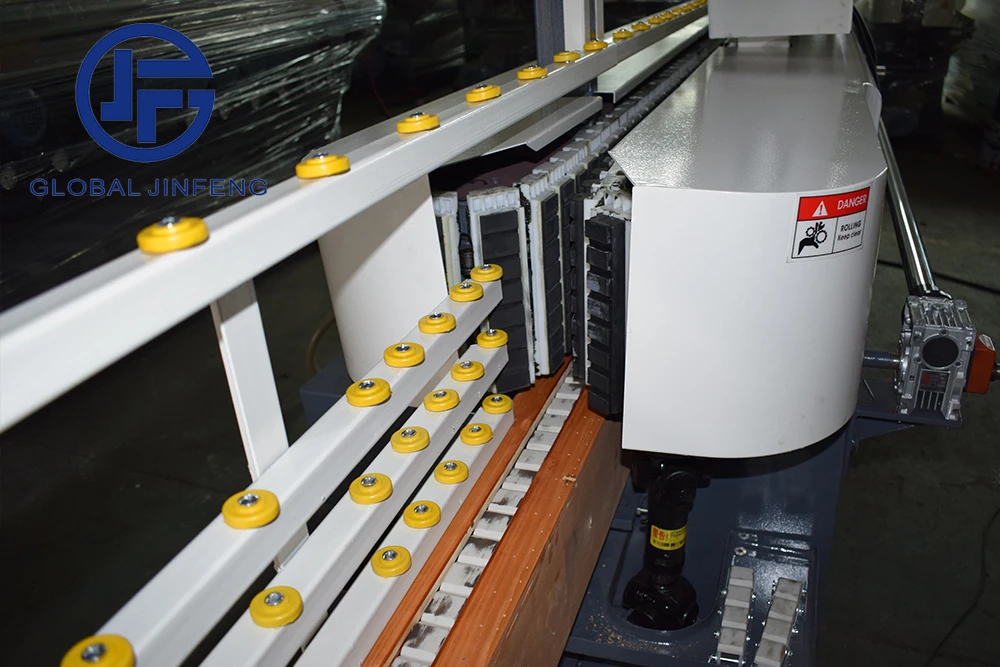

Roller track assists the belt to transport the glass. The lower roller is denser (it is convenient to transport small glass), and the upper roller is relatively sparse.

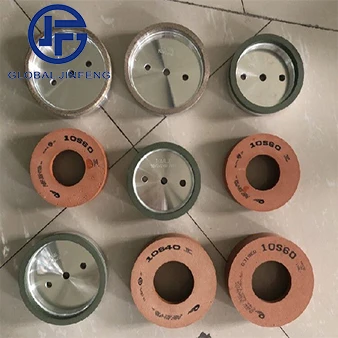

Product accessories


Item
Size
Pos.1 Diamond wheel
150x12x8x8mm
Pos.2 Diamond wheel
150x12x8x8mm
Pos.3 Resin wheel(Chamfer)
130x12x10x10mm
Pos.4 DLD Wheel
(Chamfer)
130x60x35mm 10S60
Pos.5 Resin wheel(Chamfer)
130x12x10x10mm
Pos.6 DLD Wheel
(Chamfer)
130x60x35 10S60(Made in China)
Pos.7 Resin wheel
150x12x10x10mm
Pos.8 DLD Wheel
150x70x40mm 10S40(Made in China)
Pos.9 DLD Wheel
150x70x40mm 10S60(import)


Aluminum plate
Numerical counter
Aluminum block

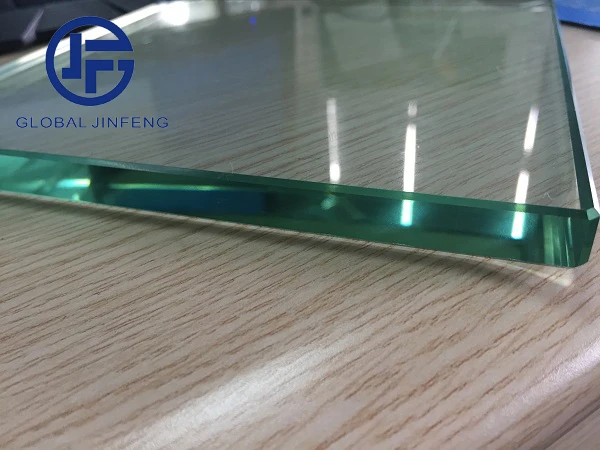

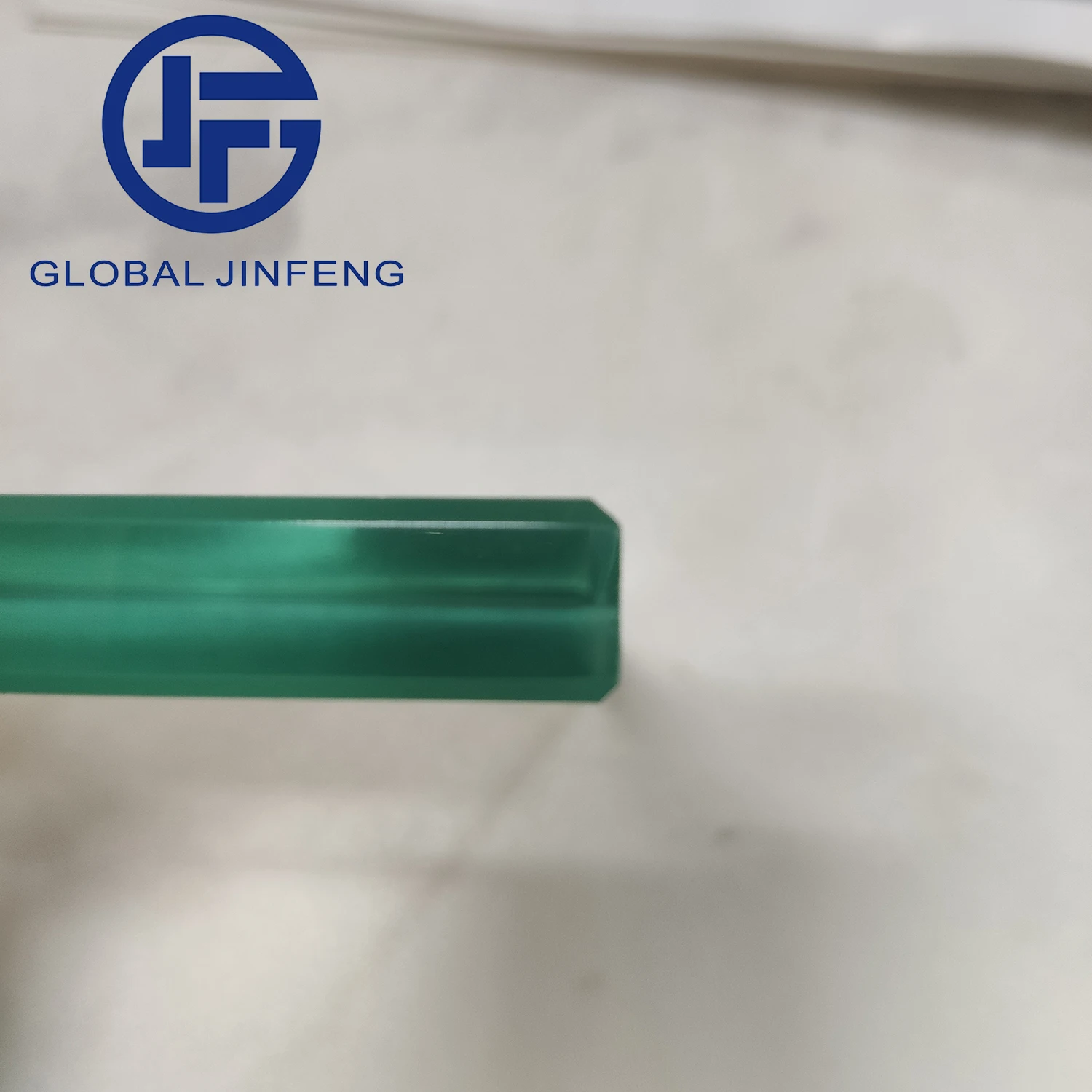

Glass effect




Product packaging


Wrap Film
Plywood case


Company Profile






Global Jinfeng Machinery Co, Ltd. which located in Foshan City with convenient transportation access and close to Shenzhen and Hongkong seaport. we are a professional company engaged in the research, development, sale and service of Glass Edge Grinder Machine, Glass Cutting Machine, Glass Washing Machine, Glass Drilling Machine, Glass Tempering Furnace. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. Many machines can be produced according to customer requirements, O E M and O D M orders are accepted. In additional, we have our research team continuously developing our machines according to customer demand. All machine obtained C E certificate, meet European standard, with quality products and professional after sale service, our company enjoy high reputation among customers. Our machines mainly export to Europe, USA, South America, Middle East, Southeast Asia North Africa. Whether selecting a current product from our catalog or need some technical assistance, you could talk to us freely. We insist on the policy that Customer first, Quality assurance, People-oriented and professional thoughtful customer service. And dedicated to keep on improving, designing the first-class machines to meet customer's demand. Any questions or demand please feel free to contact us warmly welcome to be our sale agency and visit our company at any time. Welcome to visit our company and wish to cooperate with you.


Exhibition


Beijing Exhibition
Mexico Exhibition
India Exhibition

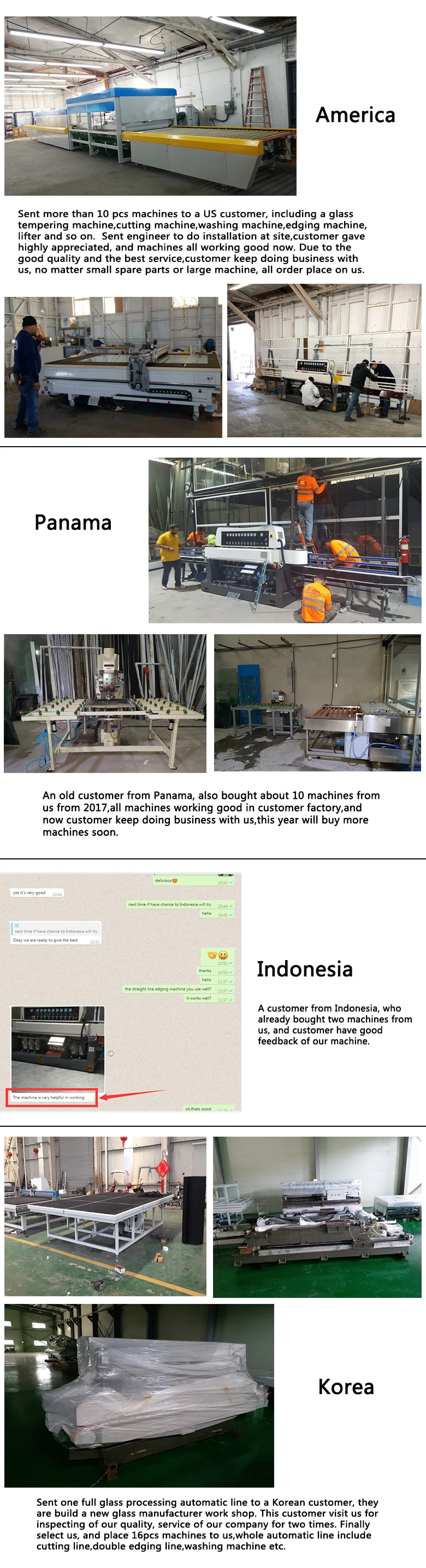

Factory feedback from customers




FAQ


1. who are we?
We are based in Guangdong, China, start from 2018,sell to Central America(17.00%),North America(15.00%),South America(15.00%),South Asia(15.00%),Northern Europe(7.00%),Oceania(6.00%),Eastern Europe(5.00%),Mid East(5.00%),Western Europe(4.00%),Africa(3.00%),Eastern Asia(3.00%),Southern Europe(3.00%),Southeast Asia(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Glass Edge Grinder Machine/Glass Cutting Machine/Glass Washing Machine/Glass Drilling Machine/Glass Tempering Furnace

4. why should you buy from us not from other suppliers?
we are professional for the glass factory building project, such as the design and machines equipped for whole line , save space , work source and electricity.
Our group service for sell , after service and install . looking for sell agency !

5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
