Product Overview
Description
Product Description.

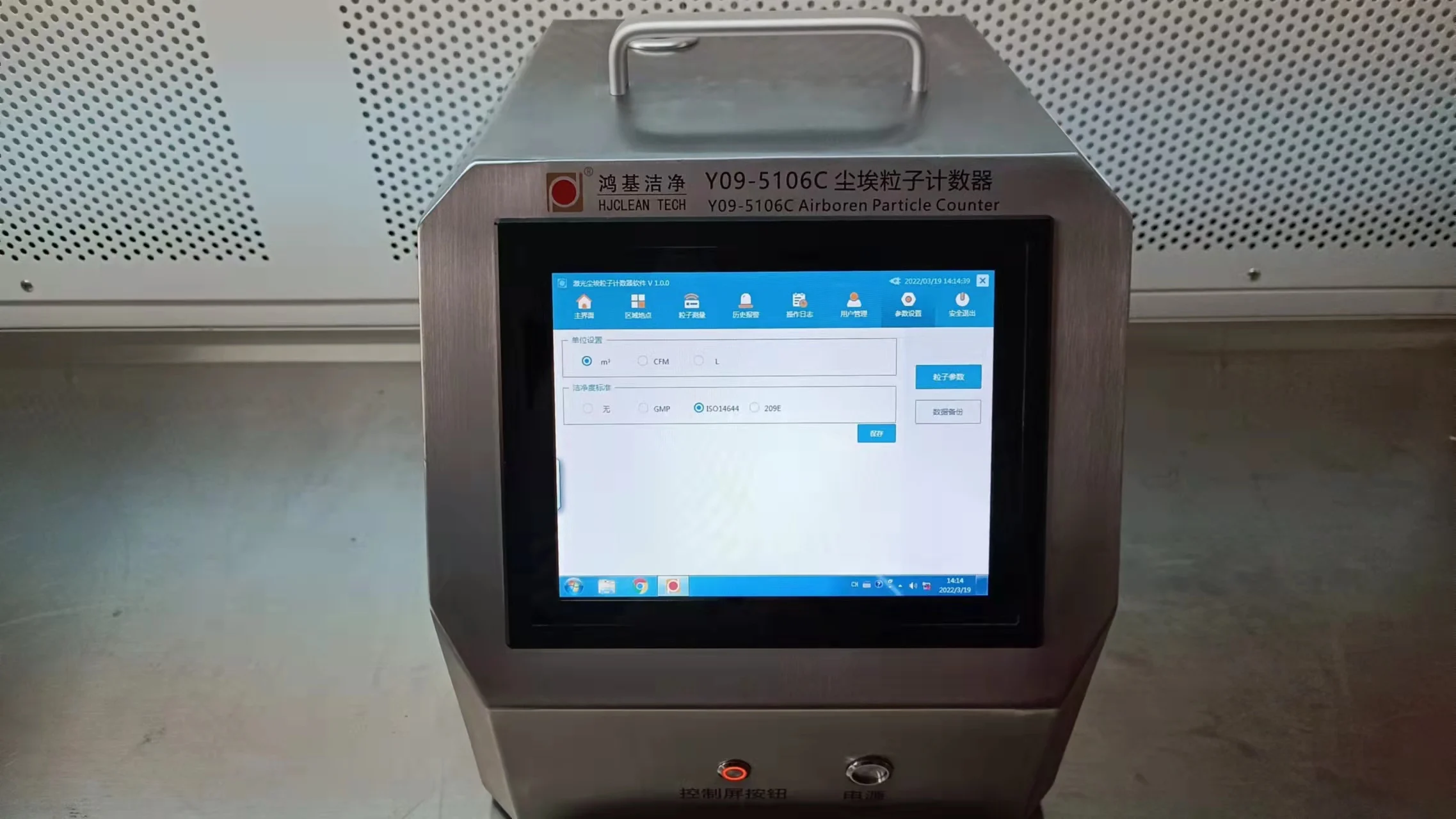

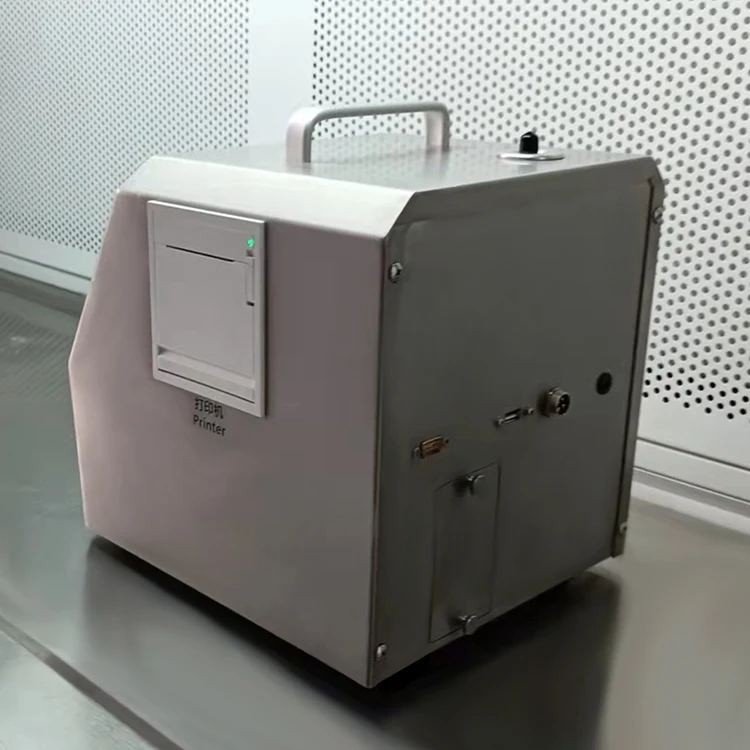

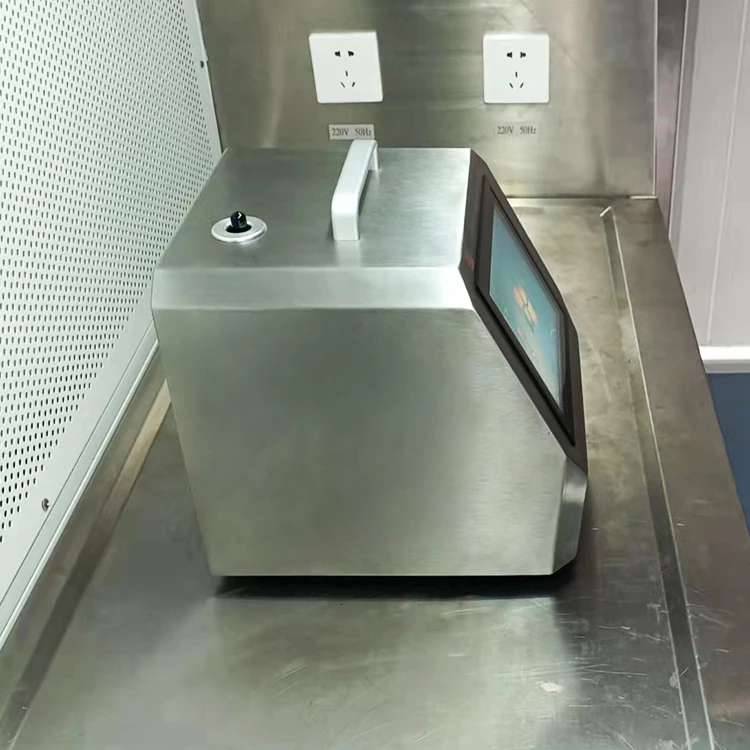

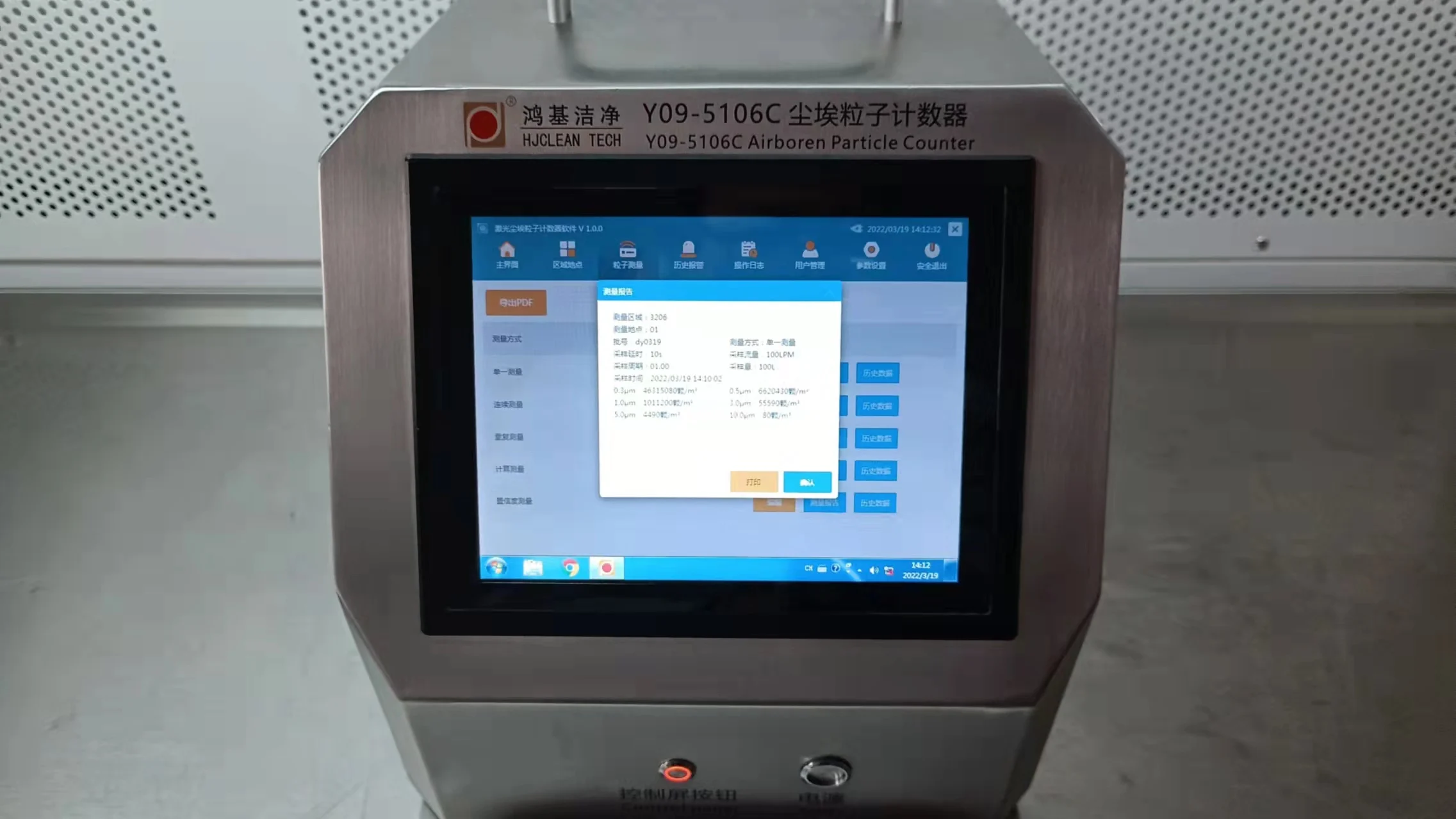

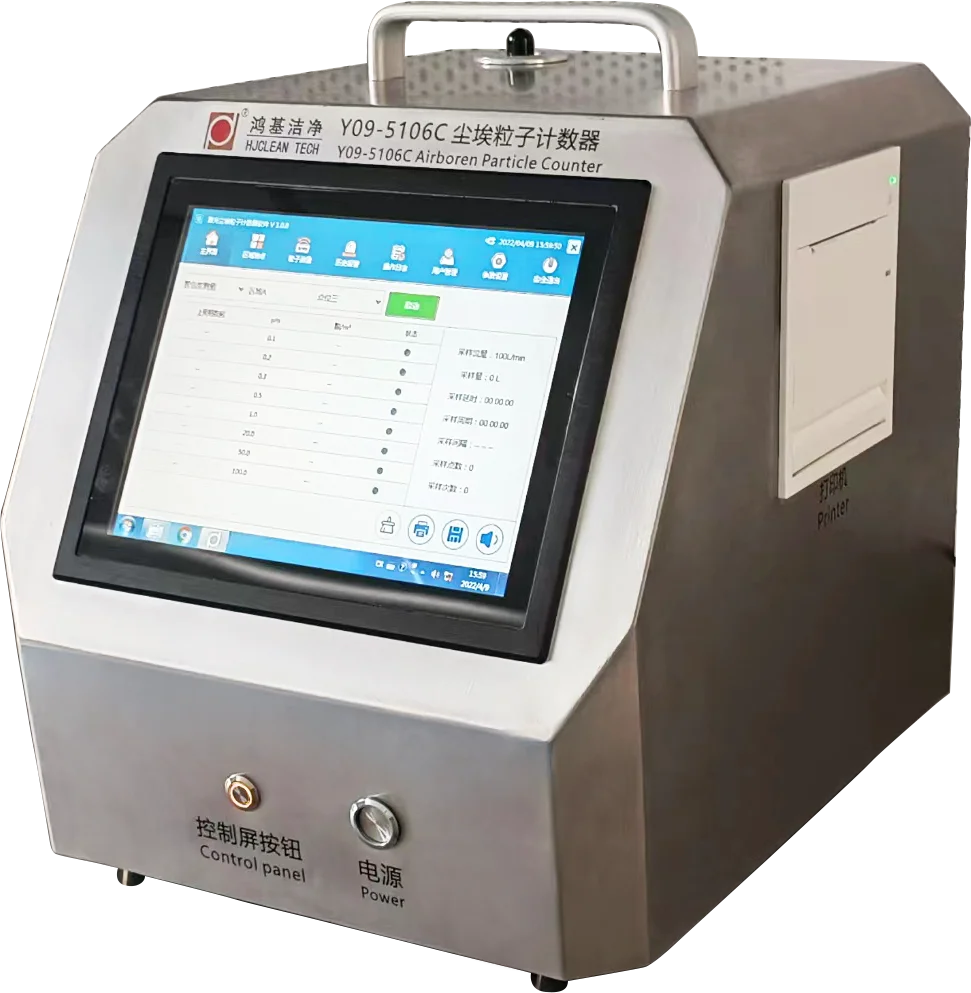

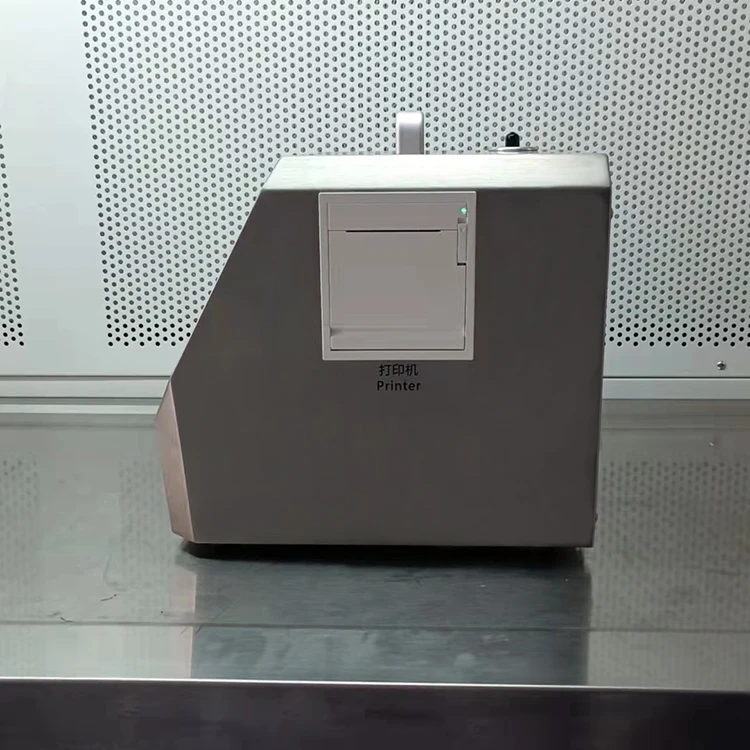

Y09-5106C airborne particle counter (hereinafter referred to as the instrument) is an instrument used to measure the size and number of large particles of dust particles suspended in the air per unit volume. The instrument adopts semiconductor laser light source, touch computer display, high detection accuracy, simple and clear function operation, computer control, can store and print the test results, and the test environment is very convenient. Widely used in electronics, optics, chemistry, food, cosmetics, medicine and health, biological products, aerospace and other industries. This instrument uses the principle of light scattering to detect particle size and quantity to detect suspended particle dust. The air is sucked into the photosensitive area of the suspended particle sensor by the sampling pump for detection,Dust particles scatter light flux proportional to their particle size, and after photoelectric conversion, amplification and processing, the equivalent diameter and number of collected particles are obtained.
main feature.

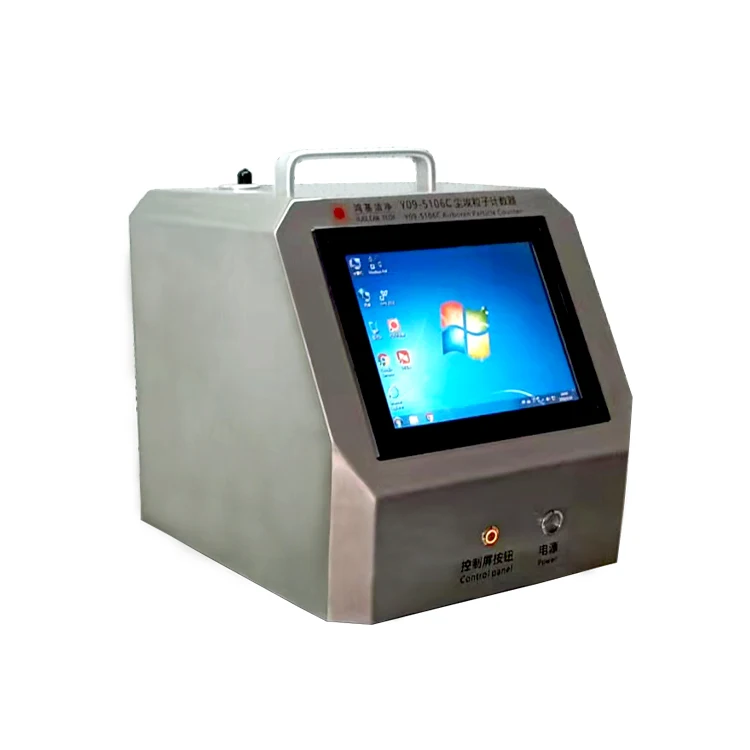

1. Using touch computer interface, windows operating system, with powerful data processing, data storage, user management, and soon.
2. The operation interface is composed of functional modules such as area location, particle measurement, historical alarm, operation log, user management, password modification, parameter setting, etc.
3. It has a security encryption mechanism and has three levels of permissions. Users must log in before using it. The login password meets the password complexity requirements, and the user management permissions of different roles are different.
4. It has the function of switching and calculating between different units, which can be converted between m3, CFM and L.
5. Different detection areas can be managed, including the name, information, and code of the detection area, which can be edited, deleted, viewed, alarm settings, and so on.
6. 4 detection modes: single measurement, continuous measurement, repeated measurement, confidence measurement.
7. Data export has EXCEL/PDF export mode optional.

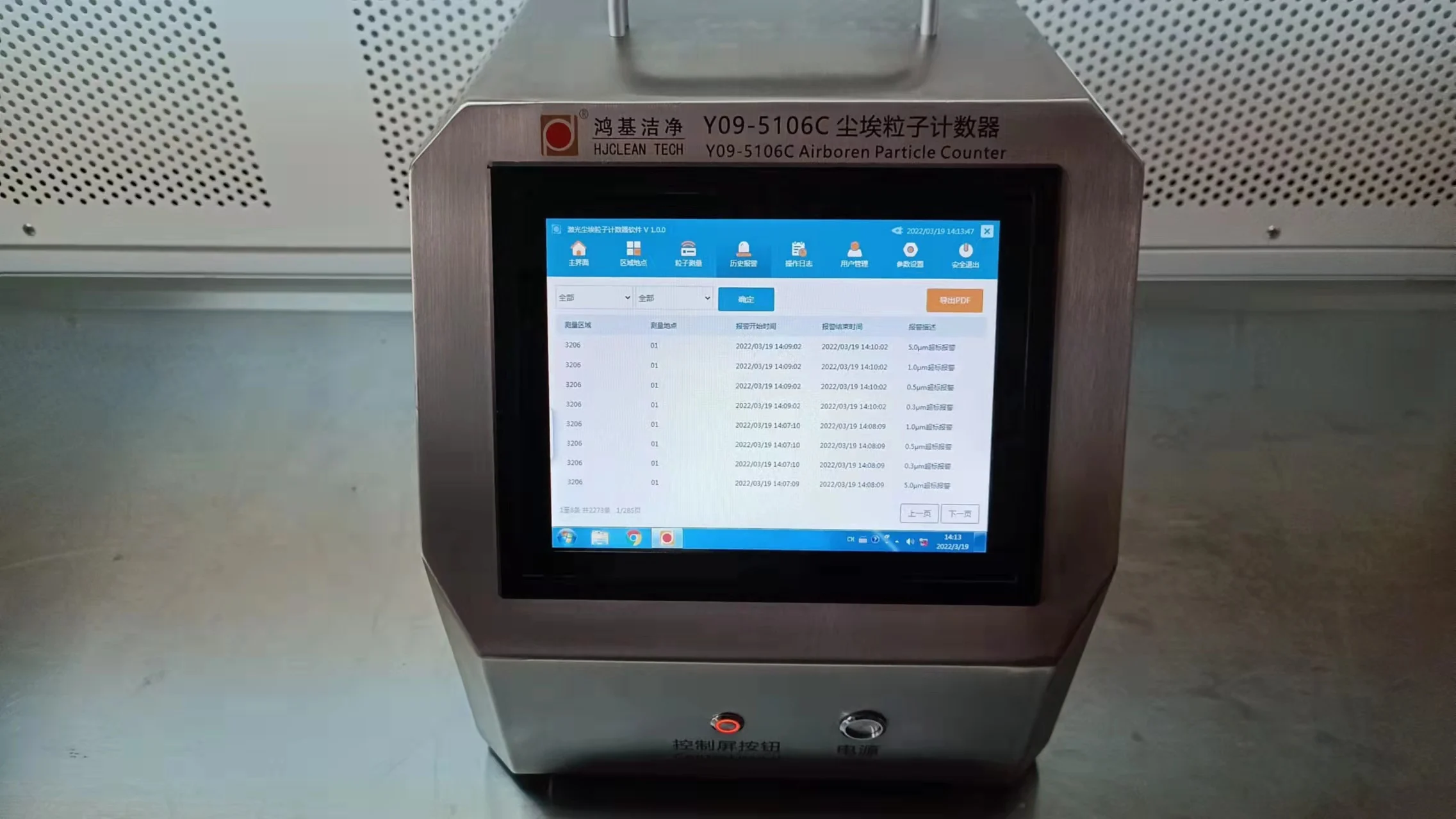

8. Historical data query function: It can query the historical data of detection address points and detection batches.
9. With alarm function: the cleanliness level of the test environment can be set, and an alarm when the cleanliness level is exceeded during detection, and alarm events are recorded to form a report.
10. Comply with 21CFR part.
11. electronic records, electronic signatures, audit trails and other requirements.
Product parameters
Model / Parameter | Y09-3106C | Y09-5106C | Y09-1108C | ||
Dimensions | 260×310×330mm³（W×D×H） | ||||
particle size channel | 0.3、0.5、1.0、3.0、5.0、10.0μm | 0.5、1.0、2.0、3.0、5.0、10.0μm | 0.1、0.2、0.3、0.5、1.0、2.0、5.0、10.0μm | ||
Power supply | 22.4V lithium battery, power adapter 25.2V/4A | ||||
weight | 10kg | ||||
Sampling flow | 100L/min | 100L/min | 28.3L/min | ||
sampling period | 1 second - 99 minutes 99 seconds | ||||
Sampling delay | 0-999s | ||||
Display | 8 inch touch computer screen | ||||
Alarm system | 0.3、0.5、1.0、3.0、5.0、10.0μmsix-channel arbitrary value setting | 0.5、1.0、2.0、3.0、5.0、10.0μmsix-channel arbitrary value setting | 0.1、0.2、0.3、0.5、1.0、2.0、5.0、10.0μm eight-channel arbitrary value setting | ||
Confidence Level (UCL) | 0.3, 0.5, 1.0, 3.0, 5.0, 10.0μm six-channel arbitrary value setting | 0.5, 1.0, 2.0, 3.0,5.0,10.0μm six-channel arbitrary value setting | 0.1、0.2、0.3、0.5、1.0、2.0、5.0、10.0μm eight-channel arbitrary value setting | ||
communication | USB data export | ||||
light source | 760nm Laser Diode | ||||
Accuracy | ±10% | ||||
self-cleaning time | ≤10min | ||||
password management | Multi-level permissions can be set arbitrarily | ||||
Operating ambient temperature | 0-40℃ | ||||
data saving | Save on computer hard drive | ||||
Audit trail | Software comes with | ||||

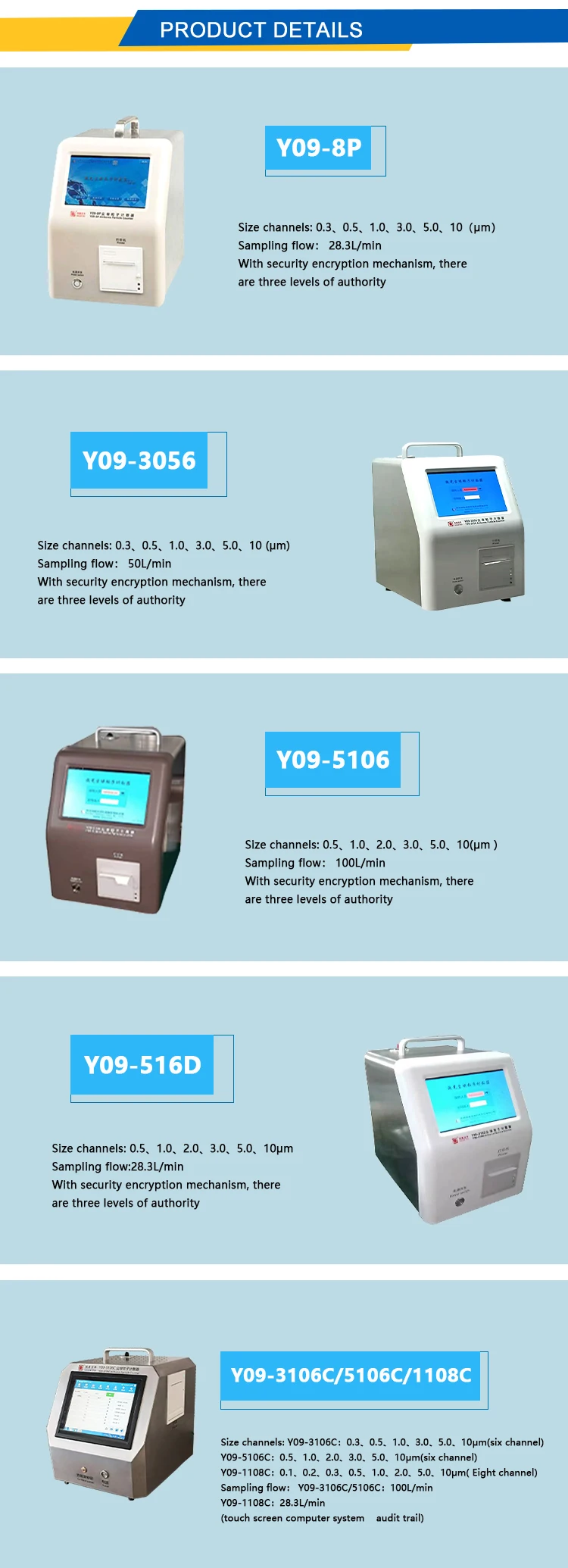

Model / Parameter | Y09-8P | Y09-5106 | Y09-516D | Y09-3056 | |||
Dimensions | 260×270×280mm³（W×D×H） | ||||||
particle size channel | 0.3、0.5、1.0、3.0、5.0、10μm | 0.5、1.0、2.0、3.0、5.0、10μm | 0.3、0.5、1.0、3.0、5.0、10μm | ||||
Power supply | 14.8V | 22.2V | 14.8V | 14.8V | |||
weight | 5.5kg | 7.5kg | 6.5kg | 7.5kg | |||
Sampling flow | 28.3L/min | 100L/min | 28.3L/min | 50L/min | |||
sampling period | 1s-99min99s | ||||||
Sampling delay | 0-9s | ||||||
Display | 800X480 resolution 65K color touch screen touch/display | ||||||
Alarm system | 0.3, 0.5, 1.0, 5.0μm arbitrary value setting | 0.5, 1.0, 5.0μm arbitrary value setting | 0.3, 0.5, 1.0, 5.0μm arbitrary value setting | ||||
Confidence Level (UCL) | 0.5、5.0μm UCL | ||||||
communication | USB data export | ||||||
light source | Semiconductor lasers (lifetime greater than 30,000 hours) | ||||||
Accuracy | ±10% | ||||||
self-cleaning time | ≤10min | ||||||
password management | Level 3 password | ||||||
data saving | 10000 groups+3000UCL*/USB | 60000 groups/USB | 10000 groups+3000UCL*/USB | 60000 groups/USB | |||
