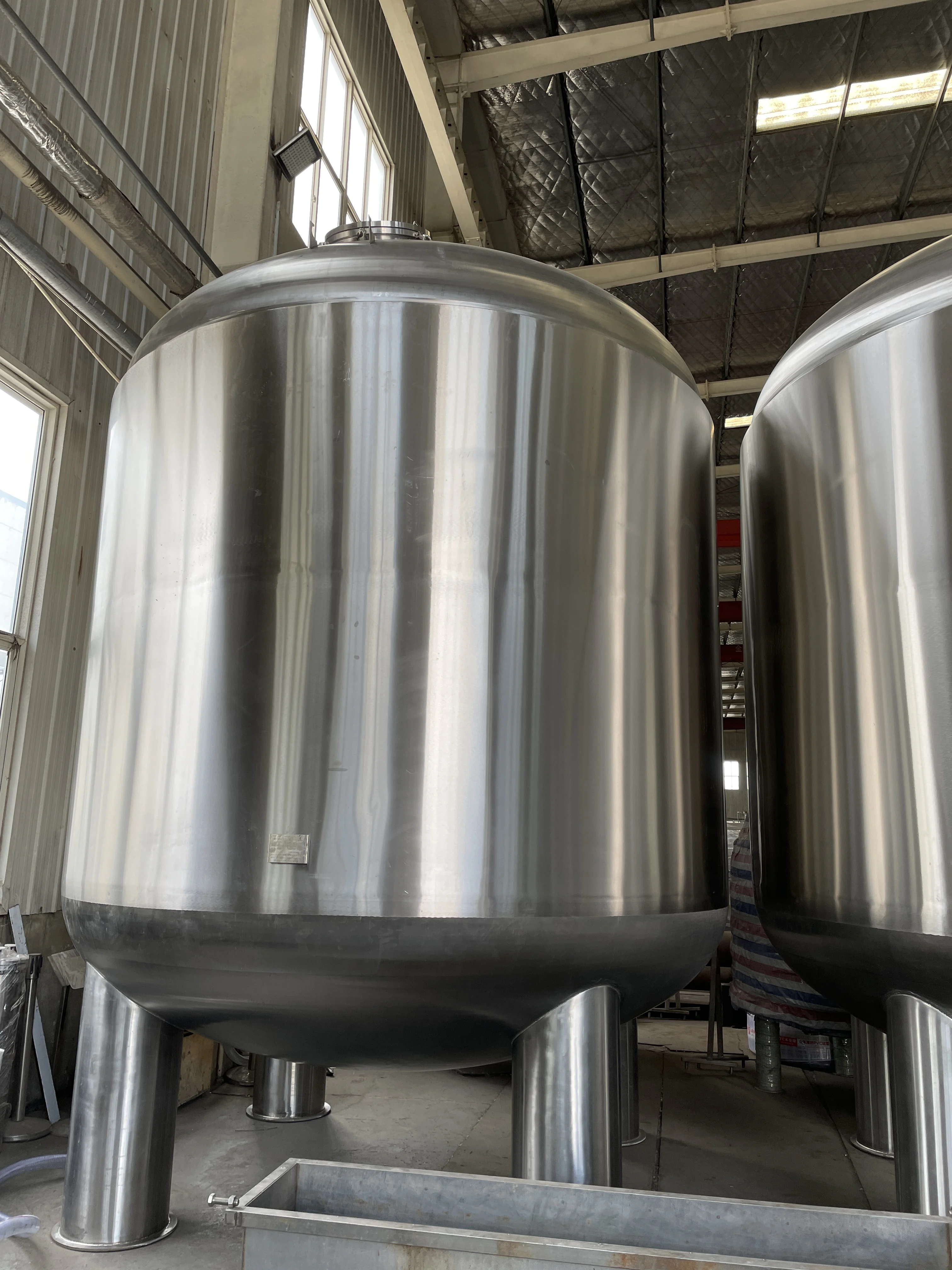

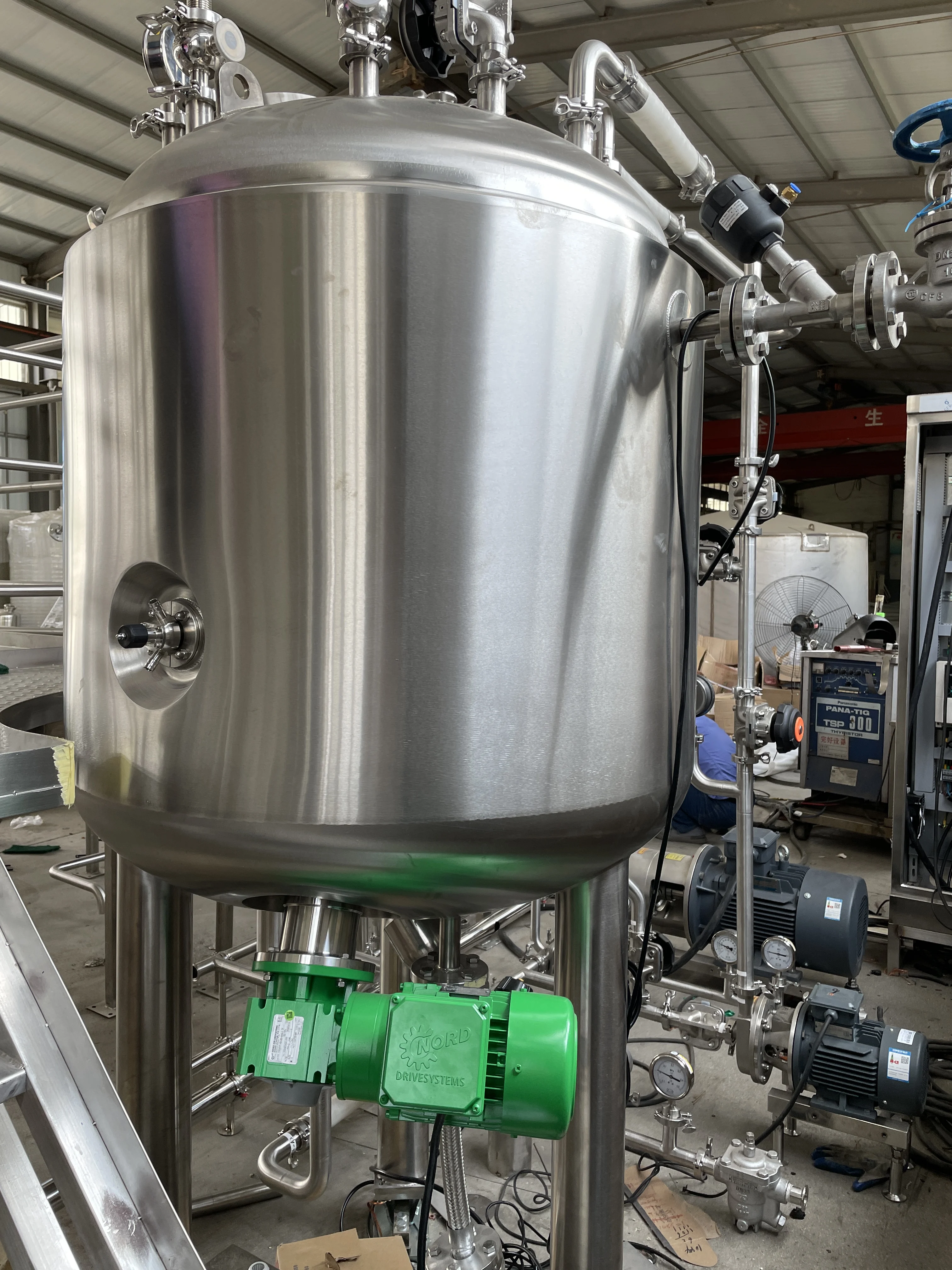

Stainless Steel Wfi Ro Vessel Jacketed Holding Reverse Osmosi Treatment Tank Pure Water Jacket Storage Tank
- Category: >>>
- Supplier: Shandong Eagle Machinery Co. Ltd.
Share on (1600549120357):

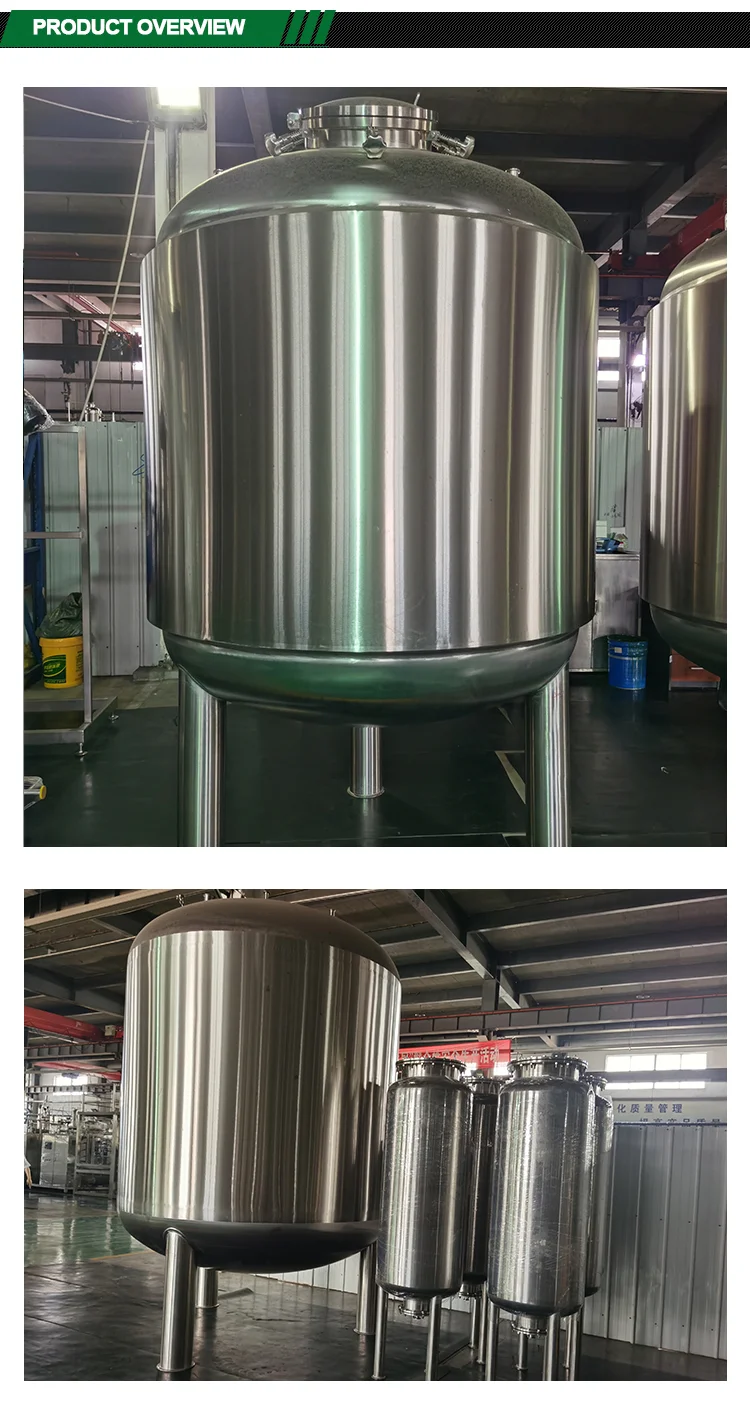

Product Overview
Description
Product Description
Specification
item | value |
Place of Origin | China |
Shandong | |
Brand Name | WEMAC |
Condition | New |
Type | Mixing Machine |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | Ordinary Product |
Warranty of core components | 1 Year |
Core Components | Bearing, Gearbox, Motor, Gear |
Application | Powder |
Weight (KG) | 4000KG |
Warranty | 1 Year |
Key Selling Points | High Productivity |
Applicable Industries | Manufacturing Plant, Food & Beverage Factory, Food & Beverage Shops, Other |
Showroom Location | Egypt, Saudi Arabia, Indonesia, Pakistan, India, Russia, Kenya, South Korea, Algeria |
Power (kW) | 5 |
Dimension(L*W*H) | 3000X1200X1900 |
Usage | Vitamin |
Certification | GMP |
Material | Stainless Steel 304/316L |
Advantage | High Effiency |
Capacity | 100~50000L |
Suitable for | pharmaceutical industry |
After Sales Service | Guide Installation |
Package | Wooden Case |
Company Profile

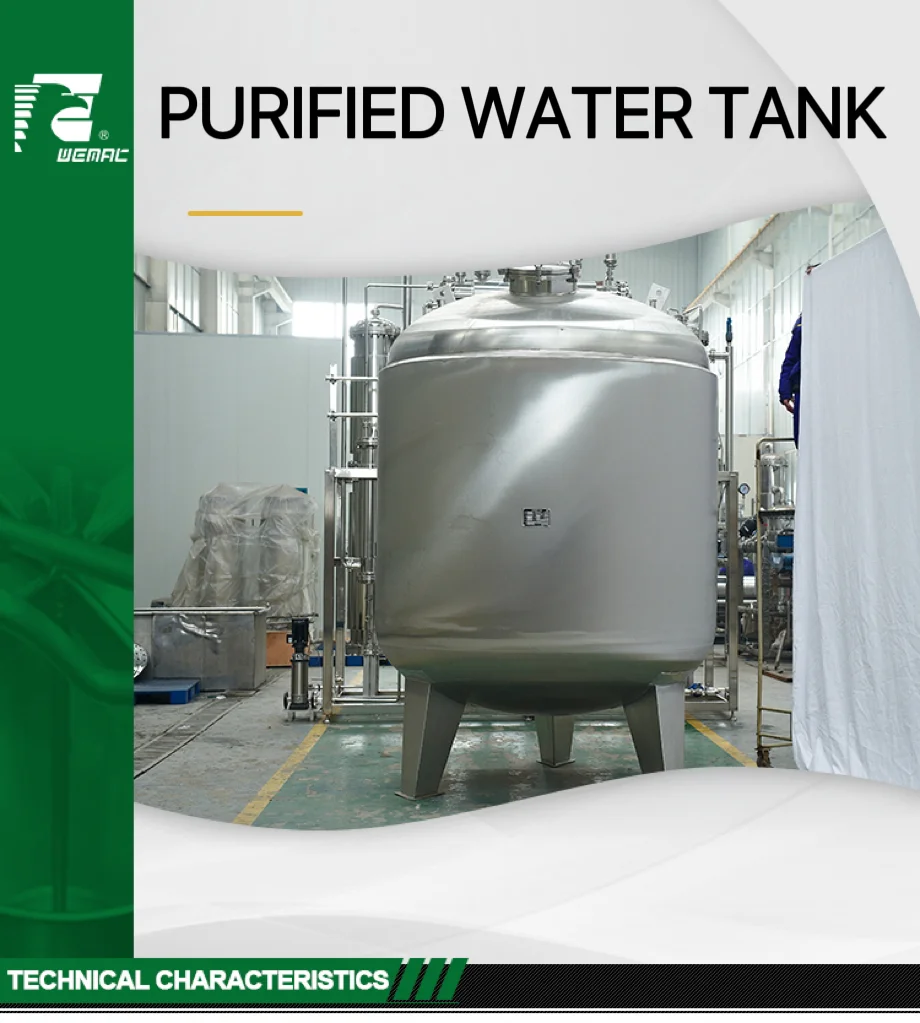

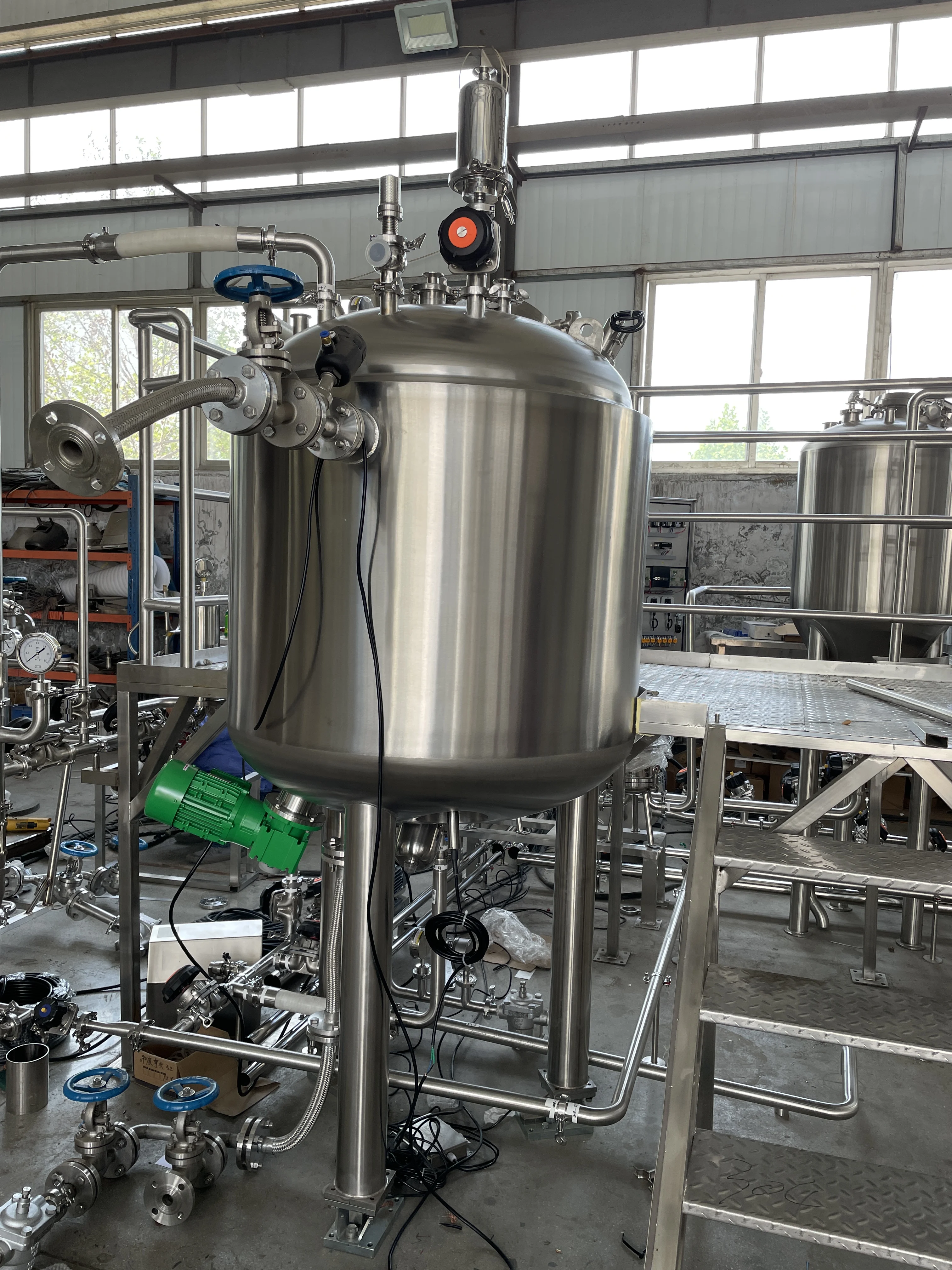

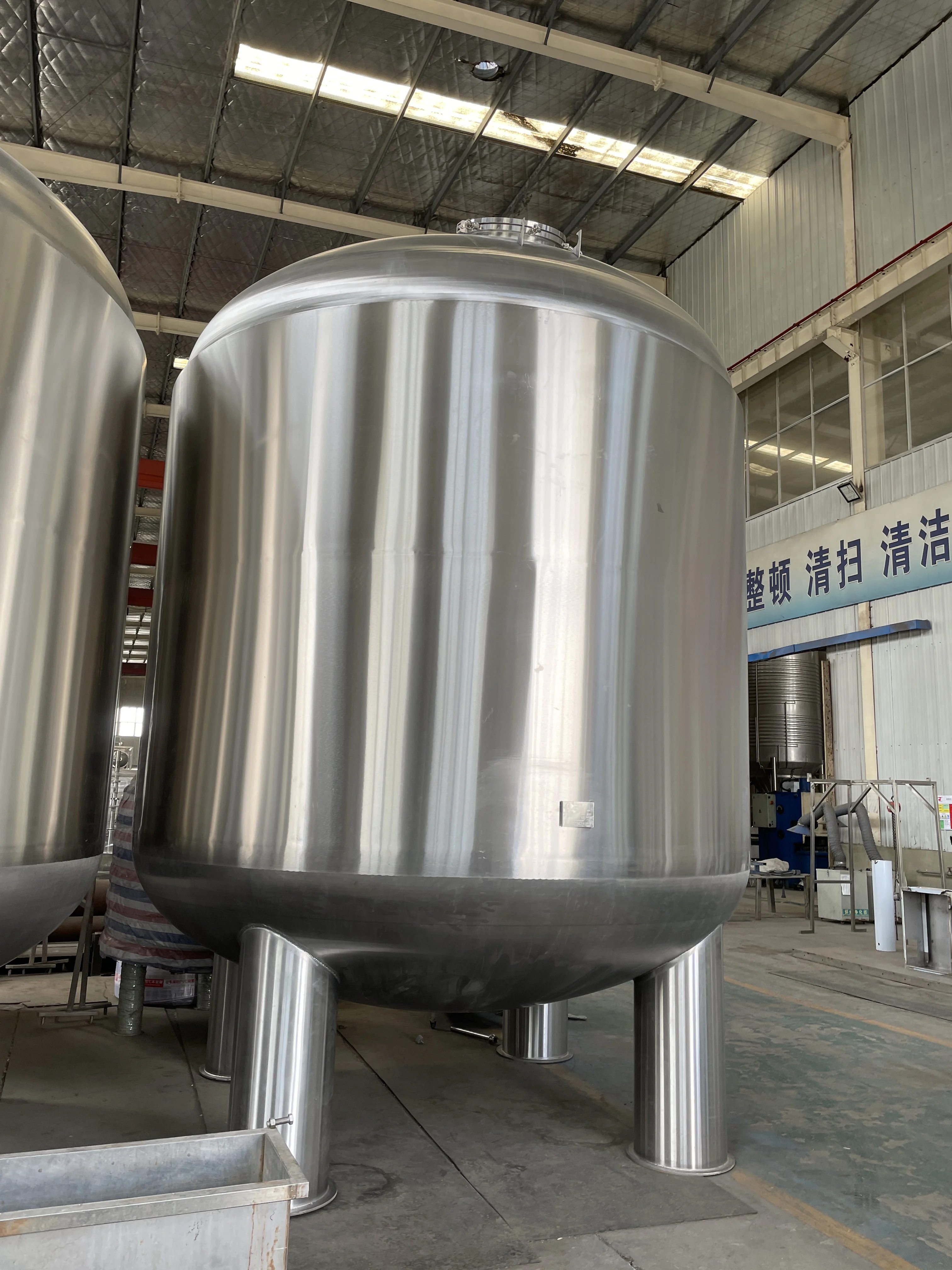

It has the function of heating and heated preservation. The interlayer twined helical band can be heated by steam or cooled by
cooling water The material of the heat preservation is composite silicate thread felt Matching with temperature transmitter,

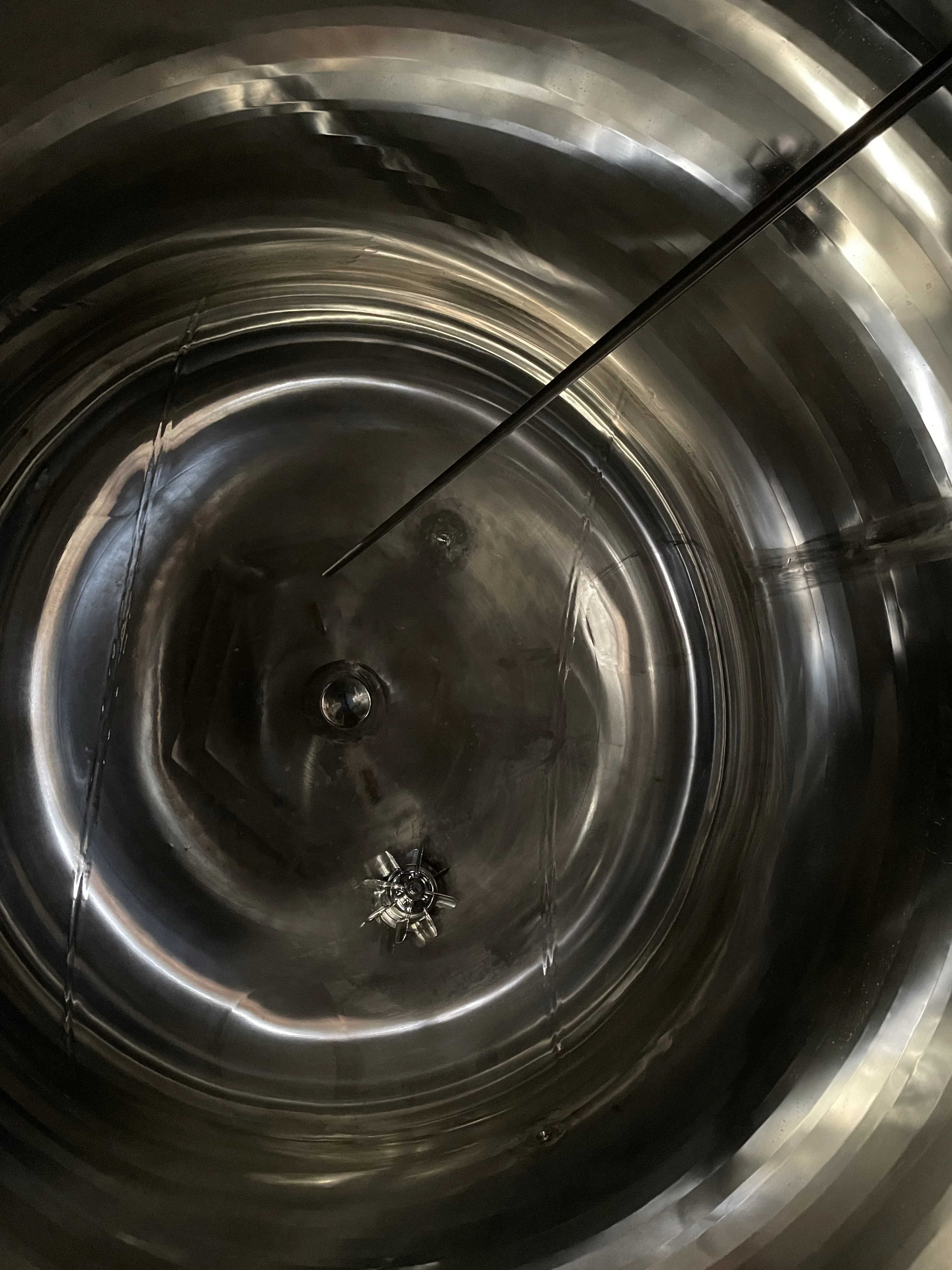

sanitary level sensor, cleanser and vent filter. Using Ss361L or SS304 for the inside shell of the tank. the interior surface

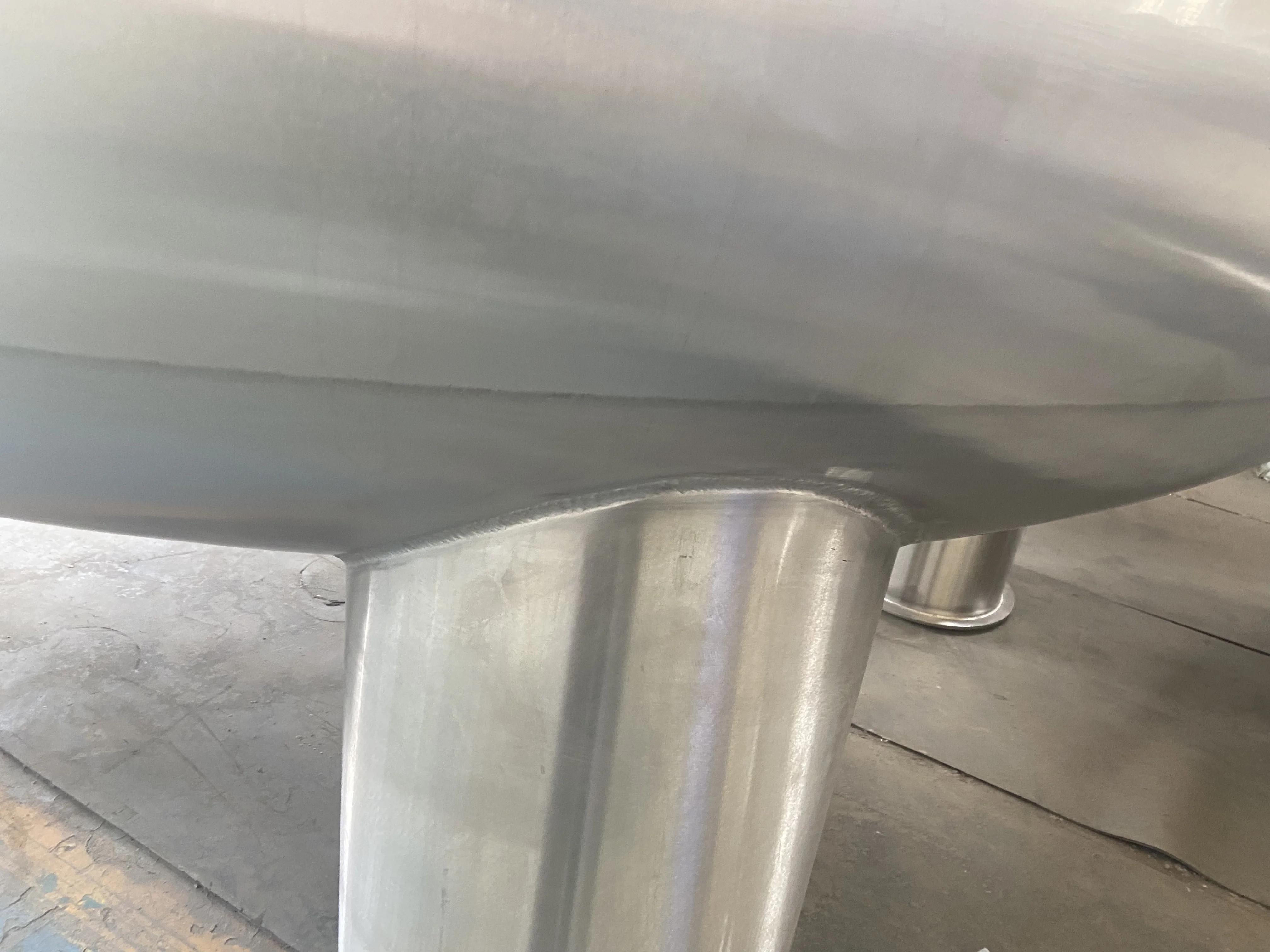

under mirror polishing which Ra. 0.4.The exterior surface of the tank used sub-optical polishing It can be customized according to
the requirement of customer.
cooling water The material of the heat preservation is composite silicate thread felt Matching with temperature transmitter,
sanitary level sensor, cleanser and vent filter. Using Ss361L or SS304 for the inside shell of the tank. the interior surface
under mirror polishing which Ra. 0.4.The exterior surface of the tank used sub-optical polishing It can be customized according to
the requirement of customer.
Vertical
Model | Specification (L) | Reference size (mm) | ||||||||||||
D | D1 | H | H1 | H2 | H3 | H4 | ||||||||
CHL300 | 300 | 800 | 900 | 1484 | 460 | 461 | 820 | 400 | ||||||
CHL500 | 500 | 900 | 1000 | 1587 | 530 | 530 | 928 | 400 | ||||||
CHL1000 | 1000 | 1100 | 1200 | 1878 | 750 | 750 | 1356 | 400 | ||||||
CHL2000 | 2000 | 1300 | 1400 | 2463 | 1220 | 1220 | 1926 | 400 | ||||||
CHL3000 | 3000 | 1600 | 1700 | 2395 | 1220 | 1100 | 2070 | 400 | ||||||
CHL4000 | 4000 | 1800 | 1900 | 2557 | 1220 | 1220 | 2220 | 400 | ||||||
CHL5000 | 5000 | 1900 | 2000 | 2637 | 1220 | 1220 | 2220 | 400 | ||||||
CHL6000 | 6000 | 2000 | 2100 | 2806 | 1380 | 1380 | 2206 | 400 | ||||||
CHL8000 | 8000 | 2200 | 2300 | 3226 | 1500 | 1500 | 2680 | 400 | ||||||
CHL10000 | 10000 | 2400 | 2500 | 3450 | 1580 | 1780 | 2780 | 400 | ||||||

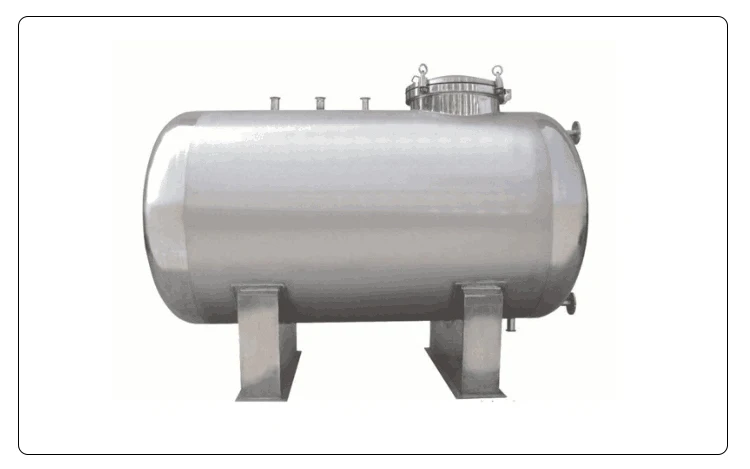

Model | Specification (L) | Reference size (mm) | ||||||||
D | L | L1 | L2 | B | ||||||
CD1000 | 1000 | 1000 | 1606 | 730 | 1050 | 150 | ||||
CD2000 | 2000 | 1200 | 2156 | 1050 | 1500 | 150 | ||||
CD3000 | 3000 | 1300 | 2656 | 1300 | 1950 | 150 | ||||
CD4000 | 4000 | 1500 | 2708 | 1300 | 1900 | 200 | ||||
CD5000 | 5000 | 1600 | 2908 | 1400 | 2050 | 200 | ||||
CD6000 | 6000 | 1700 | 3108 | 1450 | 2200 | 200 | ||||
CD8000 | 8000 | 1900 | 3358 | 1650 | 2350 | 250 | ||||
CD10000 | 10000 | 1900 | 4058 | 2050 | 3000 | 250 | ||||
CD15000 | 15000 | 2100 | 4912 | 2500 | 3800 | 300 | ||||
CD20000 | 20000 | 2300 | 5472 | 2800 | 4200 | 300 | ||||
Noted
The price is for reference only, the plan needs to be formulated according to the customer's URS, and the product needs to be customized separately.
The price is for reference only, the plan needs to be formulated according to the customer's URS, and the product needs to be customized separately.
Shandong Eagle Machinery Co., Ltd. (WEMAC) is located in the beautiful international capital of kite-Weifang. It is established in 1958 (the former Weifang Medical Appliance factory) and changed into a limited company in 1999. With a new address in: Headquarters Base ABP, NO 2600 Zhuangjian Road, Kuiwen District, Weifang, Shandong. Including 70 high skilled technologist we have 530 staff and workers in total. Our engineers and technicians in high technology designing water distiller, pressure vessels and other professionals who are specialized in pressure vessels designing, R&D of electrical, mechanical manufacturing, welding technology, electric chemical polishing, and GMP validation, FAT etc.

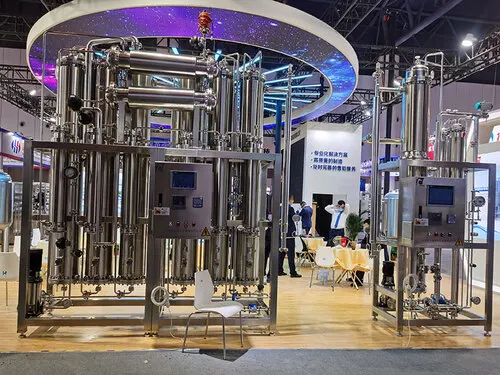

As offering services for pharmaceutical, electrical and food industries. WEMAC dedicates in the r&D. manufacturing and sales about the multi- effect water distiller for 14 years since 1996. We have experienced the transformation from the production of coiled pipes water distiller to multi-effect water distiller. from f series water distiller to s series water distiller. We have come into the top line of the international in mechanical design and electrical controlling. Based on the multi effect water distiller, we have accomplished the new development and manufacture in the upstream and downstream. Pay close attention to the high quality pure water and WFI, we have formed a complete system of design and manufacture in 2 stages RO+EDI water treatment equipment, LDS series multi-effect water distiller,(single &double plate ) CZQ pure steam generator(single double plate), storage system, filtration system, preparation system sampling system and sanitary pipes connections etc.

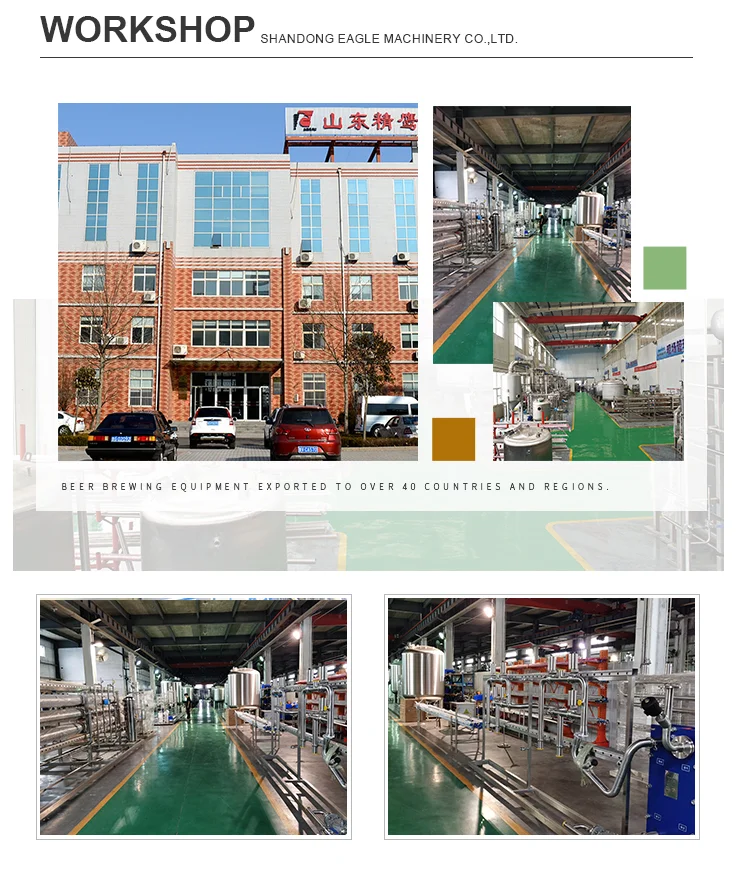

We have automatic welding machines for large-scale plates longitudinal and circular seam pipes automatic welding, automatic polishing unit, electric-chemical polish work shop and perfect production examination center, also we own advanced spectrograph endoscope, roughness examination and nondestructive examination ents e have certification of design and manufacture the one and two grade pressure vessel, and practice the quality control conception that material and document have the same importance Productions R&d strictly based on the pharmaceutical regulatory of GMP, automatic control according to GAMP requirement, we take the lead in offering the DQ, IQ, OQ, and FAT, Sat test validation to our customers in this area. which earns high reputation in domestic and abroad pharmaceutical industry. We have taken the most market share in China, and also developed the overseas market, with production exported to more than 40 countries in Afric, South American, European, East Asia, South Asia and Southeast asia etc.
With the spirit of Self-discipline and Social Commitment: we sincerely welcome all of the customers from domestic and overseas coming to our company for visit and have a good collaboration.
