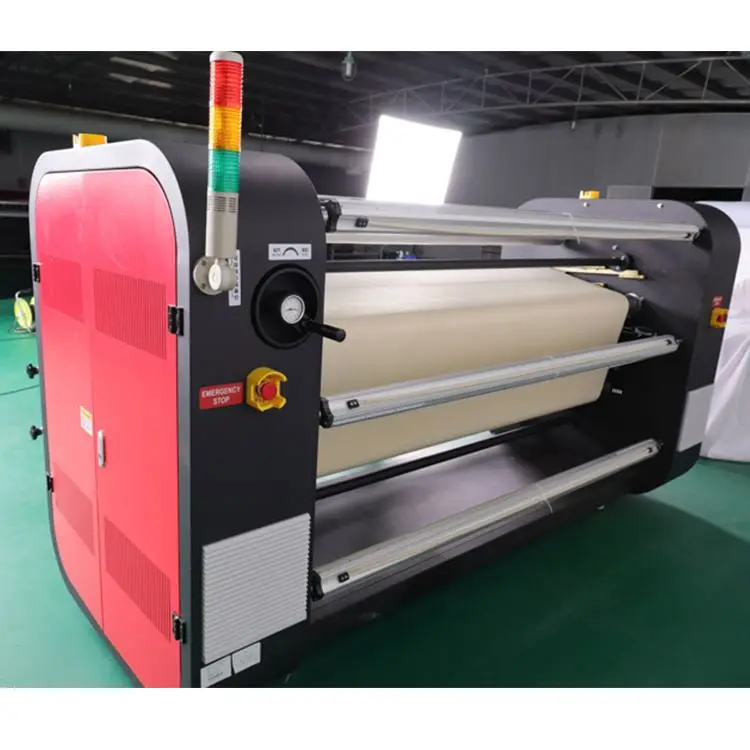

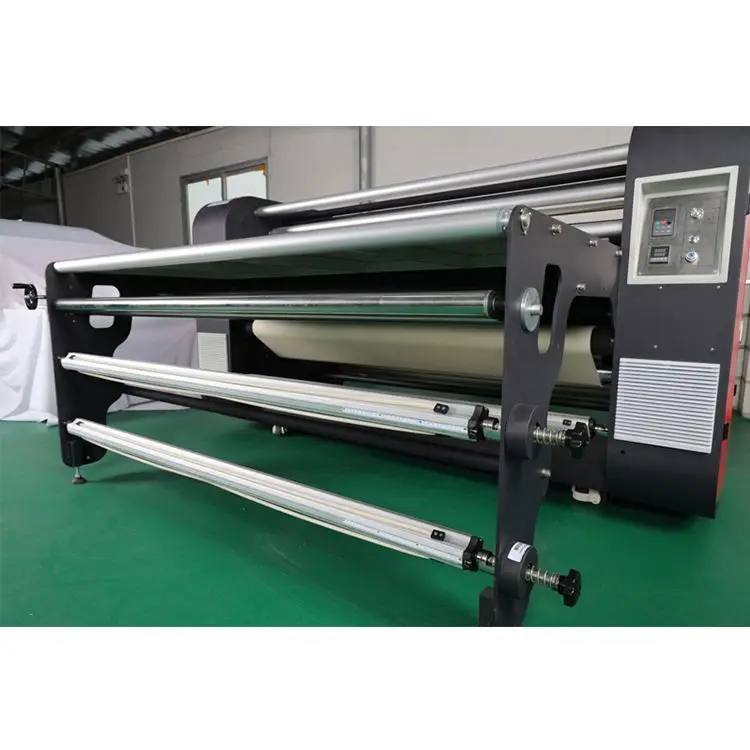

Automatic pneumatic pressure control roll to roll heat transfer press t shirt printing machine
Automatic pneumatic pressure control roll to roll heat transfer press t-shirt printing machine
Automatic pneumatic pressure control roll to roll heat transfer press t-shirt printing machine
Automatic pneumatic pressure control roll to roll heat transfer press t-shirt printing machine
Automatic pneumatic pressure control roll to roll heat transfer press t-shirt printing machine
Automatic pneumatic pressure control roll to roll heat transfer press t-shirt printing machine
Automatic pneumatic pressure control roll to roll heat transfer press t-shirt printing machine

Automatic pneumatic pressure control roll to roll heat transfer press t shirt printing machine

Share on (1600549120774):


Price:$1,700.00 - $1,950.00

Quantity:


Product Overview

Description

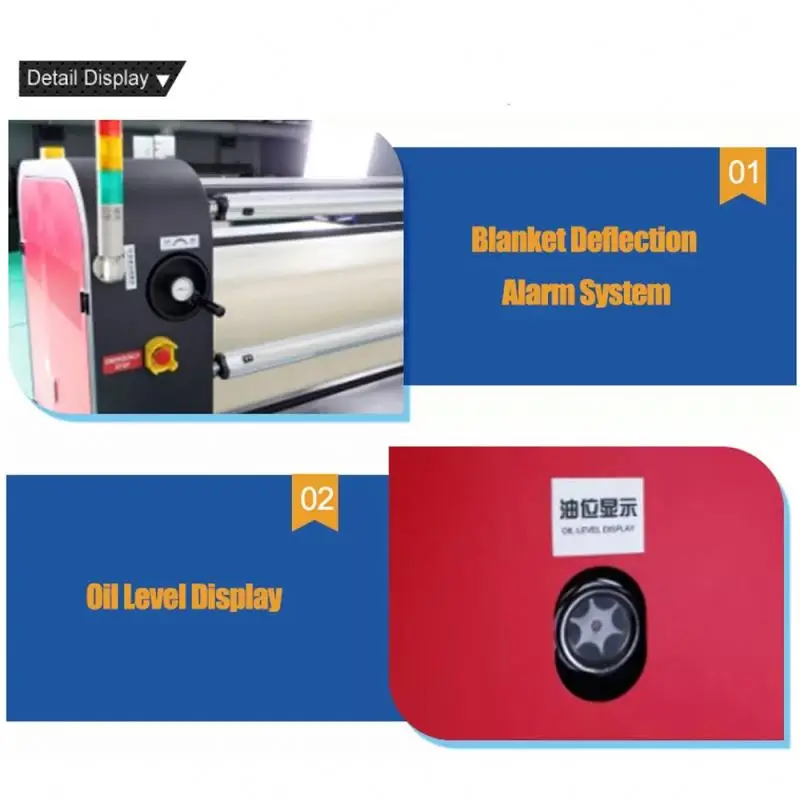

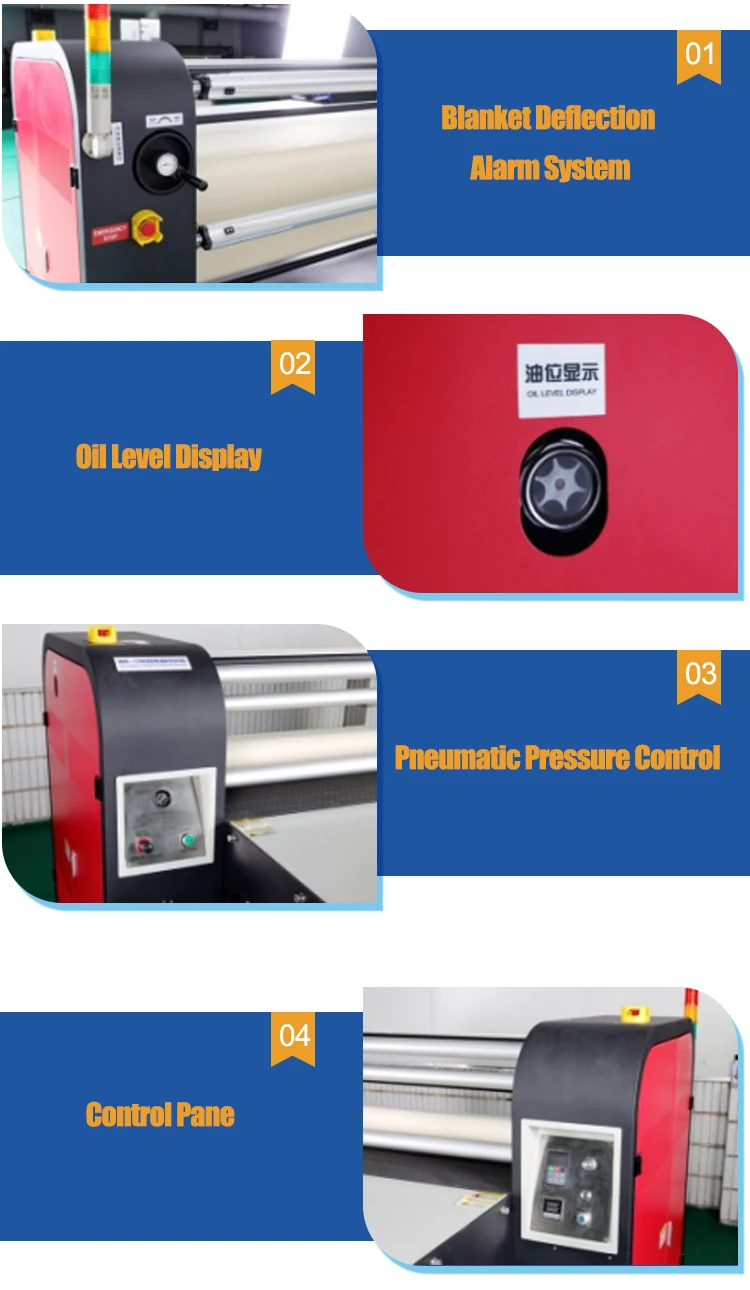

DuPont blanket with high temperature resistance, 280℃, heat conducting oil heating, heating temperature error(±

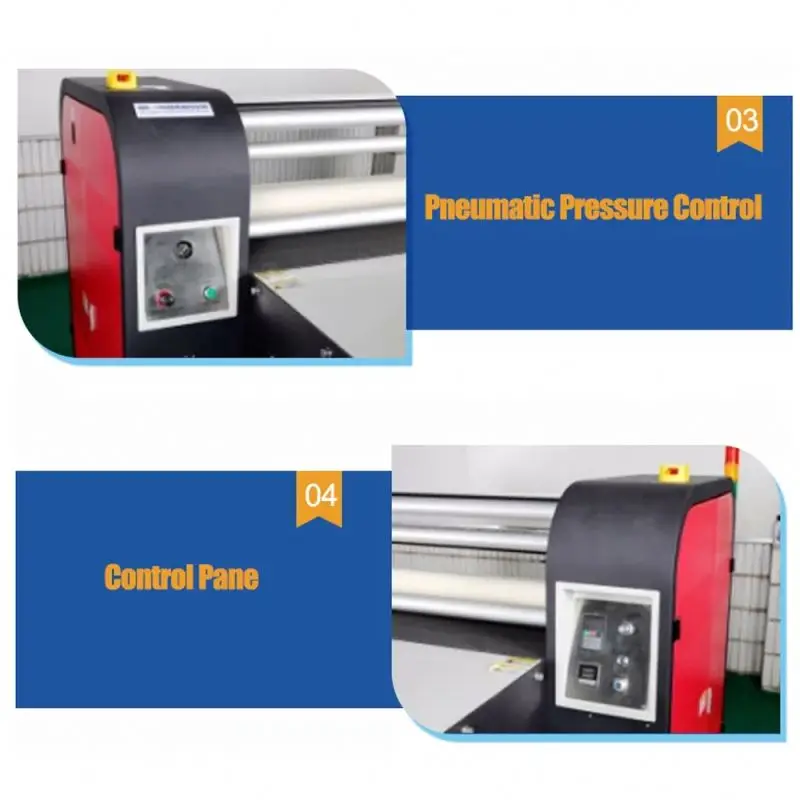

1℃), more uniform color transfer, blanket deviation automatic adjustment, blanket deviation alarmwarning, automatic cooling after stopping heating, pneumatic pressure design, better transfer effect, unique new roller sandwich design, 30% less power than the traditional roller structure.






Machine model
HD-1200
HD-1700
HD-1800
HD-1900
HD-2000
HD-2200
HD-3200
Roller diameter
220/270/370/420/600/800mm
Roller surface
Teflon coating
Voltage
AC220/380/480/550V
Heating
mode
oil heat conduction
Heating power
7.2/9.0/14/18/32/42kw
10/12/20/25/45/60kw
11/13/22/27/47/62kw
12/15/25/30/50/65kw
13.5/16.5/27/33/55/70kw
16/19/30/36/60/75kw
21/25/40/50/80/110kw
Total power
8/9.8/15.1/19.5/35/45kw
10.8/12.8/21.1/26.5/48/64kw
11.8/13.8/23.1/28.5/50/66kw
12.8/15.8/26.1/31.5/53/69kw
14.6/18/28.5/36/58/74kw
17.5/20.5/31.5/39/63/79kw
24/28/43/53/85/116kw
Transfer speed
60/80/120/160/220/300m/h
Temperature range
30-250℃
Blanket width
1220mm
1720mm
1820mm
1920mm
2020mm
2220mm
3220mm
Unwinding system
3sets
Winding system
3sets
Conveyor belt
Matching
Adjustment of blanket
Automatic regulation

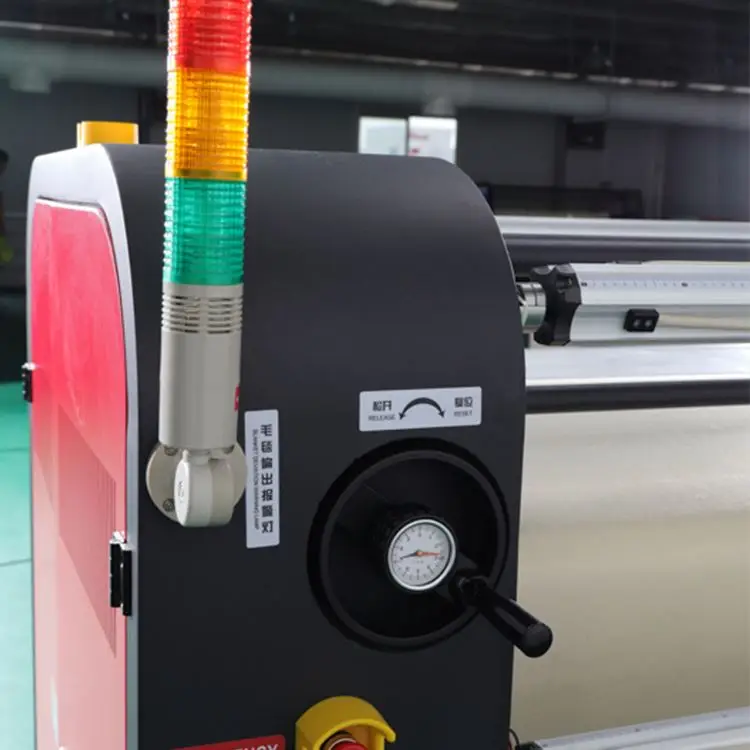

Blanket deviation alarm
Standard configuration
Automatic cooling
Optional matching
Machine size
(L*W*H)
1930*2000*1250mm
1980*2000*1300mm
2080*2000*1400mm
2130*2000*1450mm
2310*2000*1630mm
2510*2000*1830mm
1930*2500*1250mm
1980*2500*1300mm
2080*2500
*1400mm
2130*2500
*1450mm
2310*2500*1630mm
2510*2500*1830mm
1930*2600*1250mm
1980*2600*1300mm
2080*2600*
1400mm
2130*2600*
1450mm
2310*2600*1630mm
2510*2600*1830mm
1930*2700*1250mm
1980*2700*1300mm
2080*2700
*1400mm
2130*2700
*1450mm
2310*2700*1630mm
2510*2700*1830mm
1930*2800*1250mm
1980*2800*1300mm
2080*2800
*1400mm
2130*2800
*1450mm
2310*2800*1630mm
2510*2800*1830mm
1930*3000*1250mm
1980*3000*1300mm
2080*300
0*1400m
m
2130
*3000*150mm
2310*3000*1630mm
2510*3000*1830mm
1930*4000*1250mm
1980*4000*1300mm
2080*400
0*1400m
m
2130*400
0*1450m
m
2310*4000*1630mm
2510*4000*1830mm
Machine total weight
680/780/980/1150/1850/2200KG
850/1000/1250/1400/2300/2600KG
950/1050/1300/1450/2400/2750KG
1000/1100/1400/1550/2500/3000KG
1100/1200/1500/1600/2700/3300KG
1300/1550/1850/2100/3200/3800KG
2100/2300/2800/3100/4300/5600KG
