Mini Low Price Ultrasonic Anemometer weather station small wind speed direction sensor RS485 output
- Category: >>>
- Supplier: BGT Technology (Beijing) Co. Ltd.
Share on (1600549123685):
Product Overview
Description
Please Attention
**One-stop Emergency Solution Supplier**
2. Nice quality.
3. Small order is welcome.
4. Online payment.
5. Refund money in case of bad quality.
6. Sample offered but you need to pay it.
7. 1 year free repair for quality warranty.
Products Description
4-20mA analoge Voltage output Mini Low Price small wind speed direction sensor Ultrasonic Anemometer weather station

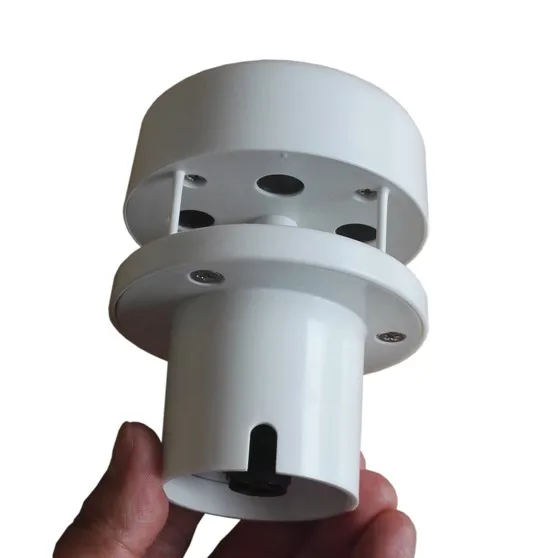

BGT-CF1 ultrasonic anemometer is very robust with no moving parts, maintenance free , simultaneously output wind speed and direction. Each unit is factory calibrated in our wind-tunnel testing lab prior to shipping.
BGT-CF1 powers up with 3 ... 30 VDC and outputs serial data with a selectable communication protocol: SDI-12, MODBUS-RTU and NMEA 0183. Four alternative serial interfaces are selectable: RS-232, RS-485 and SDI-12. The transmitter is equipped with a 4-pin M12 connector for installation.
The following options are available:
- Windows XP/WIN7 based testing software, which only support MODUBUS protocol
- USB to RS-232/RS-485 converter cable (1.5m)
- Mounting kits
BGT-CF1 powers up with 3 ... 30 VDC and outputs serial data with a selectable communication protocol: SDI-12, MODBUS-RTU and NMEA 0183. Four alternative serial interfaces are selectable: RS-232, RS-485 and SDI-12. The transmitter is equipped with a 4-pin M12 connector for installation.
The following options are available:
- Windows XP/WIN7 based testing software, which only support MODUBUS protocol
- USB to RS-232/RS-485 converter cable (1.5m)
- Mounting kits
Technical specification
Parameters | Measure Range | Accuracy | Resolution | |||
Wind Speed | 0-40m/s(77 knots | ±5% | 0.1m/s(0.2 knots) | |||
Wind Direction | 0-359° | ±3° | 1° | |||
Threshold of wind speed: 0.1m/s | ||||||
Output rate | 1 data per second | |||||
Power supply | 5-30VDC 20mA@5VDC | |||||
Start up time | < 5 seconds | |||||
Protection Class | IP65 | |||||
Operating Temp | -40℃ to +60℃ | |||||
Storage Temp. | -50℃ to +80℃ | |||||
Output options | RS232,RS485,SDI-12,4-20mA | |||||
Optional protocol | White-default or Black | |||||
Dimension | MODBUS-RTU,NEMA0183,Active output in ASCII,SDI-12 | |||||
Material of body | ABS 0.38kg or aluminium alloy 0.7kg | |||||
Certification | CE | |||||
Application
Typical Applications
1. Highway
2. Crop weather monitoring
3. Fire weather monitoring
4. Pollution monitoring
5.Bridge monitoring
Key features
1. Extremely low power consumption, low to 0.2W, suitable for solar-powered
2. No moving or wearing parts
3.Low power design supports battery-operated data loggers.
4.Using engineering plastic or aluminum alloy shell make it lighter
5. Adopts the reflecting type of ultrasonic probe, robust structure
1. Highway
2. Crop weather monitoring
3. Fire weather monitoring
4. Pollution monitoring
5.Bridge monitoring
Key features
1. Extremely low power consumption, low to 0.2W, suitable for solar-powered
2. No moving or wearing parts
3.Low power design supports battery-operated data loggers.
4.Using engineering plastic or aluminum alloy shell make it lighter
5. Adopts the reflecting type of ultrasonic probe, robust structure
BGT Product Good Feedback
More than 30 good feedback from Alibaba Trade Assurance Order since 2018.
Company Profile
As a wholly owned subsidiary of Beijing Guoxinhuayuan Technology Co., Ltd , BGT Technology (Beijing) Co., Ltd. specialized in the import & export business, which is a one-stop emergency solution supplier with production, research and development, sales of emergency supplies, road rescue, fire supplies, flood prevention supplies, Relief supplies, chemical accident emergency treatment, natural disaster monitoring and early warning solutions and other industrial products. Our products have been sold to more than 70
countries. Meanwhile, we have software and hardware R&D department and a team of experts to support customers' program planning and customized services, owned more than 50 patents and 60 software copy rights. We cooperate with disaster prevention experts at home and abroad to plan and implement a number of comprehensive hazards prevention monitoring and early warning projects, and set up a national demonstration base in Changping district, Beijing, China. In line with the professional, innovative, integrity,
persistent concept, committed to customers’ demands, to provide customers with a full set of solutions, as well as efficient, timely after-sales service! We would like to become an IoT enterprise serving the field of global disaster prevention and reduction.
countries. Meanwhile, we have software and hardware R&D department and a team of experts to support customers' program planning and customized services, owned more than 50 patents and 60 software copy rights. We cooperate with disaster prevention experts at home and abroad to plan and implement a number of comprehensive hazards prevention monitoring and early warning projects, and set up a national demonstration base in Changping district, Beijing, China. In line with the professional, innovative, integrity,
persistent concept, committed to customers’ demands, to provide customers with a full set of solutions, as well as efficient, timely after-sales service! We would like to become an IoT enterprise serving the field of global disaster prevention and reduction.
Our Factory
FAQ
Q1: Are you trading company or manufacturer?
A: BGT Technology (Beijing) Co., Ltd. is a trading company 100% holding by Beijing Guoxinhuayuan Technology Co., Ltd. Beijing Guoxinhuayuan Technology Co., Ltd is manufacturer for emergency solutions and producs.
Q2. Can I have a free sample for testing ?
A: Sample order is acceptable, but need you to pay for the product cost and freight .
Q3. What about the lead time?
A: Sample needs 4-5 working days after receiving your payment, mass production needs extra 4-5 working days.
Q4: Is it OK to print my logo on the products?
A: BGT Technology (Beijing) Co., Ltd. is a trading company 100% holding by Beijing Guoxinhuayuan Technology Co., Ltd. Beijing Guoxinhuayuan Technology Co., Ltd is manufacturer for emergency solutions and producs.
Q2. Can I have a free sample for testing ?
A: Sample order is acceptable, but need you to pay for the product cost and freight .
Q3. What about the lead time?
A: Sample needs 4-5 working days after receiving your payment, mass production needs extra 4-5 working days.
Q4: Is it OK to print my logo on the products?
A: Yes, we support OEM/ODM service.
Q5: Do you offer guarantee for the products?
Q7. Do you have certifications?
A: Yes, we have ISO9001, ISO 14001, OHSAS18001, CE, etc.
Q8: How is the quality of your goods?
A:Yes, we offer 1 year warranty to our products.
Q6: Can I visit your company?
A: Yes, warmly welcome to visit our company.
Q7. Do you have certifications?
A: Yes, we have ISO9001, ISO 14001, OHSAS18001, CE, etc.
Q8: How is the quality of your goods?
A: We make a commitment to offer products with good apperance and nice quality to customers. If there is some questions for the product, we have after-sale team to serve you. And we offer 1 year warranty
