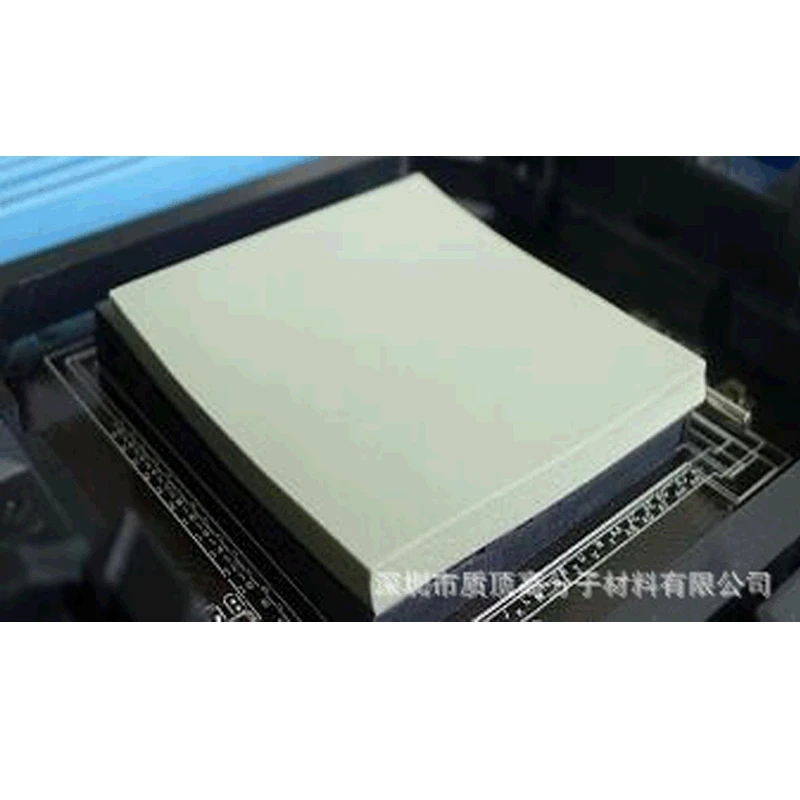

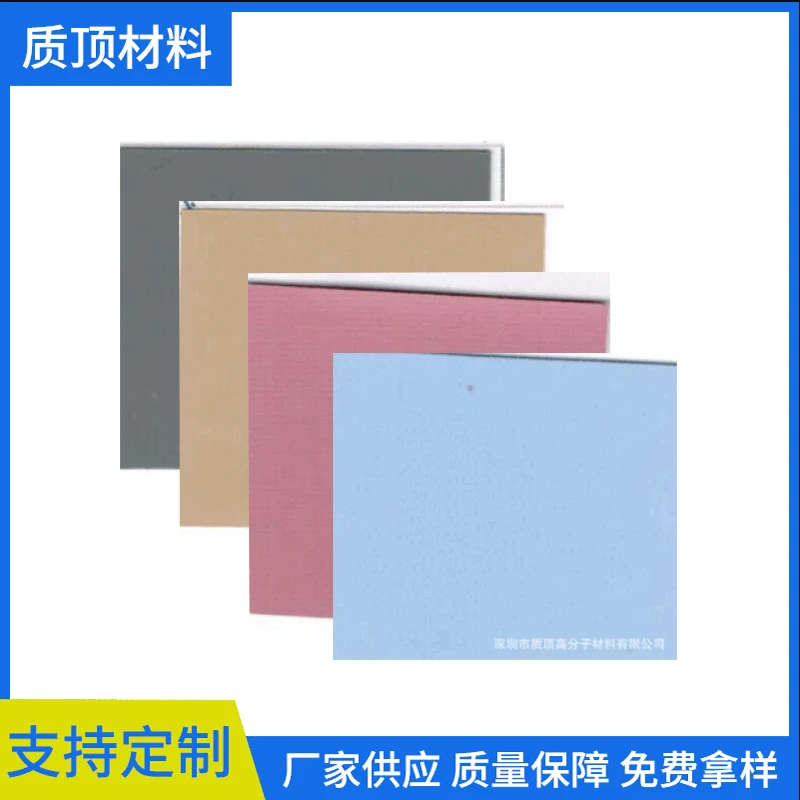

Thermal conductivity silicone pad Notebook heat dissipation silicone gasket insulation pad high
- Category: Other Rubber Products >>>
- Supplier: Shenzhen Zhiding Polymer Material Co. Ltd.
Share on (1600549146660):
Product Overview
Description
features | unit | TF-DGP 120 | test criteria | |
color | - | - | 目测 | |
thickness | mm | 0.15 to 8.0 | ASTM D374 | |
heat conductivity coefficient | W/m.k | 1.2 | ASTM D5470 | |
heat resistance | ＠1mm, 20psi | 1.00℃.in²/W 6.45℃.cm²/W | ASTM D5470 | |
hardness | shoreOO | 5～45 | ASTM D2240 | |
Flame retardant properties | 一 | 94V-0 | U.L. | |
compression strength | kv/mm | ≥10.0 | ASTM D149 | |
mass resistivity | Ω.cm | ≥5.0×10(13) | ASTM D257 | |
proportion | g/cm³ | 2 | ASTM D792 | |
Tensile strength | psi | 15 | ASTM D412 | |
elongation | ％ | 50 | ASTM D412 | |
Compression deformation (%, specified pressure) | 10psi | 18 | ASTM D575 | |
50psi | 41 | |||
100psi | 55 | |||
Dielectric constant | @1MHz | 5.5 | ASTM D150 | |
Continuous use temperature | ℃ | 一60 to 200 | *** |
Product Description
