  • High Ratio High Quality Grind Mill Machine Price Mineral Ore Ball Mill Ball Mills
High Ratio High Quality Grind Mill Machine Price Mineral Ore Ball Mill Ball Mills
High Ratio High Quality Grind Mill Machine Price Mineral Ore Ball Mill Ball Mills
High Ratio High Quality Grind Mill Machine Price Mineral Ore Ball Mill Ball Mills
High Ratio High Quality Grind Mill Machine Price Mineral Ore Ball Mill Ball Mills
High Ratio High Quality Grind Mill Machine Price Mineral Ore Ball Mill Ball Mills
High Ratio High Quality Grind Mill Machine Price Mineral Ore Ball Mill Ball Mills
High Ratio High Quality Grind Mill Machine Price Mineral Ore Ball Mill Ball Mills

High Ratio High Quality Grind Mill Machine Price Mineral Ore Ball Mill Ball Mills

Share on (1600549163521):


Price:$7,500.00 - $7,800.00

Quantity:


Product Overview

Description



Products Description


Scope of application
Ball mill is an key equipment of smashing broken materials. It is widely used in manufacturing of cement, silicate product, novel construction material, fire-proof material, chemical fertilizer, beneficiation of ferrous and non-ferrous metals, glass, ceramic and so on. It can smesh all kinds of ores and other grindable materials in a dry or wet way.




Technical Parameter


Model
Cylinder Rotating Speed (r/min)
Grinding Media Weight(t)
Feeding Size(mm)
Discharging Size (mm)
Capacity(t/h)
Power(kw)
Weight(t)
Φ 900x1800
36~38
1.5
≤20
0.075-0.89
0.65-2
18.5
5.5
Φ 900x3000
36
2.7
≤20
0.075-0.89
1.1-3.5
22
6.7
Φ 1200x2400
36
3
≤25
0.075-0.6
1.5-4.8
30
12
Φ 1200x3000
36
3.5
≤25
0.074-0.4
1.6-5
37
12.8
Φ 1200x4500
32.4
5
≤25
0.074-0.4
1.6-5.8
55
13.8
Φ 1500x3000
29.7
7.5
≤25
0.074-0.4
2-5
75
16.8
Φ 1500x4500
27
11
≤25
0.074-0.4
3-6
110
21
Φ 1500x5700
28
12
≤25
0.074-0.4
3.5-6
130
25.8
Φ 1830x3000
25.4
11
≤25
0.074-0.4
4-10
130
29
Φ1830x4500
25.4
15
≤25
0.074-0.4
4.5-12
155
35.5
Φ1830x6400
24.1
21
≤25
0.074-0.4
6.5-15
210
43
Φ1830x7000
24.1
23
≤25
0.074-0.4
7.5-17
245
43.8
Φ2100x3000
23.7
15
≤25
0.074-0.4
6.5-36
155
34.8
Φ2100x4500
23.7
24
≤25
0.074-0.4
8-43
245
38
Φ2100x7000
23.7
26
≤25
0.074-0.4
8-48
280
56.6
Φ2200x4500
21.5
27
≤25
0.074-0.4
9-45
280
51.8
Φ2200x6500
21.7
35
≤25
0.074-0.4
14-26
380
60
Φ2200x7000
21.7
35
≤25
0.074-0.4
15-28
380
62
Φ2200x7500
21.7
35
≤25
0.074-0.4
15-30
380
64.8
Φ2400x3000
21
23
≤25
0.074-0.4
7-50
245
54
Φ2400x4500
21
30
≤25
0.074-0.4
8.5-60
320
65
Φ2700x4000
20.7
40
≤25
0.074-0.4
12-80
380
94
Φ2700x4500
20.7
48
≤25
0.074-0.4
12-80
480
102
Φ3200x4500
18
65
≤25
0.074-0.4
According to process conditions
800
137
Φ3600x4500
17
90
≤25
0.074-0.4
According to process conditions
850
158




Applications
Ball mill is widely used in manufacturing of cement, silicate product, novel construction
material, fire-proof material, chemical fertilizer, beneficiation of ferrous and non-ferrous metals, glass, ceramic and so on.


Applicable materials
Ball mill can smesh all kinds of ores and other grindable materials in a dry or wet way.


Working Principle
The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber.

The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

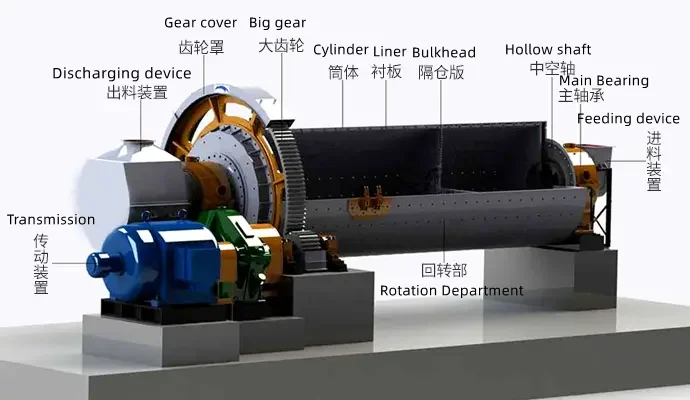

Product Structure




Product Advantages
1. This Ball mill machine changes the intrinsic grinding mill structure.
2. Its body and ground plank are an integral whole. So when fixing, it can be lowered on a plane surface once only.
3. Use double tiered roller axletree with centripetal spherical surface as the support of the host axletree can reduce energy cost by
30%.
4. The intrinsic grille pattern forcing evacuation is instead by over fall pattern controlling one. This can improve the milling of the granule and the quantity dealt with is reduced by 15-20%.






If you need a ball mill, please contact us, this is my WhatsApp. Or you can directly click the blue font below to send an inquiry, we will help you make more money.
WhatsApp：+8617739786040
E-mail：info@hanfagroup.com
phone：0086-371-55019599
Click here to contact us!!!


Company Introduction






FAQ


1. Are you a trading company or a manufacturer?
We are a professional manufacturer. Our factory mainly produces water well drilling rigs, core drilling rigs, down-the-hole drilling rigs, pile drivers, etc. The products have been exported to hundreds of countries around the world and enjoy a high reputation all over the world.

2. How is the quality of your machine?
Our products pass strict quality inspections before they leave the factory to ensure that they are qualified before they are shipped.

3. How to inspect the goods?
1) Support customers to come to the factory for on-site inspection.
2) Support customers to designate third-party companies to inspect goods.
3) Support video inspection.

4. Do you have after-sales service?
Yes, we have a dedicated service team that will provide you with professional technical guidance. If you need, we can send our engineers to your workplace and provide training for your employees.

5. How about quality assurance?
We provide a one-year quality guarantee for the main machine of the machine.

6. How long is your delivery cycle?
1) In the case of stock, we can deliver the machine within 7 days.
2) Under standard production, we can deliver the machine within 15-20 days.
3) In the case of customization, we can deliver the machine within 20-25 days.
