Yake Curved Signboard Advertising Screen Signs Wall Mounted Led Display L Shaped Billboard P10 Led Wall Front Open Panel In Shop
Yake Curved Signboard Advertising Screen Signs Wall Mounted Led Display L Shaped Billboard P10 Led Wall Front Open Panel In Shop
Yake Curved Signboard Advertising Screen Signs Wall Mounted Led Display L Shaped Billboard P10 Led Wall Front Open Panel In Shop
Yake Curved Signboard Advertising Screen Signs Wall Mounted Led Display L Shaped Billboard P10 Led Wall Front Open Panel In Shop
Yake Curved Signboard Advertising Screen Signs Wall Mounted Led Display L Shaped Billboard P10 Led Wall Front Open Panel In Shop
Yake Curved Signboard Advertising Screen Signs Wall Mounted Led Display L Shaped Billboard P10 Led Wall Front Open Panel In Shop
Yake Curved Signboard Advertising Screen Signs Wall Mounted Led Display L Shaped Billboard P10 Led Wall Front Open Panel In Shop

Yake Curved Signboard Advertising Screen Signs Wall Mounted Led Display L Shaped Billboard P10 Led Wall Front Open Panel In Shop

Share on (1600549168616):


Price:

Quantity:


Product Overview

Description





Product Description









Energy Saving
We use customized PCB and power supply, so average power consumption is less than 150W / ㎡.Compared with the similar products in the market, OF series Outdoor LED billboard saves 20 % energy.Intelligent and dynamic low power consumption under low brightness and gray level.

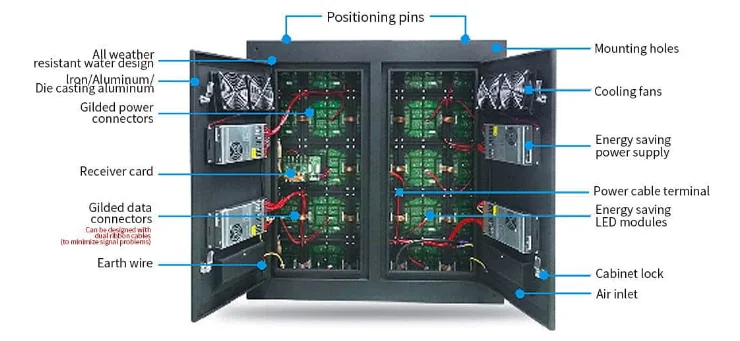

Outdoor Advertising LED Display Cabinet High Performance
High – performance sheet metal cabinet with concise cable, inside space is roomy

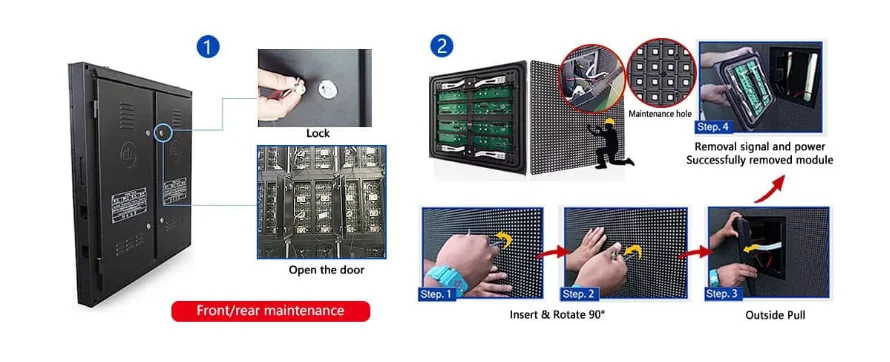

Easy Maintenance
1. Rear service, using keys to open the door to maintenance, quickly and convenient, and save cost for installation and maintenance.
2. Front service, the best solution for fixed installation, using full front service to remove any faulty parts from the front of the LED cabinet. Module with mechanical lock support both front and rear service.

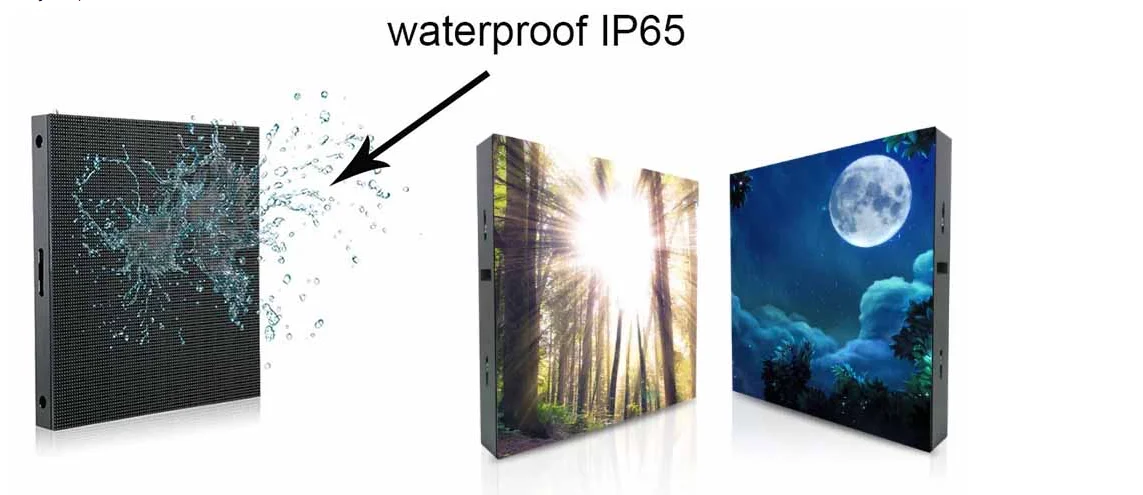

IP65 Grade Protection
IP65 ensures stable operation of the screen even in extreme weather as below: high temperature, low temperature and high humidity.

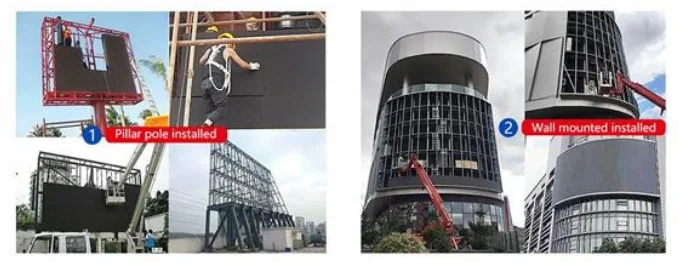

Installation Methods
Basically, there are three ways to do it, depending on how it will be used.
It can either be installed by hanging, wall mount, or standing on the floor.If you need a different installation method, don’t worry, we can provide you with a solution.

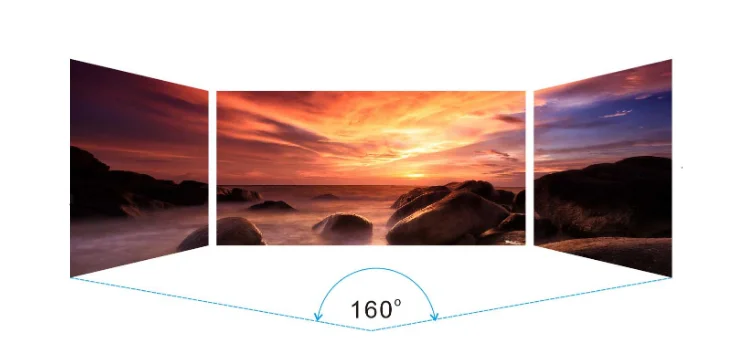

Ultra-wide Viewing Angle
Viewing angle is up to 160° vertical and horizontal, providing a wide viewing angle.
Ultra-wide viewing angle give you the largest screen viewing area.
It offers you clear and natural images in all directions.




Specification


Item
Techinical Specifications
Pixel Pitch
PH5mm
PH6.67mm
PH8mm
PH10mm
LED Configuration
SMD2727
SMD3535
SMD3535
SMD3535
Pixel Density
40000pixels/m2
22478pixels/m2
15625pixels/m2
10000pixels/m2
Module Size
320*160mm
320*160mm
320*160mm
320*160mm
Module Resilution
64*32pixels
48*24pixels
40*20pixels
32*16pixels
Cabinet Size
960mm*960mm
Cabinet Resolution
192pixels*192pixels
144pixels*144pixels
120pixels*120pixels
96pixels*96pixels
Cabinet Material
Galvanized Iron Cabinet
Cabinet weight
30kg/pcs
Brightness
5000cd/㎡


5000cd/㎡



5000cd/㎡

7000cd/㎡

Viewing Angle
H:160°/V:160°
H:160°/V:160°
H:160°/V:160°
H:160°/V:160°
Input Voltage
AC220V/110V,50HZ/60HZ (±10%)
Output Voltage
5V,60A
Best Viewing Distance
≥5m
≥7m
≥8m
≥10m
Refresh rate
1921Hz
Grey scale levels
R(256bit) x G(256bit) x B(256bit)
Display Colors
R(1024) x G(1024) x B(1024)
Life-span
100,000 hours


Applications




Package & Delivery






Why Choose us


Our Company






Our Factory






Exhibitions




Interaction with Clients


Clients‘ Visiting




Reviews from Purchased Clients




FAQ


Q1: What is the control system? How is it?
A: We use Nova Taurus Series asynchronous control system. Support cluster play and management. Support APP/Phone/ WIFI/ Ipad/ Laptop/ PC/ Cloud control. It’s very easy and convenient to control.

Q2: Can I have a sample order for led screen?
A: Yes, we welcome sample order to test and check quality. Mixed samples areacceptable.

Q3:Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q4: What is your best service?
1: One to one sales engineer to customer responsibility system;
2. Know your project and provide the best solution for it;
3. Track your order and let you know each step and detail of it;
4. Teach you how to install and use the screen;
5. Care the subsequent use of your screen and ensure your after - sales service be well.

Q5. How about your delivery time?
A: Generally, it will take 7-15 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.

Q6:How about your Warranty Term?
A: 2-year warranty. Structure design, installation problem, system problem, how to use the screen…don’t worry, we have professional after-sale team to solve your any questions after you placed an order. And your exclusive sales engineer will also help you get over any problems.
