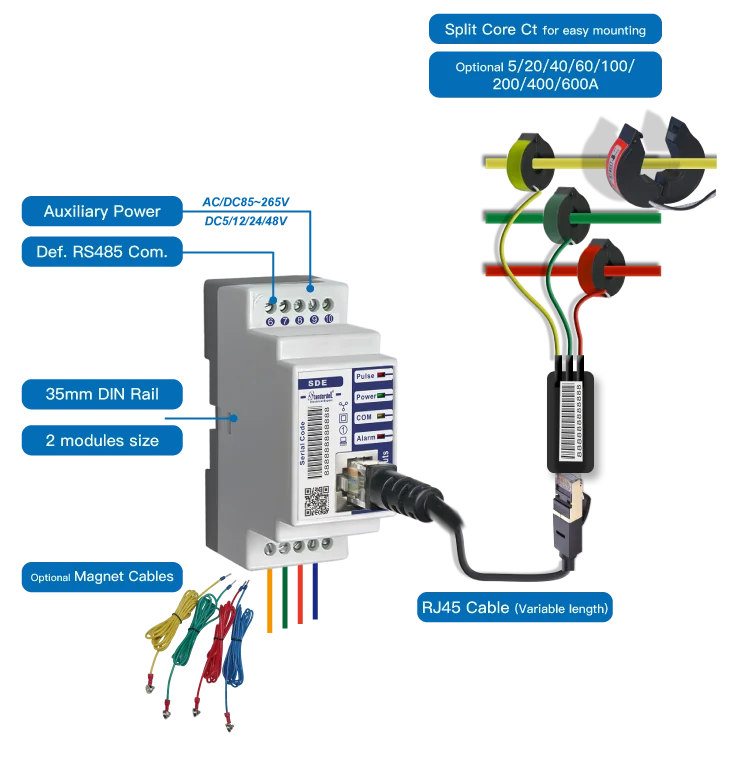

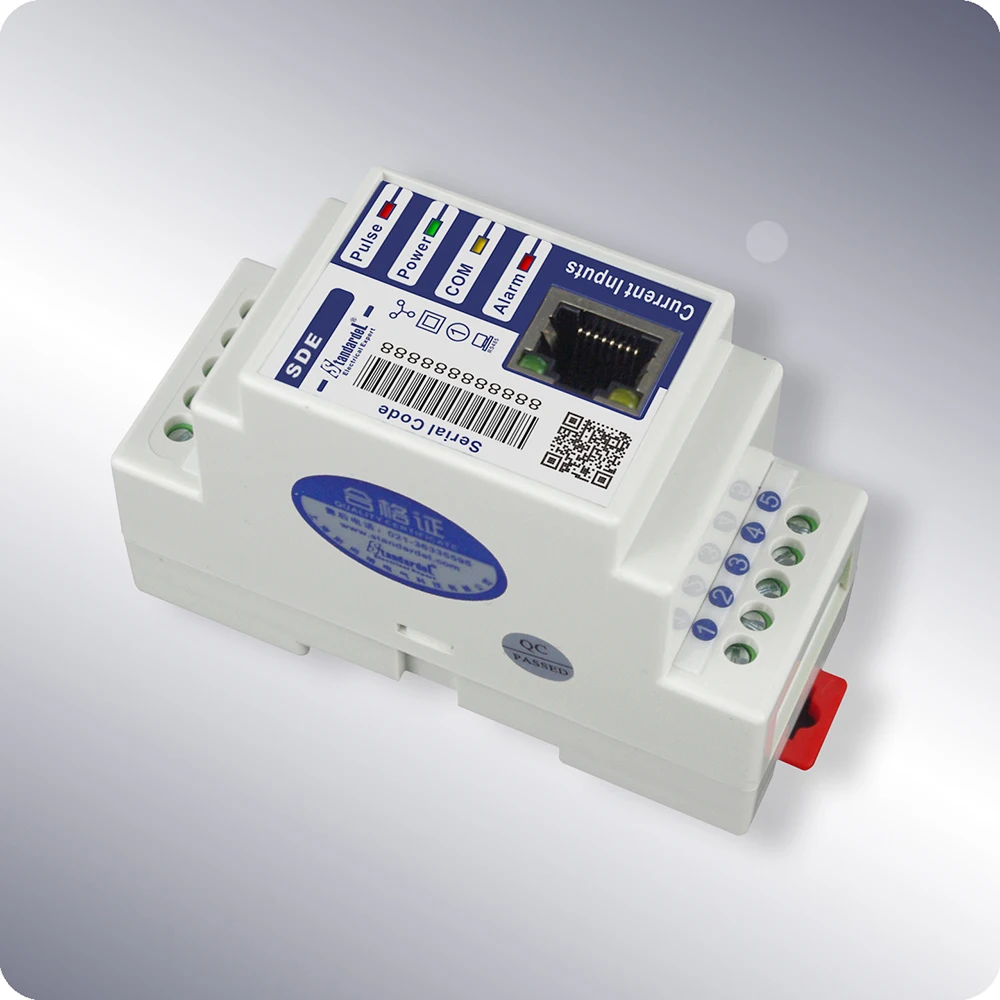

     SDE330-C100 micro DIN rail 3 phase power analyzer is designed special for renovation project of energy management (EMS). It has 3 external split core CTs (5~600A) or 3 Rogowski coils (200~6000A), so we don't need to dismantle bus to install it. By its DIN rail installation, it is very suitable to be used with breakers, contactors.
     Besides electrical energies, it can measure all the parameters on the electrical networks, such as currents, voltages, active powers, reactive powers, apparent powers, frequency, power factors and 4 quadrant energies. It is designed as just 2 modules, so it can be installed in any so small space or to use it as multi channel 3 phase analyzer. Every SDE330-C100 has a RS485 interface to transfer its measuring data to other master devices, such as PLC, data center computers.
     SDE330-C100 has good cost performance, as an intelligent unit and a digital electrical data collection unit, it has been widely used in many intelligent systems.

- Measuring: 30 parameters on AC electrical network:
             AL1, AL2, AL3(current senses), VL1, VL2, VL3, VL1-2, VL2-3, VL3-1, Fr,
             PL1, PL2, PL3, PL,QL1, QL2, QL2, QL, SL1, SL2, SL3, SL, PF1, PF2, PF3, PF,
             imp & exp kWh, L & C kvarh
- Dimension: 2 modules (36×89×74mm);
- Current Input:
             SDE330-C: split core CT (option 5A, 20A, 40A, 60A, 100A, 200A, 400A, 600A);
             SDE330-R: rogowski coil (option 200, 600A, 1kA, 2kA, 4kA, 6kA);
             (5A split core CT is applied on the secondary cable of original 5A CT);
- Line & Voltage Input:
             3P4L (3x57.7/100V, 3x127/220V, 3x230V/400V,3x240/415V);
             3P3L (3x100V, 3x220V, 3x380V)
- Power Supply: Default axiliary power supply AC/DC85~265V;
             Optional DC5V/12V/24V/48V
- Communication: With 2 cables isolated RS485 interface up to 38400bps (Def. Modbus-RTU protocol);
- Autodiagnosis: the wiring error;

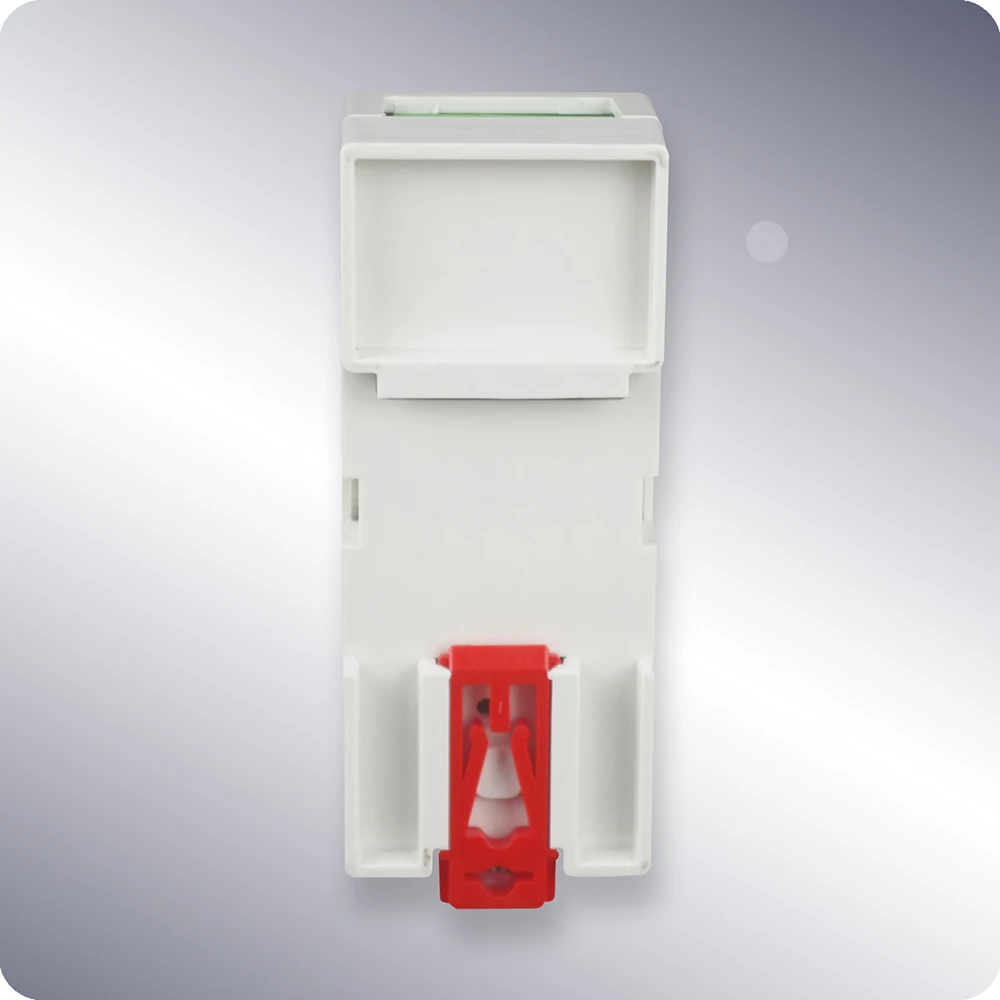

- Mounting: 35mm standard DIN rail installation;

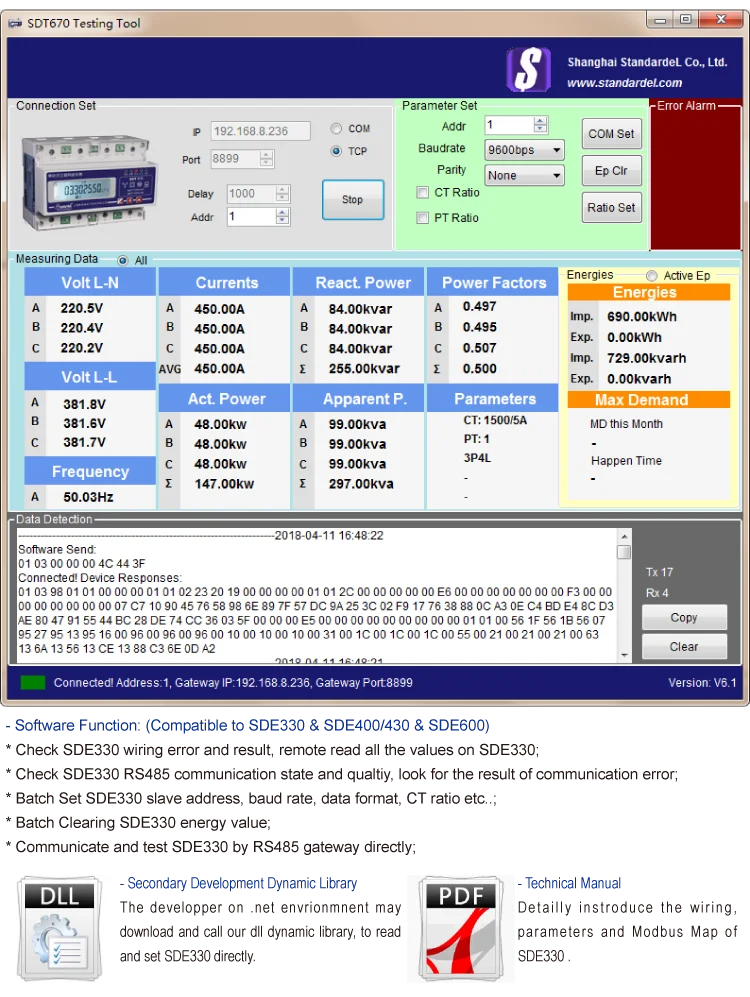

- Software: With free testing software, to easily read its data and set its parameters by computer;
- Secondary Develop: provide DLL dynamic library and C# example, to develop you own software;

Q: Can I ask for sample ?
A: Yes, for sample orders, please order from our online shop.

Q: Are you trading company or manufacturer ?
A: We are factory located in Shanghai.

Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 10-15 days for the items out of stock.

Q: What is your terms of payment ?
A: Order amount less than $5000, 100% paid before shipment; order amount more than $5000,30% as deposit, 70% before shipment, or by negotiated for the both parties.

Q: Do you provide software ?
A: We have the free testing software for every model device. In the meantime, we also provide detection software to manage the device data, and charge of these software, you may demand our salers.
