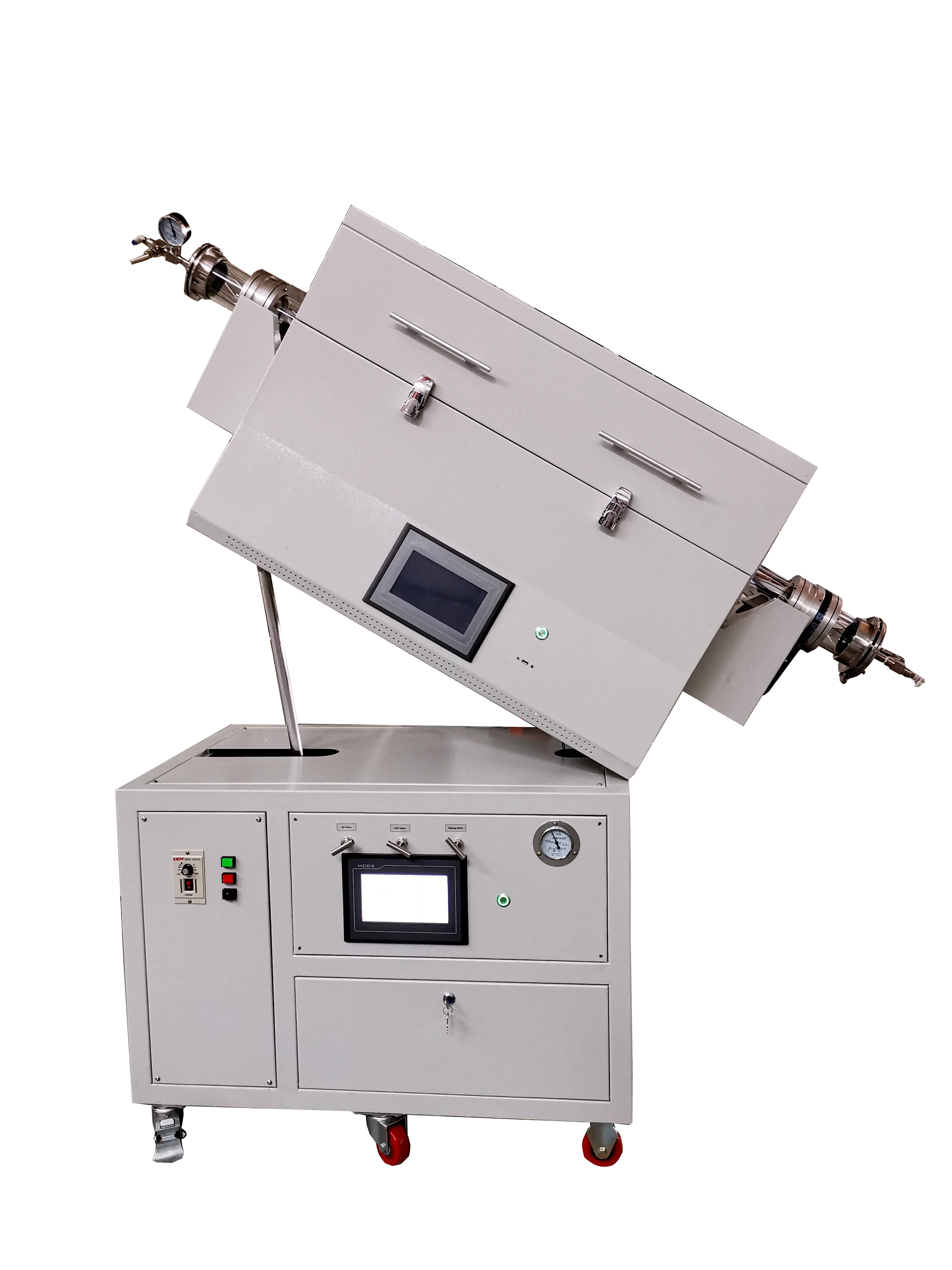

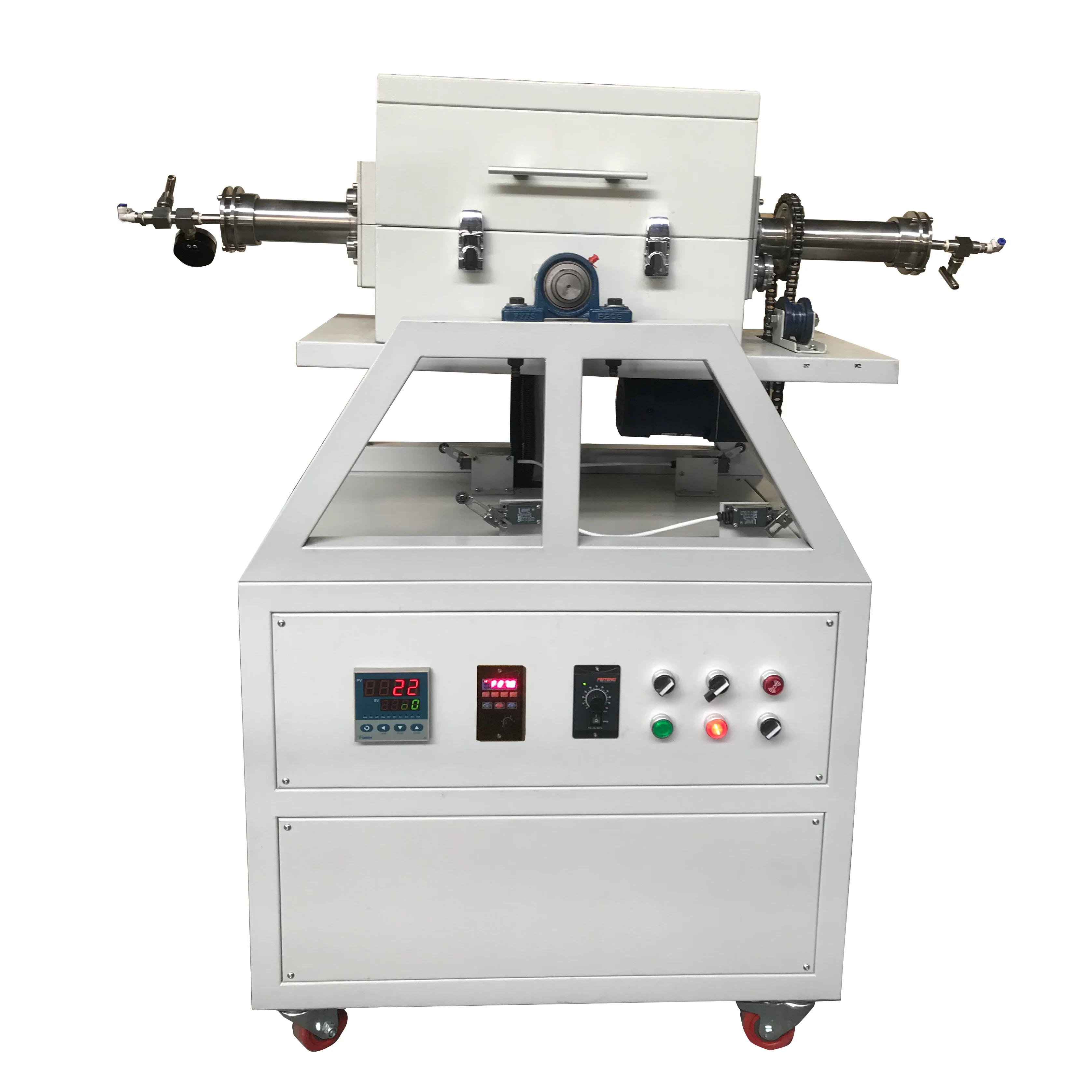

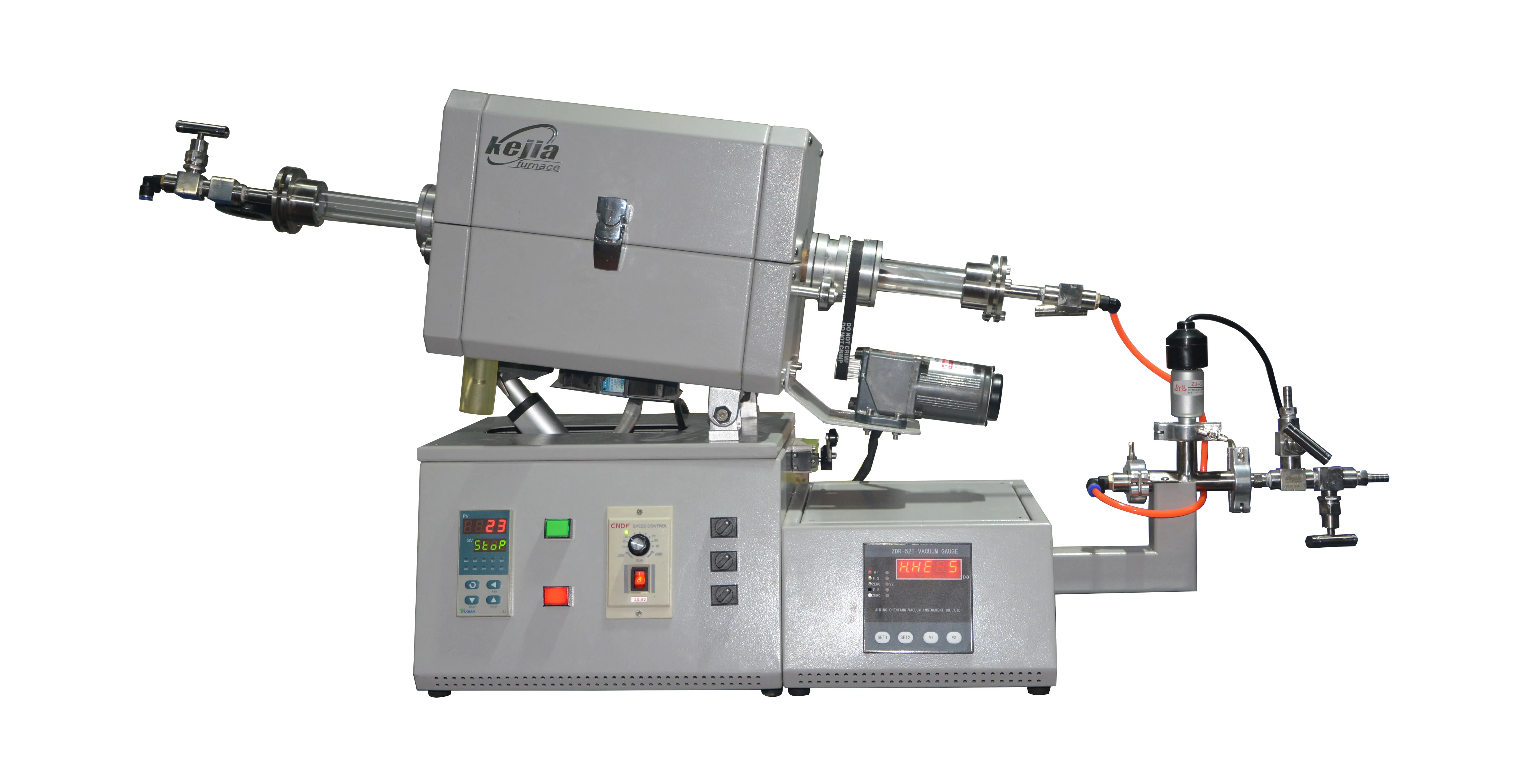

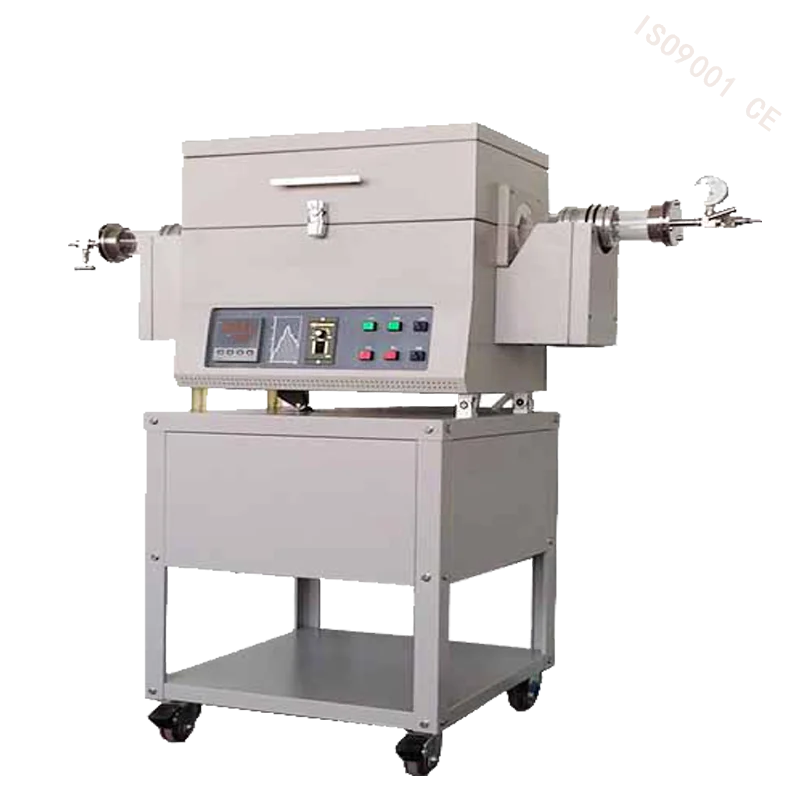

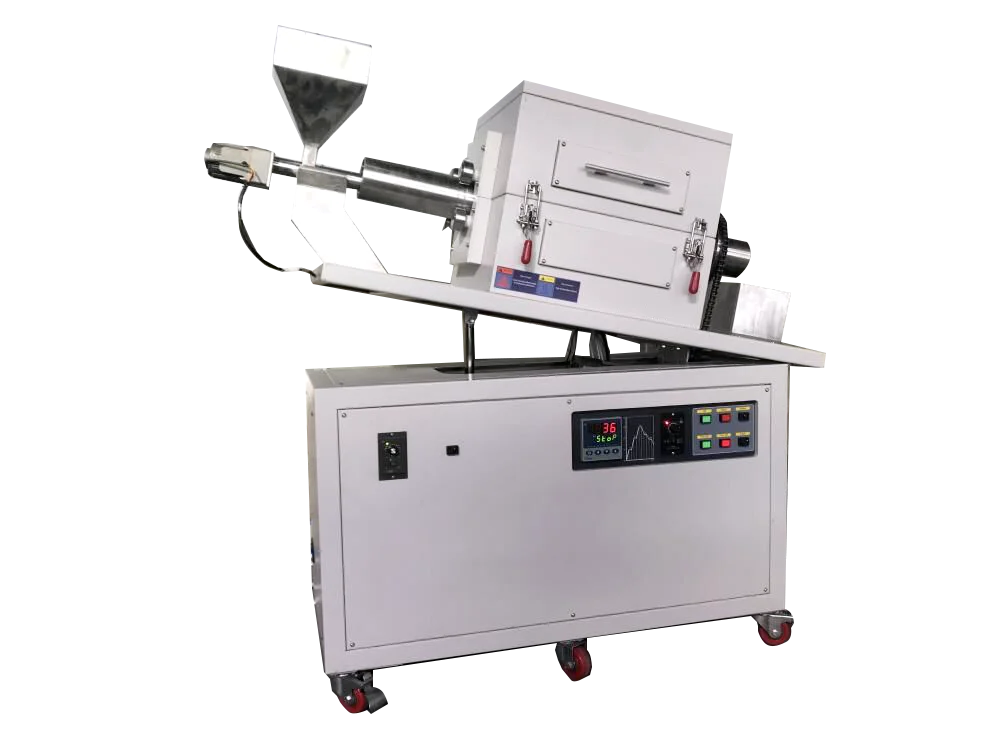

1200C Rotary Tube furnace for carbon activation with high temperature steam generator
- Category: >>>
- Supplier: Zhengzhou Protech Technology Co. Ltd.
Share on (1600549187271):
Product Overview
Description
Product description:
The furnace body of Protech PT-T1200-S100X tube furnace is equipped with a double-layer shell, equipped with a cold air system, which automatically cools down, so that the temperature of the furnace shell does not exceed 45 °C, and the furnace adopts high-quality high-purity alumina formed by Japanese technology vacuum adsorption. The polycrystalline fiber curing furnace has good thermal insulation performance, high reflectivity and balanced temperature field. The furnace is the best choice for scientific research institutions and university laboratories.
technical parameter:
| Product name | Tube furnace with steam generator |
| Model | PT-T1200-S100X |
| Furnace structure | Double-layer shell structure, equipped with cold air system to automatically cool down the furnace shell temperature does not exceed 45 ℃ |
| chamber size | The high-quality high-purity alumina polycrystalline fiber curing furnace formed by Japanese technology vacuum adsorption has good thermal insulation performance, high reflectivity and balanced temperature field. |
| Max.temperature | 1200℃ |
| Continuous working temperature | ≤1100℃ |
| Heating rate | Recommended ≤10℃/min, the fastest heating rate is 20℃/min |
| Furnace tube material | High Purity Quartz Tube |
| Furnace tube size | Reducer φ60-φ100-φ60mm The total length is 1200mm (the above dimensions are estimated dimensions and the final dimensions shall prevail) Welding lifting plate in the middle part of furnace tube |
| Heating zone length | 440mm |
| Temperature Control System | The temperature control system adopts artificial intelligence adjustment technology, with PID adjustment and self-tuning functions 1. Using PID mode to adjust temperature control, 30 sections of heating and cooling programs can be set 2. Temperature control accuracy ±1ºC 3, with over-temperature protection, broken couple protection 4. The instrument has the function of temperature self-tuning |
| Heating element | Alloy resistance wire |
| Temperature measuring element | Type K thermocouple |
| Working power | 220V 50HZ |
| rated power | 4KW(subject to actual power) |
| Additional features | Can rotate 0-15 turns 360 degrees (speed adjustable), can be tilted 0-15° (adjustable tilt angle) |
| Flowmeter | Two-way precision mass flowmeter: digital display, automatic gas flow control. MFC1 Range: 0-10 SLM MFC2 Range: 0-10 SLM Air way: 2 way Flow Accuracy: 0.2% Inlet and Outlet Ports: 1/4" Ferrule Precision gas mixing tank: the gas is mixed and passed into the furnace tube Each gas path has an independent stainless steel needle valve control Adjust the gas flow by entering the flow value on the touch screen on the control panel |
| steam generator | Use environment: Ambient temperature: 0~50℃ Relative humidity: 10%~90%RH, non-condensing Inlet water requirements: distilled water or deionized water (ultra pure water) Air intake requirements: no solid impurities, no corrosion to 304 stainless steel Working voltage: 220V 50HZ Working power: 1800W Steam flow: 1-10g/min adjustable Flow accuracy: ±3% Steam temperature: 110-200℃, ±1℃, adjustable Pipeline heating temperature: room temperature -200°C, ±1°C, adjustable Pipe material: all SUS304 Working pressure: commonly used ≤ 0.1Mpa (design ≤ 0.2Mpa) |
Packaging & Shipping
Packing:
1.Standard exported package: Internal anti-collision protection, external export wooden box packaging.
2.Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3.Deliver time: 25 days after confirming order, detail delivery date should be decided according to production season and order quantity.
Related Products
Company Information
Zhengzhou Protech Technology Co., Ltd-owned by Protech(China) Holdings Limited, is founded by a group of technology enthusiastic people who are devoted to probing the newest technology and innovation in thermal field, and serving various clients worldwide for different high temperature processing applications.
We have our own manufacturing base in Zhengzhou City of China, which enable us a reliable manufacturing ability and quality control system.
FAQ
Are you a manufacturer or just a trading company?
Our factory is in Zhengzhou city of China, we welcome you visit us anytime, and we are not only manufacturing, but also developing newest furnace with our own patent!
How is the your furnace quality? We need a low price but high quality furnace
We do not label our furnace is the top quality in China, but the tremendous well feedbacks from our clients is a proving; our furnace price may not the lowest, but the high cost performance and service is our company key strength!
What control systems do you offer?
Our thermal control system includes EUROTHERMAL,SHINKO and YUDIAN, other brands are also available according to customer requirement.
Our operating control can be digital and touch screen as while
We need one reliable and technical know-how supplier, efficient technical support is very important, are you the one?
The founder of our company is one furnace engineer, and our technical team is all much experienced engineers, we are probing both the furnace producing and applications, we are open to share our experiences on the furnace making and thermal applications with our clients.
