Cloth Making Machine Rubber Silicon Moulding Machine Automatic Injection Molding Equipment For Floss Pick
- Category: >>>
- Supplier: Dongguan Yingling Intelligent Technology Co. Ltd.
Share on (1600549187529):
Product Overview
Description
Product Description

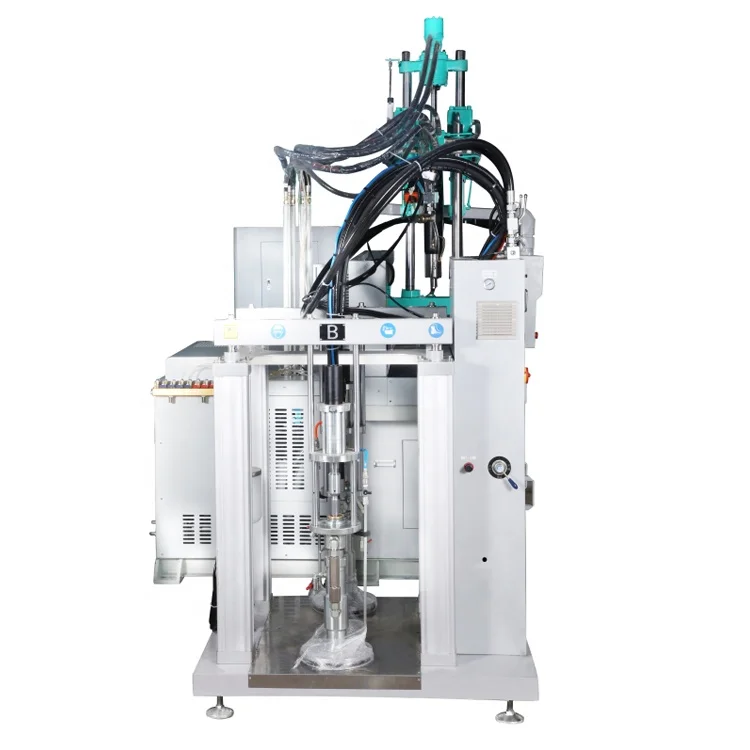

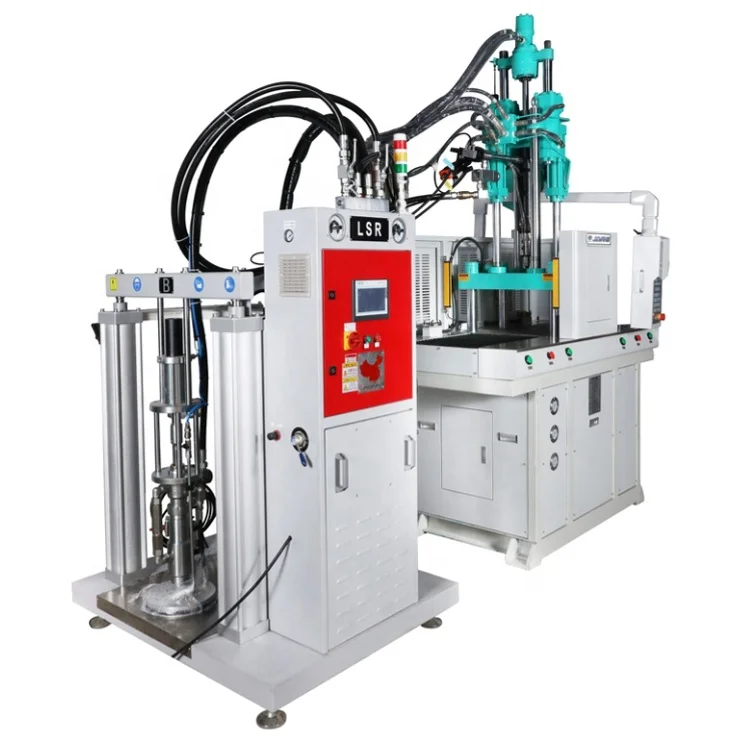

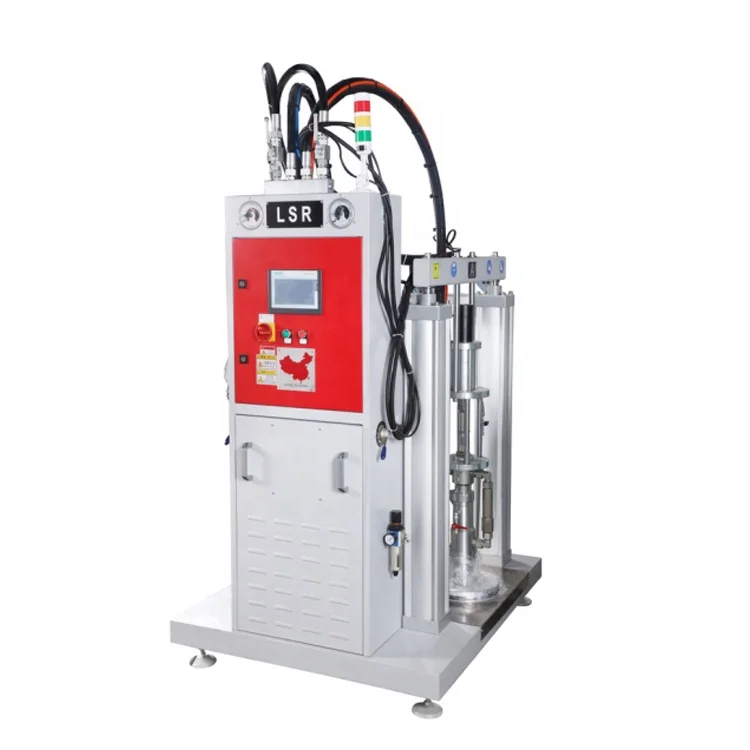

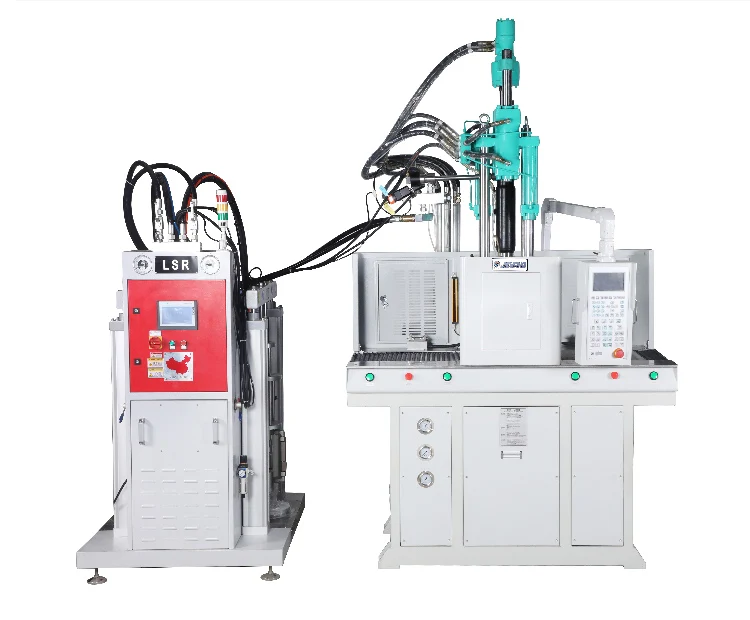

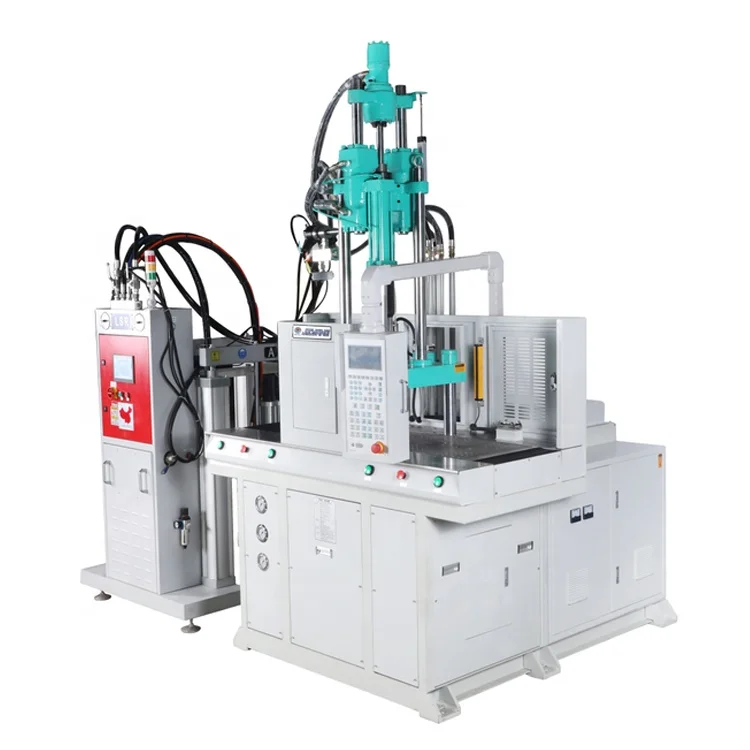

Cloth Making Machine Rubber Silicon Moulding Machine Automatic Injection Molding Equipment For Floss Pick
Feature

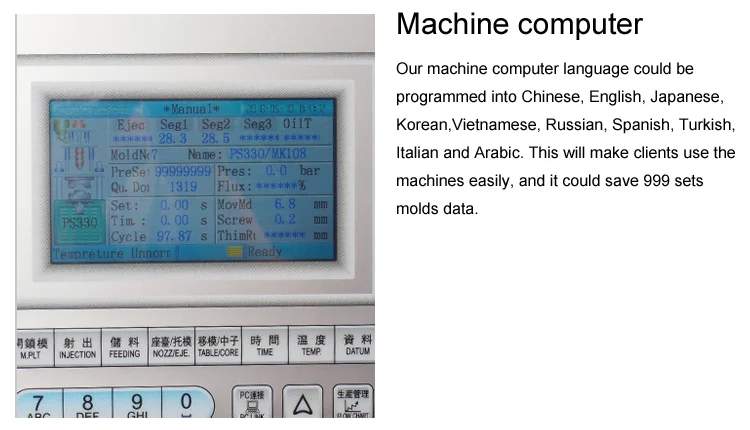

1.Vertical four-column direct pressure die locking,vertical injection, Chinese/ English electronic control, full screen display, proportional pressure, flow control mechanical structure optimization, smooth operation, fast speed.
2.The slide plate and the bottom plate are made of nodular castiron. The location of the steel strip is isolated. There are lubrication oil holes, which greatly reduce the wear and deformation of the slide, and increase the service life and accuracy of the slide.
3.Thimble can be used in combination with different skateboards, and the travel can be adjusted freely. Demoulding force, thimble advance and retreat speed and ejection frequency can also be preset according to need.
4.The dual mode slide plate is replaced by two modes, alternately sliding around one mold, and one die is embedded in the outside. The operation safety is high, and the productivity can be increase by 30%-50%.
5.Diversified oil system design(semi-closed, full-closed,servo or high-speed injection molding) can meet customer needs, expandable programming, and automatic embedded and removal equipment, to achieve automatic operation.
Specification of nipple making Liquid silicone vertical injection molding machine:
| MODEL | UNIT | JT-550ST-DM-LSR | |
| INJECTION UNIT | Screw Diameter | mm | ø32-ø40 |
| Theoretical Injection Volume | cm³ | 128-226 | |
| Injection Weight(PS) | g(oz) | 121(4.8)-201(7.08) | |
| Max.Injection Pressure | Mpa(kgf/cm²) | 201(1050)-128(1312) | |
| Injection Rate | cm³/s | 70-100.5 | |
| Injection Speed | mm/s | 88 | |
| Injection Stroke | mm | 160 | |
| Screw Speed Rotation | r.p.m | 0-200 | |
| NO.of Temperaturecontrol | 3+1 | ||
| Nozzle Out From Platens | mm | ≥45 | |
| CLAMPINGUNIT | Clamping Force | KN(tf) | 539(55) |
| Clamping Stroke | mm | 200 | |
| Min.Mold Thickness | mm | 180/280 | |
| Max.Opening | mm | 380/480 | |
| (L*W)Distance Between Tie Bars | mm | 470*280 | |
| (L*W)Max.MouldSize | mm | 425*425 | |
| (L*W)Platen Size | mm | 930*450 | |
| Ejector Distance | mm | 100 | |
| Ejector Force | KN(tf) | 26.5(2.7) | |
| OTHERS | Oli Tank Capacity | L | 200 |
| Electric Power | KW(HP) | 7.5(10) | |
| Heater Power | KW | 5.3 | |
| Machine Dimensions | L*W*H | 1.86*1.7*2.69M | |
| Machine Weight | tf | 2.1 |
Machine Application
Machine Application:

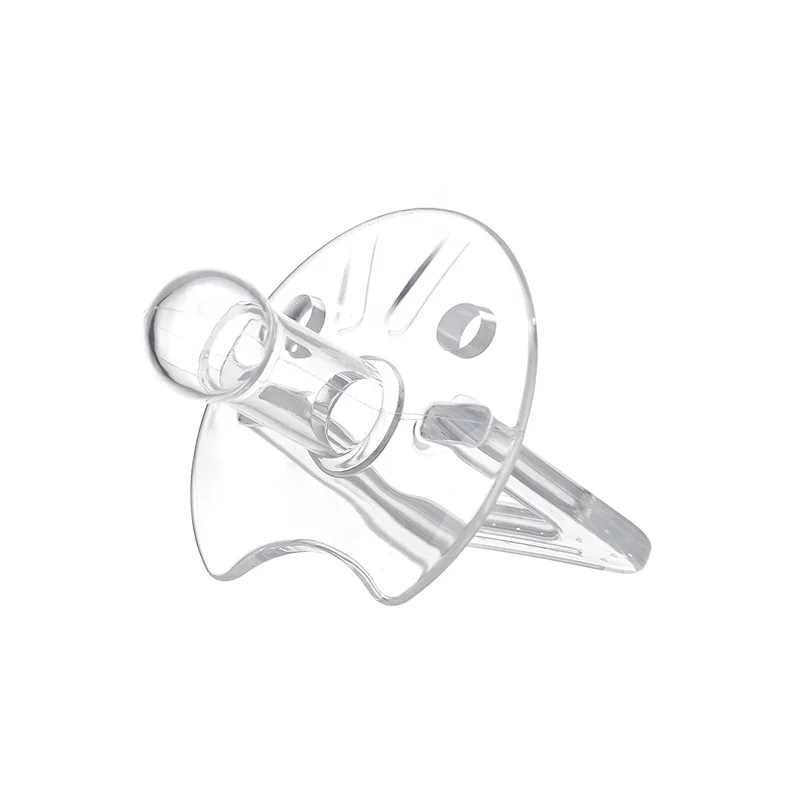

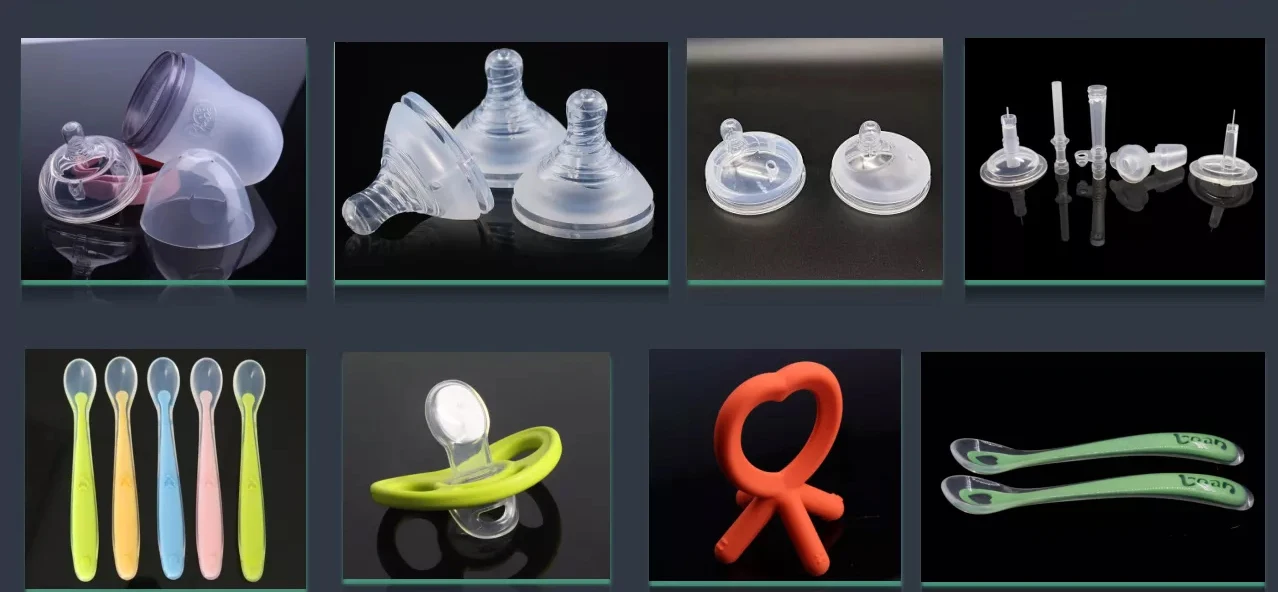

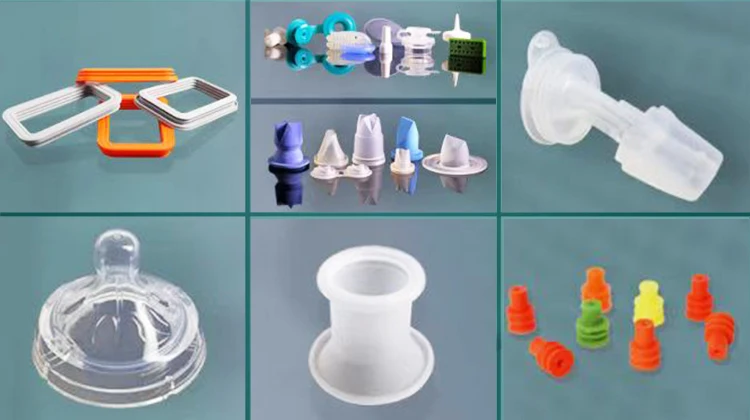

Vertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time, it's widely apply to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards, medical devices, open containers, connectors, cables,auto parts, Plug ,patch cord cable,Liquid silicone Product,etc
.

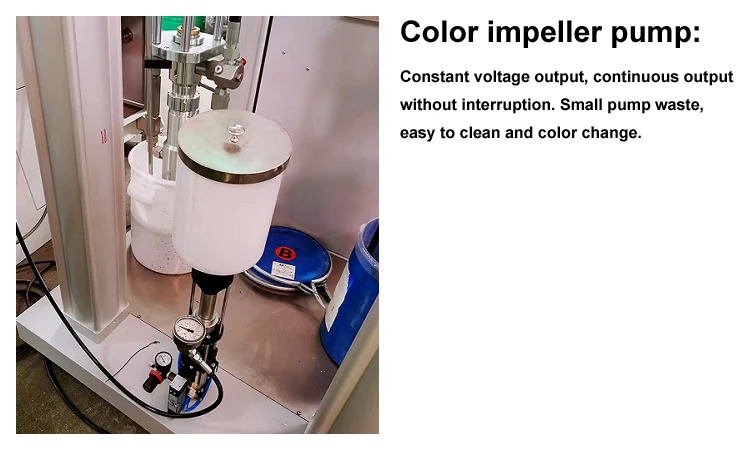

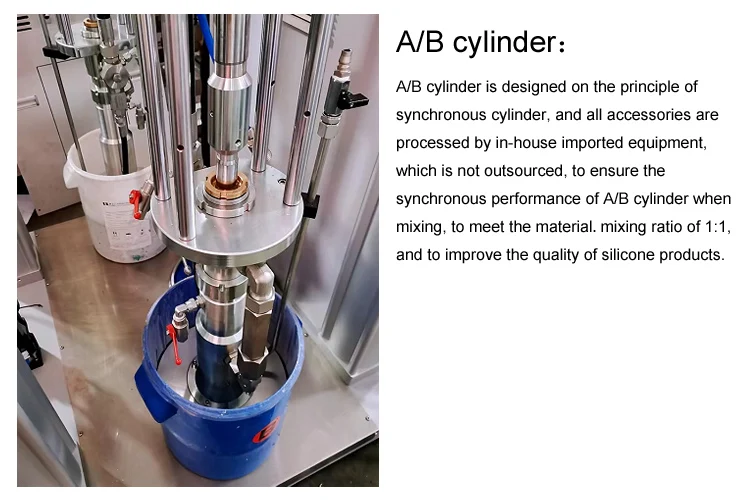

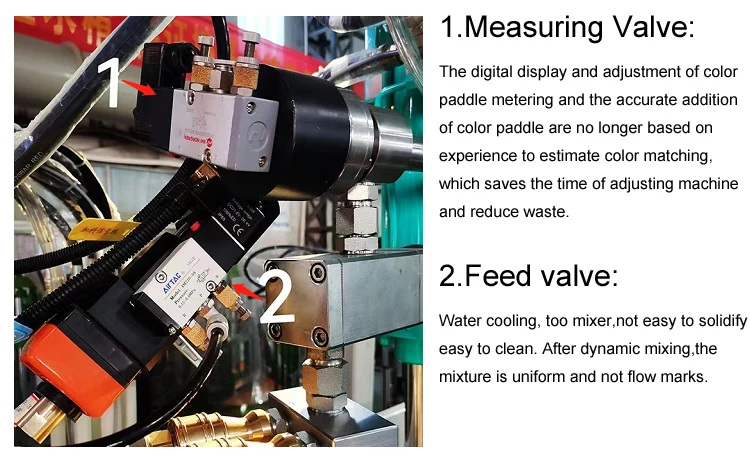

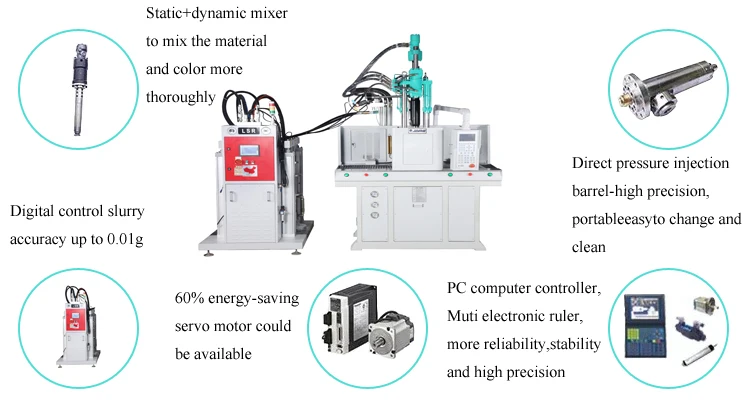

Detailed Images
Company Information
Packaging
1.We will arrabge to manufacture the machine the second day after your confirmation.
2.Before shipment,we will check and test the machine carefully.
3.We will send the machine to your designated place in China.Besides,we can help you send the machine to your seaport if you need.
| Packaging | |
| Dimensions | 1.8*1.35*2.25m |
| 2.Weight | 2250kg |
