VoIP/SIP/IP Phone Built in 2.4G WIFI for Small Business Wifi Sip Phone
- Category: >>>
- Supplier: Shenzhen Sanxin Communication Software Technology Co. Ltd.
Share on (1600549198487):
Product Overview
Description
Products Description
4G IP fixed wireless phone
① 4G VOLTE phone
② 3 ways audio conference③ 2.4 inch color screen
④ Support SIP 2.0 (RFC3261)
⑤ Built-in WIFI (IEE802.11 b/g/n) 2.4G
⑥ Support TR069 Auto provisioning
⑦ Call transfer/Call hold/Call waiting/Call forward
⑦ Call transfer/Call hold/Call waiting/Call forward
⑧ Support SIP UDP/TCP/TLS
product diagram
Details Images
Product Paramenters
Features | Parameter | ||||||
SIM CARD | Standard SIM card | ||||||
LCD Display | 2.4" COLOR | ||||||
Keypad | 3*4+16 keys | ||||||
WIFI AP | 802.11b/g/n 2.4G | ||||||
USB | Micro usb | ||||||
Version | P03-C | P03-B | P03-A | ||||
FDD_LTE | B1/B3/B8 | B1/B3/B5/B7/B8/B20 | B1/B2/B3/B5/B7/B8/B28A/B28B | ||||
TDD_LTE | B38/B39/B40/B41 | B38/B40/B41 | |||||
3G | B1/B8 | B1/B8 | B1/B2/B5/B8 | ||||
2G | B3/B8 | B2/B3/B5/B8 | B2/B3/B5/B8 | ||||
Speed key | M1-M3 2-9 number key | ||||||
Phonebook | Max Support 500 | ||||||
Call records | Max support 1000 | ||||||
Voice mail | remind unread messages | ||||||
G.722/G.729/AMR/AMRWB/GSM/PCMA/PCMU/SPEEX/ILB/DTMF/ISACWB/OPUS | |||||||
Support high-quality audio calls | |||||||
VAD/CNG/AGC/ANS/AEC | |||||||
DTMF function | RFC 2833、SIP INFO | ||||||
Support SIP 2.0(RFC3261) | |||||||
Support 2 lines SIP accounts | |||||||
Support SIP UDP/TCP.TLS | |||||||
Network protocol | HTTP/TR069/RTP/SRTP | ||||||
Auto provision | TR069 | ||||||
Add/Delected the contacts | |||||||
Do Not Disturb/Auto Answer | |||||||
Call transfer/Busy call tranfer/Call hold | |||||||
Power | DC 5V input/battery with 1000mAh | ||||||
Power adapter: Input 100-240V, output 1A/5V | |||||||
Temp: -10 to 50 ℃ Humidity 10%-90% | |||||||
Standard packing: Phone base x 1pcs, Handset x 1pcs, Power adapter x1pcs | |||||||
PBX compatibility | Broadsoft Asterisk Trixbox Freeswitch Huawei Avaya ZTE Yeastar | ||||||

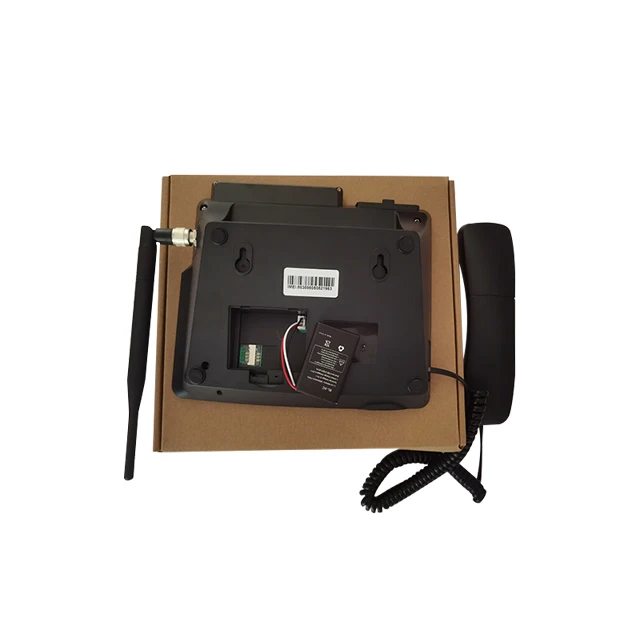

Product packaging
Figure 1
1. Line Cord 2. Coil Cord 3. Charger 4. Battery 5. Antenna
6. Manual 7. Handle 8. Telephone host
6. Manual 7. Handle 8. Telephone host
Figure 2
1. Packing Box 2. box size:252*233*66mm 3. Gross Weight:0.850kg/unit
Figure 3
1. Three-layer thick corrugated cardboard box
2. 10PCS/carton
3. carton size:523*352*254mm
4. Gross Weight:9.2kg
2. 10PCS/carton
3. carton size:523*352*254mm
4. Gross Weight:9.2kg
