Safety Wholesale High Strength Durable Isolation FRP Panel Sandwich For Truck Construction
- Category: >>>
- Supplier: Shandong Fibremax New Material Co. Ltd.
Share on (1600549200453):
Product Overview
Description
Product Description

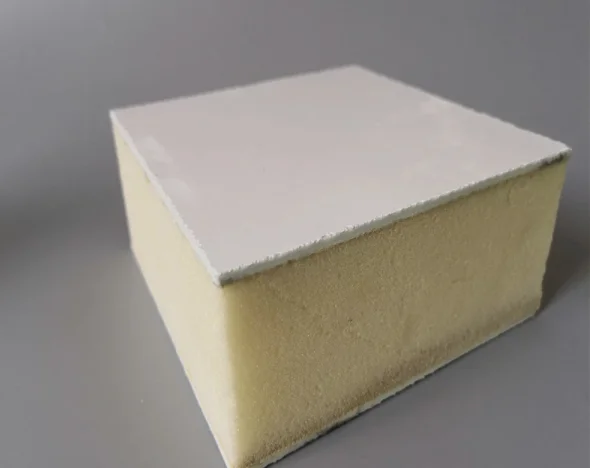

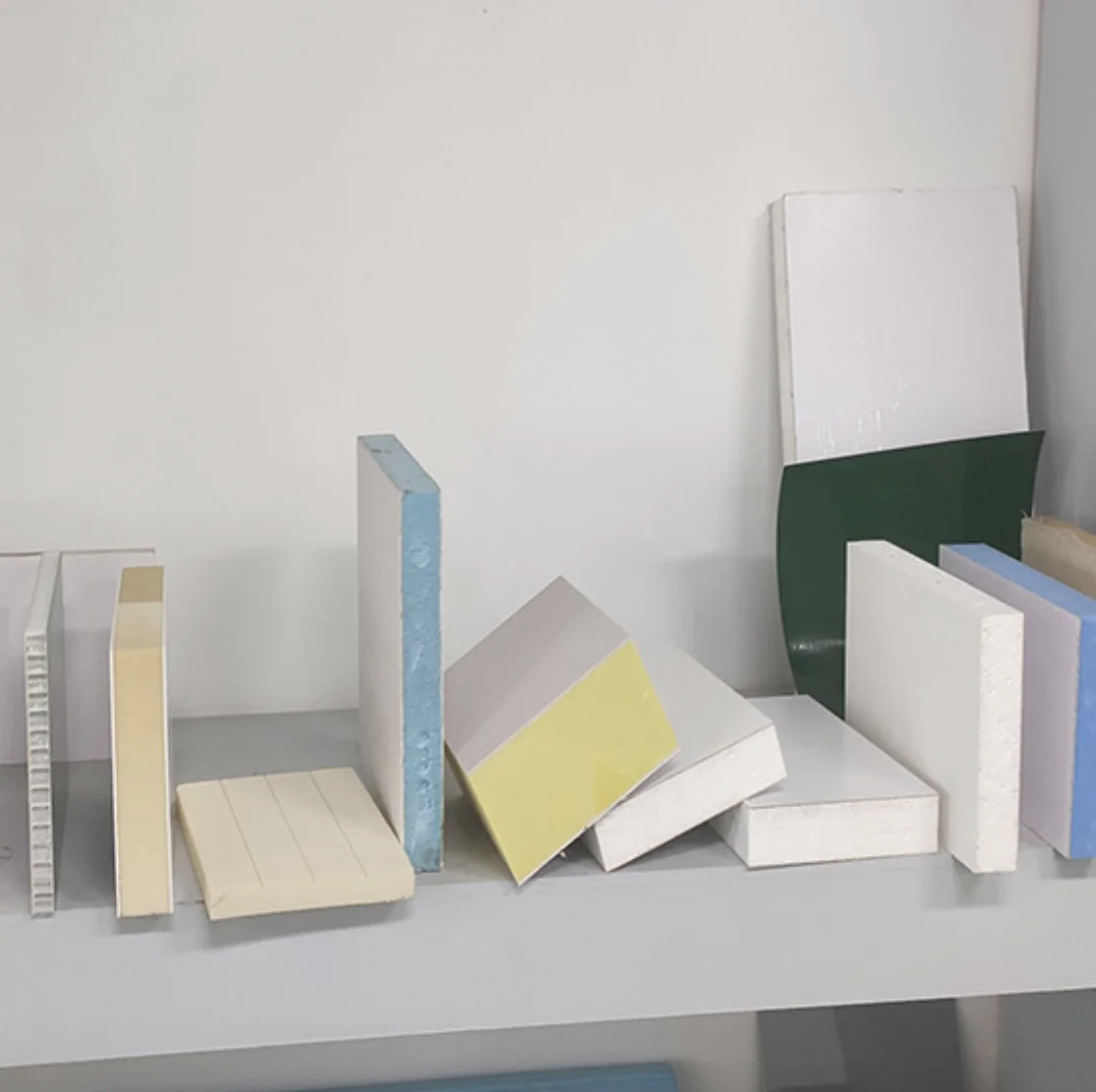

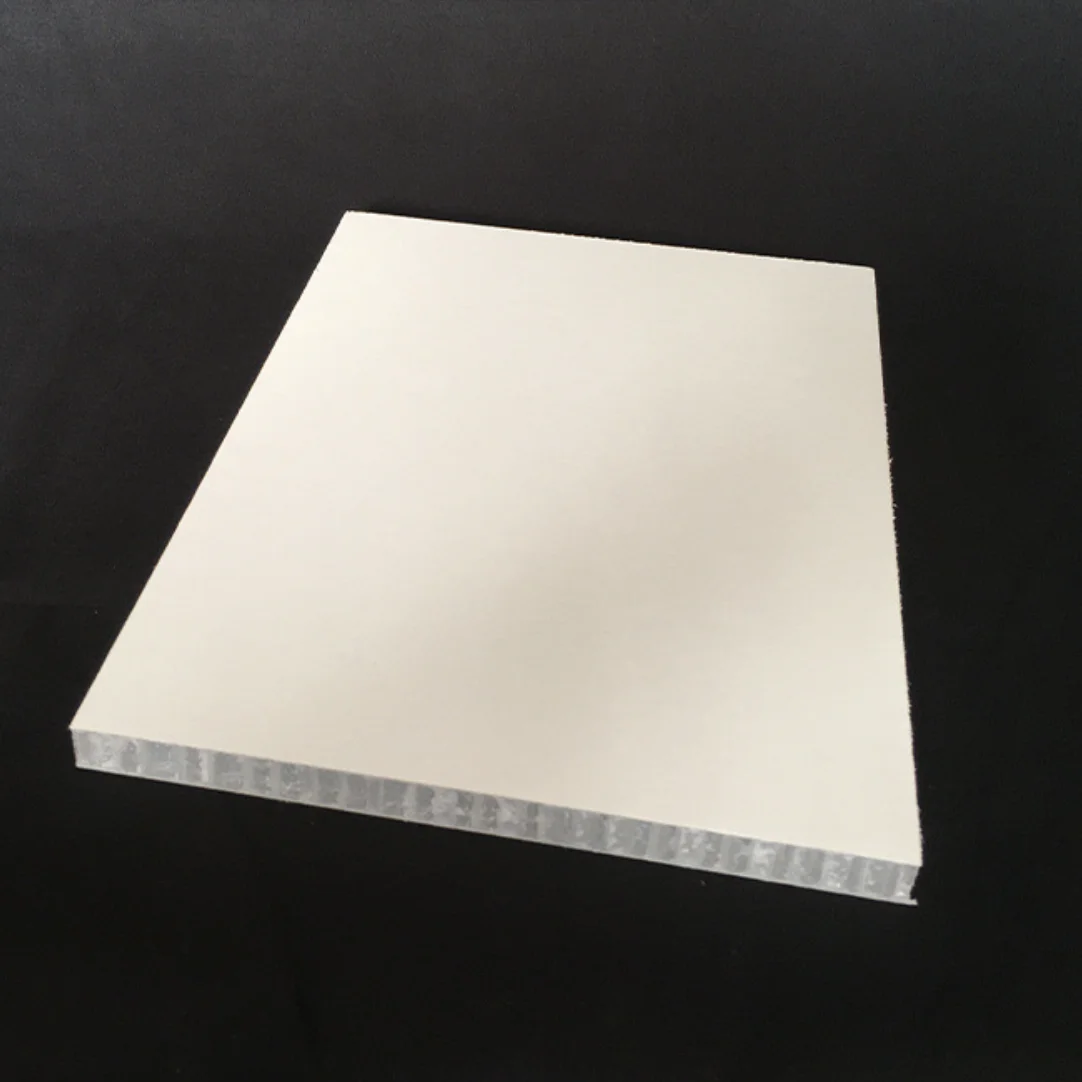

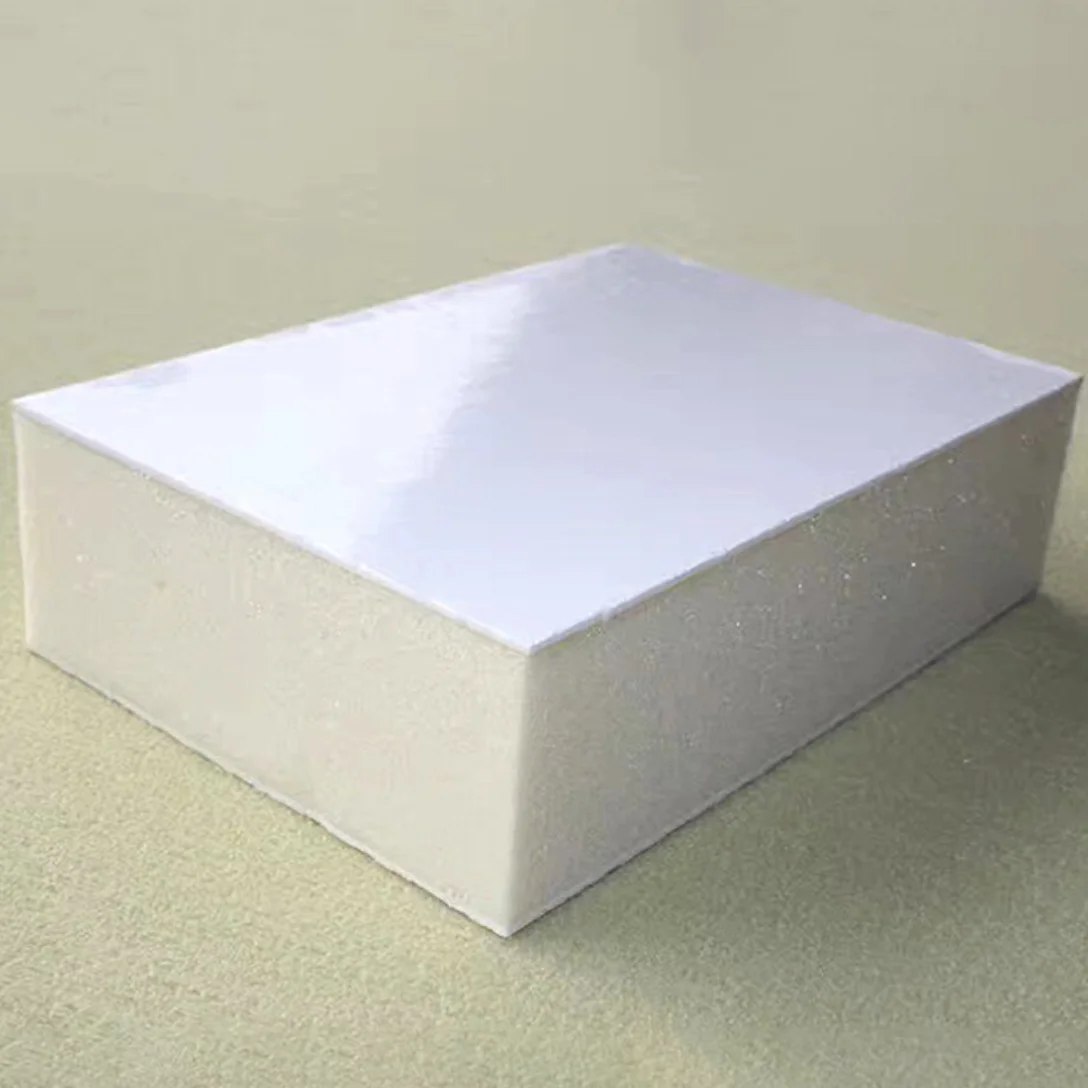

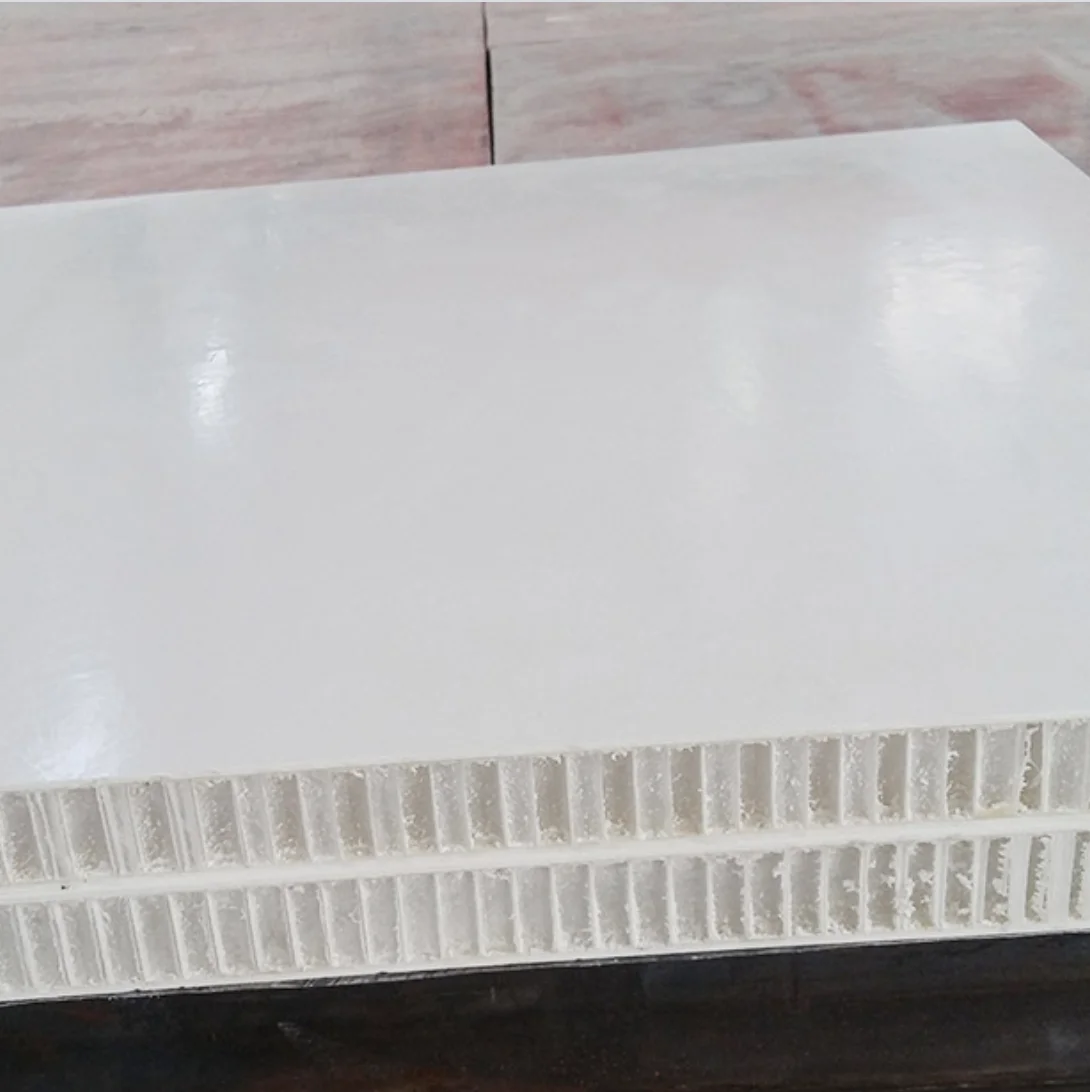

FRP Sandwich Panels.
It is a composite fiberglass material that contains skin and core. The skin is FRP sheet. It contains resin and fibers. The resin acts as a matrix which account for 30% to 40% of the total weight. The resin can be PA, PE, PP, epoxy,phenolic, etc. They are organic non-metallic materials. The GRP sheet takes glass fiber as the reinforcement. The alternatives can be carbon fiber and other non-metallic and inorganic fibers. The fiber roughly accounts for 60% to 70% of the total weight. Its core is either plastic foam or plastic honeycomb. You can choose from PU, PET, PVC, XPS, EPS, EPP, etc for foam core and PP or PC for honeycomb. The foam core usually performs well in heat preservation and thermal insulation while the honeycomb in high strength and impact resistance.
Specification
Type | Honeycomb Core Composite Sandwich Panels Foam Core Composite Sandwich Panels |
Width | 0.1m ~3.2m |
Thickness | Skin: 0.7mm~3mm |
Core: 5mm~150mm | |
Length | Customize |
Core Density | 30kg/m3~300kg/m3 |
Skin | FRP Sheet, CFRT Sheet |
Color | White, Black or Customized |
Core Material | PU foam, PET foam, PVC foam, EPP Foam, EPS Foam, XPS Foam, PP Honeycomb, PC Honeycomb. |
Application | RVs, trailers, vans, dry vans, refrigerated trucks, campers, building formwork, scaffolding, mobile homes, sports products, truck floor, etc. |
Custom-Made | Embedded Tube/Plate, CNC service |
Image Details
Advantages
Light weight
Due to the special composite structure, the density is relatively small and the weight is very light.
High strength
Impact-resistant, rigid and flexible, resistant to physical stress shock and damage.
Easy to Assemble
The assembly is very convenient and the cost is low. It can be assembled with screws, hollow rivets, or by gluing or heat fusion welding.
Waterproof and moistureproof
This is the unique difference between FRP panels and wood panels. This material has good sealing performance, no water seepage and no water leakage, even if the surface is damaged, it will not absorb water.
Strong weather resistance
Glass fiber reinforced thermoplastic materials have a wide temperature range, between -40 and +80 degrees Celsius.
Application
Company Profile
FAQ
Q1:Are you a factory? Where are you located?
A:We are a manufacturer with 20+years experience.Located in Shandong Province,very convenience for shipping and visit.
Q2:How do you charge the sample fees?
A: Sample is free,Special sample will be discussed
Q3:What's the MOQ?
A:Usually 1 ton,we can also accept order quantity less MOQ price should be discussed.
Q4: Color of product?
A: All the products color make to order according to your requirement.We also can print your logo on products.
Q5:What the payment term of your company?
A: The payment term for new customer is T/T30% deposit and balance before shipment or L/C at sight. We can also discuss better
payment term after several orders in good cooperation.
payment term after several orders in good cooperation.
Q6:What's your delivery time for production?
A:If we have stock can deliveryin7 days;if without the stock,need 7~15days
Q7:Package & Shipping.
A: Normal package:carton
Special Package: need to charge according the actual situation. Shipping By sea is normal,if urgent by air
Special Package: need to charge according the actual situation. Shipping By sea is normal,if urgent by air
Q8: After service
A:Please contact us if any questions,We are online24hx365days,we will do our best to give you a satisfy answer.
