205mm Chunk hole Glass Blowing Lathe Glass Blowing Machines
- Category: >>>
- Supplier: Jinan Jiake International Trade Co. Ltd.
Share on (1600549219588):
Product Overview
Description
Product Overview

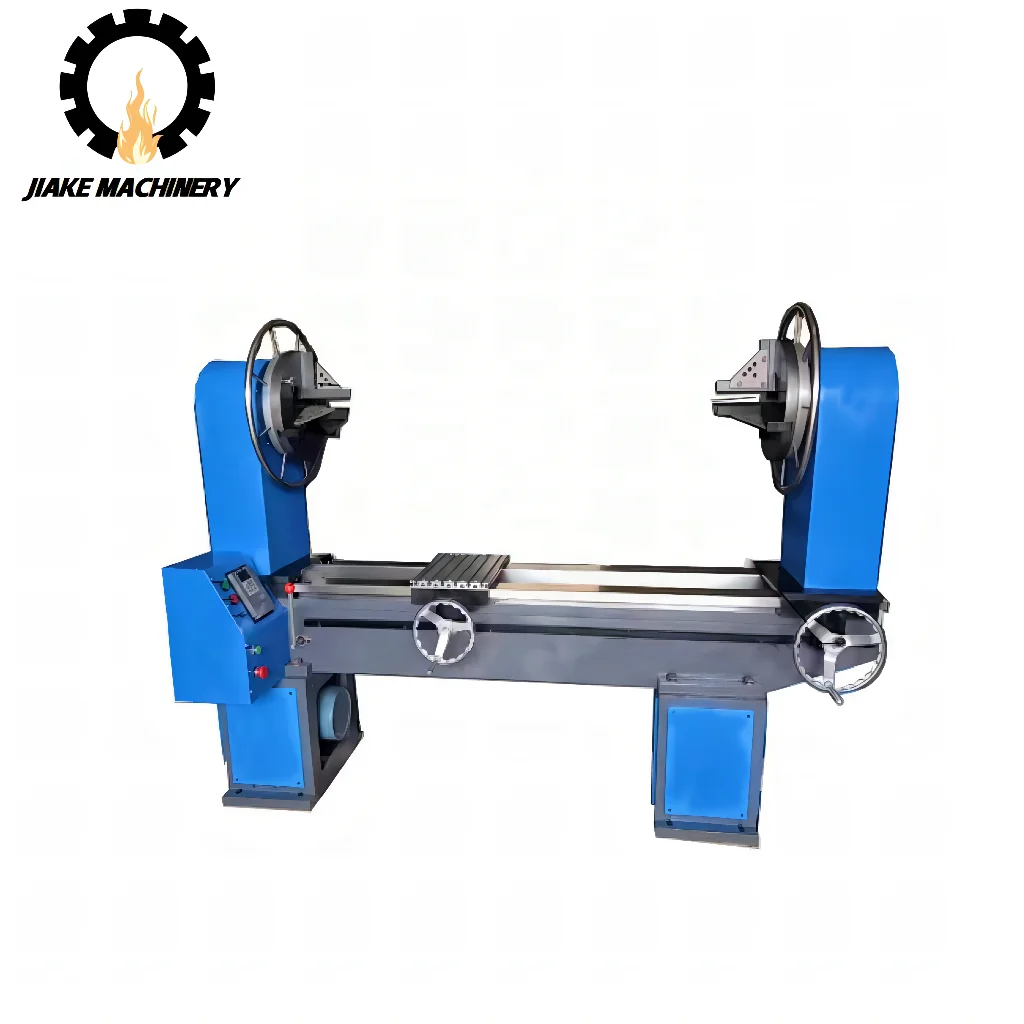

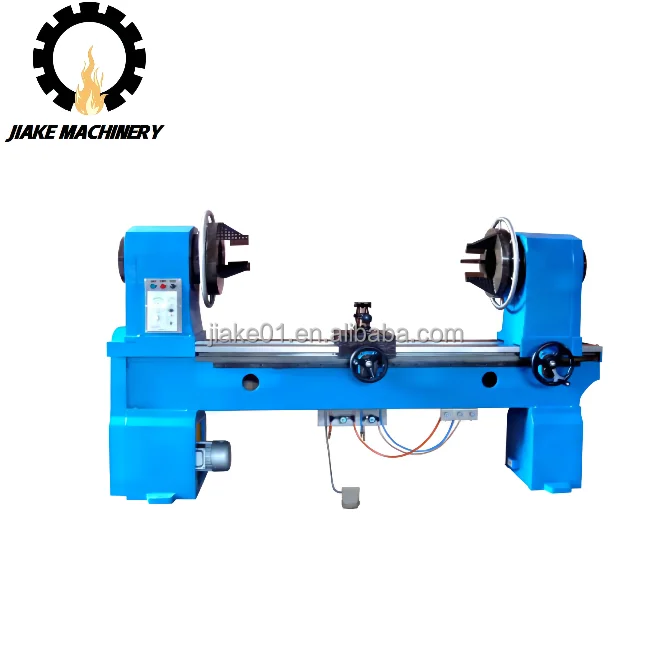

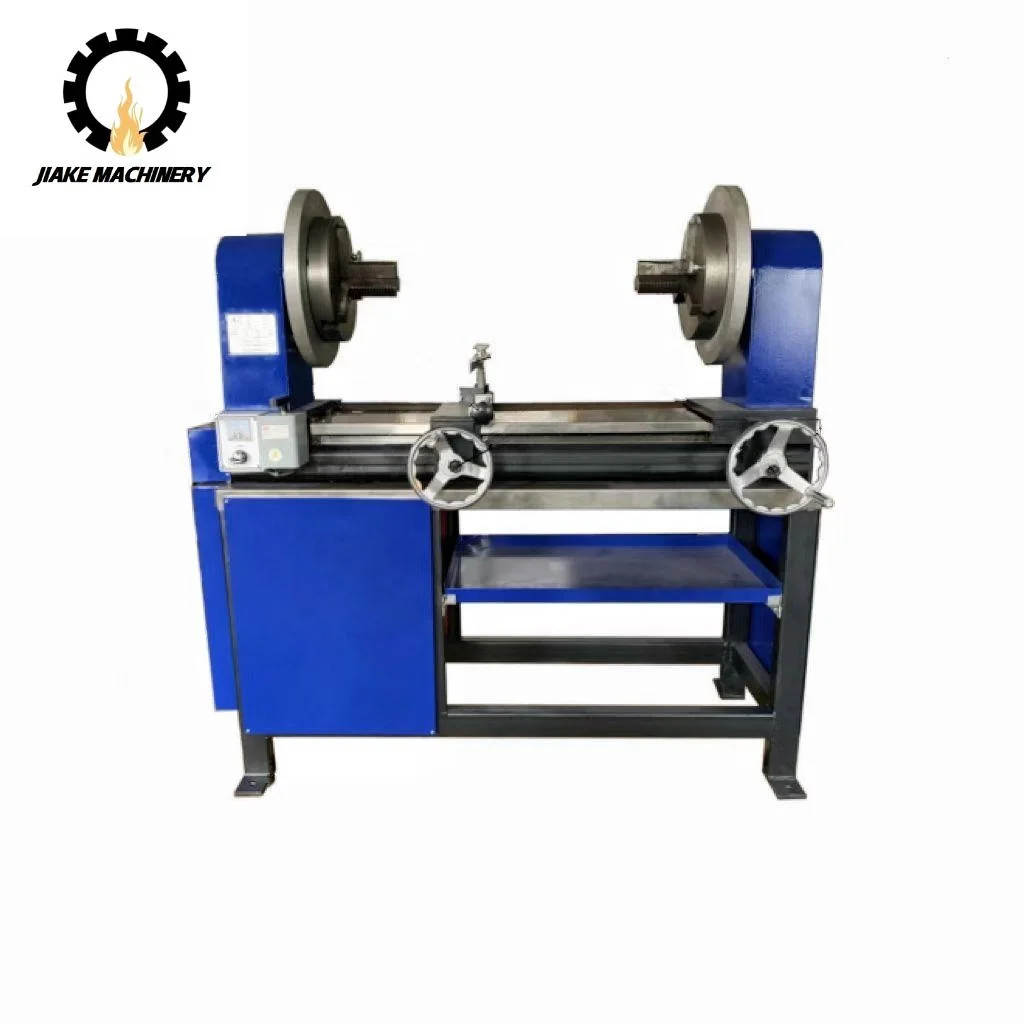

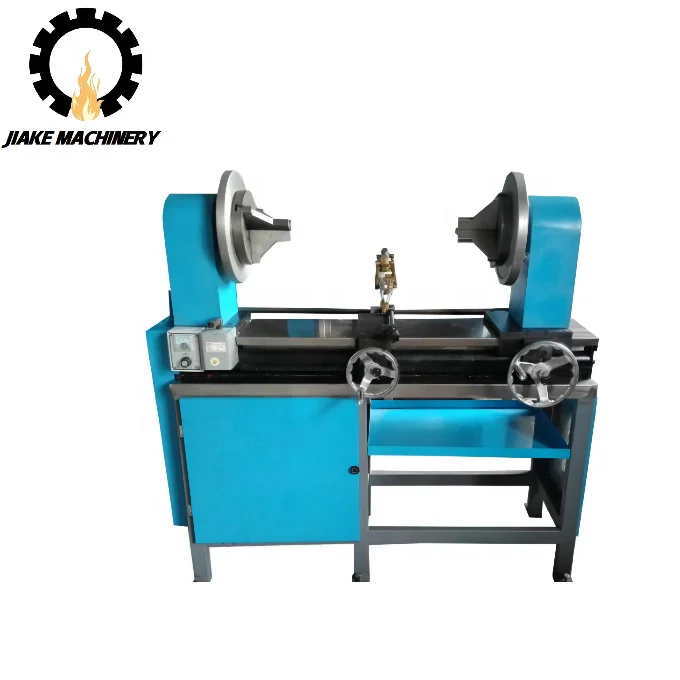

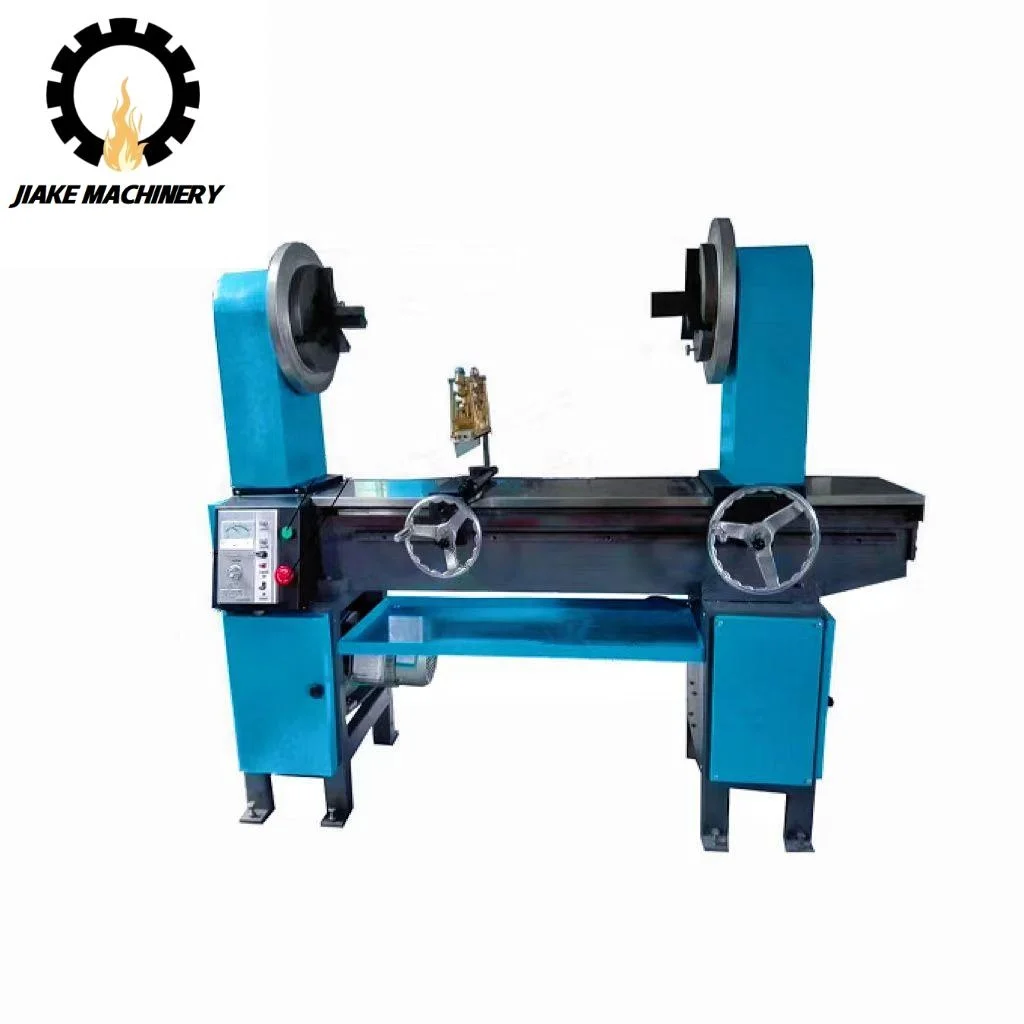

JK205-600 GLASS LATHE MACHINE
JK205-600 type glass processing lathe, combined with the advantages of various glass processing lathe, according to the lamp work technical master in the actual production and processing of the opinions and requirements of the machine tool, we create a new diameter, having a unique style, more in line with the actual requirements of the spindle aperture is large, the center of the front distance is high, the speed range is large. High power speed regulating board dc motor speed governor, so that the operation is arbitrary, arbitrary change the fastest speed. Bed track using high precision linear guide rail, easier to operate. And sealed with stainless steel plate. A lathe used to process glass instruments with two heads running simultaneously.
FEATURES AT A GLANCE
EXTENDING UNDERCARRIAGE
SAFETY FRAME
SIMPLE CONTROL
SEASY MAINTENANCE
VERSATILITY
JK65/90
JK125
JK155
PRODUCT SPECIFICATIONS
No | Item | Unit | Data | Manufacturer |
1 | Spindle Speed | PRM | 15-130 | |
2 | Chunk Holding Range | mm | 0-205 | |
3 | Chunk Hole | mm | 205 | |
4 | Power | kw | 1.5 | |
5 | Voltage | V | 380 | |
6 | Net Weight | kg | 1200 | |
7 | Size | mm | 2686×640×1570 | |
8 | Machine Bed Parts | PC | 1 | JIAKE |
9 | Fixed lathe Head | PC | 1 | JIAKE |
10 | Move lathe Head | PC | 1 | JIAKE |
11 | Chunks | PC | 2 | JIAKE |
12 | Electrical Part | PC | 1 | JIAKE |
13 | Linear guide | PC | 1 | TBI |
14 | Machine tool | PC | 1 | JIAKE |
PRODUCT CONFIGURATION
Motor
Linear Guide Rail

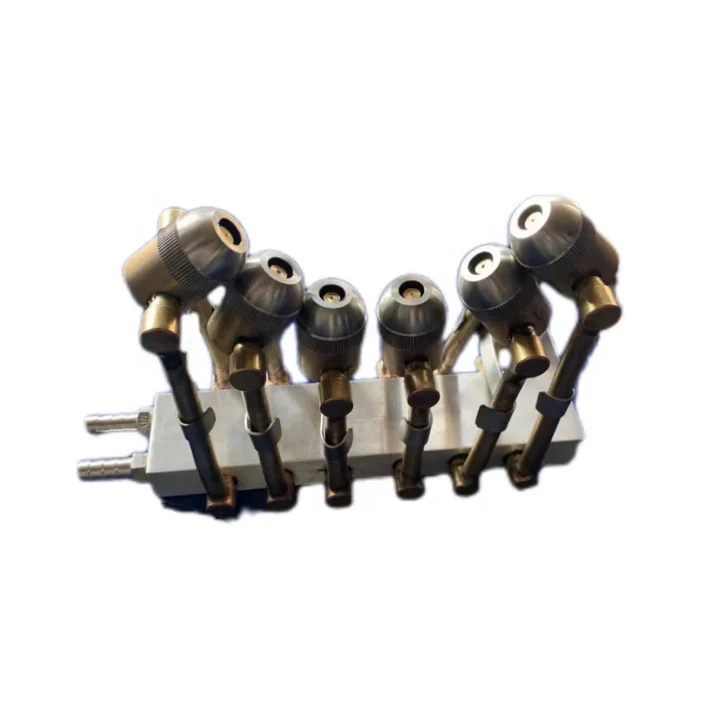

Gas Burner
SALES AND SERVICE NETWORK
Successful Project
Project in Thailand
Project in Usa
Project in Russia
SIMILAR PRODUCTS
FAQ
Q1: Can support OEM&ODM order?
Yes,we have rich experience in OEM&ODM production, can meet your personalized needs.
Q2: How to get the price list?
Pls Email /call /fax to us with you like items name together with you details(name,details address,telephone,etc),we will send to you as soon as possible.
Q3: What's the Payment method?
T/T, 50% deposit before production, the balance before delivery.
Q4: How can I get some samples?
Sure,we usually provide existing samples for free.But a little sample charge for custom designs,Sample charge is refundable when order is up to certain quantity.
Q5: Shipping terms?
We can do FOB,CIF,CFR and DDU, DDP.
Yes,we have rich experience in OEM&ODM production, can meet your personalized needs.
Q2: How to get the price list?
Pls Email /call /fax to us with you like items name together with you details(name,details address,telephone,etc),we will send to you as soon as possible.
Q3: What's the Payment method?
T/T, 50% deposit before production, the balance before delivery.
Q4: How can I get some samples?
Sure,we usually provide existing samples for free.But a little sample charge for custom designs,Sample charge is refundable when order is up to certain quantity.
Q5: Shipping terms?
We can do FOB,CIF,CFR and DDU, DDP.
