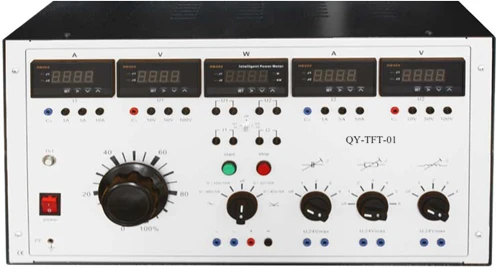

QY-TFT-01 Transformer Characteristics Testing System
1.Product description
1、The experimental box panel aluminum spray panel, to ensure personal safety.
2、With cooling holes in the shell, good heat dissipation.
3、Configure the fan and the dust cover, place the experimental box overheating.
4、Configuration imports of thermal electromagnetic relay, if the overload, immediately cut off the power.
5、Strong electric jacks to protect the jack, safe and reliable.
6、Configuration overheating, overload, ground fault protection device.
3.Experiments Supported
1、Step-down transformer voltage ratio measurement experiment
2、Step-up transformer voltage ratio measurement experiment
3、48/24V transformer voltage ratio measurement experiment
4、Step-down transformer current ratio measurement experiment
5、Current step-up transformer turns ratio measurement experiment
6、Transformer winding polarity determination experiments
7、The transformer winding resistance measurement experiment
8、Determination of load characteristics of the transformer
9、Transformer short circuit test
10、Transformer resistive load or a capacitive load test
11、Test transformer efficiency of the direct method
12、Determination of the hysteresis cycle of the transformer experiment
QY-TFT-01 Transformer full-featured test experimental platform for the "circuit", "motor learning" the development of a laboratory equipment, mainly used in transformers and power. The appearance of new experimental box, covers more than one transformer experiments, the transformer current, voltage and power measurement to stimulate enthusiasm for learning. Suitable for electrical engineering and automation, communications engineering, information engineering, and other related professionals.
2.Features1、The experimental box panel aluminum spray panel, to ensure personal safety.
2、With cooling holes in the shell, good heat dissipation.
3、Configure the fan and the dust cover, place the experimental box overheating.
4、Configuration imports of thermal electromagnetic relay, if the overload, immediately cut off the power.
5、Strong electric jacks to protect the jack, safe and reliable.
6、Configuration overheating, overload, ground fault protection device.
3.Experiments Supported
1、Step-down transformer voltage ratio measurement experiment
2、Step-up transformer voltage ratio measurement experiment
3、48/24V transformer voltage ratio measurement experiment
4、Step-down transformer current ratio measurement experiment
5、Current step-up transformer turns ratio measurement experiment
6、Transformer winding polarity determination experiments
7、The transformer winding resistance measurement experiment
8、Determination of load characteristics of the transformer
9、Transformer short circuit test
10、Transformer resistive load or a capacitive load test
11、Test transformer efficiency of the direct method
12、Determination of the hysteresis cycle of the transformer experiment
power supply | single-phase power supply 220V, 50Hz | ||||||
working environment | temperature -10℃~+40℃, relative humidity≤85% (25℃), altitude ≤ 4000m | ||||||
reliability | MTBF≥2000h; MTTR≤0.5h | ||||||
dimensions | 850×680×470 (length×width×height, unit: mm) | ||||||
